Oscillator

Oscillator. Sawtooth/ramp wave Band-limited to avoid aliasing: “Naïve” sawtooth aliases badly, especially at high frequencies Audio example: [from wikipedia.org/wiki/Aliasing]. Wavetable Oscillator. Pre-generate band-limited waveforms, then upsample on the fly.

ossie
Télécharger la présentation

Oscillator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

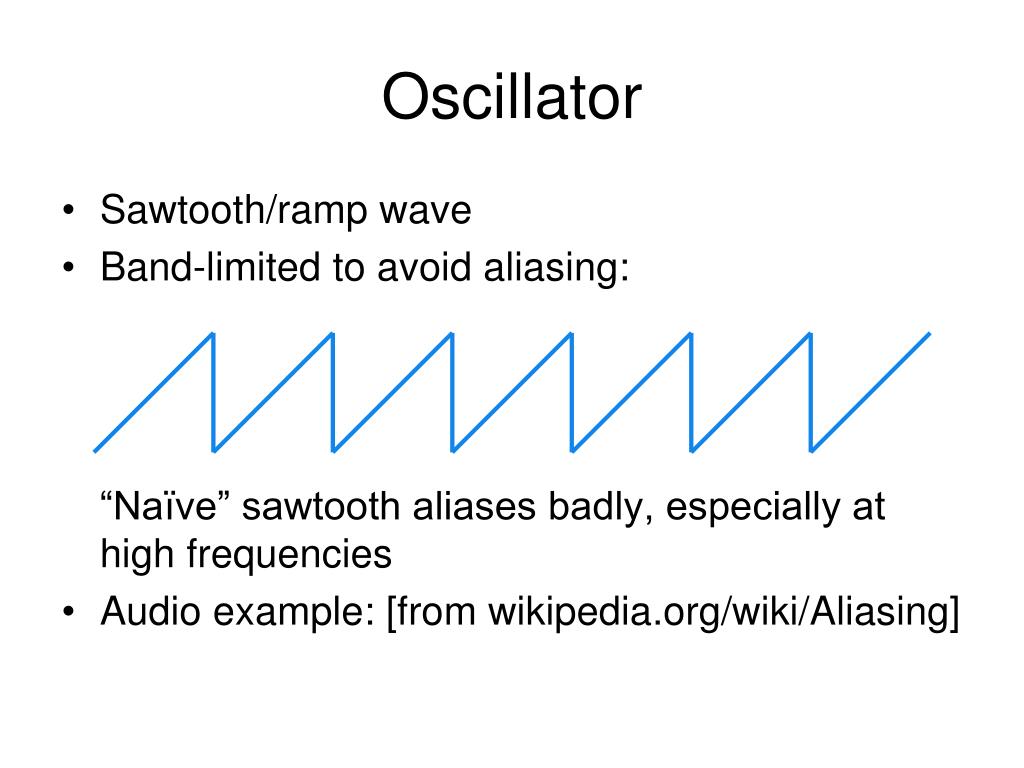

  1. Oscillator • Sawtooth/ramp wave • Band-limited to avoid aliasing:“Naïve” sawtooth aliases badly, especially at high frequencies • Audio example: [from wikipedia.org/wiki/Aliasing]

  2. Wavetable Oscillator • Pre-generate band-limited waveforms, then upsample on the fly A1 A2 A3 … A9 Wavetables F2 F2 F2 Oscillator output block

  3. Envelopes • ADSR: Attack, Decay, Sustain, Release Attack time Release time level Decay time Sustain level time

  4. Expression Control • Intensity • Articulation + Envelope * Oscillator * output

  5. Double Buffering (Batching) • More efficient to synthesize in blocks • Introduces 64 samples of latency (2 ms) • Block error averages to another 32 samples. Playback Buffer Synthesis Buffer (to be filled) Synthesis Buffer (full) Playback Buffer

  6. Note Sequences • Big array of bytes – each byte is a note. • 0 means “no change”, 1 means “stop note” • 12 – 127 are C0 through G9 by halfsteps • Merry Had a Little Lamb:
