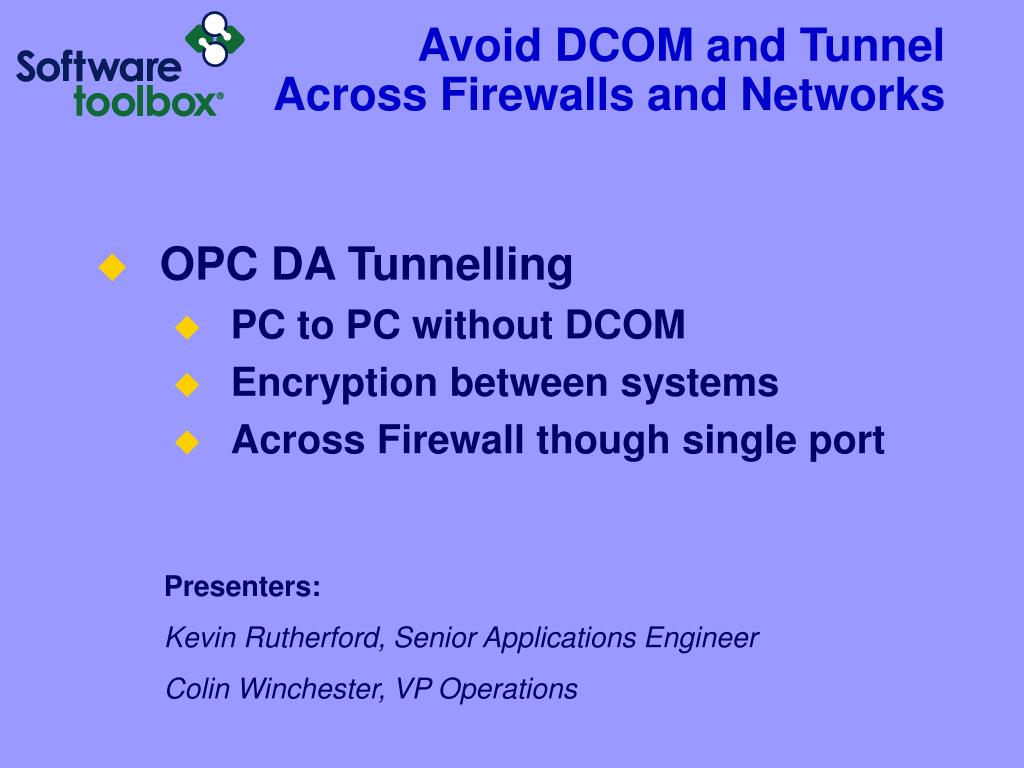

  1. Avoid DCOM and Tunnel Across Firewalls and Networks • OPC DA Tunnelling • PC to PC without DCOM • Encryption between systems • Across Firewall though single port Presenters: Kevin Rutherford, Senior Applications Engineer Colin Winchester, VP Operations

  2. OPC Tunneling and Data Aggregation with OPC DataHub Agenda • Overview of the OPC Data Hub • OPC Data Aggregation - Why & How? • OPC Tunneling – How? • Live Demo – Tunneling & Logging Remote Data to ODBC Database • Additional Application Examples • Questions & Answers

  3. OPC Data HubFunctionality Overview http://www.softwaretoolbox.com/opcdatahub

  4. 1 to N OPC Clients (i.e. HMI/SCADA) OPC DataHub OPC Data Aggregation What Is Aggregation? • Bringing together data from multiple sources • Data sources don’t all have to be OPC servers! Aggregating to a Single Computer Multiple & Varied Data Sources

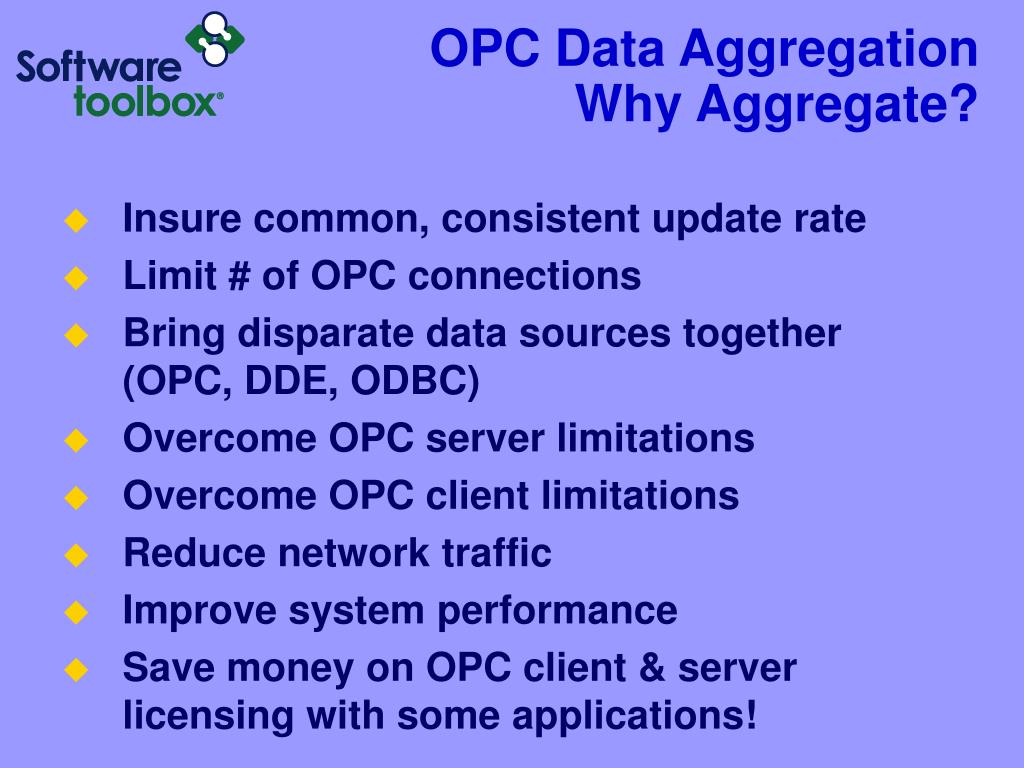

  5. OPC Data AggregationWhy Aggregate? • Insure common, consistent update rate • Limit # of OPC connections • Bring disparate data sources together (OPC, DDE, ODBC) • Overcome OPC server limitations • Overcome OPC client limitations • Reduce network traffic • Improve system performance • Save money on OPC client & server licensing with some applications!

  6. What is Tunneling? OPC Tunneling • Moving OPC Data via simple TCP/IP port connection • Eliminating DCOM and Expanding Data Transport Choices Computer #1 Computer #2

  7. OPC TunnelingWhy Tunnel? • No DCOM! • No Remote Procedure Calls (RPC) • Handles Network Interruptions • Handles Low-bandwidth networks • Improve System Performance & Reliability • Reduce Network Traffic • Remove Firewall Issues • Connecting to Non-Windows Systems

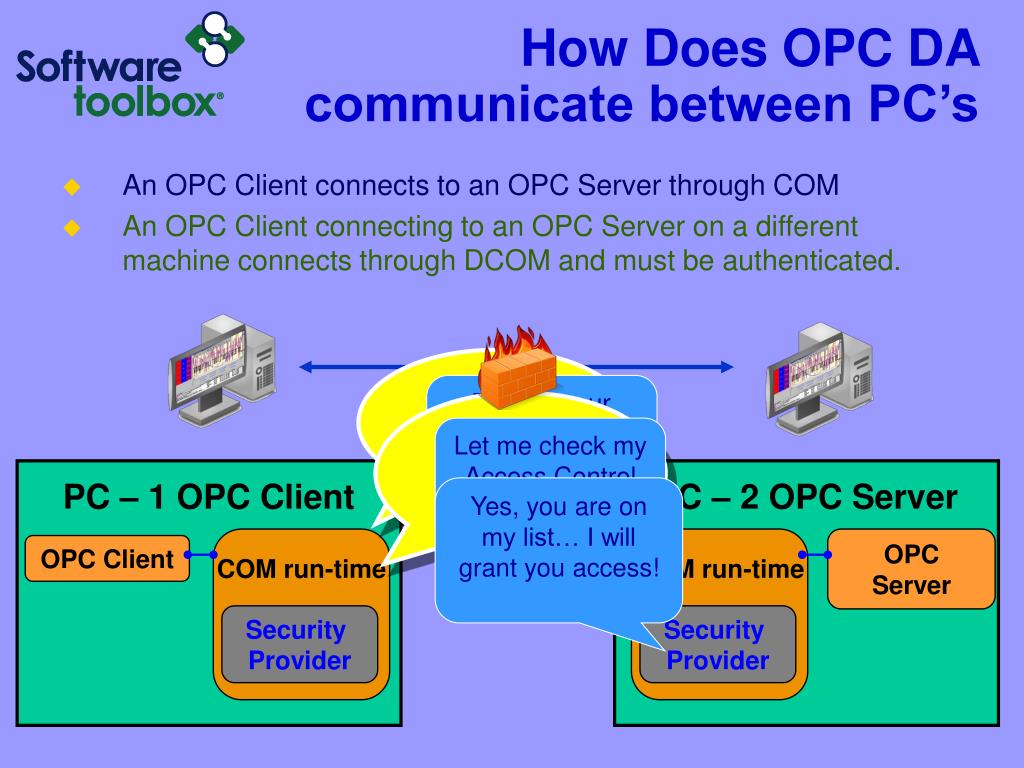

  8. PC – 1 OPC Client COM run-time COM run-time OPC Client Security Provider Security Provider How Does OPC DA communicate between PC’s • An OPC Client connects to an OPC Server through COM • An OPC Client connecting to an OPC Server on a different machine connects through DCOM and must be authenticated. I want to connect to you Tell me your login name and password! My user name is “fred” and password is “*****” Let me check my Access Control List…. PC – 2 OPC Server Yes, you are on my list… I will grant you access! OPC Server

  9. OPC TunnelingWhy Tunnel with DataHub? • No DCOM! Or RPC – Easy to configure • Remove Firewall Issues – single port • Network Interruptions – more then DCOM • Heartbeat and reconnect settings • Low-bandwidth or Reduce Network Traffic • No polling • Single connection for multiple tunnels • Improve System Performance & Reliability • Mirrors data – both side share data • Clients connected to OPC DataHub always get an answer • Non-blocking calls

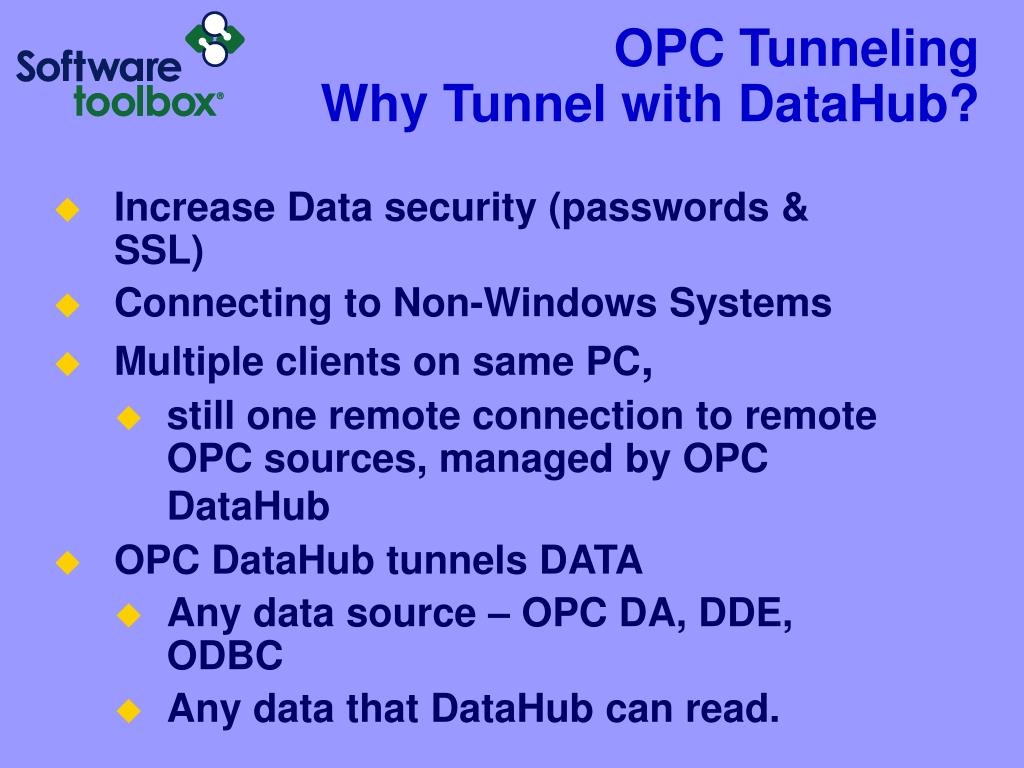

  10. OPC Tunneling Why Tunnel with DataHub? • Increase Data security (passwords & SSL) • Connecting to Non-Windows Systems • Multiple clients on same PC, • still one remote connection to remote OPC sources, managed by OPC DataHub • OPC DataHub tunnels DATA • Any data source – OPC DA, DDE, ODBC • Any data that DataHub can read.

  11. OPC Tunneling Why Tunnel with DataHub? • Other Tunnellers • Tunnel commands at the OPC protocol level and can only tunnel OPC Data! • Make connected clients wait on network timeouts • Multiple clients on same PC talking to remote OPC server = multiple connections

  12. Other Approaches • VPN • Does not solve • DCOM, Network stability, bandwidth and crossing domains • OPC XML/DA • Not secure, more over head, not for high speed, limited products, OPC UA • OPC UA • Requires all products to support it • DataHub will add this

  13. 3 Steps to Tunneling with OPC DataHub • Step 2: Connect Master to Slave • Step 1: Connect Master to OPC Server • Step 3: Connect OPC Client to Slave

  14. OPC Aggregation &Tunnelling • Live Demonstration Laptop PC Desktop PC

  15. Aggregation & TunnelingAdditional Application Examples Aggregating & Tunneling to MES/ERP Systems Aggregation Consolidates Plant Floor Data Tunneling gets it to the front office ODBC, API’s, DDE, Scripting, TCP/IP Available to tie in to MES/ERP

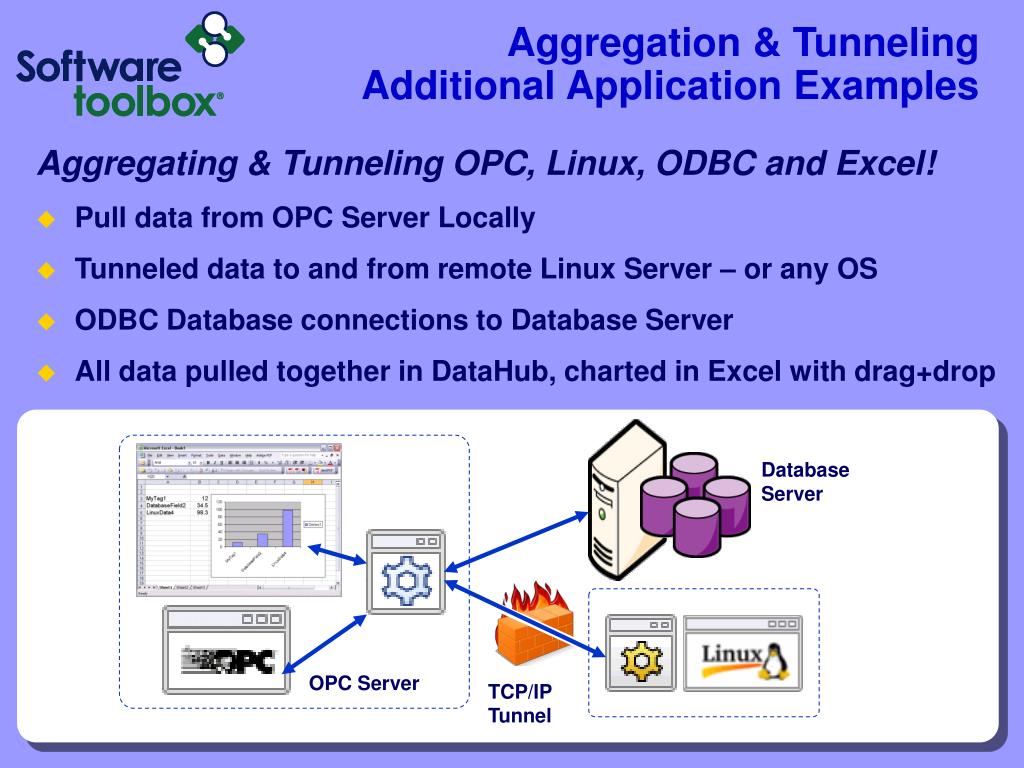

  16. Aggregation & TunnelingAdditional Application Examples Aggregating & Tunneling OPC, Linux, ODBC and Excel! Pull data from OPC Server Locally Tunneled data to and from remote Linux Server – or any OS ODBC Database connections to Database Server All data pulled together in DataHub, charted in Excel with drag+drop DatabaseServer OPC Server TCP/IPTunnel

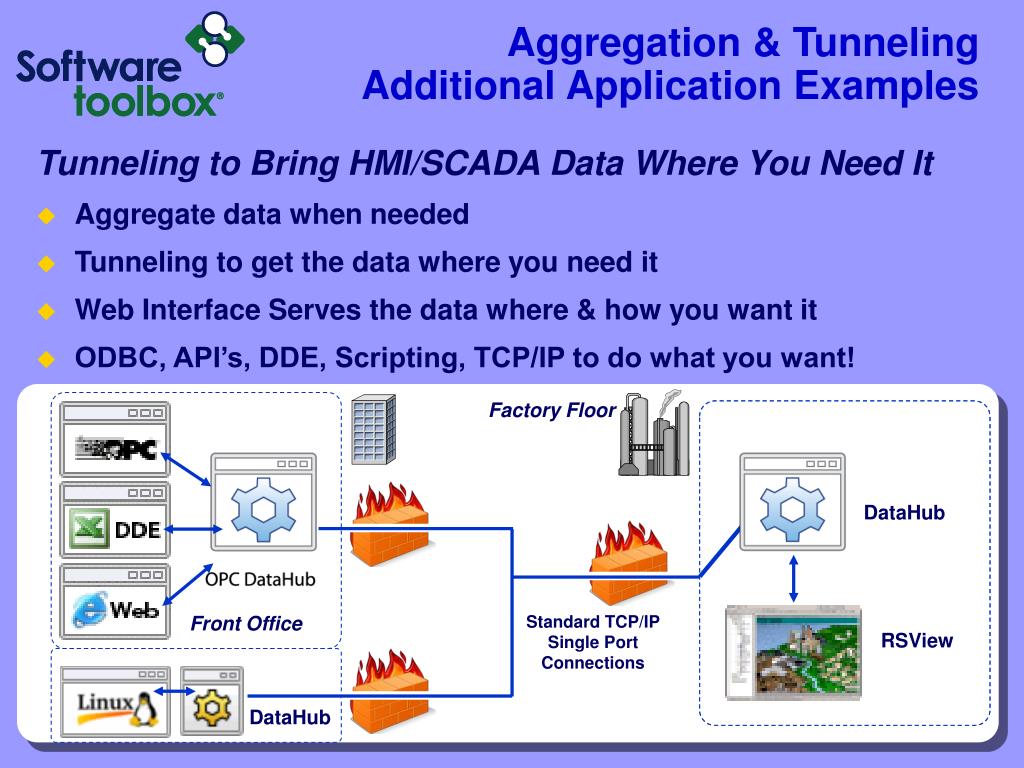

  17. DataHub DataHub GEProficyiFix RSView DataHub TOP ServerInTouch to OPC Driver InTouchHMI Aggregation & TunnelingAdditional Application Examples Tunneling to Bring HMI/SCADA Data Where You Need It Aggregate data when needed Tunneling to get the data where you need it Web Interface Serves the data where & how you want it ODBC, API’s, DDE, Scripting, TCP/IP to do what you want! Factory Floor Front Office Standard TCP/IP Single Port Connections DataHub

  18. What Tools are Needed? • For all usage scenarios • No tag count limits • No limits on # of clients, # of servers used with a single DataHub • Aggregation on a Single PC – 1 DataHub License - $995 • Aggregation + Tunnelling Scenario – 2 DataHub licenses (one per PC) - $1990 • Demo site will pop-up after this presentation: • http://www.softwaretoolbox.com/opcdatahub/html/free_demo.shtml

  19. Contact Information & Other Learning Opportunities • Questions later? • krutherford@softwaretoolbox.com • cwinchester@softwaretoolbox.com • 888-665-3678 or 704-849-2773 • www.softwaretoolbox.com/opcdatahub • Other learning opportunities • www.softwaretoolbox.com/opcdatahub and click on Videos/Training • Visit www.softwaretoolbox.com/webinars
