Chapter 2 Electrical Principles and PLCs

Chapter 2 Electrical Principles and PLCs. Programmable Logic Controllers and Electrical Principles • Voltage • Current • Resistance • Series Circuits • Parallel Circuits.

owen-mckenzie
Télécharger la présentation

Chapter 2 Electrical Principles and PLCs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 2Electrical Principles and PLCs Programmable Logic Controllers and Electrical Principles • Voltage • Current • Resistance • Series Circuits • Parallel Circuits

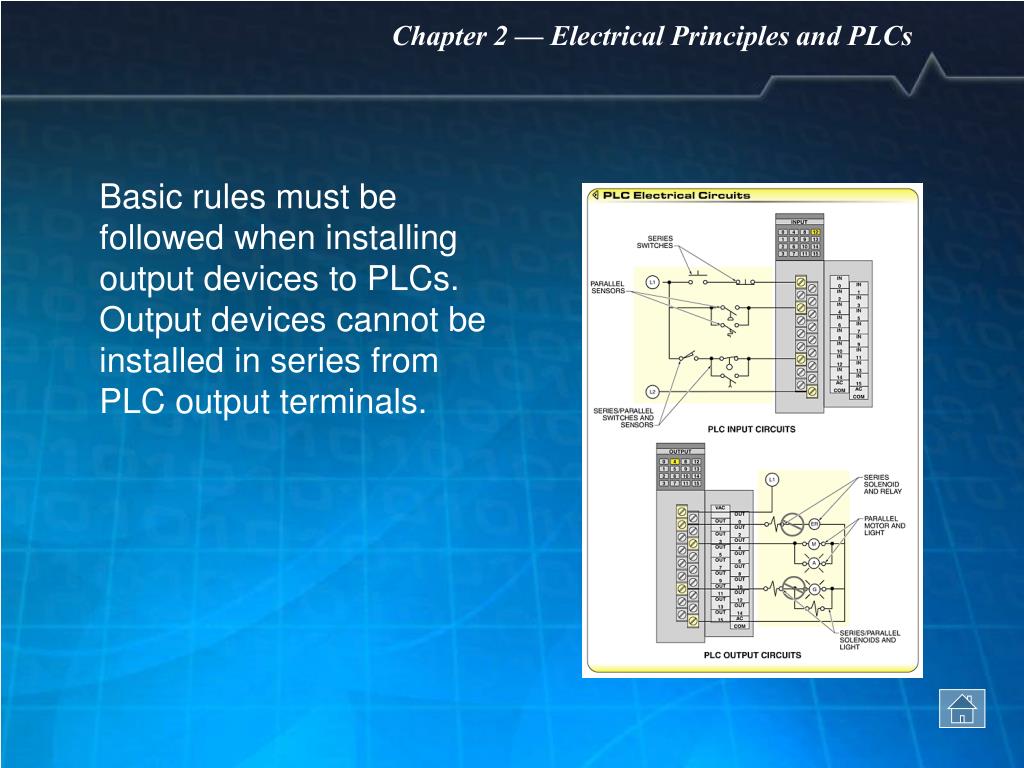

  2. Basic rules must be followed when installing output devices to PLCs. Output devices cannot be installed in series from PLC output terminals.

  3. When all PLC system hardware is functioning but the system is not operating correctly, the problem may be with the software, such as an incorrect program, incorrect symbols, or the program not being keyed correctly into the PLC.

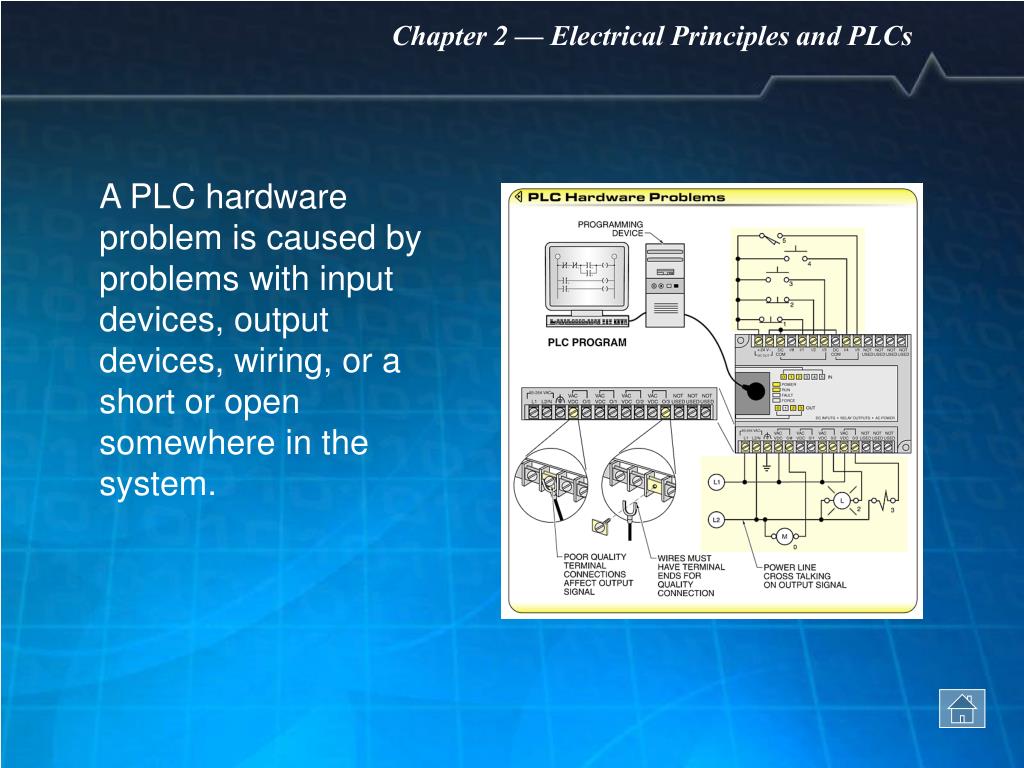

  4. A PLC hardware problem is caused by problems with input devices, output devices, wiring, or a short or open somewhere in the system.

  5. The voltage supplied to portable PLCs can come from portable generators, batteries, or solar panels.

  6. All points in a DC voltage circuit have polarity.

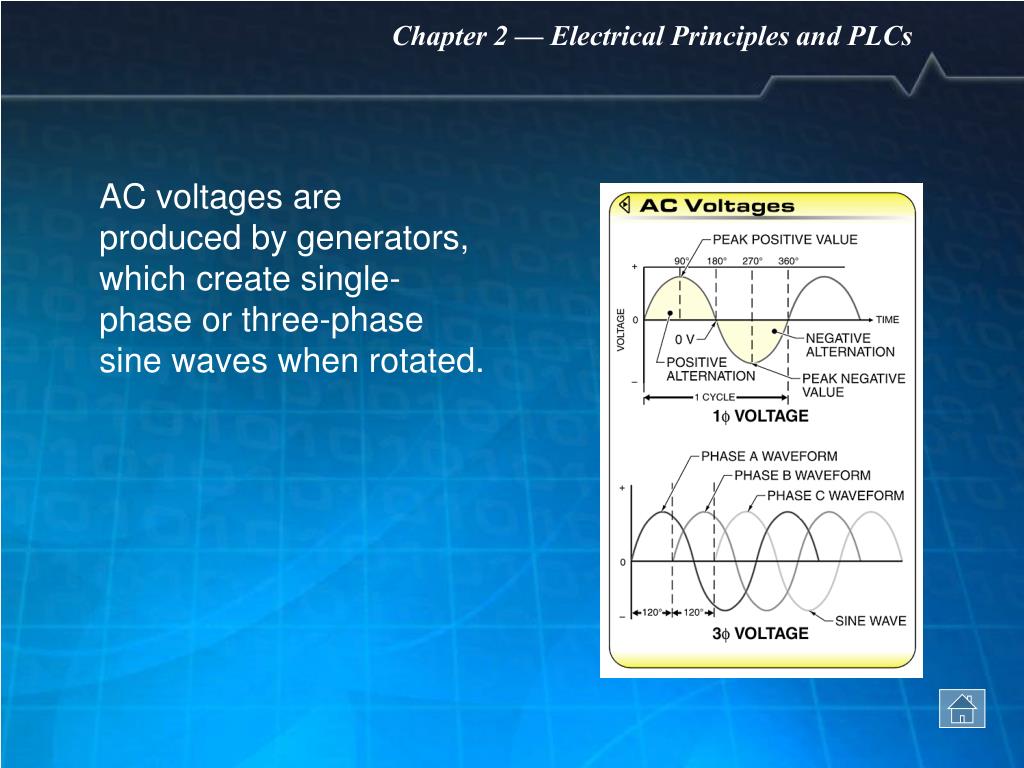

  7. AC voltages are produced by generators, which create single-phase or three-phase sine waves when rotated.

  8. PLCs are powered by single-phase AC but can control both single-phase or three-phase AC loads.

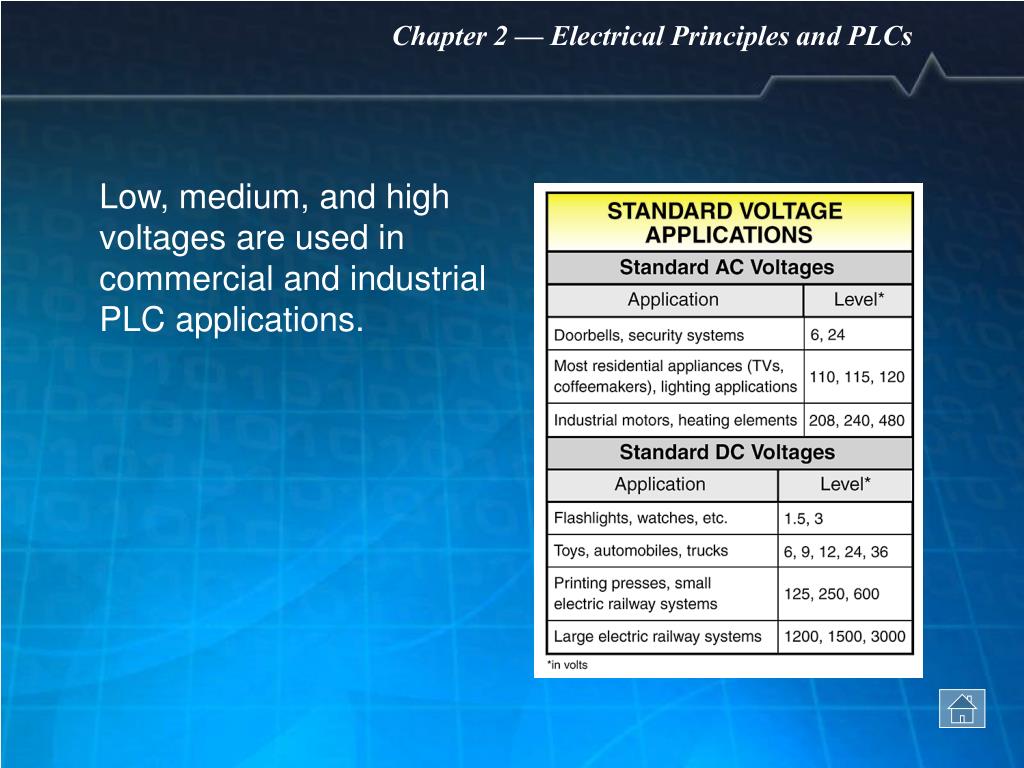

  9. Low, medium, and high voltages are used in commercial and industrial PLC applications.

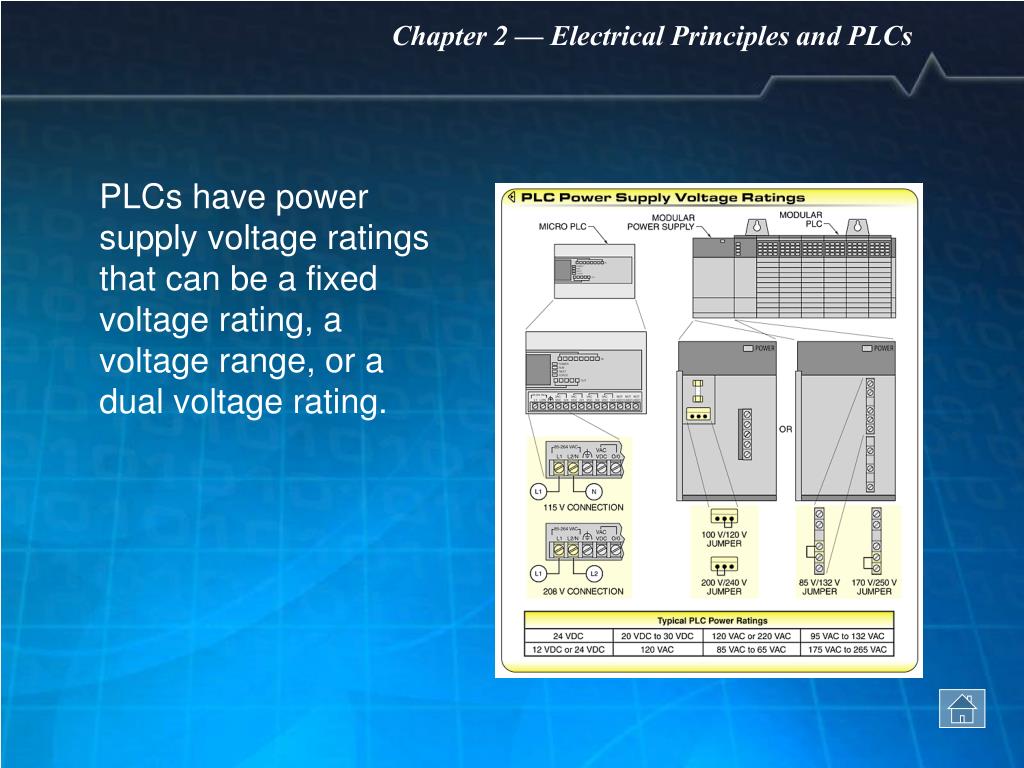

  10. PLCs have power supply voltage ratings that can be a fixed voltage rating, a voltage range, or a dual voltage rating.

  11. PLC input terminals are available with DC, AC, or DC/AC ratings that typically use low voltages such as 12 VDC or 24 VDC.

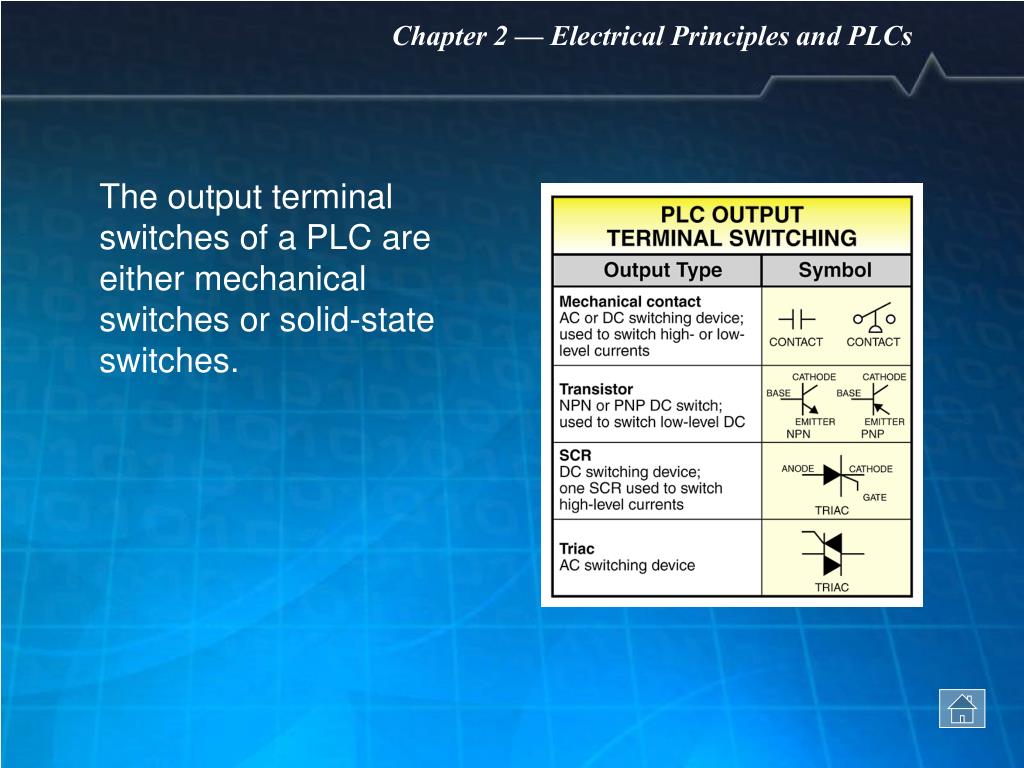

  12. The output terminal switches of a PLC are either mechanical switches or solid-state switches.

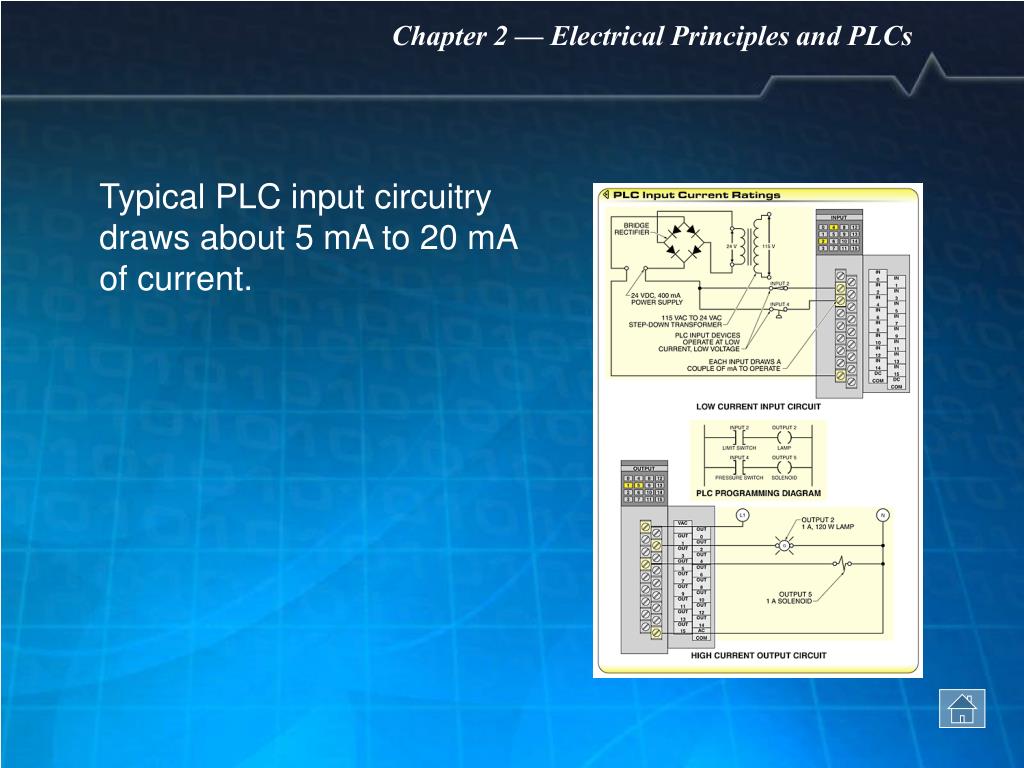

  13. Typical PLC input circuitry draws about 5 mA to 20 mA of current.

  14. A two-wire input switch circuit uses mechanical (pushbutton) or solid-state (photoelectric and proximity) switches, and a three-wire input switch circuit uses solid-state switches.

  15. Switching devices that use NPN transistors as switching elements are called current sinking, negative switching, or NPN devices.

  16. Switching devices that use PNP transistors as the switching elements are called current sourcing, positive switching, or PNP devices.

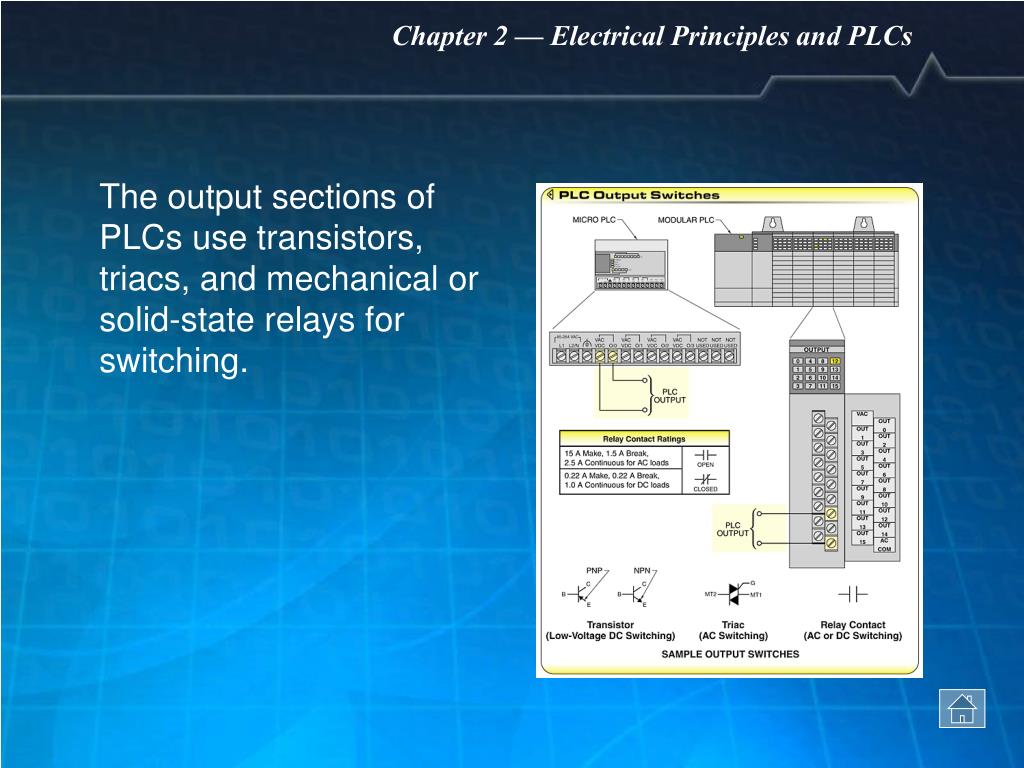

  17. The output sections of PLCs use transistors, triacs, and mechanical or solid-state relays for switching.

  18. Copper (Cu) is a better conductor than aluminum (Al) because copper can carry more current for a given size (AWG).

  19. Series circuits have two or more devices or components connected so there is only one flow path for current to take.

  20. PLC communications cables connected in series (daisy-chained) are used to connect individual PLC processors.

  21. The total resistance of a series circuit increases when loads are added in series and decreases when loads are removed.

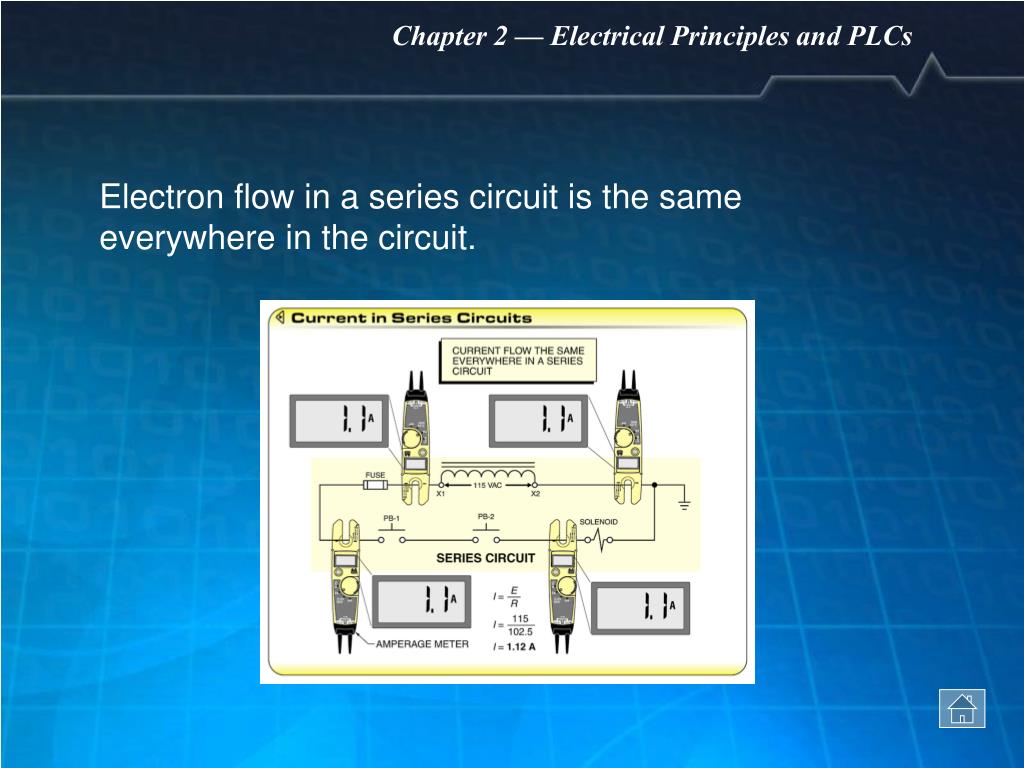

  22. Electron flow in a series circuit is the same everywhere in the circuit.

  23. Voltage drop is the amount of voltage consumed by a device or component as current passes through it.

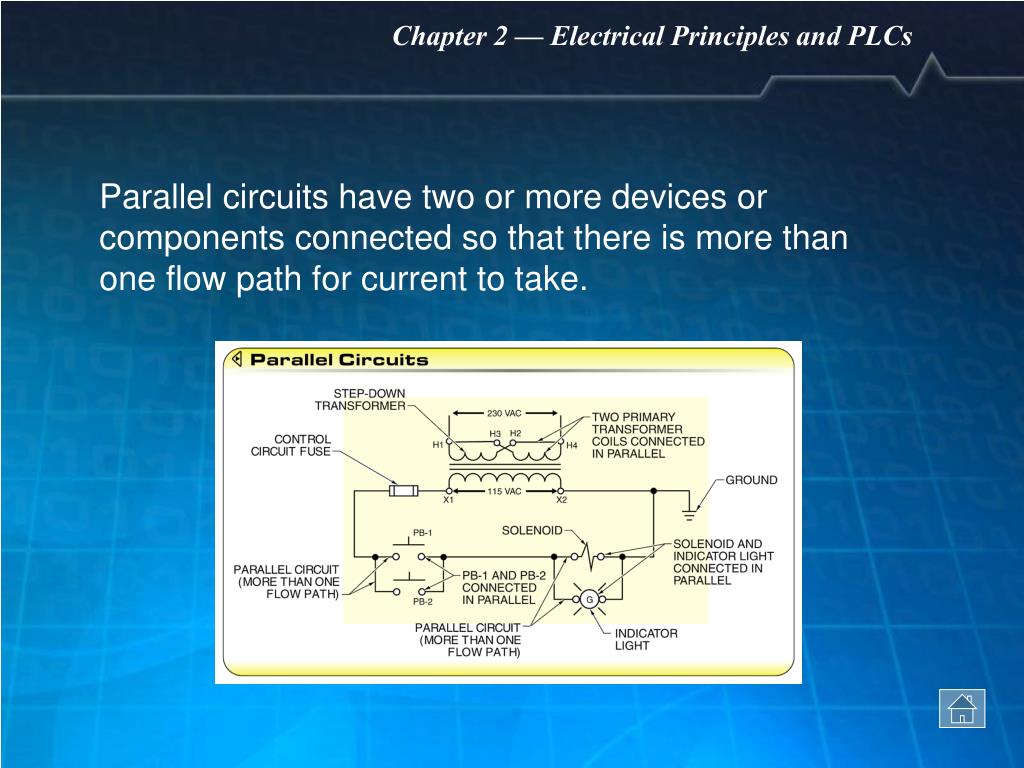

  24. Parallel circuits have two or more devices or components connected so that there is more than one flow path for current to take.

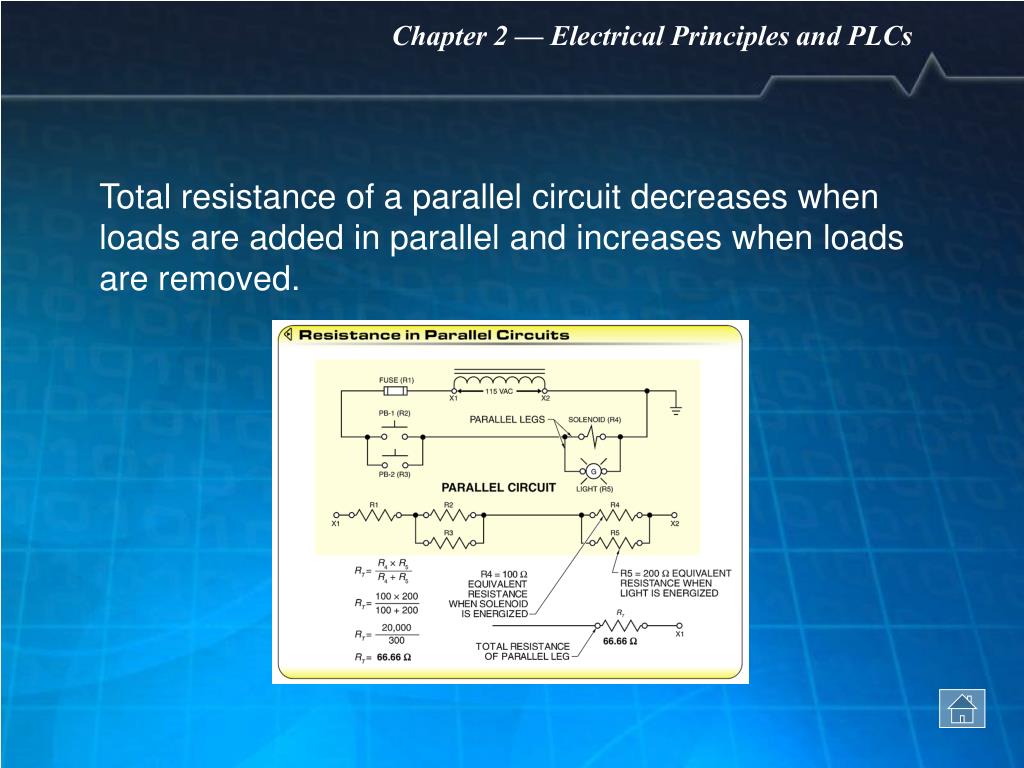

  25. Total resistance of a parallel circuit decreases when loads are added in parallel and increases when loads are removed.

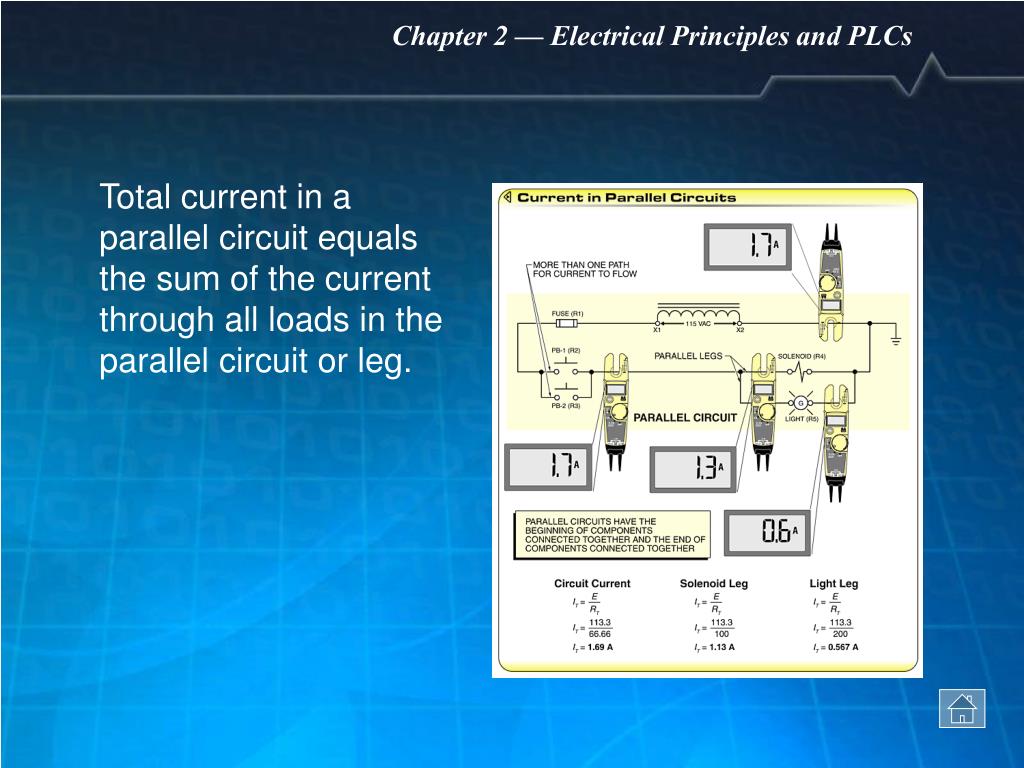

  26. Total current in a parallel circuit equals the sum of the current through all loads in the parallel circuit or leg.

  27. The voltage drop across individual loads remains the same when parallel loads are added or removed.
