  1. Oregon Robotics Tournament and Outreach Program RCX Basics

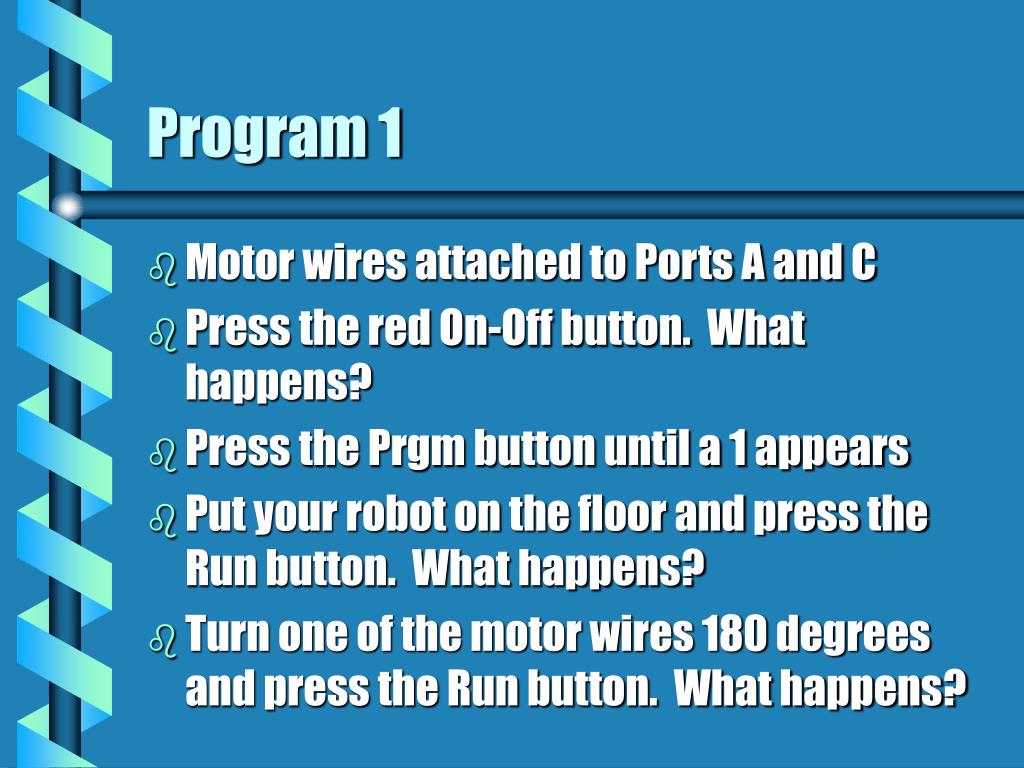

  2. Program 1 • Motor wires attached to Ports A and C • Press the red On-Off button. What happens? • Press the Prgm button until a 1 appears • Put your robot on the floor and press the Run button. What happens? • Turn one of the motor wires 180 degrees and press the Run button. What happens?

  3. Program 2 • Connect two touch sensors with long wires to Ports 1 and 3 • Turn on the RCX and select Program 2 • Put your robot on the floor and press Run. What happens? • Using the touch sensor on Port 1, push and hold the yellow button. What happens? • Do the same with the touch sensor on Port 3 • “Drive” your robot around the floor

  4. Program 3 • Light sensor connected to Port 2 • Turn on the RCX and select Program 3 • Hold your robot and press the Run button • What happens as you move the light sensor between the white area and the black area below?
