  1. Joining and Cutting Processes

  2. Fusion Welding Processes • Fusion Welding involves heating two materials above their melting temperatures (electrically or chemically). • Filler (rods) metals are added to the weld area during the welding of a joint (supply additional material to weld zone). Engr 241-R1

  3. Processes Oxyfuel Gas Arc Consumed Electrode Non-Consumed Electrode Resistance Solid State Other – “High Energy” Engr 241-R1

  4. Oxyfuel Gas Welding • Process that uses a fuel gas combined with oxygen to produce a flame • Typically used for structural sheet-metal fabrication, automotive bodies, and various repair tasks • Most common fuels used - acetylene (oxyacetylene). • Manual operation, portable & flexible.Low equipment cost. Engr 241-R1

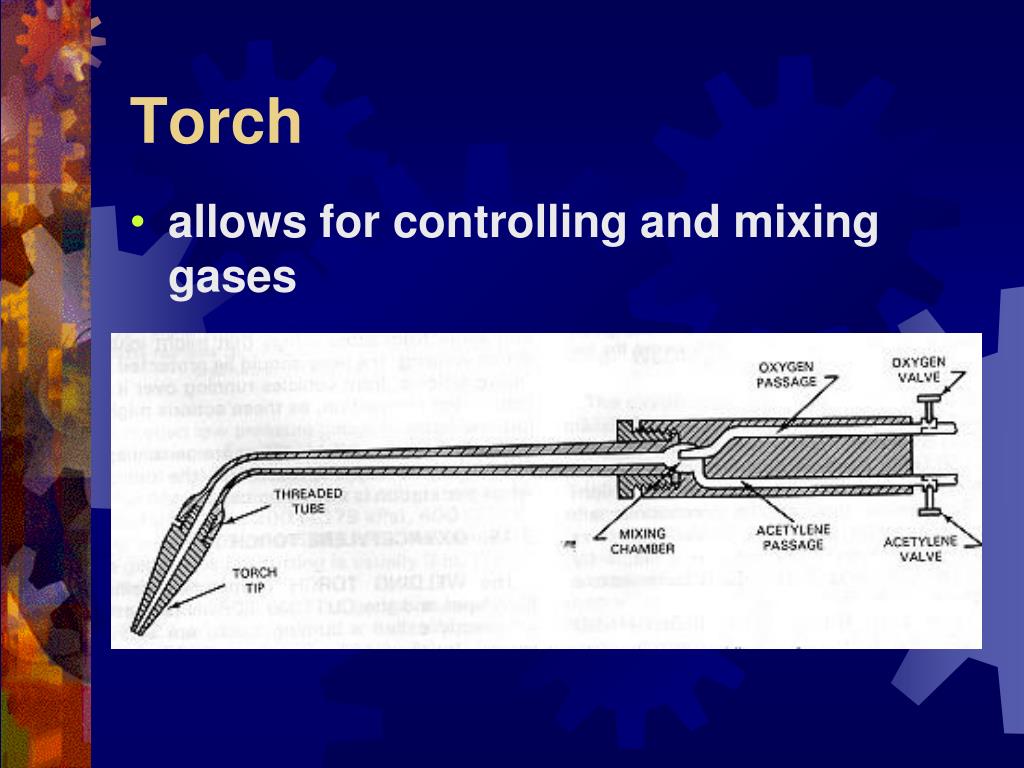

  5. Torch • allows for controlling and mixing gases

  6. Oxygen and fuel gas cylinders

  7. Cylinder Safety • Caps on when moving • Secure to truck or wall • Keep upright (Acetylene) (1/7 Rule) • Hand over regulator when opening • Read labels – don’t rely on colors • Dangers of compressed oxygen Engr 241-R1

  8. Oxyfuel Gas Welding- Flame Types • Neutral Flame: 1:1 ratio (oxygen vs. fuel). • Oxidizing Flame: greater oxygen supply (not for steels). • Reducing (Carburizing) Flame: lower oxygen supply (lower temperature)- brazing. Engr 241-R1

  9. Neutral - the oxygen and fuel gases combine • oxygen burns up the carbon and the hydrogen in the fuel gas then releases only heat and harmless gases • flame temp is 5589 deg F.

  10. Oxyfuel Gas Welding- Flux • Retard oxidation of surfaces of the parts being welded • Dissolves/Removes oxides or other substances • Stronger joints Engr 241-R1

  11. Arc Welding Processes (Consumable Electrode) • Developed in the mid-1800s • Heat obtained through electrical energy Engr 241-R1

  12. Shielded Metal Arc Welding (SMAW) • Stick welding • 50% of all large-scale industrial welding operations- portable process. • Electric arc generated between tip of coated electrode and the workpiece. • Electrode coating produces a shielding gas to protect from oxygen. Engr 241-R1

  13. Engr 241-R1

  14. Electric arc between flux covered electrode and base metal

  15. Engr 241-R1

  16. SMAW (Cont.) • (DCEN) electrode negative • Workpiece positive, electrode negative. • Sheet metals - shallow penetration, gap joints. • (DCEP) electrode positive • Electrode positive, workpiece negative. • Deeper penetration. • (AC) Alternating current Engr 241-R1

  17. Engr 241-R1

  18. SMAW (Cont.) • Thick sections, large electrodes at max current. • Manual, portable, and flexible. AC-DC machines, low cost equipment Engr 241-R1

  19. Submerged Arc Welding • Weld arc is shielded by a granular flux. • Flux is fed to weld zone by gravity. • Flux covers molten metal which prevents spatter, sparks, UV radiation, or fumes. • Flux is recovered. • 4-10 times productivity of SMAW, automatic, horizontal, low skill, Engr 241-R1

  20. Submerged Arc

  21. Underwater SMAW • use well insulated electrode holder and special water proof covered electrodes • because of rapid cooling - use stringer beads not weaving • short arc length and DCEN • poor visibility - use #4 or #8 lens • communication system • normally have 80% of the tensile strength and 50 of the ductility of normal welds

  22. Gas Metal Arc Welding (GMAW) • Formerly MIG (Metal Inert Gas). • Argon, helium, carbon dioxide, or mix (Shield the arc to prevent oxidation). • Wire fed automatically through nozzle into arc. Engr 241-R1

  23. Engr 241-R1

  24. GMAW (Cont.) • Rapid, economical, twice SMAW productivity. • Most production done today • Can be automated (robots), low skill, DC, medium cost equipment. Engr 241-R1

  25. Engr 241-R1

  26. Engr 241-R1

  27. Flux Cored Arc Welding (FCAW) • Same as GMAW but electrode is tubular and filled with flux. • Automatic feeding of wire (like GMAW). • Uses no external gas source • Fast growing • Thin to thick sections. • Can be automated (robotics), DC, medium cost. Engr 241-R1

  28. Engr 241-R1

  29. Engr 241-R1

  30. Electrogas Welding • For welding butt joint edges vertically in one pass. • Metal deposited between two pieces joined – space enclosed by copper shoes sliding upward with weld • Also around pipe • 1/2” to 3” thickness. • Usually automated, High equipment cost. • For welding bridges, pipes, tanks, ships Engr 241-R1

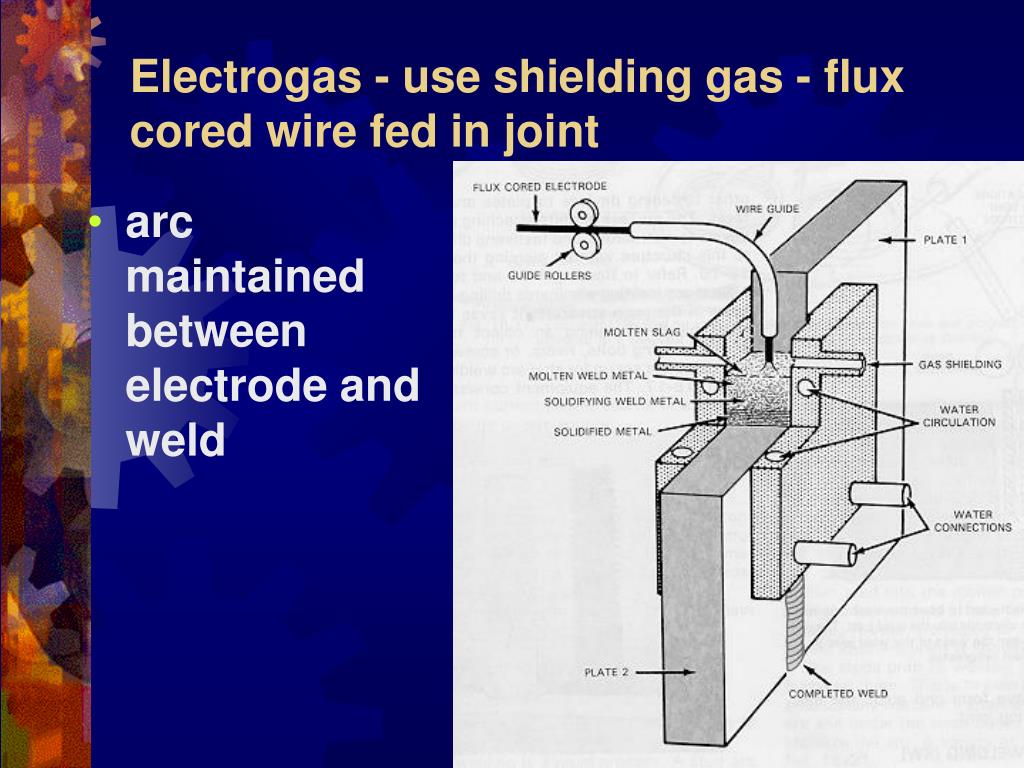

  31. Electrogas - use shielding gas - flux cored wire fed in joint • arc maintained between electrode and weld

  32. Electro-slag Welding • Similar to EGW. • Weld begins at part bottom, molten slag extinguishes arc. • Heat then produced continuously by elect. Resist. of molten slag • Very thick sections - 2” to 36”. • High cost of equipment. Engr 241-R1

  33. Vertical joint - arc started between electrode & bottom

  34. Electrodes • Strength of deposited metal. • Type of coating. • Size (1/16 to 5/16 in diameter). Engr 241-R1

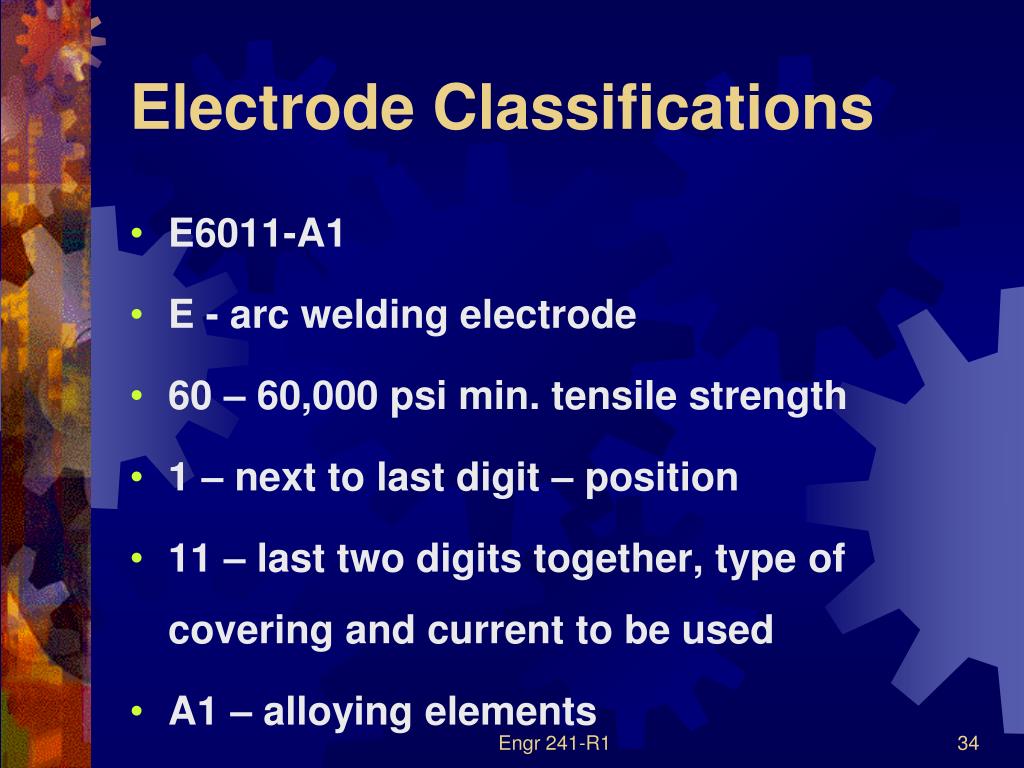

  35. Electrode Classifications • E6011-A1 • E - arc welding electrode • 60 – 60,000 psi min. tensile strength • 1 – next to last digit – position • 11 – last two digits together, type of covering and current to be used • A1 – alloying elements Engr 241-R1

  36. Electrode Coatings • Clay like material. • Silica binders and powdered materials (Oxides, carbonates, fluorides, metal alloys, cellulose) Engr 241-R1

  37. Electrode Coatings (Cont.) • Stabilize the arc. • Generate a gas shield. • Control rate at which the electrode melts. • Act as a flux to protect weld (from oxidation). • Add alloying elements to joint ie. Protect from becoming brittle). Engr 241-R1

  38. Arc Welding (Non-Consumable Electrode) • Gas Tungsten-Arc Welding (GTAW) • Plasma Arc Welding (PAW) Engr 241-R1

  39. Gas Tungsten-Arc Welding (GTAW) • Formerly TIG (Tungsten Inert Gas). • Shielding gas is supplied from an external source. Argon or helium (high cost). • Filler metal is supplied from filler wire. • Tungsten electrode is not consumed. Engr 241-R1

  40. GTAW-NCE (Cont.) • Good for thin parts, high quality welds. Used for welding aluminum, magnesium, titanium, and refractory metals. • all positions, AC-DC, medium distortion, portable equipment, medium cost of equipment. Engr 241-R1

  41. Plasma Arc Welding • Argon and helium. • Arc is hot ionized gas (60,000 degrees °F). • Transferred- workpiece is part of circuit. • Non-transferred- Arc between tungsten electrode and nozzle. • High energy, deep penetration, stable arc, less thermal distortion, high speed, > ¼” thick material, high skill, medium cost of equipment. Engr 241-R1

  42. Separate shielding gas protects the welding or cutting process

  43. Resistance Welding Processes • Spot • Seam • Projection • Stud • Flash Engr 241-R1

  44. 1.) Resistance Spot Welding • Uses pressure and resistivity of parts to form nugget. • Must be clean but not oxide free • Used for sheet metal parts Engr 241-R1

  45. Spot - most common

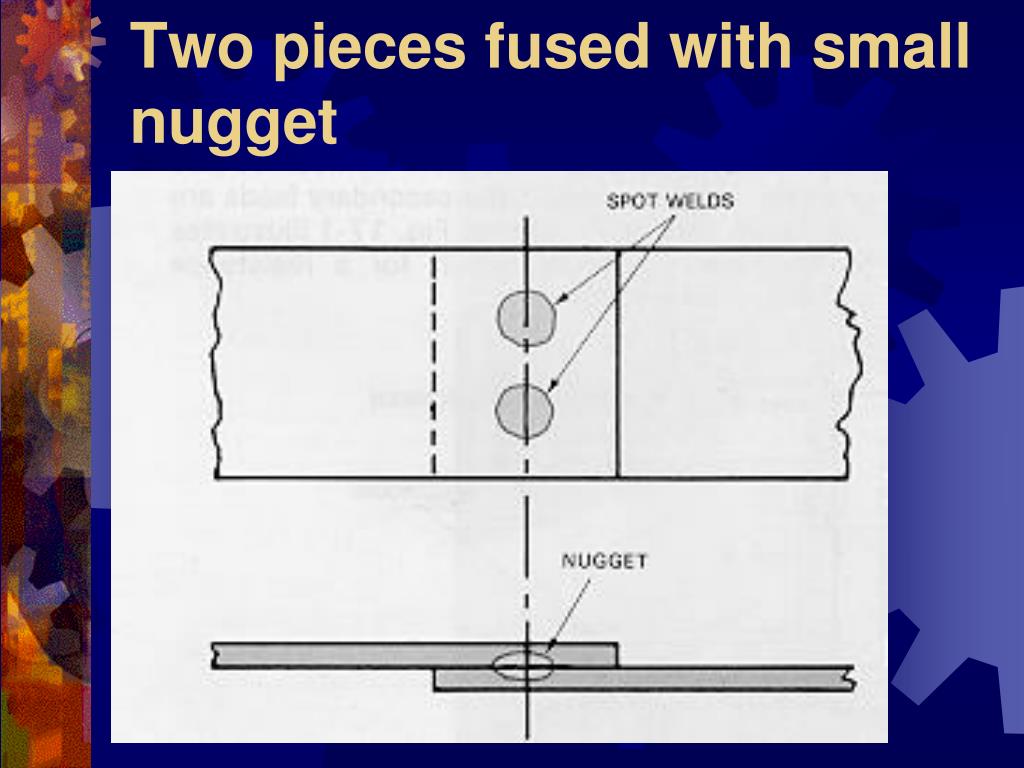

  46. Two pieces fused with small nugget

  47. 2.) Resistance Seam Welding • Like spot welding but with rollers. • Continuous or “roll spot welding”. Engr 241-R1

  48. two wheeled electrodes travel over metal - current passes through them

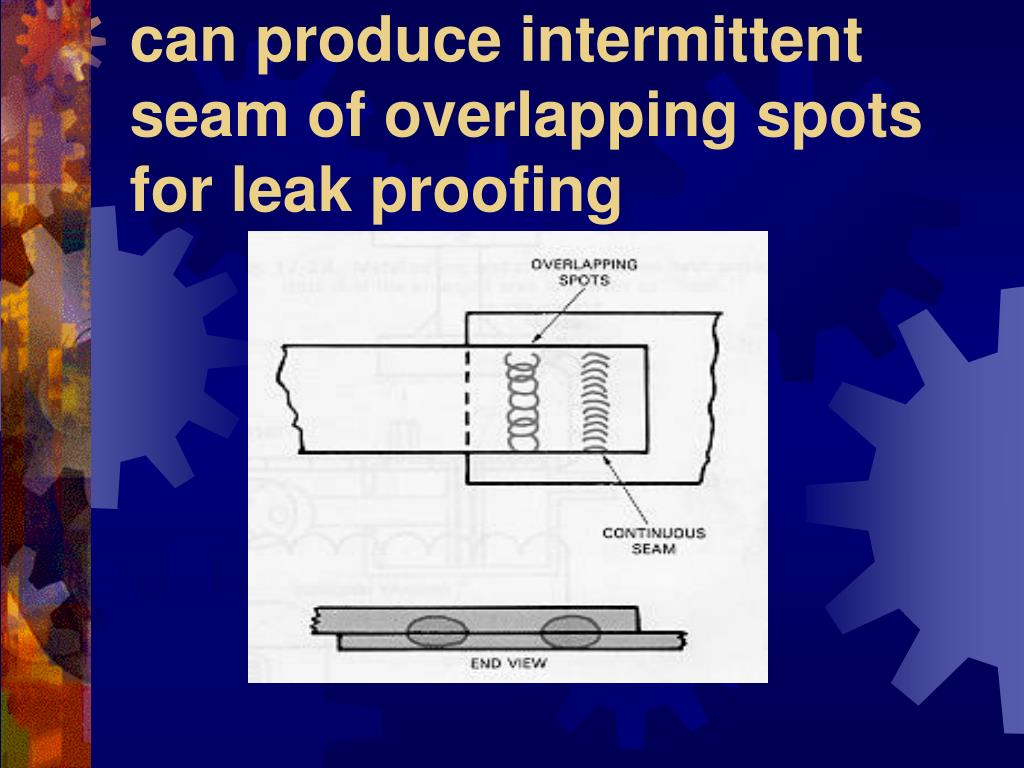

  49. can produce intermittent seam of overlapping spots for leak proofing
