  1. ucorearm port jianfei wang

  2. ARM • Advanced RISC Machine • Remember TEC-2008? • several types of architecture, from ARMv1 to ARMv7 • mainly used in embedded system • developing on S3C2410, with an ARM7 core, ARMv4T architecture • will be compared with X86 later

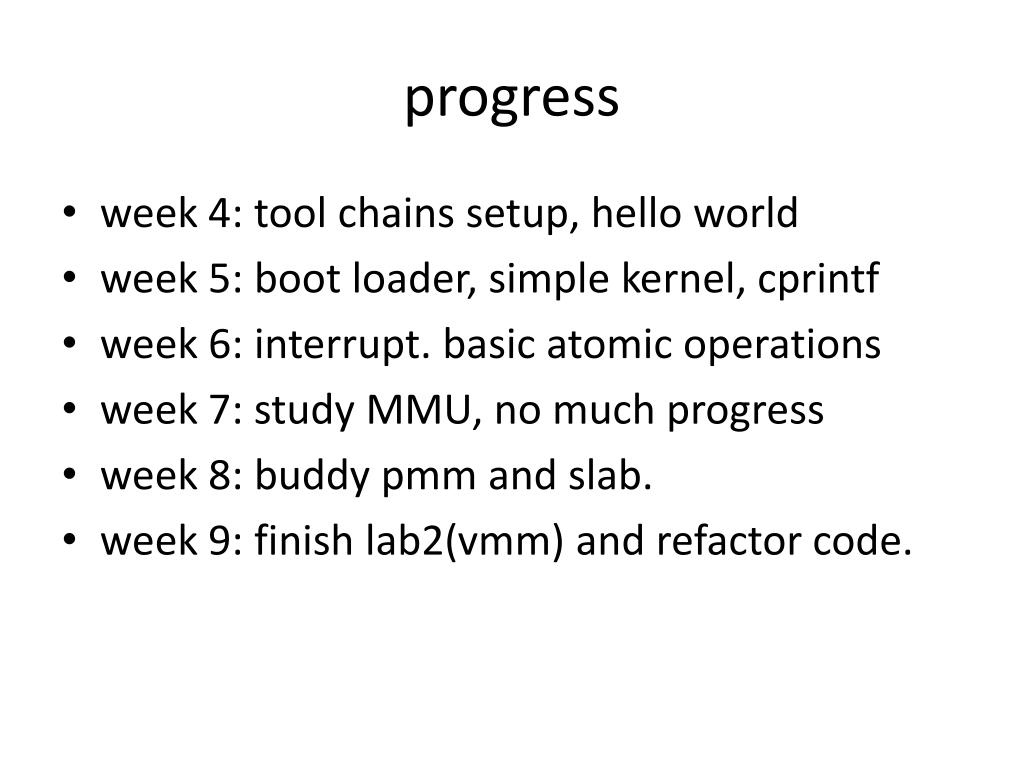

  3. progress • week 4: tool chains setup, hello world • week 5: boot loader, simple kernel, cprintf • week 6: interrupt. basic atomic operations • week 7: study MMU, no much progress • week 8: buddy pmmand slab. • week 9: finish lab2(vmm) and refactor code.

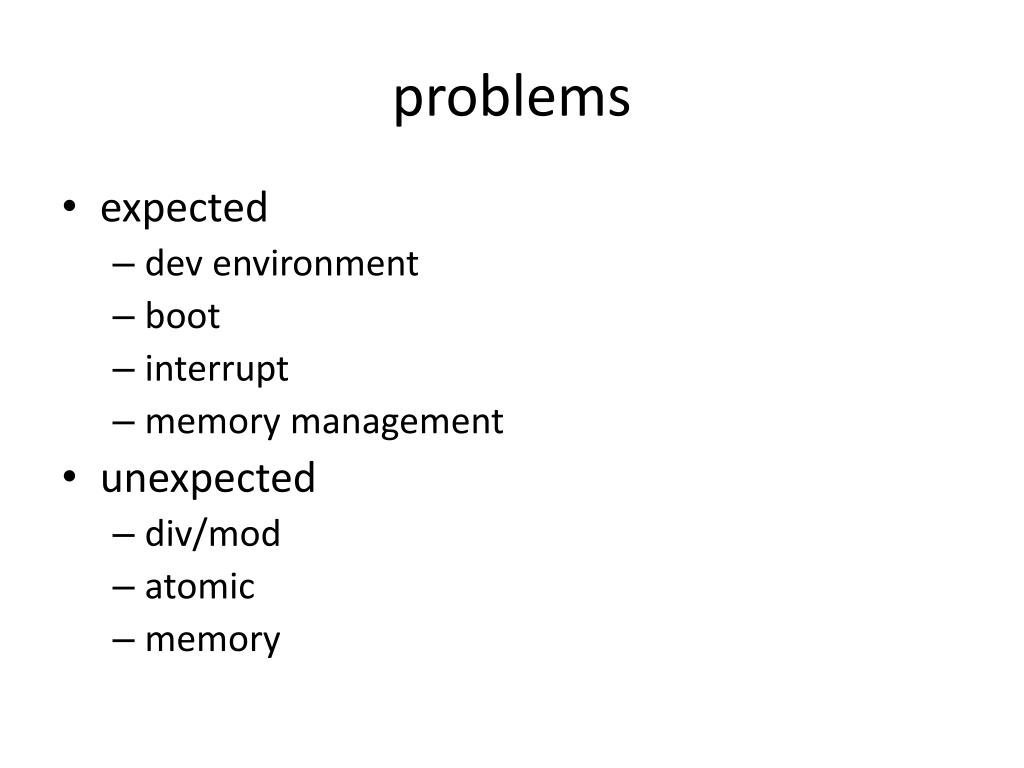

  4. problems • expected • dev environment • boot • interrupt • memory management • unexpected • div/mod • atomic • memory

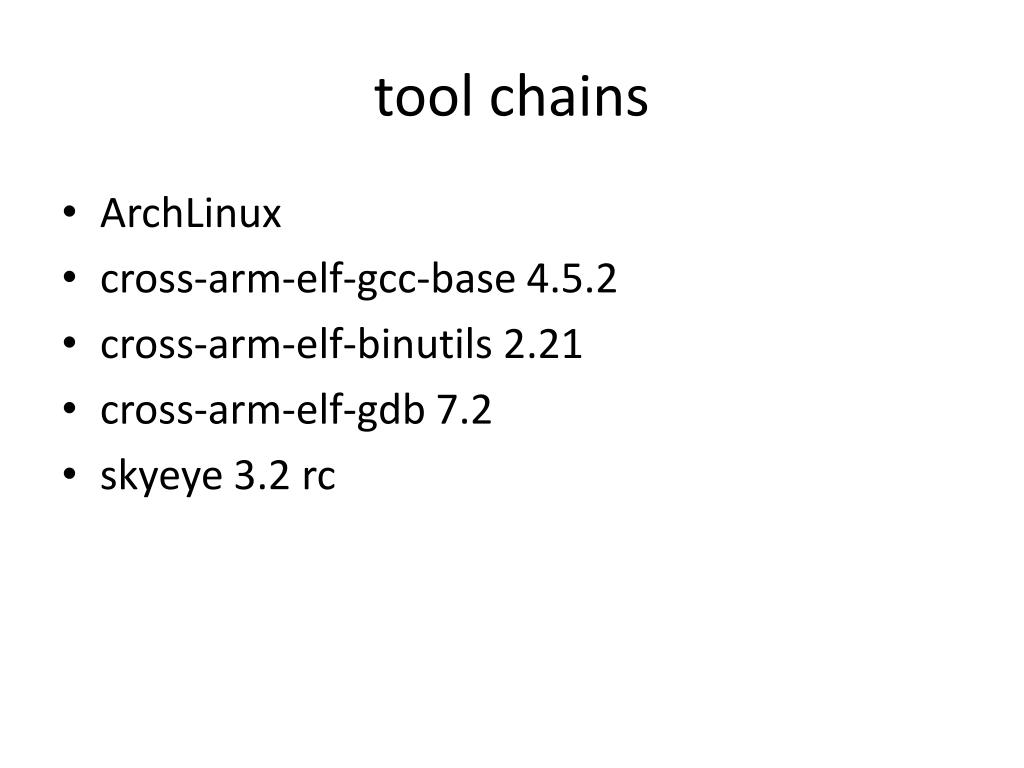

  5. tool chains • ArchLinux • cross-arm-elf-gcc-base 4.5.2 • cross-arm-elf-binutils 2.21 • cross-arm-elf-gdb 7.2 • skyeye 3.2 rc

  6. booting • x86 • BIOS is responsible for loading 1st sector • need a boot loader to load the rest of the OS • arm • storage(usually Flash Memory) is mapped to memory address • can boot directly from it • still need a loader to load the elf kernel.

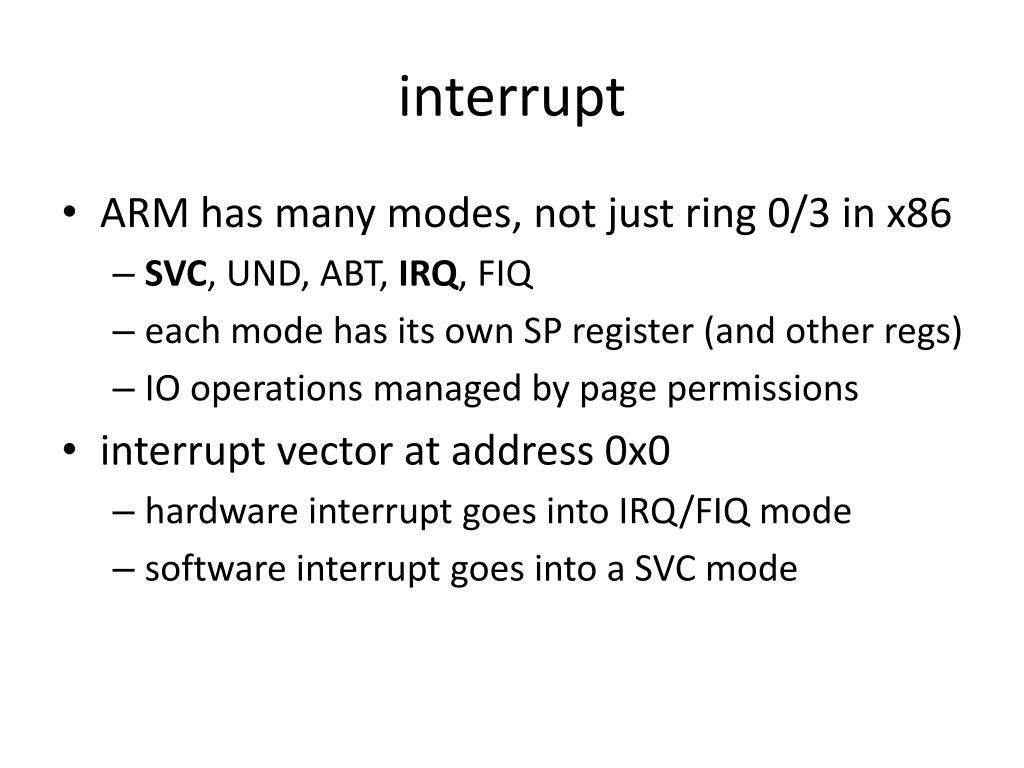

  7. interrupt • ARM has many modes, not just ring 0/3 in x86 • SVC, UND, ABT, IRQ, FIQ • each mode has its own SP register (and other regs) • IO operations managed by page permissions • interrupt vector at address 0x0 • hardware interrupt goes into IRQ/FIQ mode • software interrupt goes into a SVC mode

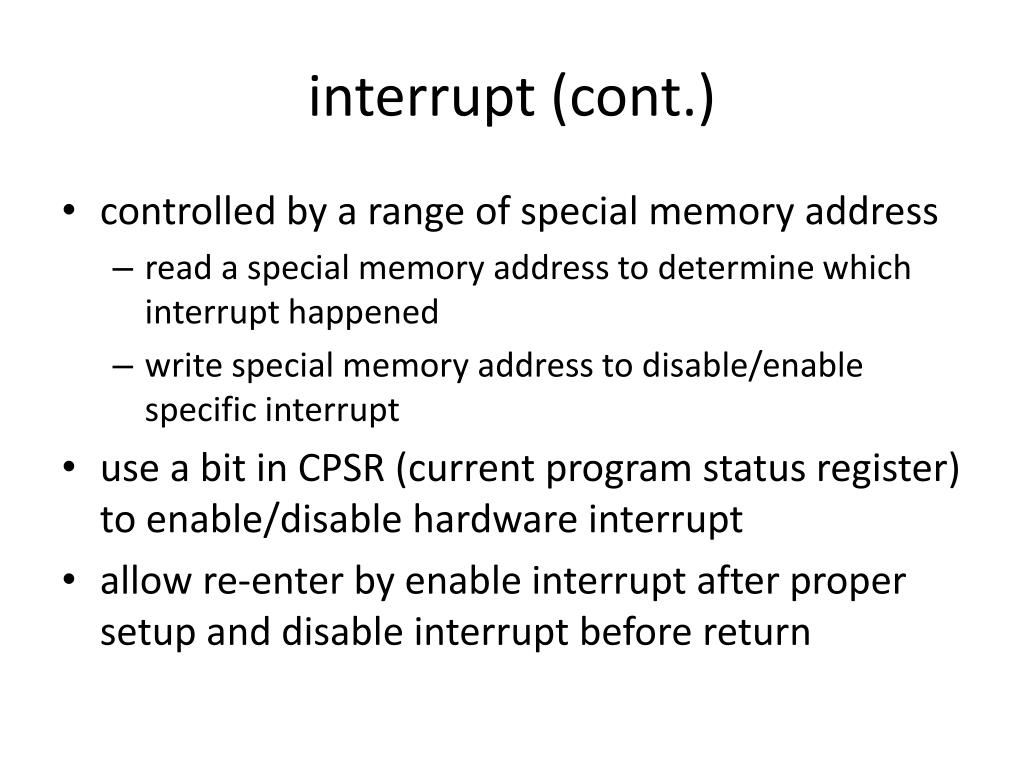

  8. interrupt (cont.) • controlled by a range of special memory address • read a special memory address to determine which interrupt happened • write special memory address to disable/enable specific interrupt • use a bit in CPSR (current program status register) to enable/disable hardware interrupt • allow re-enter by enable interrupt after proper setup and disable interrupt before return

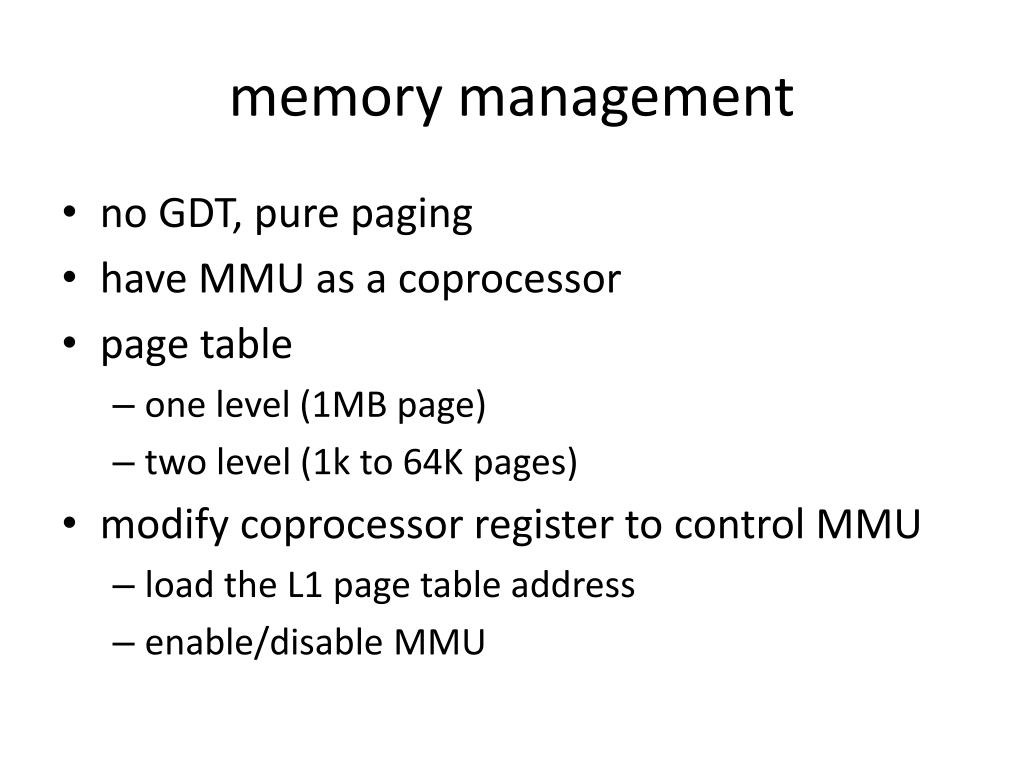

  9. memory management • no GDT, pure paging • have MMU as a coprocessor • page table • one level (1MB page) • two level (1k to 64K pages) • modify coprocessor register to control MMU • load the L1 page table address • enable/disable MMU

  10. unexpected • div (needed by cprintf) • stole code from u-boot and Linux kernel • atomic • no atomic instructions (not like x86) • disable interrupt to achieve atomicity • carefully stole code from Linux kernel • non-continuous memory, need a better way for PMM
