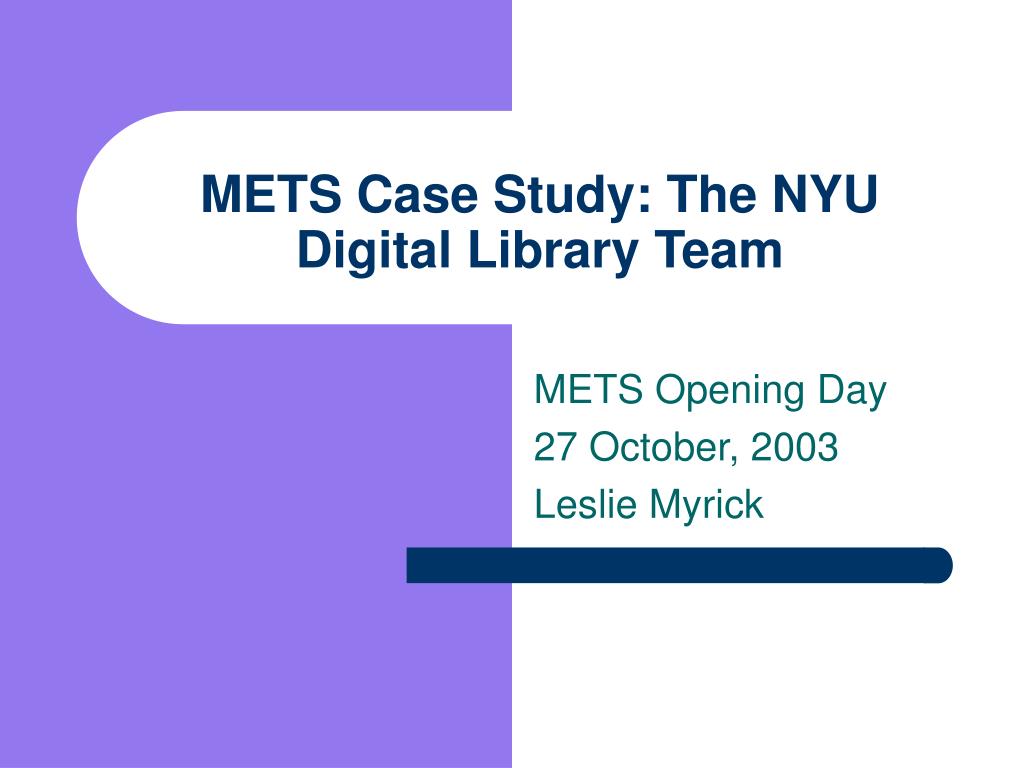

  1. METS Case Study: The NYU Digital Library Team METS Opening Day 27 October, 2003 Leslie Myrick

  2. Projects at NYU using METS • EAD Finding Aid Project • Tokyo Tribunal Proceedings • Afghanistan Digital Library • CRL Political Web Archiving Project • DRAM * • Hemispheric Institute * • REPO History Sign Project *

  3. WHY METS? (1) METS was formulated to serve as a: Submission Information Package Archival Information Package Dissemination Information Package

  4. Why METS? (2) In other words, it’s a … Transfer Syntax Archival Syntax Functional Syntax

  5. METS and Complex Digital Objects • Finding aid + images with multiple scans/versions • Page turner for photo albums, documents, books – Edisto Album, Tokyo Tribunal brief, Afghanistan Digital Library • Multimedia/Time-Based Media Navigators: Hemispheric Institute; SMIL Viewer • Web Site Navigator – CRL Political Communications Web Archiving Project

  6. Using METS as a SIP • Berol Collection Finding Aid -- in negotiations with RLG Cultural Materials Project • METS will be bundled with objects; EAD

  7. METS as a Functional Syntax • METS designed not only for transfer and archival management, but for giving access to, navigating an object • METS + XSLT can create dynamic interfaces with links to resources and their metadata • METS can be dumped into Oracle, indexed and searched using context-aware queries.

  8. METS Plays Well With Others We have … • EAD Finding Aids pointing to METS • METS pointing to Finding Aids and marcxml records • METS pointing to and manipulating TEI

  9. METS and Extensions at NYU • MODS and DC for descriptive • MIX for Images/technical • textMD for text/technical • LC A/V Prototype + smptetechMD + AES • Missing Links: overall Preservation Schema plugin (PREMIS); rights MD schema

  10. Ingredients (so far) • Perl • MySQL and some Oracle • Tomcat • Servlets and jsp • Saxon and XT • XSLT

  11. Tools for Creation • zeroDB Database Input via interface as well as batch loading of metadata extracted by scripts e.g. ImageMagick identify, arcscraper.pl Outputs METS using Perl DBI

  12. Tools for Dissemination • Page-turners • Multimedia Viewers • Thumbnail Browsers

  13. Typical METS Creation Workflow • ImageMagick extraction of image metadata • Database input (batch and manual entry) of descriptive and technical metadata • Generation of METS using Perl DBI against MySQL

  14. Image Magick Verbose Dump Image: taqw_001s.jpg Format: JPEG (Joint Photographic Experts Group JFIF format) Geometry: 625x886 Class: DirectClass Type: true color Depth: 8 bits-per-pixel component Colors: 33080 Profile-color: 552 bytes Profile-iptc: 5636 bytes unknown: êëÿ Resolution: 100x100 pixels/inch Filesize: 210kb Interlace: None Background Color: white Border Color: #dfdfdf Matte Color: grey74 Iterations: 0 Compression: JPEG signature: 8c37d0b82374d8eaa6b4d6b062699a9b8d7d86f2ba1d4e320f2226181d062822 Tainted: False

  15. Image Magick non-Verbose Dump • taqw-fr001.tif TIFF 6500x6817 DirectClass 8-bit 126mb 4.3u 0:06 • taqw-fr001s.jpg[1] JPEG 625x886 DirectClass 8-bit 191kb 0.0u 0:01 • taqw-fr001t.jpg[2] JPEG 100x142 DirectClass 8-bit 9954b 0.0u 0:01

  16. Extracting METS from a DB • doWebArchive.cgi MODS for homepage; DC for pages MIX for images/technical textMD for web page/technical

  17. METS for Discovery • Dump METS files into Oracle as CLOB • Create Oracle Intermedia index • XML-aware full-text search • Example: CRL political web archiving project

  18. CRL Political Web Archive • Collaboration between Stanford, Cornell, Texas, NYU, IA under aegis of CRL, Mellon • Sub-Saharan Africa, South East Asia, Latin America, Western Europe • Testbed: 400 URLs; websites from radical groups, NGOs • Internet Archive .arc files

  19. Internet Archive .arc files • .arc file 100 MB aggregate of harvested files, along with HTTP headers and crawler-generated header for each file • Fine as a simple SIP, but basically unmanageable as an AIP or DIP • At present accessed using byte offsets to grab content from aggregate file • Only searchable by URL (Wayback Machine)

  20. Automated extraction of text-based metadata e.g. web pages • arcscraper.pl • Descriptive and technical MD for object • datscraper.pl • Checksums, titles • Links from each object • makeLinkTable.pl • Creates link to object relationships

  21. Go to Videotape

  22. The Future? • Persistent Identifiers • Preservation Metadata Schema • Java development • Move from Oracle to Cheshire II
