Processes

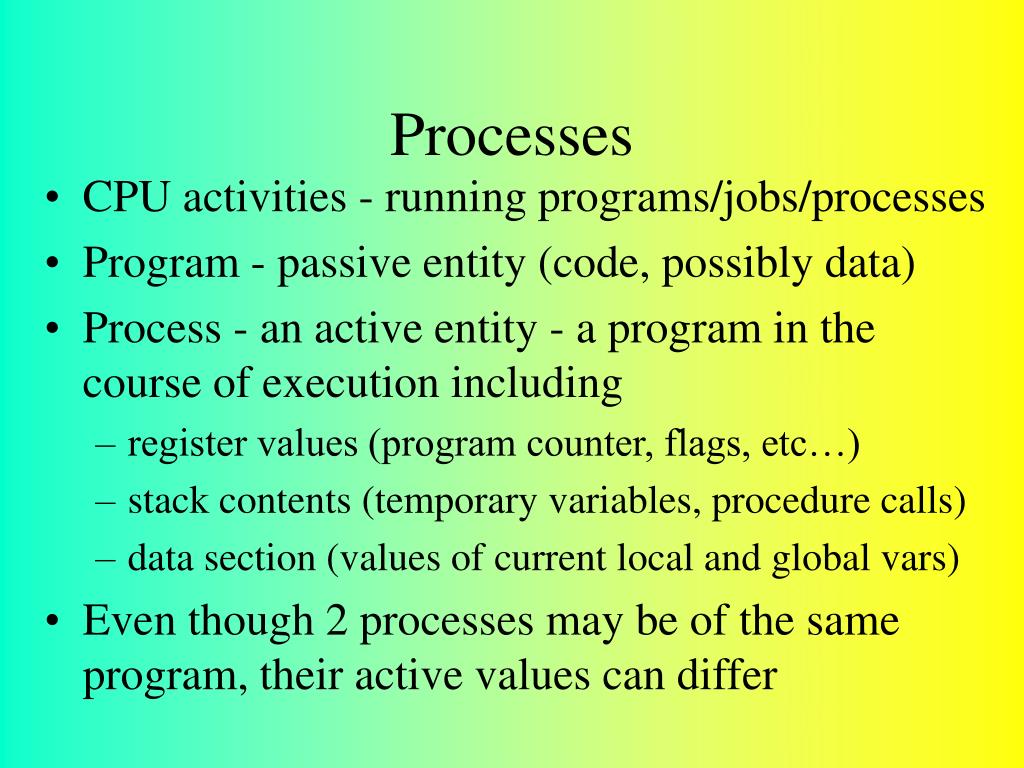

1. Processes • CPU activities - running programs/jobs/processes • Program - passive entity (code, possibly data) • Process - an active entity - a program in the course of execution including • register values (program counter, flags, etc…) • stack contents (temporary variables, procedure calls) • data section (values of current local and global vars) • Even though 2 processes may be of the same program, their active values can differ

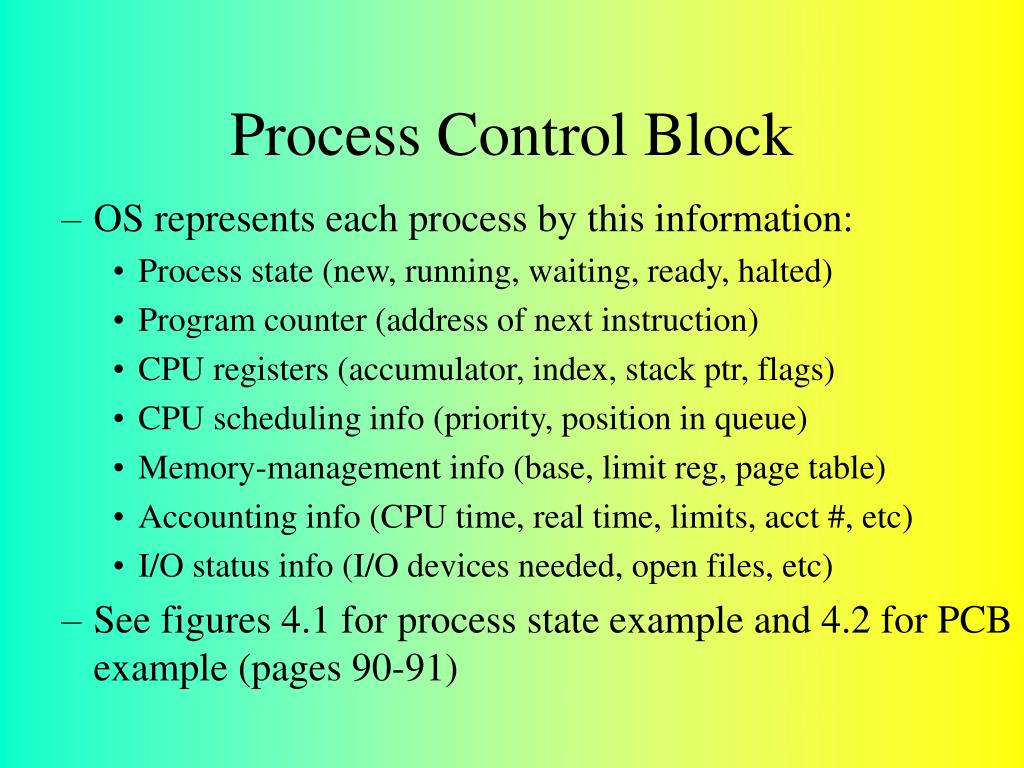

2. Process Control Block • OS represents each process by this information: • Process state (new, running, waiting, ready, halted) • Program counter (address of next instruction) • CPU registers (accumulator, index, stack ptr, flags) • CPU scheduling info (priority, position in queue) • Memory-management info (base, limit reg, page table) • Accounting info (CPU time, real time, limits, acct #, etc) • I/O status info (I/O devices needed, open files, etc) • See figures 4.1 for process state example and 4.2 for PCB example (pages 90-91)

3. Scheduling • Objective in multiprogramming is to keep CPU busy • always have a process running • If more than 1 process • OS must schedule which process to execute • Scheduling Queues (see fig 4.5 p. 95) • Job queue (all processes to be executed) • Ready queue (processes waiting for the CPU) • I/O queue(s) (processes requiring particular I/O device) • Schedulers - different algorithms to schedule processes - we will look at these in chapter 5

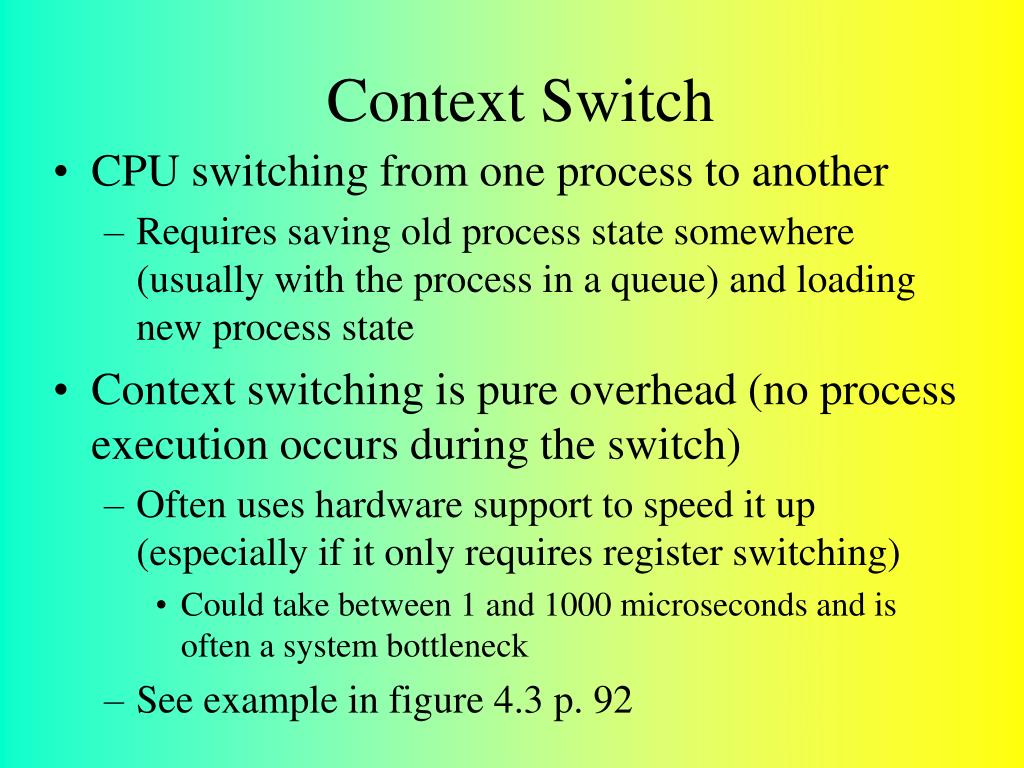

4. Context Switch • CPU switching from one process to another • Requires saving old process state somewhere (usually with the process in a queue) and loading new process state • Context switching is pure overhead (no process execution occurs during the switch) • Often uses hardware support to speed it up (especially if it only requires register switching) • Could take between 1 and 1000 microseconds and is often a system bottleneck • See example in figure 4.3 p. 92

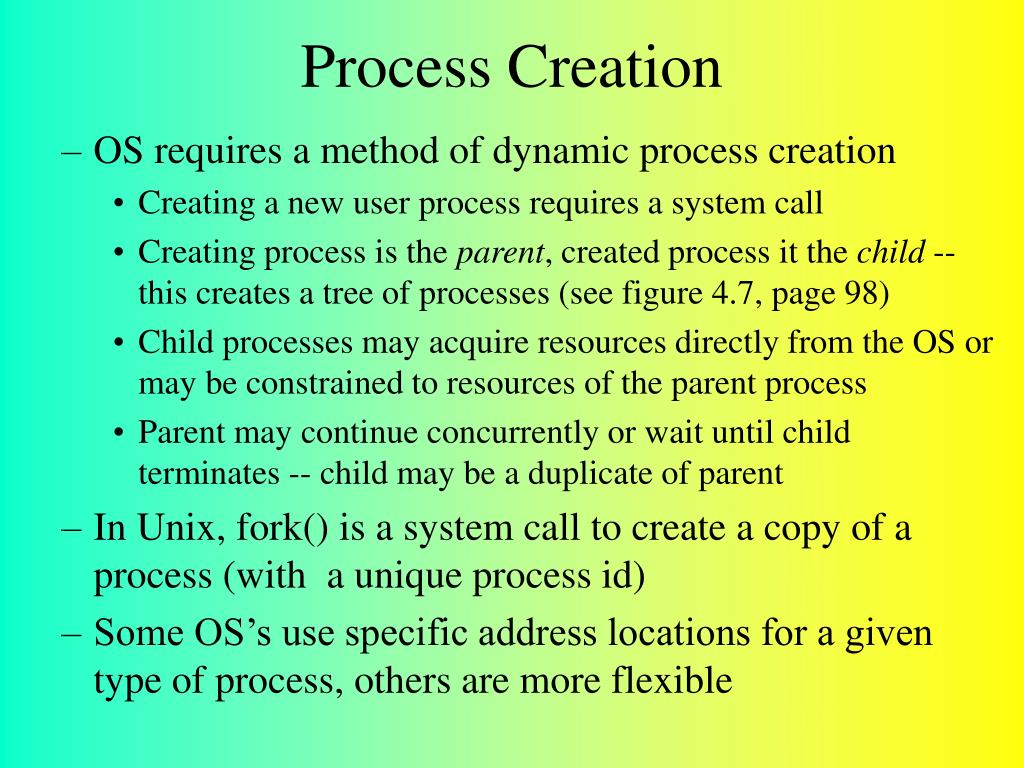

5. Process Creation • OS requires a method of dynamic process creation • Creating a new user process requires a system call • Creating process is the parent, created process it the child -- this creates a tree of processes (see figure 4.7, page 98) • Child processes may acquire resources directly from the OS or may be constrained to resources of the parent process • Parent may continue concurrently or wait until child terminates -- child may be a duplicate of parent • In Unix, fork() is a system call to create a copy of a process (with a unique process id) • Some OS’s use specific address locations for a given type of process, others are more flexible

6. Process Termination • When a process ends, it sends an exit system call to the OS to be deleted • The process may then transmit data to its parent process • All resources of terminating process are then deallocated • Parent may terminate a child process under certain situations (exceeded resources, no longer required, parent is terminating) • In VMS, children cannot exist if the parent has terminated

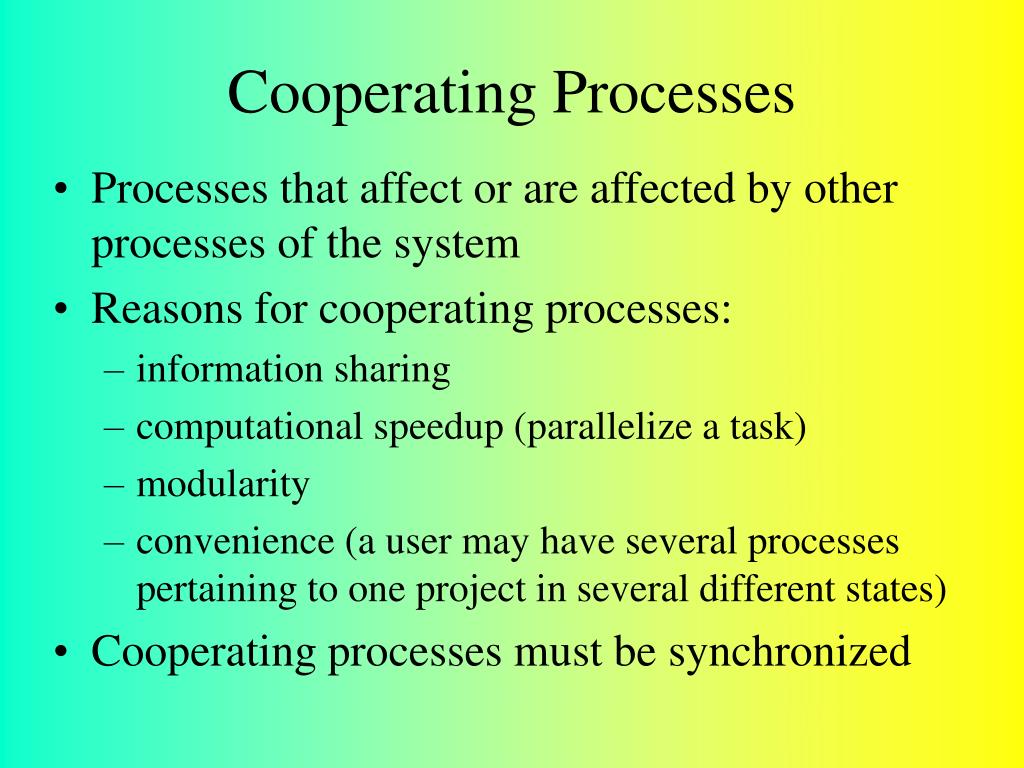

7. Cooperating Processes • Processes that affect or are affected by other processes of the system • Reasons for cooperating processes: • information sharing • computational speedup (parallelize a task) • modularity • convenience (a user may have several processes pertaining to one project in several different states) • Cooperating processes must be synchronized

8. Consumer-Producer problem • A process that uses something created by another process is a consumer • A process that produces something for another process is a producer • Examples • compiler produces assembly code, assembler uses this and produces object code, loader uses this and produces executable code • Print program creates postscript file for print driver • Consumers and producers must be synchronized so that information is available for the consumer when it is needed

9. Bounded and Unbounded Buffers • Consider a consumer who retrieves info from a buffer and a producer that places info in the same buffer • Unbounded buffer • no limit on how much can be placed there (e.g. a linked list) but cannot be empty for a consumer to use it • Bounded buffer • limit on the amount that can be placed there restricting both consumer (can’t be empty) and producer (can’t be full) • 0 capacity buffer • buffer which cannot store anything -- in this case, the consumer and producer communicate directly via a message

10. Implementing Bounded buffer • Producer: Consumer: • repeat repeat ... … produce an item in nextp while in=out do no-op; … nextc:=buffer[out]; while in+1 mod n=out out:=out+1 mod n; do no-op; … buffer[in]:=nextp; consume item in nextc in:=in+1 mod n; … until false; until false;

11. Threads • A process is defined by the resources it uses and its current execution status (PC, registers) • There are situations where it is useful to share resources concurrently • A thread (lightweight process) is a process which shares its code section, data section and OS resources (like files) with other processes but has its own PC/register values, stack space

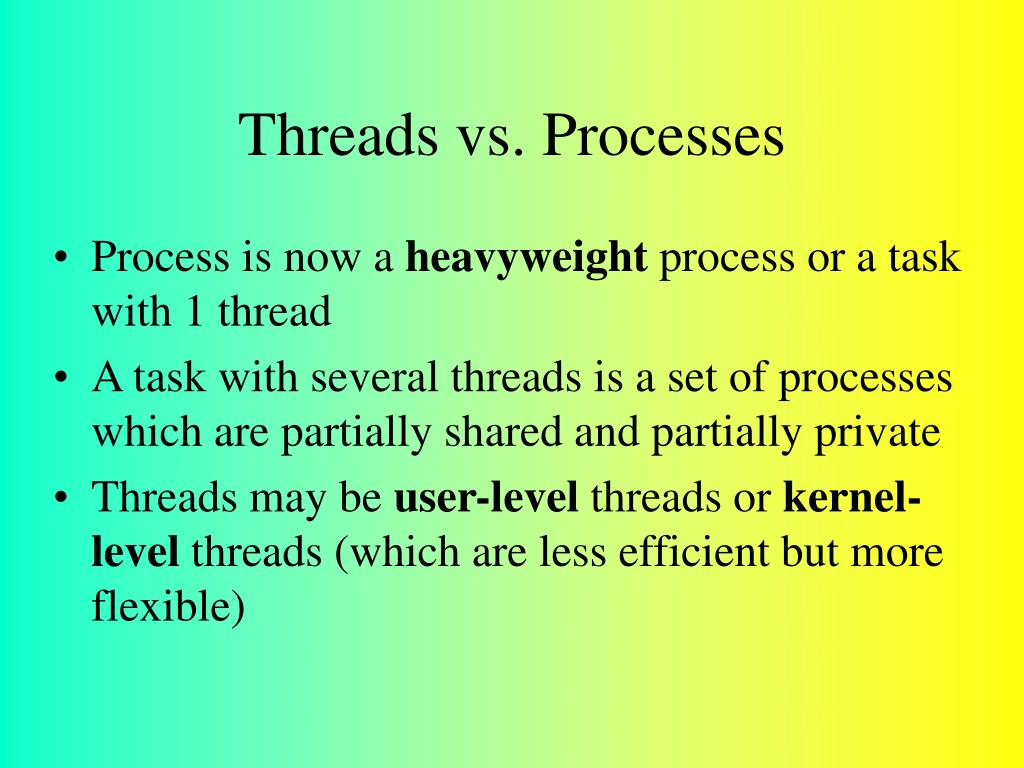

12. Threads vs. Processes • Process is now a heavyweight process or a task with 1 thread • A task with several threads is a set of processes which are partially shared and partially private • Threads may be user-level threads or kernel-level threads (which are less efficient but more flexible)

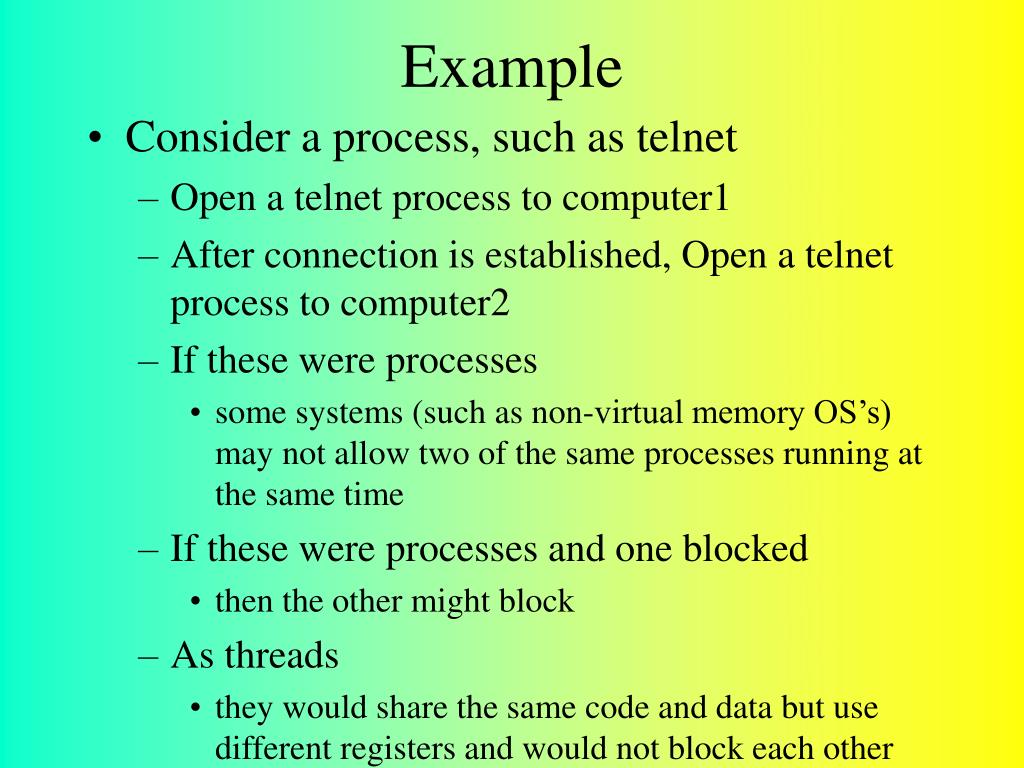

13. Example • Consider a process, such as telnet • Open a telnet process to computer1 • After connection is established, Open a telnet process to computer2 • If these were processes • some systems (such as non-virtual memory OS’s) may not allow two of the same processes running at the same time • If these were processes and one blocked • then the other might block • As threads • they would share the same code and data but use different registers and would not block each other

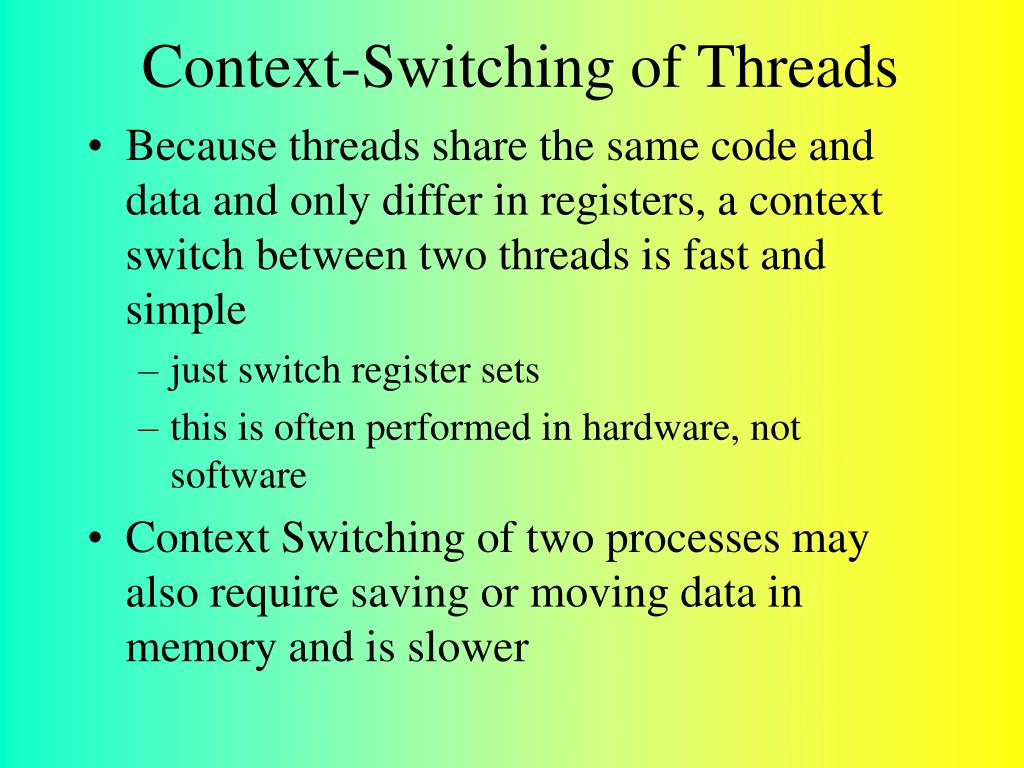

14. Context-Switching of Threads • Because threads share the same code and data and only differ in registers, a context switch between two threads is fast and simple • just switch register sets • this is often performed in hardware, not software • Context Switching of two processes may also require saving or moving data in memory and is slower

15. User-level threads potentially thousands, needs only a small data structure and a stack Intermediate-level of threads are lightweight processes switching between these is slow because of the need to move info in memory Kernel-level threads which contain a small data structure and a small stack, switching between these is fast and easy User tasks are composed of user-threads fast switching which are realized as lightweight-processes which themselves invoke kernel-level threads fast switching See figure 4.9 p. 107 Example: Solaris 2

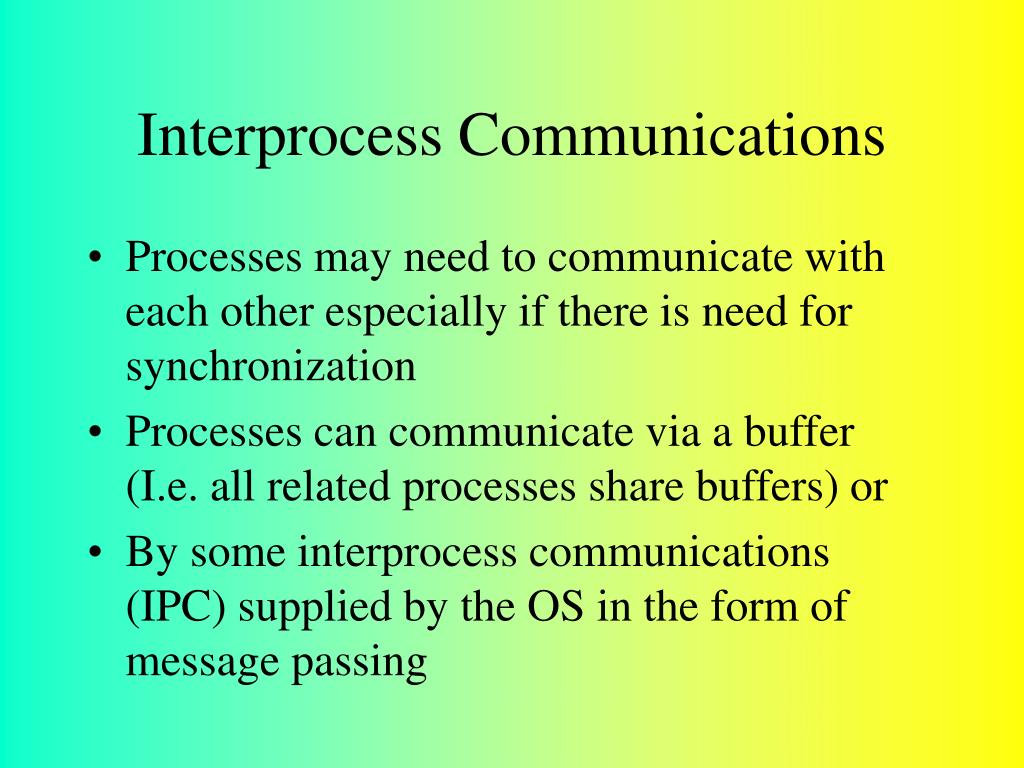

16. Interprocess Communications • Processes may need to communicate with each other especially if there is need for synchronization • Processes can communicate via a buffer (I.e. all related processes share buffers) or • By some interprocess communications (IPC) supplied by the OS in the form of message passing

17. Communications Mechanism • Most IPC facilities use a message-passing system where one process issues a send(message) and the other issues a receive(message) • This creates a communications link • How are links established? • Can a link be associated with more than 2 processes? • How many links can exist between 2 processes? • What is the capacity of the link? • Are messages fixed or variable sized? • Is the link unidirectional or bidirectional?

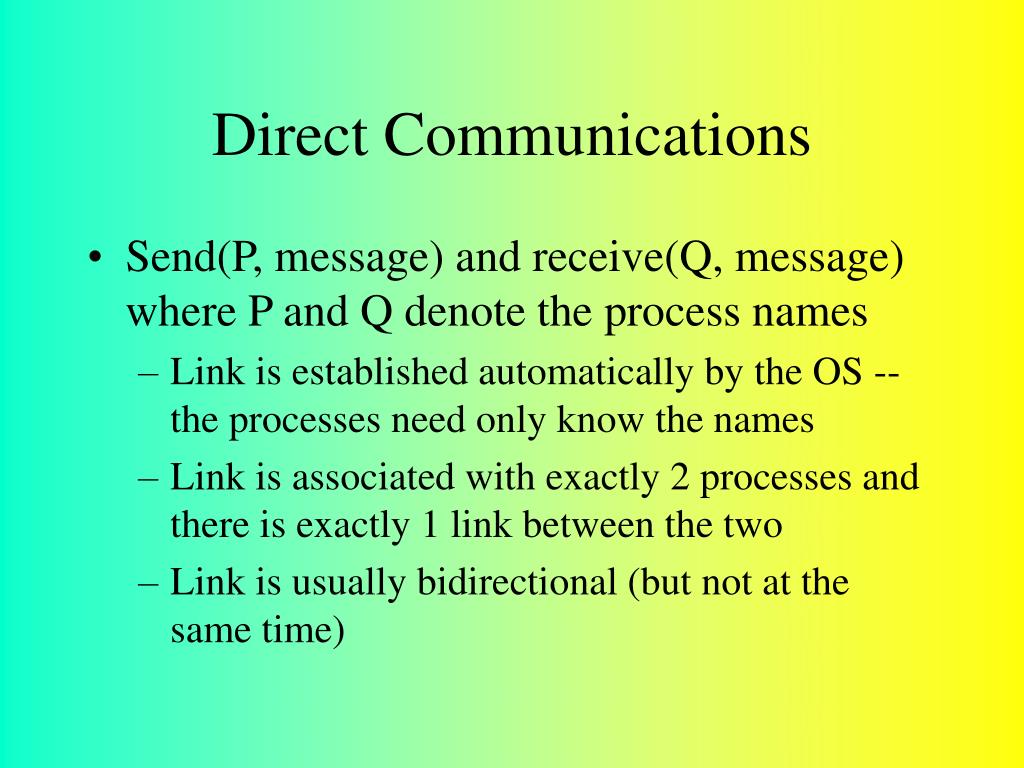

18. Direct Communications • Send(P, message) and receive(Q, message) where P and Q denote the process names • Link is established automatically by the OS -- the processes need only know the names • Link is associated with exactly 2 processes and there is exactly 1 link between the two • Link is usually bidirectional (but not at the same time)

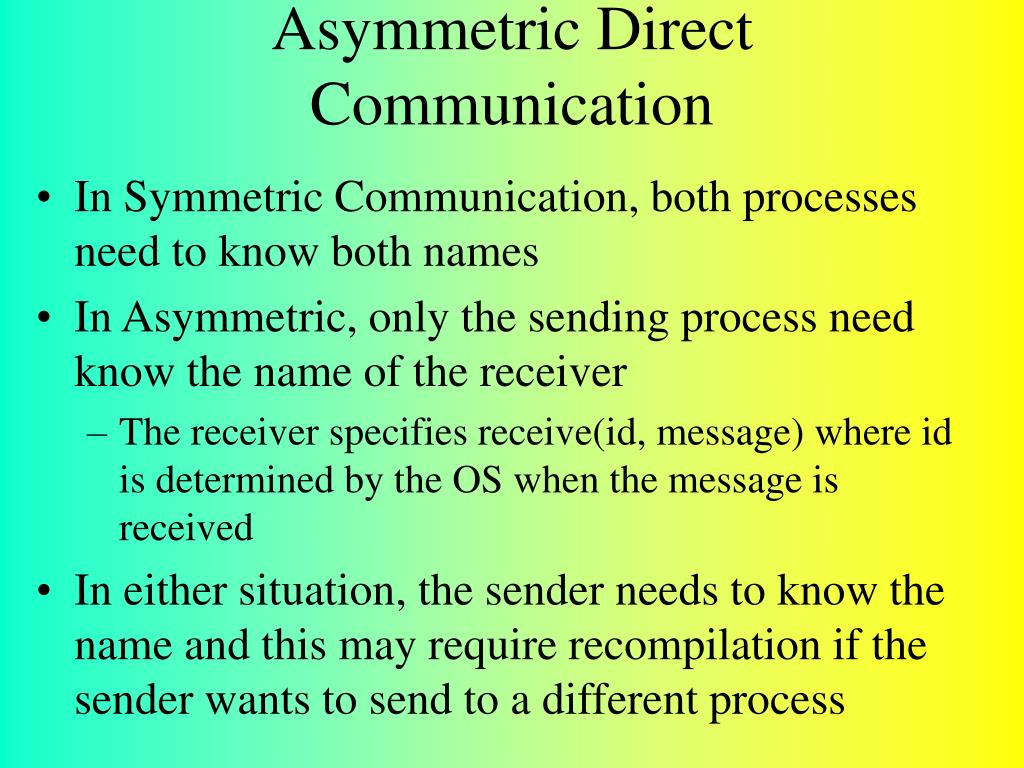

19. Asymmetric Direct Communication • In Symmetric Communication, both processes need to know both names • In Asymmetric, only the sending process need know the name of the receiver • The receiver specifies receive(id, message) where id is determined by the OS when the message is received • In either situation, the sender needs to know the name and this may require recompilation if the sender wants to send to a different process

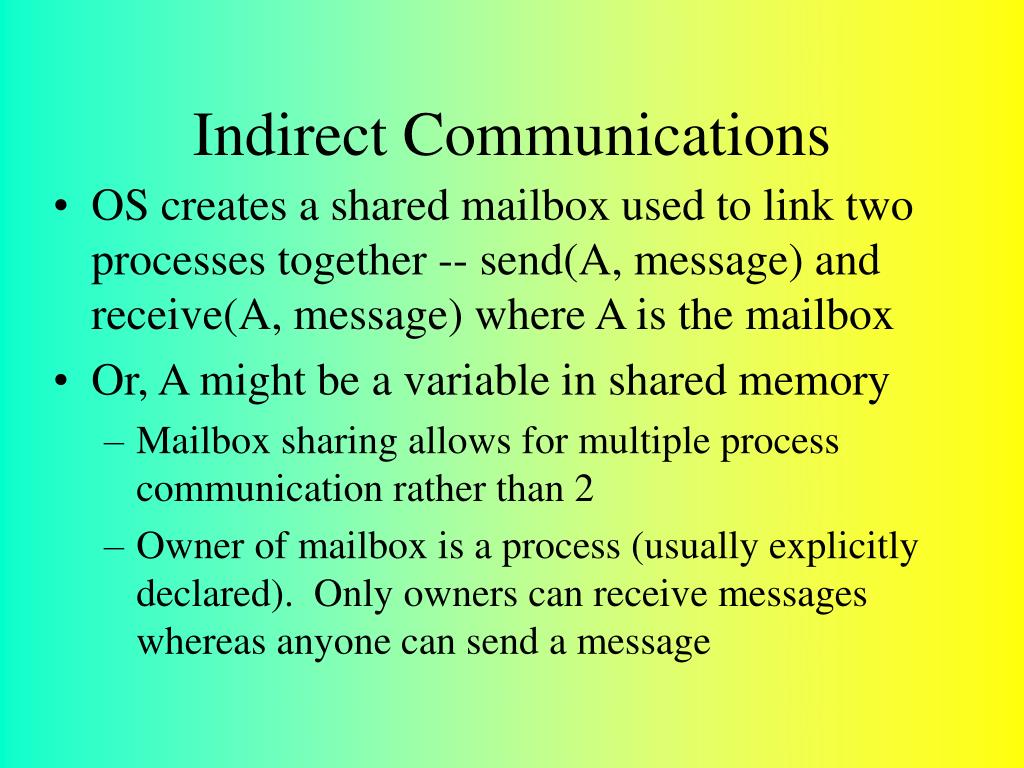

20. Indirect Communications • OS creates a shared mailbox used to link two processes together -- send(A, message) and receive(A, message) where A is the mailbox • Or, A might be a variable in shared memory • Mailbox sharing allows for multiple process communication rather than 2 • Owner of mailbox is a process (usually explicitly declared). Only owners can receive messages whereas anyone can send a message

21. Buffering • Communications can be performed through a queue of links. These queues can have different lengths: • 0 capacity - this requires synchronization between the processes (called a rendezvous) where the sender will be blocked until synch • bounded - finite length queue where sender is blocked if queue is full and receiver is blocked if queue is empty • unbounded - unlimited length, sender is never blocked

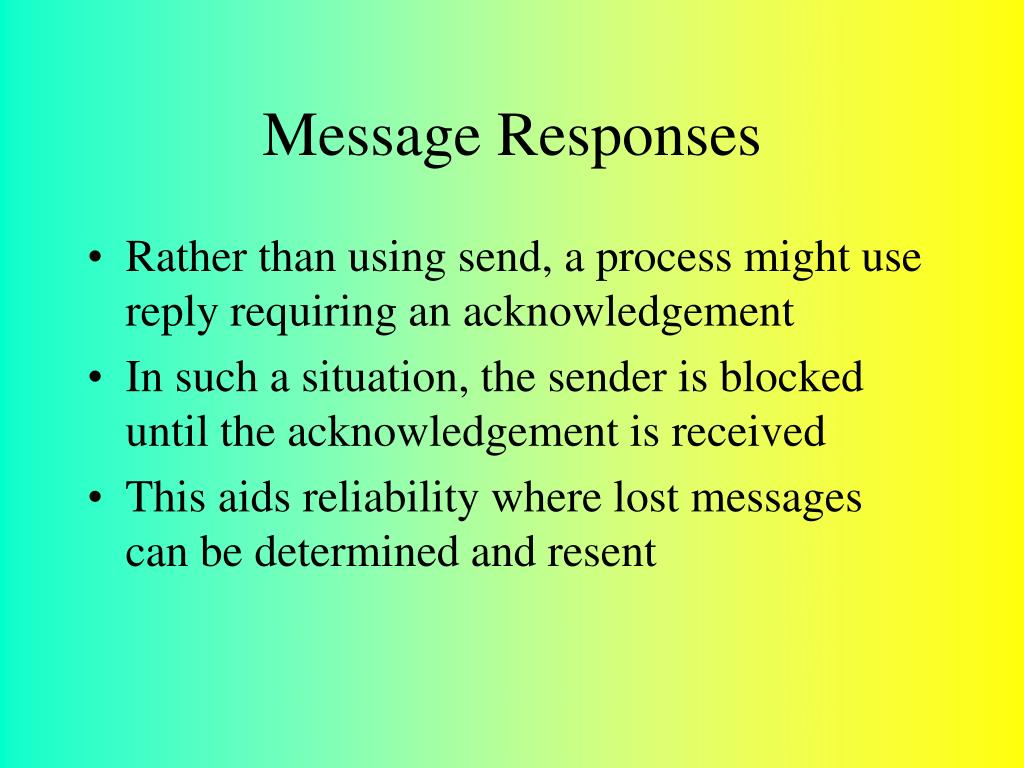

22. Message Responses • Rather than using send, a process might use reply requiring an acknowledgement • In such a situation, the sender is blocked until the acknowledgement is received • This aids reliability where lost messages can be determined and resent

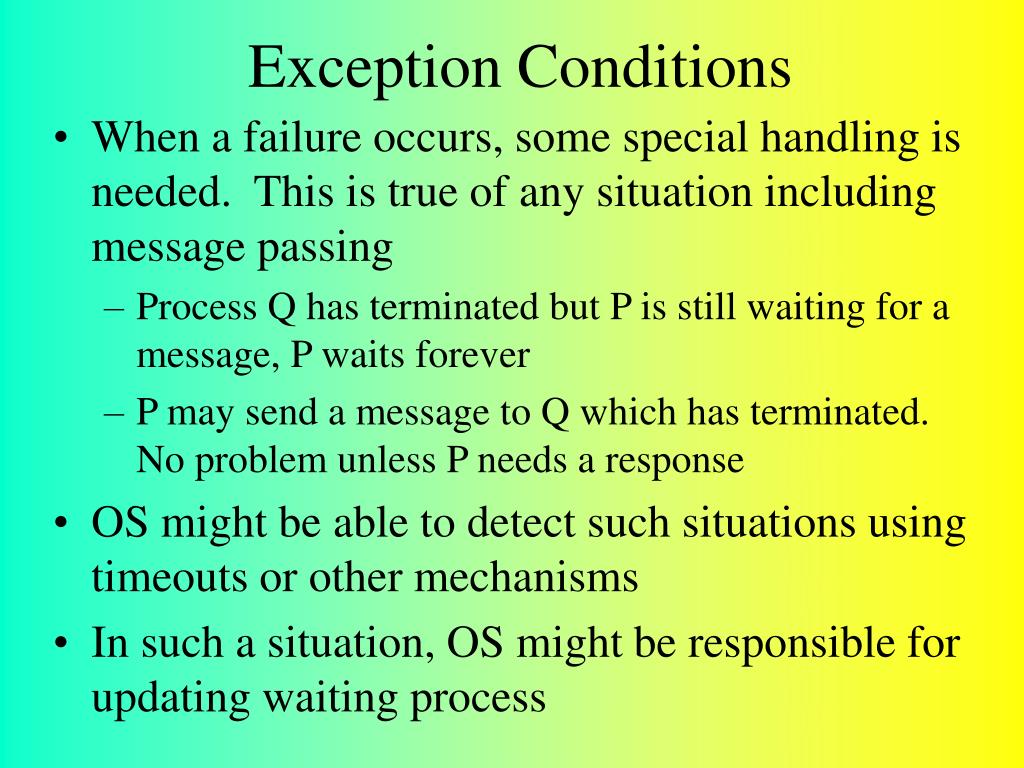

23. Exception Conditions • When a failure occurs, some special handling is needed. This is true of any situation including message passing • Process Q has terminated but P is still waiting for a message, P waits forever • P may send a message to Q which has terminated. No problem unless P needs a response • OS might be able to detect such situations using timeouts or other mechanisms • In such a situation, OS might be responsible for updating waiting process

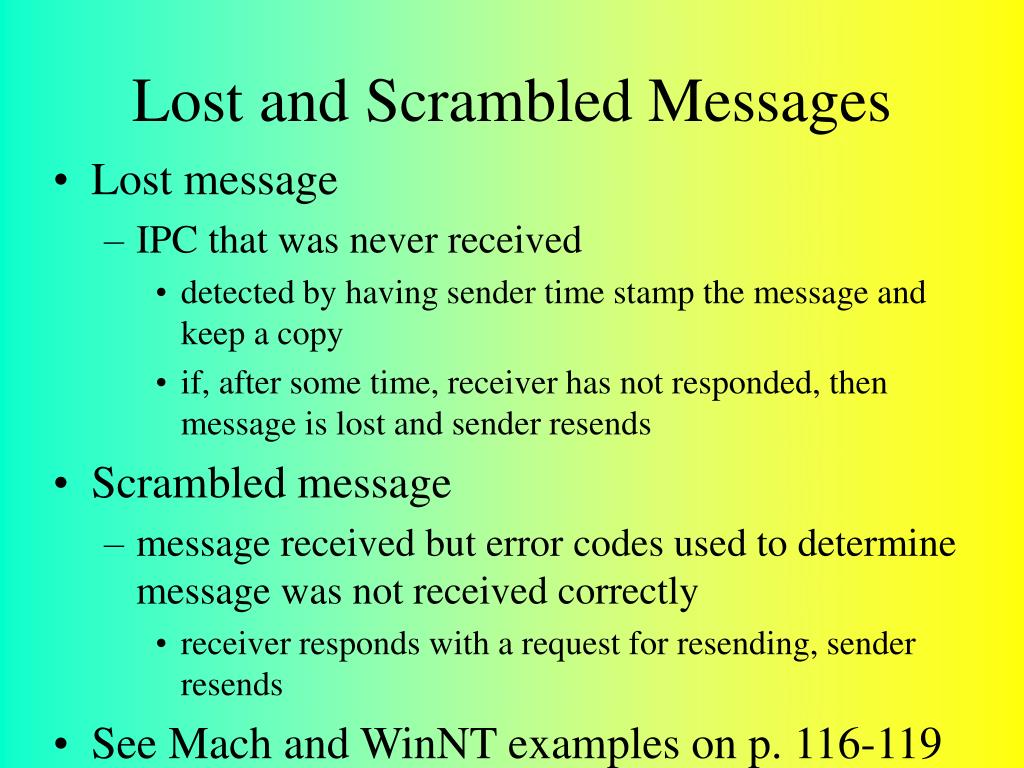

24. Lost and Scrambled Messages • Lost message • IPC that was never received • detected by having sender time stamp the message and keep a copy • if, after some time, receiver has not responded, then message is lost and sender resends • Scrambled message • message received but error codes used to determine message was not received correctly • receiver responds with a request for resending, sender resends • See Mach and WinNT examples on p. 116-119
