  1. Vibrations and Waves the basis of sound and light

  2. Pendulum • Back and forth motion of pendulum called simple harmonic motion (SHM) • Period is time it takes to swing back and forth. • Displacement is how far the pendulum moves from the centerline • Period is dependent on string length • Period is independent of weight • Period is independent of displacement

  3. Wave motion • Pendulum demonstrates the back and forth repetitive motion of a wave. • There are water waves, light waves, sound waves, and many more types of waves. • Waves move energy without a net movement of matter.

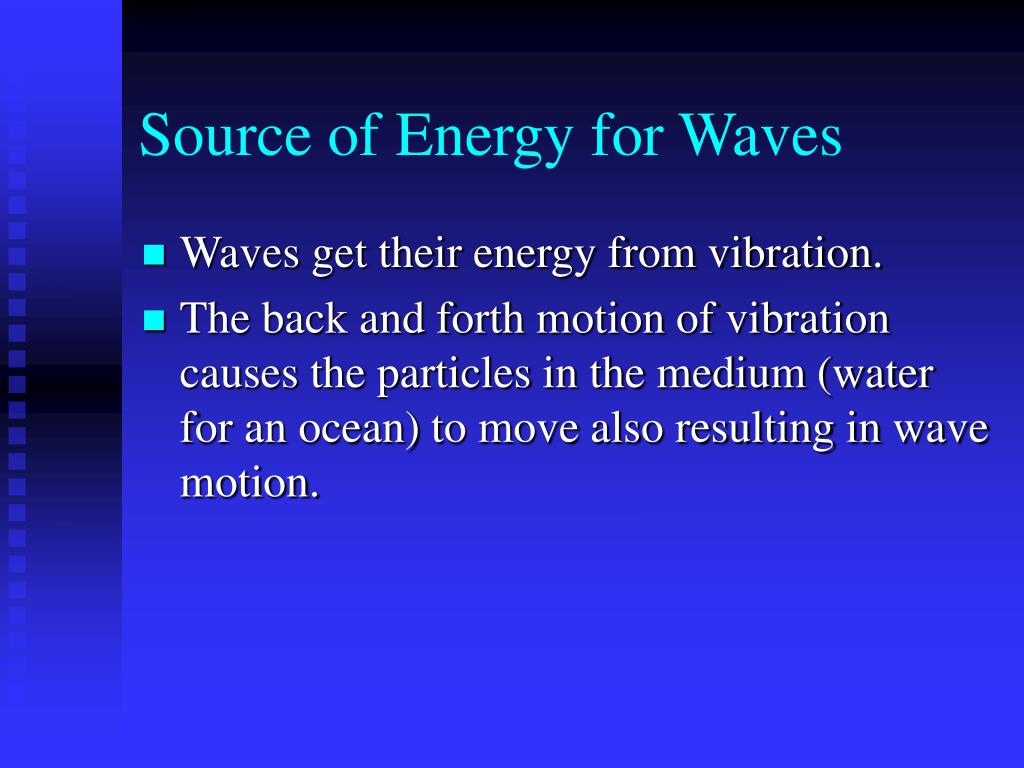

  4. Source of Energy for Waves • Waves get their energy from vibration. • The back and forth motion of vibration causes the particles in the medium (water for an ocean) to move also resulting in wave motion.

  5. Amplitude • Measure of strength of wave • distance from midpoint to crest or trough

  6. Wavelength • distance between one crest and the next •  is the symbol for wavelength

  7. Frequency • describes movement of wave • number of vibrations per second • measured in hertz • period is time to make one complete cycle • frequency = 1 / period • period = 1 / frequency

  8. Wave Speed • Distance between crests • Divided by the time between the crests • wave speed = frequency x wavelength • v = f 

  9. Relationship between frequency and wavelength for sound in air

  10. Transverse Waves • Sine wave • motion of wave at right angles to movement of wave http://www.control.co.kr/java1/wave%20Trans/WaveTrans.html

  11. Longitudinal Wave • particles move back and forth in direction of the movement of the wave

  12. Superposition • When two waves occupy the same space, their amplitudes add together • The waves pass through each other • After their combination, they continue along their original path as if they had not combined for the moment. http://www2.biglobe.ne.jp/~norimari/science/JavaEd/e-wave2.html

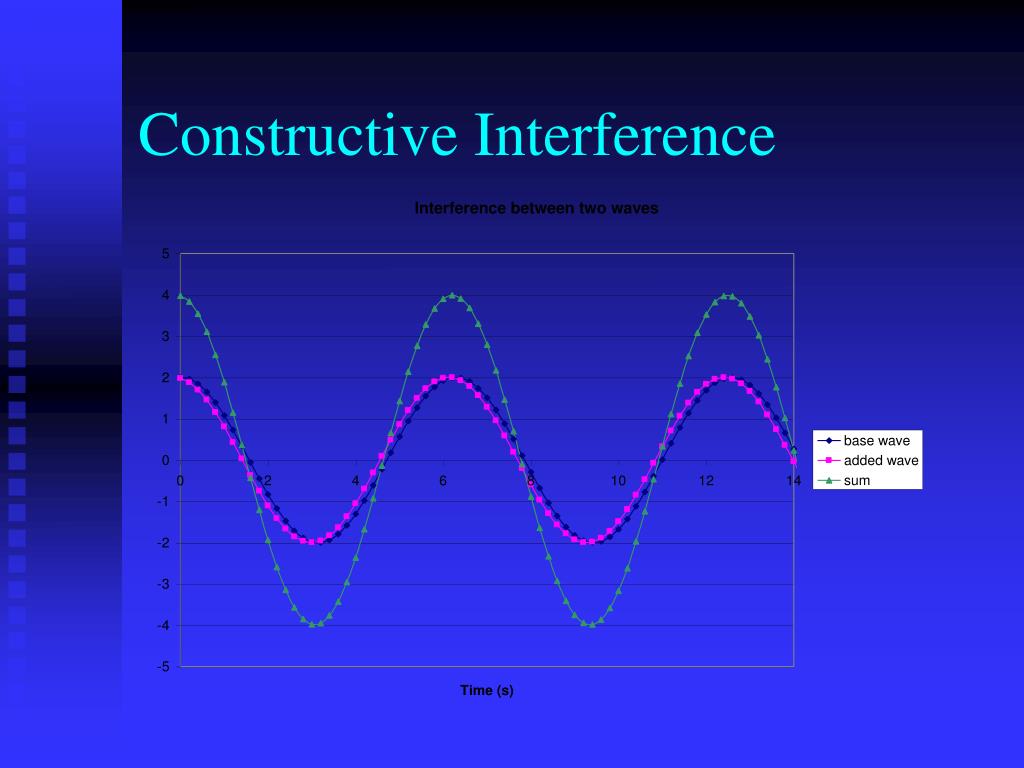

  13. Constructive Interference

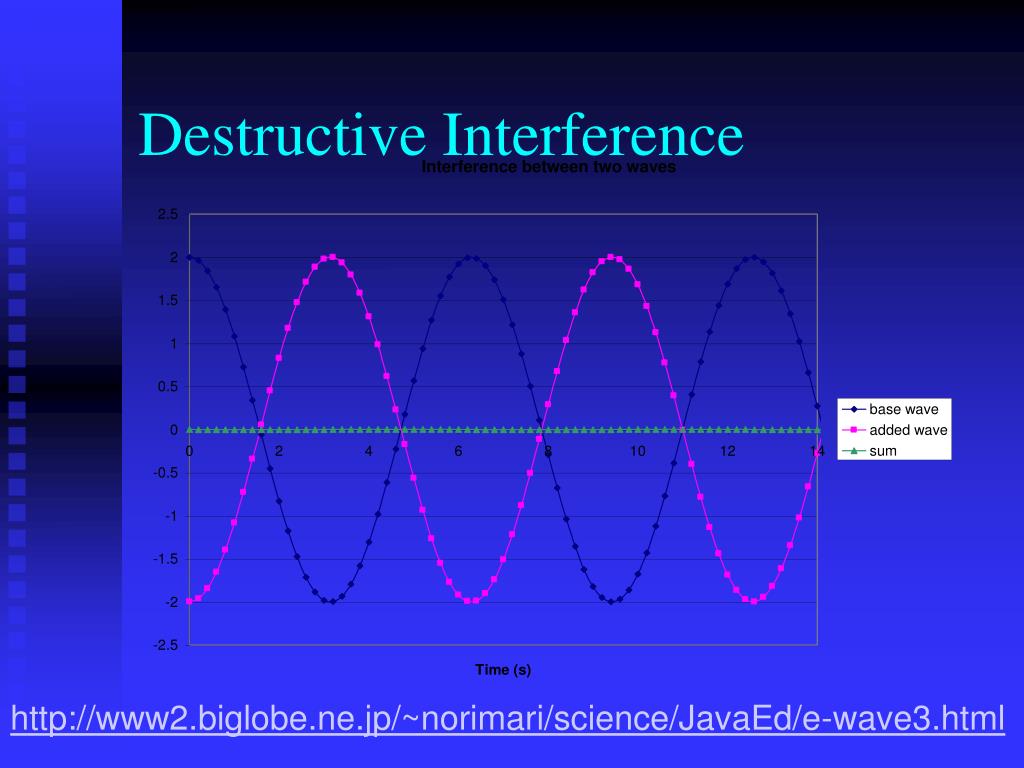

  14. Destructive Interference http://www2.biglobe.ne.jp/~norimari/science/JavaEd/e-wave3.html

  15. Standing Waves • Reflection combines with incoming wave to produce portions of the wave that appear to be stationary • nodes are stationary • antinodes move the most http://www.physicsclassroom.com/mmedia/waves/swf.html

  16. Doppler effect • if the wave generator is moving, the apparent frequency of the wave changes to a stationary observer • higher frequency as the center of the wave comes to you • lower frequency as the center of the wave moves away

  17. Doppler effect • car horn • sirens • radar gun • light • increase frequency – blue shift • decrease frequency – red shift http://www.shep.net/physics/

  18. Bow Waves • waves travel in all directions from the source of the wave (sound) • if the source of the sound is moving slower than the wave, the Doppler effect is created • higher frequency as sound approaches • lower frequency as sound moves away http://www.astro.ubc.ca/~scharein/a311/Sim/doppler/Doppler.html

  19. Stationary Source

  20. Moving slower than wave speed

  21. Object same speed as wave

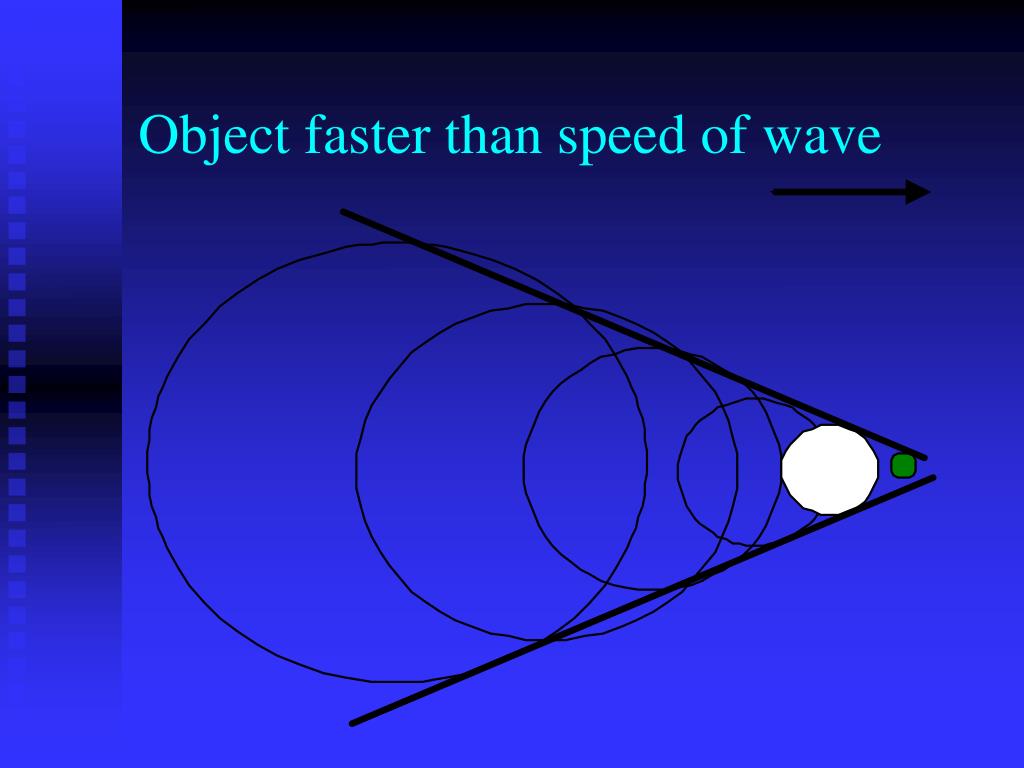

  22. Object faster than speed of wave

  23. Sonic Boom • Hear the movement of air not the sound from the object • Sonic boom formed all the time the object moves faster than the speed of the wave not just as it reaches the speed of the wave • Object does not have to make a sound to form a sonic boom • snapping towel
