Inter Regional Flows 15-minute SEM data, Year 2005-06

This report presents a comprehensive analysis of inter-regional power flows from the Eastern Region (ER) to various other regions in India during the 2005-06 period. It covers daily average power flows, highlighting maximum and minimum values over 365 days. The data includes insights into the growth rates of inter-regional capacity and exchange, along with seasonal flow summaries. Trends are illustrated through bar charts, and critical tripping incidents that affected power distribution in the Northern Region are documented. This study aims to better understand regional electricity dynamics and flows.

paloma
Télécharger la présentation

Inter Regional Flows 15-minute SEM data, Year 2005-06

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

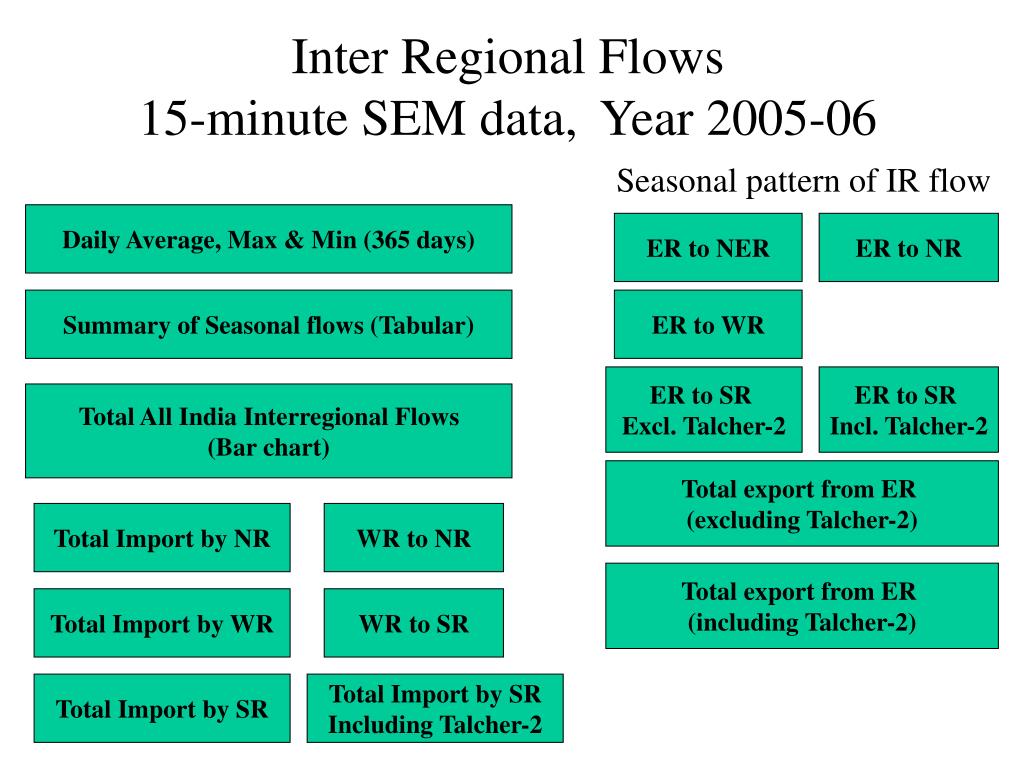

  1. Inter Regional Flows 15-minute SEM data, Year 2005-06 Seasonal pattern of IR flow Daily Average, Max & Min (365 days) ER to NER ER to NR Summary of Seasonal flows (Tabular) ER to WR ER to SR Excl. Talcher-2 ER to SR Incl. Talcher-2 Total All India Interregional Flows (Bar chart) Total export from ER (excluding Talcher-2) Total Import by NR WR to NR Total export from ER (including Talcher-2) Total Import by WR WR to SR Total Import by SR Total Import by SR Including Talcher-2

  2. Interregional Exchange CAGR of IR tr. Capacity = 26.0 % CAGR of IR exchange = 33.5 % Inter regional (IR) capacity increased from 1500 MW to 9500 MW CAGR: Compounded Annual Growth Rate

  3. Daily Maximum, Average & Minimum power flow from Eastern Region to other Regions 01st April 2005 to 31st March 2006

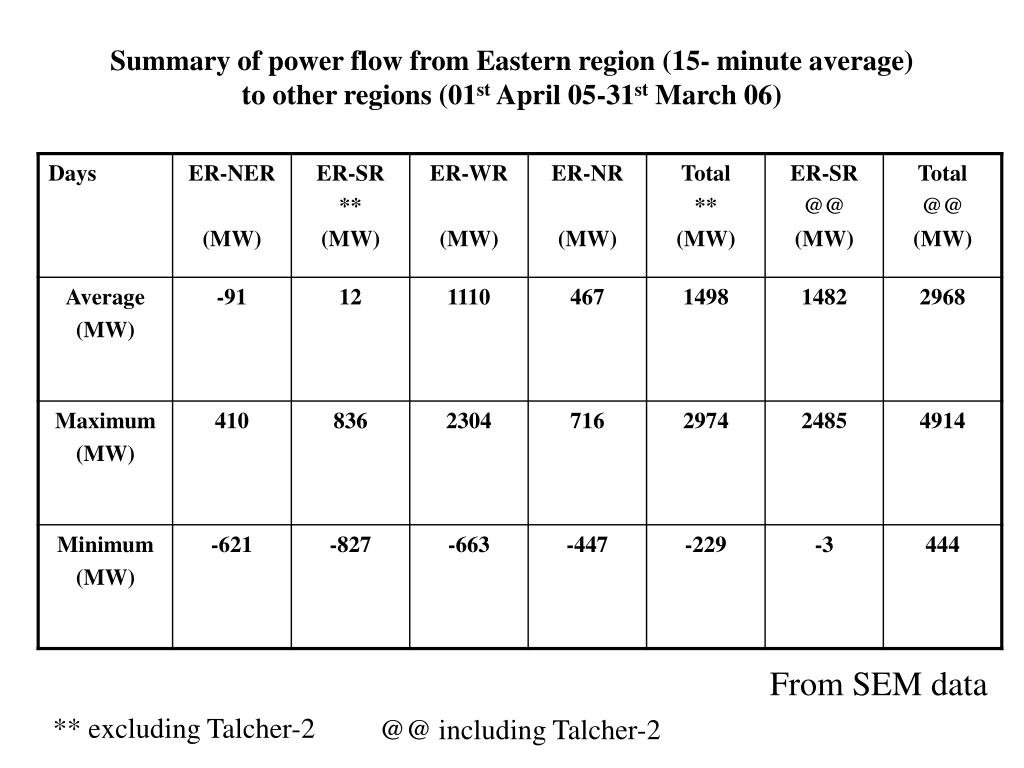

  4. Summary of power flow from Eastern region (15- minute average)to other regions (01st April 05-31st March 06) From SEM data ** excluding Talcher-2 @@ including Talcher-2

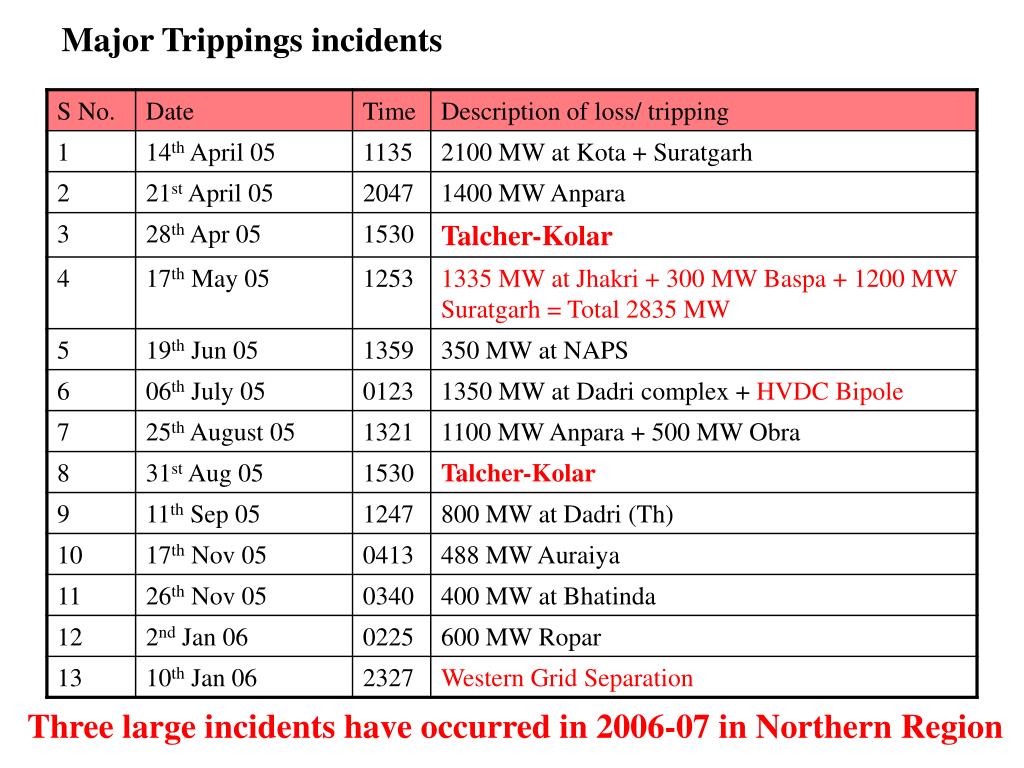

  5. Major Trippings incidents Three large incidents have occurred in 2006-07 in Northern Region

  6. Quarterly Flows from Eastern Region to other Regions April 05-June05 July 05-September 05 October 05-December05 January 06-March 06

  7. April 2005 - June 2005 ** excluding Talcher-2 @@ including Talcher-2

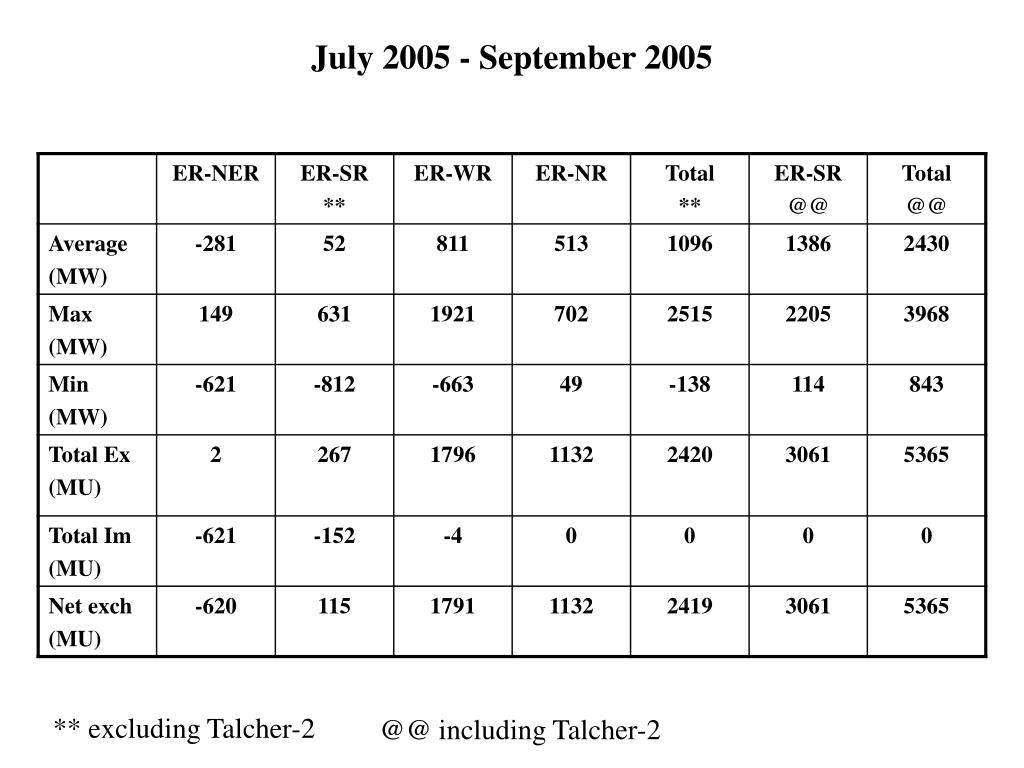

  8. July 2005 - September 2005 ** excluding Talcher-2 @@ including Talcher-2

  9. October 2005 - December 2005 ** excluding Talcher-2 @@ including Talcher-2

  10. January 2006 - March 2006 ** excluding Talcher-2 @@ including Talcher-2

  11. Eastern Region to North-eastern Region

  12. Eastern Region to Southern Region(excluding Talcher-stage-II)

  13. Eastern Region to Western Region

  14. Eastern Region to Northern Region

  15. Eastern Region to All the Regions(excluding Talcher stage-II)

  16. Eastern Region to Southern Region(including Talcher-stage-II)
