  1. Parallelizing ROMS for Distributed Memory Machines using the Scalable Modeling System (SMS) Dan Schaffer NOAA Forecast Systems Laboratory (FSL) August 2001

  2. Outline • Who we are • Intro to SMS • Application of SMS to ROMS • Ongoing Work • Conclusion

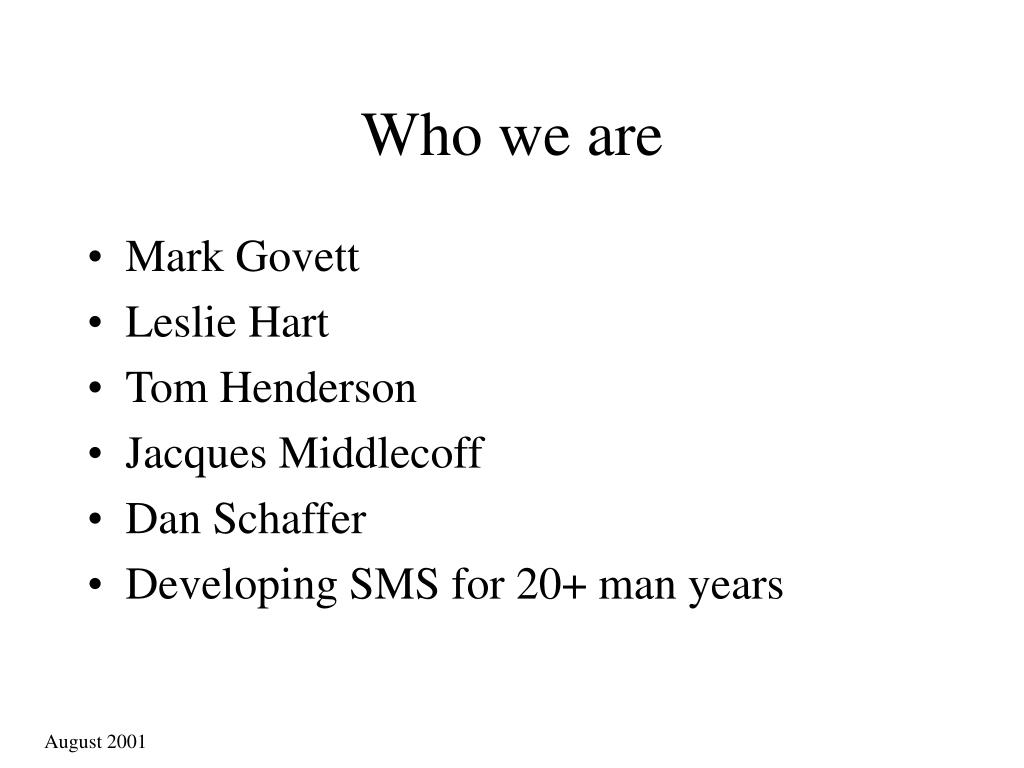

  3. Who we are • Mark Govett • Leslie Hart • Tom Henderson • Jacques Middlecoff • Dan Schaffer • Developing SMS for 20+ man years

  4. Intro to SMS • Overview • Directive based • FORTRAN comments • Enables single source parallelization • Distributed or shared memory machines • Performance portability

  5. Distributed Memory Parallelism

  6. Code Parallelization using SMS Original SerialCode Add SMS Directives SMS Serial Code Serial Executable SMS Parallel Code PPP Parallel Executable Parallel Pre-Processor

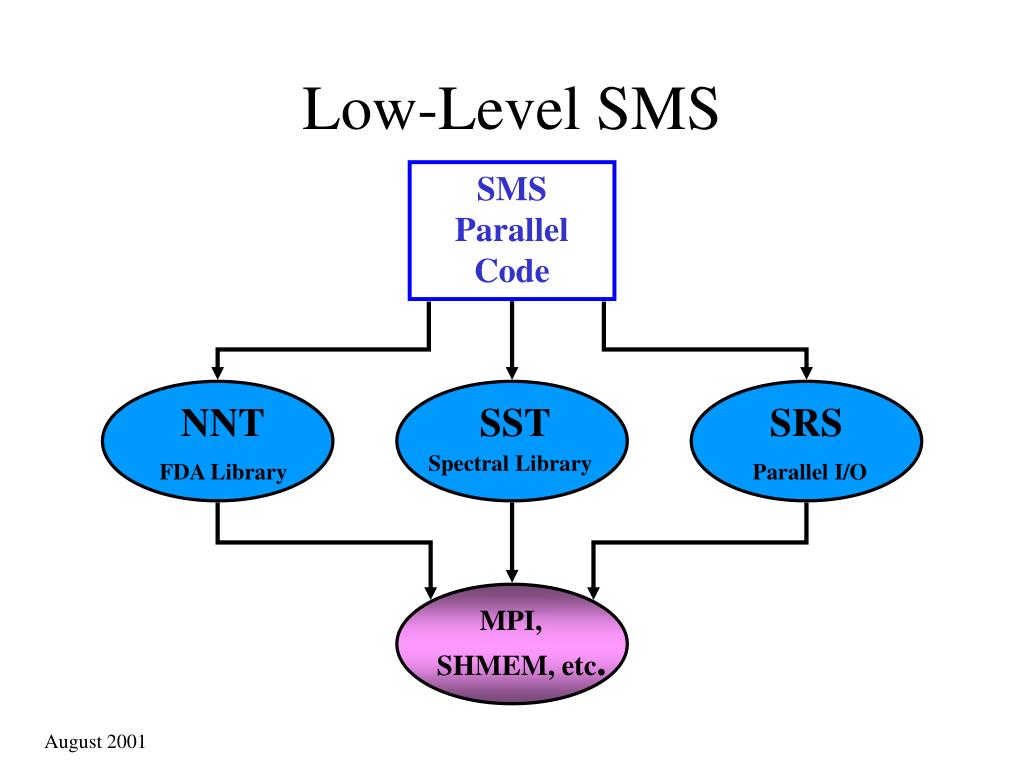

  7. Low-Level SMS SMS Parallel Code NNT SST SRS Spectral Library FDA Library Parallel I/O MPI, SHMEM, etc.

  8. Intro to SMS (contd) • Support for all of F77 plus much of F90 including: • Dynamic memory allocation • Modules (partially supported) • User-defined types • Supported Machines • COMPAQ Alpha-Linux Cluster (FSL “Jet”) • PC-Linux Cluster • SUN Sparcstation • SGI Origin 2000 • IBM SP-2

  9. Intro to SMS (contd) • Models Parallelized • Ocean : ROMS, HYCOM, POM • Mesoscale Weather : FSL RUC, FSL QNH, NWS Eta, Taiwan TFS (Nested) • Global Weather : Taiwan GFS (Spectral) • Atmospheric Chemistry : NOAA Aeronomy Lab

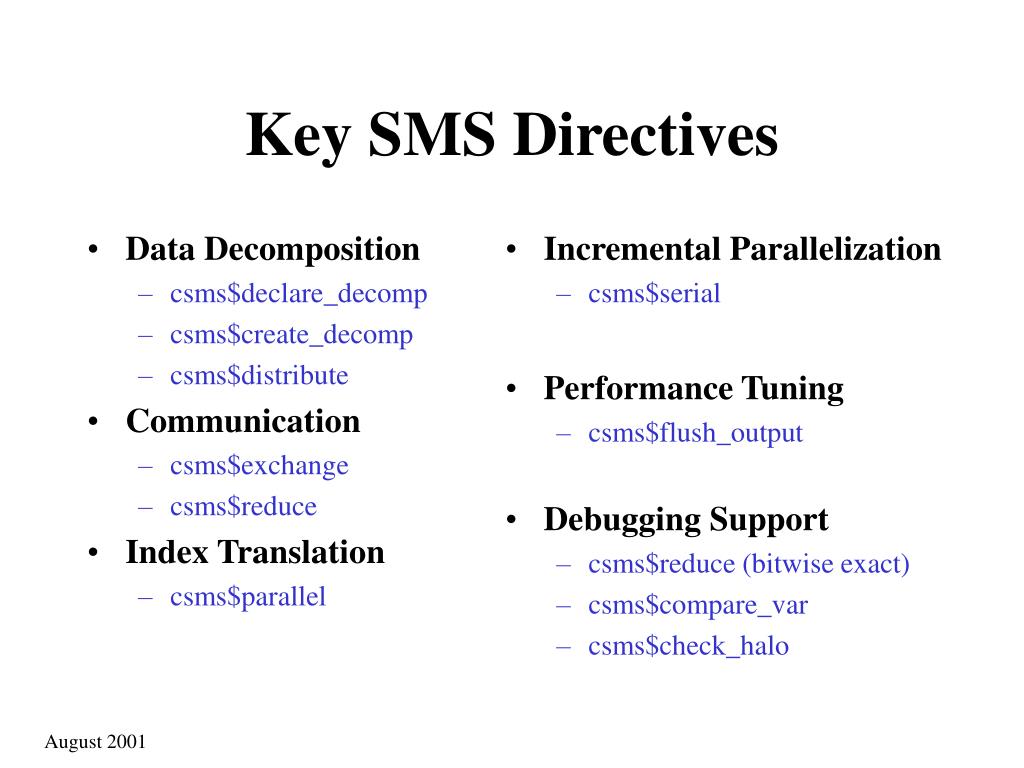

  10. Data Decomposition csms$declare_decomp csms$create_decomp csms$distribute Communication csms$exchange csms$reduce Index Translation csms$parallel Incremental Parallelization csms$serial Performance Tuning csms$flush_output Debugging Support csms$reduce (bitwise exact) csms$compare_var csms$check_halo Key SMS Directives

  11. SMS Serial Code

  12. Advanced Features • Nesting • Incremental Parallelization • Debugging Support (Run-time configurable) • CSMS$REDUCE • Enables bit-wise exact reductions • CSMS$CHECK_HALO • Verifies a halo region is up-to-date • CSMS$COMPARE_VAR • Compare variables for simultaneous runs with different numbers of processors • HYCOM 1-D decomp parallelized in 9 days

  13. “global” “local” “local” “global” Incremental Parallelization • CALL NOT_PARALLEL(...) SMS Directive:CSMS$SERIAL

  14. Advanced Features (contd) • Overlapping Output with Computations (FORTRAN Style I/O only) • Run-time Process Configuration • Specify • number of processors per decomposed dim or • number of grid points per processor • 15% performance boost for HYCOM • Support for irregular grids coming soon

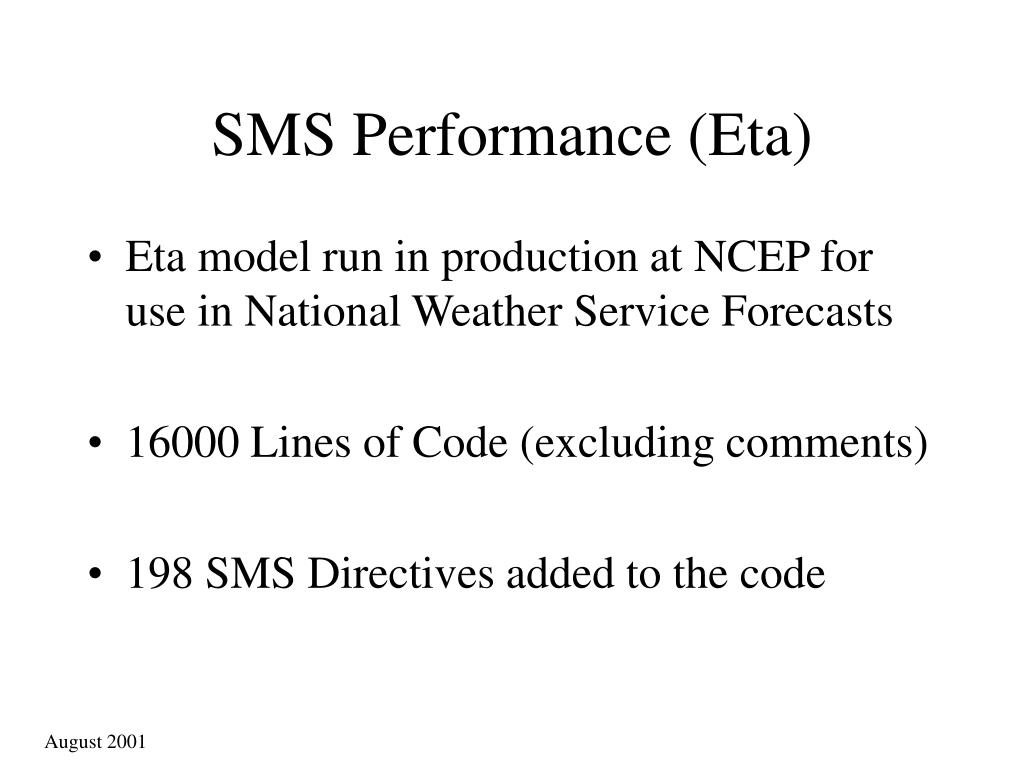

  15. SMS Performance (Eta) • Eta model run in production at NCEP for use in National Weather Service Forecasts • 16000 Lines of Code (excluding comments) • 198 SMS Directives added to the code

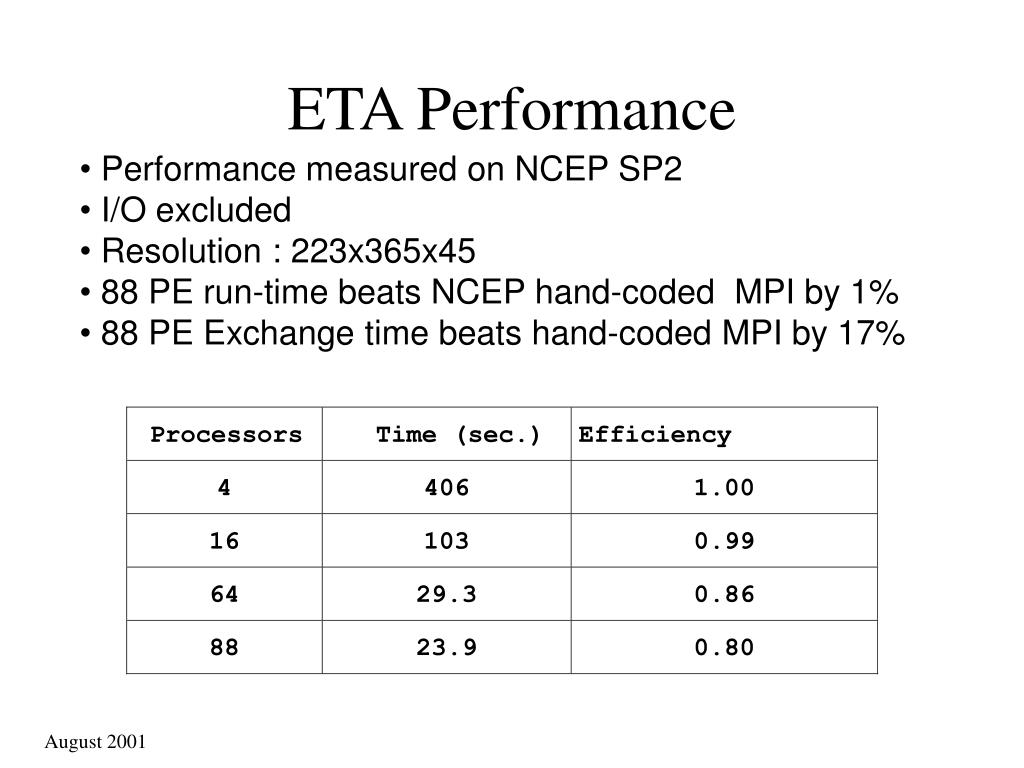

  16. ETA Performance • Performance measured on NCEP SP2 • I/O excluded • Resolution : 223x365x45 • 88 PE run-time beats NCEP hand-coded MPI by 1% • 88 PE Exchange time beats hand-coded MPI by 17%

  17. SMS Performance (HYCOM) • 4500 Lines of Code (excluding comments) • 108 openMP directives included in the code • 143 SMS Directives added to the code

  18. HYCOM Performance • Performance measured on O2K • Resolution : 135x256x14 • Serial code runs in 136 seconds

  19. Intro to SMS (contd) • Extensive documentation available on the web • New development aided by • Regression test suite • Web-based bug tracking system

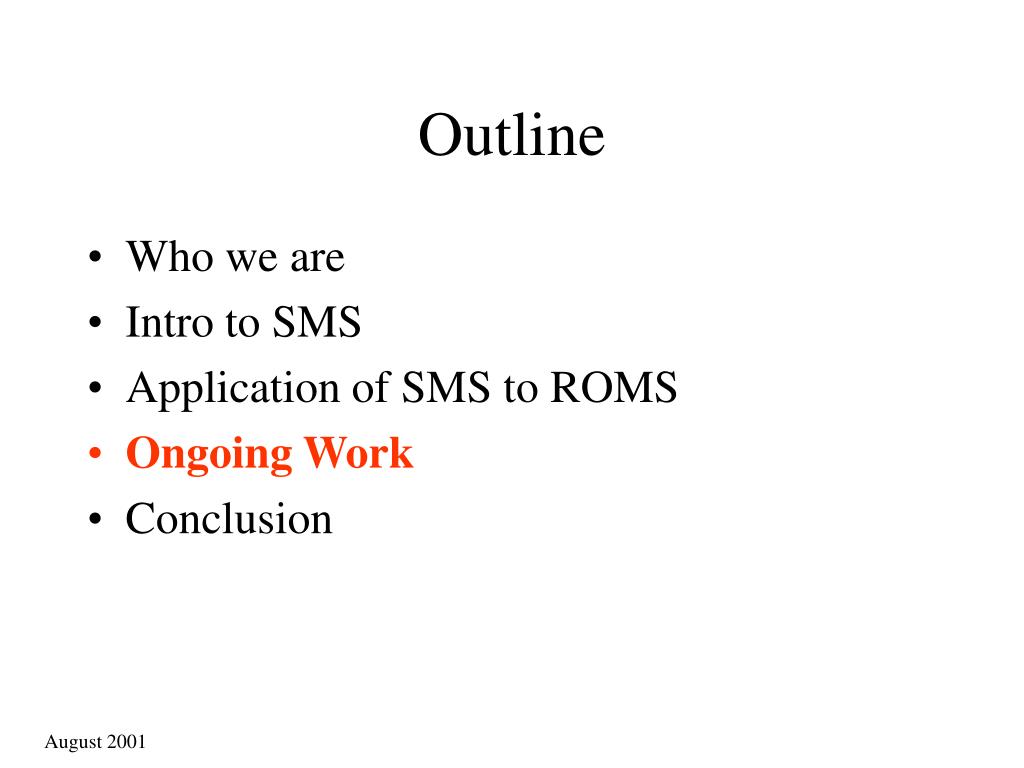

  20. Outline • Who we are • Intro to SMS • Application of SMS to ROMS • Ongoing Work • Conclusion

  21. SMS ROMS Implementation • Used awk and cpp to convert to dynamic memory; simplifying SMS parallelization • Leveraged existing shared memory parallelism do I = ISTR, IEND • Directives added to handle NEP scenario • 13000 Lines of Code, 132 SMS directives • Handled netCDF I/O with CSMS$SERIAL

  22. Results and Performance • Runs and produces correct answer on all supported SMS machines • Low Resolution 128x128x30 • “Jet”, O2K, T3E Scaling • Run-times for main loop (21 time steps) excluding I/O • High Resolution 210x550x30 • PMEL using in production • 97% Efficiency between 8 and 16 processors on “Jet”

  23. SMS Low Res ROMS “Jet” Performance

  24. SMS Low Res ROMS O2K Performance

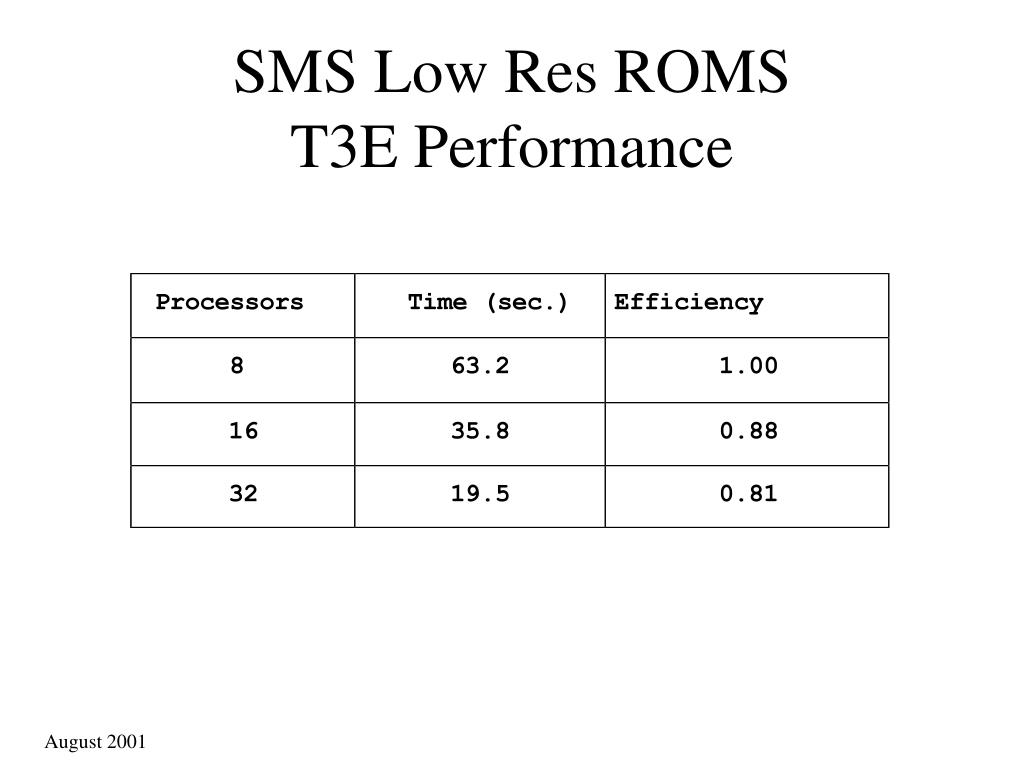

  25. SMS Low Res ROMS T3E Performance

  26. Outline • Who we are • Intro to SMS • Application of SMS to ROMS • Ongoing Work • Conclusion

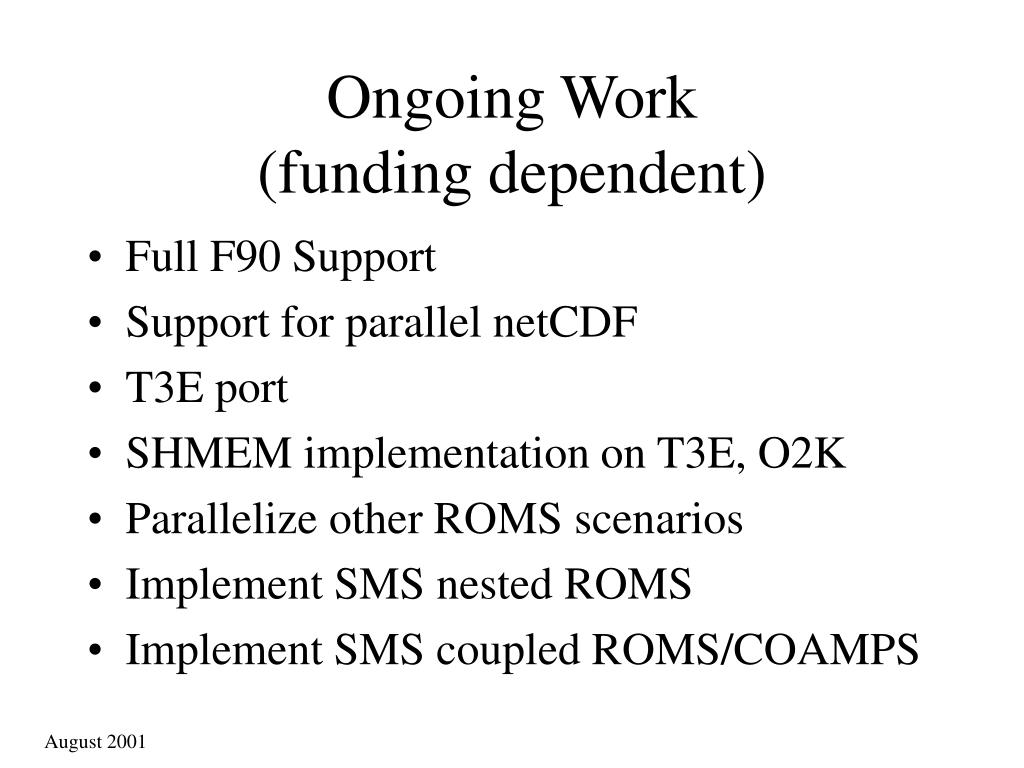

  27. Ongoing Work (funding dependent) • Full F90 Support • Support for parallel netCDF • T3E port • SHMEM implementation on T3E, O2K • Parallelize other ROMS scenarios • Implement SMS nested ROMS • Implement SMS coupled ROMS/COAMPS

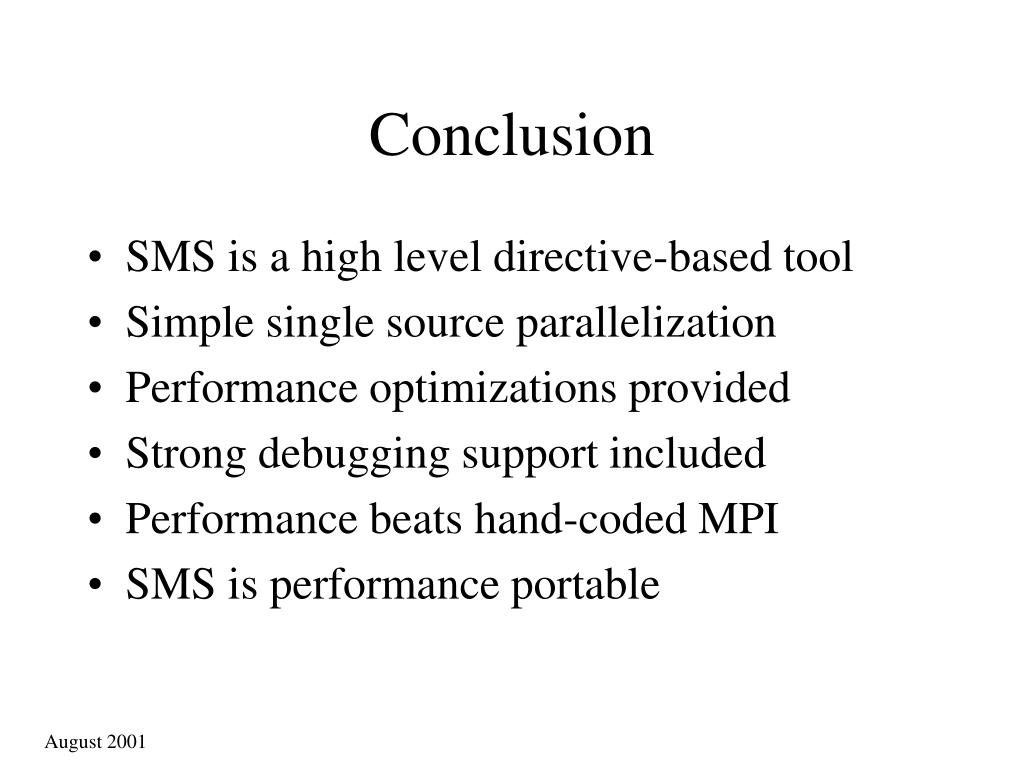

  28. Conclusion • SMS is a high level directive-based tool • Simple single source parallelization • Performance optimizations provided • Strong debugging support included • Performance beats hand-coded MPI • SMS is performance portable

  29. Web-Site www-ad.fsl.noaa.gov/ac/sms.html
