  1. Capstone Fall 2009LED CUBE Team 8: Nate Gimple Steven Tighe Amit Halevi Noah Husek

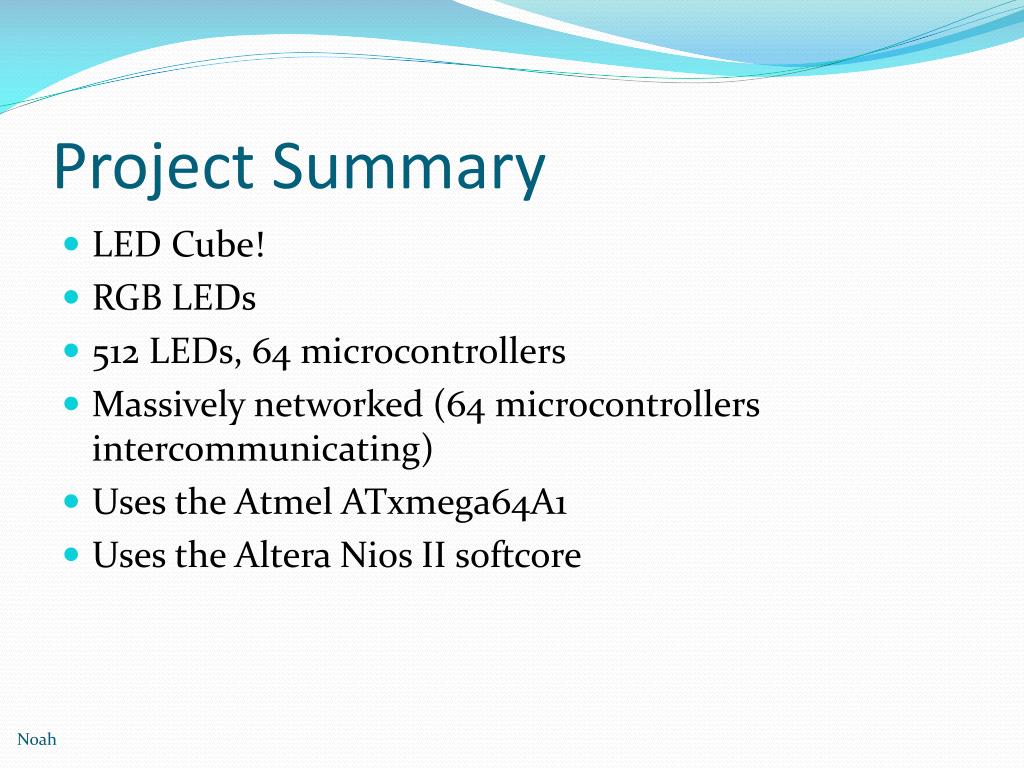

  2. Project Summary • LED Cube! • RGB LEDs • 512 LEDs, 64 microcontrollers • Massively networked (64 microcontrollers intercommunicating) • Uses the Atmel ATxmega64A1 • Uses the Altera Nios II softcore Noah

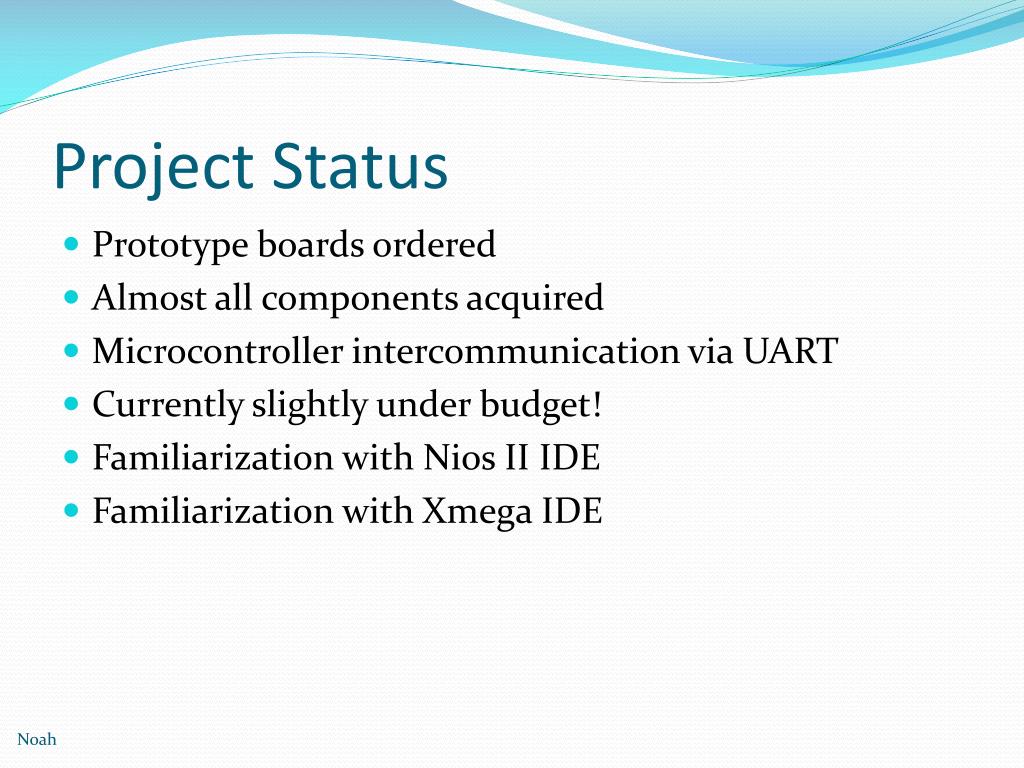

  3. Project Status • Prototype boards ordered • Almost all components acquired • Microcontroller intercommunication via UART • Currently slightly under budget! • Familiarization with Nios II IDE • Familiarization with Xmega IDE Noah

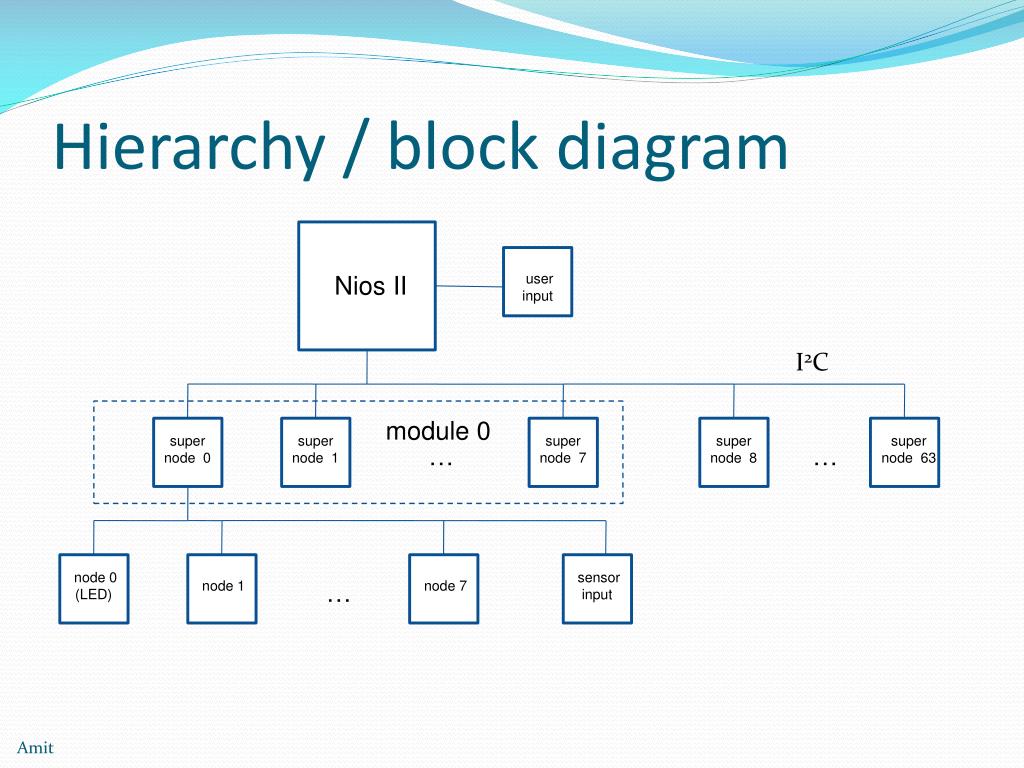

  4. Hierarchy / block diagram Nios II user input I2C module 0 super node 0 super node 1 super node 7 super node 8 super node 63 … … node 0 (LED) sensor input node 1 … node 7 Amit

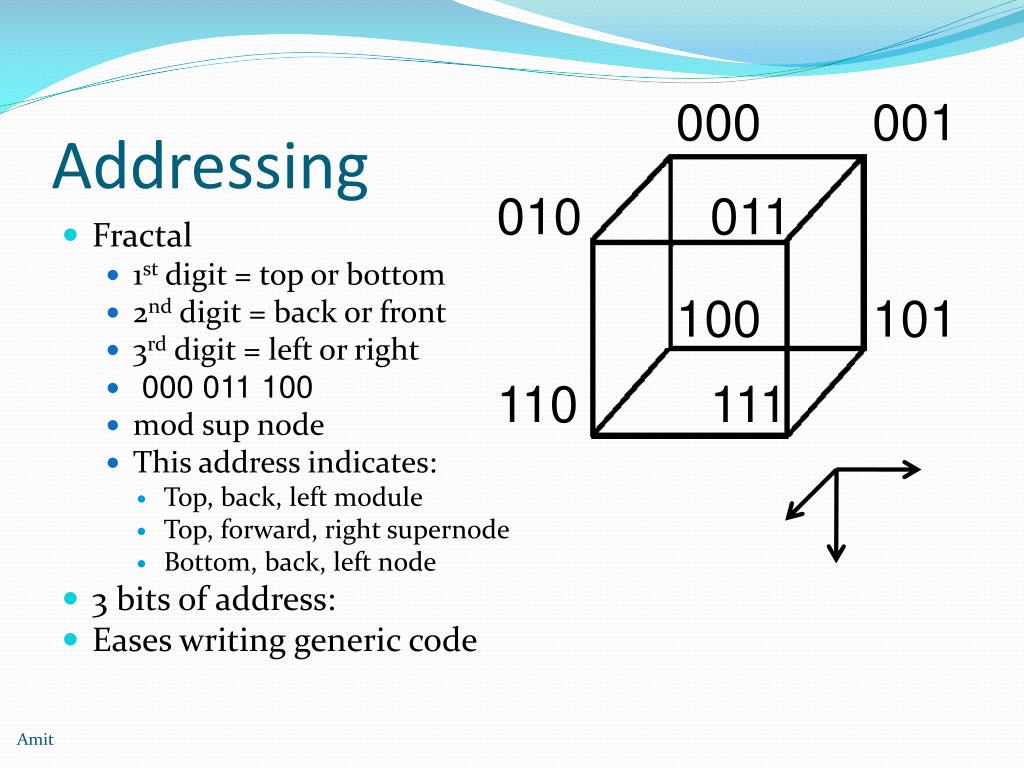

  5. Addressing 011 • Fractal • 1st digit = top or bottom • 2nd digit = back or front • 3rd digit = left or right • 000 011 100 • mod sup node • This address indicates: • Top, back, left module • Top, forward, right supernode • Bottom, back, left node • 3 bits of address: • Eases writing generic code 000 001 010 100 101 110 111 Amit

  6. Communication Scheme Supernode Supernode Supernode Supernode Supernode Supernode Nios II I2C UART Amit

  7. ATxmega64A1 • 32 MHz • 64 kB Flash memory • 8 USARTs • 4 I2C • SPI • Integral timers • 2 12 bit ADCs • 128 bit crypto engine! • Donated by Atmel Amit

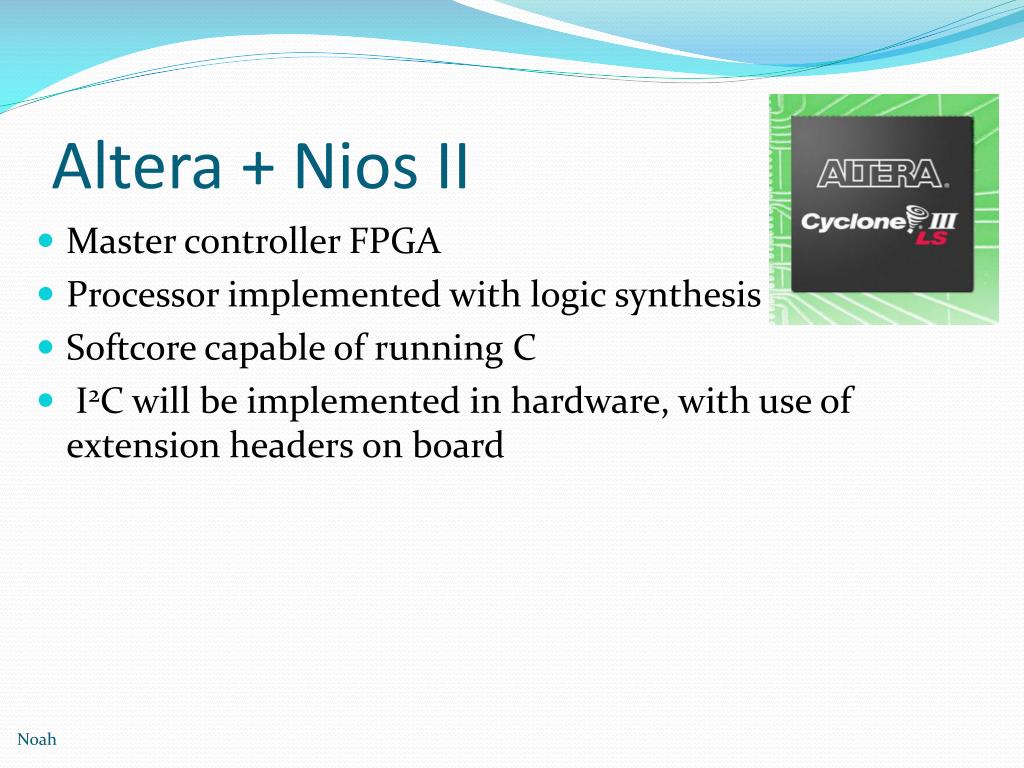

  8. Altera + Nios II • Master controller FPGA • Processor implemented with logic synthesis • Softcore capable of running C • I2C will be implemented in hardware, with use of extension headers on board Noah

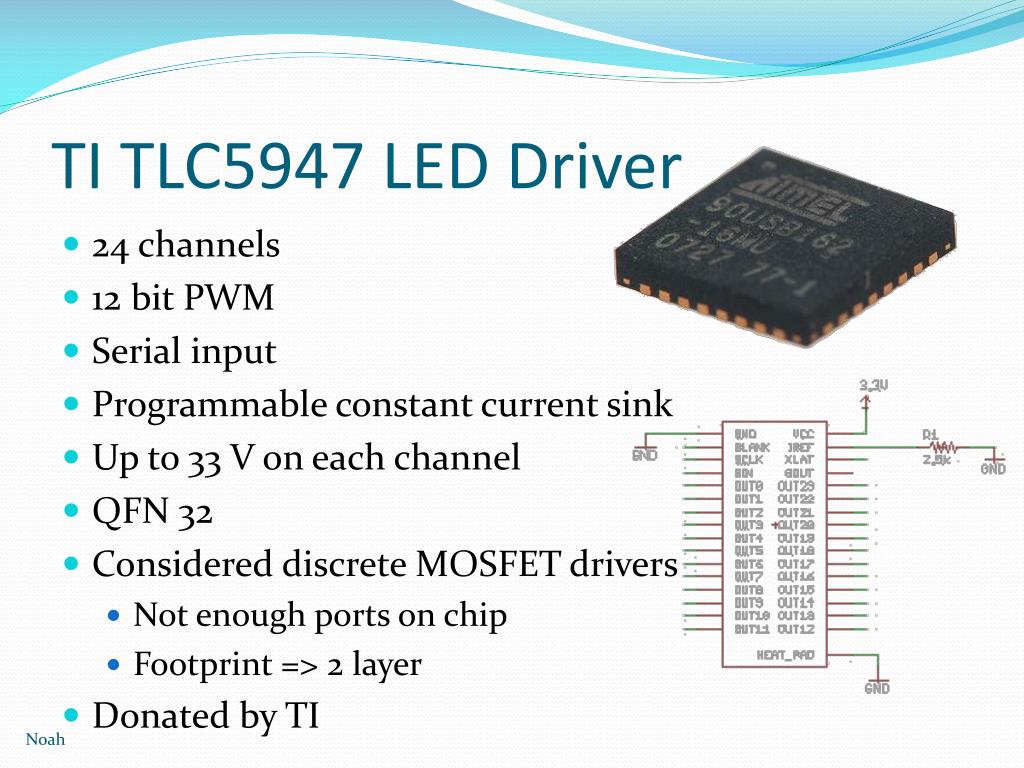

  9. TI TLC5947 LED Driver • 24 channels • 12 bit PWM • Serial input • Programmable constant current sink • Up to 33 V on each channel • QFN 32 • Considered discrete MOSFET drivers • Not enough ports on chip • Footprint => 2 layer • Donated by TI Noah

  10. LEDs • RGB LED • 4 lead, common anode • Diffused epoxy • 5 mm diameter • 20 mA • Using leads as structural member • Surprisingly expensive to buy 500 Noah

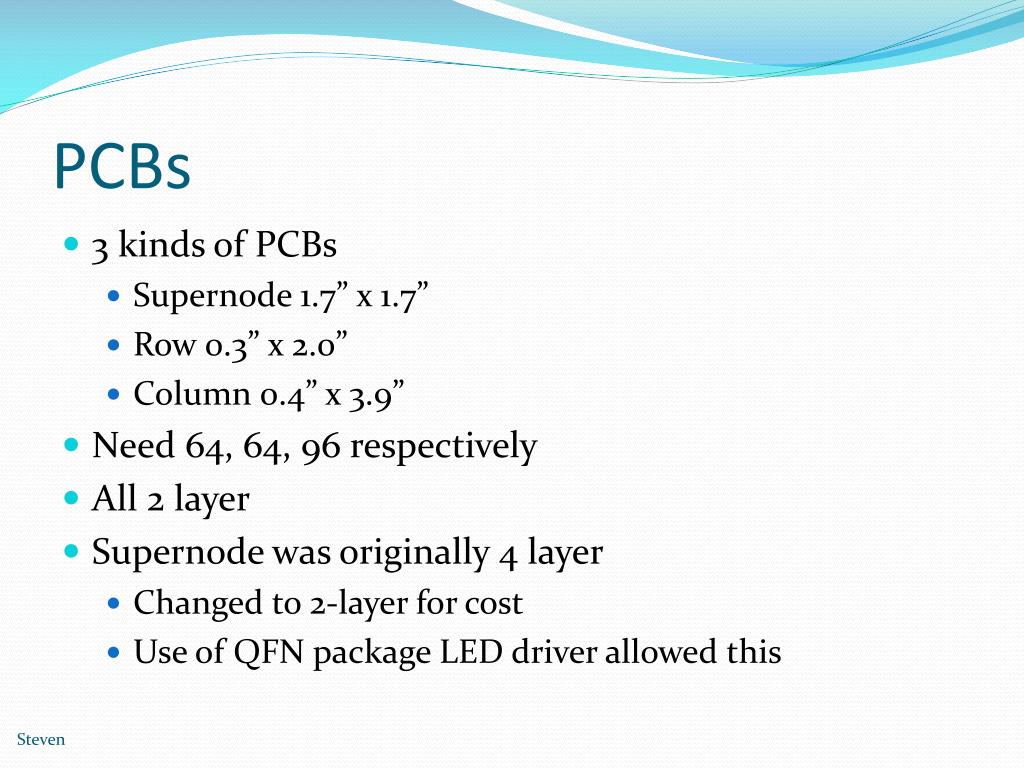

  11. PCBs • 3 kinds of PCBs • Supernode 1.7” x 1.7” • Row 0.3” x 2.0” • Column 0.4” x 3.9” • Need 64, 64, 96 respectively • All 2 layer • Supernode was originally 4 layer • Changed to 2-layer for cost • Use of QFN package LED driver allowed this Steven

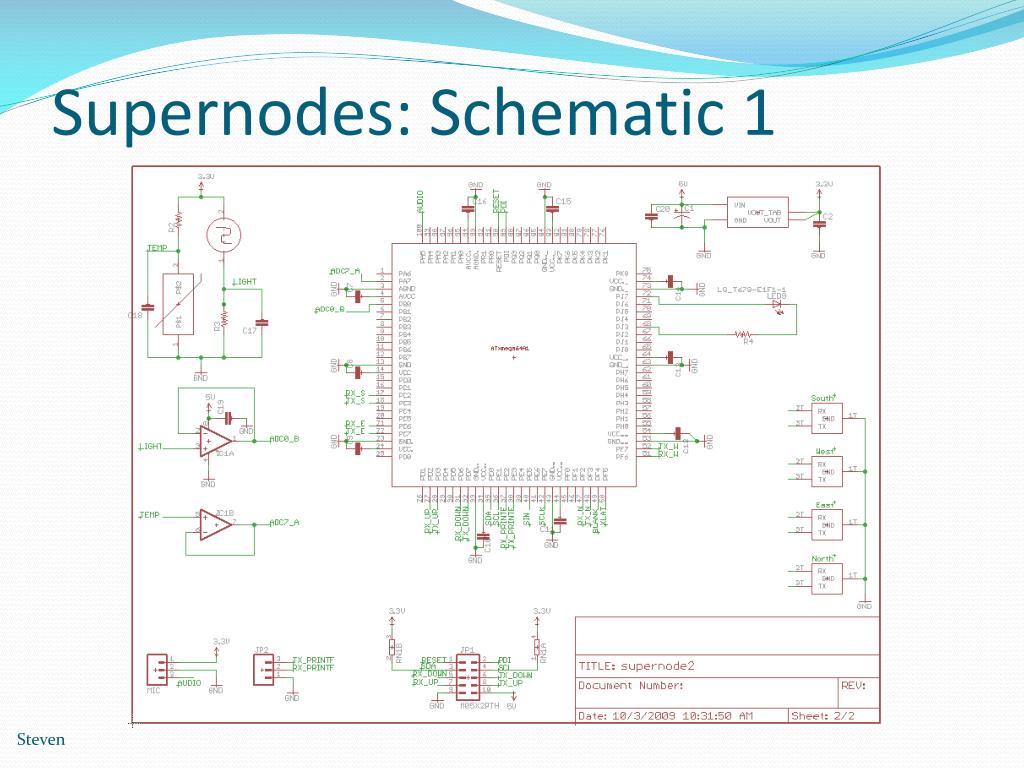

  12. Supernodes: Schematic 1 Steven

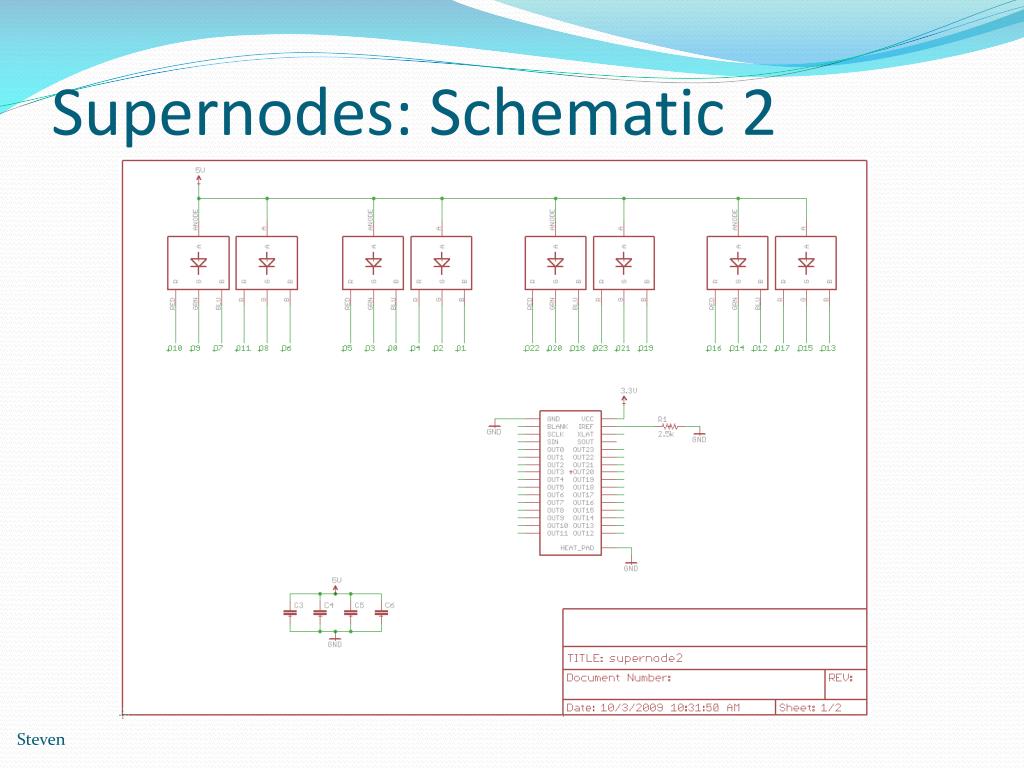

  13. Supernodes: Schematic 2 Steven

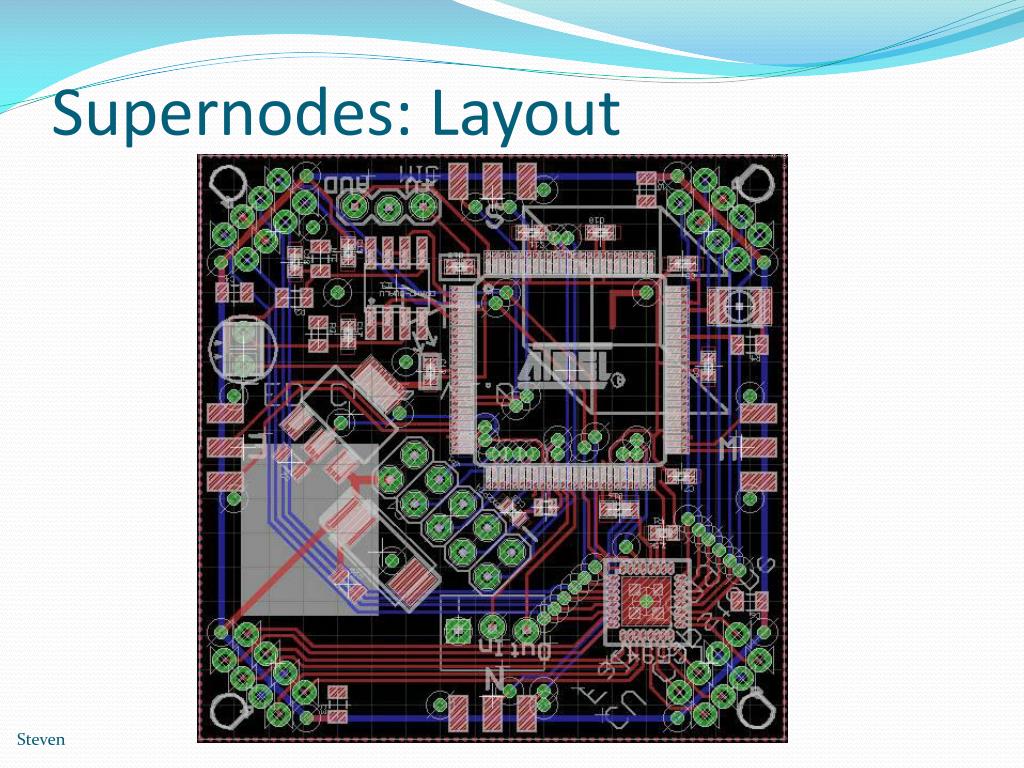

  14. Supernodes: Layout Steven

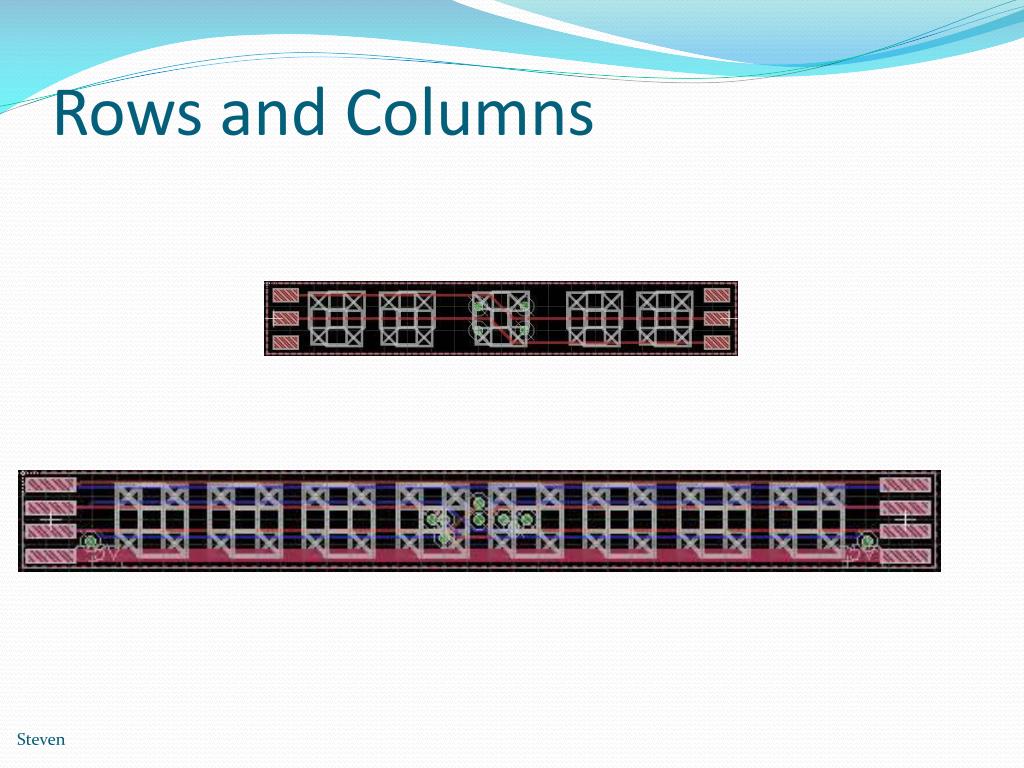

  15. Rows and Columns Steven

  16. Power Supply • Computer power supplies • Highly regulated voltage • 5 V, 3.3 V, 12 V available => 5 V used • Internal soft start • inrush current is not a problem Nate

  17. BOM and Budget Nate

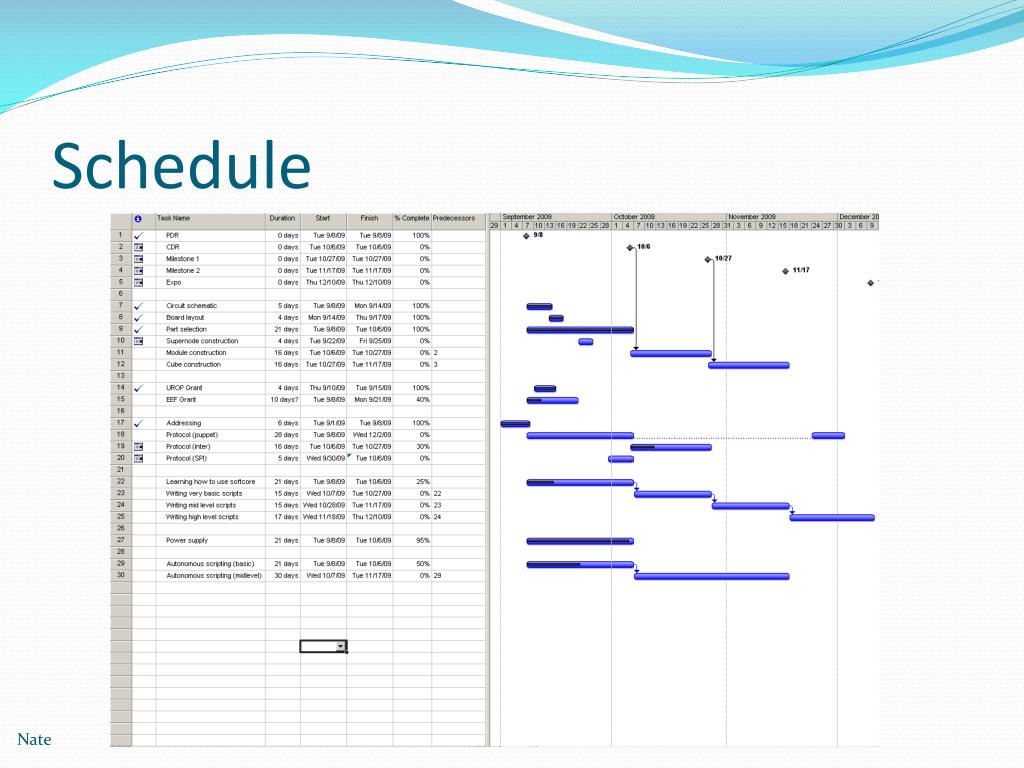

  18. Schedule Nate

  19. Accomplishments by CDRA review • Super-node hardware prototype • Demo firmware • 24 channel PWM • Runs simple autonomous patterns/scripts on super-node • All parts selected (sensors, LED drivers) • Know how to program Nios II soft-core (Kind of) Nate

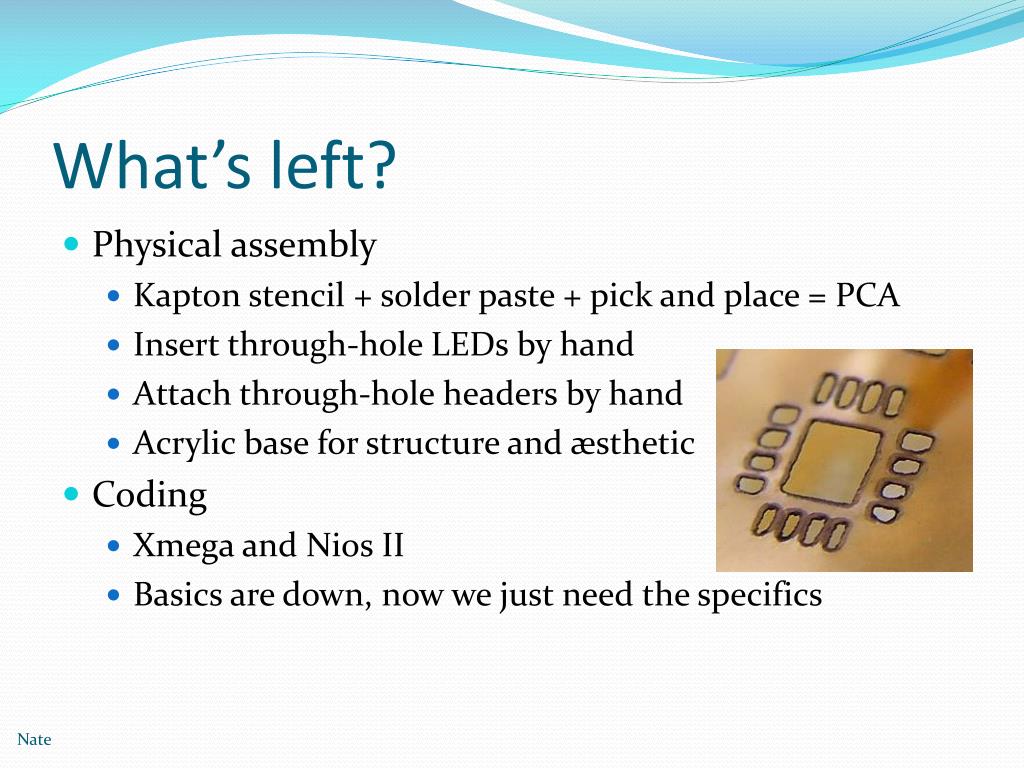

  20. What’s left? • Physical assembly • Kapton stencil + solder paste + pick and place = PCA • Insert through-hole LEDs by hand • Attach through-hole headers by hand • Acrylic base for structure and æsthetic • Coding • Xmega and Nios II • Basics are down, now we just need the specifics Nate

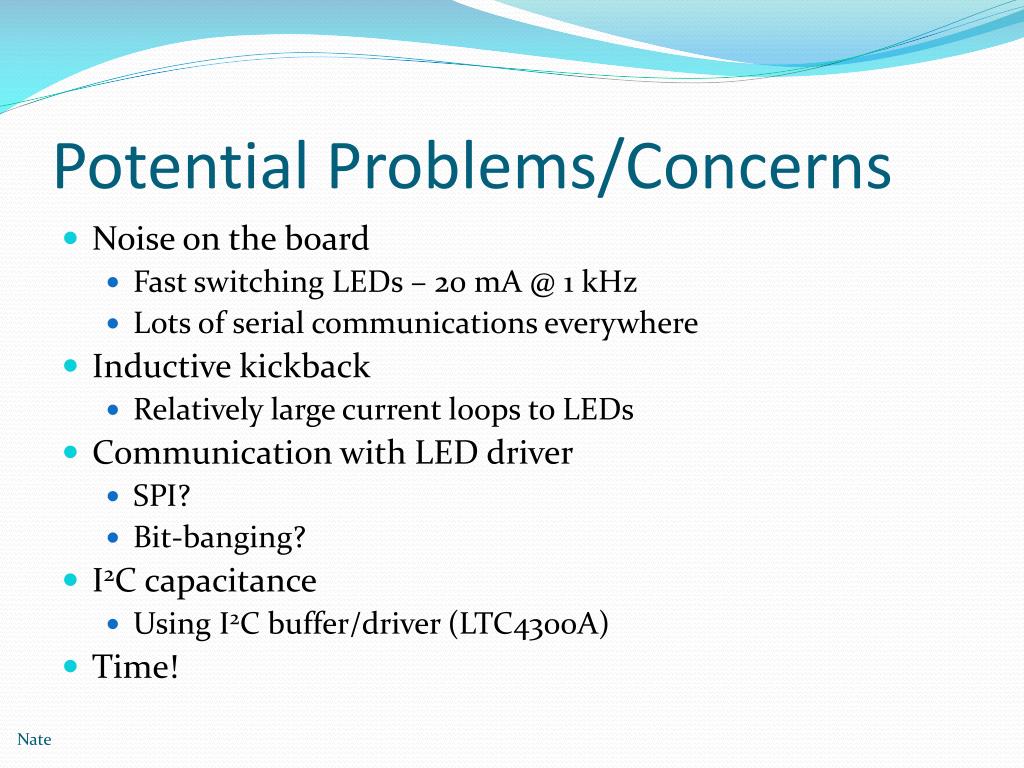

  21. Potential Problems/Concerns • Noise on the board • Fast switching LEDs – 20 mA @ 1 kHz • Lots of serial communications everywhere • Inductive kickback • Relatively large current loops to LEDs • Communication with LED driver • SPI? • Bit-banging? • I2C capacitance • Using I2C buffer/driver (LTC4300A) • Time! Nate

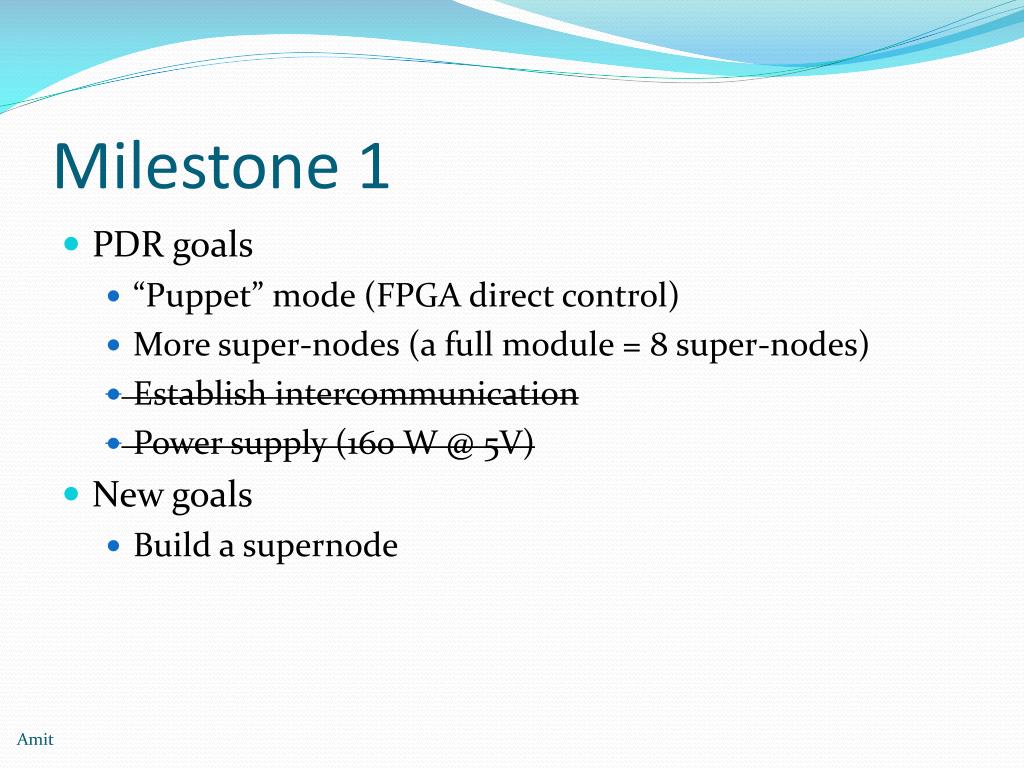

  22. Milestone 1 • PDR goals • “Puppet” mode (FPGA direct control) • More super-nodes (a full module = 8 super-nodes) • Establish intercommunication • Power supply (160 W @ 5V) • New goals • Build a supernode Amit

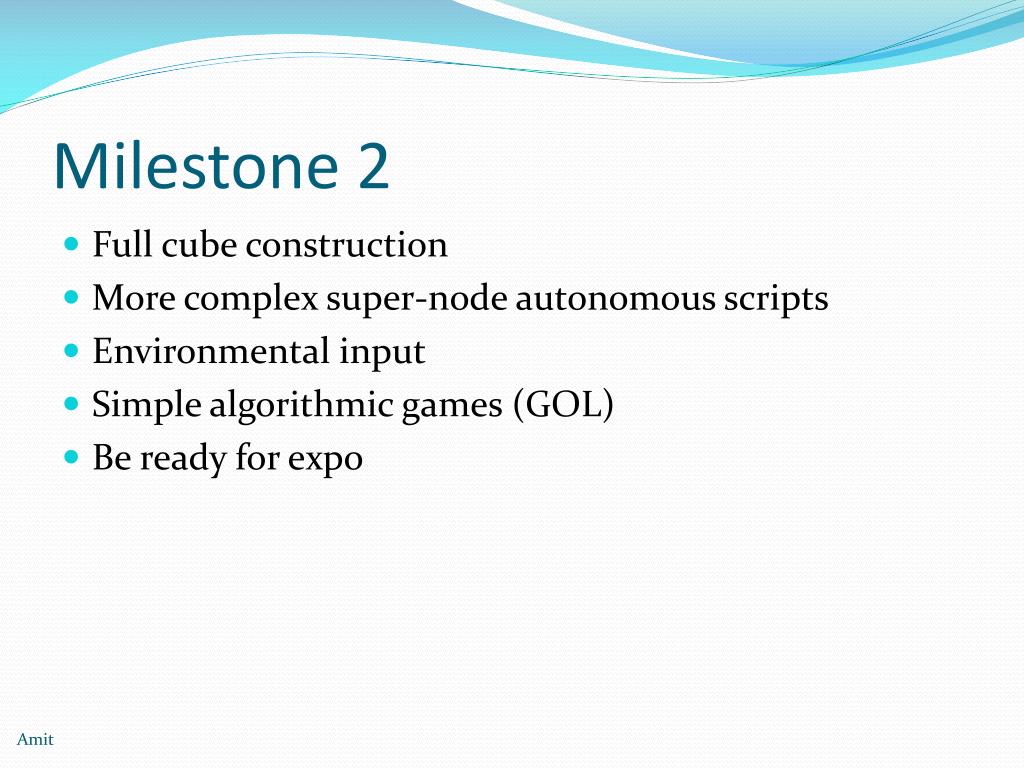

  23. Milestone 2 • Full cube construction • More complex super-node autonomous scripts • Environmental input • Simple algorithmic games (GOL) • Be ready for expo Amit

  24. Questions?
