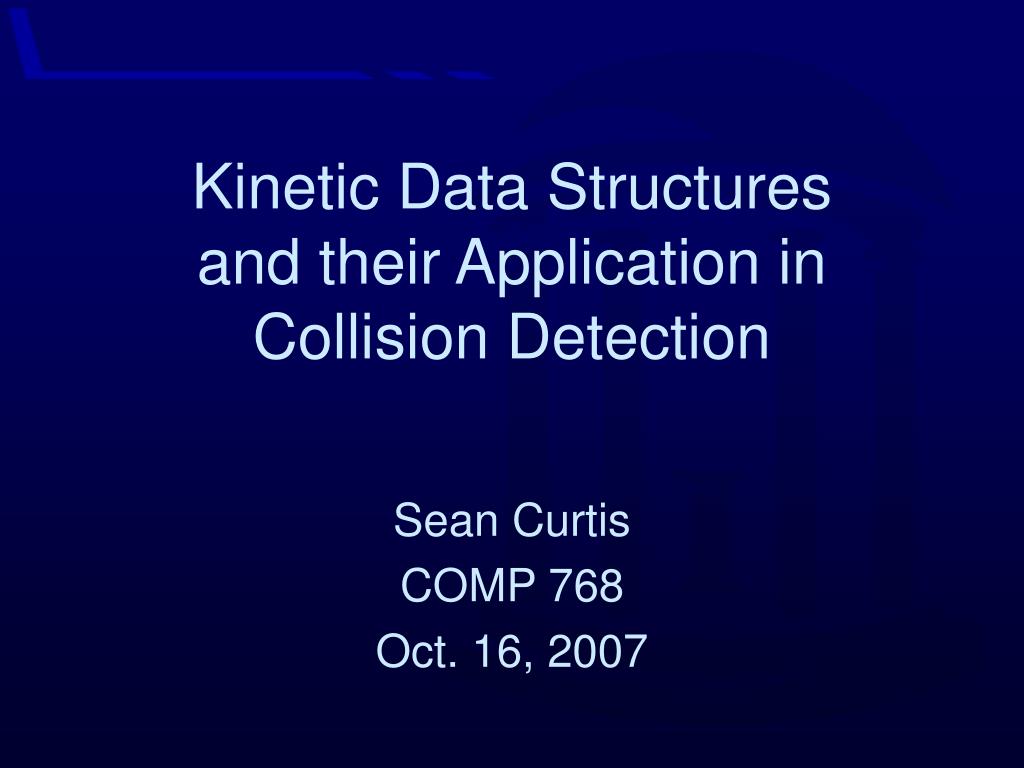

  1. Kinetic Data Structuresand their Application in Collision Detection Sean Curtis COMP 768 Oct. 16, 2007

  2. Kinetic Data Structures Motivation • Convex hull • Points move with time • Recalculate hull at each point • O(n lg n) work at each time step • Instead, define convex hull based on the points used • Only update hull when necessary Kinetic Data Structures -- COMP 768

  3. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

  4. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

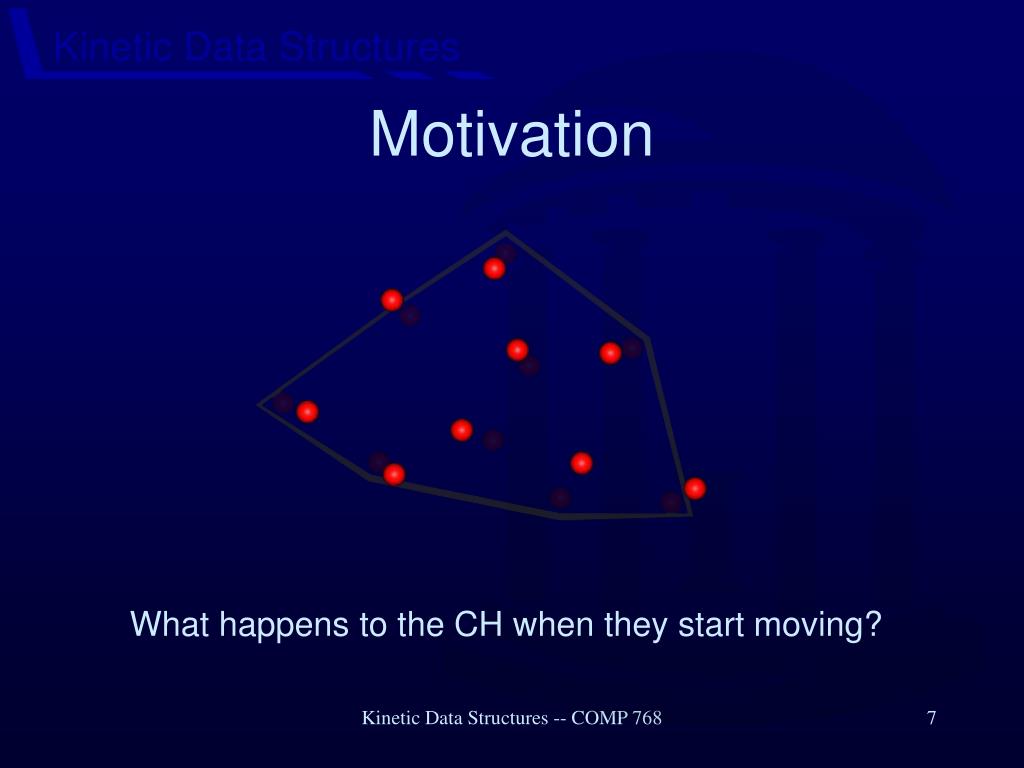

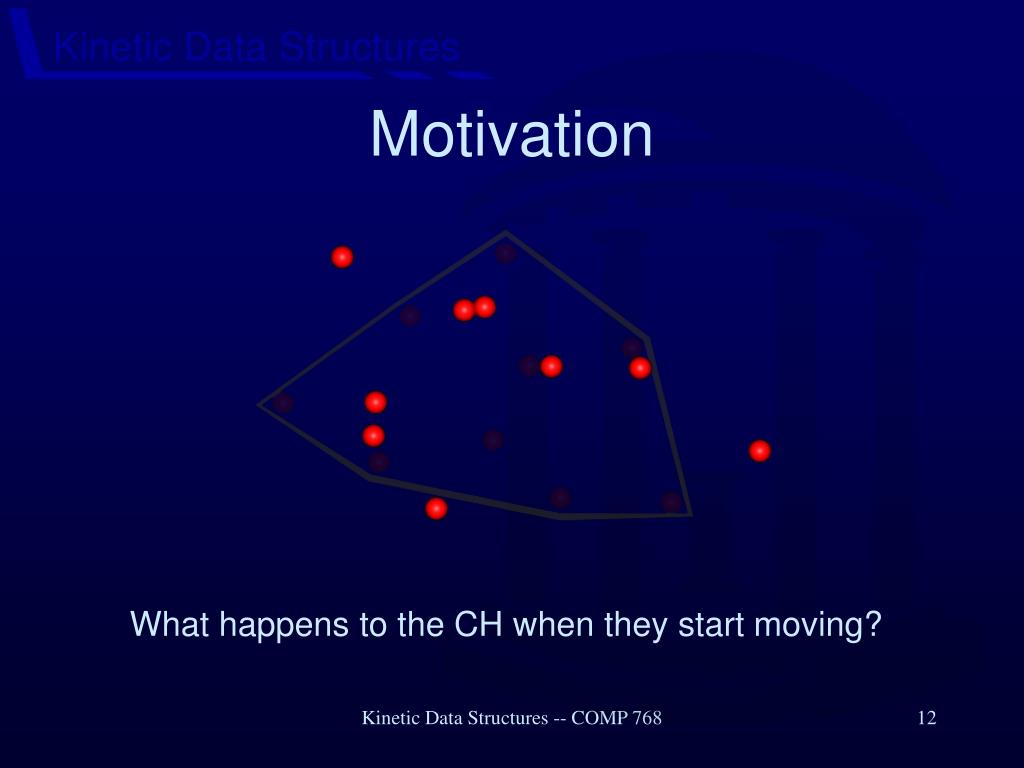

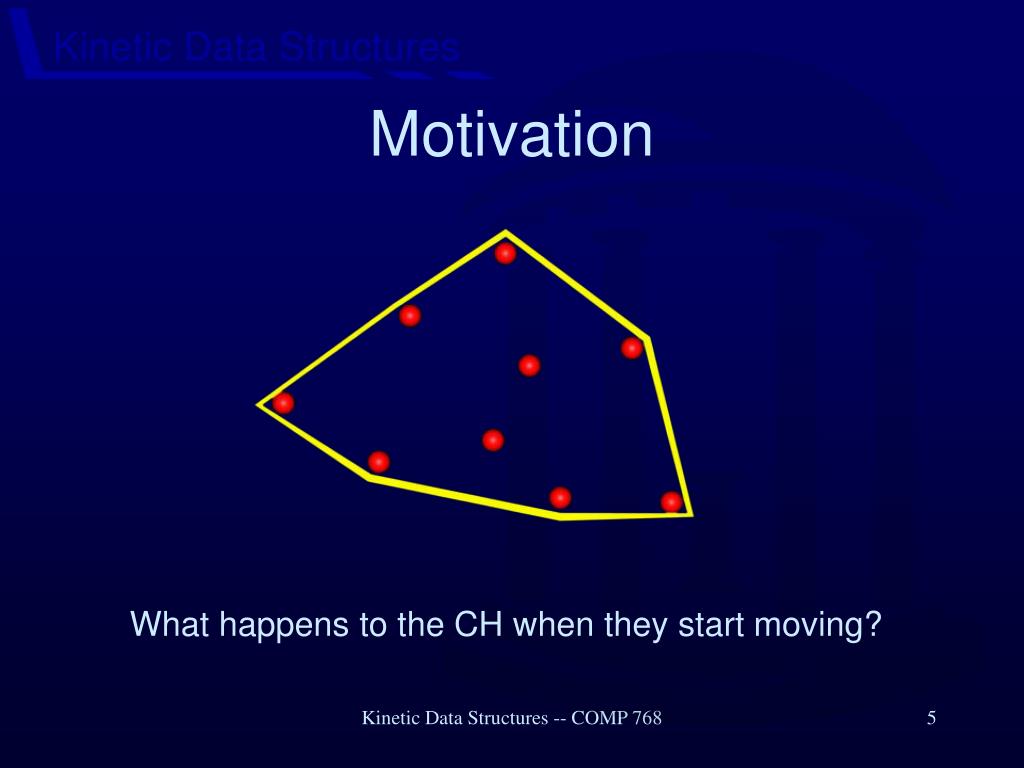

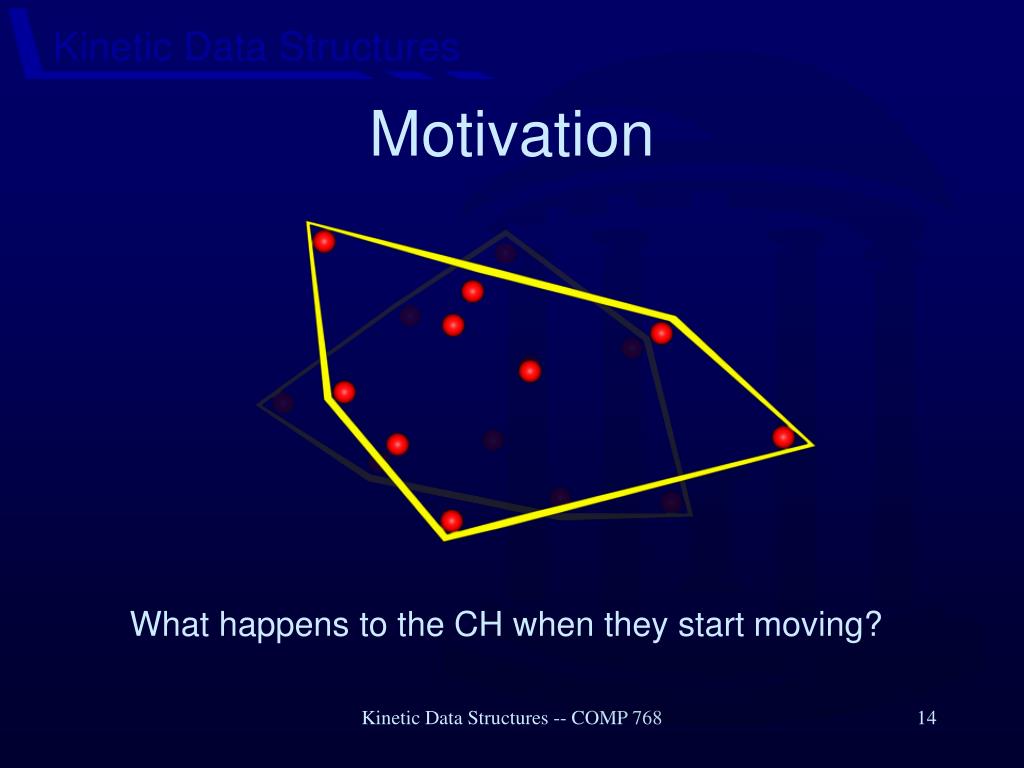

  5. Kinetic Data Structures Motivation What happens to the CH when they start moving? Kinetic Data Structures -- COMP 768

  6. Kinetic Data Structures Motivation What happens to the CH when they start moving? Kinetic Data Structures -- COMP 768

  7. Kinetic Data Structures Motivation What happens to the CH when they start moving? Kinetic Data Structures -- COMP 768

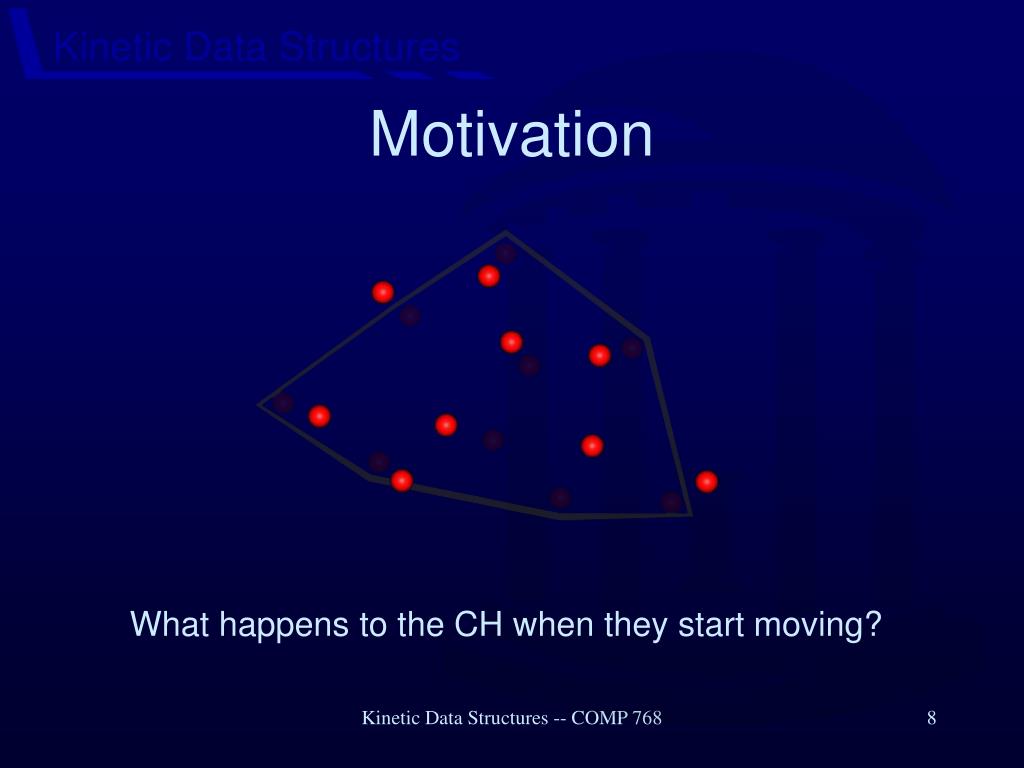

  8. Kinetic Data Structures Motivation What happens to the CH when they start moving? Kinetic Data Structures -- COMP 768

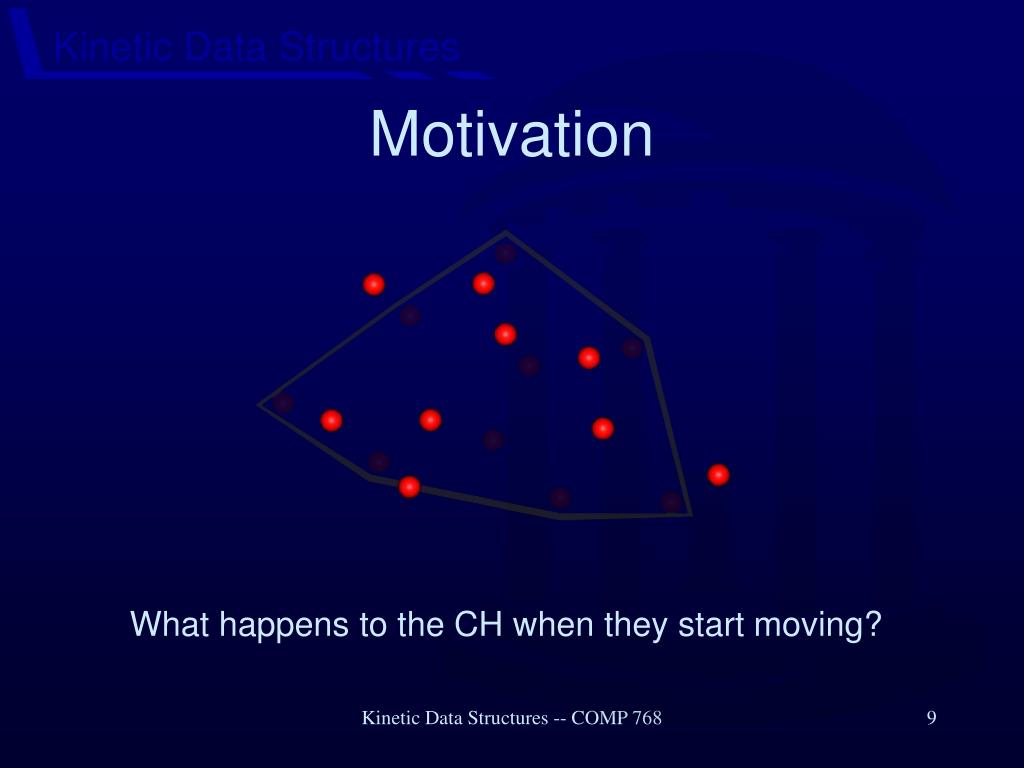

  9. Kinetic Data Structures Motivation What happens to the CH when they start moving? Kinetic Data Structures -- COMP 768

  10. Kinetic Data Structures Motivation What happens to the CH when they start moving? Kinetic Data Structures -- COMP 768

  11. Kinetic Data Structures Motivation What happens to the CH when they start moving? Kinetic Data Structures -- COMP 768

  12. Kinetic Data Structures Motivation What happens to the CH when they start moving? Kinetic Data Structures -- COMP 768

  13. Kinetic Data Structures Motivation What happens to the CH when they start moving? Kinetic Data Structures -- COMP 768

  14. Kinetic Data Structures Motivation What happens to the CH when they start moving? Kinetic Data Structures -- COMP 768

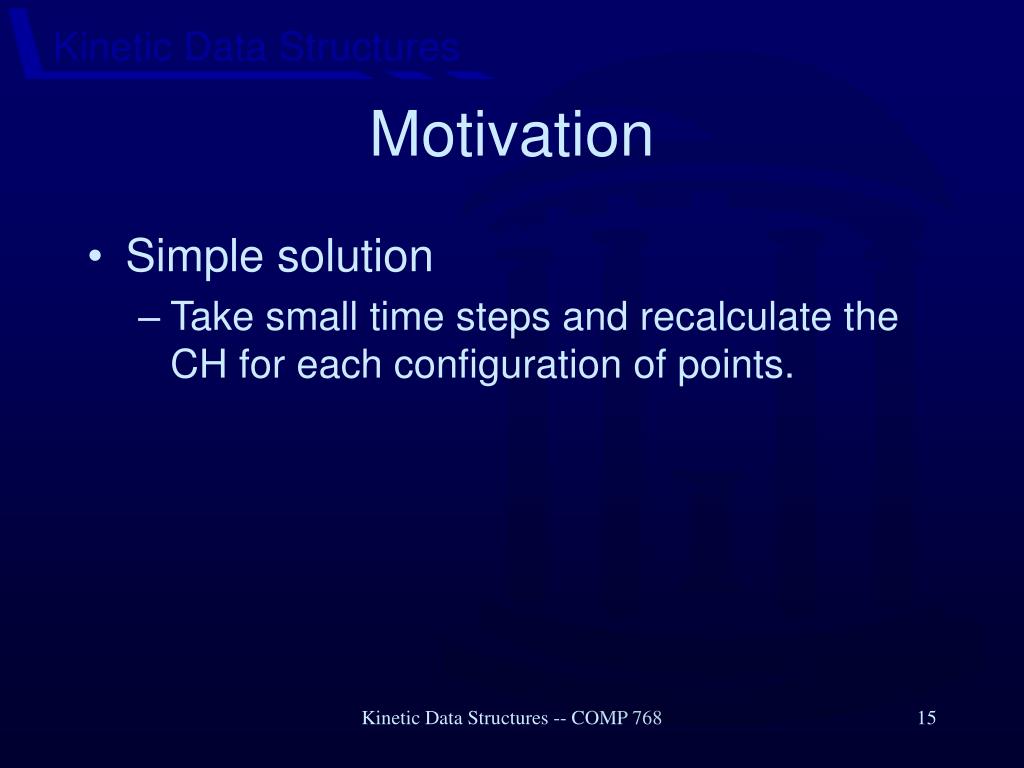

  15. Kinetic Data Structures Motivation • Simple solution • Take small time steps and recalculate the CH for each configuration of points. Kinetic Data Structures -- COMP 768

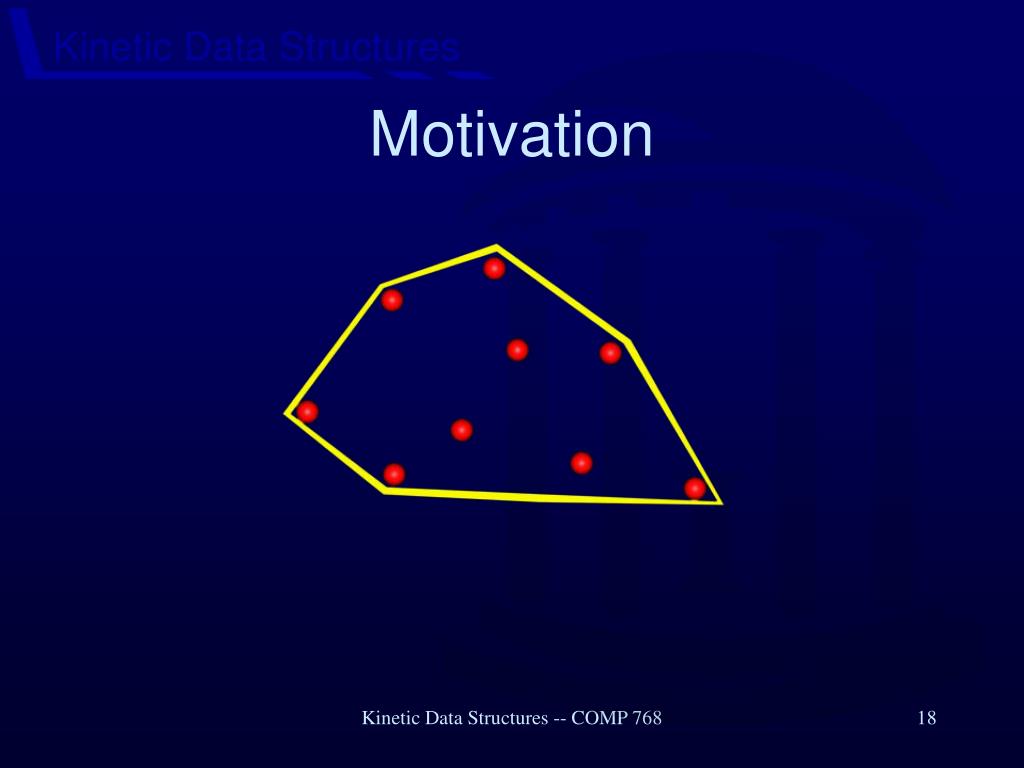

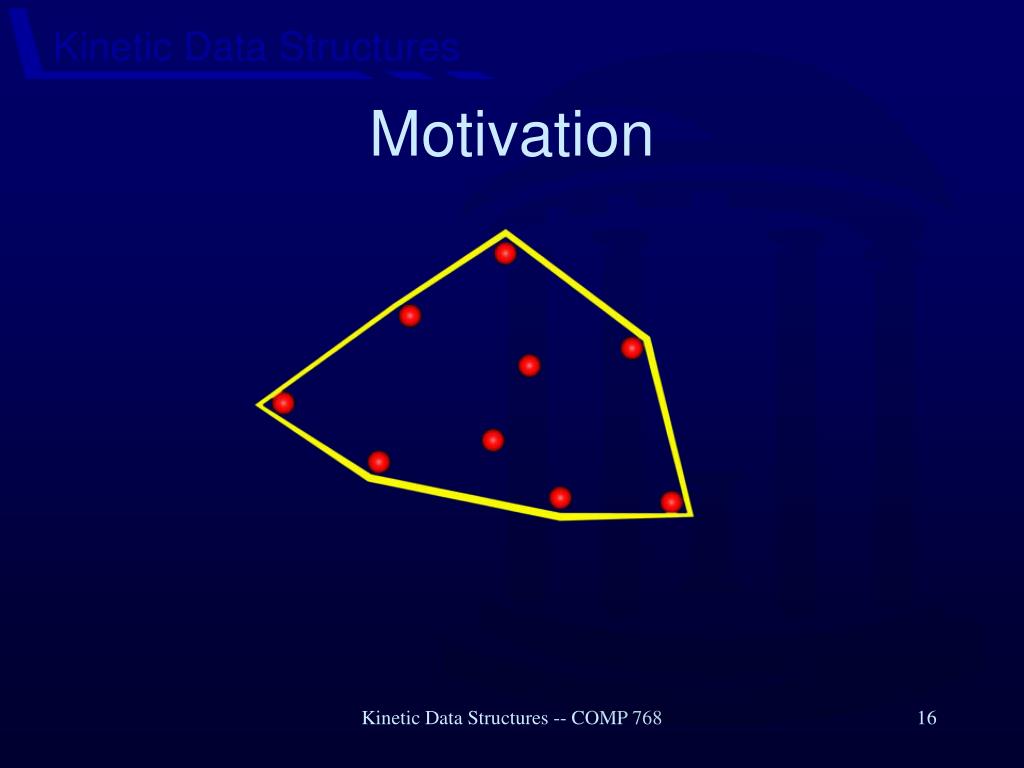

  16. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

  17. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

  18. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

  19. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

  20. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

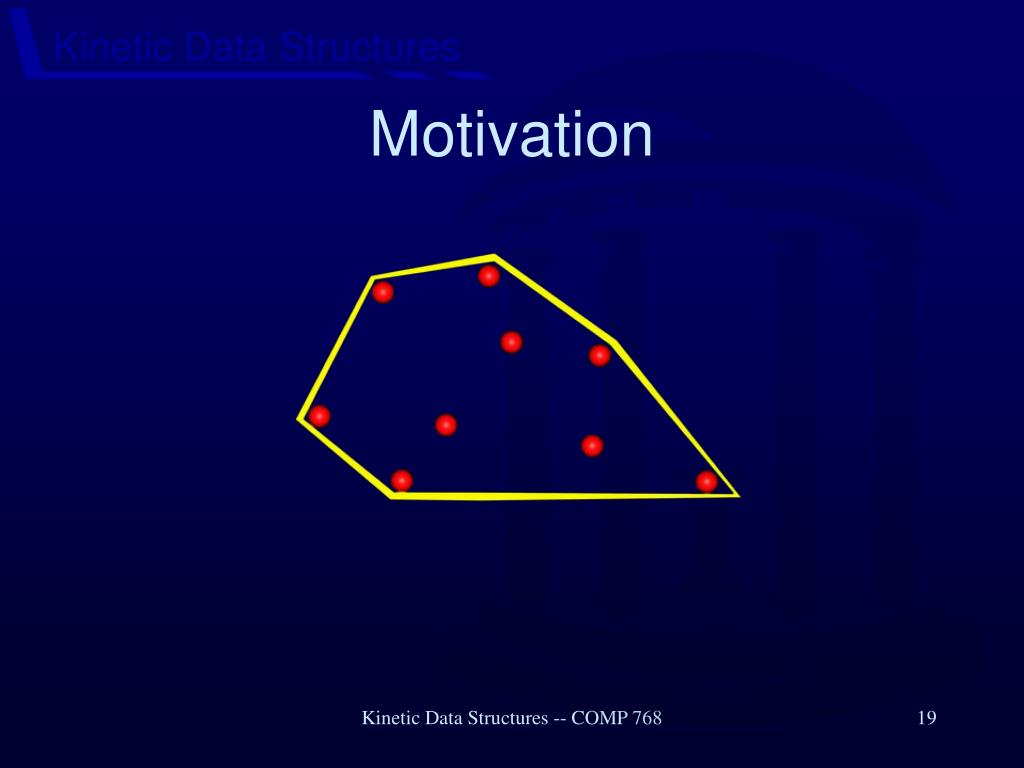

  21. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

  22. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

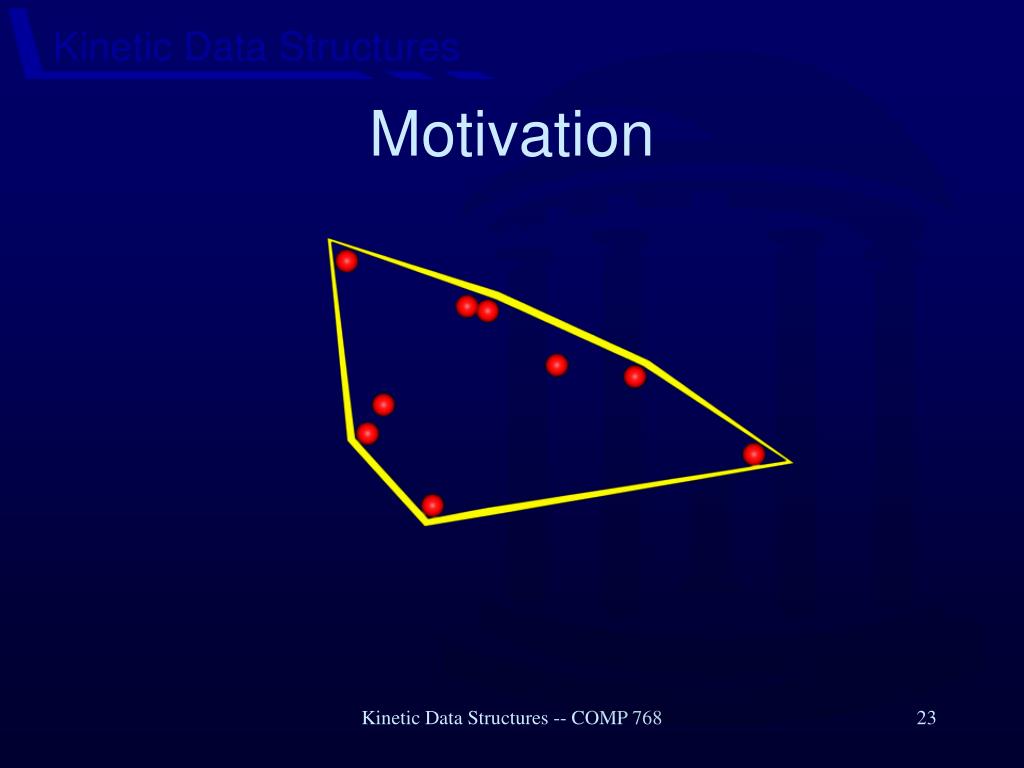

  23. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

  24. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

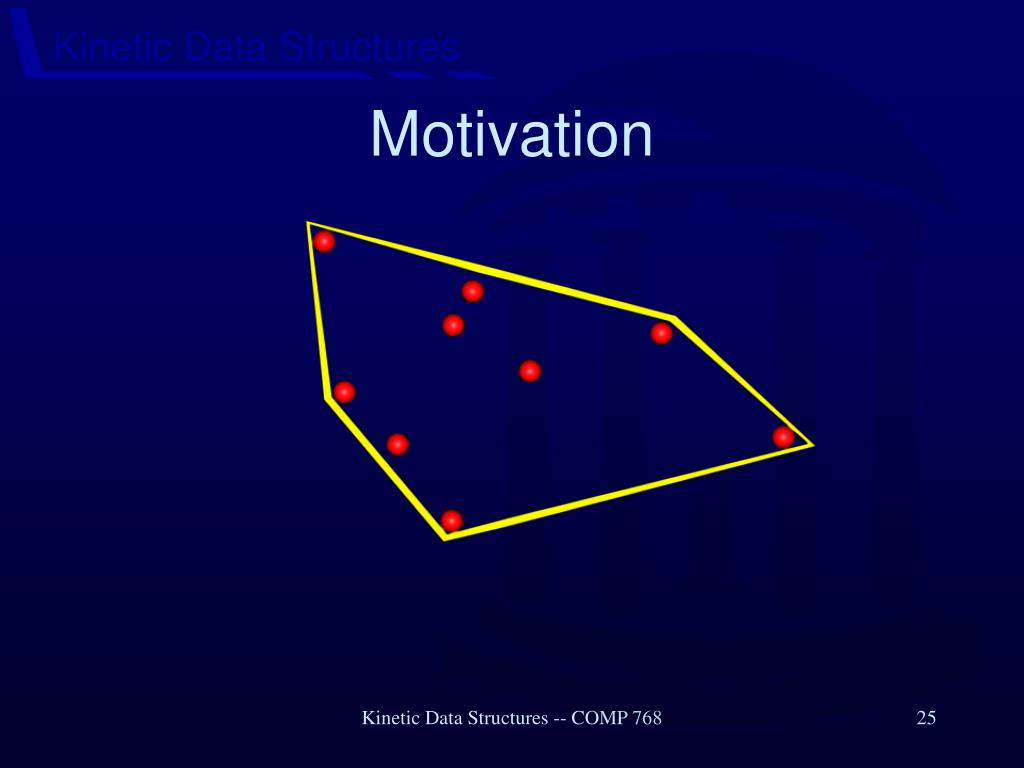

  25. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

  26. Kinetic Data Structures Motivation • Simple solution • Take small time steps and recalculate the CH for each configuration of points. • Takes O(n log n) work at each time step. • An alternative – observe the nodes that form the CH. Kinetic Data Structures -- COMP 768

  27. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

  28. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

  29. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

  30. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

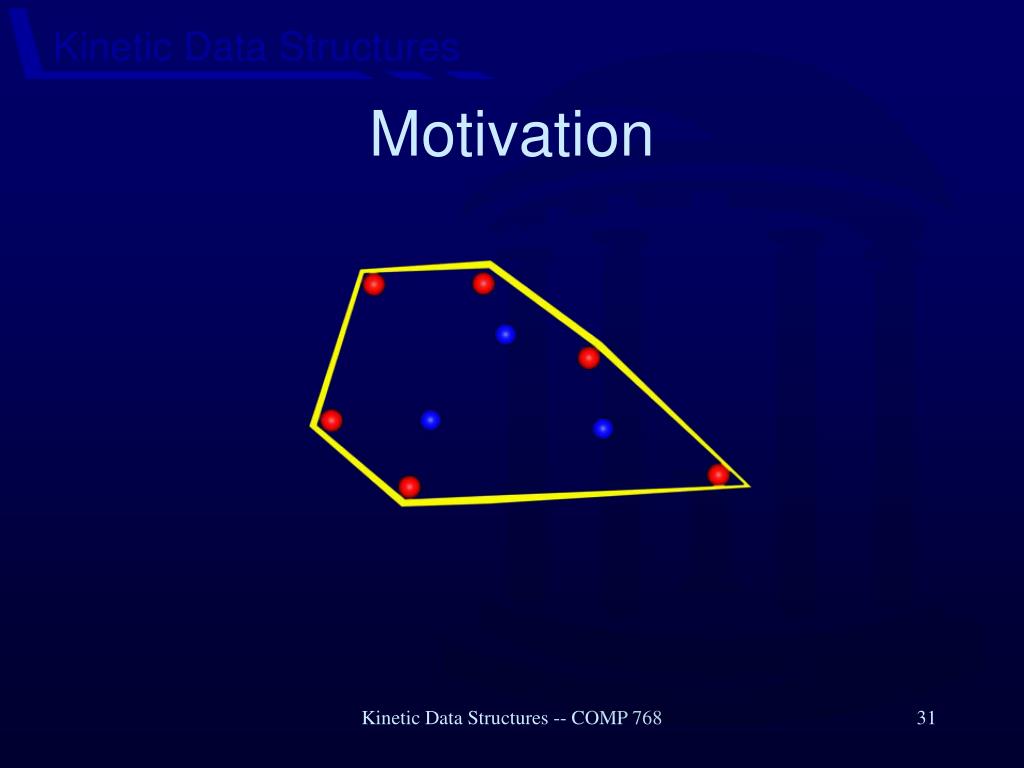

  31. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

  32. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

  33. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

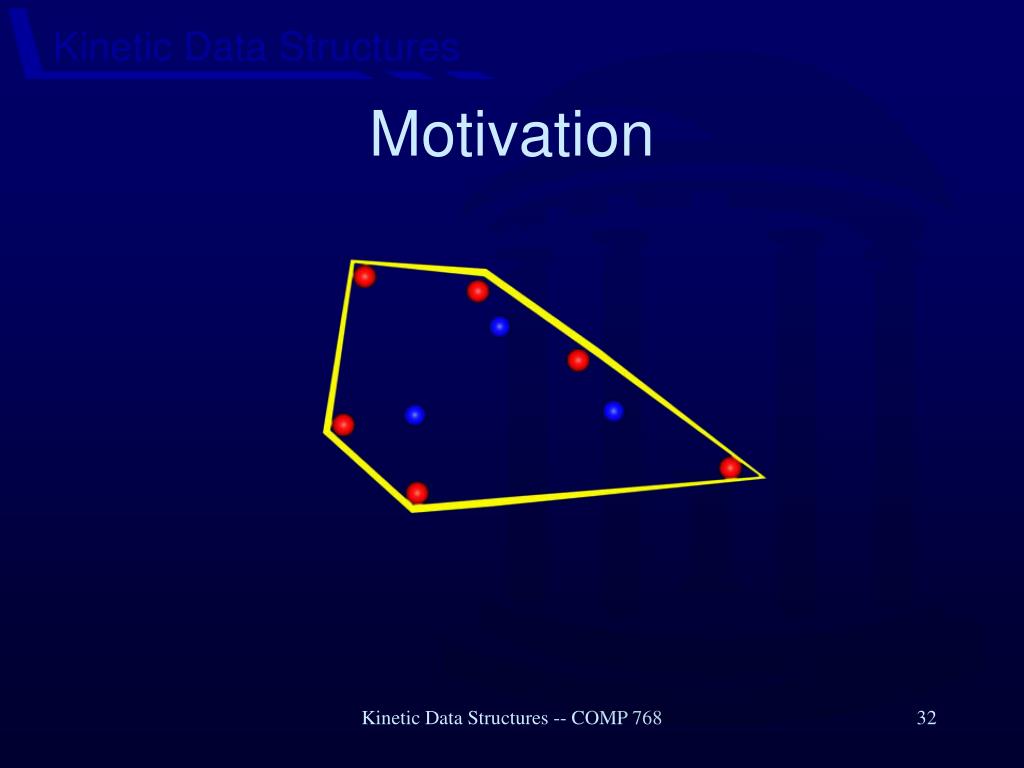

  34. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

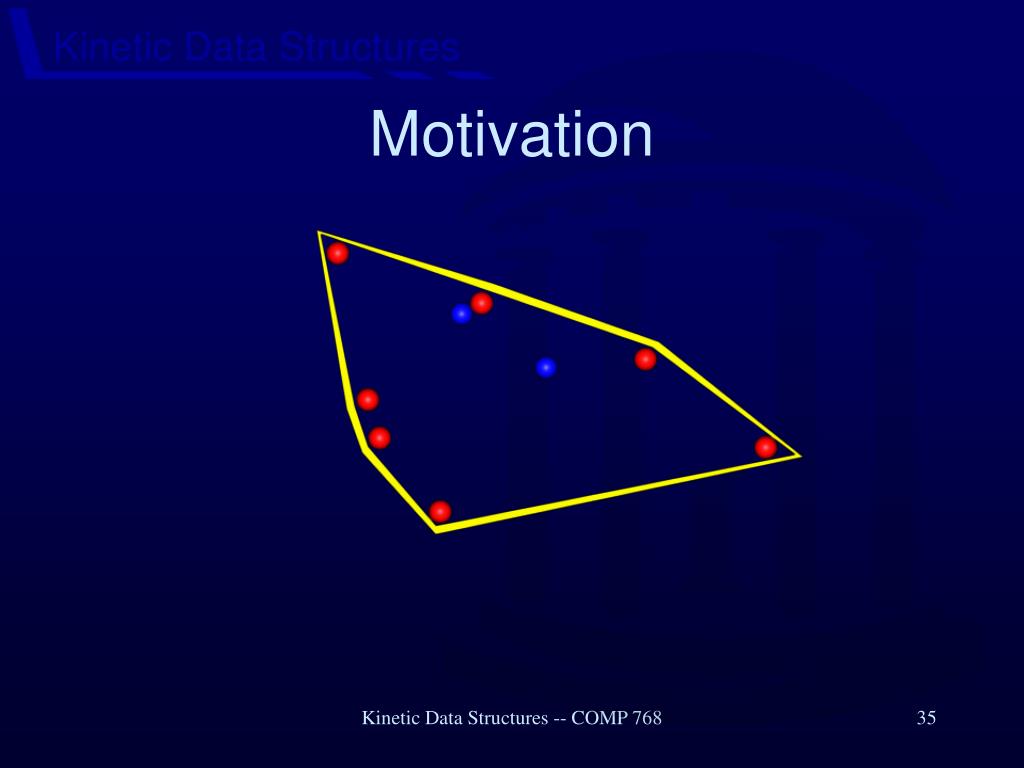

  35. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

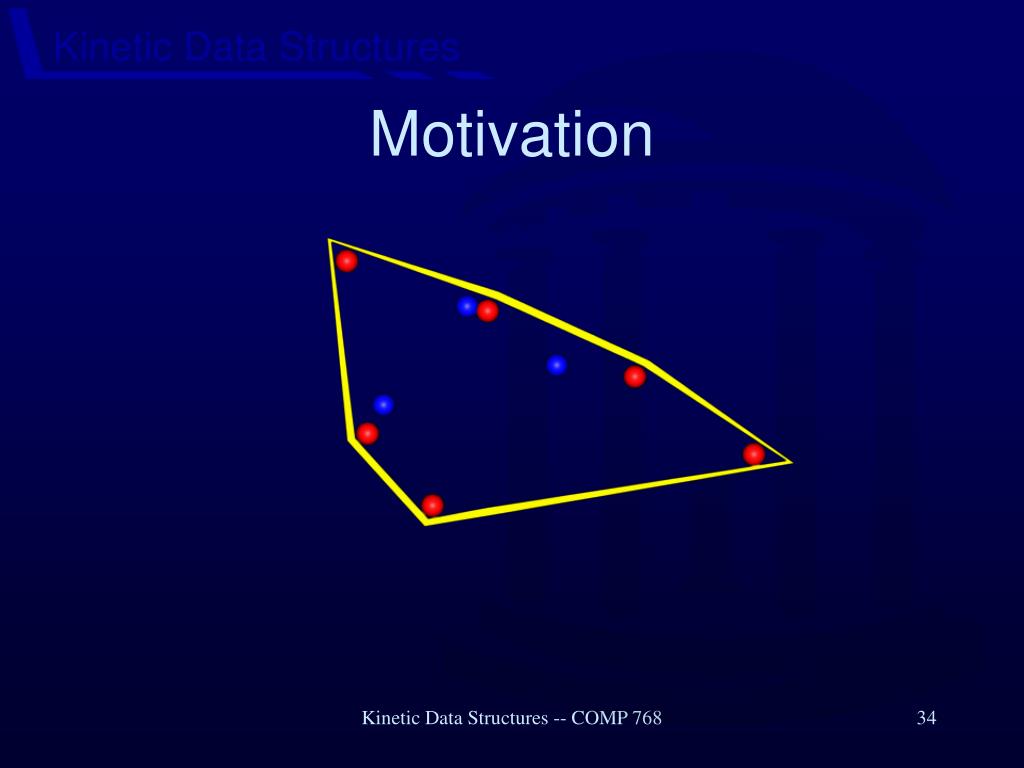

  36. Kinetic Data Structures Motivation Kinetic Data Structures -- COMP 768

  37. Kinetic Data Structures Motivation • Create a data structure that associated the convex hull directly with the vertices that form it. • Use the trajectories of the nodes to determine when they enter or leave the CH list. • This is a Kinetic Data Structure. Kinetic Data Structures -- COMP 768

  38. Kinetic Data Structures Concepts • Moving objects • Continuous motion. • Could maintain some property about the set by sampling over time and modifying the data structure supporting the property. • Danger of over- or under-sampling. Kinetic Data Structures -- COMP 768

  39. Kinetic Data Structures Concepts • Configuration Function • A collection of continuous or discrete attributes for “mobile” data. • Ex. 1 For a convex hull, it is the ordered list of points on the hull. • Ex. 2 For the closest pair, it is,simply, the pair of nodes. Kinetic Data Structures -- COMP 768

  40. Kinetic Data Structures Concepts • Kinetization • The process of transforming an algorithm on static data into a data structure appropriate for continuously changing data. Kinetic Data Structures -- COMP 768

  41. Kinetic Data Structures Concepts • Flight plan • Information about a moving objects current motion. • The information need not be complete – no complete a priori knowledge necessary. • Flight plans can update based on interactions within the environment or with a user. Kinetic Data Structures -- COMP 768

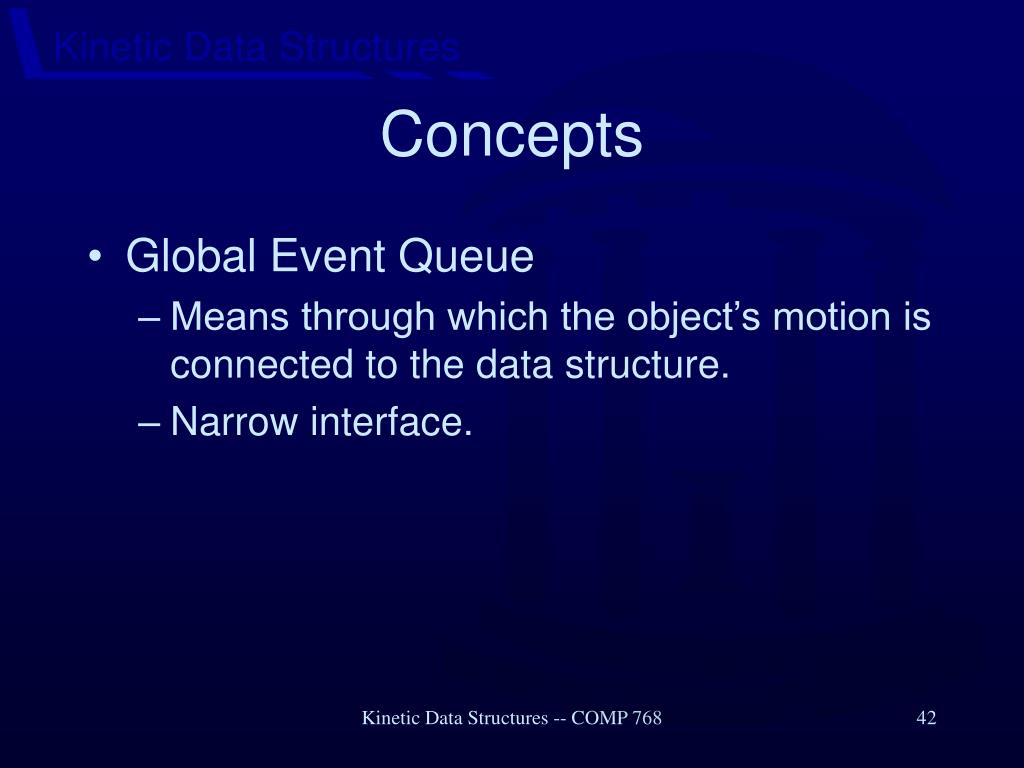

  42. Kinetic Data Structures Concepts • Global Event Queue • Means through which the object’s motion is connected to the data structure. • Narrow interface. Kinetic Data Structures -- COMP 768

  43. Kinetic Data Structures Concepts • Certificates • A set of conditions which prove the configuration function. • The configuration function can only be invalidated when certificates change. • The change of the state of certificates are the events in the queue – certificate failure. Kinetic Data Structures -- COMP 768

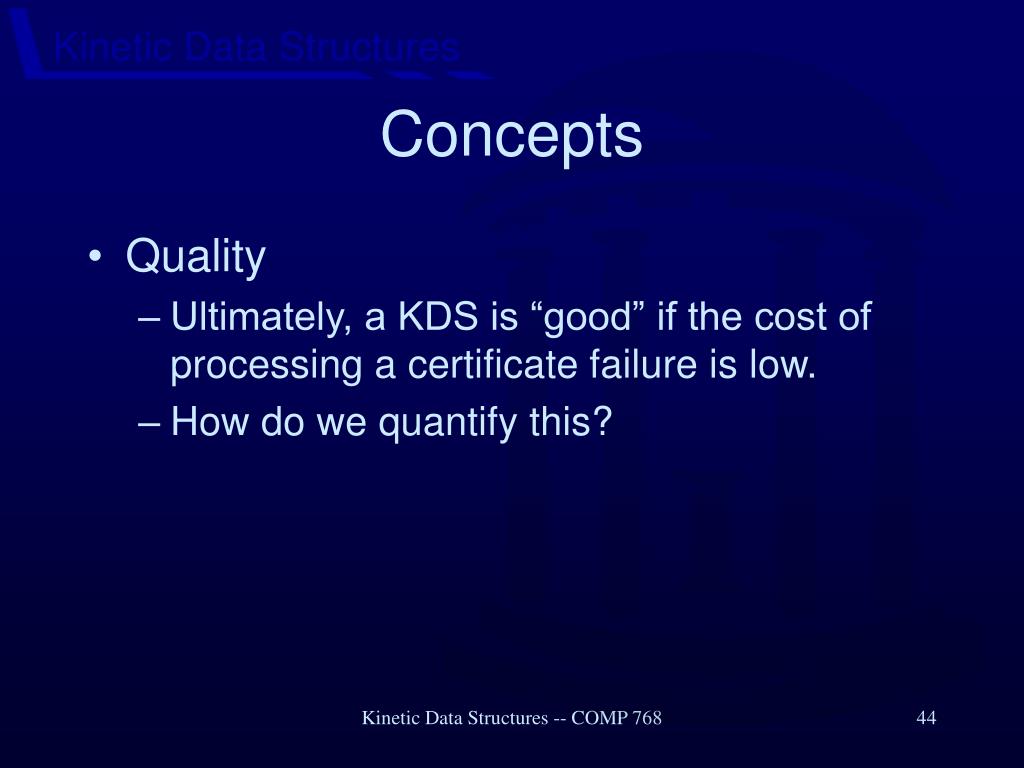

  44. Kinetic Data Structures Concepts • Quality • Ultimately, a KDS is “good” if the cost of processing a certificate failure is low. • How do we quantify this? Kinetic Data Structures -- COMP 768

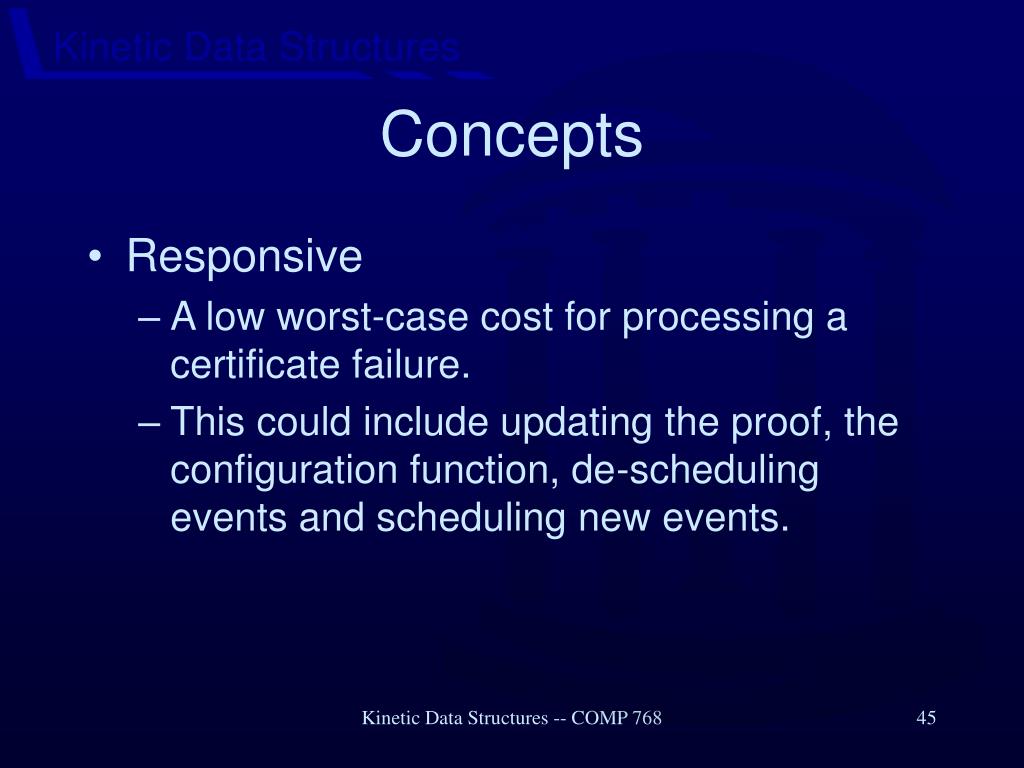

  45. Kinetic Data Structures Concepts • Responsive • A low worst-case cost for processing a certificate failure. • This could include updating the proof, the configuration function, de-scheduling events and scheduling new events. Kinetic Data Structures -- COMP 768

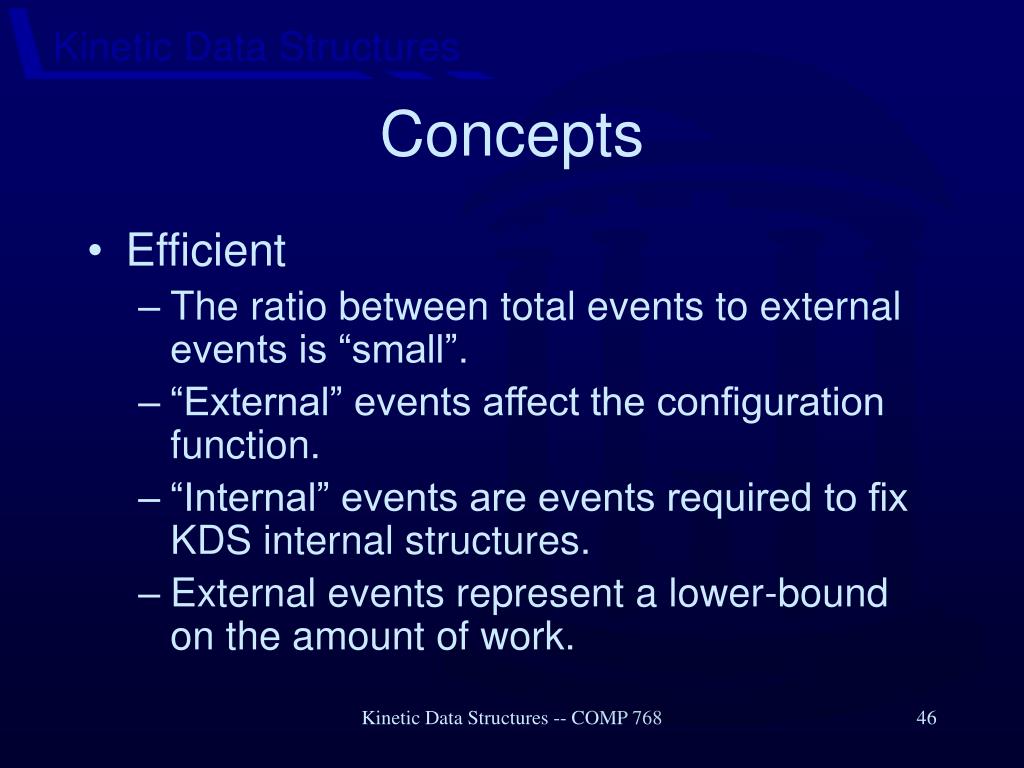

  46. Kinetic Data Structures Concepts • Efficient • The ratio between total events to external events is “small”. • “External” events affect the configuration function. • “Internal” events are events required to fix KDS internal structures. • External events represent a lower-bound on the amount of work. Kinetic Data Structures -- COMP 768

  47. Kinetic Data Structures Concepts • Compact • The maximum number of events in the queue at any one time is roughly linear in the number of moving objects. Kinetic Data Structures -- COMP 768

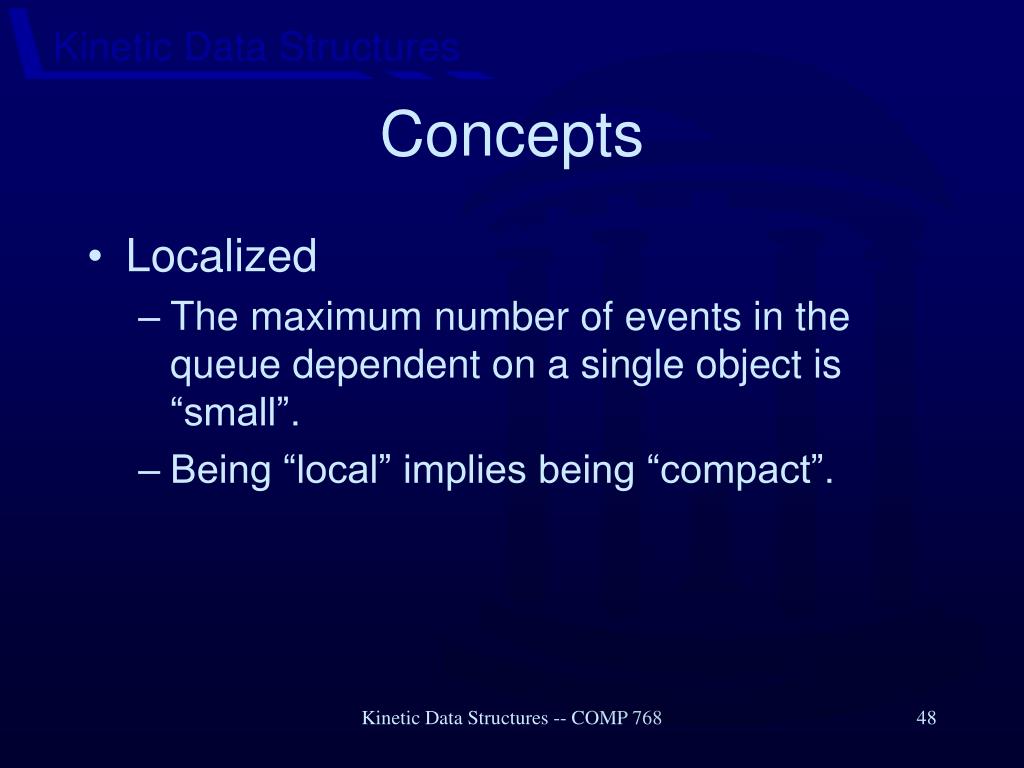

  48. Kinetic Data Structures Concepts • Localized • The maximum number of events in the queue dependent on a single object is “small”. • Being “local” implies being “compact”. Kinetic Data Structures -- COMP 768

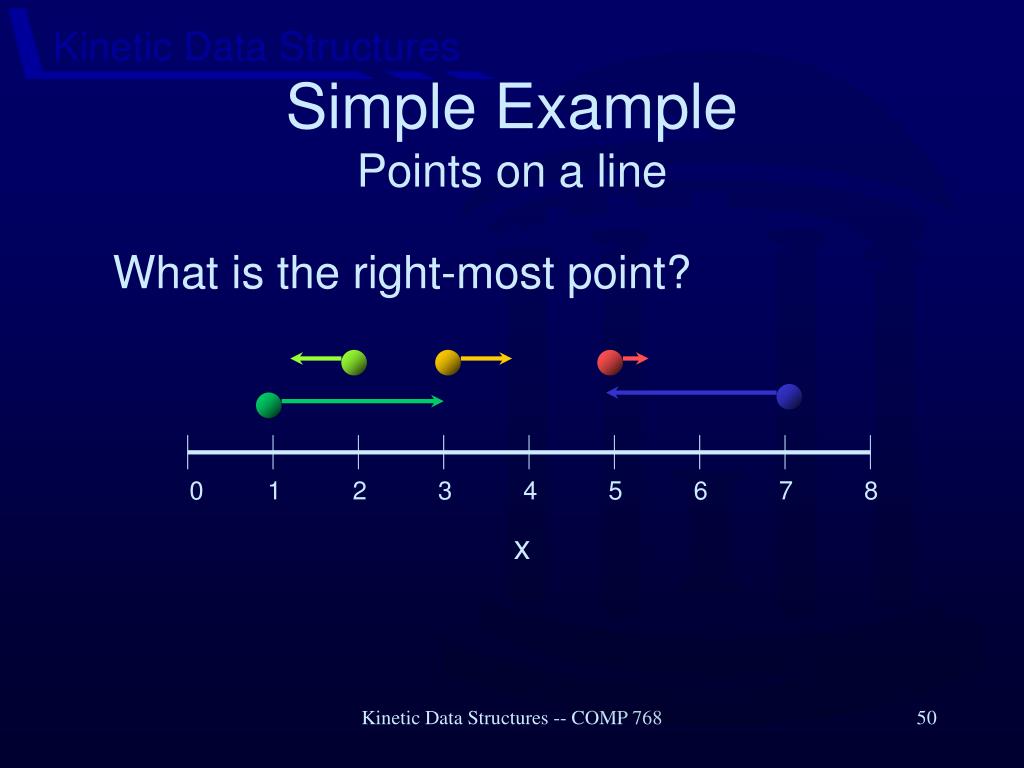

  49. Kinetic Data Structures 0 1 2 3 4 5 6 7 8 Simple ExamplePoints on a line What is the right-most point? x Kinetic Data Structures -- COMP 768

  50. Kinetic Data Structures 0 1 2 3 4 5 6 7 8 Simple ExamplePoints on a line What is the right-most point? x Kinetic Data Structures -- COMP 768
