  1. Tropical cyclone analysis and forecasting : products and tools Regional Training Workshop on Severe Weather Forecasting and Warning Services (Macao, China, 11 April 2013)

  2. Tropical Cyclone Information on JMA HP RSMC Tokyo - Typhoon Center Website WIS Portal - GISC Tokyo Numerical Typhoon Prediction Website JMA Website for SWFDP SATAID Service Contents JMA Products Bulletins of TC information Tools for forecasting Tool for satellite analysis

  3. TC Information on JMA HP Tropical Cyclone Information Home Page http://www.jma.go.jp/jma/indexe.html

  4. TC Information on JMA HP Select menu 3-day forecast http://www.jma.go.jp/en/typh/

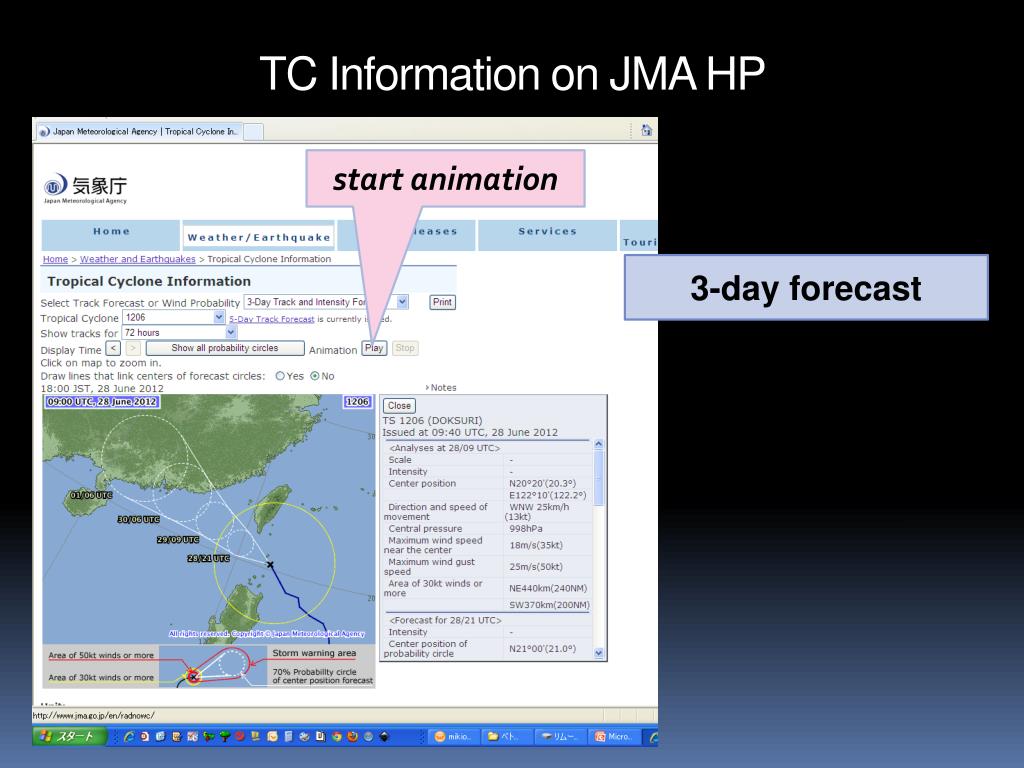

  5. TC Information on JMA HP start animation 3-day forecast

  6. TC Information on JMA HP 3-day forecast animation

  7. TC Information on JMA HP 5-day track forecast

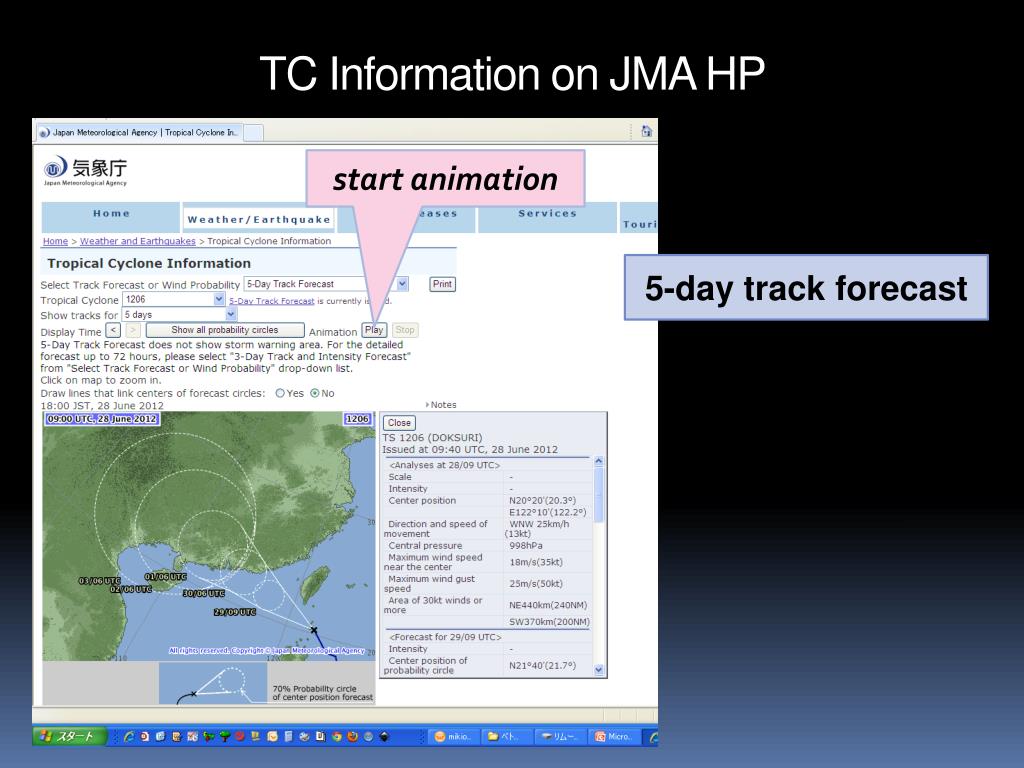

  8. TC Information on JMA HP start animation 5-day track forecast

  9. TC Information on JMA HP 5-day track forecast animation

  10. TC Information on JMA HP 50kt wind probability for residents in Japan

  11. Tropical Cyclone Information on JMA HP RSMC Tokyo - Typhoon Center Website WIS Portal - GISC Tokyo Numerical Typhoon Prediction Website JMA Website for SWFDP SATAID Service Contents JMA Products Bulletins of TC information Tools for forecasting Tool for satellite analysis

  12. RSMC Tokyo - Typhoon Center Website Home Page http://www.jma.go.jp/jma/jma-eng/jma-center/rsmc-hp-pub-eg/RSMC_HP.htm

  13. RSMC Tokyo - Typhoon Center Website Best Track Data (Text file)

  14. RSMC Tokyo - Typhoon Center Website Best Track Data (Graphics)

  15. RSMC Tokyo - Typhoon Center Website Annual Report

  16. RSMC Tokyo - Typhoon Center Website Technical Review

  17. Tropical Cyclone Information on JMA HP RSMC Tokyo - Typhoon Center Website WIS Portal - GISC Tokyo Numerical Typhoon Prediction Website JMA Website for SWFDP SATAID Service Contents JMA products Bulletins of TC information Tools for forecasting Tool for satellite analysis http://www.wis-jma.go.jp/cms/

  18. WIS Portal - GISC Tokyo Warning Home Page http://www.wis-jma.go.jp/cms/

  19. WIS Portal - GISC Tokyo How to access Click here Tropical Cyclone Information

  20. WIS Portal - GISC Tokyo Tropical Cyclone Information • Tropical Cyclone Advisory for Analysis and Forecast (WTPQ20-25) • Tropical Cyclone Advisory for 5-day Track Forecast (WTPQ50-55) • Guidance for Forecast by Typhoon Ensemble prediction System (FXPQ20-25) • Tropical Cyclone Prognostic Reasoning (WTPQ30-35) • Typhoon Best Track (AXPQ20) • Tropical Cyclone Warning (WTJP20-25)

  21. Tropical Cyclone Information on JMA HP RSMC Tokyo - Typhoon Center Website WIS Portal - GISC Tokyo Numerical Typhoon Prediction Website JMA Website for SWFDP SATAID Service Contents JMA Products Bulletins of TC information Tools for forecasting Tool for satellite analysis This website is for Typhoon Committee Members. You need ID and Password https://tynwp-web.kishou.go.jp/

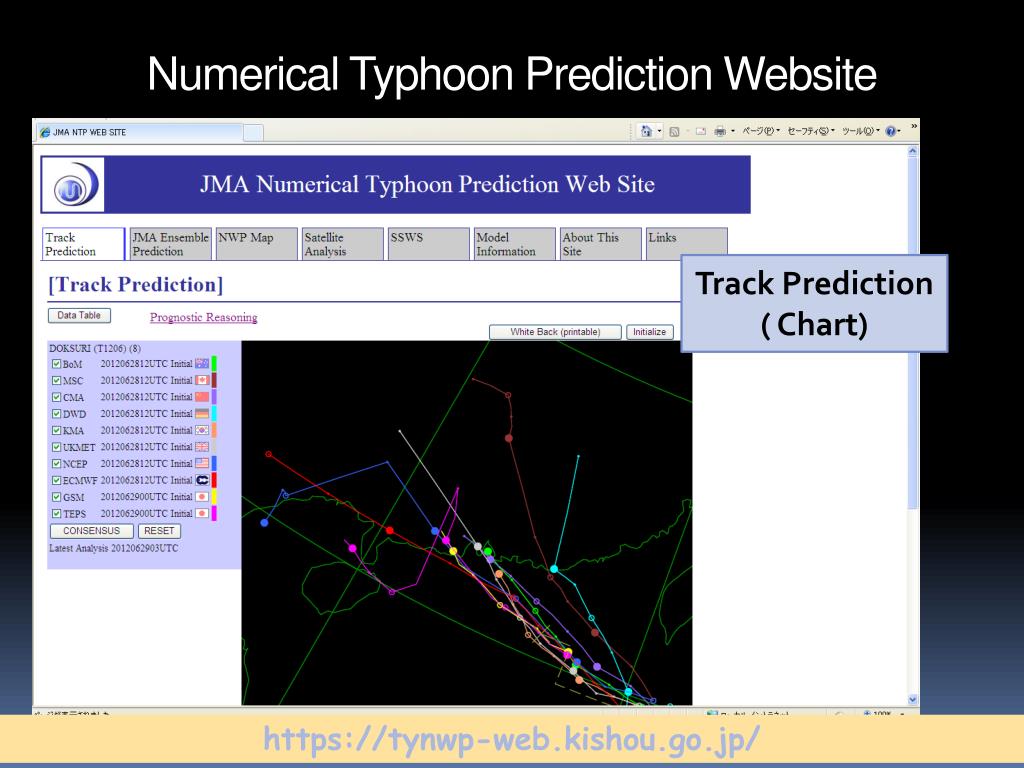

  22. Numerical Typhoon Prediction Website Track Prediction ( Chart) https://tynwp-web.kishou.go.jp/

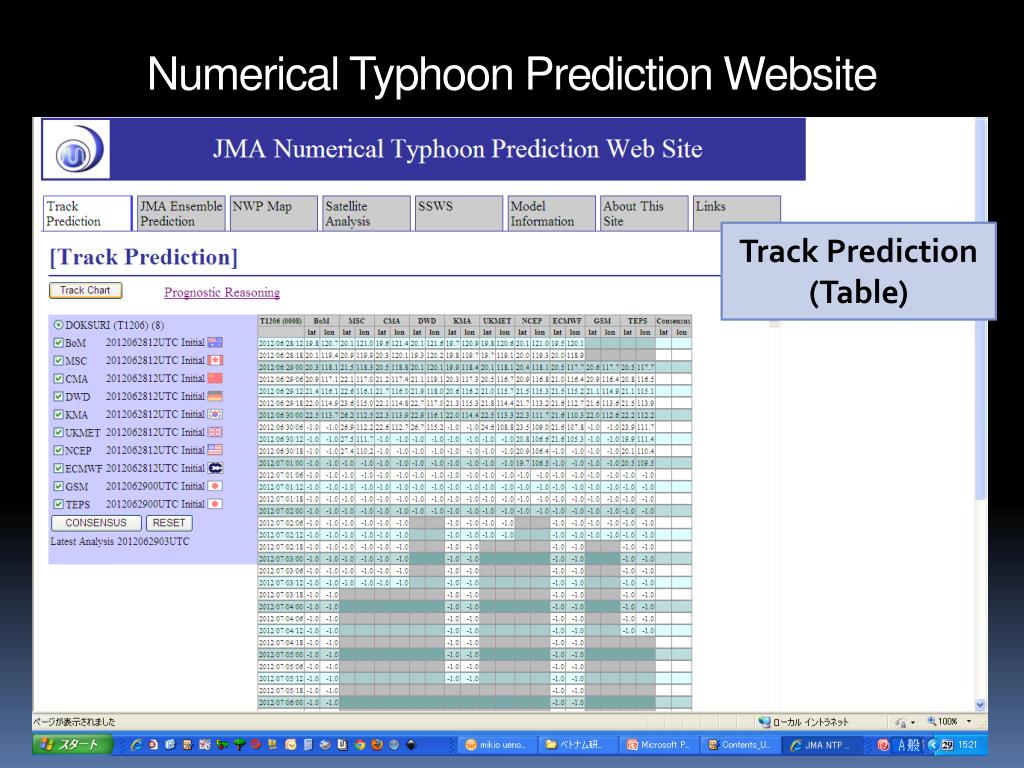

  23. Numerical Typhoon Prediction Website Track Prediction (Table)

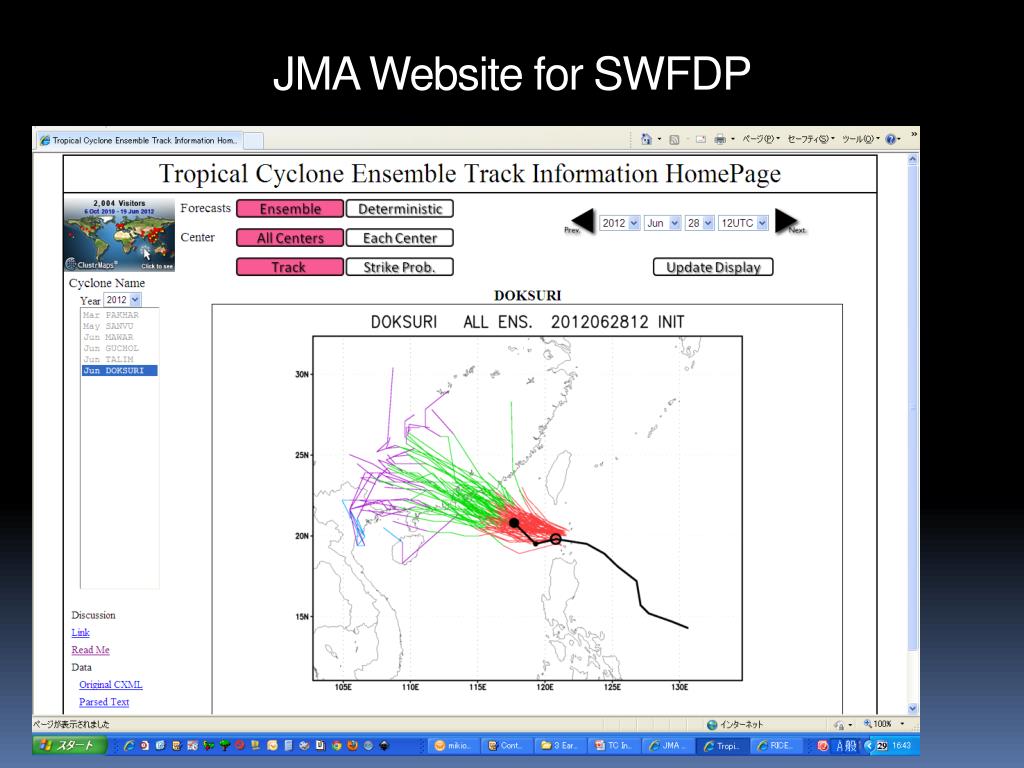

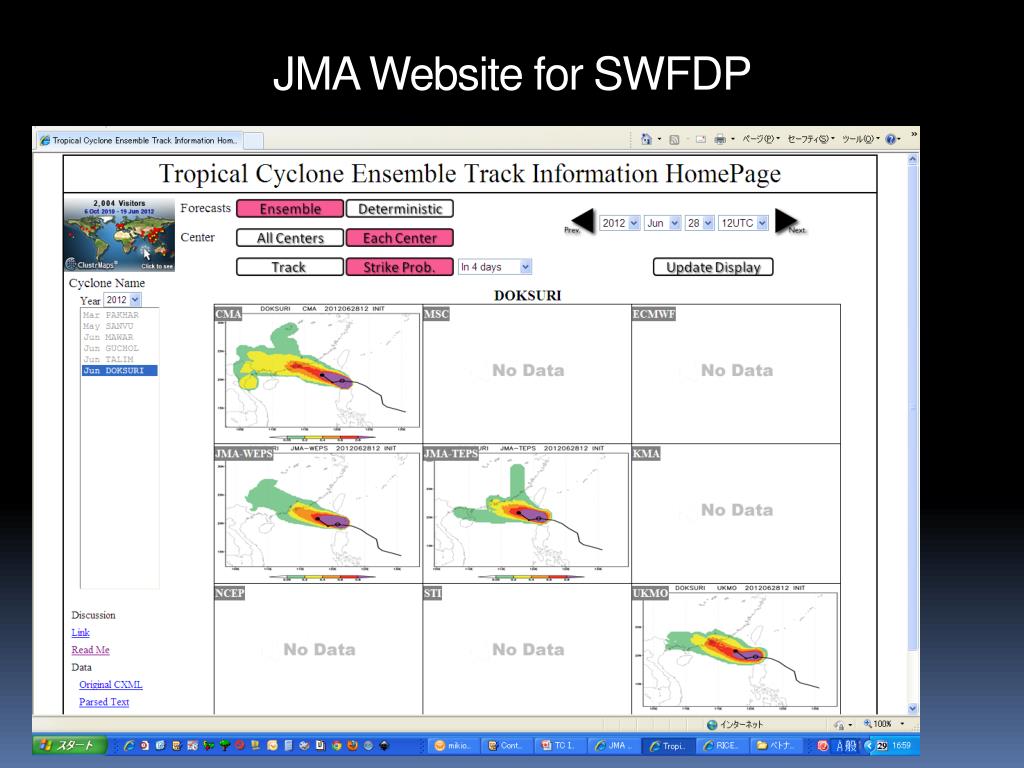

  24. Numerical Typhoon Prediction Website JMA Ensemble Prediction

  25. Numerical Typhoon Prediction Website JMA Ensemble Prediction

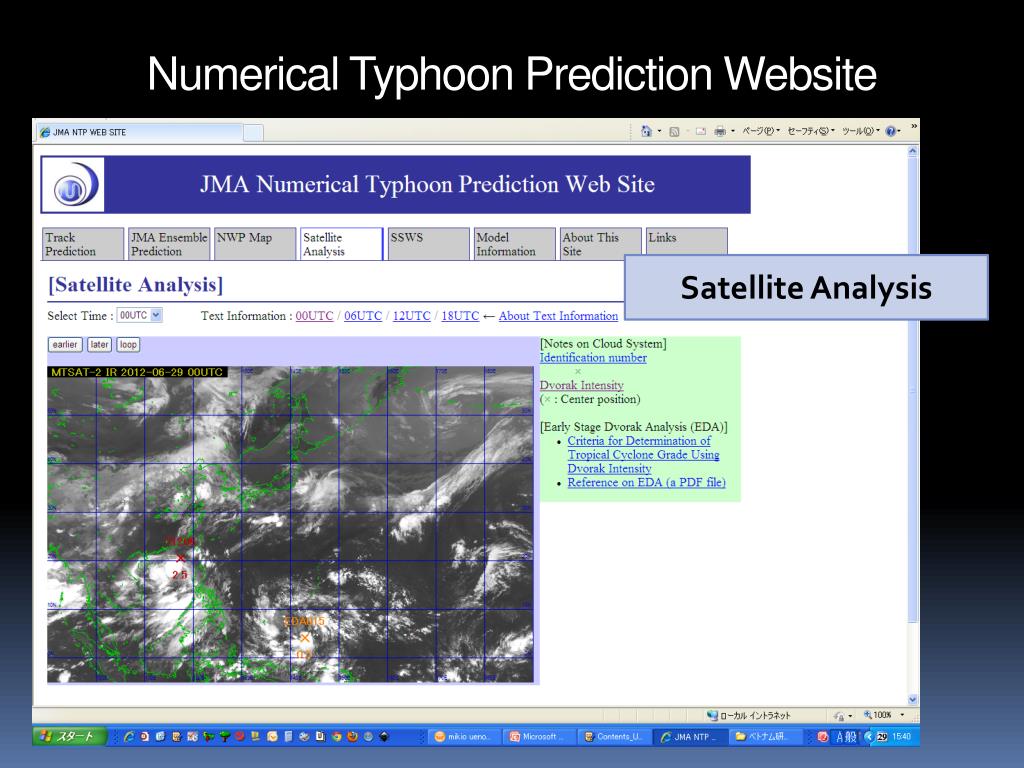

  26. Numerical Typhoon Prediction Website Satellite Analysis

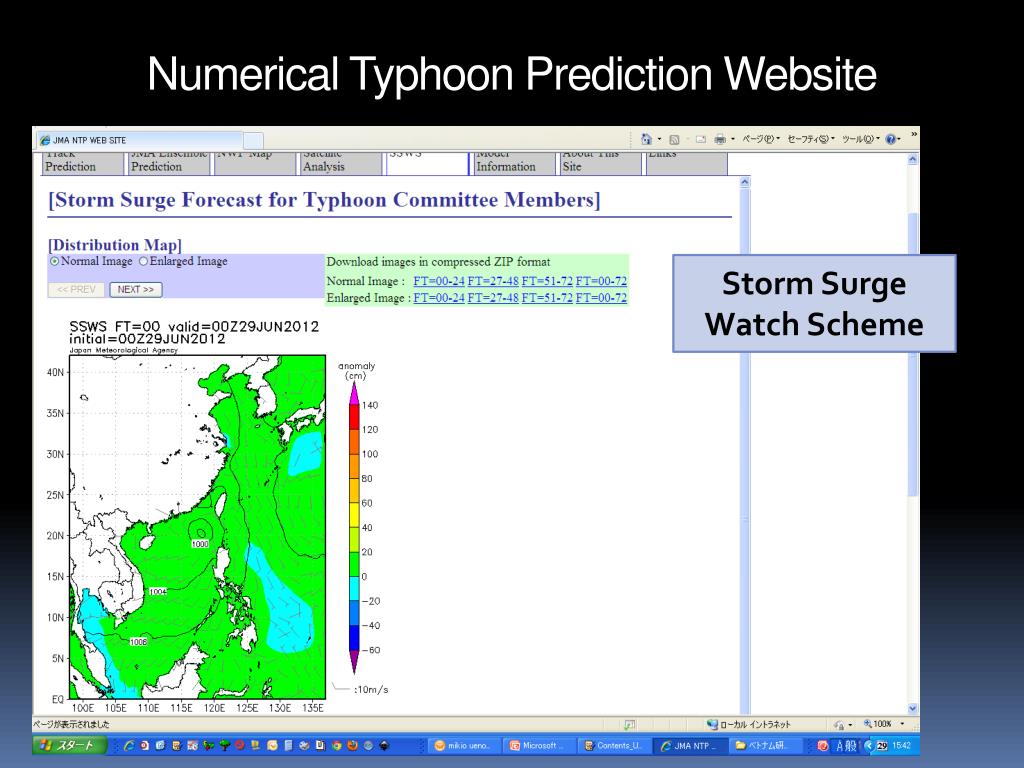

  27. Numerical Typhoon Prediction Website Storm Surge Watch Scheme

  28. Tropical Cyclone Information on JMA HP RSMC Tokyo - Typhoon Center Website WIS Portal - GISC Tokyo Numerical Typhoon Prediction Website JMA Website for SWFDP SATAID Service Contents JMA products Bulletins of TC information Tools for forecasting Tool for satellite analysis http://www.wis-jma.go.jp/swfdp/ra2_swfdp_sea.html

  29. JMA Website for SWFDP GSM products

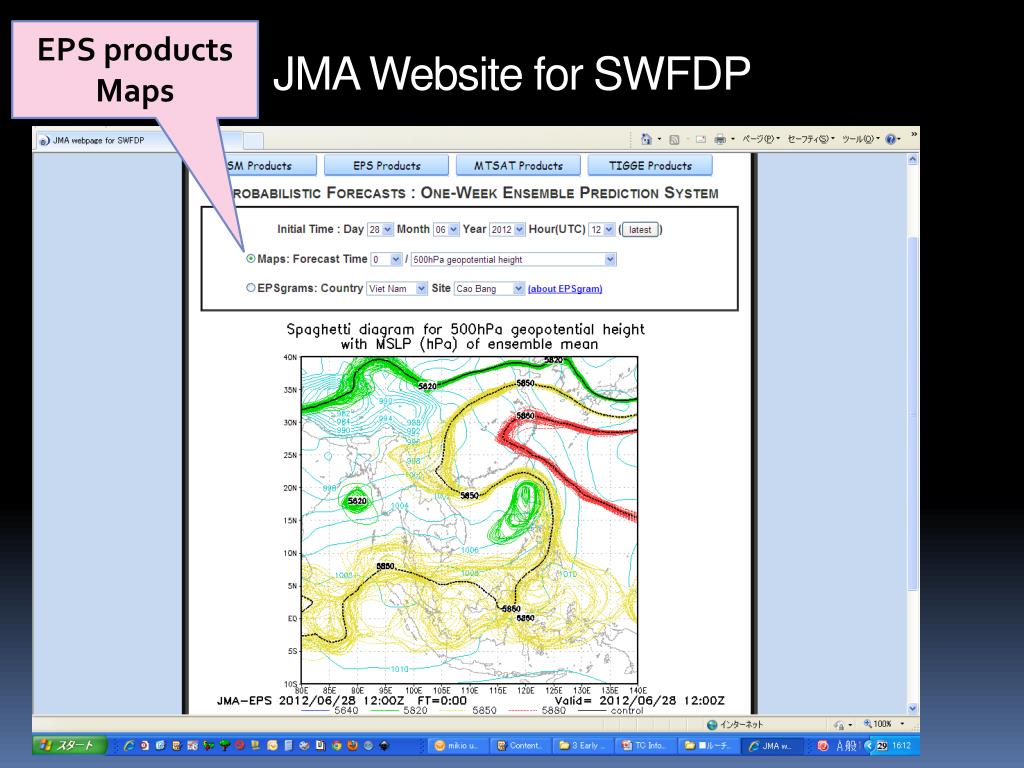

  30. JMA Website for SWFDP EPS products Maps

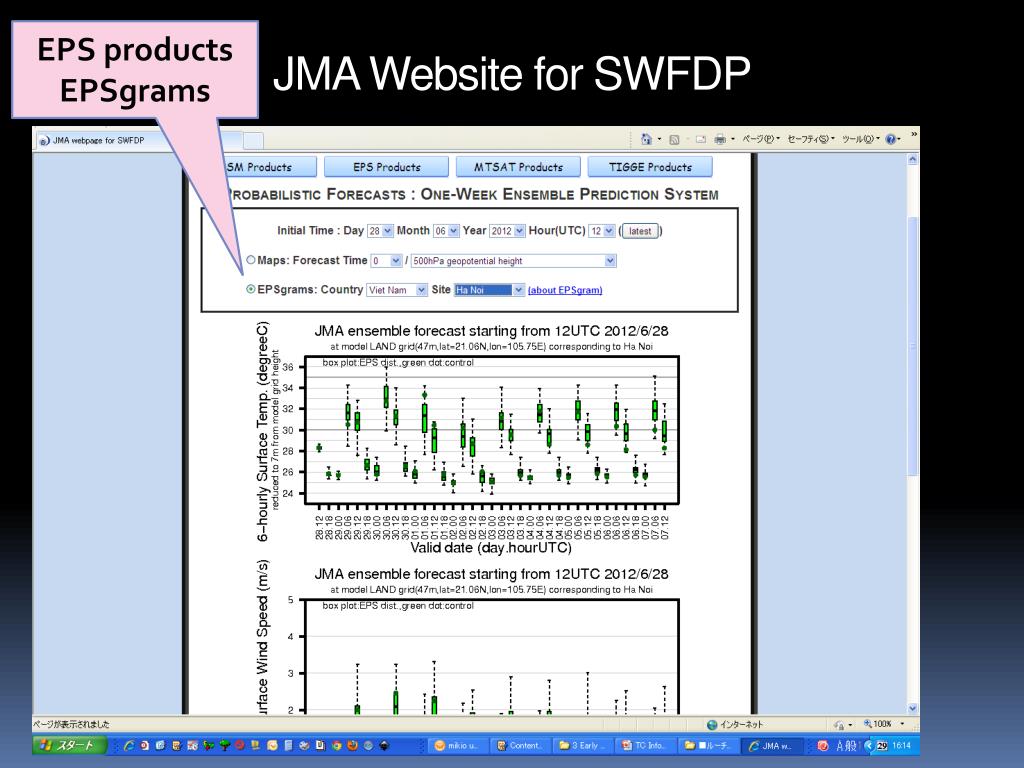

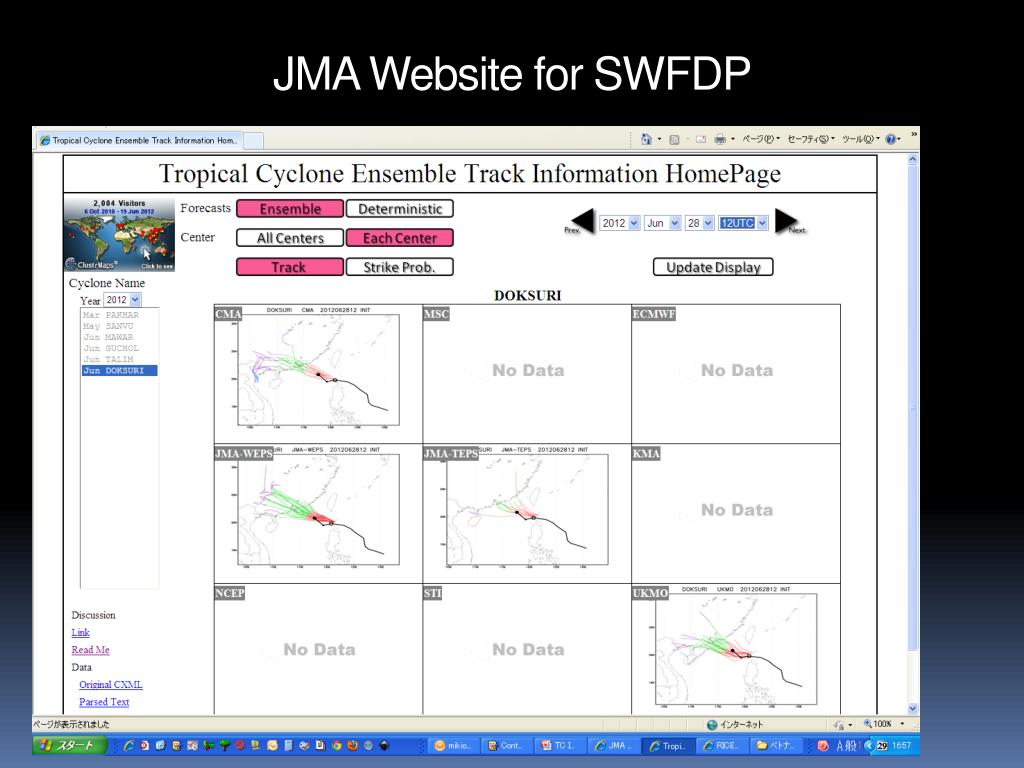

  31. JMA Website for SWFDP EPS products EPSgrams

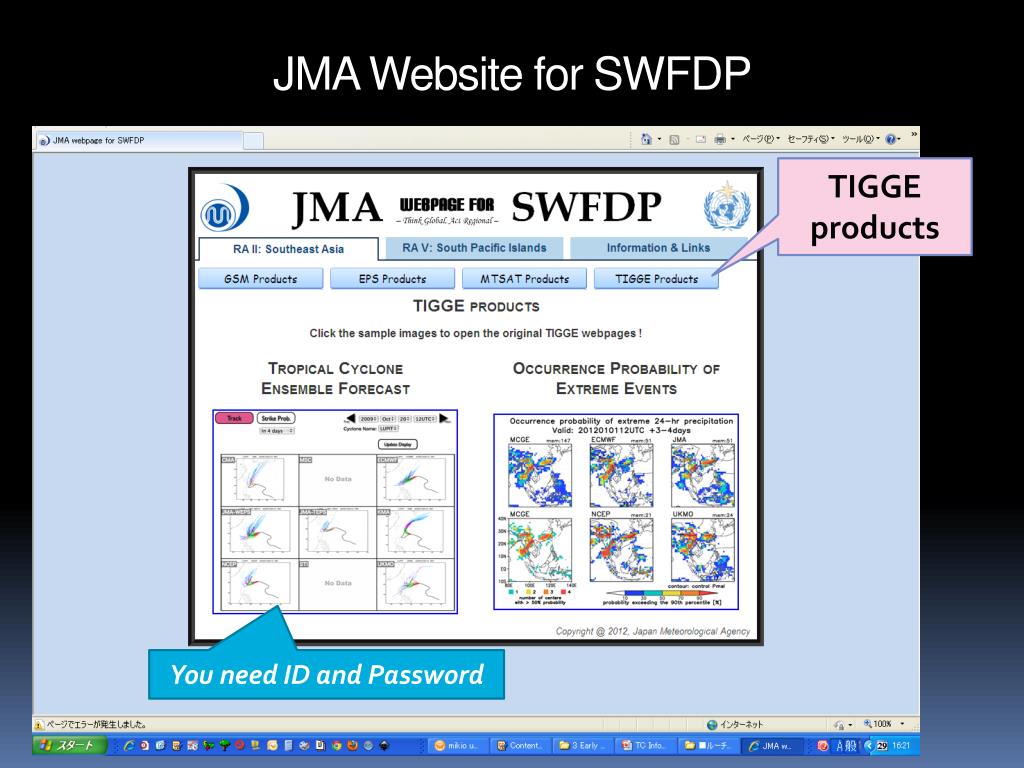

  32. JMA Website for SWFDP TIGGE products You need ID and Password

  33. JMA Website for SWFDP

  34. JMA Website for SWFDP

  35. JMA Website for SWFDP

  36. JMA Website for SWFDP

  37. Tropical Cyclone Information on JMA HP RSMC Tokyo - Typhoon Center Website WIS Portal - GISC Tokyo Numerical Typhoon Prediction Website JMA Website for SWFDP SATAID Service Contents JMA products Bulletins of TC information Tools for forecasting Tool for satellite analysis

  38. What is SATAID? SATAID (Satellite Animation and Interactive Diagnosis) Originally developed by JMA’s MSC (Meteorological Satellite Center) as an application software to display satellite imagery and NWP data for training purposes Provided to NMHSs as a JMA’s contribution to WMO-CGMS Virtual Laboratory for Training in Satellite Meteorology (VL) Today, used also as an operational tool for daily weather analysis including tropical cyclone monitoring at JMA’s HQ and local offices Freely available to NMHSs and easy to install Equipped with lots of functions

  39. SATAID software (GMSLPD for Windows)

  40. With GMSLPD, you can…… Display (and overlay) satellite imagery and NWP data(and various observations i.e. SYNOP, SHIP, TEMP, Radar, Wind Profiler, ASCAT etc. if its format prepared) Use many functions: vertical cross-sectional chart, time-series chart, digital data output to CSV file...... Save as a file including a package of all data, your drawings and comments, which will be useful for trainings and case study archives Analyze position and intensity of tropical cyclones What is SATAID?

  41. JMA SATAID Service has been provided as WIS DAR since December 2011. ID and password required (provided to each NMHS) DAR: Data Discovery, Access and Retrieval SATAID Service http://www.wis-jma.go.jp/cms/sataid/

  42. SATAID Service Data Area

  43. SATAID Service • MTSAT imagery (VIS, IR, IR2, WV, 3.8μm), • NWP products (GSM) • Observation data (SYNOP, SHIP, TEMP, ASCAT sea-surface wind) Data of the last 72 hours are available.

  44. SATAID Service Data Specification

  45. Example 1 – Dvorak Analysis -

  46. Example 2 - NWP overlaid -

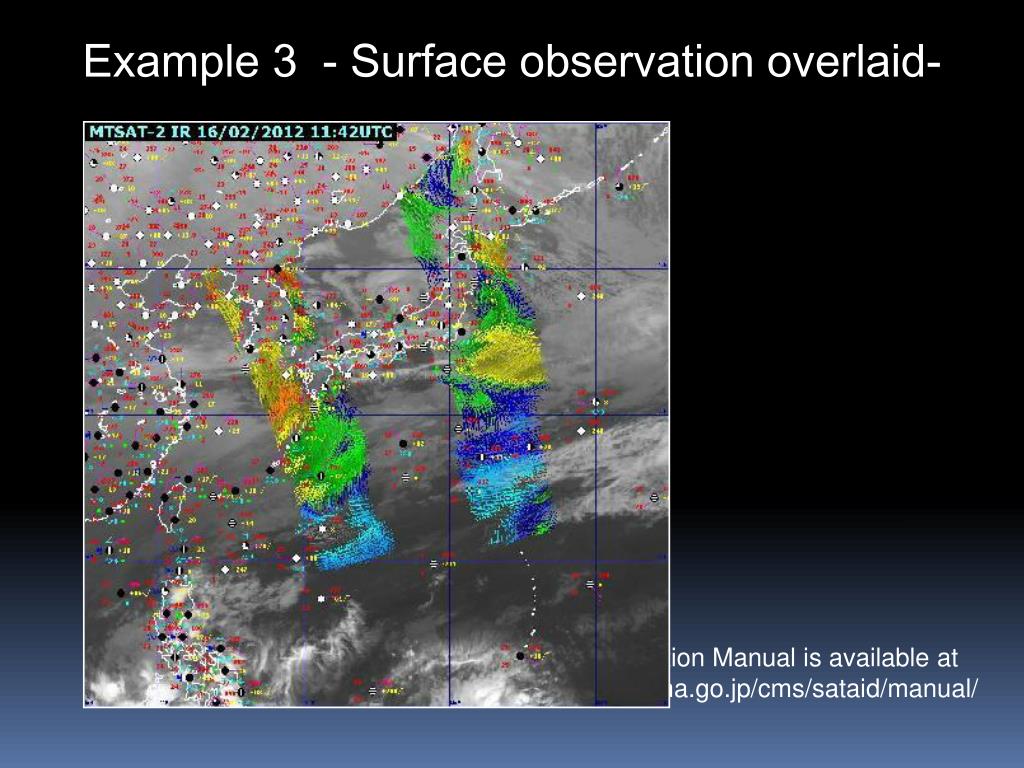

  47. Example 3 - Surface observation overlaid- SATAID Operation Manual is available at http://www.wis-jma.go.jp/cms/sataid/manual/
