  1. Clock Domain Crossing (CDC) Erik Seligman CS 510, Lecture 17, March 2009

  2. Agenda • Introduction to Clock Domain Crossing (CDC) • Basic Synchronizers • Datapaths and Reconvergence • Handshake Synchronization • Checking CDCs With Conformal

  3. Agenda • Introduction to Clock Domain Crossing (CDC) • Basic Synchronizers • Datapaths and Reconvergence • Handshake Synchronization • Checking CDCs With Conformal

  4. What Is A Clock Domain Crossing (CDC)? • Different clocks within a single design • Many possible reasons, here are a few: • Complying with multiple protocols • SoC Integration: IP from many sources • Saving area/power, limiting fast clock use • Dangers when signals cross domains • Incorrect functionality if not synced • Not properly covered by validation

  5. Review: Setup & Hold Time • Each flop has a setup and hold time • Setup time: Time before clk edge • Hold time: Time after clk edge • Data expected ready by setup time, and stable during hold time clk data_good bad_setup bad_hold

  6. Problems At Asynchronous Clock Domain Crossings • When does new value arrive? • Source clk not coordinated with dest clk • Chance of arriving in setup/hold window • What does this mean? • Possibility of ‘metastable’ (halfway) state • Value may settle either way • Multiple fanouts may detect different values 1 1 good 0 0 bad

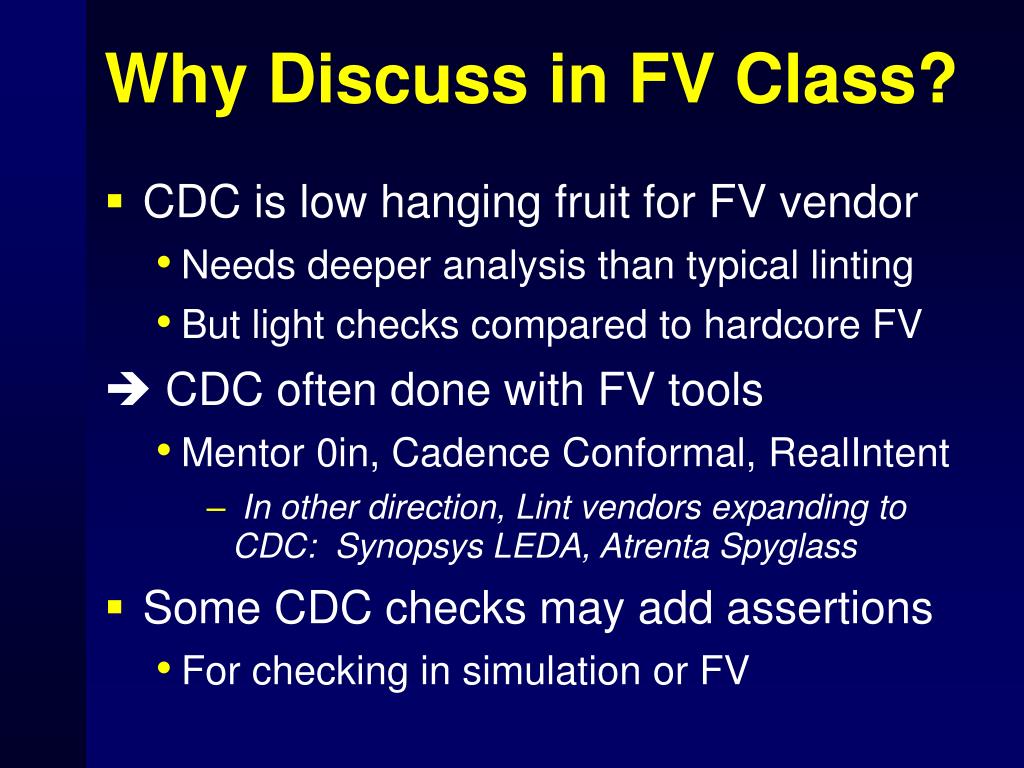

  7. Why Discuss in FV Class? • CDC is low hanging fruit for FV vendor • Needs deeper analysis than typical linting • But light checks compared to hardcore FV  CDC often done with FV tools • Mentor 0in, Cadence Conformal, RealIntent • In other direction, Lint vendors expanding to CDC: Synopsys LEDA, Atrenta Spyglass • Some CDC checks may add assertions • For checking in simulation or FV

  8. CDC Checks in Simulation • Simulation: inject random metastability • Useful, but hard to get right • Sometimes delay a value change • Allow 1-cycle value to be missed • Depends on # of random tests • Technique beyond scope of this class • Class is on formal methods!

  9. Agenda • Introduction to Clock Domain Crossing (CDC) • Basic Synchronizers • Datapaths and Reconvergence • Handshake Synchronization • Checking CDCs With Conformal

  10. How To Safely Cross Domains? • Require synchronizer: structure to reduce risk of metastability • Simplest synchronizer: two flops • Metastability very unlikely: second flop will choose a value if first is metastable • One-cycle uncertainty in transition • Account for in the logic! f3 data f1 f2 out ck ck2

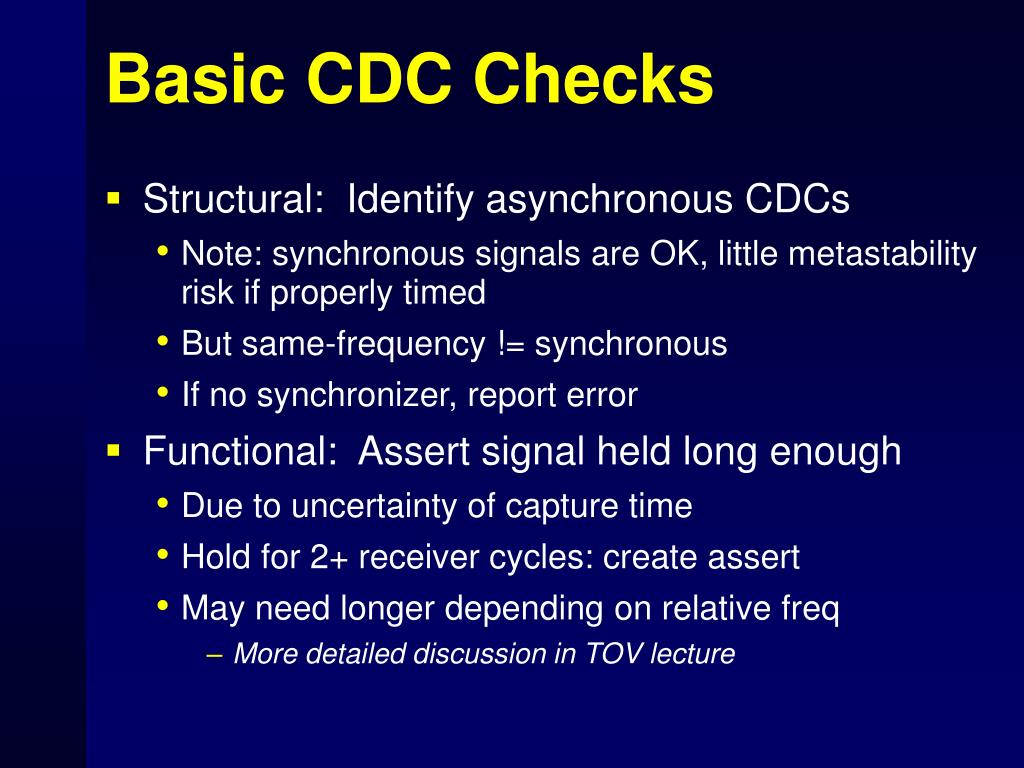

  11. Basic CDC Checks • Structural: Identify asynchronous CDCs • Note: synchronous signals are OK, little metastability risk if properly timed • But same-frequency != synchronous • If no synchronizer, report error • Functional: Assert signal held long enough • Due to uncertainty of capture time • Hold for 2+ receiver cycles: create assert • May need longer depending on relative freq • More detailed discussion in TOV lecture

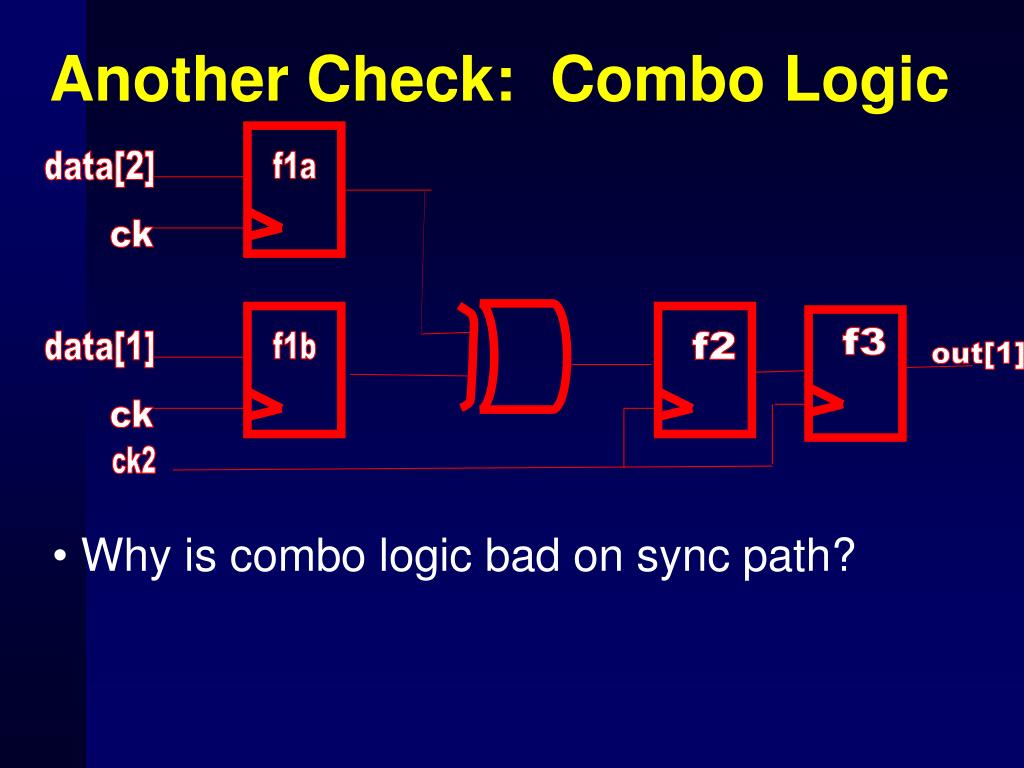

  12. Another Check: Combo Logic data[2] f1a ck f3 data[1] f1b f2 out[1] ck ck2 • Why is combo logic bad on sync path?

  13. Another Check: Combo Logic data[2] f1a 0->1 ck 0? f3 data[1] f1b f2 out[1] 0->1 ck ck2 • Why is combo logic bad on sync path? • Remember: uncertain capture time • Suppose f1a and f1b both transition 01

  14. Another Check: Combo Logic data[2] f1a 0->1, but slower ck 1 f3 data[1] f1b f2 out[1] 0->1 ck ck2 • Why is combo logic bad on sync path? • Remember: uncertain capture time • Suppose f1a and f1b both transition 01 • For an instant, maybe f1a!=f1b… •  f2 == 1

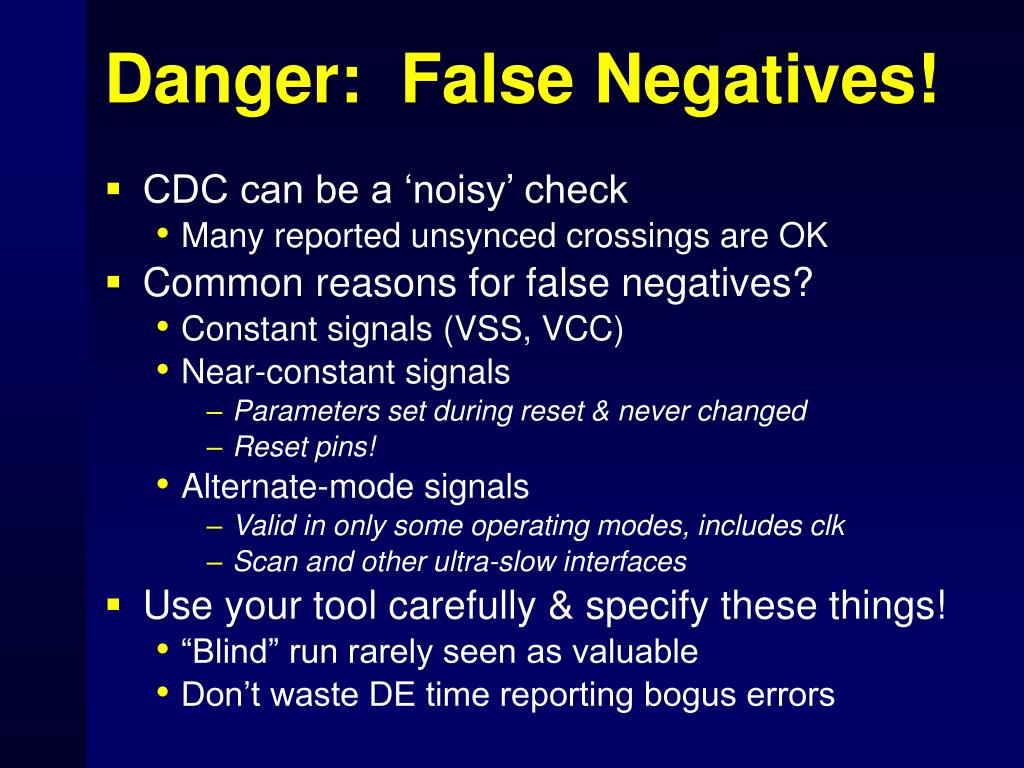

  15. Danger: False Negatives! • CDC can be a ‘noisy’ check • Many reported unsynced crossings are OK • Common reasons for false negatives?

  16. Danger: False Negatives! • CDC can be a ‘noisy’ check • Many reported unsynced crossings are OK • Common reasons for false negatives? • Constant signals (VSS, VCC) • Near-constant signals • Parameters set during reset & never changed • Reset pins! • Alternate-mode signals • Valid in only some operating modes, includes clk • Scan and other ultra-slow interfaces • Use your tool carefully & specify these things! • “Blind” run rarely seen as valuable • Don’t waste DE time reporting bogus errors

  17. Agenda • Introduction to Clock Domain Crossing (CDC) • Basic Synchronizers • Datapaths and Reconvergence • Handshake Synchronization • Checking CDCs With Conformal

  18. Datapaths & Off-By-One Issue f3 data[2] f1 f2 out[2] ck ck2 f3 data[1] f1 f2 out[1] ck ck2 f3 out[0] data[0] f1 f2 ck ck2 • What happens on transition from 000 to 111?

  19. Datapath Problem • Each synchronizer may be off by a cycle • All are independent • So during transition from 000 to 111, may sense 001, 010, 011, … or any other value! • Can we solve thru logic requirements? • Need to make sure only one bit can change • Then we know only real values are seen

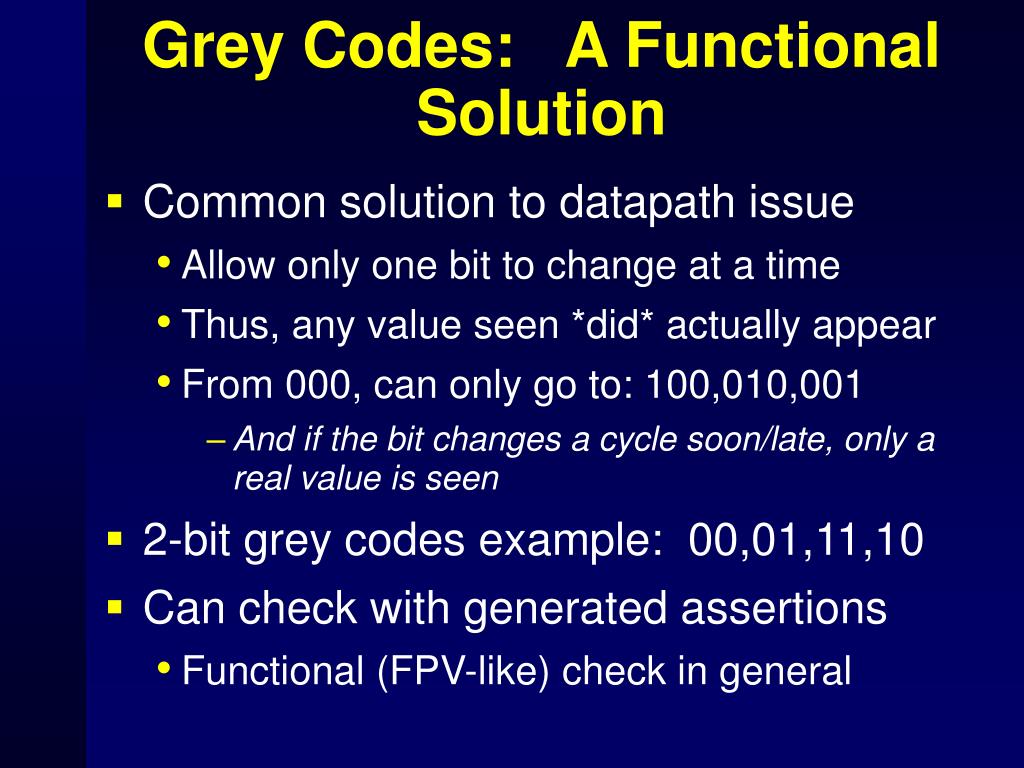

  20. Grey Codes: A Functional Solution • Common solution to datapath issue • Allow only one bit to change at a time • Thus, any value seen *did* actually appear • From 000, can only go to: 100,010,001 • And if the bit changes a cycle soon/late, only a real value is seen • 2-bit grey codes example: 00,01,11,10 • Can check with generated assertions • Functional (FPV-like) check in general

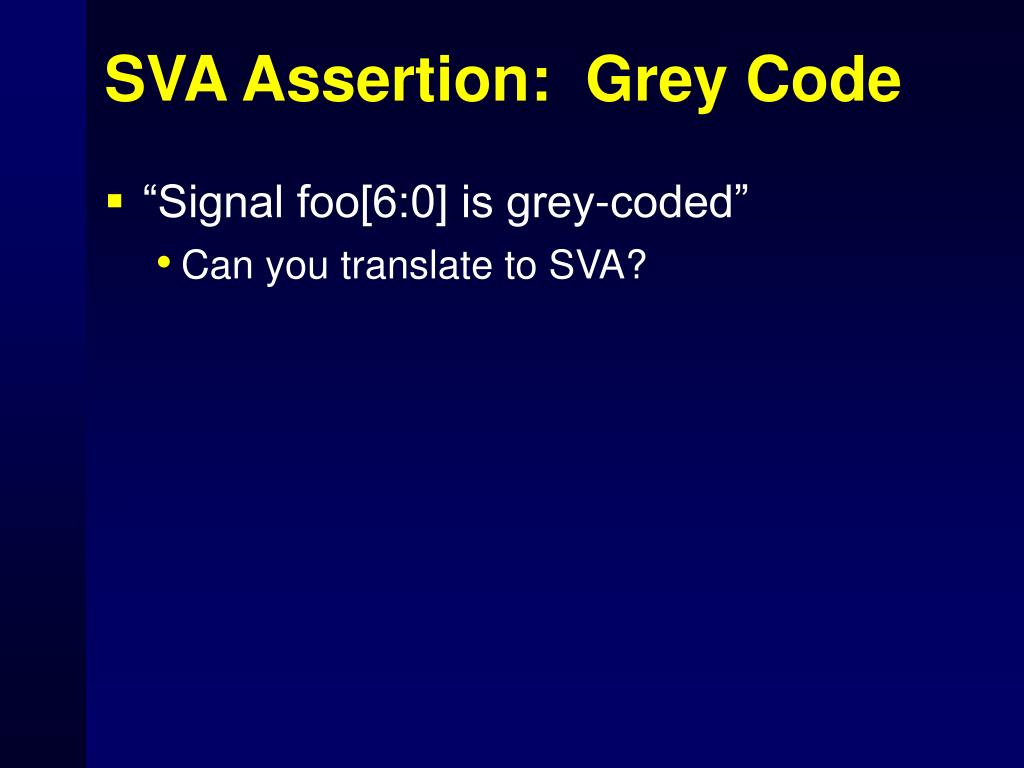

  21. SVA Assertion: Grey Code • “Signal foo[6:0] is grey-coded” • Can you translate to SVA?

  22. SVA Assertion: Grey Code • “Signal foo[6:0] is grey-coded” • Can you translate to SVA? gc_assert: assert property ( $countones(foo ^ $past(foo)) <= 1);

  23. Reconvergence Problem • More general view of datapath issue • Problem: reconvergence of synced bits • CDC checks can flag cases • Is there a better way to synchronize? • Such that grey codes aren’t needed • Yes! • Have control signal coordinate data with mux

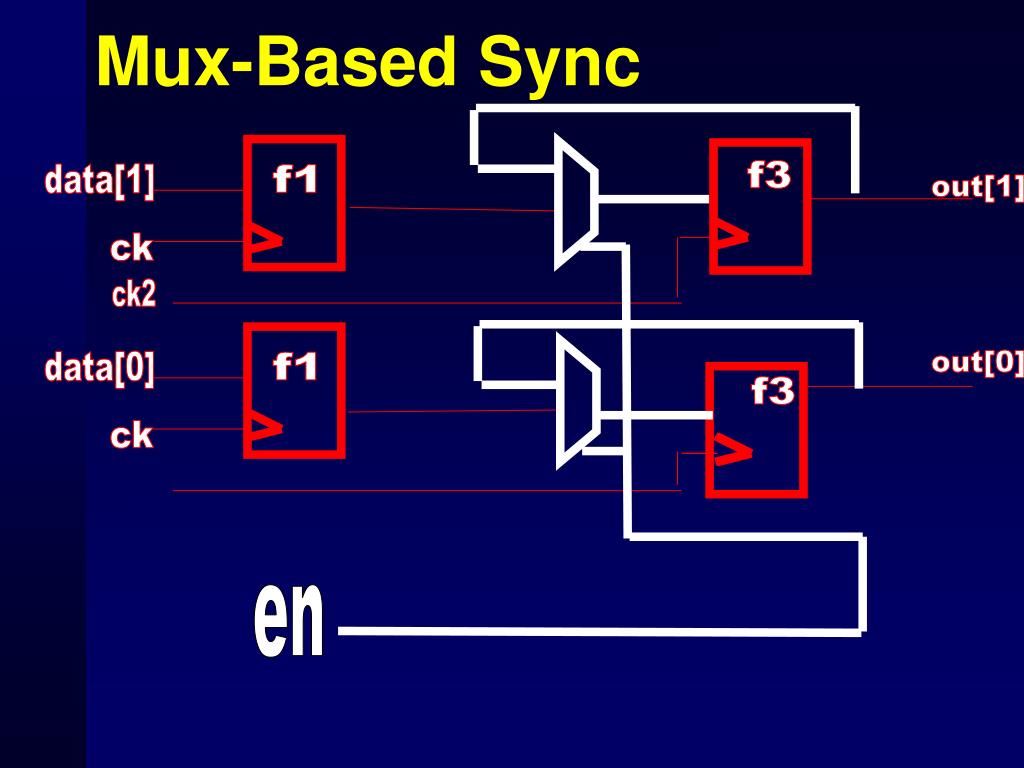

  24. Mux-Based Sync f3 data[1] f1 out[1] ck ck2 out[0] data[0] f1 f3 ck en

  25. Agenda • Introduction to Clock Domain Crossing (CDC) • Basic Synchronizers • Datapaths and Reconvergence • Handshake Synchronization • Checking CDCs With Conformal

  26. Handshake/FIFO Protocols • Clock freq maybe configurable / unknown • Hard to design previous syncs for all cases • Hard to properly check for all cases • Maybe sometimes overconservative • Solution: handshake protocols • Sender stores data in FIFO • Explicit request/response for data • More logic & harder to check, but powerful

  27. Handshake Sync Example (From Cadence white paper, see References)

  28. Agenda • Introduction to Clock Domain Crossing (CDC) • Basic Synchronizers • Datapaths and Reconvergence • Handshake Synchronization • Checking CDCs With Conformal

  29. Conformal CDC Checks • Included with Conformal license • That’s why we have it! • Set up env for Conformal version 8 • zsh • source ~eseligma/startup.cadence8 • Start lec with ‘-verify’ option • Actually runs separate core binary • Don’t try to do FEV in same session

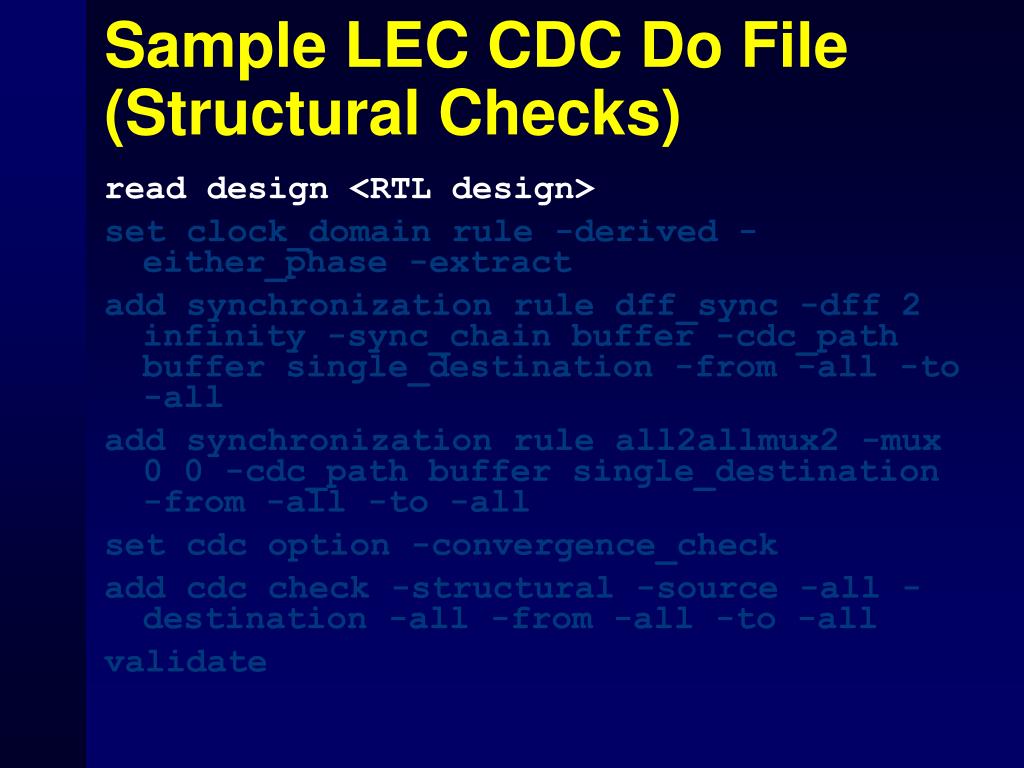

  30. Sample LEC CDC Do File(Structural Checks) read design <RTL design> set clock_domain rule -derived -either_phase -extract add synchronization rule dff_sync -dff 2 infinity -sync_chain buffer -cdc_path buffer single_destination -from -all -to -all add synchronization rule all2allmux2 -mux 0 0 -cdc_path buffer single_destination -from -all -to -all set cdc option -convergence_check add cdc check -structural -source -all -destination -all -from -all -to -all validate

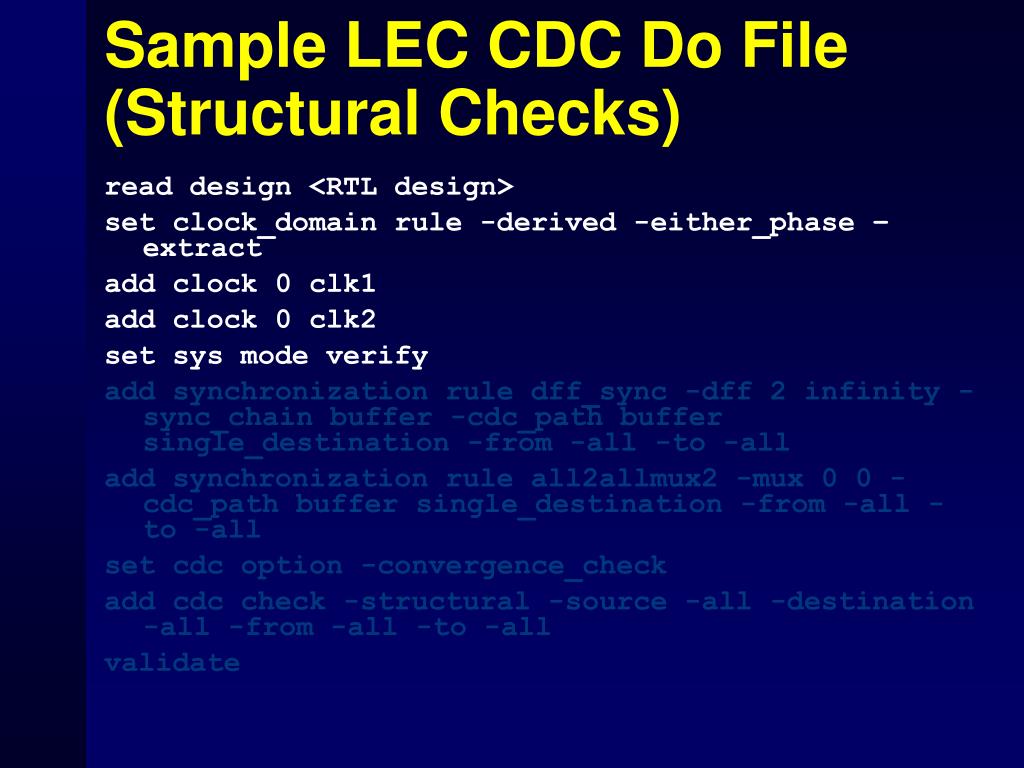

  31. Sample LEC CDC Do File(Structural Checks) read design <RTL design> set clock_domain rule -derived -either_phase –extract add clock 0 clk1 add clock 0 clk2 set sys mode verify add synchronization rule dff_sync -dff 2 infinity -sync_chain buffer -cdc_path buffer single_destination -from -all -to -all add synchronization rule all2allmux2 -mux 0 0 -cdc_path buffer single_destination -from -all -to -all set cdc option -convergence_check add cdc check -structural -source -all -destination -all -from -all -to -all validate

  32. Sample LEC CDC Do File(Structural Checks) read design <RTL design> set clock_domain rule -derived -either_phase –extract add clock 0 clk1 add clock 0 clk2 set sys mode verify add synchronization rule dff_sync -dff 2 infinity -sync_chain buffer -cdc_path buffer single_destination -from -all -to -all add synchronization rule all2allmux2 -mux 0 0 -cdc_path buffer single_destination -from -all -to -all set cdc option -convergence_check add cdc check -structural -source -all -destination -all -from -all -to -all validate

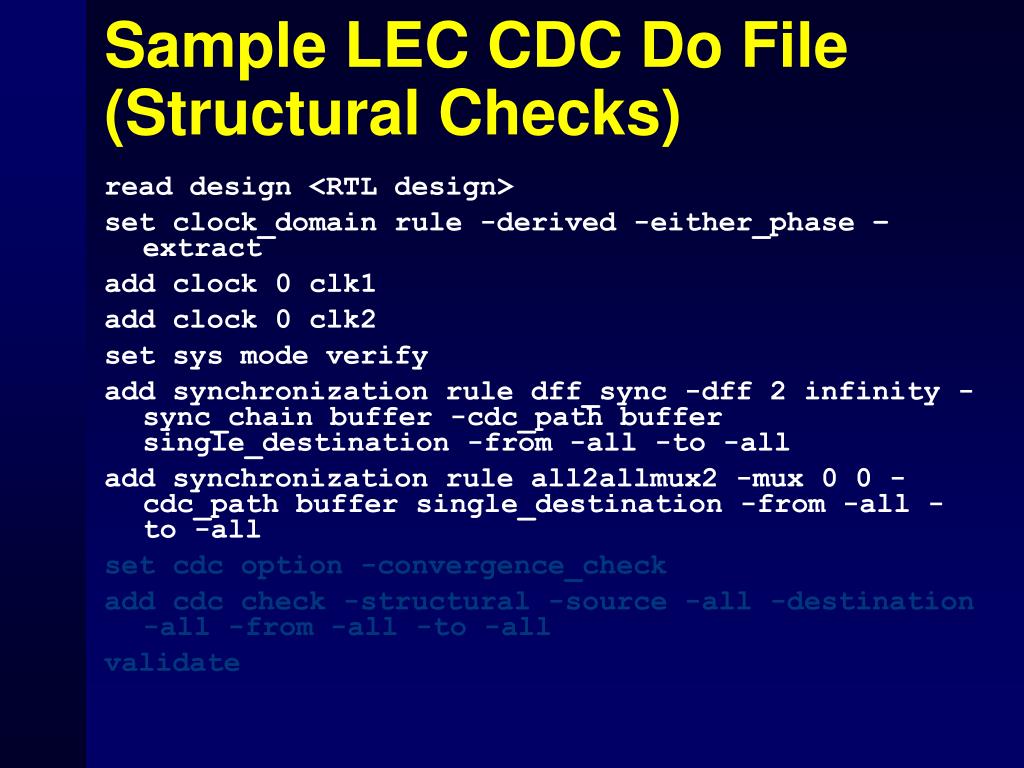

  33. Sample LEC CDC Do File(Structural Checks) read design <RTL design> set clock_domain rule -derived -either_phase –extract add clock 0 clk1 add clock 0 clk2 set sys mode verify add synchronization rule dff_sync -dff 2 infinity -sync_chain buffer -cdc_path buffer single_destination -from -all -to -all add synchronization rule all2allmux2 -mux 0 0 -cdc_path buffer single_destination -from -all -to -all set cdc option -convergence_check add cdc check -structural -source -all -destination -all -from -all -to -all validate

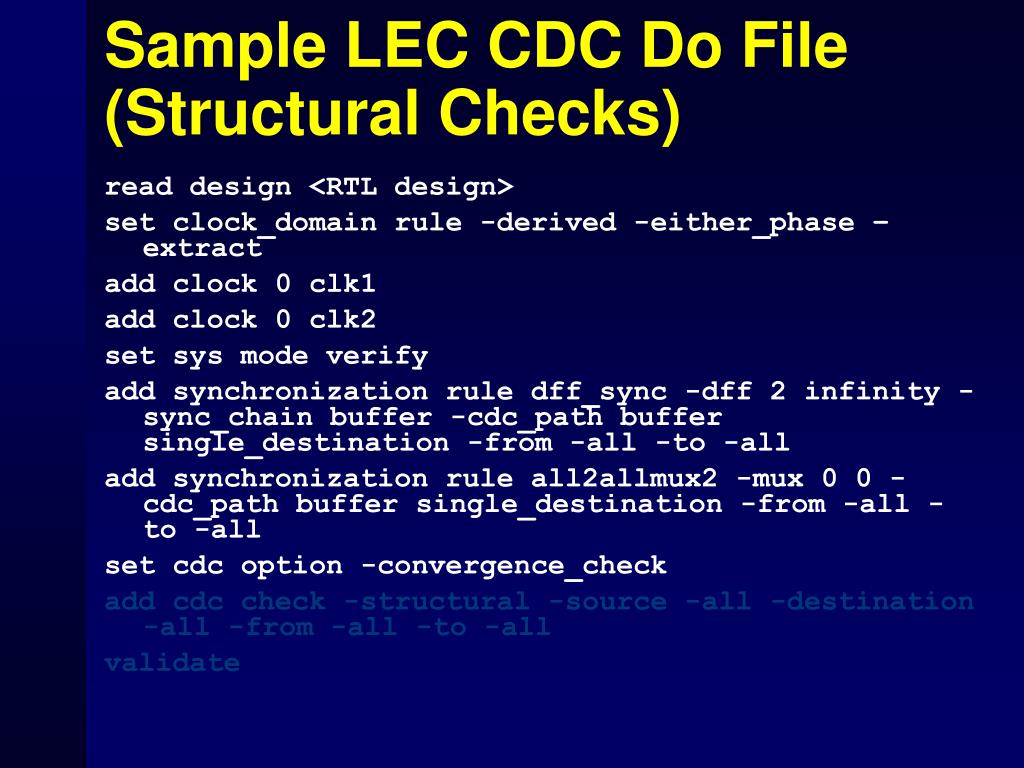

  34. Sample LEC CDC Do File(Structural Checks) read design <RTL design> set clock_domain rule -derived -either_phase –extract add clock 0 clk1 add clock 0 clk2 set sys mode verify add synchronization rule dff_sync -dff 2 infinity -sync_chain buffer -cdc_path buffer single_destination -from -all -to -all add synchronization rule all2allmux2 -mux 0 0 -cdc_path buffer single_destination -from -all -to -all set cdc option -convergence_check add cdc check -structural -source -all -destination -all -from -all -to -all validate

  35. Sample LEC CDC Do File(Structural Checks) read design <RTL design> set clock_domain rule -derived -either_phase –extract add clock 0 clk1 add clock 0 clk2 set sys mode verify add synchronization rule dff_sync -dff 2 infinity -sync_chain buffer -cdc_path buffer single_destination -from -all -to -all add synchronization rule all2allmux2 -mux 0 0 -cdc_path buffer single_destination -from -all -to -all set cdc option -convergence_check add cdc check -structural -source -all -destination -all -from -all -to -all validate

  36. Debugging with Tools Menu: Clock Domain Crossing

  37. Diagnosing A Missing Sync

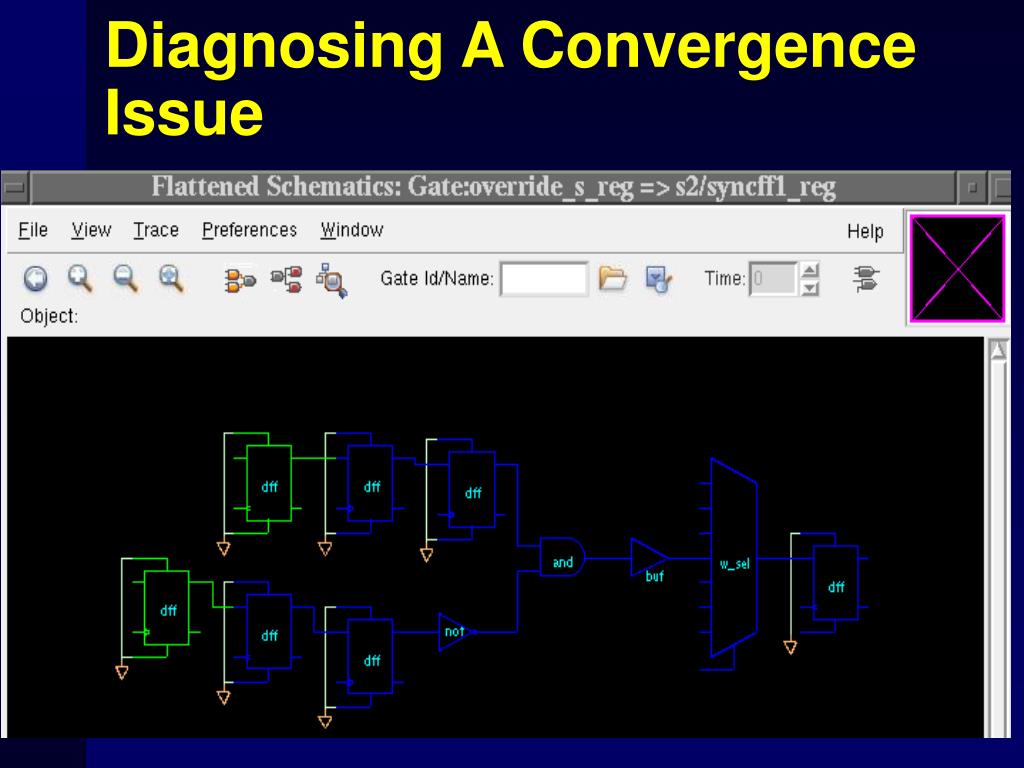

  38. Diagnosing A Convergence Issue

  39. References / Further Reading • http://www.edadesignline.com/howto/205201913;jsessionid=Y5OIFHG055FBKQSNDLPSKHSCJUNN2JVN?pgno=1 • http://w2.cadence.com/whitepapers/cdc_wp.pdf • http://www.techonline.com/article/pdf/showPDFinIE.jhtml?id=2069034541 • http://www.design-reuse.com/articles/9482/reducing-false-errors-in-clock-domain-crossing-analysis.html
