AV4001 GUI Development and Feature Update Overview

The AV4001 GUI is currently available, with a skeleton already established from previous projects like AV2001 and AV5230, allowing for efficient re-use. The AV4001 XML register list is confirmed for an update with the latest datasheet. Key features to be integrated include implementing a new communication protocol aligned with Durandal Linux firmware, ensuring USB communication is functional on both GUI and Durandal sides, and establishing Ethernet communication via TCP/IP. Planned features also involve periodic status register reads, basic and advanced script processing, macro recording, new window displays, and gathering user feedback for additional features.

payton
Télécharger la présentation

AV4001 GUI Development and Feature Update Overview

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. AV4001 GUI status

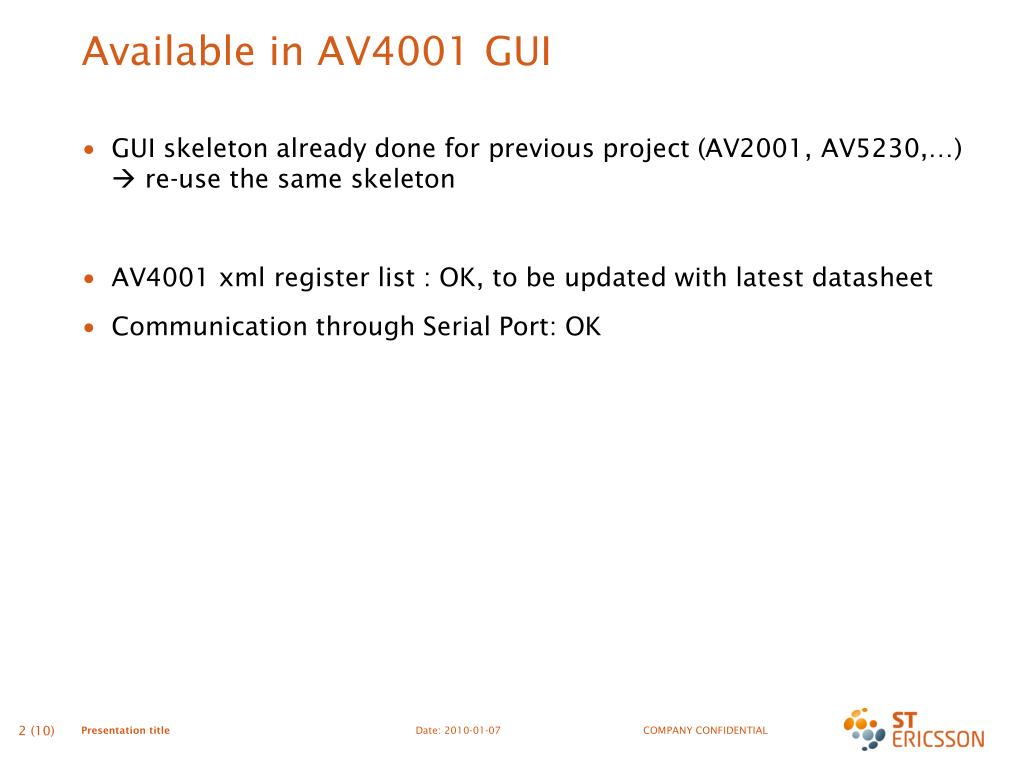

  2. Available in AV4001 GUI • GUI skeleton already done for previous project (AV2001, AV5230,…) re-use the same skeleton • AV4001 xml register list : OK, to be updated with latest datasheet • Communication through Serial Port: OK

  3. Features to add • Implementation of New communication protocol for AV4001 (to be in line with Durandal Linux firmware) • USB communication (GUI side : OK, DurandalSide: TBDone) • Ethernet communication (TCP/IP) • Do Periodic “Read” of specific status registers • Basic Script processing • Advanced Script processing : Step by step mode • Macro recording • Possibility to show new Windows/Popupinstead of Tabs • Documentation

  4. Whatotherfeatures do youneed ? • ….. ?
