Balanced Incomplete Block Design (BIBD)

Balanced Incomplete Block Design (BIBD). Notation a-number of treatments m-number of treatments/block r-number of treatment reps b-number of blocks N=ar=bm r(m-1)= l (a-1). BIBD. Example Block 1 2 3 4 A A A B B B C C C D D D Verify that l=2. BIBD.

payton
Télécharger la présentation

Balanced Incomplete Block Design (BIBD)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

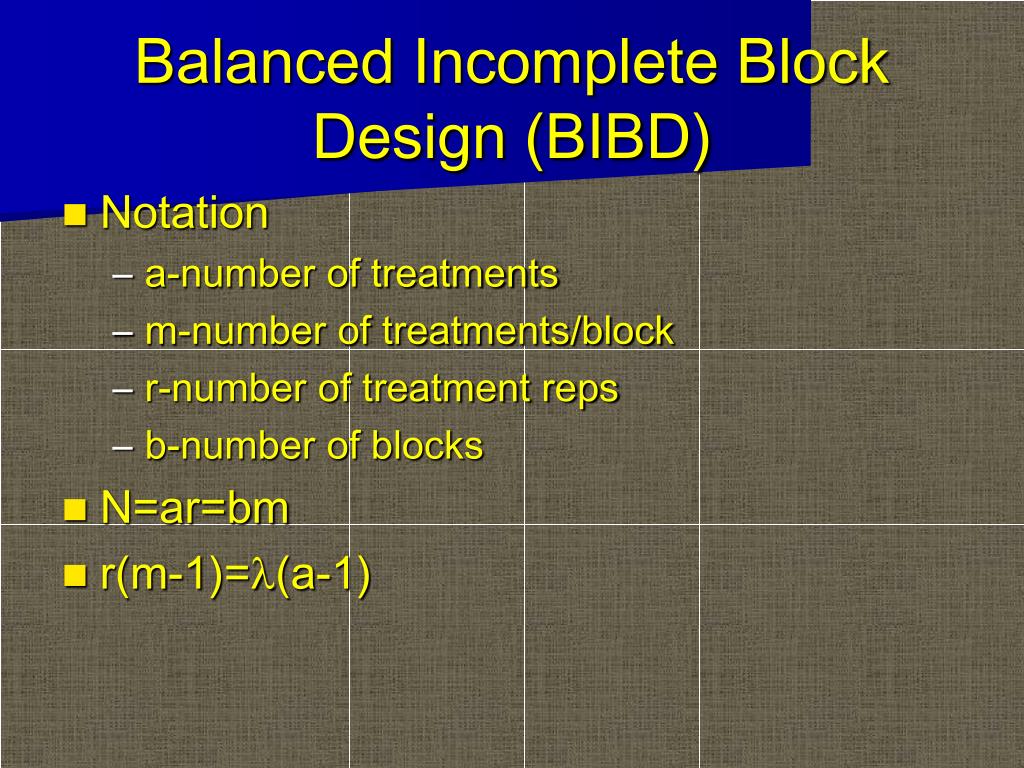

  1. Balanced Incomplete Block Design (BIBD) • Notation • a-number of treatments • m-number of treatments/block • r-number of treatment reps • b-number of blocks • N=ar=bm • r(m-1)=l(a-1)

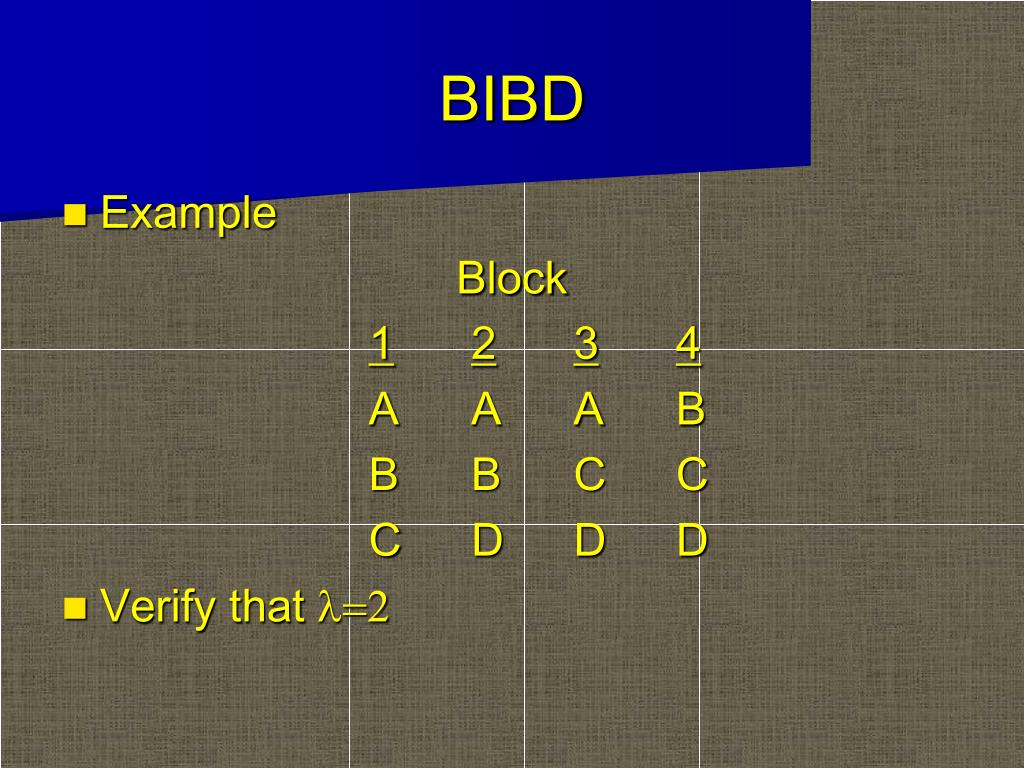

  2. BIBD • Example Block 1234 A A A B B B C C C D D D • Verify that l=2

  3. BIBD • One way to generate BIBD’s (assuming a and m have been selected) is to choose • This worked well in the previous example • It can be inefficient for large a or m≈a/2

  4. Least Squares estimator of a • These are the adjusted means that one obtains from LSMEANS in SAS

  5. Least Squares estimator of a • The solution for ai:

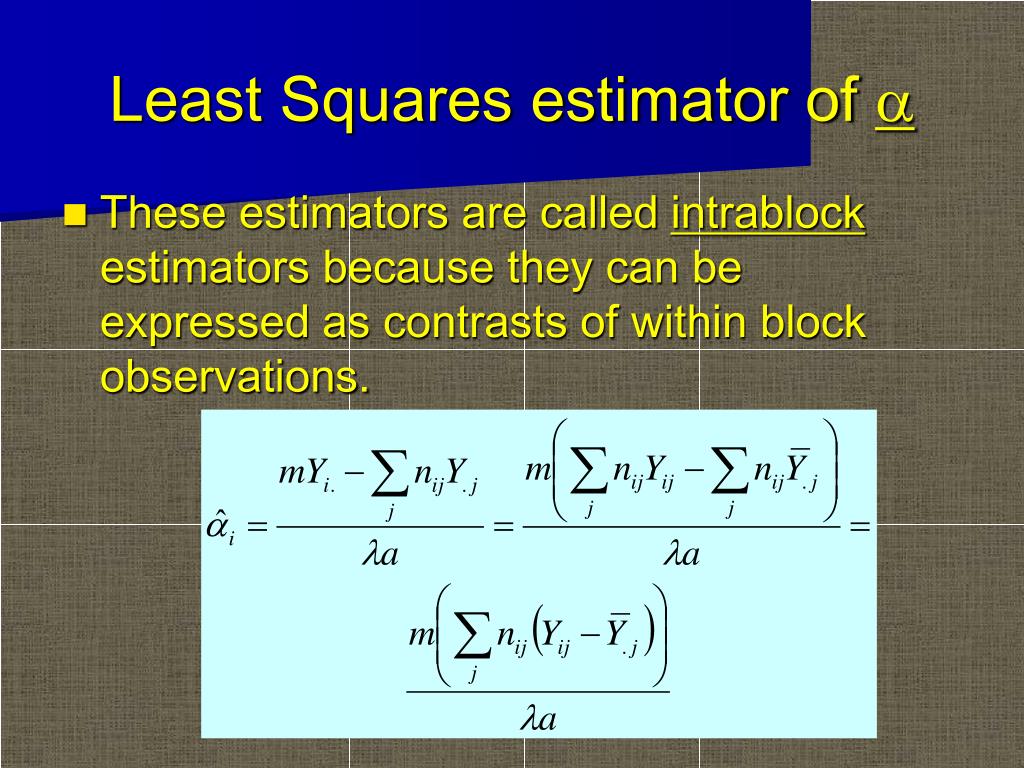

  6. Least Squares estimator of a • These estimators are called intrablock estimators because they can be expressed as contrasts of within block observations.

  7. Properties of LS estimators

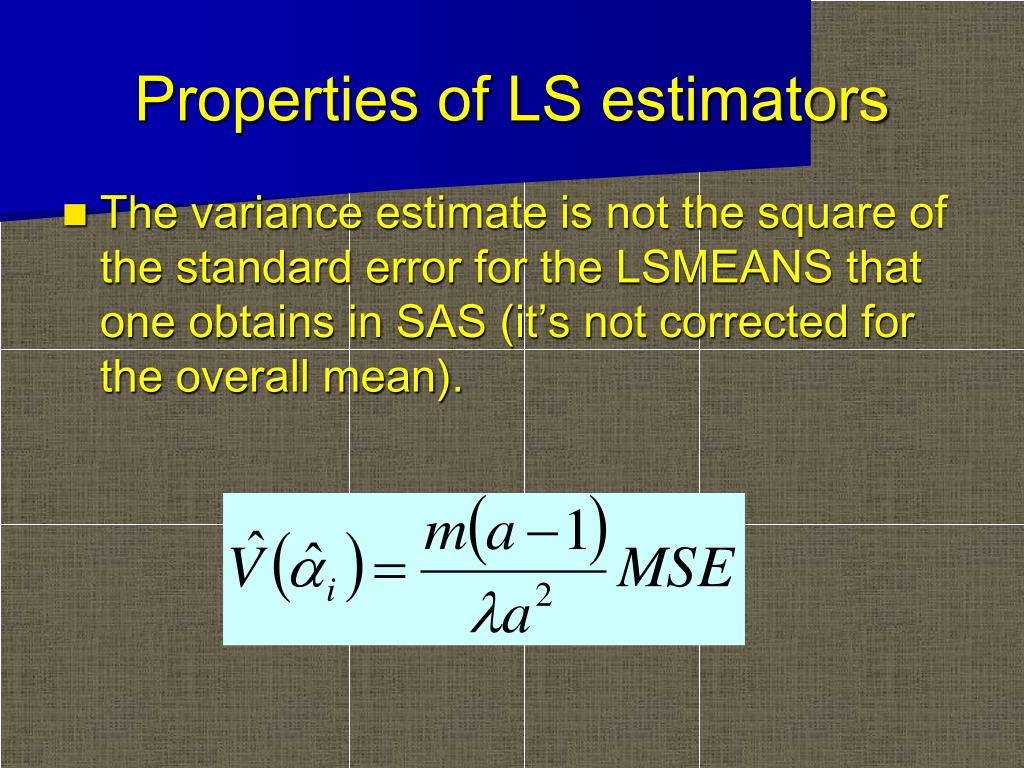

  8. Properties of LS estimators • The variance estimate is not the square of the standard error for the LSMEANS that one obtains in SAS (it’s not corrected for the overall mean).

  9. Example • Region II Science Fair Winner • Treatment is organic chemical repellent • Block is Day • Response is average number of flies on underside of lid (smaller is better) • Originally presented as a Latin Square (additional block was Fly Group)

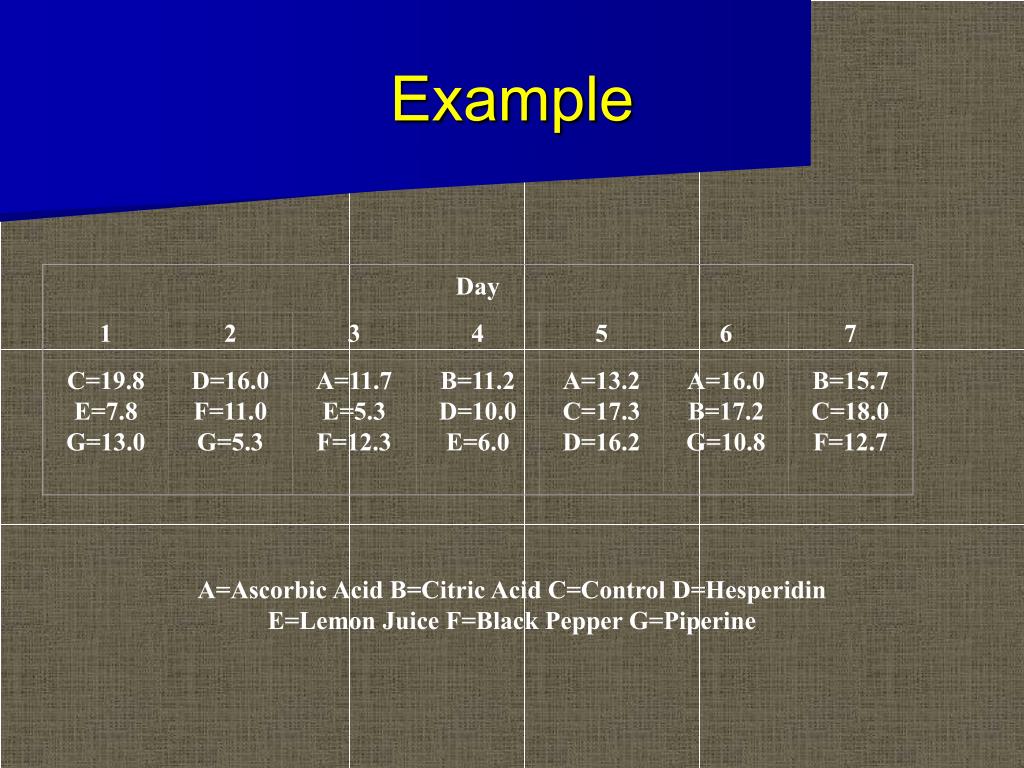

  10. Day 1 2 3 4 5 6 7 C=19.8 E=7.8 G=13.0 D=16.0 F=11.0 G=5.3 A=11.7 E=5.3 F=12.3 B=11.2 D=10.0 E=6.0 A=13.2 C=17.3 D=16.2 A=16.0 B=17.2 G=10.8 B=15.7 C=18.0 F=12.7 Example A=Ascorbic Acid B=Citric Acid C=Control D=Hesperidin E=Lemon Juice F=Black Pepper G=Piperine

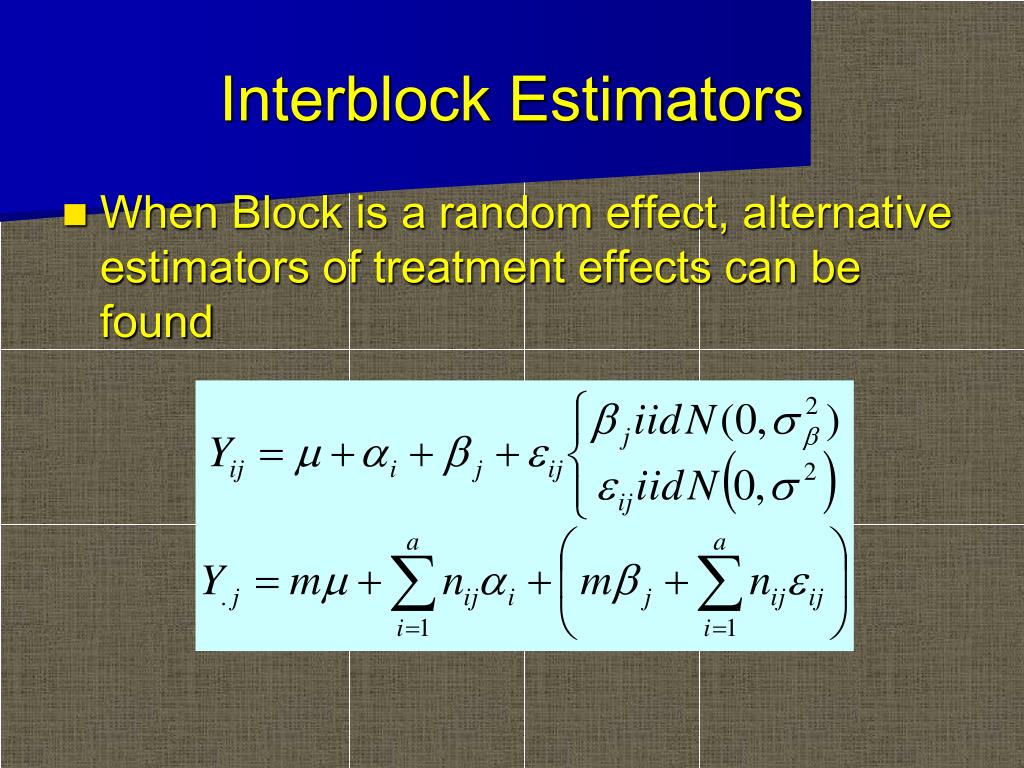

  11. Interblock Estimators • When Block is a random effect, alternative estimators of treatment effects can be found

  12. Interblock Estimators

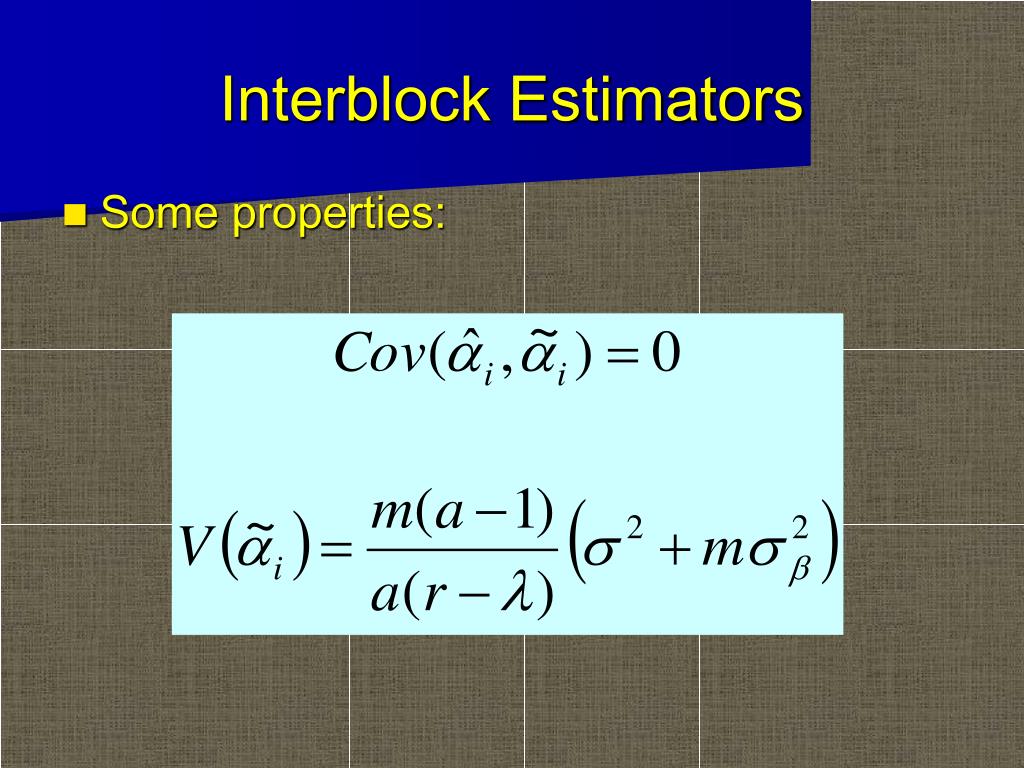

  13. Interblock Estimators • Some properties:

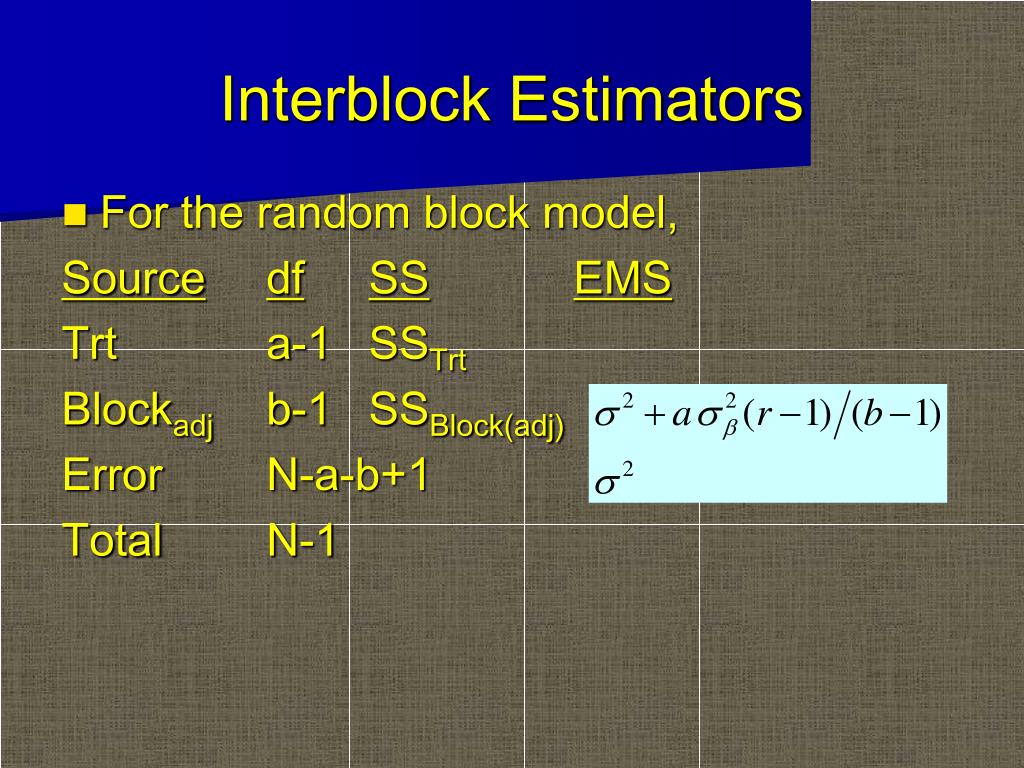

  14. Interblock Estimators • For the random block model, SourcedfSSEMS Trt a-1 SSTrt Blockadj b-1 SSBlock(adj) Error N-a-b+1 Total N-1

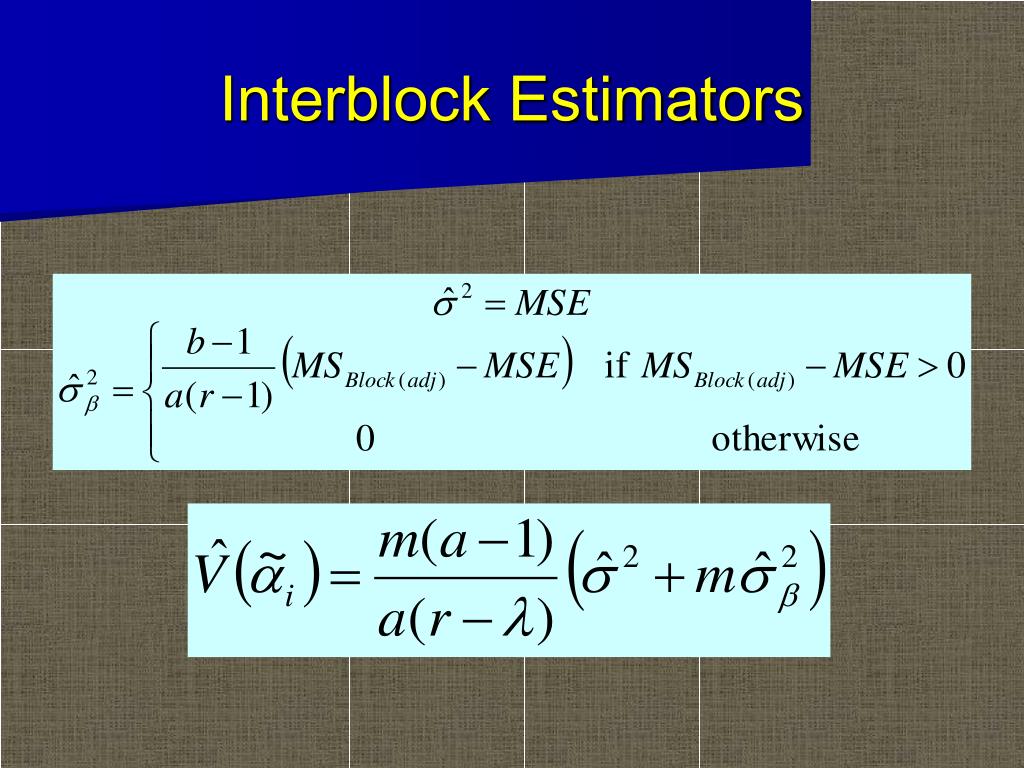

  15. Interblock Estimators

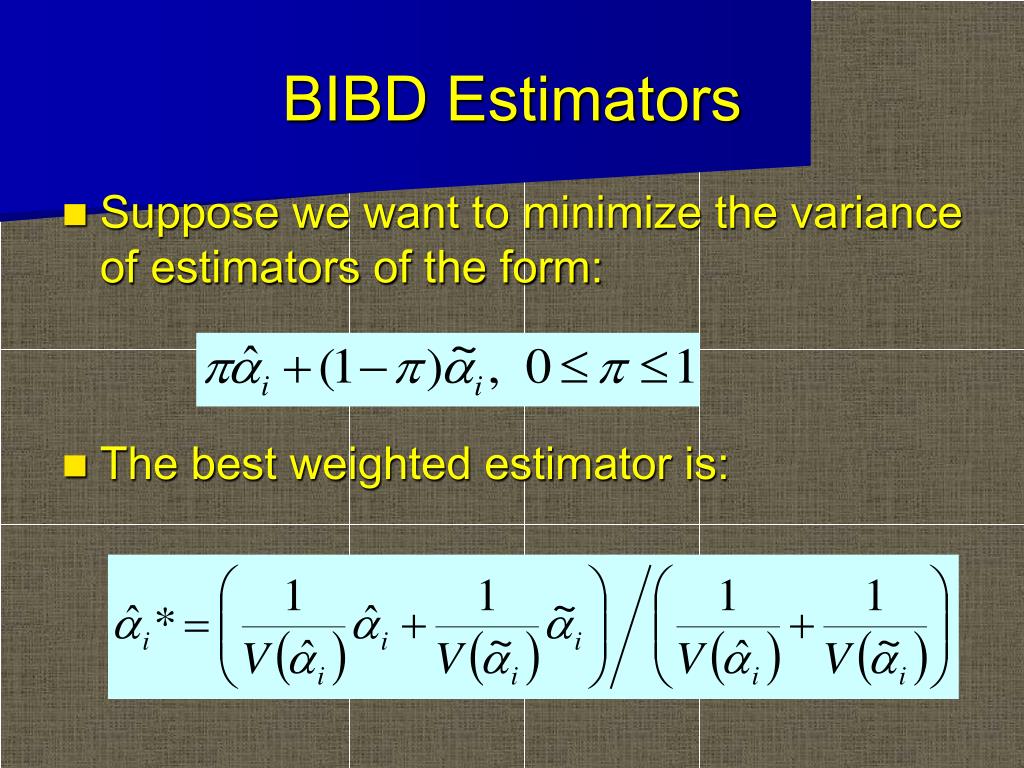

  16. BIBD Estimators • Suppose we want to minimize the variance of estimators of the form: • The best weighted estimator is:

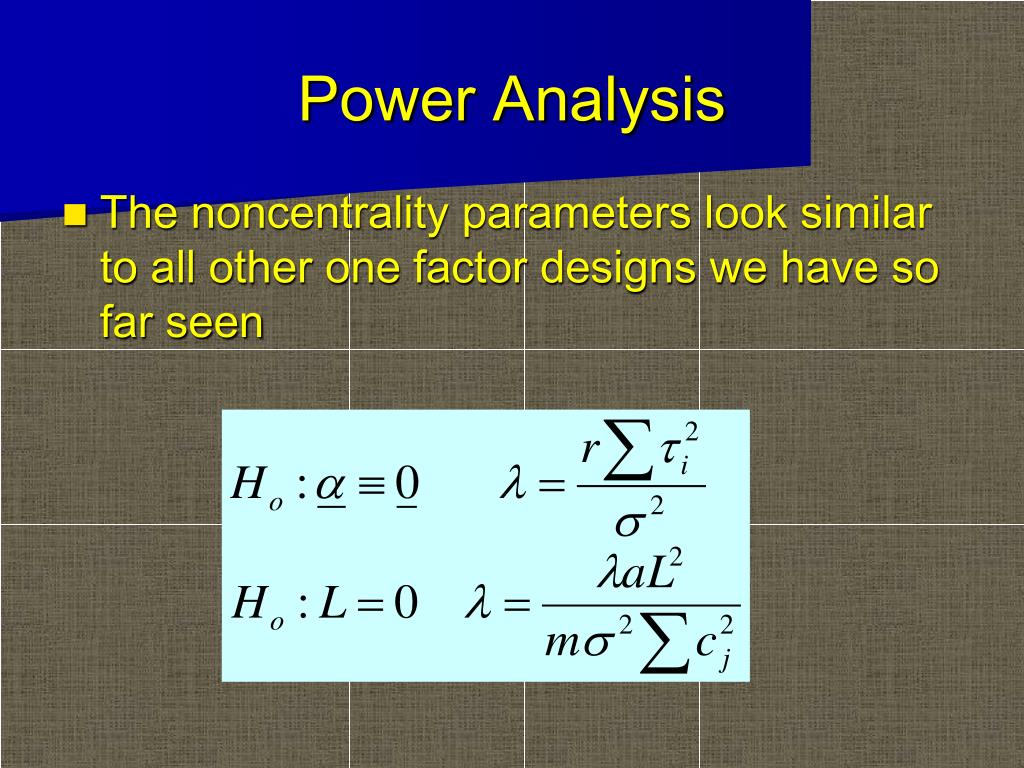

  17. Power Analysis • The noncentrality parameters look similar to all other one factor designs we have so far seen
