Decision Making Under Uncertainty

1. Decision Making Under Uncertainty Let’s stop pretending we know things

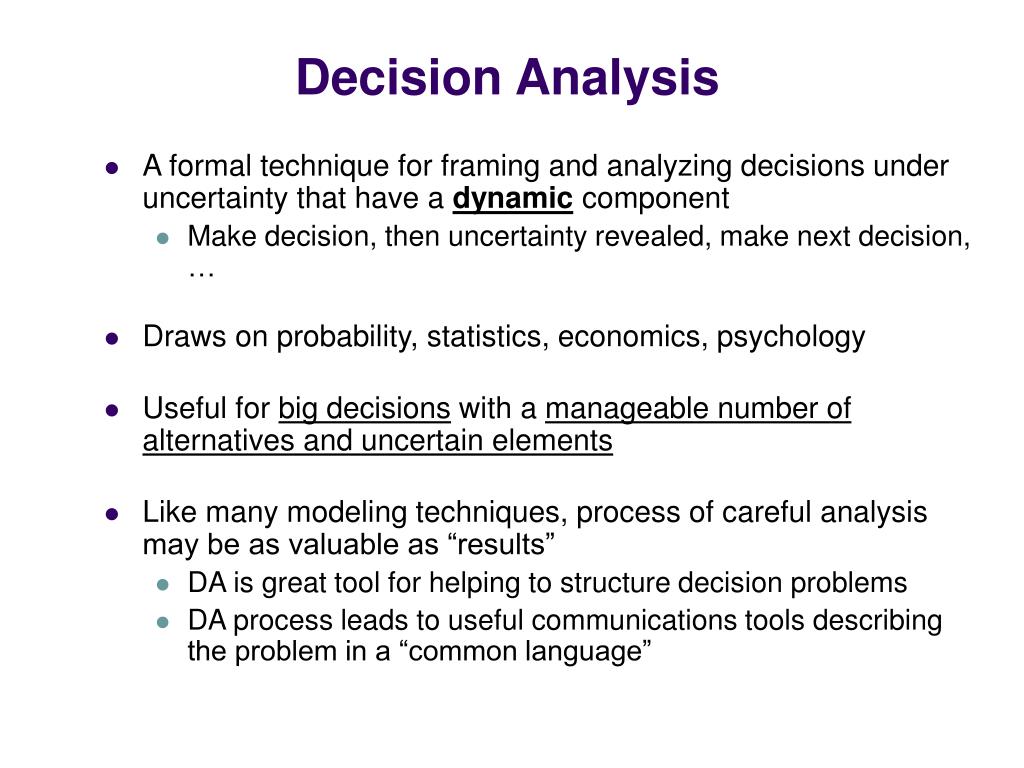

2. Decision Analysis • A formal technique for framing and analyzing decisions under uncertainty that have a dynamic component • Make decision, then uncertainty revealed, make next decision, … • Draws on probability, statistics, economics, psychology • Useful for big decisions with a manageable number of alternatives and uncertain elements • Like many modeling techniques, process of careful analysis may be as valuable as “results” • DA is great tool for helping to structure decision problems • DA process leads to useful communications tools describing the problem in a “common language”

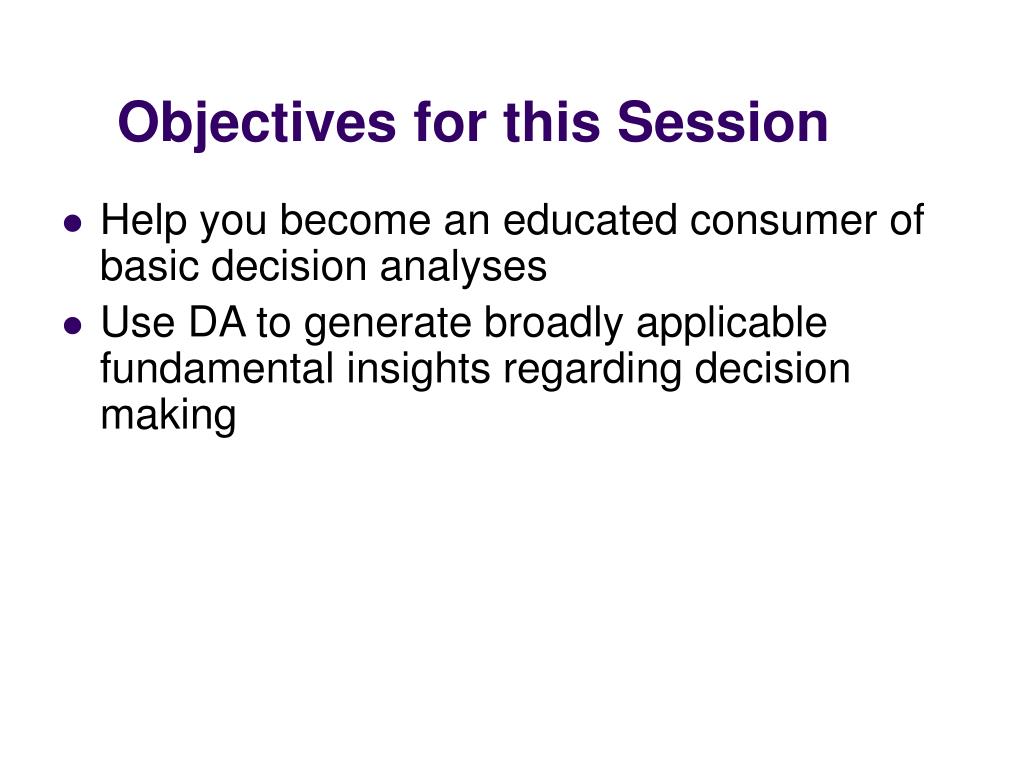

3. Objectives for this Session • Help you become an educated consumer of basic decision analyses • Use DA to generate broadly applicable fundamental insights regarding decision making

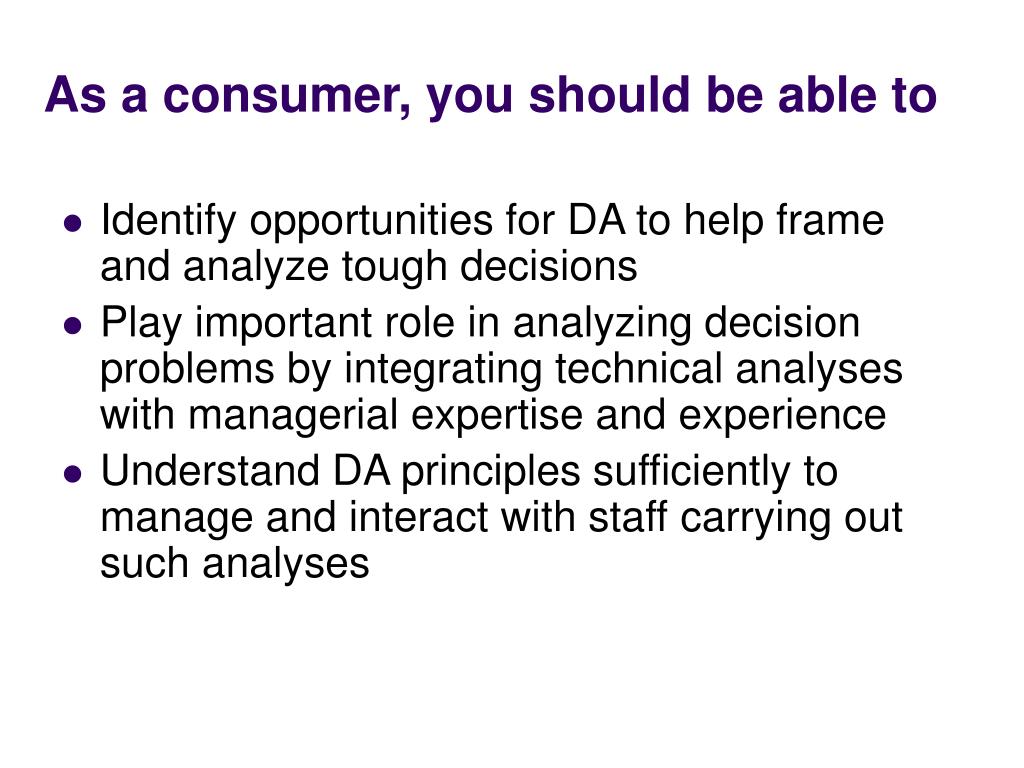

4. As a consumer, you should be able to • Identify opportunities for DA to help frame and analyze tough decisions • Play important role in analyzing decision problems by integrating technical analyses with managerial expertise and experience • Understand DA principles sufficiently to manage and interact with staff carrying out such analyses

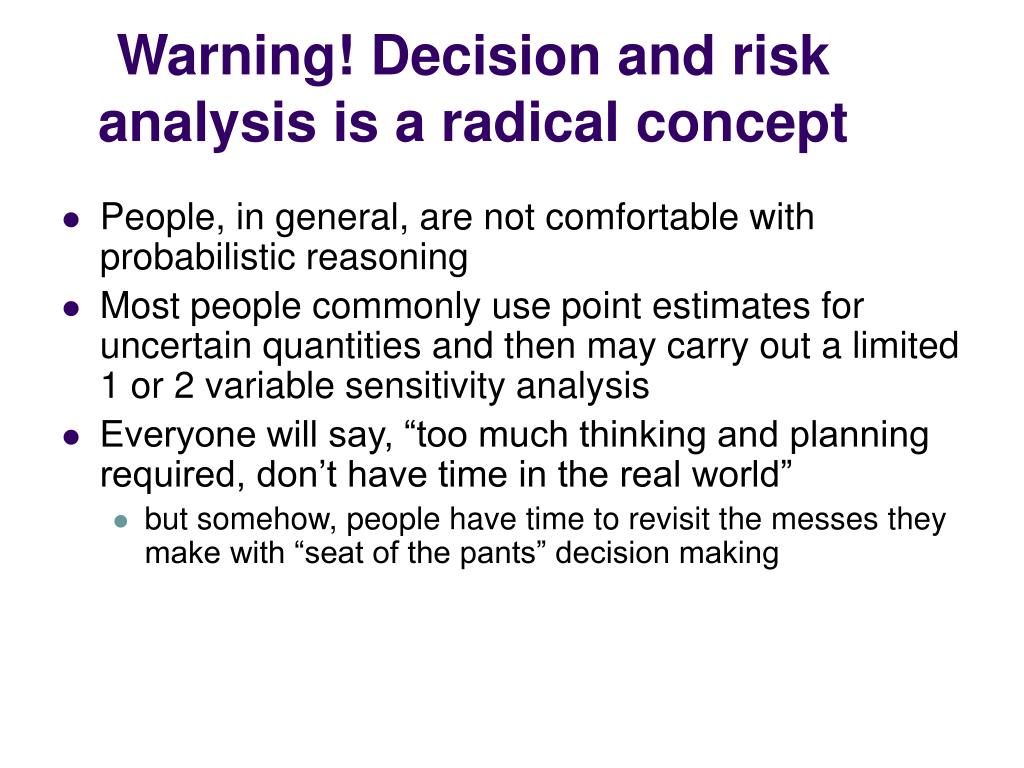

5. Warning! Decision and risk analysis is a radical concept • People, in general, are not comfortable with probabilistic reasoning • Most people commonly use point estimates for uncertain quantities and then may carry out a limited 1 or 2 variable sensitivity analysis • Everyone will say, “too much thinking and planning required, don’t have time in the real world” • but somehow, people have time to revisit the messes they make with “seat of the pants” decision making

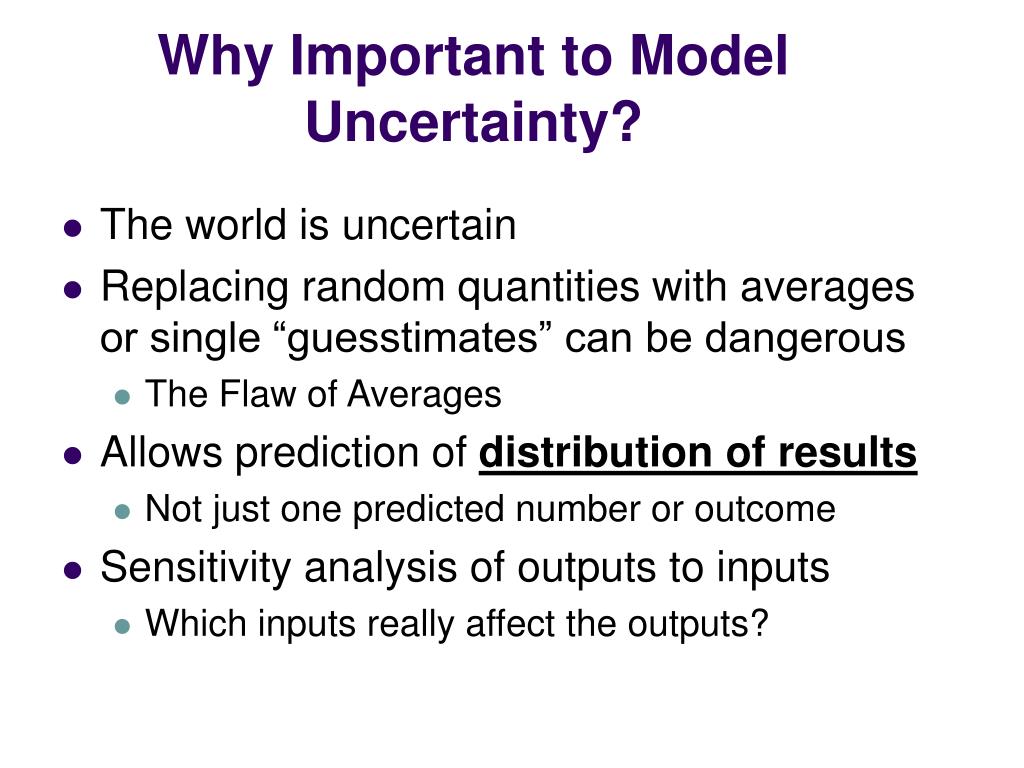

6. Why Important to Model Uncertainty? • The world is uncertain • Replacing random quantities with averages or single “guesstimates” can be dangerous • The Flaw of Averages • Allows prediction of distribution of results • Not just one predicted number or outcome • Sensitivity analysis of outputs to inputs • Which inputs really affect the outputs?

7. Common Decision Making Biases • Poor framing – glass ½ full or glass ½ empty • Recency effects – the last word • Poor probability estimation – uncertain about uncertainty • Overconfidence – too certain about uncertainty • Escalation phenomena – ignoring sunk cost • Association bias – a hammer in search of nails • Group think – power in numbers

8. Random variables (RV) and probability distributions • A variable whose value depends on the outcome of an uncertain event • Low bid by competing firms • Demand for some service next year • Number of patients requiring open heart surgery next month at Hospital H • Cost of Drug X in December, 2003 • Probability of various outcomes determined by probability distribution associated with the RV • As modelers, we select appropriate distributions • Probability distributions • mathematical functions • Assign numeric probabilities to uncertain events modeled by the distribution See “Distributions, Simulation and Excel Functions” handout that Doane created.

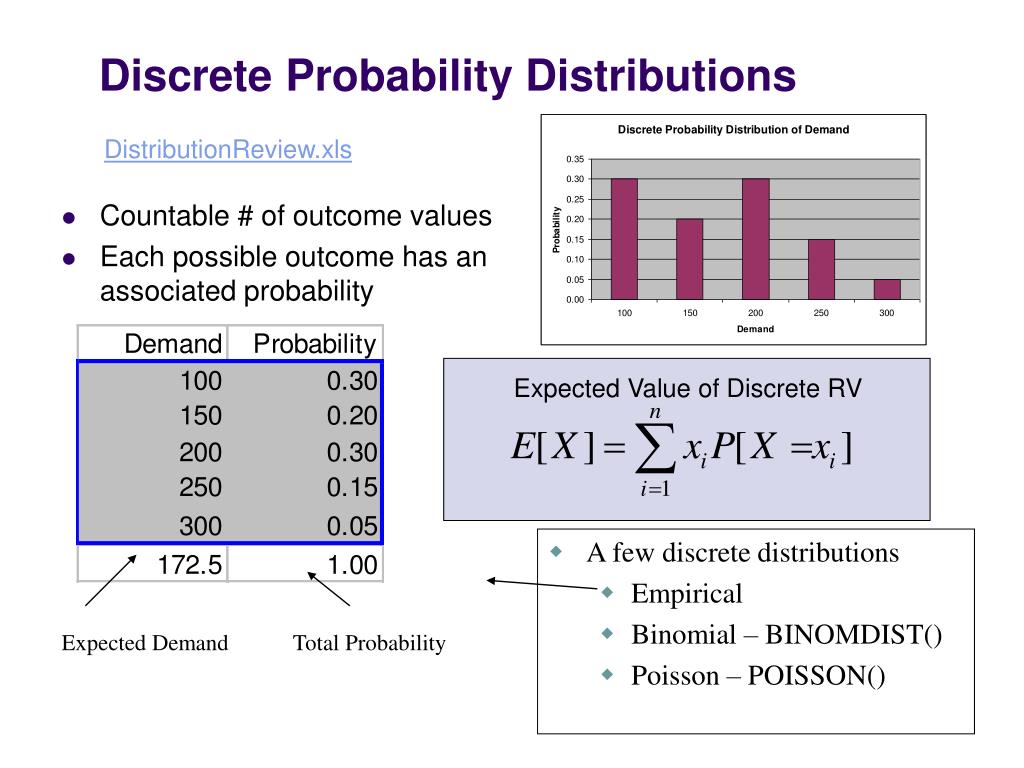

9. Discrete Probability Distributions DistributionReview.xls • Countable # of outcome values • Each possible outcome has an associated probability Expected Value of Discrete RV • A few discrete distributions • Empirical • Binomial – BINOMDIST() • Poisson – POISSON() Expected Demand Total Probability

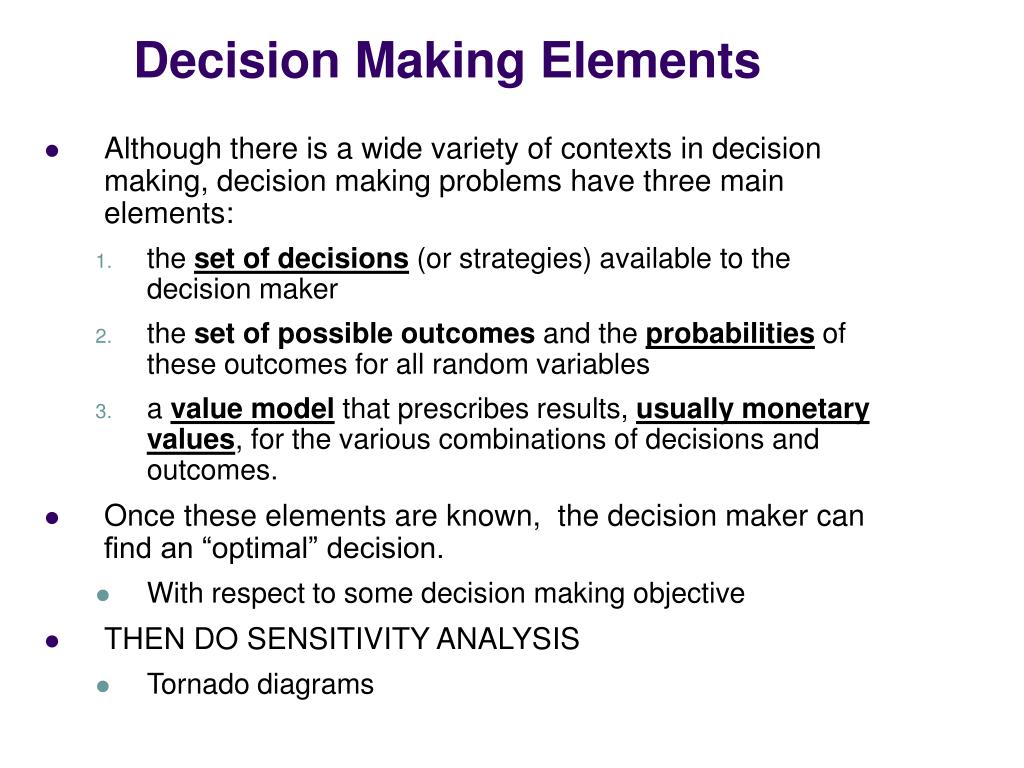

10. Decision Making Elements • Although there is a wide variety of contexts in decision making, decision making problems have three main elements: • the set of decisions (or strategies) available to the decision maker • the set of possible outcomes and the probabilities of these outcomes for all random variables • a value model that prescribes results, usually monetary values, for the various combinations of decisions and outcomes. • Once these elements are known, the decision maker can find an “optimal” decision. • With respect to some decision making objective • THEN DO SENSITIVITY ANALYSIS • Tornado diagrams

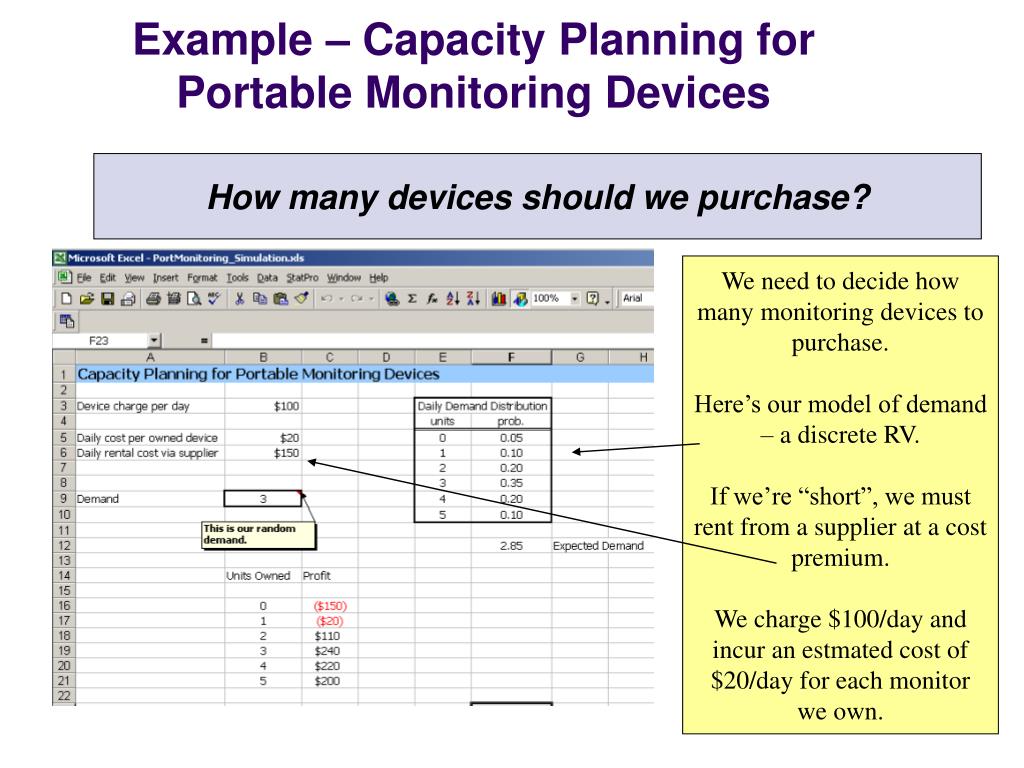

11. Example – Capacity Planning for Portable Monitoring Devices How many devices should we purchase? We need to decide how many monitoring devices to purchase. Here’s our model of demand – a discrete RV. If we’re “short”, we must rent from a supplier at a cost premium. We charge $100/day and incur an estmated cost of $20/day for each monitor we own.

12. Decision Analysis Strategy • Identify our alternatives • Purchase 0, 1, 2, 3, 4, or 5 devices • Identify and quantify random variables • Demand – we have somehow estimated distribution of daily demand for devices • Create payoff matrix for all combinations of alternatives and uncertain outcomes • Excel well suited for this • Can also graph the risk profile for each alternative • Explore “optimal” decision under different objective functions • Maximin – maximize the worst possible return (pessimistic) • Maximax – maximize the best possible return (optimistic) • Expected monetary value – pick the alternative that gives the highest expected return

13. Payoff Matrix Total Shortage cost Daily device cost Revenue # short How many devices should we purchase? What does the expected demand suggest we do? Let’s look at PortMonitoring.xls

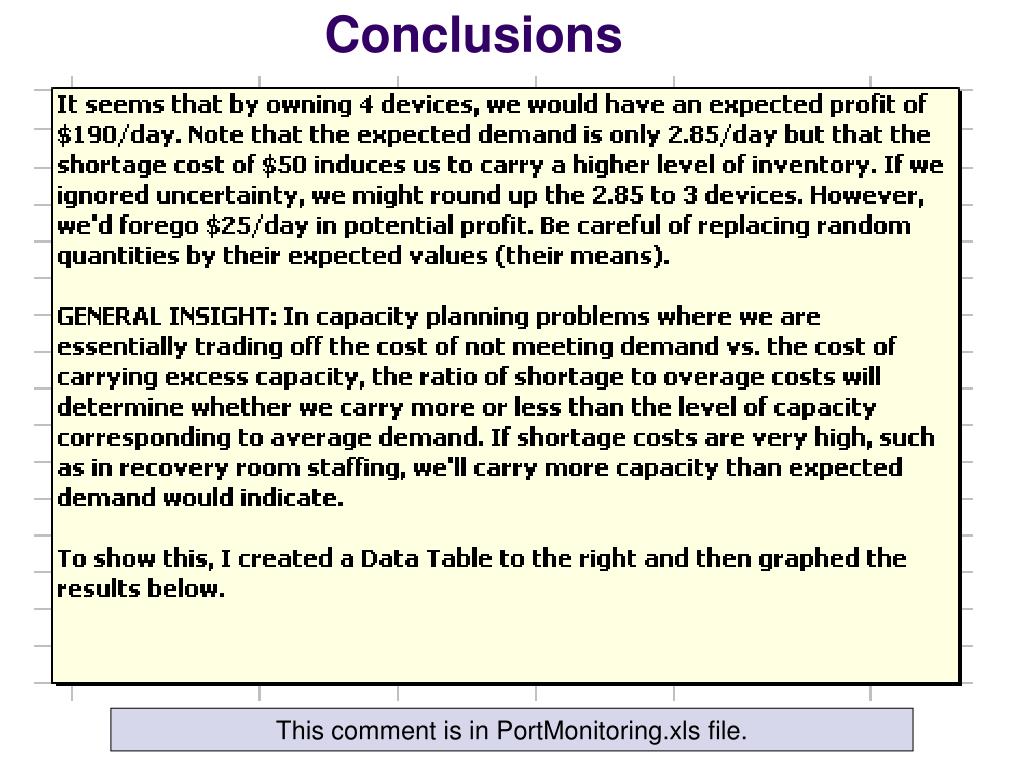

14. Conclusions This comment is in PortMonitoring.xls file.

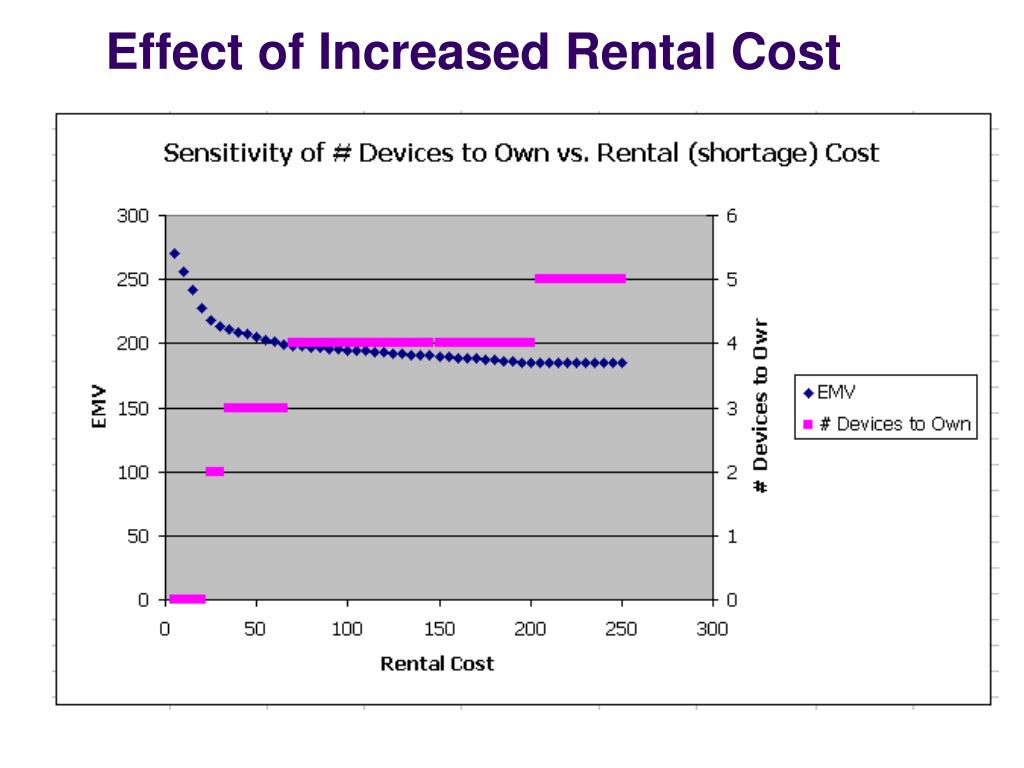

15. Effect of Increased Rental Cost

16. Risk Profiles 3 Devices • A risk profile simply lists all possible monetary values and their corresponding probabilities. • Risk profiles can be illustrated on a bar chart. There is a bar above each possible monetary value with height proportional to the probability of that value. • Making a decision is basically a choice of which risk profile you wish to accept. 5 Devices 4 Devices

17. The Flaw of Averages http://www.stanford.edu/~savage/flaw/ Math Speak A non-linear function of a random variable, evaluated at the average of the random variable, is not the average of the function. The Math F(E(X)) ≠ E(F(X) if F is a nonlinear function Practical Interpretation When you plug average values into a spreadsheet, you don’t get average outputs unless the model is linear (and most people don’t know if their models are linear or not). Savage, S., 2003, Weapons of Mass Instruction, OR/MS Today, August, pp. 36-40.

18. Example of Flaw of Averages This function, probability that the unit is full is NOT a linear function of the birth volume.

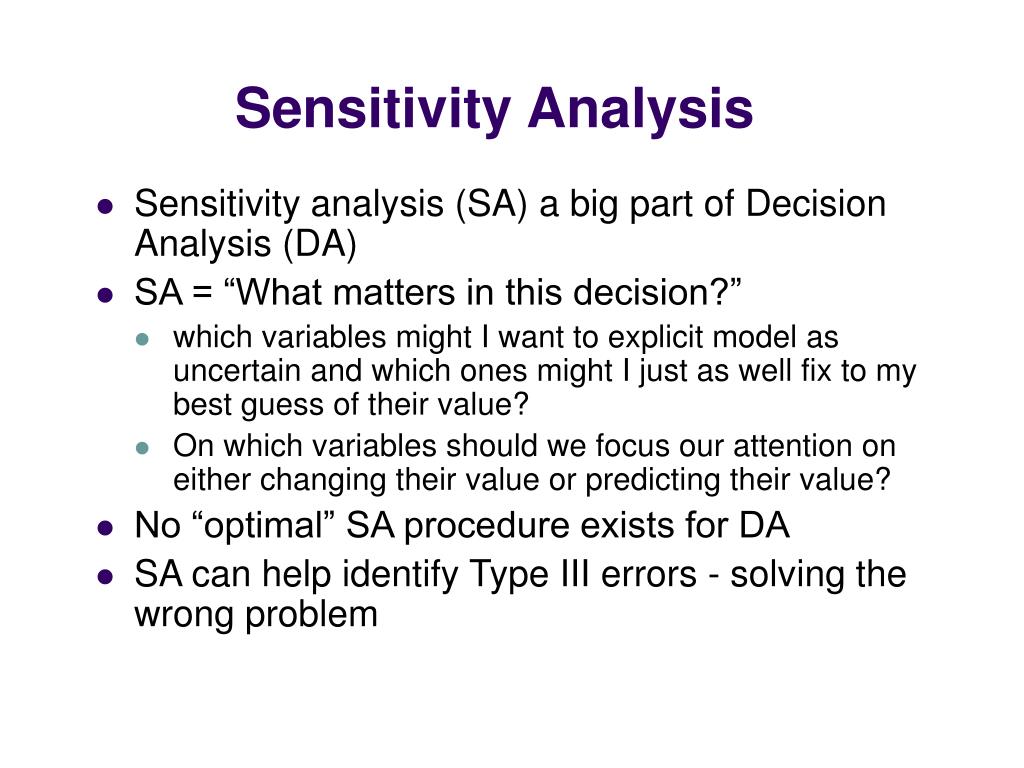

19. Sensitivity Analysis • Sensitivity analysis (SA) a big part of Decision Analysis (DA) • SA = “What matters in this decision?” • which variables might I want to explicit model as uncertain and which ones might I just as well fix to my best guess of their value? • On which variables should we focus our attention on either changing their value or predicting their value? • No “optimal” SA procedure exists for DA • SA can help identify Type III errors - solving the wrong problem

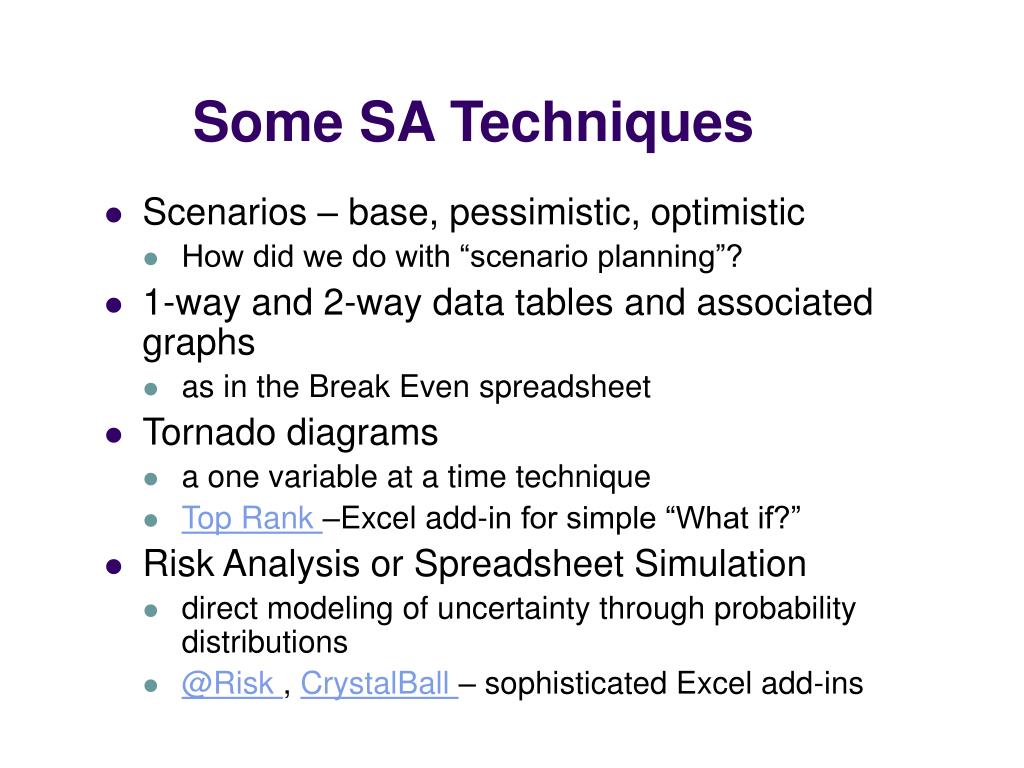

20. Some SA Techniques • Scenarios – base, pessimistic, optimistic • How did we do with “scenario planning”? • 1-way and 2-way data tables and associated graphs • as in the Break Even spreadsheet • Tornado diagrams • a one variable at a time technique • Top Rank –Excel add-in for simple “What if?” • Risk Analysis or Spreadsheet Simulation • direct modeling of uncertainty through probability distributions • @Risk , CrystalBall – sophisticated Excel add-ins

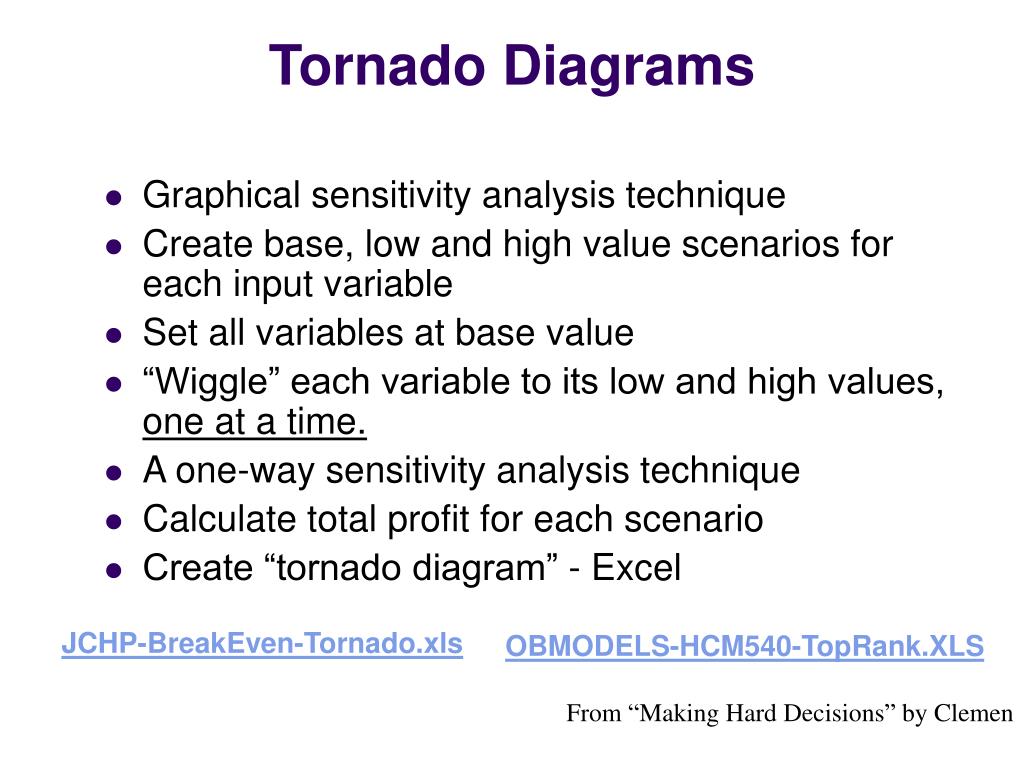

21. Tornado Diagrams • Graphical sensitivity analysis technique • Create base, low and high value scenarios for each input variable • Set all variables at base value • “Wiggle” each variable to its low and high values, one at a time. • A one-way sensitivity analysis technique • Calculate total profit for each scenario • Create “tornado diagram” - Excel JCHP-BreakEven-Tornado.xls OBMODELS-HCM540-TopRank.XLS From “Making Hard Decisions” by Clemen

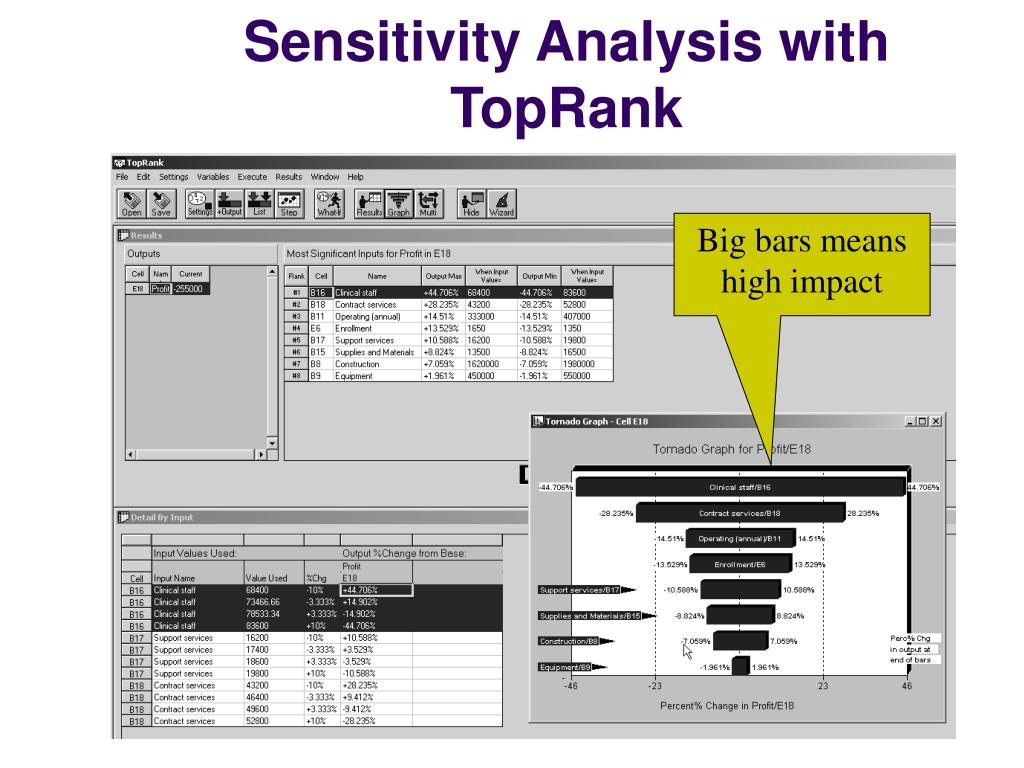

22. Sensitivity Analysis with TopRank Big bars means high impact

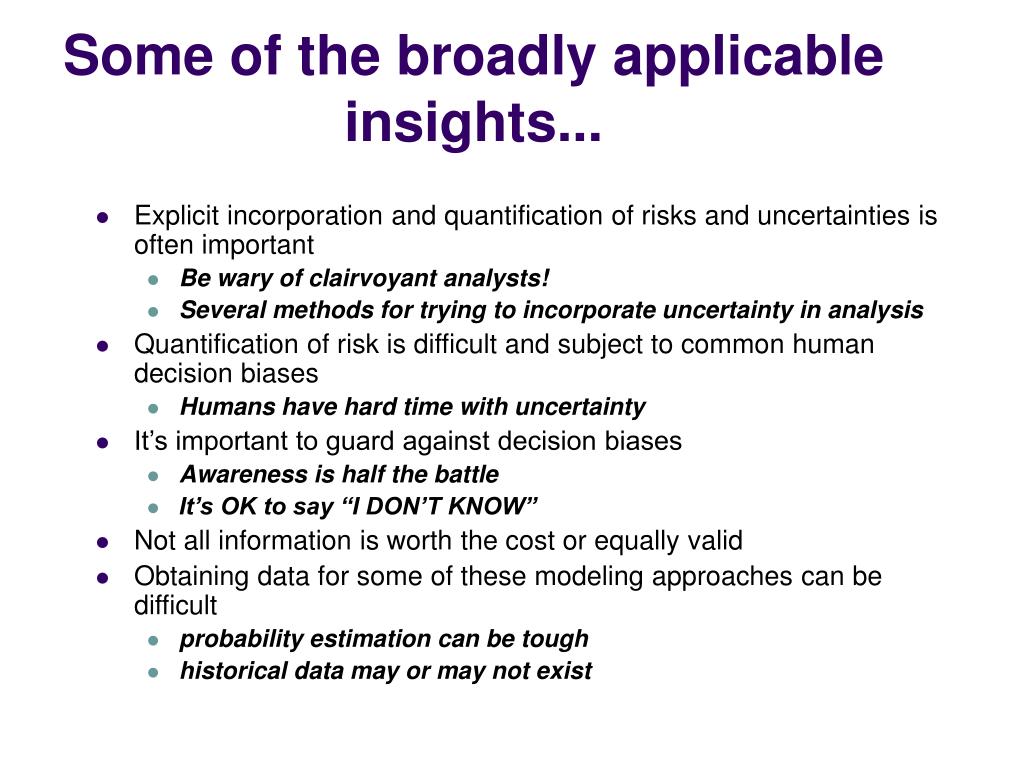

23. Some of the broadly applicable insights... • Explicit incorporation and quantification of risks and uncertainties is often important • Be wary of clairvoyant analysts! • Several methods for trying to incorporate uncertainty in analysis • Quantification of risk is difficult and subject to common human decision biases • Humans have hard time with uncertainty • It’s important to guard against decision biases • Awareness is half the battle • It’s OK to say “I DON’T KNOW” • Not all information is worth the cost or equally valid • Obtaining data for some of these modeling approaches can be difficult • probability estimation can be tough • historical data may or may not exist
