  1. GFESuite Configuration Mark Mathewson

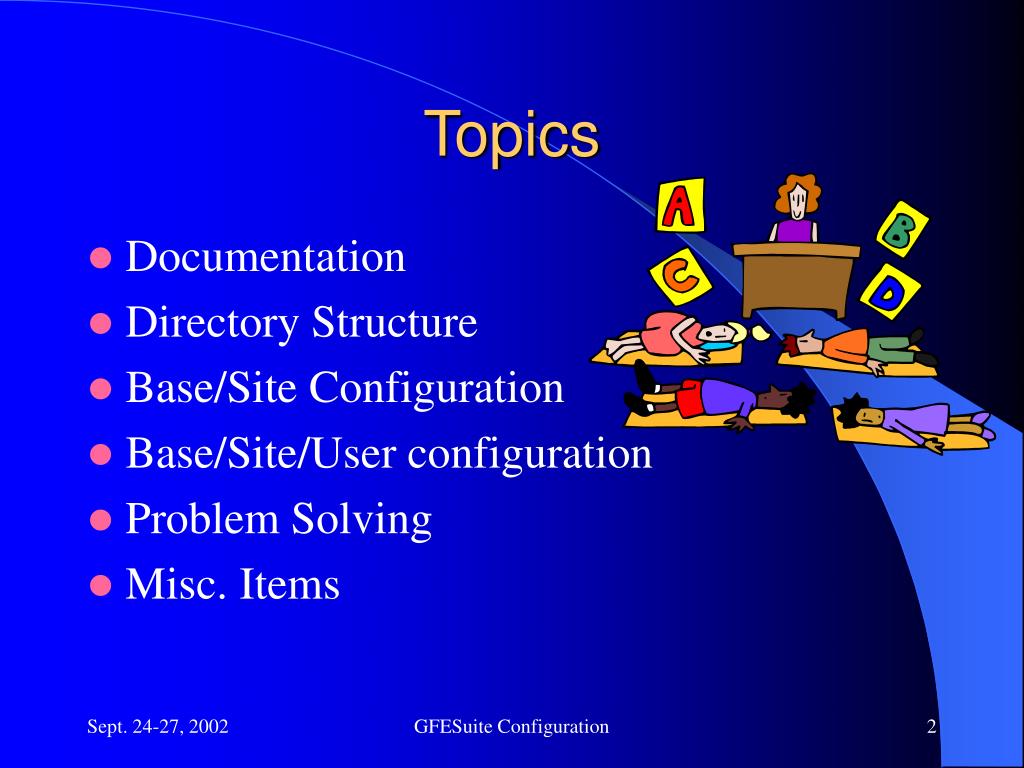

  2. Topics • Documentation • Directory Structure • Base/Site Configuration • Base/Site/User configuration • Problem Solving • Misc. Items GFESuite Configuration

  3. Documentation GFESuite Configuration

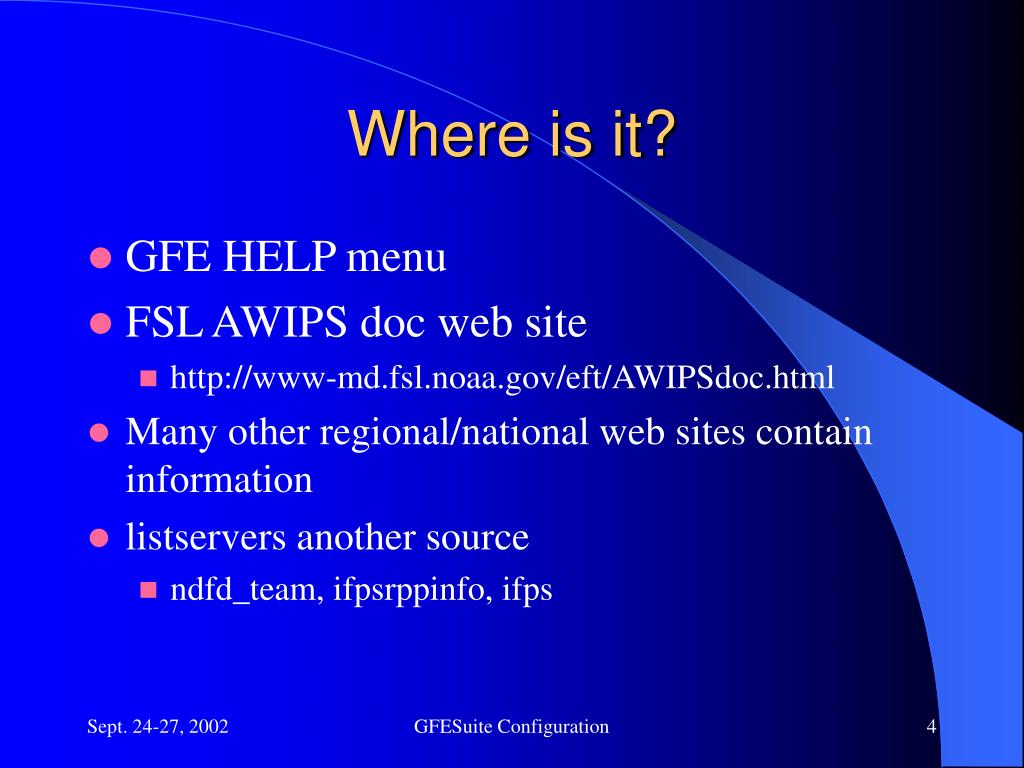

  4. Where is it? • GFE HELP menu • FSL AWIPS doc web site • http://www-md.fsl.noaa.gov/eft/AWIPSdoc.html • Many other regional/national web sites contain information • listservers another source • ndfd_team, ifpsrppinfo, ifps GFESuite Configuration

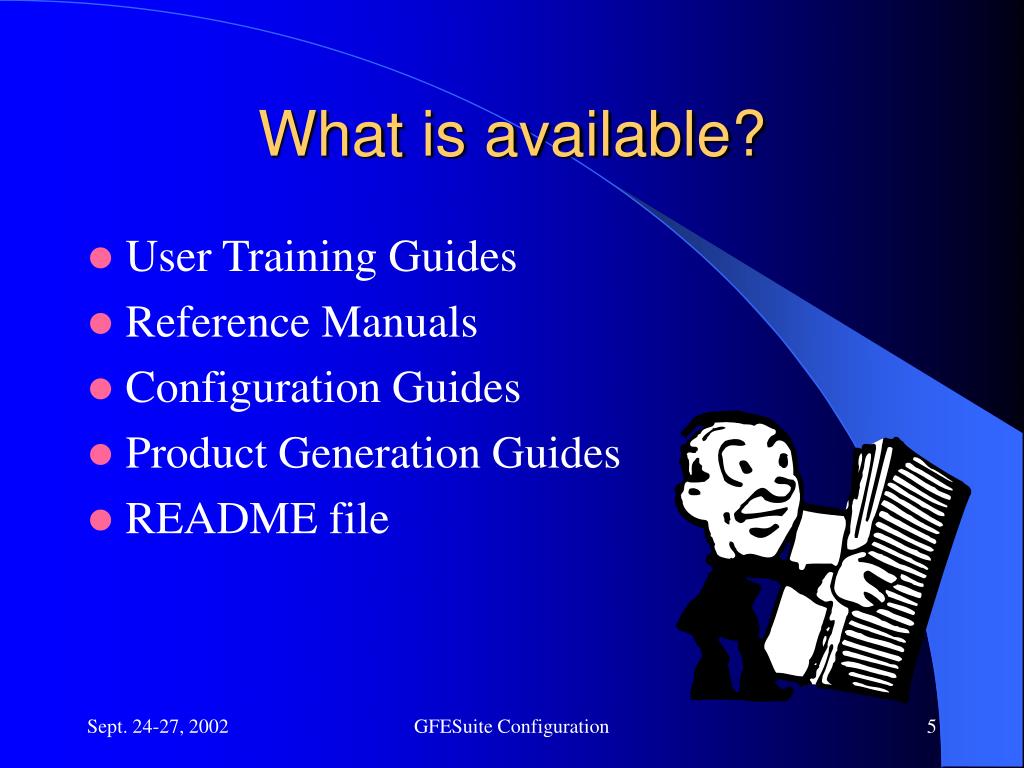

  5. What is available? • User Training Guides • Reference Manuals • Configuration Guides • Product Generation Guides • README file GFESuite Configuration

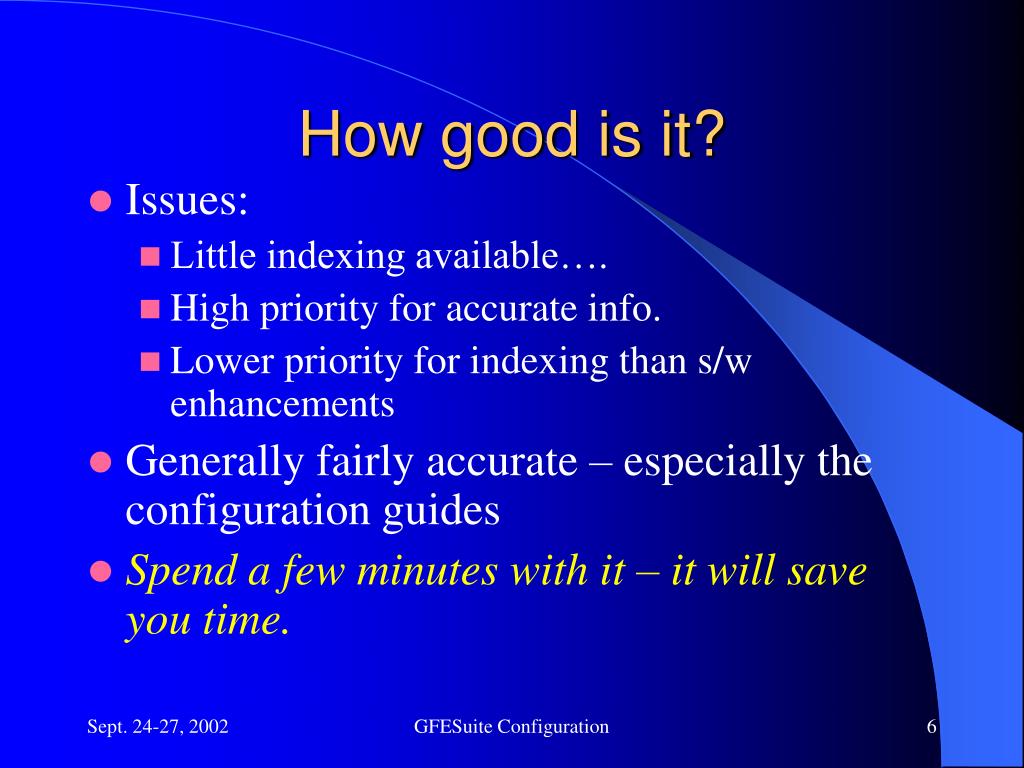

  6. How good is it? • Issues: • Little indexing available…. • High priority for accurate info. • Lower priority for indexing than s/w enhancements • Generally fairly accurate – especially the configuration guides • Spend a few minutes with it – it will save you time. GFESuite Configuration

  7. Directory Structures GFESuite Configuration

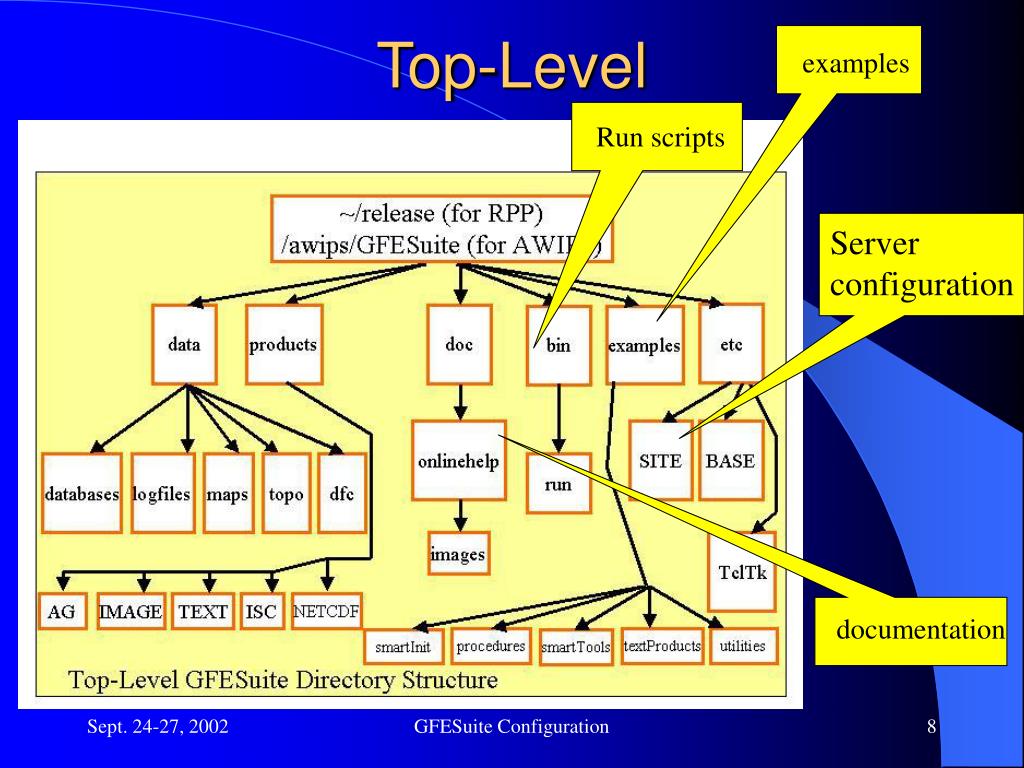

  8. examples Run scripts Server configuration documentation Top-Level GFESuite Configuration

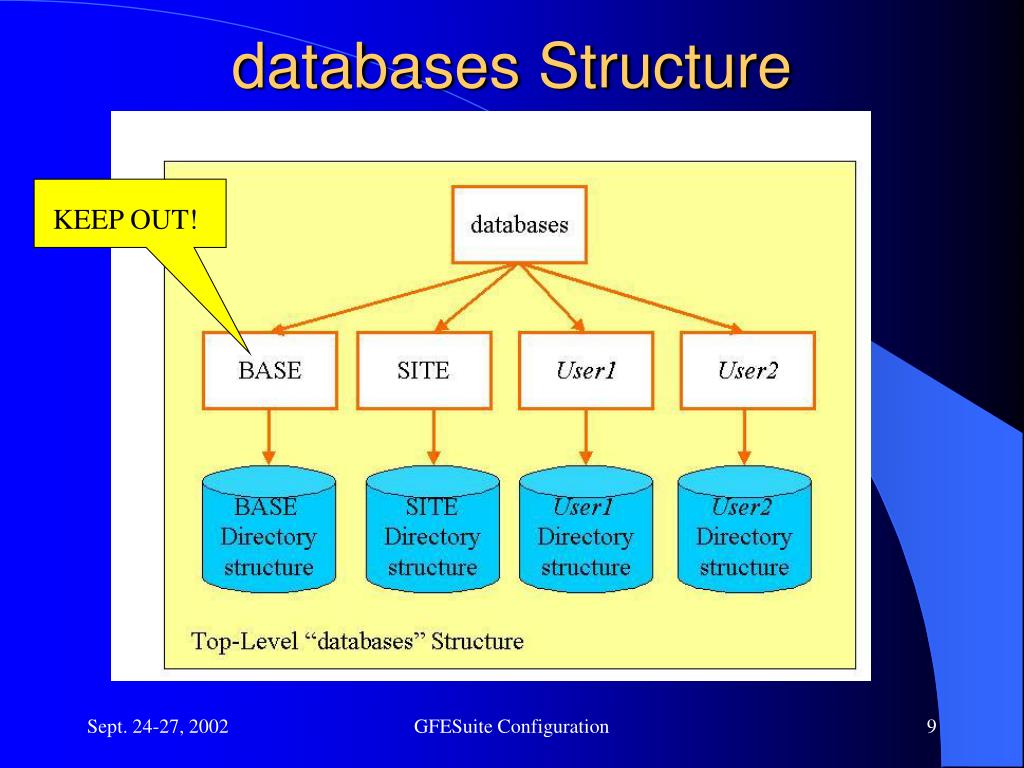

  9. KEEP OUT! databases Structure GFESuite Configuration

  10. databases Structure GFESuite Configuration

  11. Database grids Structure GFESuite Configuration

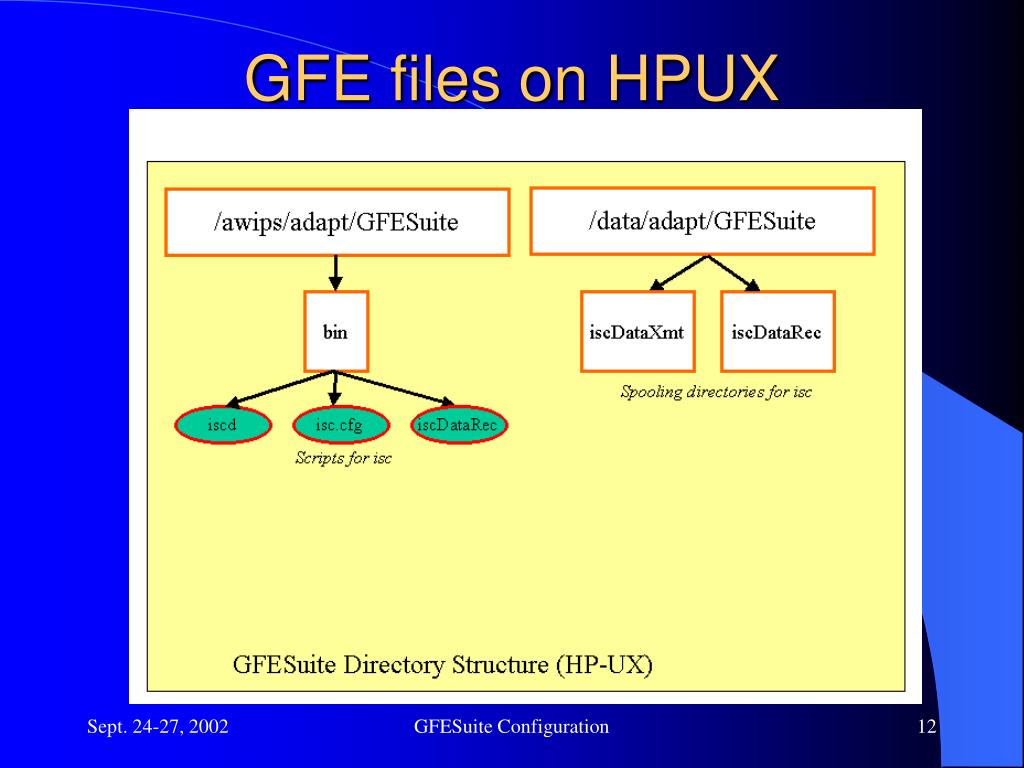

  12. GFE files on HPUX GFESuite Configuration

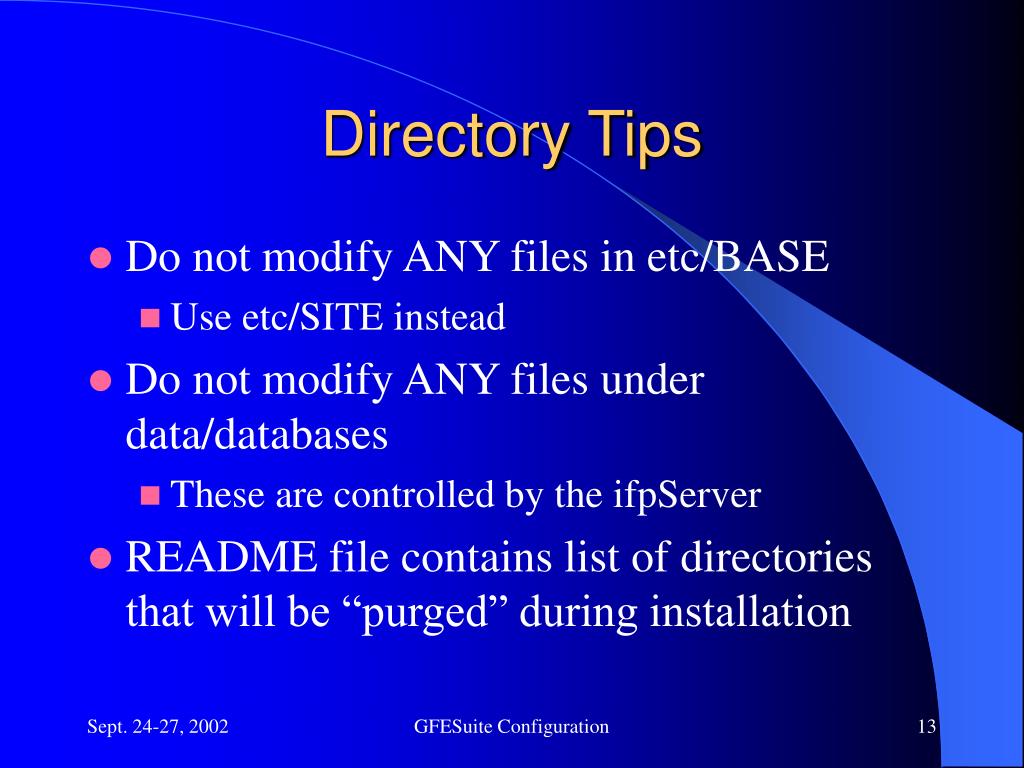

  13. Directory Tips • Do not modify ANY files in etc/BASE • Use etc/SITE instead • Do not modify ANY files under data/databases • These are controlled by the ifpServer • README file contains list of directories that will be “purged” during installation GFESuite Configuration

  14. BASE/SITE Concepts ifpServer Configurability GFESuite Configuration

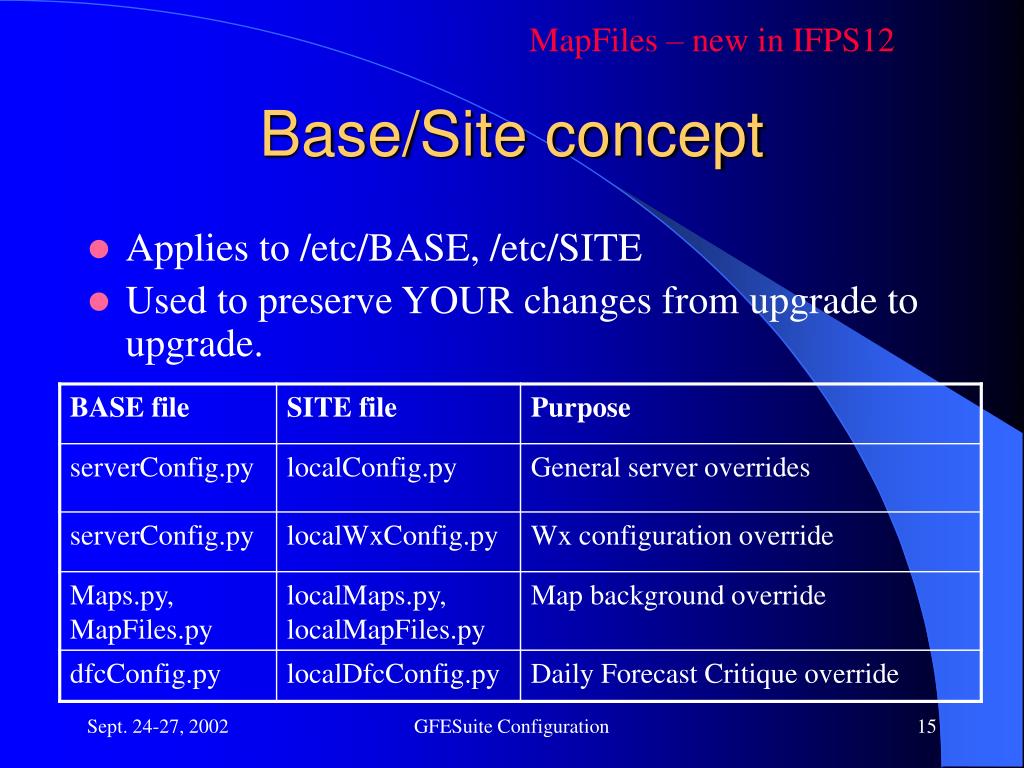

  15. MapFiles – new in IFPS12 Base/Site concept • Applies to /etc/BASE, /etc/SITE • Used to preserve YOUR changes from upgrade to upgrade. GFESuite Configuration

  16. Base/Site concept • Use favorite text editor to change files. • Normally have to restart ifpServer after changing files. • Use runIFPServer –n to check for errors. • If server doesn’t come up, check for errors. • Look through log files. GFESuite Configuration

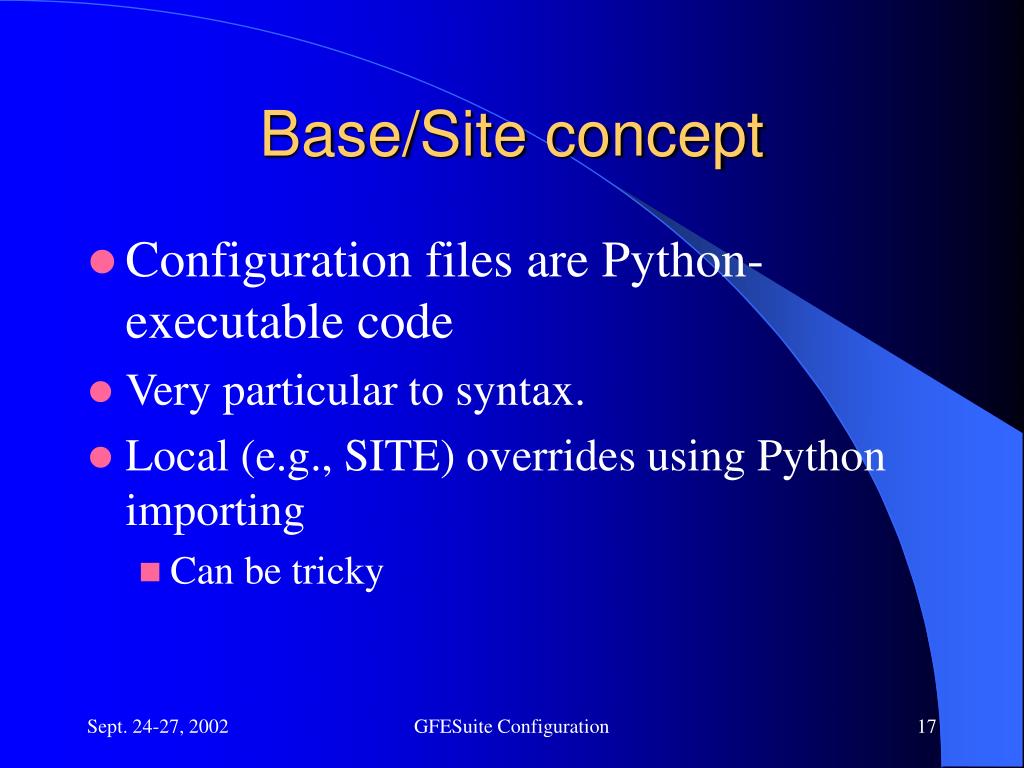

  17. Base/Site concept • Configuration files are Python-executable code • Very particular to syntax. • Local (e.g., SITE) overrides using Python importing • Can be tricky GFESuite Configuration

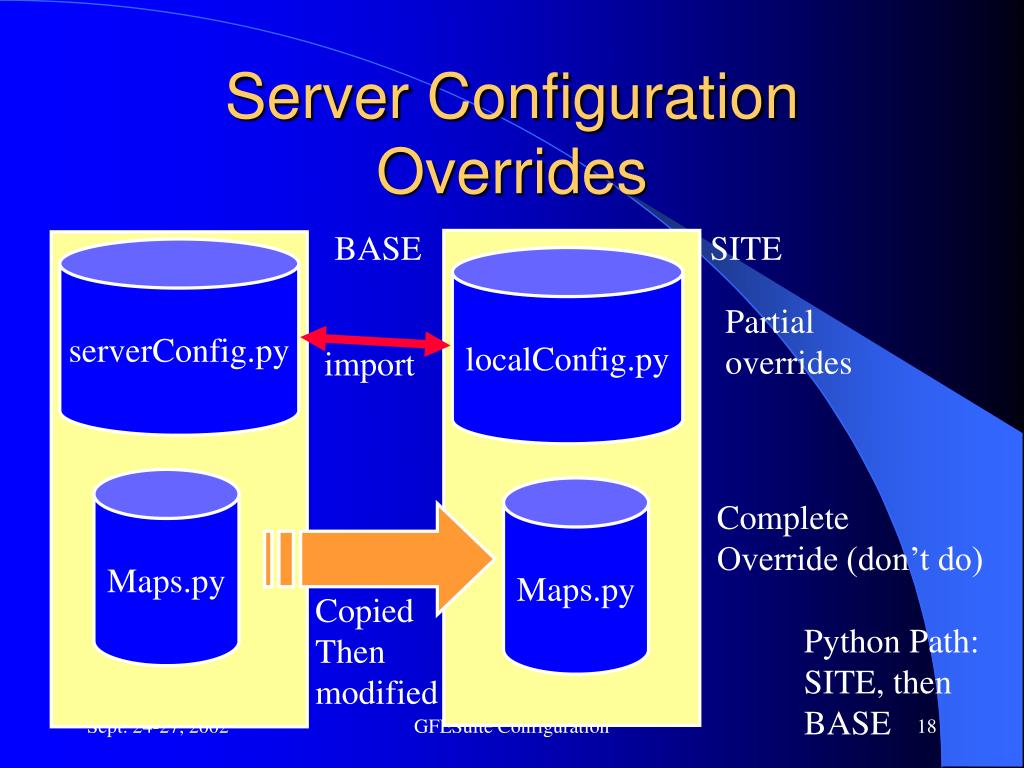

  18. Server Configuration Overrides BASE SITE serverConfig.py localConfig.py Partial overrides import Maps.py Maps.py Complete Override (don’t do) Copied Then modified Python Path: SITE, then BASE GFESuite Configuration

  19. localConfig import serverConfig from serverConfig import * serverConfig.TC6NG = (1*HOUR,…) TC6NG = … import localConfig parms = [([MaxT], TC6NG)] parms = [([QPF], TC6NG)] DFC_UPDATE_INTERVAL = 10 Python “dual” Importing serverConfig TC6NG = (0*HOUR,6*HOUR,6*HOUR) DFC_UPDATE_INTERVAL = 15 Eta = (ETA, TC6NG) Dbs = DBS + localConfig.parms GFESuite Configuration

  20. localConfig import serverConfig from serverConfig import * DFC_UPDATE_INTERVAL = 10 Result? DFC_UPDATE_INTERVAL = ??? start Python “dual” Importing serverConfig DFC_UPDATE_INTERVAL = 15 import localConfig GFESuite Configuration

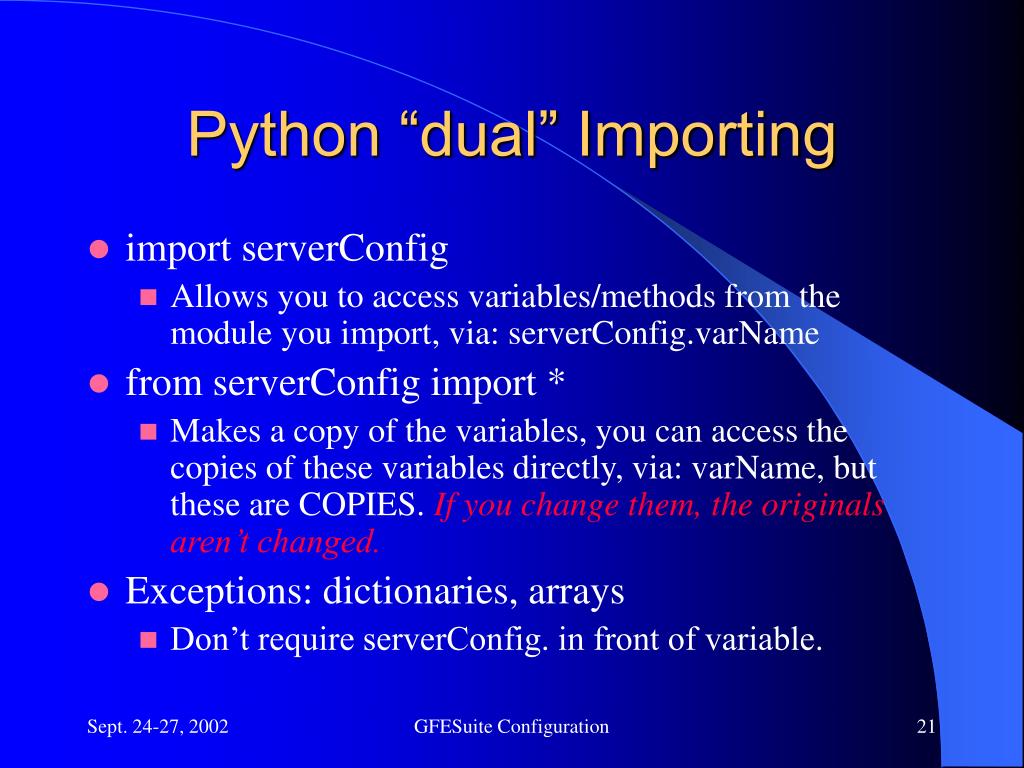

  21. Python “dual” Importing • import serverConfig • Allows you to access variables/methods from the module you import, via: serverConfig.varName • from serverConfig import * • Makes a copy of the variables, you can access the copies of these variables directly, via: varName, but these are COPIES. If you change them, the originals aren’t changed. • Exceptions: dictionaries, arrays • Don’t require serverConfig. in front of variable. GFESuite Configuration

  22. localConfig import serverConfig from serverConfig import * serverConfig.TC6NG = (1,6,6) TC6NG = (2,6,6) import localConfig parms = [([MaxT], TC6NG)] parms = [([QPF], TC6NG)] Two parm lines Python “dual” Importing serverConfig TC6NG = (0,6,6) MaxT = (“MaxT”, SCALAR, "F", …) MaxT_PG = (MaxT, TC6NG) Dbs = DBS + localConfig.parms What is TC6NG at this point? What is the TC for MaxT at this point? GFESuite Configuration

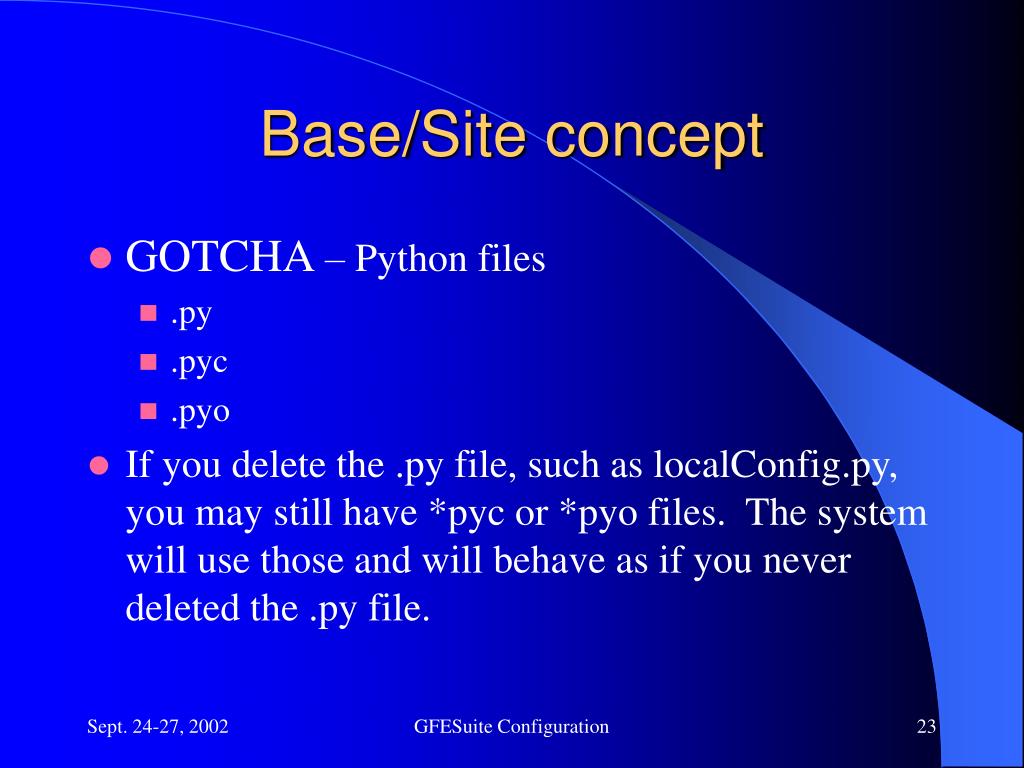

  23. Base/Site concept • GOTCHA – Python files • .py • .pyc • .pyo • If you delete the .py file, such as localConfig.py, you may still have *pyc or *pyo files. The system will use those and will behave as if you never deleted the .py file. GFESuite Configuration

  24. localConfig capabilities • Adding new weather elements • Adding new models • Changing characteristics (# of versions) • Changing time constraints for elements • Changing domain/resolution GFESuite Configuration

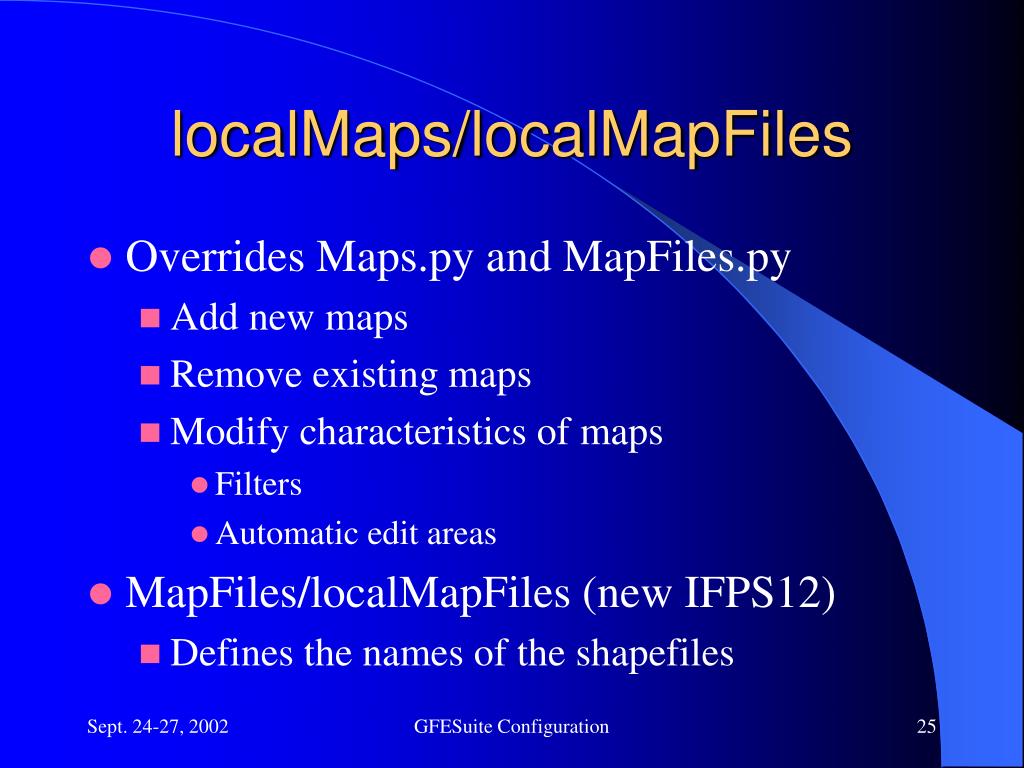

  25. localMaps/localMapFiles • Overrides Maps.py and MapFiles.py • Add new maps • Remove existing maps • Modify characteristics of maps • Filters • Automatic edit areas • MapFiles/localMapFiles (new IFPS12) • Defines the names of the shapefiles GFESuite Configuration

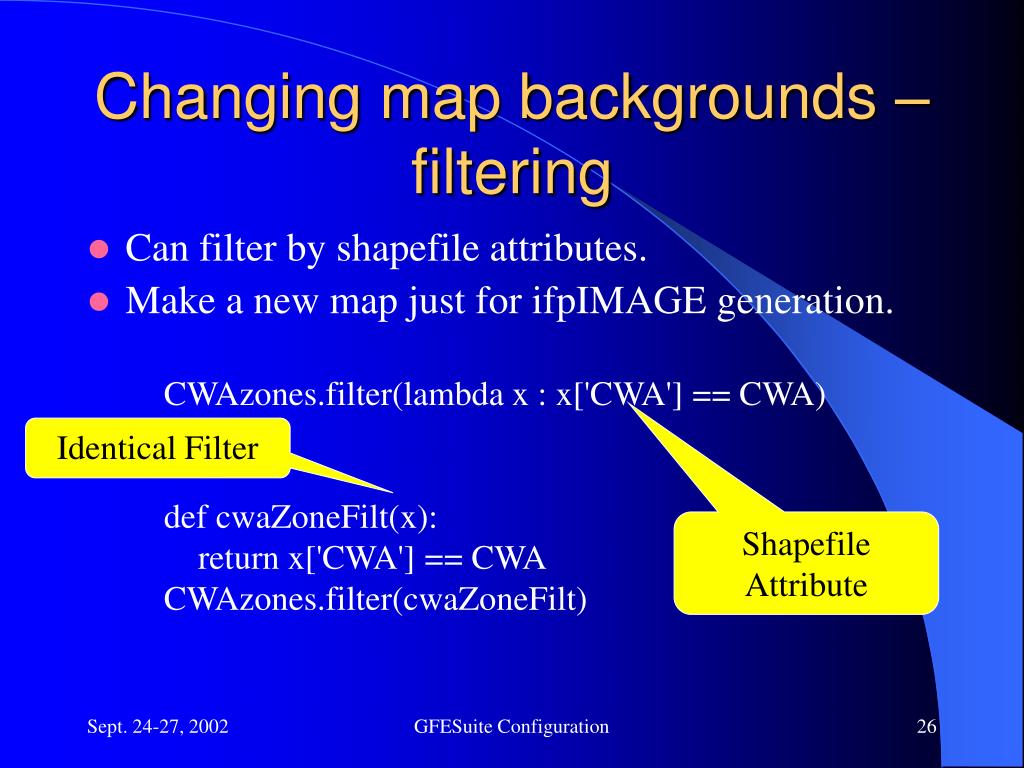

  26. Changing map backgrounds – filtering • Can filter by shapefile attributes. • Make a new map just for ifpIMAGE generation. CWAzones.filter(lambda x : x['CWA'] == CWA) def cwaZoneFilt(x): return x['CWA'] == CWA CWAzones.filter(cwaZoneFilt) Identical Filter Shapefile Attribute GFESuite Configuration

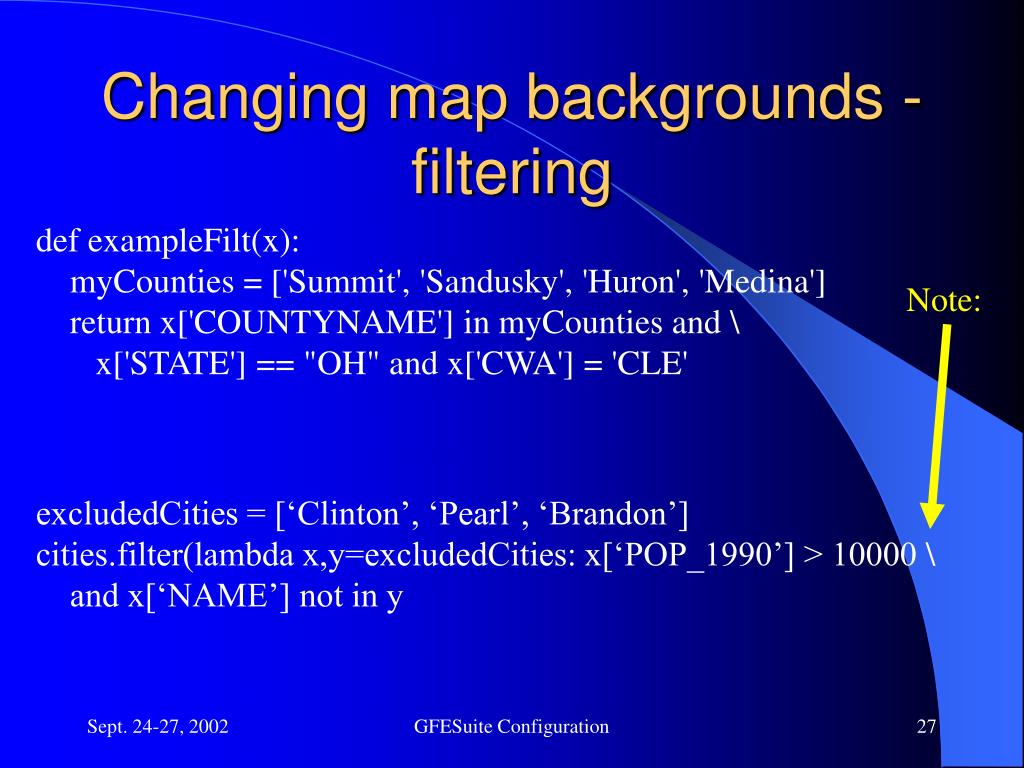

  27. Changing map backgrounds - filtering def exampleFilt(x): myCounties = ['Summit', 'Sandusky', 'Huron', 'Medina'] return x['COUNTYNAME'] in myCounties and \ x['STATE'] == "OH" and x['CWA'] = 'CLE' Note: excludedCities = [‘Clinton’, ‘Pearl’, ‘Brandon’] cities.filter(lambda x,y=excludedCities: x[‘POP_1990’] > 10000 \ and x[‘NAME’] not in y GFESuite Configuration

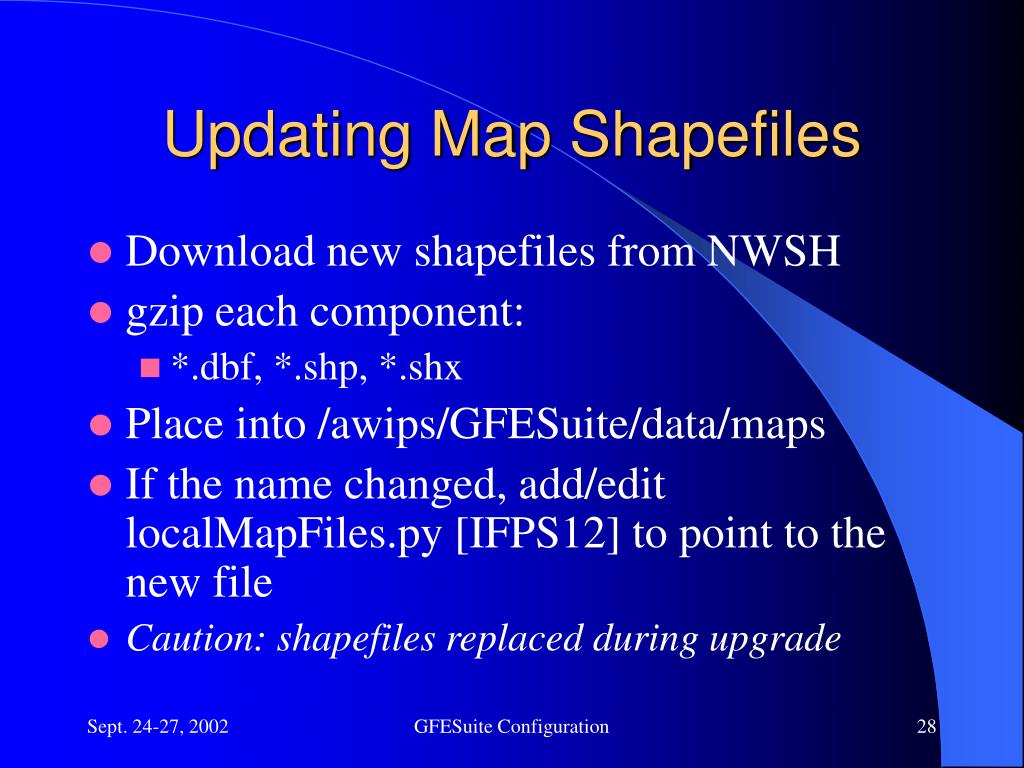

  28. Updating Map Shapefiles • Download new shapefiles from NWSH • gzip each component: • *.dbf, *.shp, *.shx • Place into /awips/GFESuite/data/maps • If the name changed, add/edit localMapFiles.py [IFPS12] to point to the new file • Caution: shapefiles replaced during upgrade GFESuite Configuration

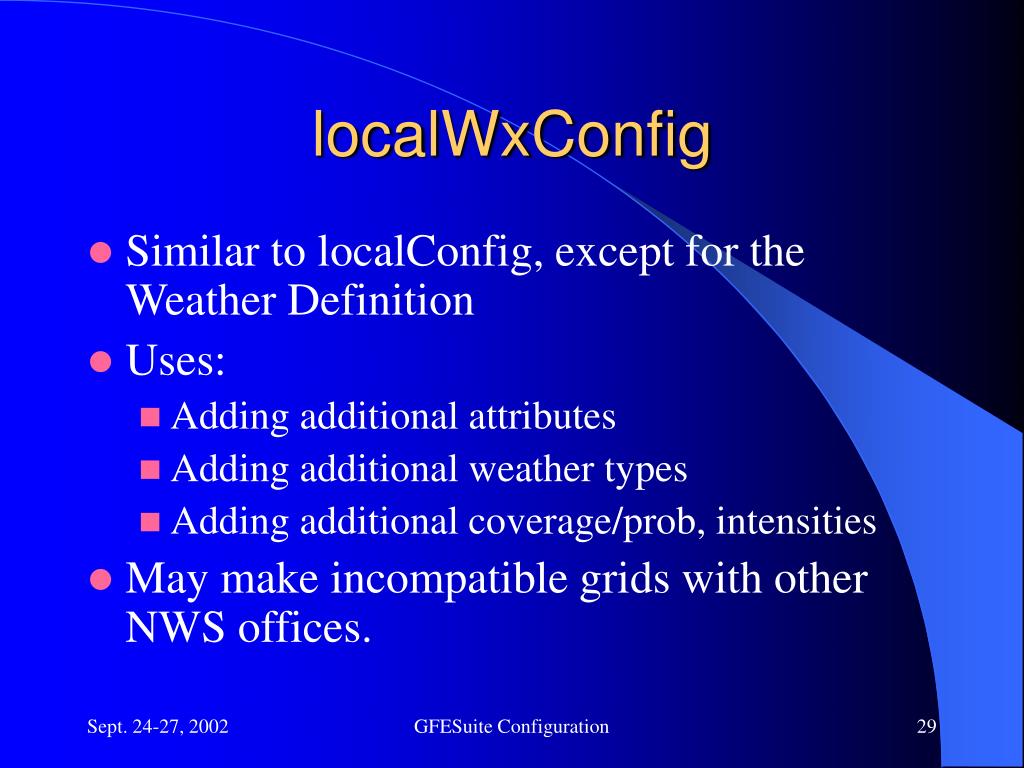

  29. localWxConfig • Similar to localConfig, except for the Weather Definition • Uses: • Adding additional attributes • Adding additional weather types • Adding additional coverage/prob, intensities • May make incompatible grids with other NWS offices. GFESuite Configuration

  30. Tips (and Rules) • DON’T edit files in etc/BASE • They are wiped clean each upgrade • Check your changes immediately: • runIFPServer –n (even with server running) • Some changes may not be compatible with IFPS • Time constraints, domains/resolution GFESuite Configuration

  31. BASE/SITE/USER Concepts GFE / ifpIMAGE Configurability GFESuite Configuration

  32. Base/Site/User concept • Applies to: • gfe and ifpIMAGE configuration files • Sample sets, edit areas • Color tables • Smart Tools/Procedures • User-defined time ranges • Weather Element Groups GFESuite Configuration

  33. Tips (and Rules) • Just like etc/BASE, do not edit files in data/databases/BASE since they are wiped clean during the next upgrade. • Do not edit files directly in the databases directory. • Some files require associated metadata files that can’t be created with a text editor • Changing files can confuse the ifpServer and GFEs if they are running at the time. • Use the GFE to edit files, OR use the ifpServerText program. GFESuite Configuration

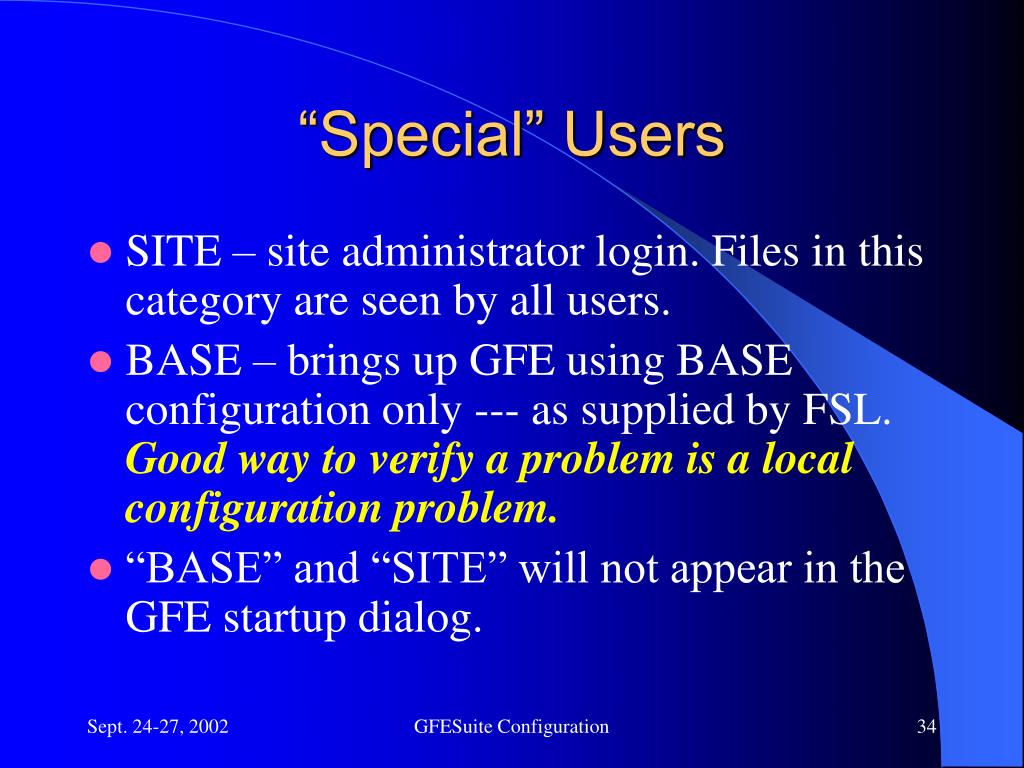

  34. “Special” Users • SITE – site administrator login. Files in this category are seen by all users. • BASE – brings up GFE using BASE configuration only --- as supplied by FSL. Good way to verify a problem is a local configuration problem. • “BASE” and “SITE” will not appear in the GFE startup dialog. GFESuite Configuration

  35. Python Errors…GFE is hung! Not any more…. Starting GFE with a bad configuration file will cause a dialog to popup showing you the error location. FSL GFESuite Configuration

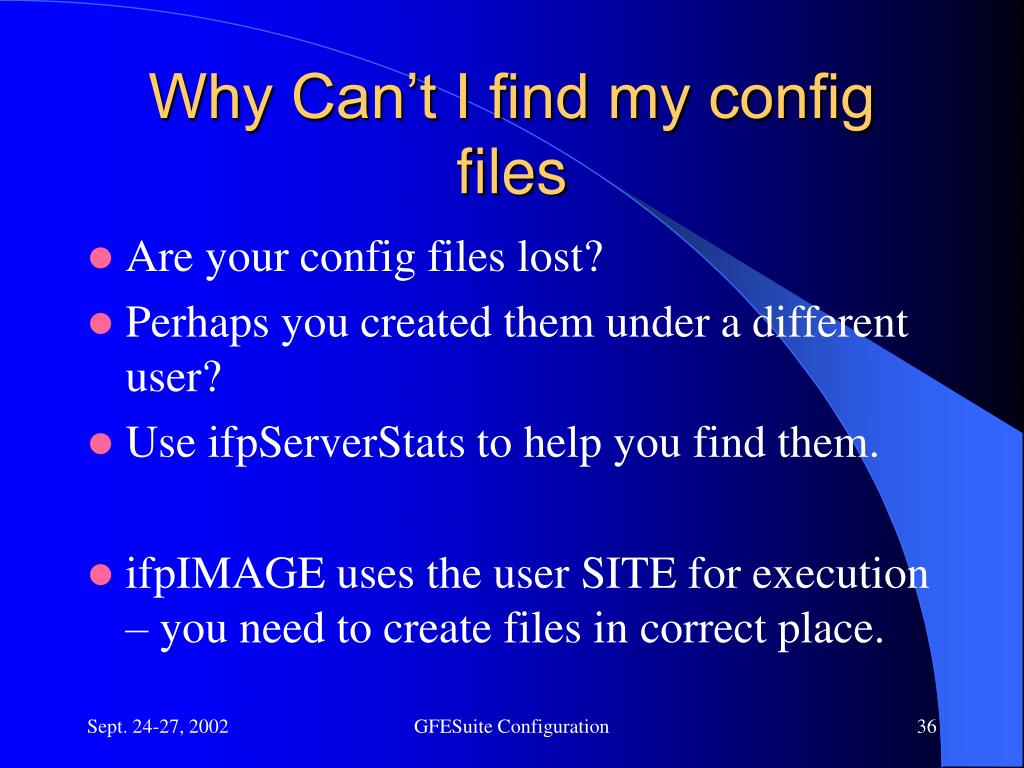

  36. Why Can’t I find my config files • Are your config files lost? • Perhaps you created them under a different user? • Use ifpServerStats to help you find them. • ifpIMAGE uses the user SITE for execution – you need to create files in correct place. GFESuite Configuration

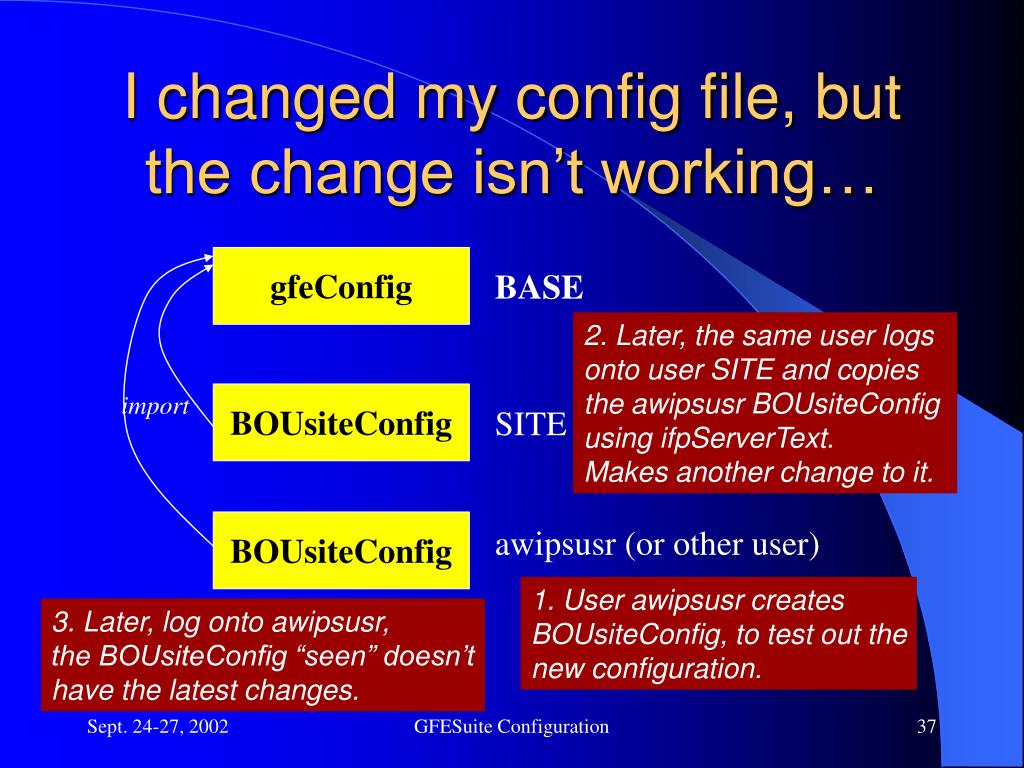

  37. 2. Later, the same user logsonto user SITE and copiesthe awipsusr BOUsiteConfig using ifpServerText. Makes another change to it. import BOUsiteConfig SITE BOUsiteConfig awipsusr (or other user) 1. User awipsusr createsBOUsiteConfig, to test out thenew configuration. I changed my config file, but the change isn’t working… gfeConfig BASE 3. Later, log onto awipsusr,the BOUsiteConfig “seen” doesn’thave the latest changes. GFESuite Configuration

  38. The “READ-ONLY” flag • Setting the Read-Only flag on the various configuration files will stop the user from overriding them. • No GFE GUI to set the read-only flag. • Must do it directly on the file system. • chmod 444 filename • Fully implemented with IFPS12 GFESuite Configuration

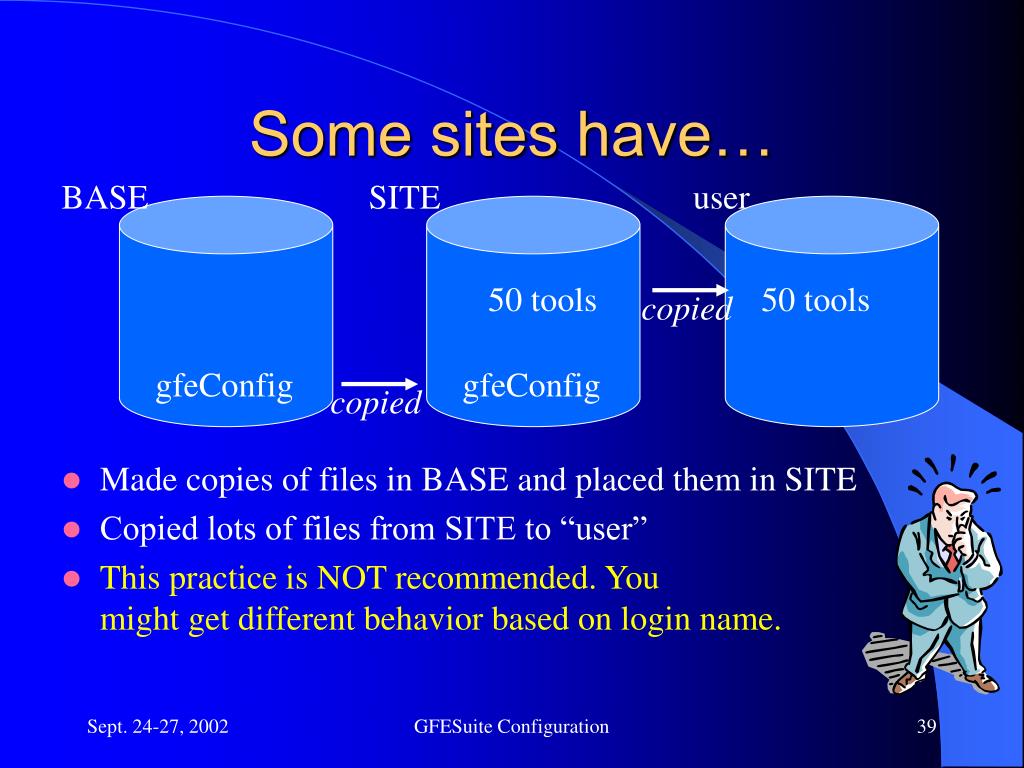

  39. Some sites have… BASE SITE user • Made copies of files in BASE and placed them in SITE • Copied lots of files from SITE to “user” • This practice is NOT recommended. You might get different behavior based on login name. 50 tools 50 tools copied gfeConfig gfeConfig copied GFESuite Configuration

  40. Concepts to understand • Python files (gfeConfig) • Can use Python importer for partial overrides • Non-Python files (sample sets) • Must use complete overrides, no importer capability GFESuite Configuration

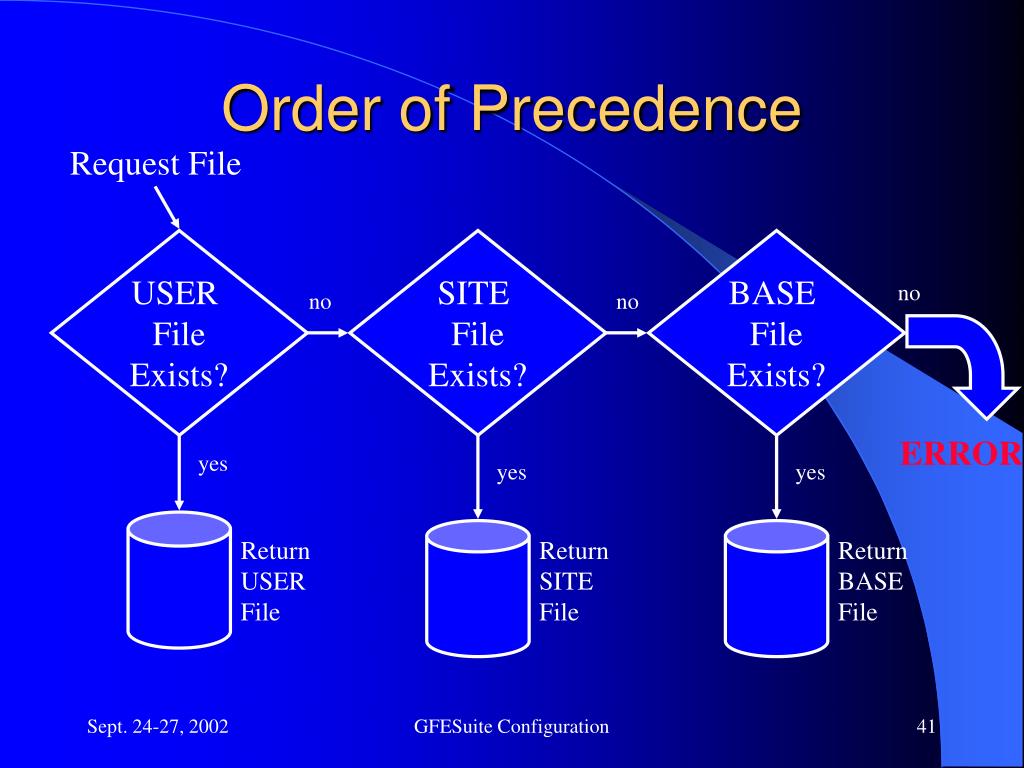

  41. Request File USER File Exists? SITE File Exists? BASE File Exists? no no yes yes yes Return USER File Return SITE File Return BASE File Order of Precedence no ERROR GFESuite Configuration

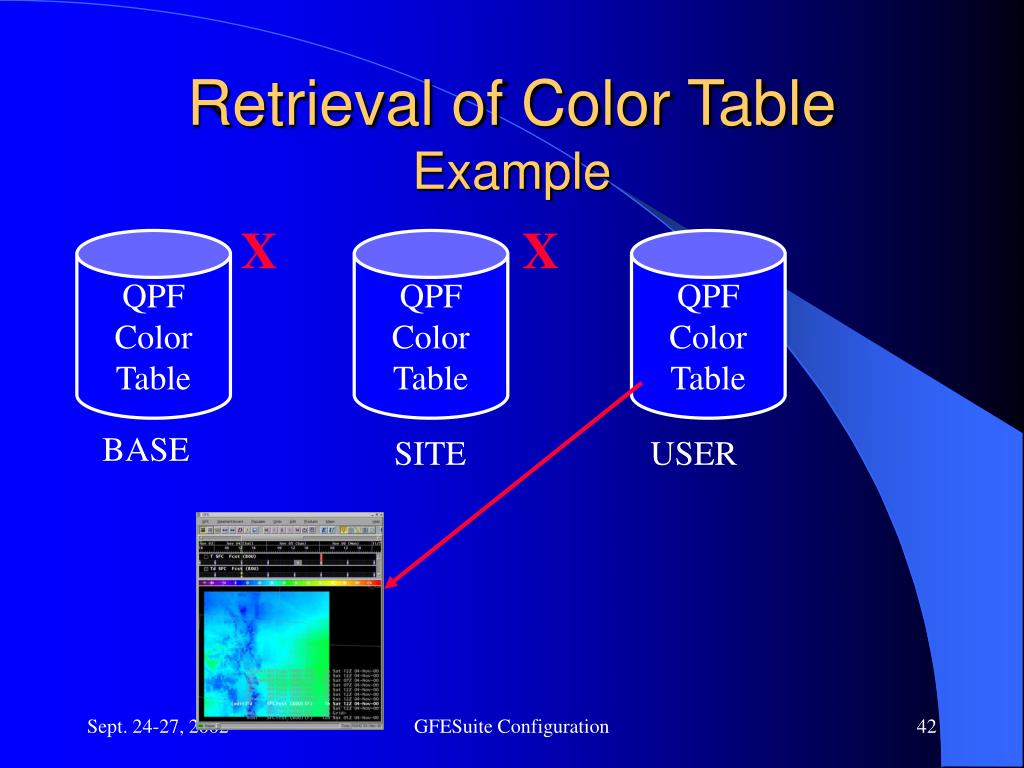

  42. Retrieval of Color Table Example X X QPF Color Table QPF Color Table QPF Color Table BASE SITE USER GFESuite Configuration

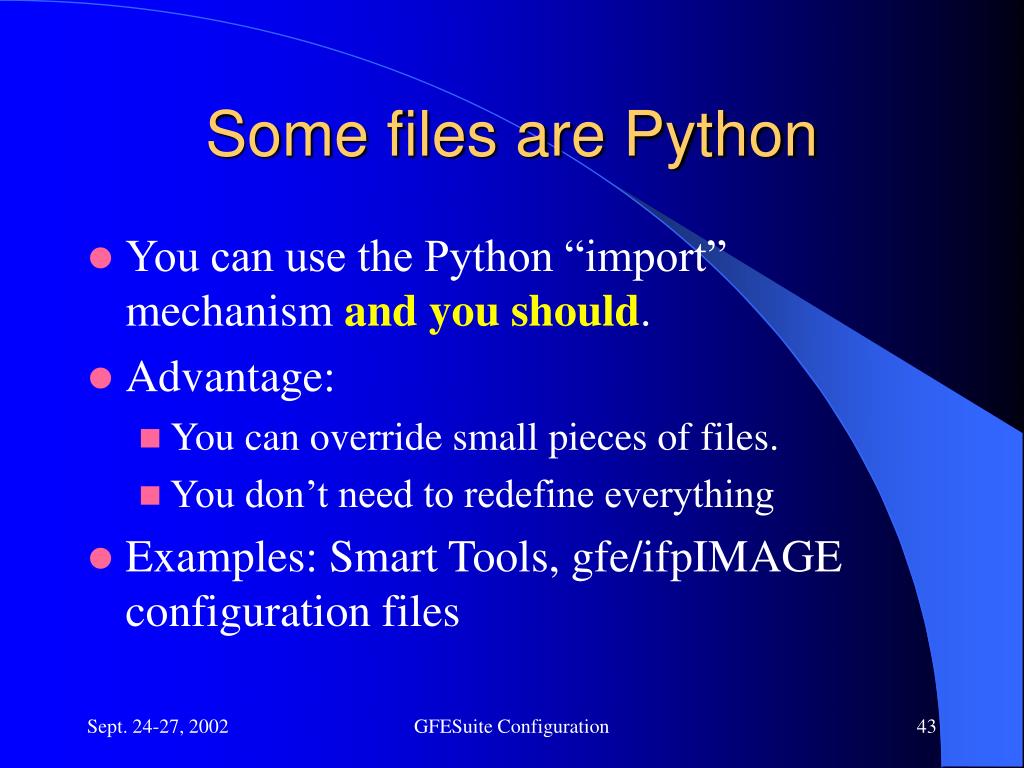

  43. Some files are Python • You can use the Python “import” mechanism and you should. • Advantage: • You can override small pieces of files. • You don’t need to redefine everything • Examples: Smart Tools, gfe/ifpIMAGE configuration files GFESuite Configuration

  44. Python importing import A codecodecode import B codecodecode codecodecode B C A GFESuite Configuration

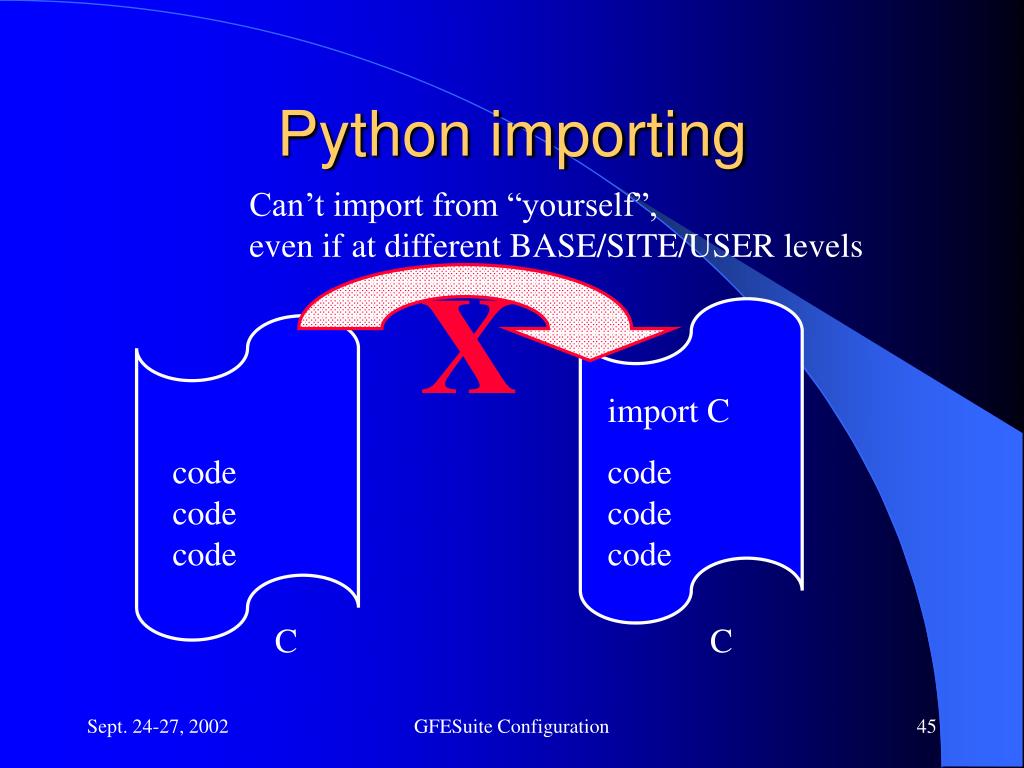

  45. Python importing Can’t import from “yourself”, even if at different BASE/SITE/USER levels X codecodecode import C codecodecode C C GFESuite Configuration

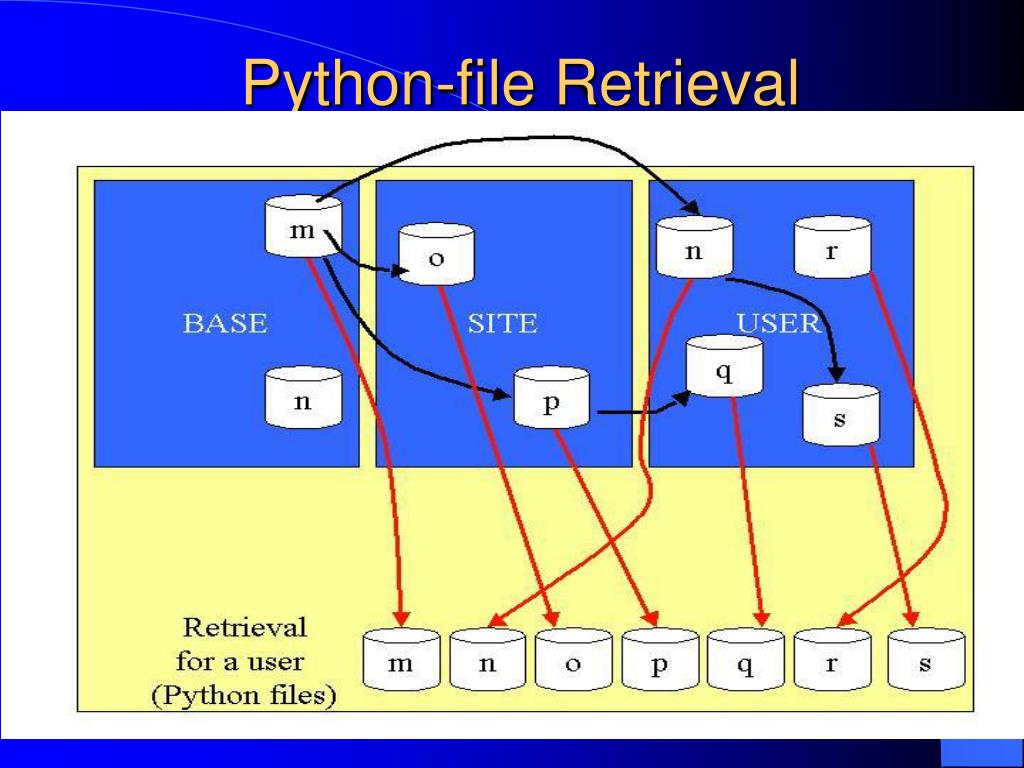

  46. Python-file Retrieval GFESuite Configuration

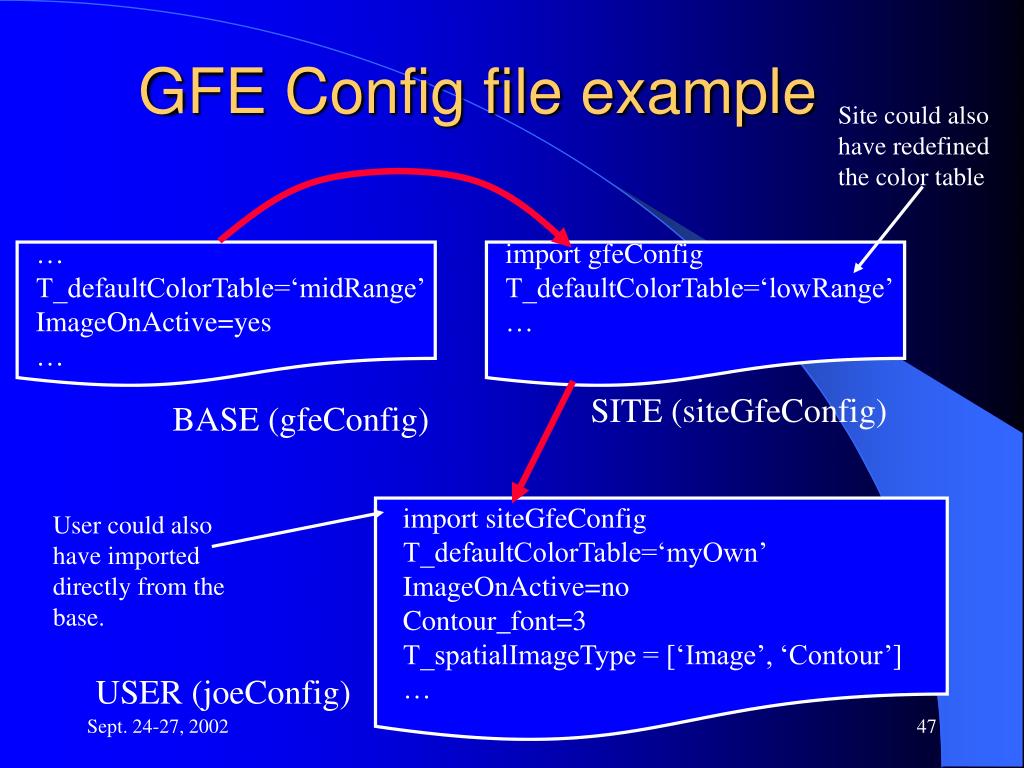

  47. … T_defaultColorTable=‘midRange’ ImageOnActive=yes … import gfeConfig T_defaultColorTable=‘lowRange’ … GFE Config file example Site could also have redefined the color table SITE (siteGfeConfig) BASE (gfeConfig) import siteGfeConfig T_defaultColorTable=‘myOwn’ ImageOnActive=no Contour_font=3 T_spatialImageType = [‘Image’, ‘Contour’] … User could also have imported directly from the base. USER (joeConfig) GFESuite Configuration

  48. Tips • Software doesn’t seem to be working. • Start GFE as user “BASE”, config “gfeConfig” • Run ifpServerStats and look at your environment. • Move files around if needed using moveGFEData. GFESuite Configuration

  49. Misc. Topics GFESuite Configuration

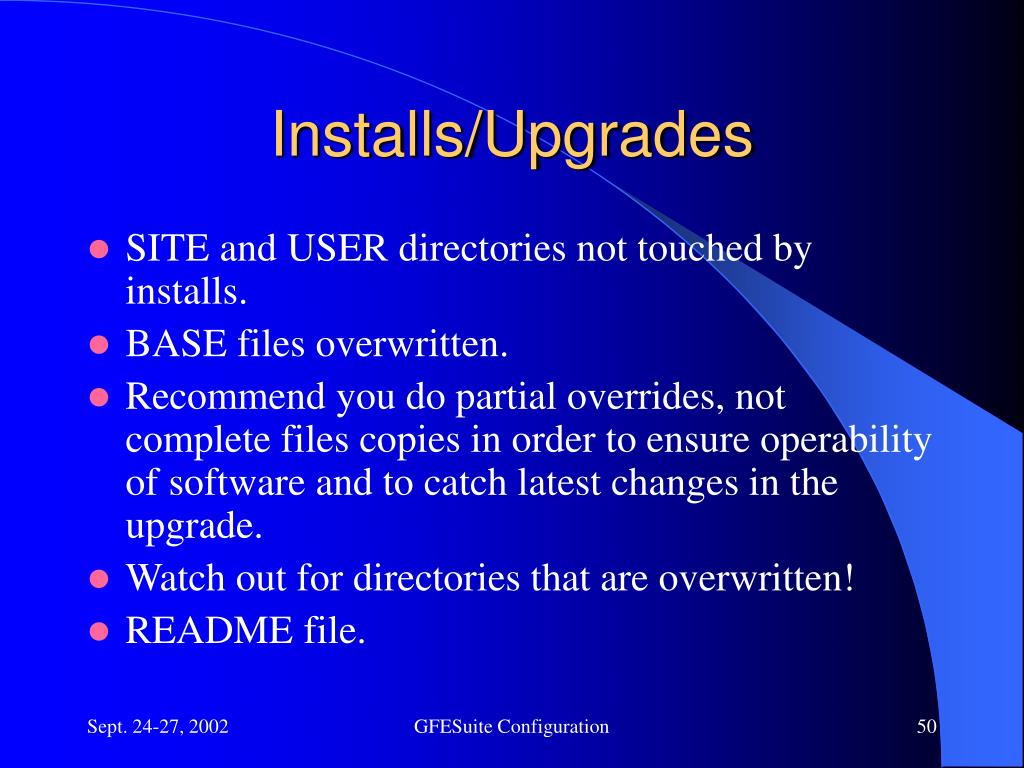

  50. Installs/Upgrades • SITE and USER directories not touched by installs. • BASE files overwritten. • Recommend you do partial overrides, not complete files copies in order to ensure operability of software and to catch latest changes in the upgrade. • Watch out for directories that are overwritten! • README file. GFESuite Configuration
