  1. Statistical Mechanics of Ion Channels: No Life Without Entropy A. Kamenev J. Zhang B. I. Shklovskii A. I. Larkin Department of Physics, U of Minnesota PRL, 95, 148101 (2005), Physica A, 359, 129 (2006), PRE 73, 051205 (2006). Los Alamos, September 28, 2006

  2. (length L>> radius a) • water filled nanopores for desalination • water filled nanopores in silicon oxide films 10 nm 10 nm α-Hemolysin Ion channels of cell membranes

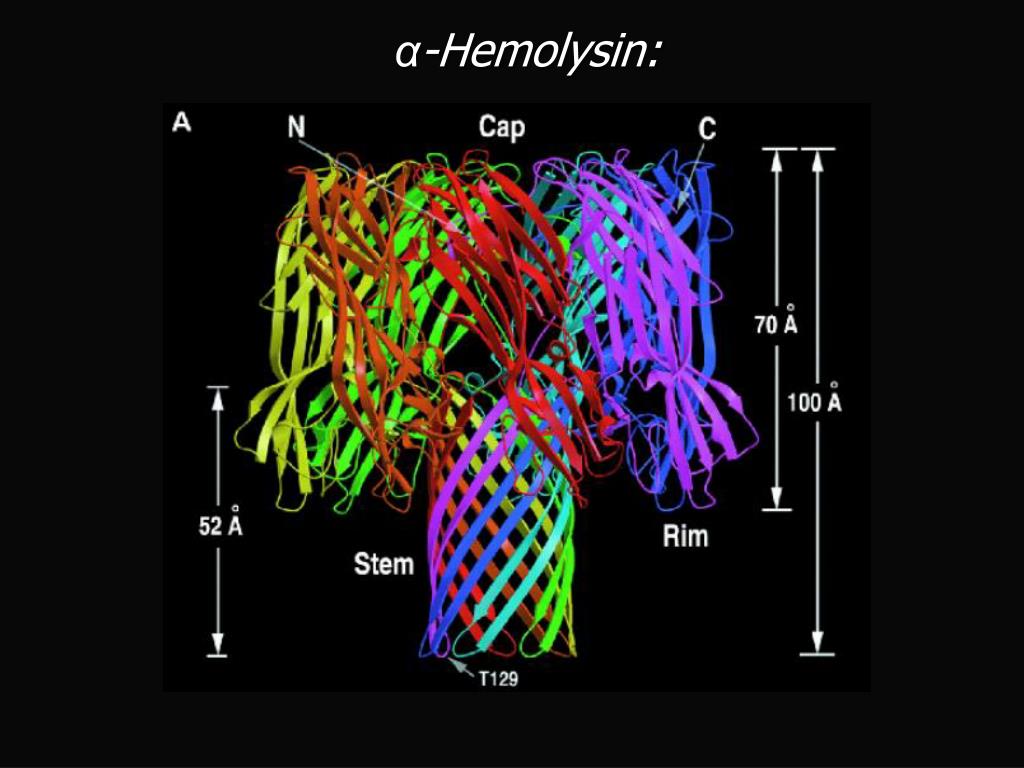

  3. α-Hemolysin:

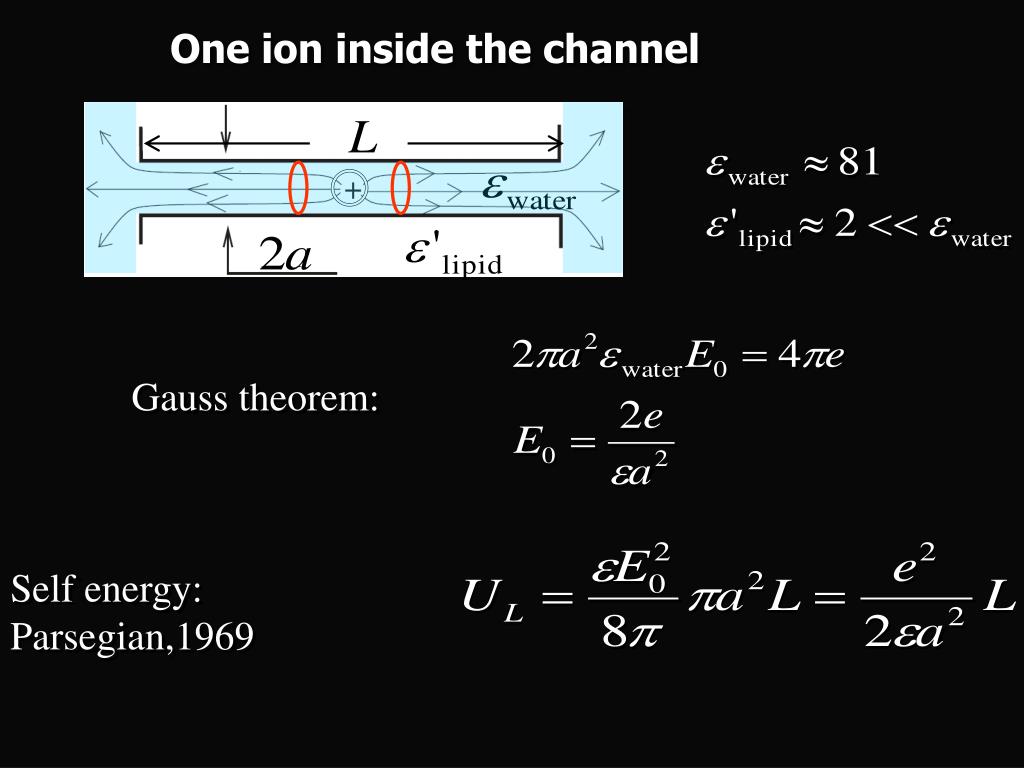

  4. Gauss theorem: Self energy: Parsegian,1969 One ion inside the channel

  5. Barrier: • There is an energy barrier for the charge transfer (the same for the positive and negative ions).

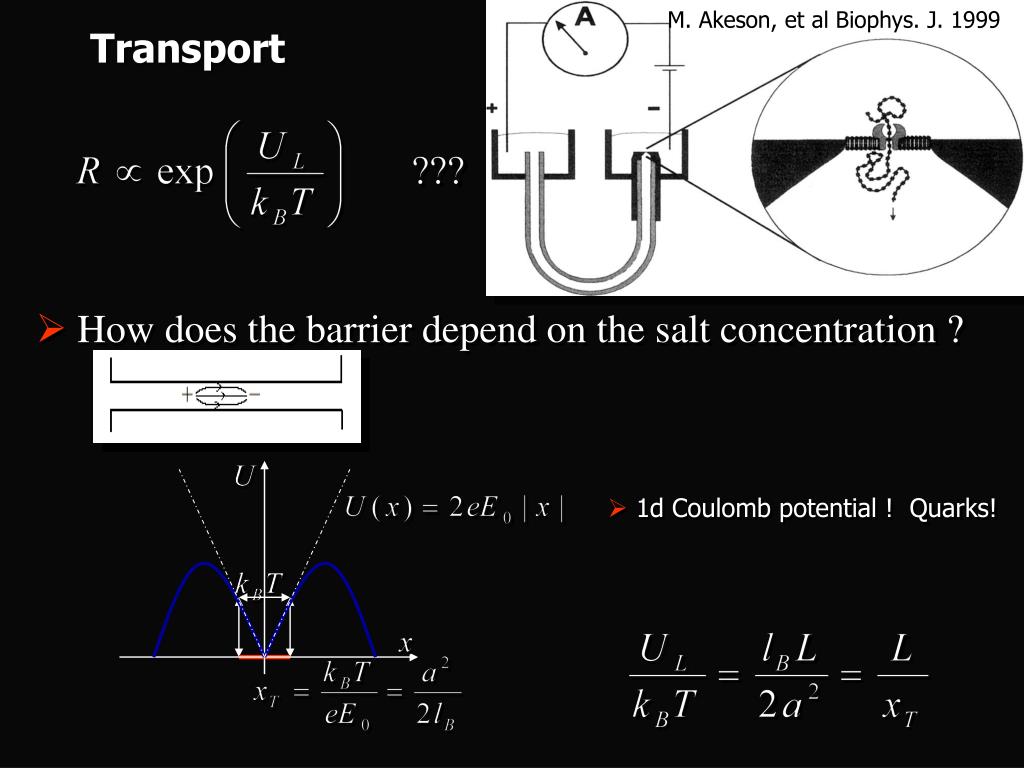

  6. M. Akeson, et al Biophys. J. 1999 • 1d Coulomb potential ! Quarks! Transport • How does the barrier depend on the salt concentration ?

  7. Maximum energy does NOT depend on the number of ions. Two ion barrier

  8. Entropy ! L Ground state: pair concentration << ion concentration in the bulk Free ions enter the channel, increasing the entropy !

  9. Low salt concentration: collective ion barrier Ions are free to enter • Entropy at the energy barrier increases the optimum value of S happens at and Barrier in free energy decreases by Result

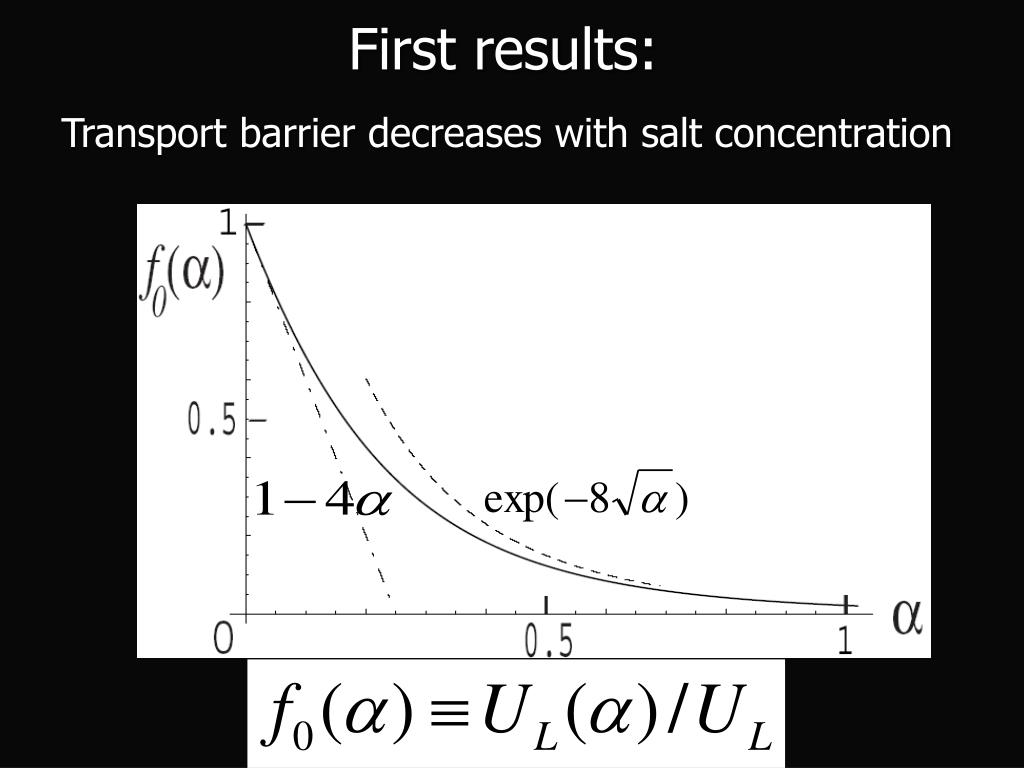

  10. First results: Transport barrier decreases with salt concentration

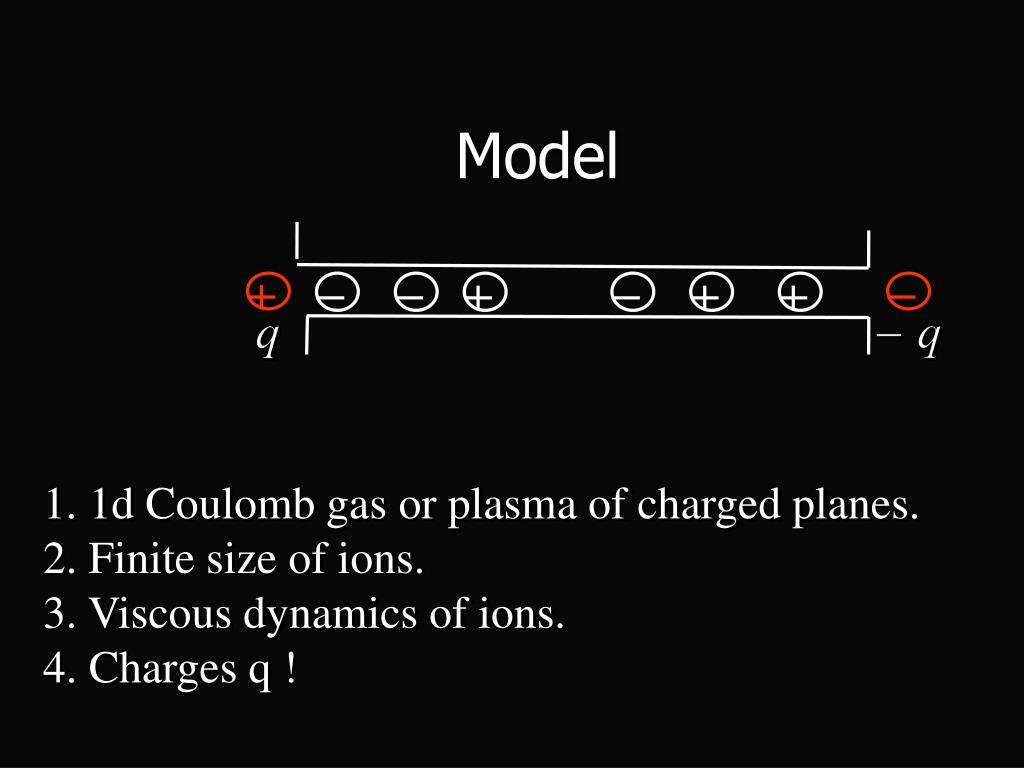

  11. Model 1. 1d Coulomb gas or plasma of charged planes. 2. Finite size of ions. 3. Viscous dynamics of ions. 4. Charges q !

  12. Partition function: F/T dimensionless salt concentration Theory: Electric field is conserved modulo ``Quantum number’’ : boundary charge

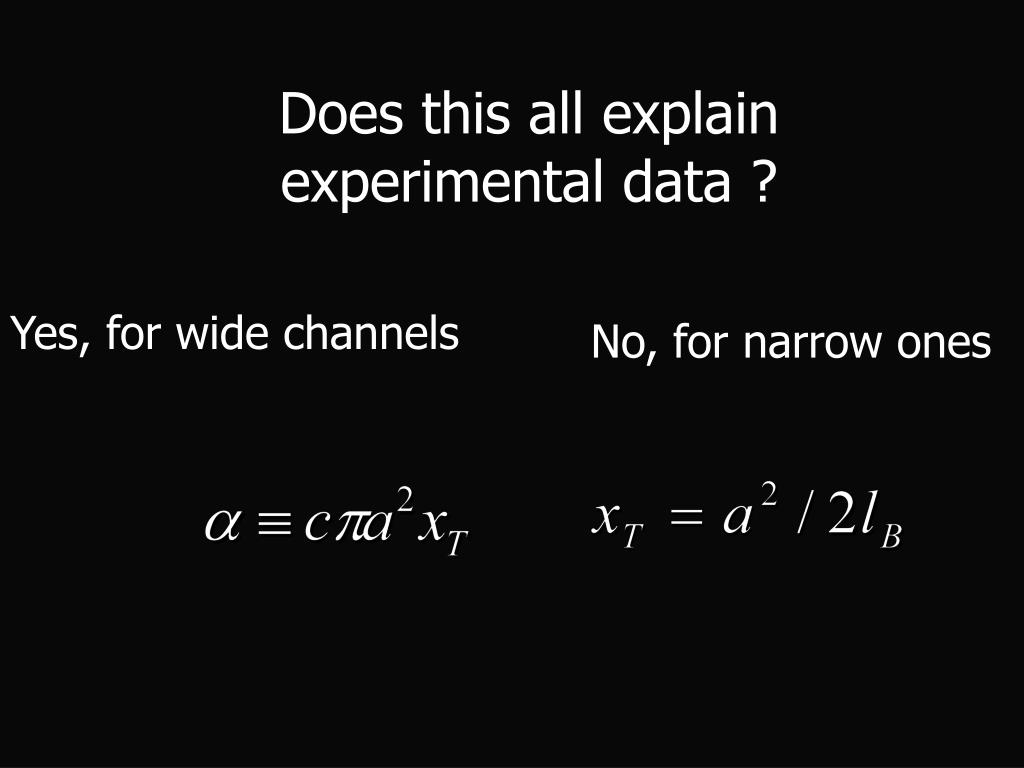

  13. Does this all explain experimental data ? Yes, for wide channels No, for narrow ones

  14. Channels are ``doped’’

  15. Periodic array: Theory of the doped channels: Number of closed pairs inside is determined by the ``doping’’ , NOT by the external salt concentration

  16. ``Doping’’ suppresses the barrier down to about kT kT Theory of the doped channels (cont): Additional role of doping: ``p—n’’ boundary layers create Donnan potential. It leads to cation versus anion selectivity in negatively doped channels.

  17. So ? What did we learn about narrow channels? • ``Doping’’ plus boundary layers explain observed large conductances • They also explain why flux of positive ions greatly exceeds that of negative ones.

  18. latentCa concentration Divalent ions : • First order phase transitions

  19. Ion exchange phase transitions Phase transitions in 1d system !

  20. Ca Channels and Ca fractionalization Almers and McCleskey 1984

  21. Wake up ! • There is a self-energy barrier for an ion in the channel • Ions in the channel interact as 1d Coulomb gas • Large concentration of salt in wide channels and ``doping’’ in narrow channels decrease the barrier • Divalent ions are fractionalized so that the barrier for them is small and they compete with Na. • Divalent salts may lead to first order phase transitions

  22. Interaction potential

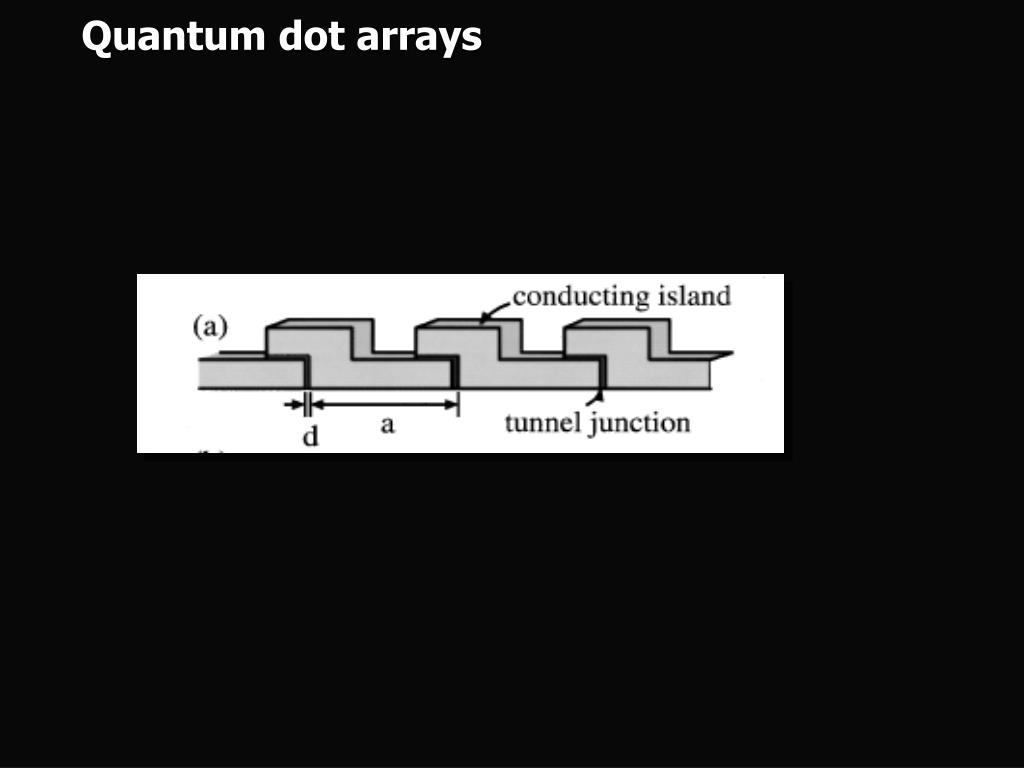

  23. Quantum dot arrays

  24. Phase transitions in divalent salt solutions two competitive groundstates

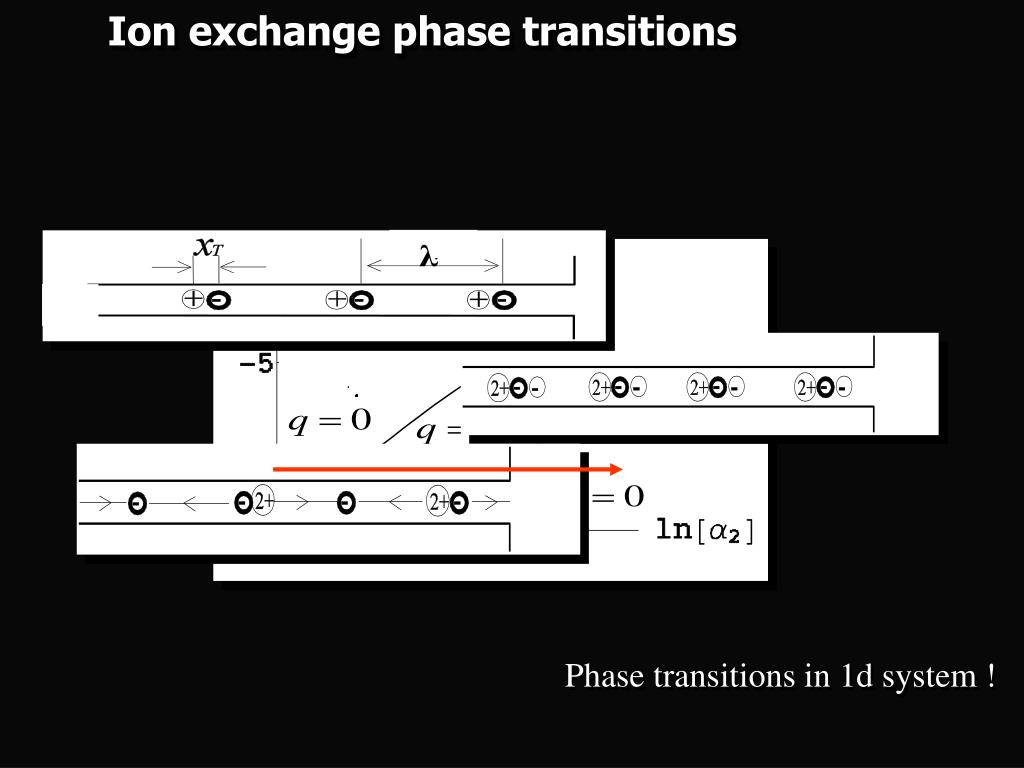

  25. Ion exchange phase transitions

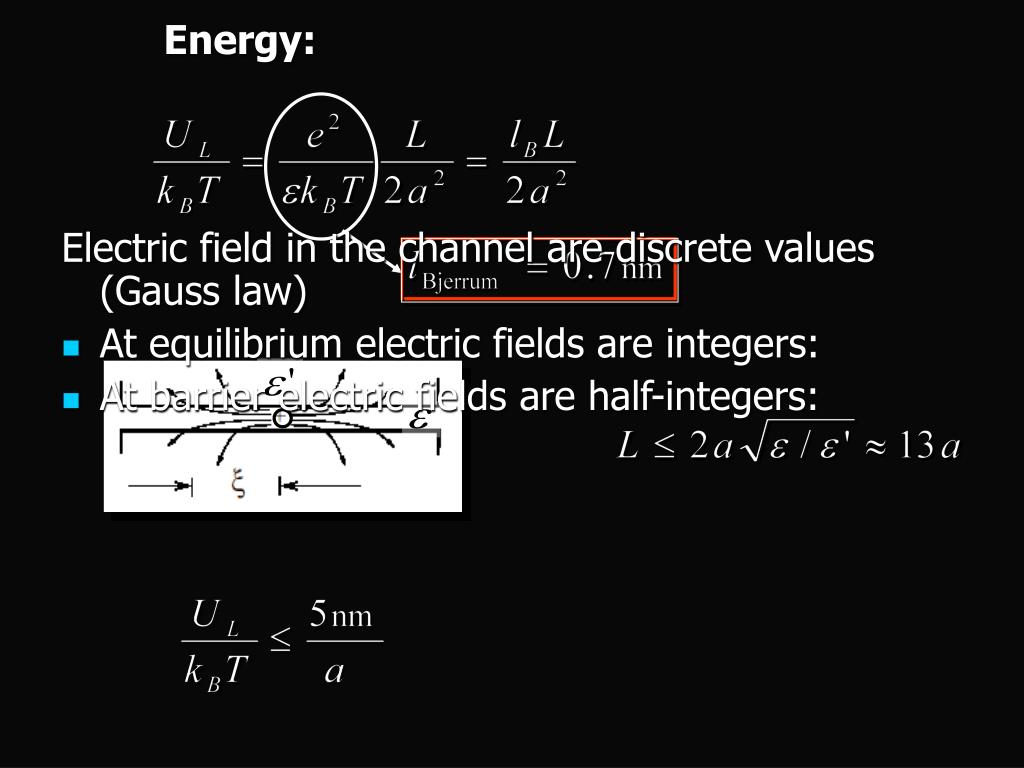

  26. Electric field in the channel are discrete values (Gauss law) At equilibrium electric fields are integers: At barrier electric fields are half-integers: Energy:

  27. Pairs exist in ground state • A pair in the channel: • Length of a pair: • Dimensionless concentration of ions: • Concentration of pairs: • At low concentration pairs are sparse. At high concentration pairs overlap and the concept on pairs is no longer valid.

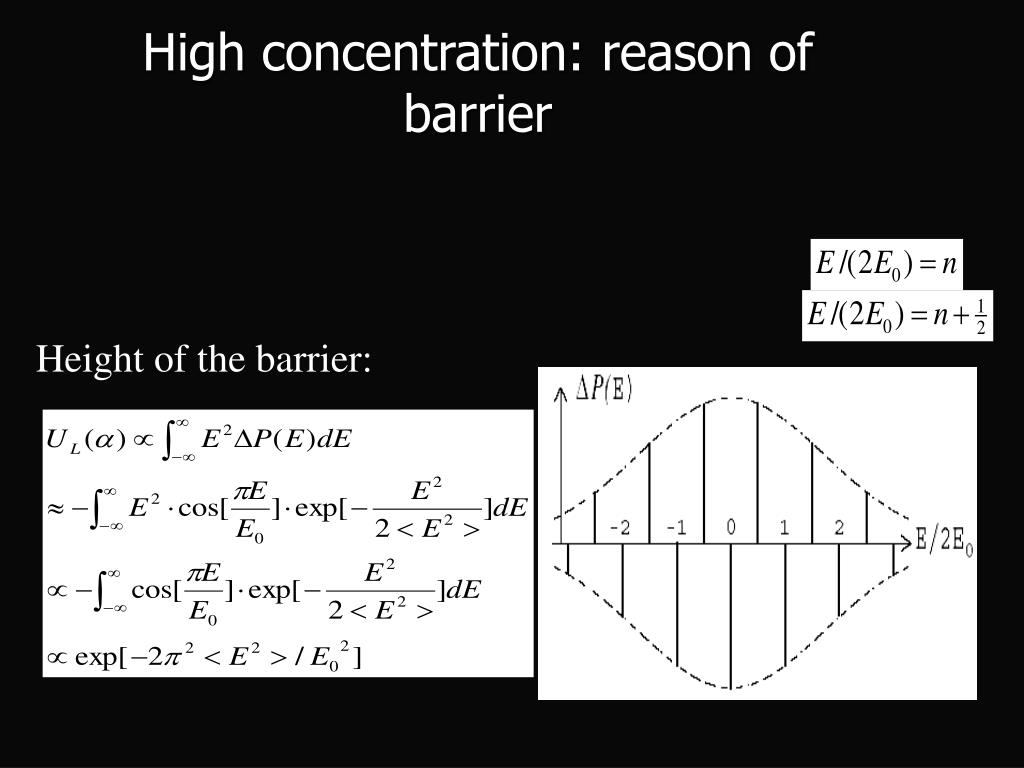

  28. High concentration: reason of barrier Height of the barrier:

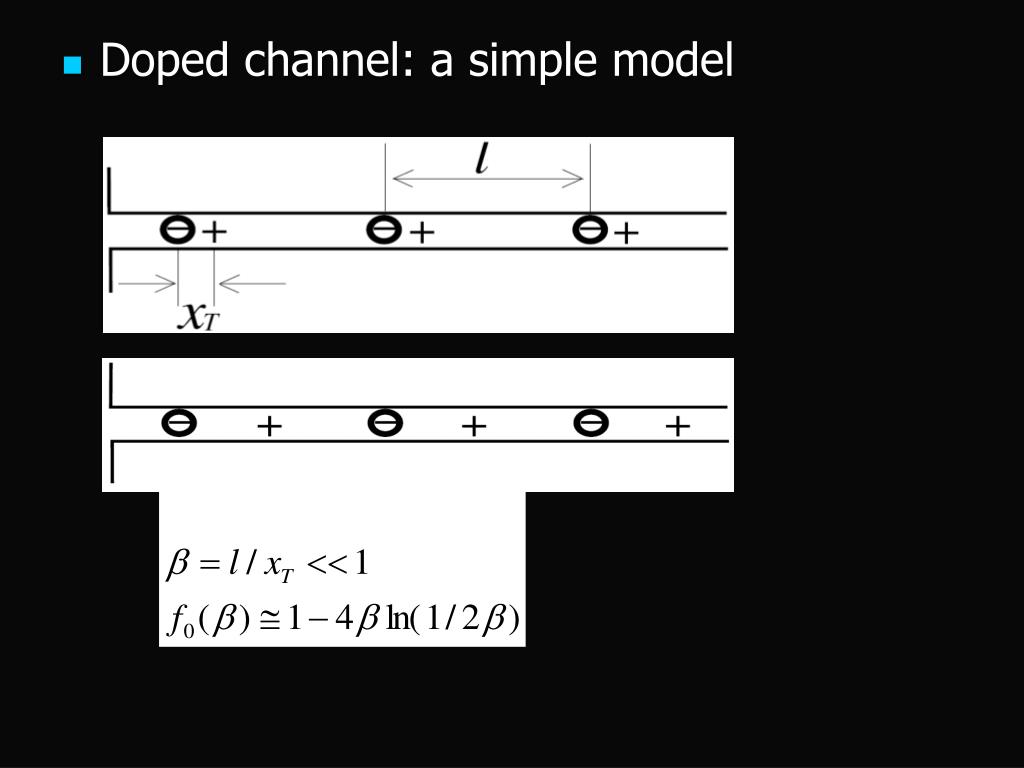

  29. Doped channel: a simple model

  30. Beyond the simplest model • Ratio of dielectrics is not infinity • Electric field lines begin to leave at • Channel lengths are finite • Ions are not planes see A. Kamenev, J. Zhang, A. I. Larkin, B. I. Shklovskii cond-mat/0503027

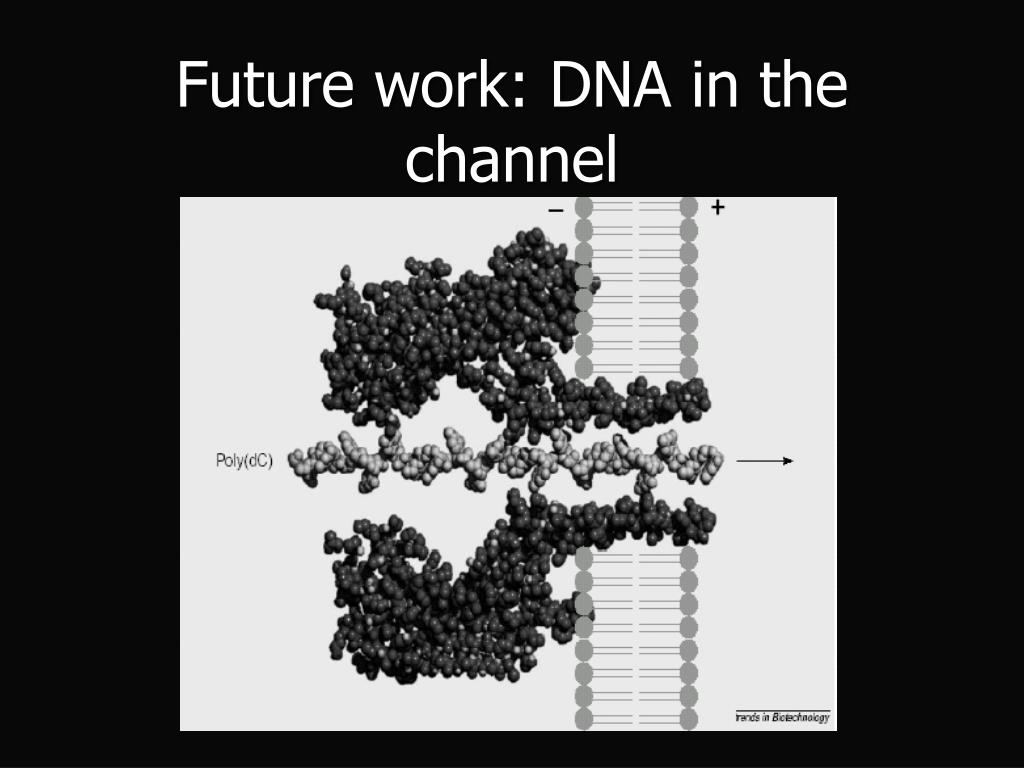

  31. Future work: DNA in the channel
