  1. Energy Saving Project Energy Saving System (ESS)TM for Injection Molding Machines by L&B Technology Ltd

  2. Objectives - ESS with the advantages below. Energy Saving System Low carbon emission. Be environment friendly and comply to corporate social responsibility. Achieve lower cost of production. L&B Technology Ltd 生和光科技有限公司 .2.

  3. Current Situations Energy Saving System Fast economic growth & High energy consumption in Asia. Shortage of energy source. High cost of production due to high energy costs. Social responsibility concern and low carbon emission. L&B Technology Ltd 生和光科技有限公司 .2.

  4. About L & B.. Energy Saving System Hong Kong based, founded in 1995 as plastic recycle machinery manufacturer. Start R&D for energy saving system in 2005. Registered Environmental Technology Service Provider of Cleaner Production partnership program of HKPC since 2008. Sales offices in Dong-guan and Shanghai, R&D in Shenzhen. Professional design, R&D and manufacturing of environmental systems and equipment and focus in energy saving solution. Consultancy service. New R&D projects, hopper dryer energy saving, residue heat recycling. L&B Technology Ltd 生和光科技有限公司 .1.

  5. Methodology Use of electromagnetic generated by our circuits, for setting up eddy currents in plastic resins inside heating barrels of molding machines. Plastic molecules vibration generate heat more efficiently than conventional type where heat transfer from coil to deep inside the barrel with energy loss.

  6. Product Descriptions

  7. Photos of ESS Energy Saving System L&B Technology Ltd 生和光科技有限公司 .7.

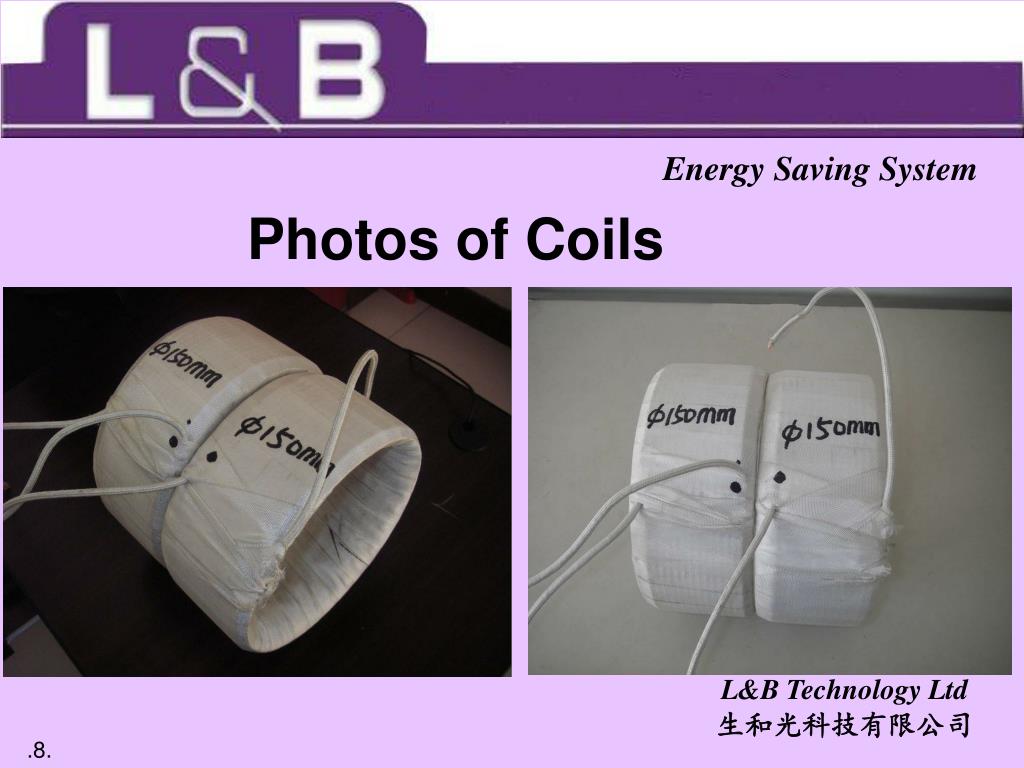

  8. Energy Saving System Photos of Coils L&B Technology Ltd 生和光科技有限公司 .8.

  9. Advantages Energy Saving System Efficient：Compare to resistor type of heating, saving of 40~60% can be achieved. Environmental: Workshop ambient temperature can be reduced due to low radiation and less heat loss. Save air conditioning cost. Productivity: Fast heat up. Shorten heat up time. Enhance industrial safety: Low barrel temperature help prevent injury of operators. L&B Technology Ltd 生和光科技有限公司 .9.

  10. Energy Saving System ESS Controller L&B Technology Ltd 生和光科技有限公司 .10.

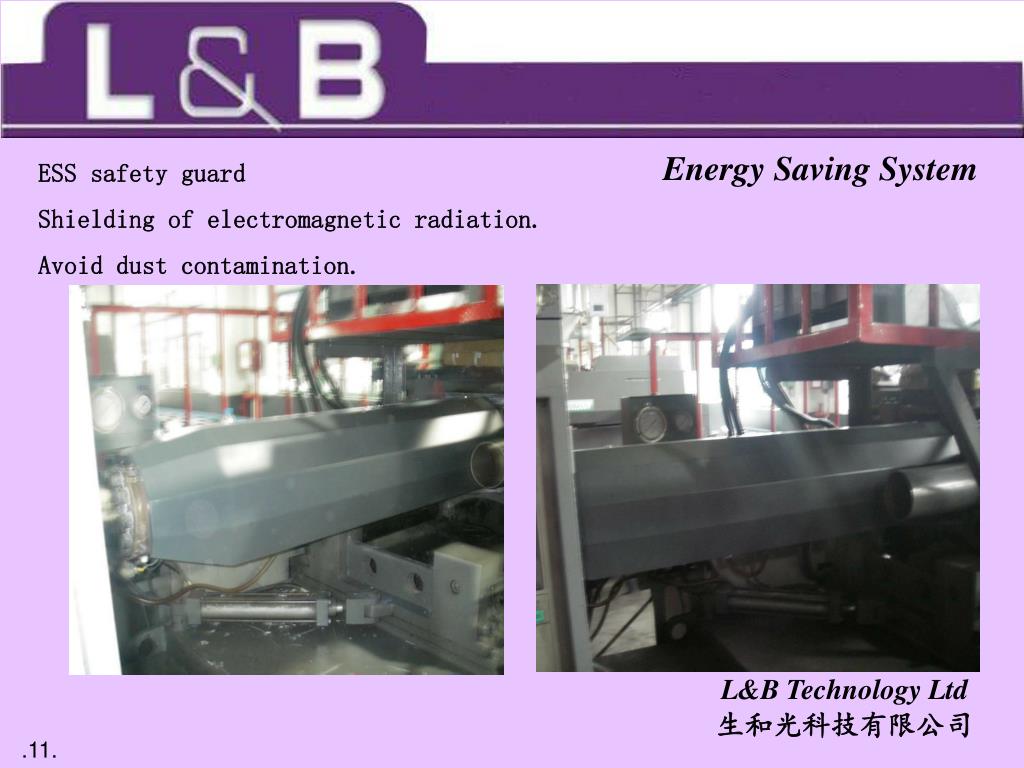

  11. Energy Saving System ESS safety guard Shielding of electromagnetic radiation. Avoid dust contamination. L&B Technology Ltd 生和光科技有限公司 .11.

  12. Electromagnetic Heating Theory Energy Saving System L&B Technology Ltd 生和光科技有限公司 .13.

  13. 电磁加热原理 Energy Saving System L&B Technology Ltd 生和光科技有限公司 .14.

  14. Easy installation – Average 6 hours per machine. .16.

  15. Installations Energy Saving System L&B Technology Ltd 生和光科技有限公司 .16.

  16. Installations Energy Saving System L&B Technology Ltd 生和光科技有限公司 .17.

  17. Installations Energy Saving System L&B Technology Ltd 生和光科技有限公司 .18.

  18. Installations Energy Saving System L&B Technology Ltd 生和光科技有限公司 .19.

  19. Installations Energy Saving System L&B Technology Ltd 生和光科技有限公司 .20.

  20. Safety Features Energy Saving System • Stainless Steel Guard. Increase protection. • Low surface temperature. Avoid operators get burnt and injuries. • Comply to electromagnetic radiation regulations. (see attached certificate issue by local environmental authority.) L&B Technology Ltd 生和光科技有限公司 .21.

  21. Major Users of ESS

  22. ESS - Some of the Job Reference Energy Saving System L&B Technology Ltd. .22.

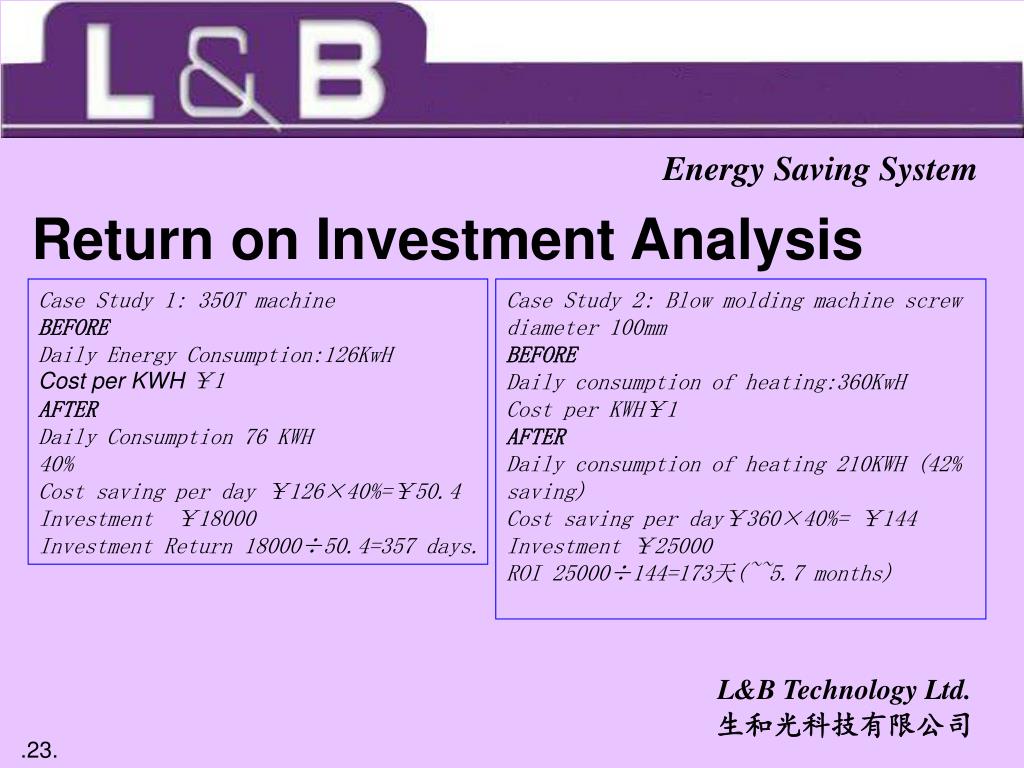

  23. Energy Saving System Return on Investment Analysis Case Study 1: 350T machine BEFORE Daily Energy Consumption:126KwH Cost per KWH ￥1 AFTER Daily Consumption 76 KWH 40% Cost saving per day ￥126×40%=￥50.4 Investment ￥18000 Investment Return18000÷50.4=357 days. Case Study 2: Blow molding machine screw diameter 100mm BEFORE Daily consumption of heating:360KwH Cost per KWH￥1 AFTER Daily consumption of heating 210KWH (42% saving) Cost saving per day￥360×40%= ￥144 Investment ￥25000 ROI 25000÷144=173天(~~5.7 months) L&B Technology Ltd. 生和光科技有限公司 .23.

  24. Results Expectation & Overall Benefits – 1. Operational • Direct Saving in electricity bills. • Lower production cost to enhance competition. • Lower maintenance for heater coil. • Better workshop working environment for workers. L&B Technology Ltd 生和光科技有限公司

  25. Results Expectation – 2. Reduction of Carbon Emission • Our electricity in South China comes from the burning of fossil fuels which increases the levels of greenhouse gases in the atmosphere. • 69.22 grams of carbon dioxide emitted per megajoules (million joules) of energy for fuel oil. • 1 KW-h = 3.6 megajoules. • Take an example of a 160 ton machine, heating zone power16 KW and 40% saving by ESS. The energy saving per day of operation =16*0.4*24*3.6 = 553 megajoules. • The reduction of carbon dioxide emission is 38,275 gm. • The total of annual reduction for the whole Creata project, of about 800 machines would be = 11,176 Tons.

  26. After Sales Service • Warranty • 12 months warranty from date of installation. • After warranty Period provide optional maintenance contract. • Annual Fee 7% of the equipment price. • which includes 2 service visit per year. • Equivalent amount of replacement parts L&B Technology Ltd 生和光科技有限公司

  27. Energy Saving System Thank you! 謝謝! L&B Technology Ltd. 生和光科技有限公司 .24.
