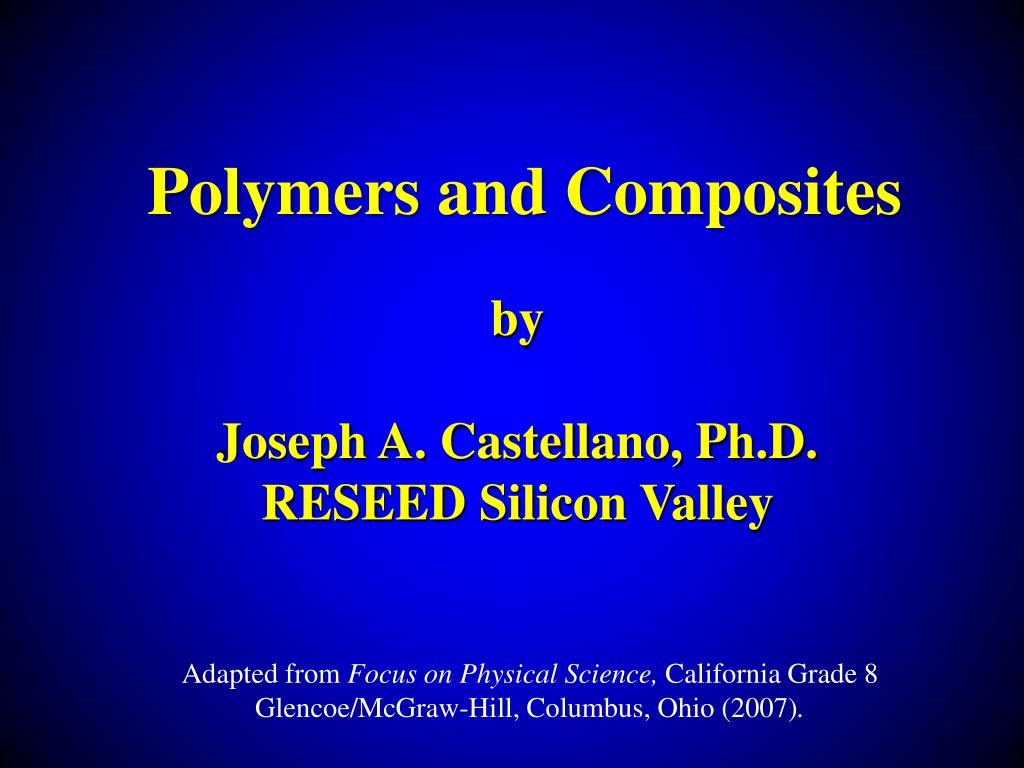

  1. Polymers and Composites by Joseph A. Castellano, Ph.D. RESEED Silicon Valley Adapted from Focus on Physical Science, California Grade 8 Glencoe/McGraw-Hill, Columbus, Ohio (2007).

  2. Polymersare very large molecules made of a chain of many smaller molecules bonded together. The small molecules that are used to create polymers are called monomers. Polymers are made of organiccompounds that contain the elements carbon and hydrogen, but may also include O, N, P, S, and other elements. Polymers form when chemical bonds link large numbers of monomers together in a repeating pattern. What Are Polymers and How Are They Made?

  3. Polymer Classes Think of polymers like chains of many paper clips connected together. This is why chemists often call them “polymer chains.” Each paper clip would represent a monomer molecule. Monomer When two different monomers combine, they form a copolymer Monomer 2 (Red) Monomer 1 (Green)

  4. Polymer Types - Natural • Polymers that occur in nature are called natural polymers and include: • Celluloseformed in trees, plants, fruits and vegetables from small sugar molecules. • Silkandwoolproduced by animals. • Proteinscreated in the human body from small molecules called amino acids such as:

  5. Polymer Types - Synthetic • Polymers that are man-made are called synthetic polymers and include: 1. Plastics used in bottles, storage bags, toys, automobiles, and many other items. • Fibersmade into clothing and carpets. • Adhesives used in glue and even chewing gum. Thousands of products made today use one or more synthetic polymers

  6. Polyethyleneused in squeeze bottles, and toys. 2. Nylonand polyesters used in clothing 3. Polystyreneused in cups and packing material Teflon(Polytetrafluoroethylene) used for cooking pans: Types of Synthetic Polymers - Soft • Soft Plastics are called thermoplastic because they can be recycled by melting to a thick liquid and reforming into a new item. Examples include:

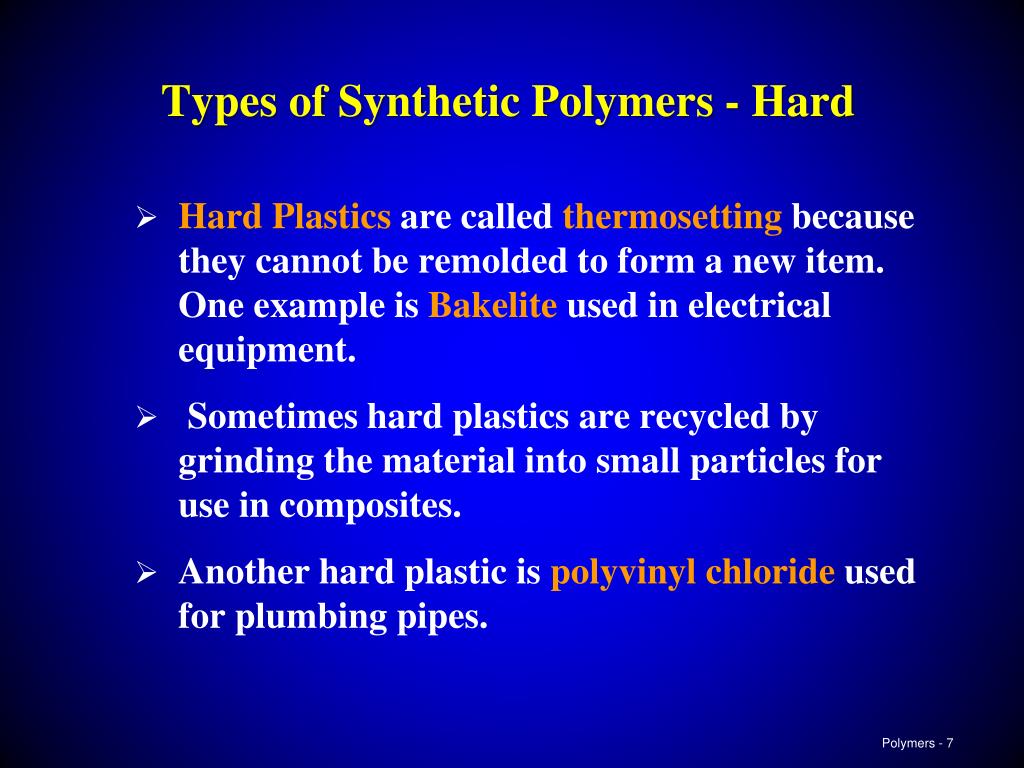

  7. Hard Plastics are called thermosetting because they cannot be remolded to form a new item. One example is Bakeliteused in electrical equipment. Sometimes hard plastics are recycled by grinding the material into small particles for use in composites. Another hard plastic is polyvinyl chloride used for plumbing pipes. Types of Synthetic Polymers - Hard

  8. Synthetic polymers like polyester and nylon are widely used to replace natural polymers like wool, silk, and cotton for clothing. Comparing Polymers • Some synthetic polymers have made possible the creation of new products such as CDs, DVDs, and cabinets for computer equipment.

  9. 1839 – Charles Goodyear developed a process called “vulcanization.” This converted natural, soft rubber into a hard, stretchable polymer that could be used to make tires for bicycles and later automobiles. History of Polymer Development In vulcanization, the long polymer chains are connected together from their sides like a chain-link fence in a process called “cross-linking.”

  10. 1856 – Cellulose nitrate, known as “Celluloid,” was created by Alexander Parkes from naturally occurring cellulose. It was used to make the first movie films. History of Polymer Development 1909 – Bakelite was the first all-synthetic polymer that became a commercial success. Invented by Leo Baekeland, it was made from phenol and formaldehyde, two compounds derived from oil and coal processing. It was used to make the first telephones.

  11. 1933 – Polyethylene was first synthesized in England by chemists using high pressure. By the early 1940s, many factories were established in Europe and the United Sates to make polyethylene for various applications during the World War II years. History of Polymer Development

  12. Formation of a Synthetic Polymer - Polyethylene

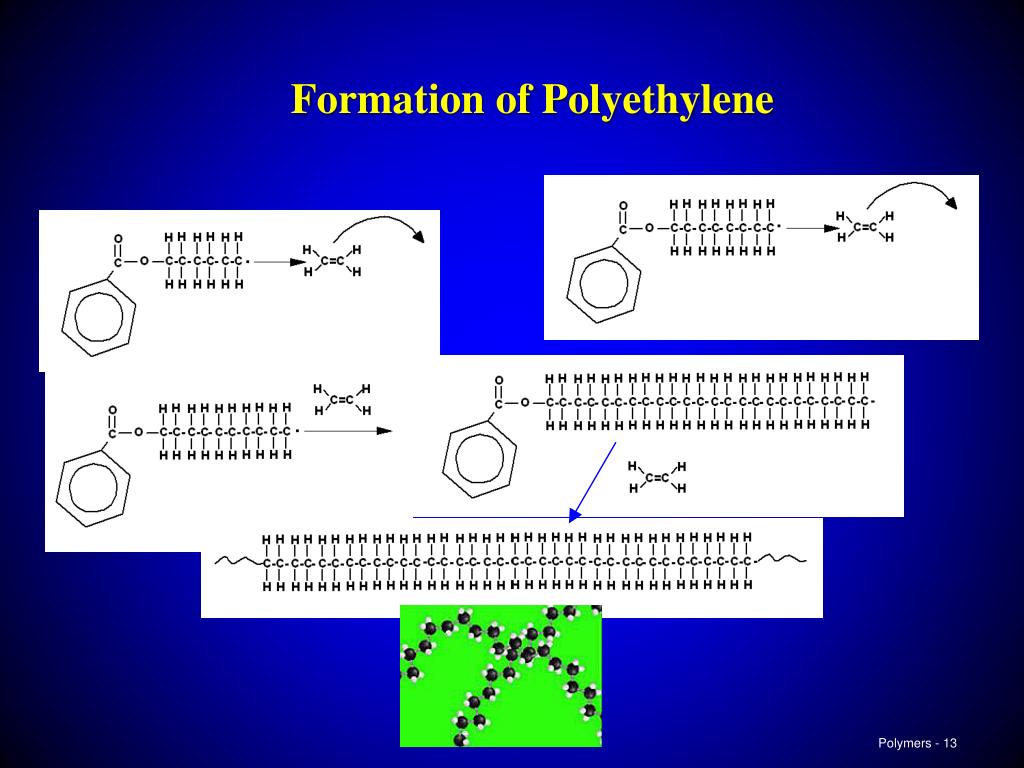

  13. Formation of Polyethylene

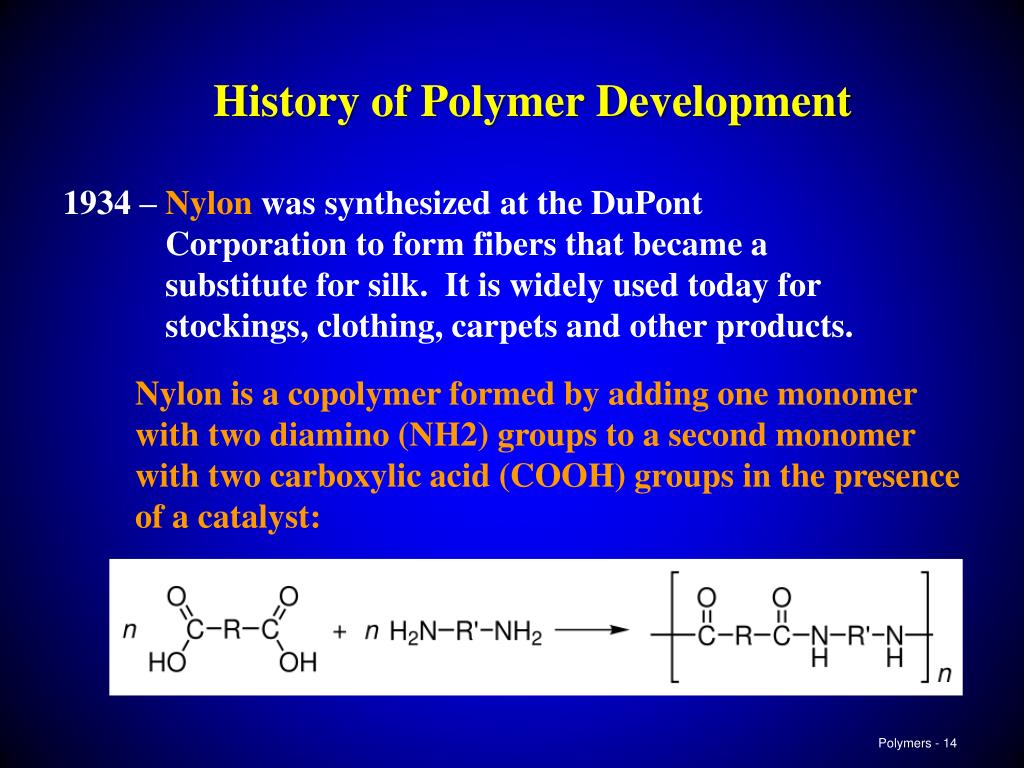

  14. 1934 – Nylon was synthesized at the DuPont Corporation to form fibers that became a substitute for silk. It is widely used today for stockings, clothing, carpets and other products. History of Polymer Development Nylon is a copolymer formed by adding one monomer with two diamino (NH2) groups to a second monomer with two carboxylic acid (COOH) groups in the presence of a catalyst:

  15. Nylon Product Examples Jackets Gloves Playhouse Rope

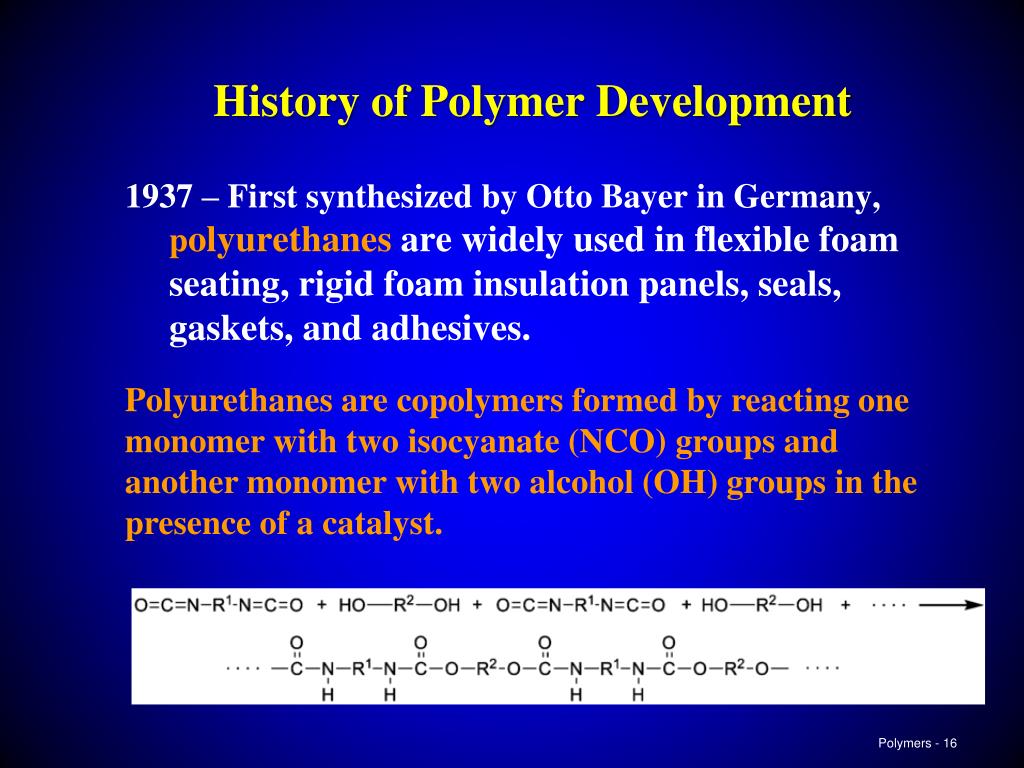

  16. 1937 – First synthesized by Otto Bayer in Germany, polyurethanes are widely used in flexible foam seating, rigid foam insulation panels, seals, gaskets, and adhesives. History of Polymer Development Polyurethanes are copolymers formed by reacting one monomer with two isocyanate (NCO) groups and another monomer with two alcohol (OH) groups in the presence of a catalyst.

  17. Polyurethane Product Examples Furniture Insulation Surfboards Car Seats

  18. History of Polymer Development 1946 to 1952 Many of the polymers we use today were synthesized during the years following World War II. Among these are: • Polystyrene • Dacron • Orlon • Polypropylene • Polyvinyl Chloride • Teflon

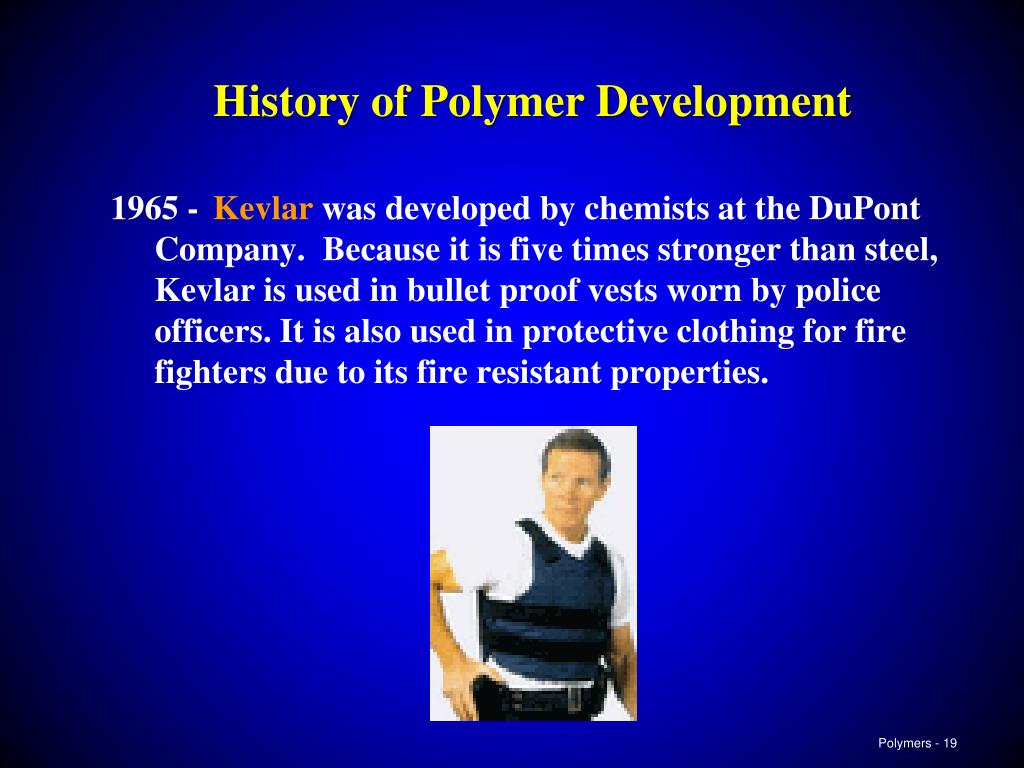

  19. 1965 - Kevlar was developed by chemists at the DuPont Company. Because it is five times stronger than steel, Kevlar is used in bullet proof vests worn by police officers. It is also used in protective clothing for fire fighters due to its fire resistant properties. History of Polymer Development

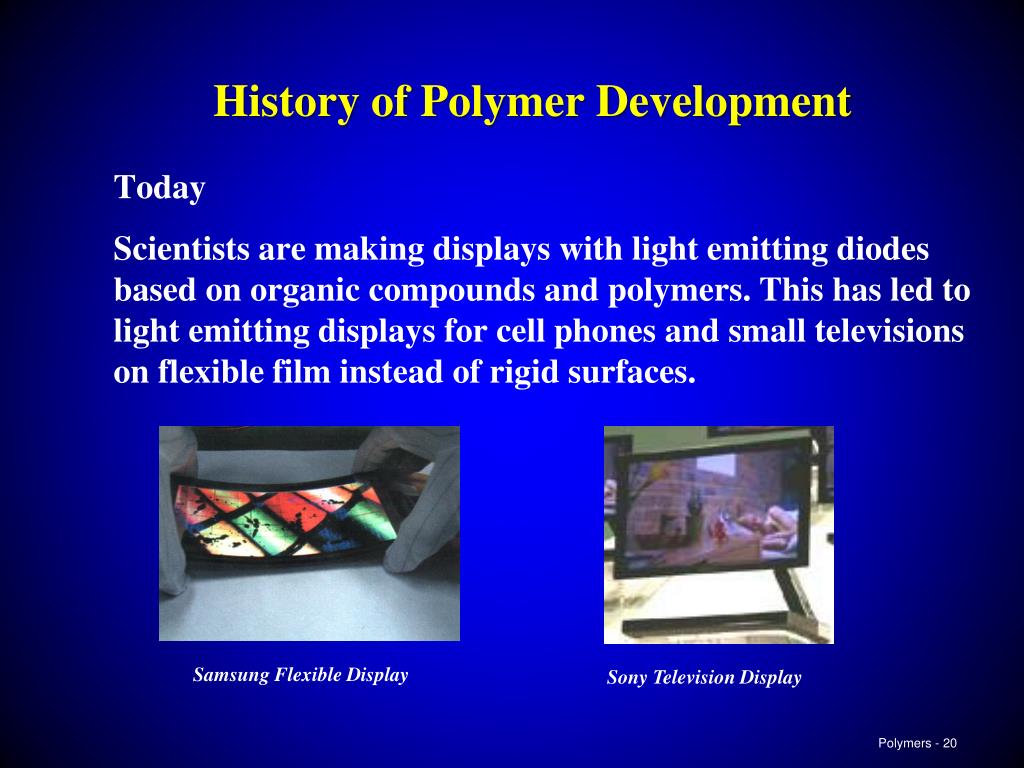

  20. Today Scientists are making displays with light emitting diodes based on organic compounds and polymers. This has led to light emitting displays for cell phones and small televisions on flexible film instead of rigid surfaces. History of Polymer Development Samsung Flexible Display Sony Television Display

  21. A composite combines two or more materials to form a new material that has different and improved properties. Composites • Many composite materials contain one or more polymers. • Wood is a naturally occurring composite – it consists of long fibers of cellulose, held together by another plant polymer called lignin. Together these two polymers form a very strong tree trunk.

  22. Fiberglass composites combine glass fibers woven together and strengthened with a plastic material. The resulting composite is so strong and hard that it is widely used for automobile bumpers and boat hulls. Composites in Today’s Products

  23. Composites in Today’s Products • Composites that combine synthetic polymers with the graphite form of carbon are so strong and flexible that they are used in golf clubs, fishing rods, and tennis rackets.

  24. This presentation was produced as a public service to help middle school and high school science teachers develop experiments, presentations and demonstrations that can be used in their classes. More science experiments and demonstrations are available on the RESEED Silicon Valley web site: www.reseed-sv.org. RESEED (Retirees Enhancing Science Education through Experiments and Demonstrations) is a program aimed at stimulating greater interest in science by middle school students.
