  1. Histograms and composites

  2. multimodal is always interesting • qualitative distinction! • Regimes or modes (literal meaning)

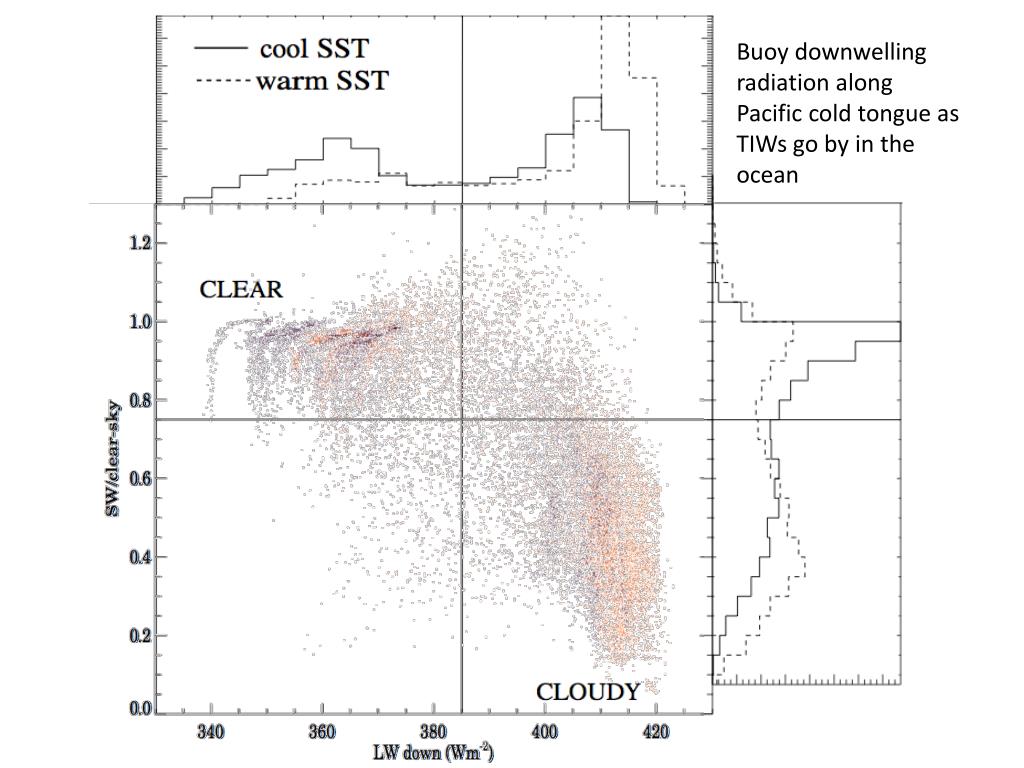

  3. Buoy downwelling radiation along Pacific cold tongue as TIWs go by in the ocean

  4. Figure 3.16 – Width vs. top height of each EO for 16 June 2006 – 31 May 2008. Distribution is weighted by total number of pixels (volume) per EO to emphasize larger EOs. Bin size is 10 pixels (~ km) by 240 m. Width is the horizontal span of the EO.

  5. soundings

  6. climatological time meansmust not be iid sums (->normal dist)

  7. The science • bimodal = 2 “modes” = distinct “regimes” • wet and dry • young and old air masses (age since saturation) • in temporal variations at a point • convective vs. nonconvective regions in bimodal climatological mean spatial histograms

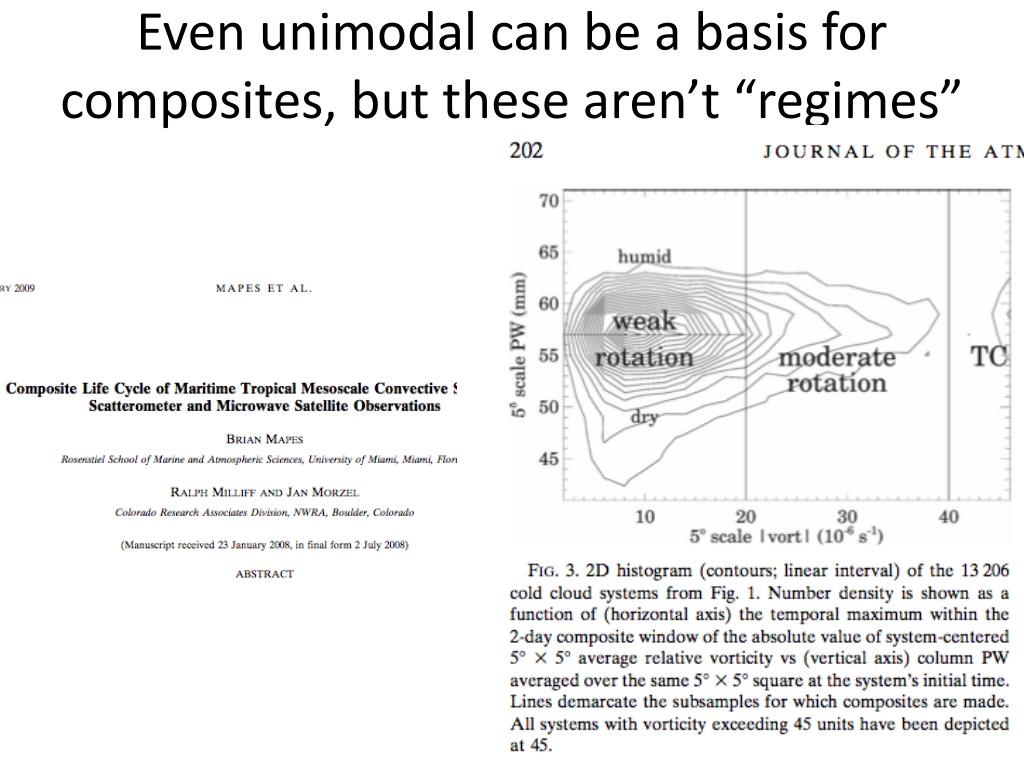

  8. Even unimodal can be a basis for composites, but these aren’t “regimes”

  9. indeed all similar • except offset

  10. indeed very similar • except offset

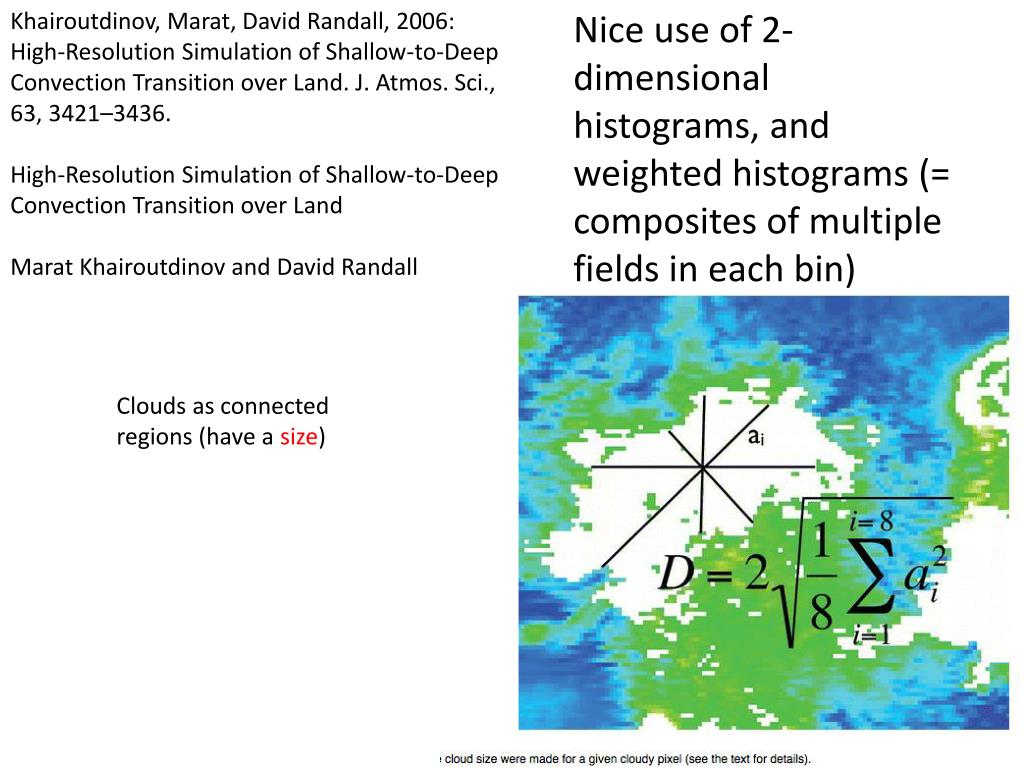

  11. Khairoutdinov, Marat, David Randall, 2006: High-Resolution Simulation of Shallow-to-Deep Convection Transition over Land. J. Atmos. Sci., 63, 3421–3436. High-Resolution Simulation of Shallow-to-Deep Convection Transition over Land Marat Khairoutdinov and David Randall Nice use of 2-dimensional histograms, and weighted histograms (= composites of multiple fields in each bin) Clouds as connected regions (have a size)

  12. growing clouds in z and size

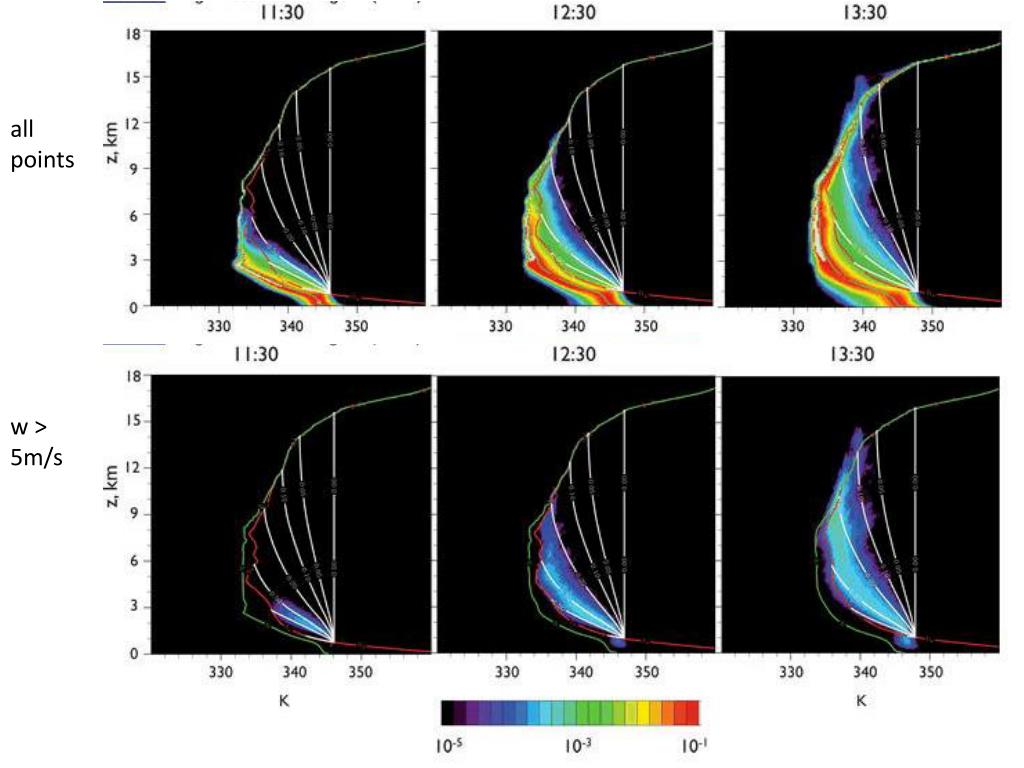

  13. all points w > 5m/s

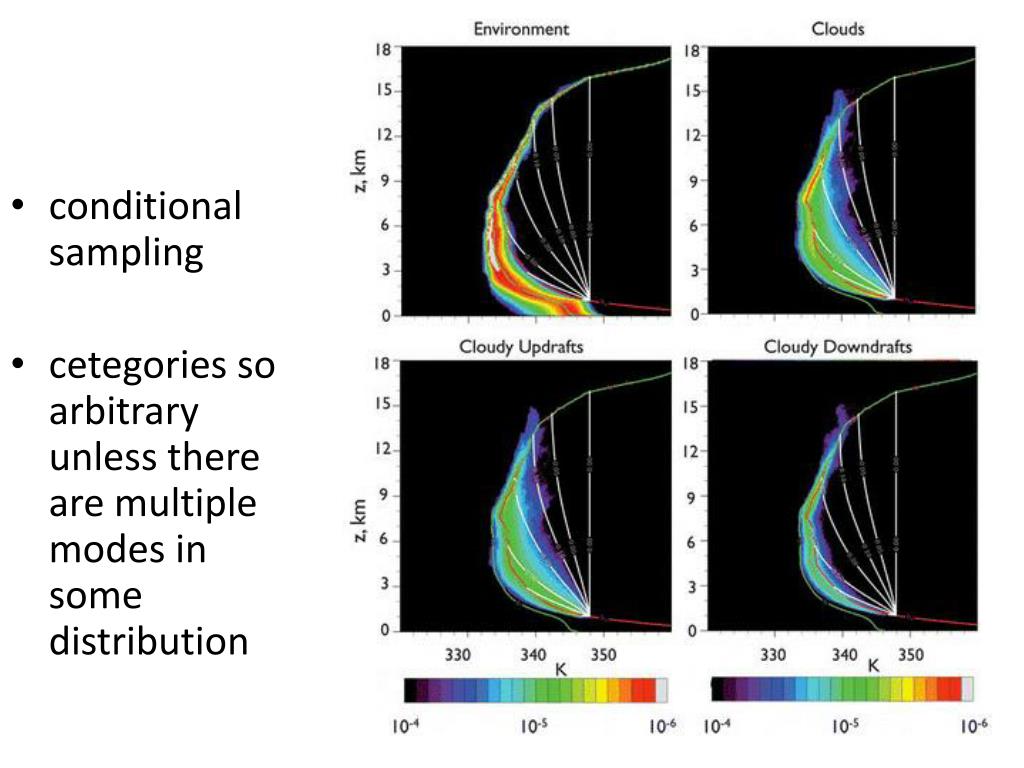

  14. conditional sampling • cetegories so arbitrary unless there are multiple modes in some distribution

  15. suppose we want precip flux • F = (frequency)(qp)(w)(density) • Product of these 3 distributions (*density) • rare events clearly important • from obs, would need to adjust (sampling)
