  1. Histograms and Matching 主講人：虞台文

  2. Content • Overview • Basic Histogram Structure • Accessing Histograms • Basic Manipulations with Histograms • Color Spaces • Histogram Comparisons • Back Projection

  3. Histograms and Matching Overview

  4. Histograms

  5. Histogram of an Image

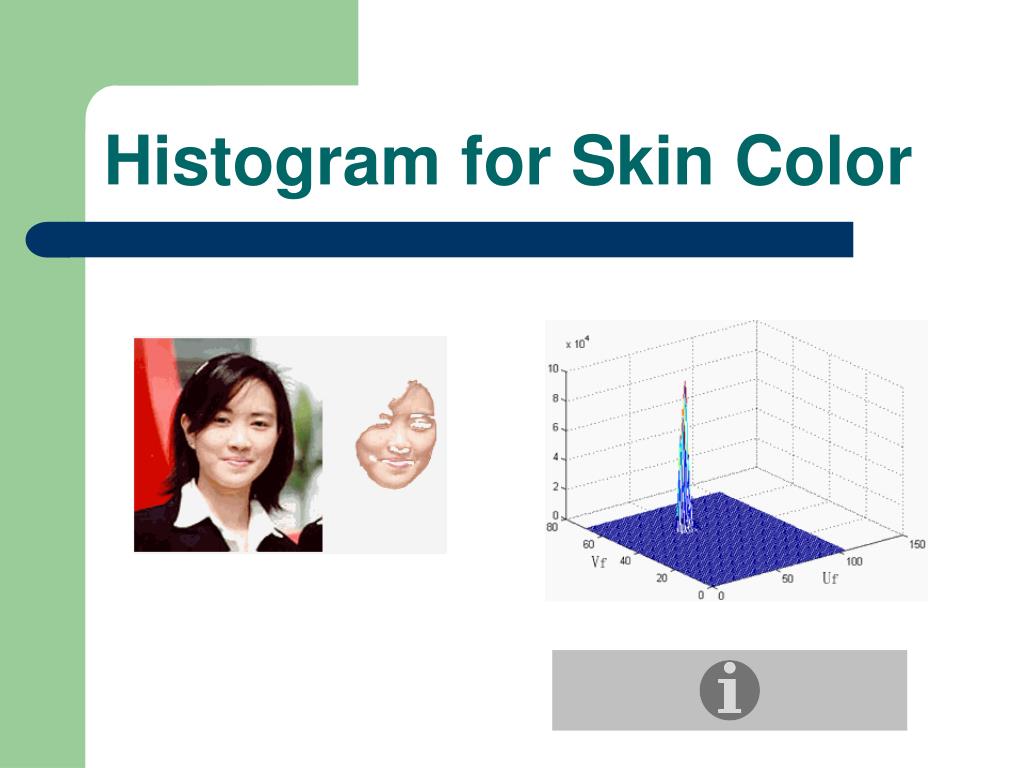

  6. Histogram for Skin Color

  7. Applications • Object Detection • Image Retrieval • Gesture Recognition

  8. Histograms and Matching Basic Histogram Structure

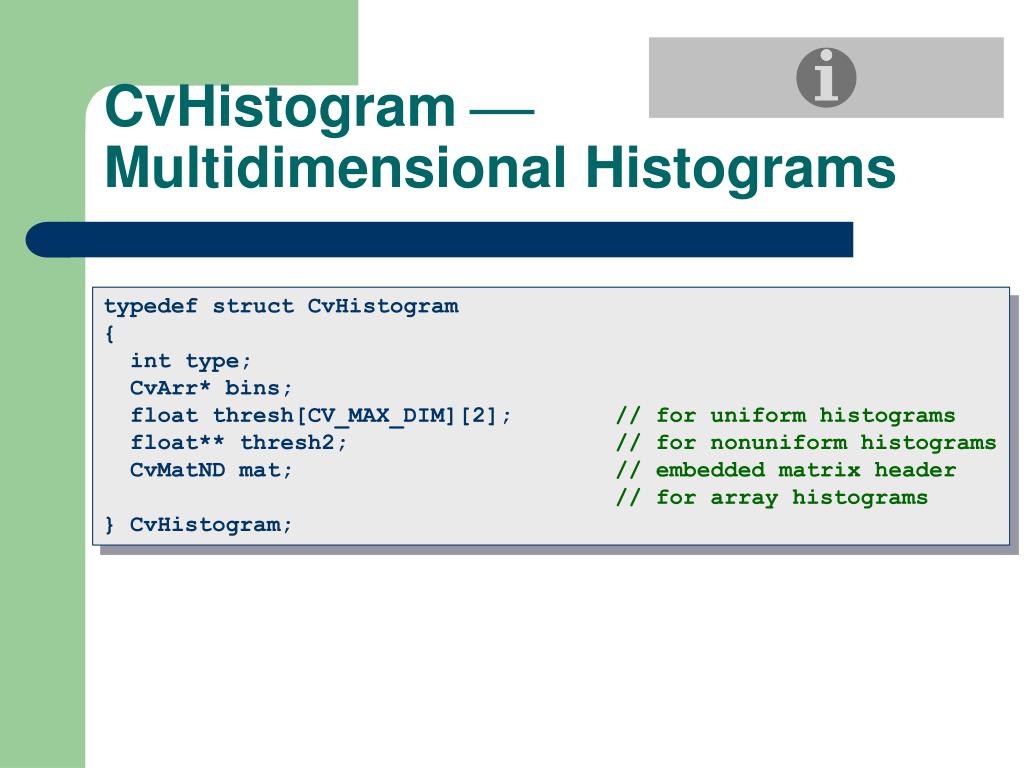

  9. CvHistogram Multidimensional Histograms typedef struct CvHistogram { int type; CvArr* bins; float thresh[CV_MAX_DIM][2]; // for uniform histograms float** thresh2; // for nonuniform histograms CvMatND mat; // embedded matrix header // for array histograms } CvHistogram;

  10. Create Histogram CvHistogram* cvCreateHist( int dims, int* sizes, int type, float** ranges = NULL, int uniform = 1 );

  11. Defer Set Ranges Used when calling cvCreateHist with ranges = NULL.

  12. Clear and Release Histogram

  13. Histograms and Matching Accessing Histograms

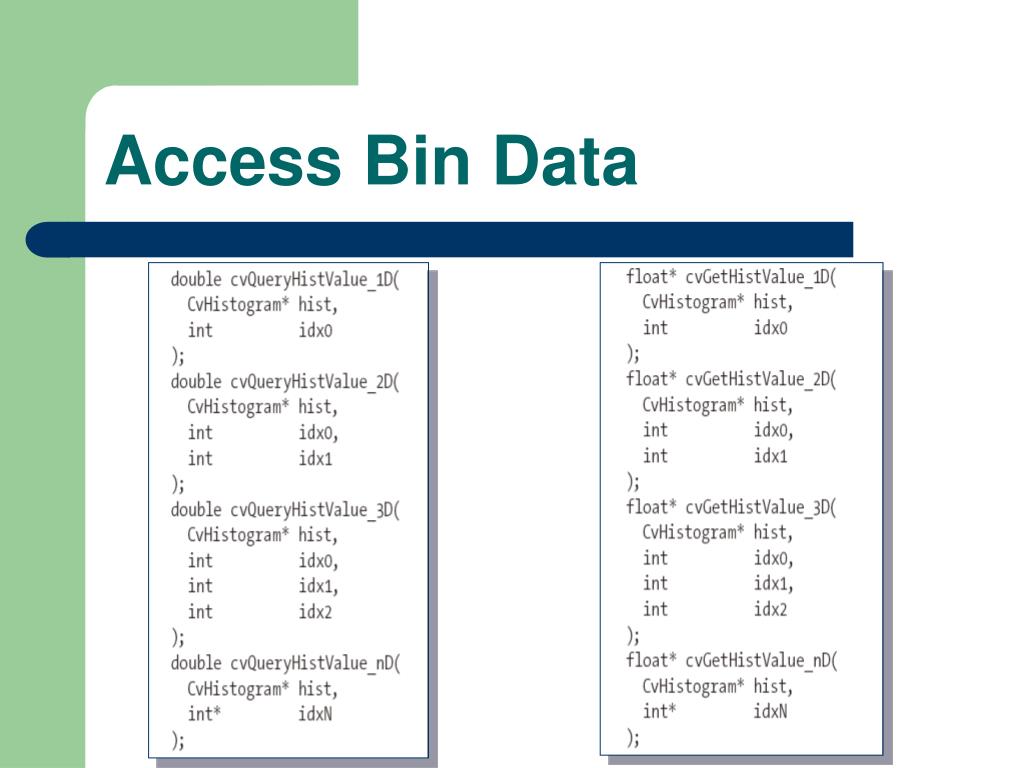

  14. Access Bin Data

  15. Direct Access of Bin Data typedef struct CvHistogram { int type; CvArr* bins; float thresh[CV_MAX_DIM][2]; // for uniform histograms float** thresh2; // for nonuniform histograms CvMatND mat; // embedded matrix header // for array histograms } CvHistogram; hist->mat.data.fl

  16. Direct Access of Histogram Information typedef struct CvHistogram { int type; CvArr* bins; float thresh[CV_MAX_DIM][2]; // for uniform histograms float** thresh2; // for nonuniform histograms CvMatND mat; // embedded matrix header // for array histograms } CvHistogram;

  17. Histograms and Matching Basic Manipulations with Histograms

  18. Calculate Histogram void cvCalcHist( IplImage** image, CvHistogram* hist, int accumulate=0, const CvArr* mask=NULL );

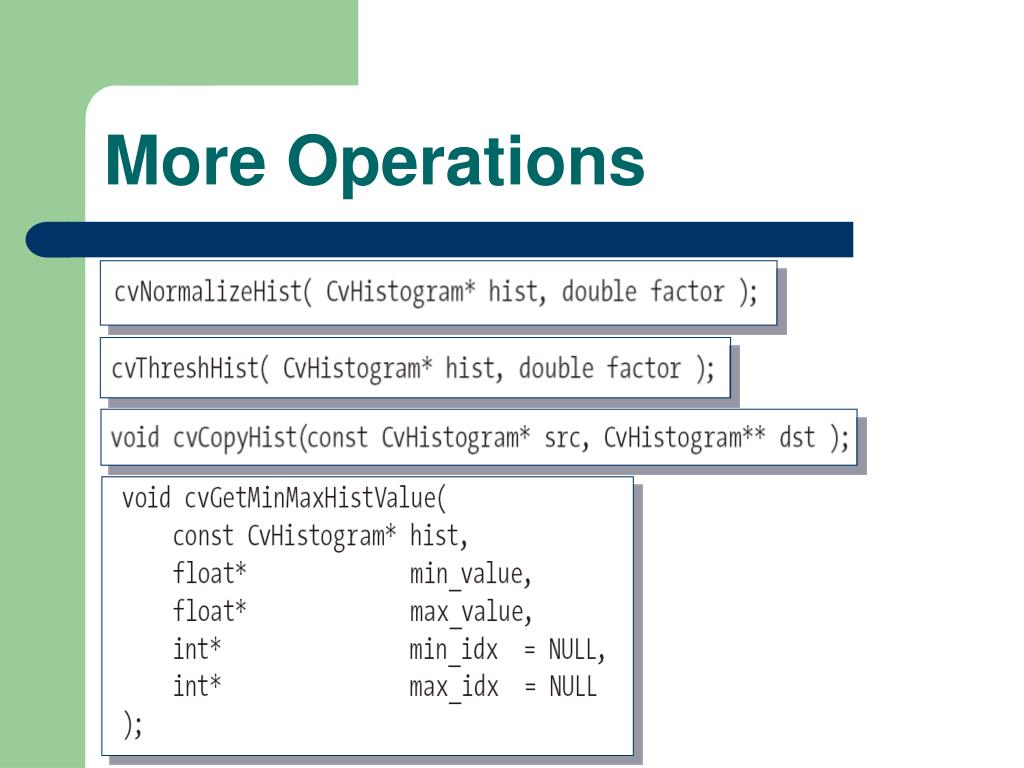

  19. More Operations

  20. Example  Graylevel Histogram

  21. Example  Graylevel Histogram Download Test Program

  22. Histograms and Matching Color Spaces

  23. Color Spaces

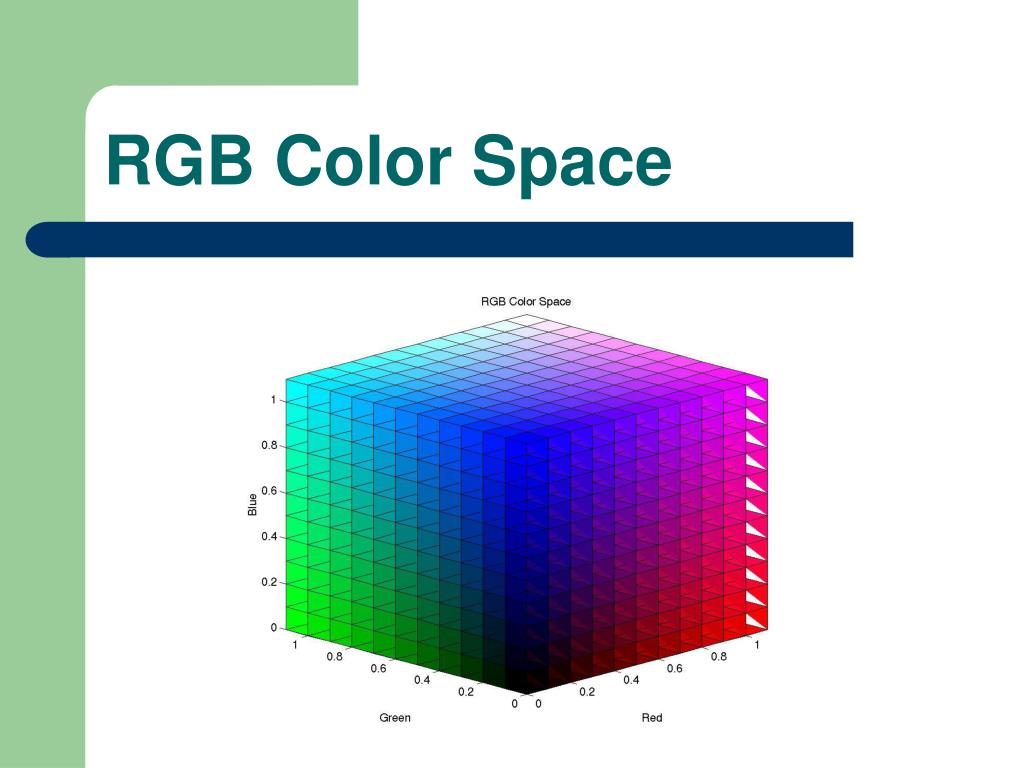

  24. RGB Color Space

  25. HSV Color Space

  26. YCbCr Color Space

  27. YCbCr Color Space

  28. Article Color Space Conversion Some Algorithms Applet

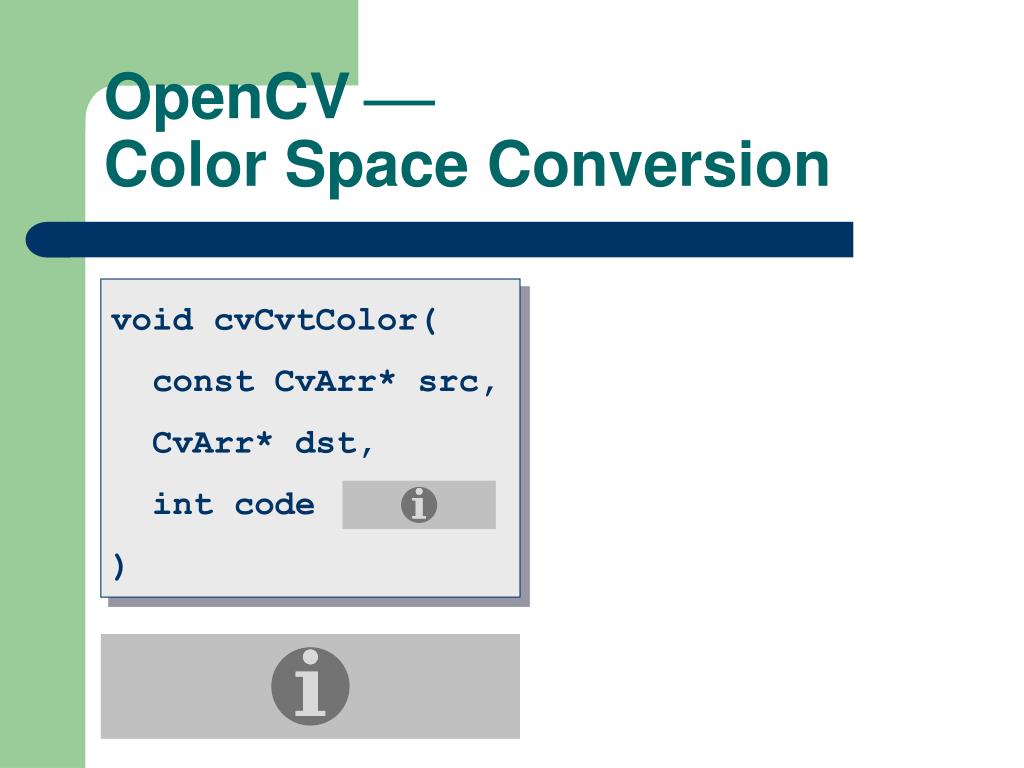

  29. OpenCV Color Space Conversion void cvCvtColor( const CvArr* src, CvArr* dst, int code )

  30. Skin Color Detection by HSV and RGB

  31. Automatic Face Detection

  32. Histogram Usage Examples

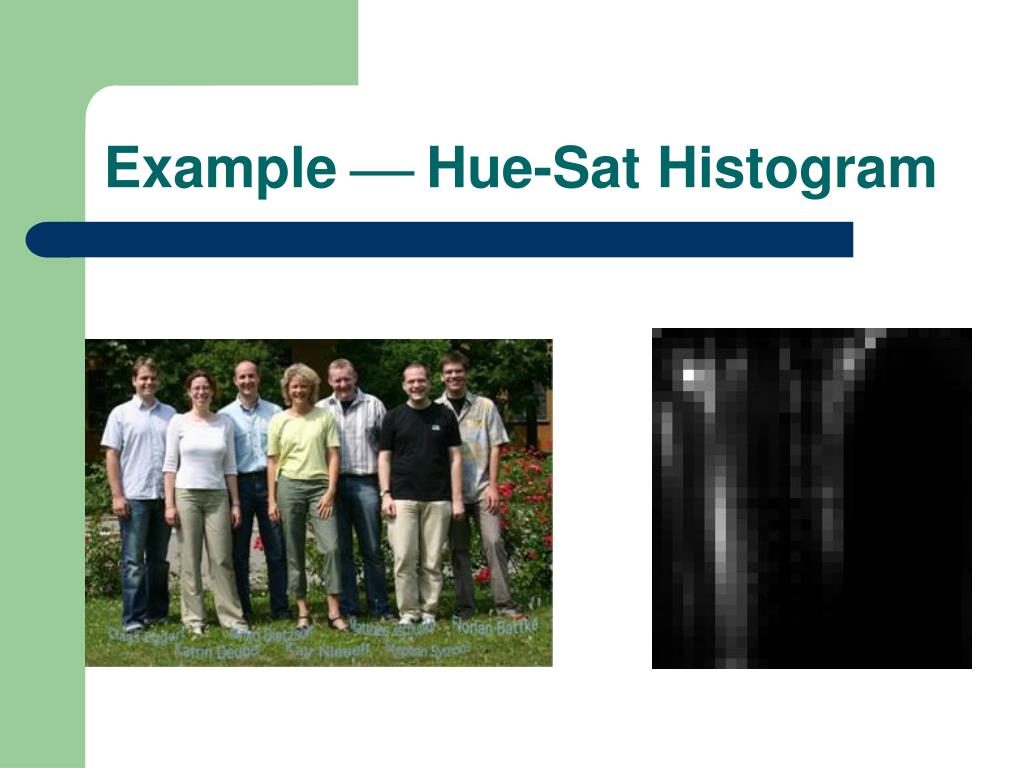

  33. Example  Hue-Sat Histogram

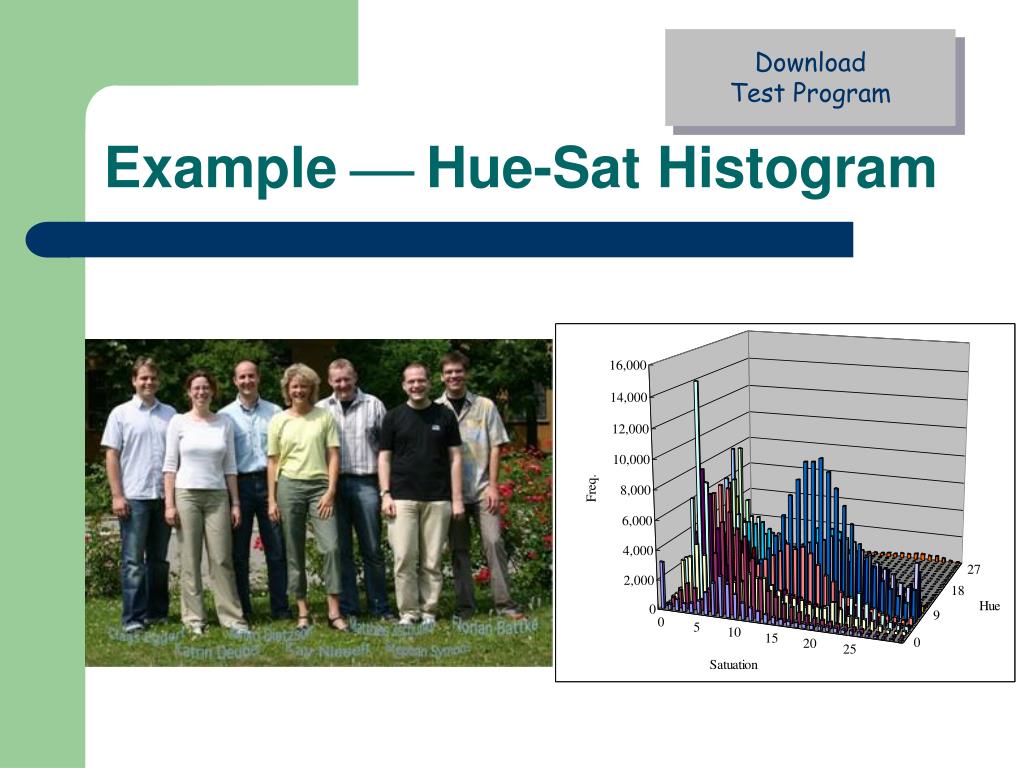

  34. Download Test Program Example  Hue-Sat Histogram

  35. Histograms and Matching Histogram Comparisons

  36. Histogram Comparisons in OpenCV #define CV_COMP_CORREL 0#define CV_COMP_CHISQR 1#define CV_COMP_INTERSECT 2#define CV_COMP_BHATTACHARYYA 3

  37. Histogram Comparisons in OpenCV Correlation Method (CV_COMP_CORREL) maximum mismatch perfect match #define CV_COMP_CORREL 0 #define CV_COMP_CHISQR 1 #define CV_COMP_INTERSECT 2 #define CV_COMP_BHATTACHARYYA 3

  38. Histogram Comparisons in OpenCV Chi-square Method (CV_COMP_CHISQR) perfect match bad mismatch #define CV_COMP_CORREL 0 #define CV_COMP_CHISQR 1 #define CV_COMP_INTERSECT 2 #define CV_COMP_BHATTACHARYYA 3

  39. Histogram Comparisons in OpenCV Intersection Method (CV_COMP_INTERSECT) H1 and H2 are normalized to one before comparing total mismatch perfect match #define CV_COMP_CORREL 0 #define CV_COMP_CHISQR 1 #define CV_COMP_INTERSECT 2 #define CV_COMP_BHATTACHARYYA 3

  40. Histogram Comparisons in OpenCV BHATTACHARYYA Method (CV_COMP_BHATTACHARYYA) perfect match total mismatch #define CV_COMP_CORREL 0 #define CV_COMP_CHISQR 1 #define CV_COMP_INTERSECT 2 #define CV_COMP_BHATTACHARYYA 3

  41. Histogram Comparisons in OpenCV

  42. Histograms and Matching Back Projection

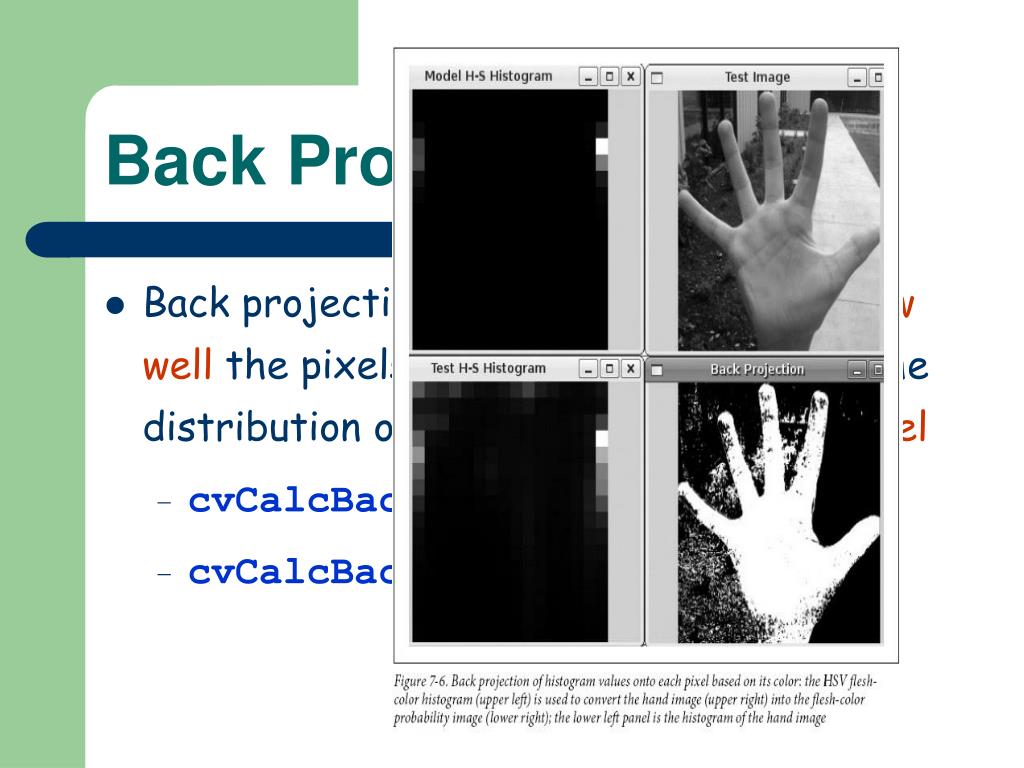

  43. Back Projection • Back projection is a way of recording how well the pixels or patches of pixels fit the distribution of pixels in a histogram model • cvCalcBackProject() • cvCalcBackProjectPatch()

  44. Back Projection • Back projection is a way of recording how well the pixels or patches of pixels fit the distribution of pixels in a histogram model • cvCalcBackProject() • cvCalcBackProjectPatch()

  45. cvCalcBackProject

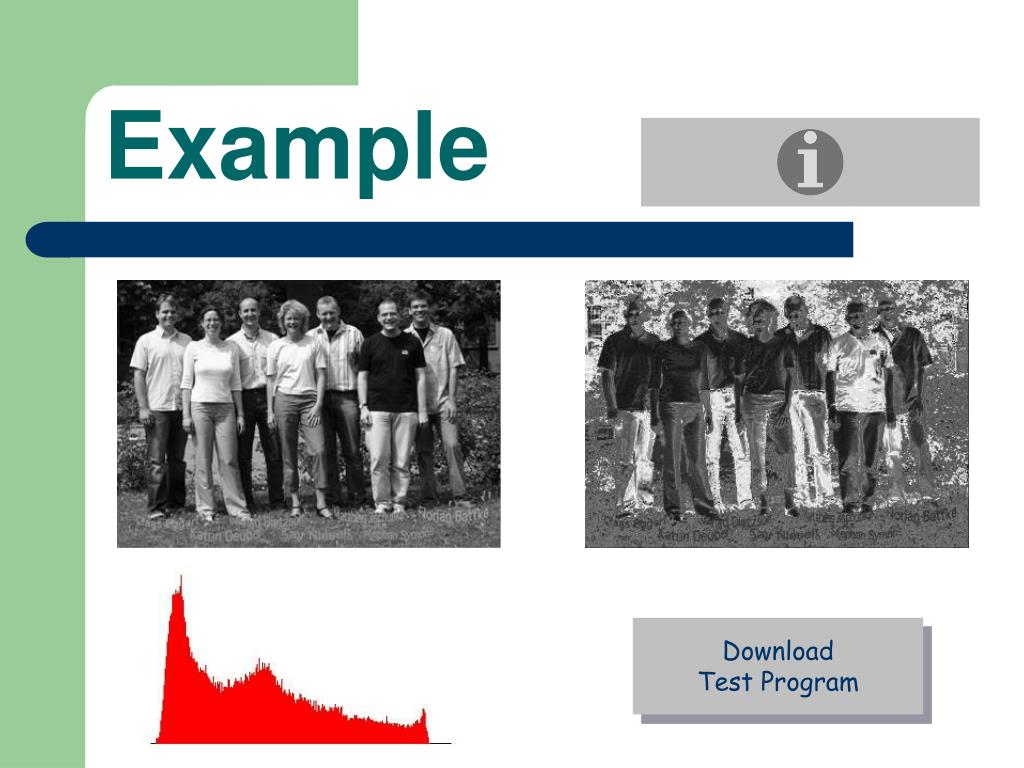

  46. Example Download Test Program

  47. Patch-Based Projection

  48. Patch-Based Projection

  49. Patch-Based Projection
