  1. Histograms Lesson 1.5

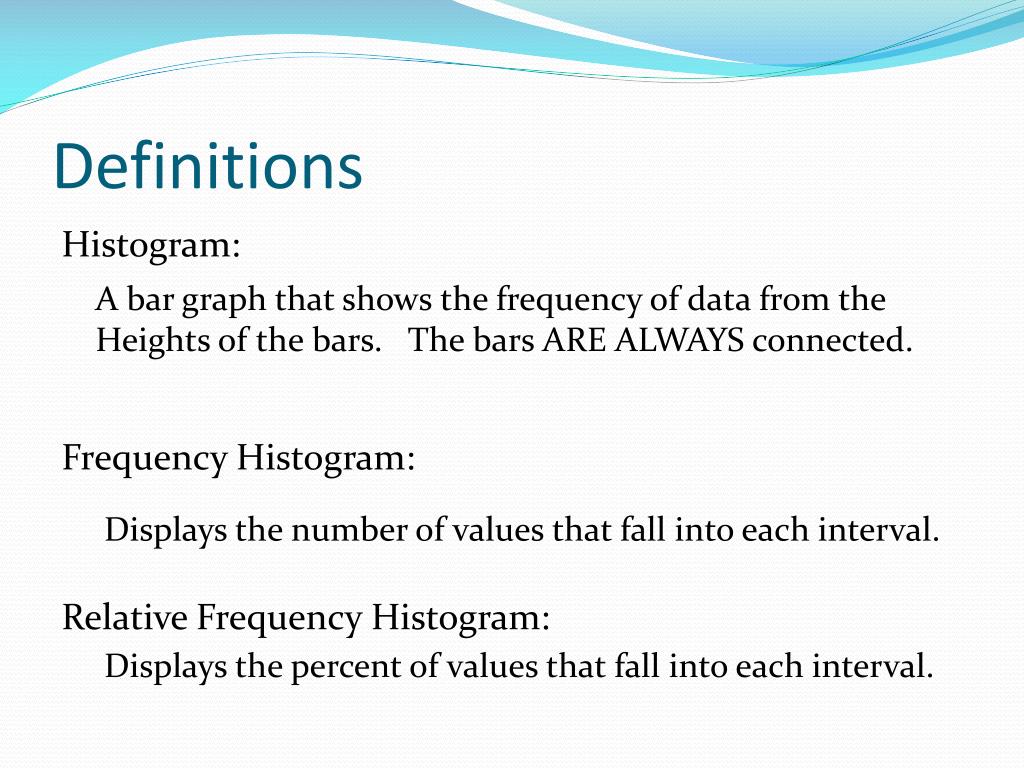

  2. Definitions Histogram: Frequency Histogram: Relative Frequency Histogram: A bar graph that shows the frequency of data from the Heights of the bars. The bars ARE ALWAYS connected. Displays the number of values that fall into each interval. Displays the percent of values that fall into each interval.

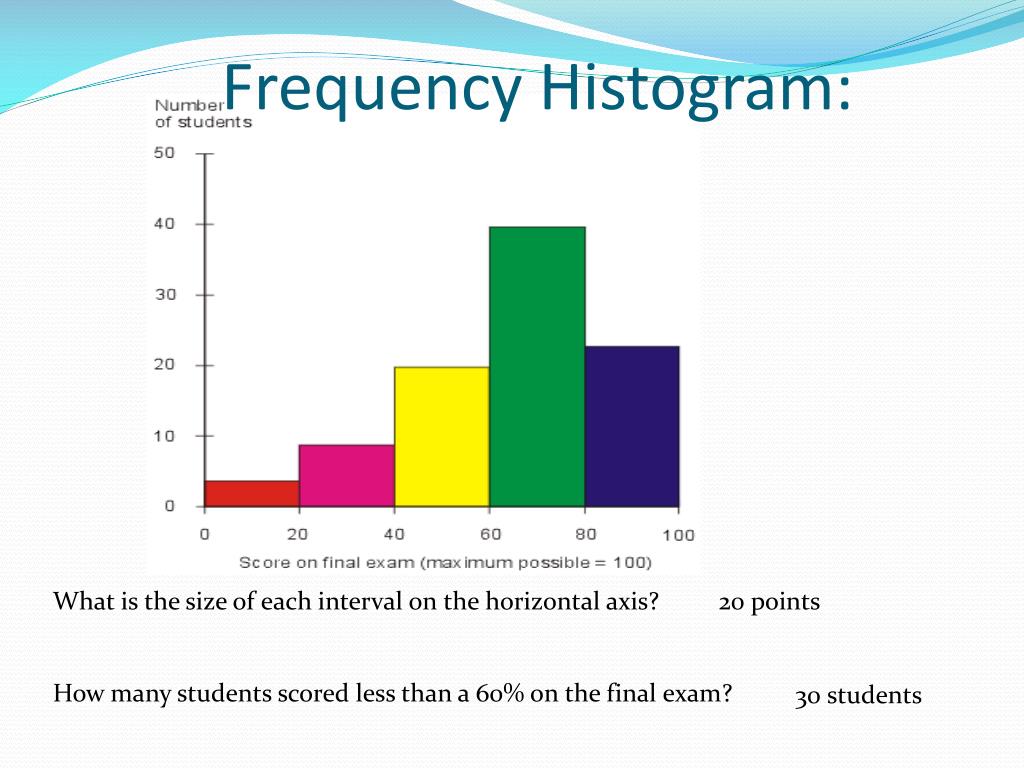

  3. Frequency Histogram: What is the size of each interval on the horizontal axis? How many students scored less than a 60% on the final exam? 20 points 30 students

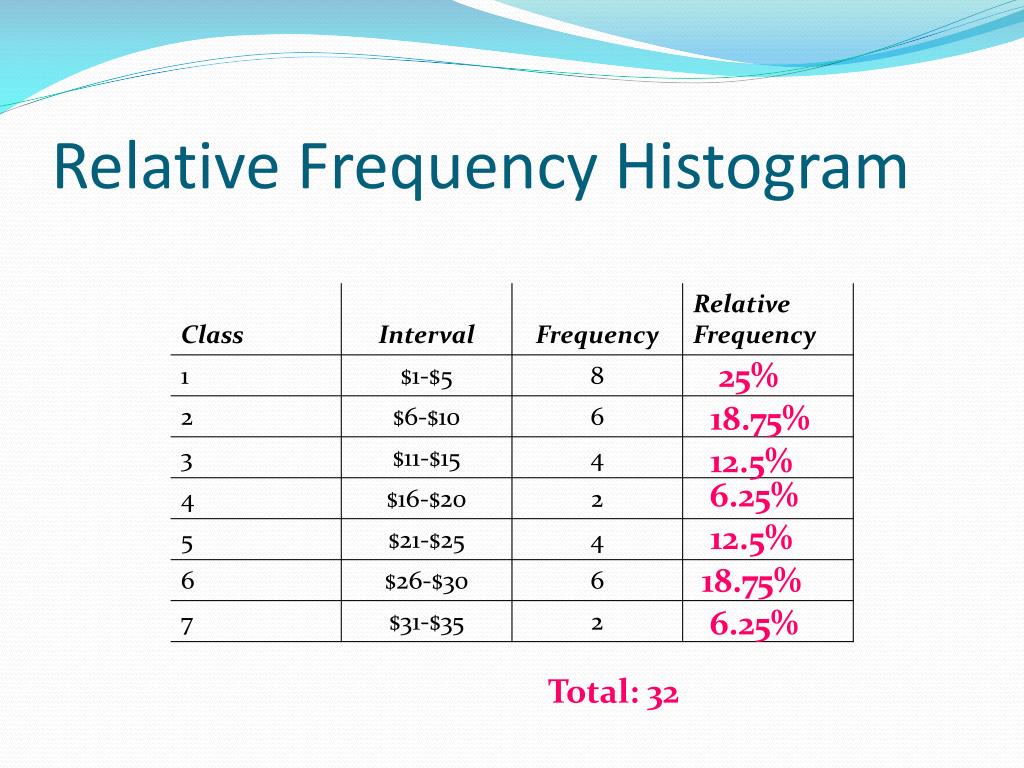

  4. Relative Frequency Histogram 25% 18.75% 12.5% 6.25% 12.5% 18.75% 6.25% Total: 32

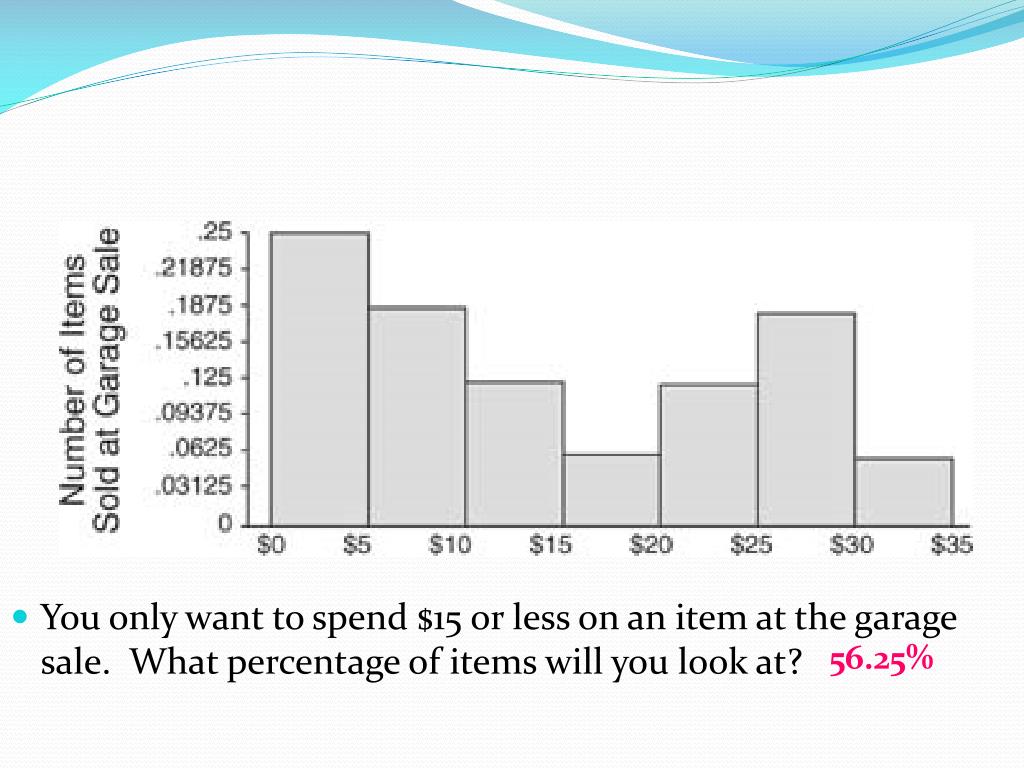

  5. You only want to spend $15 or less on an item at the garage sale. What percentage of items will you look at? 56.25%

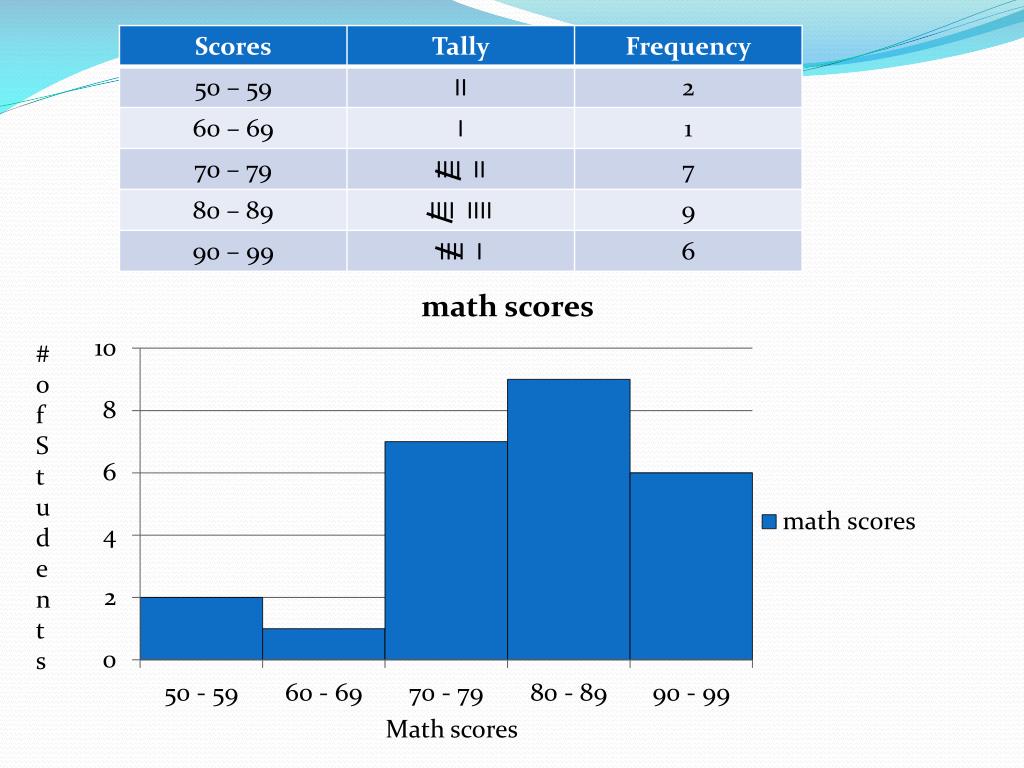

  6. Constructing a Freq. Histogram • Math Test scores: 75 67 93 99 81 85 92 50 80 94 51 96 85 73 84 82 91 87 77 78 73 86 71 77 85 Construct a frequency histogram to display the test scores. Use five equal size intervals. *Range: 99 – 50 = 49 ; 49 / 5 ≈ 10 even intervals

  7. # of St uden t s Math scores

  8. Homework Page 44- 45 11 - 26
