  1. Lecture 4 Ast 1001 6/6/07

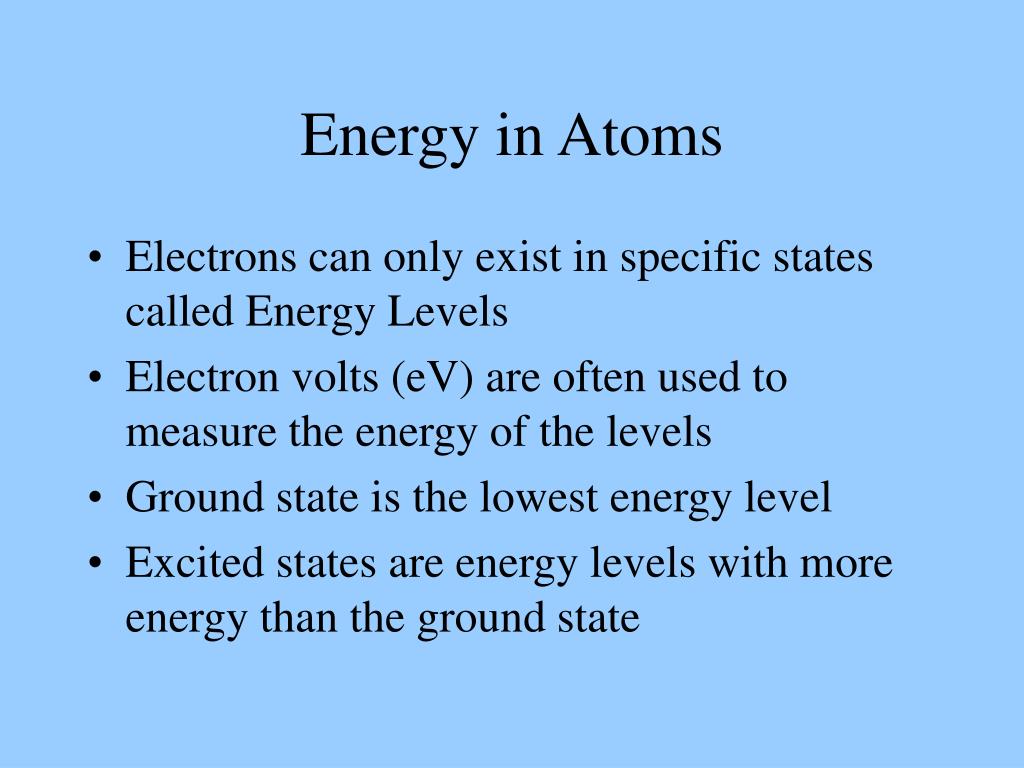

  2. Energy in Atoms • Electrons can only exist in specific states called Energy Levels • Electron volts (eV) are often used to measure the energy of the levels • Ground state is the lowest energy level • Excited states are energy levels with more energy than the ground state

  3. Transitions • Electrons can change energy levels by gaining energy • If electrons gain too much energy, then the atom will become ionized

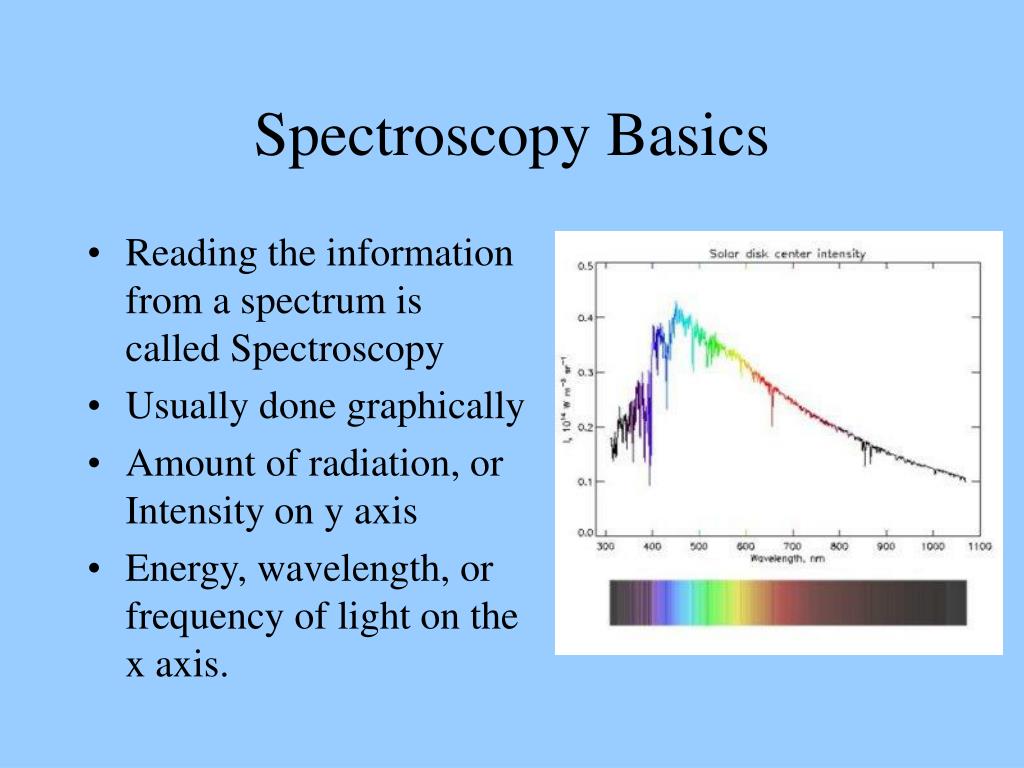

  4. Spectroscopy Basics • Reading the information from a spectrum is called Spectroscopy • Usually done graphically • Amount of radiation, or Intensity on y axis • Energy, wavelength, or frequency of light on the x axis.

  5. Types of Spectra • Continuous spectra are those that show all of the colors in the rainbow • Incandescent lightbulb is the primary example • Emission Spectrum only has discrete bright lines • Fluorescent lightbulbs • Absorption Spectrum has most of the rainbow, but dark lines have been removed

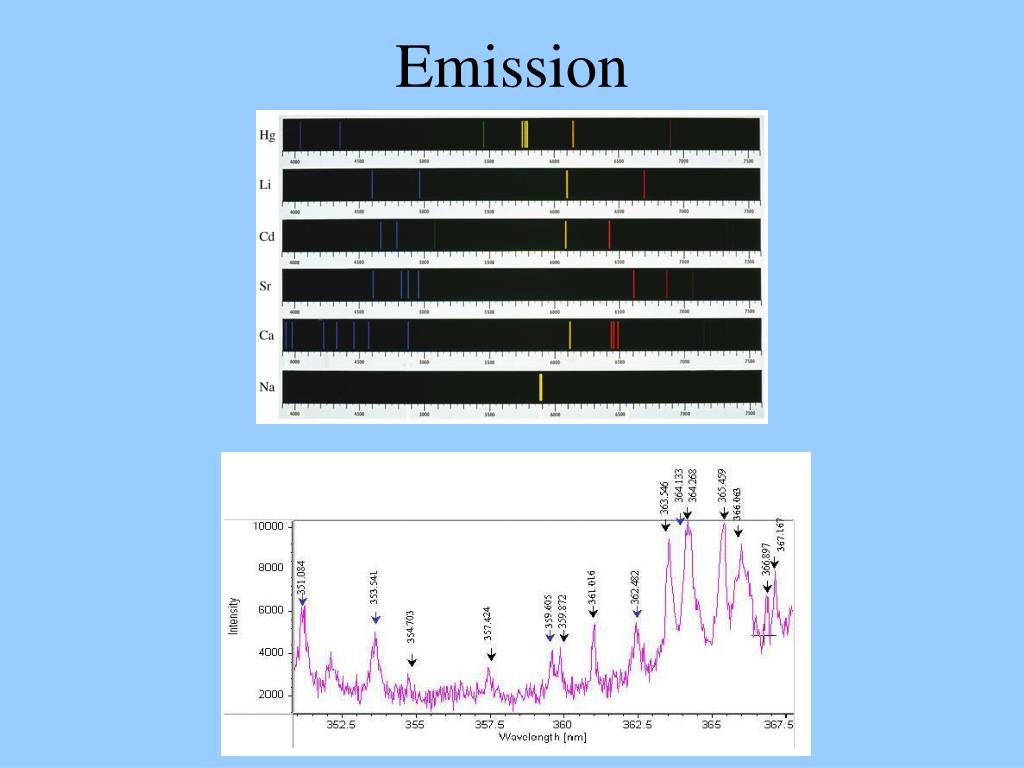

  6. Emission

  7. Absorption

  8. How Do You Get the Spectra? • Continuous spectra come from “blackbody” sources • Emission spectra come from something like a cloud of gas that is getting energy from somewhere • Absorption spectra is when light from a continuous source is absorbed

  9. Why Spectroscopy is Important • Each atom (or molecule) has unique lines • Thus, we can figure out what things are made out of by analyzing the light • If the source is continuous (or mostly so) we can tell what temperature it is • Hotter things peak at higher energies

  10. Some Math • Stefan-Boltzmann law tells you how much energy per unit area is coming off of a source • Emitted power = σ*T4 • Wien’s Law is the relationship between temperature and spectroscopic peak • λmax = 2,900,000/Temperature

  11. The Doppler Shift • Common example: a siren moving towards and then away from you • If its moving away from you, light is redshifted • If its moving towards you, light is blueshifted • Can also be used to determine rotation rates

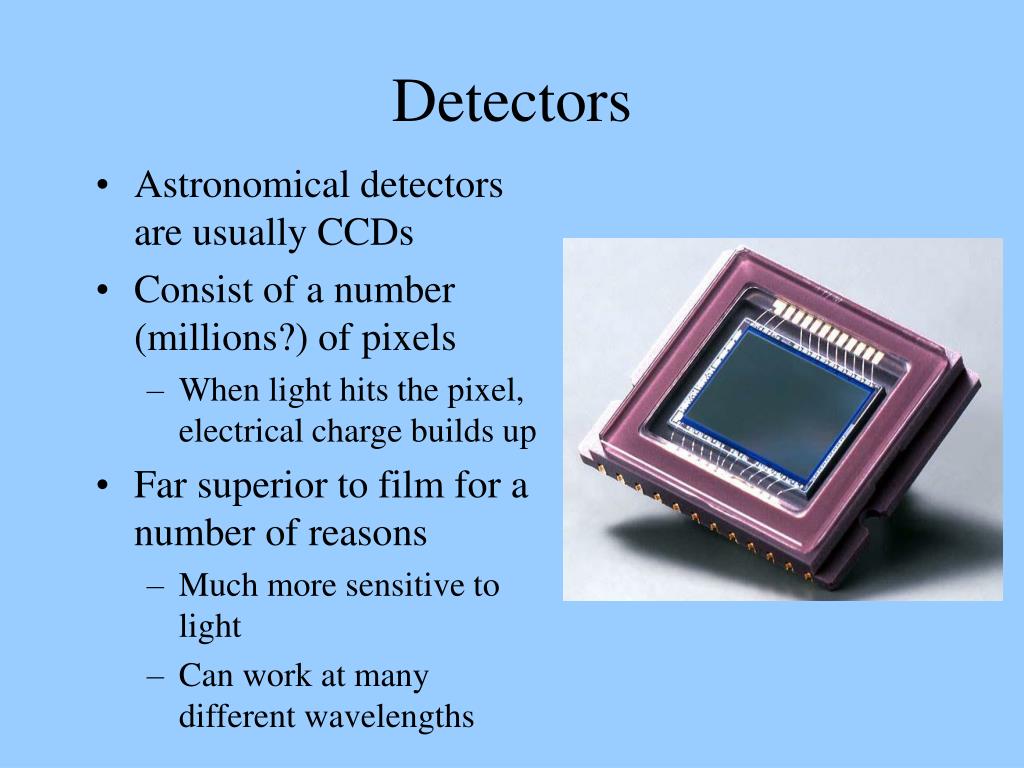

  12. Detectors • Astronomical detectors are usually CCDs • Consist of a number (millions?) of pixels • When light hits the pixel, electrical charge builds up • Far superior to film for a number of reasons • Much more sensitive to light • Can work at many different wavelengths

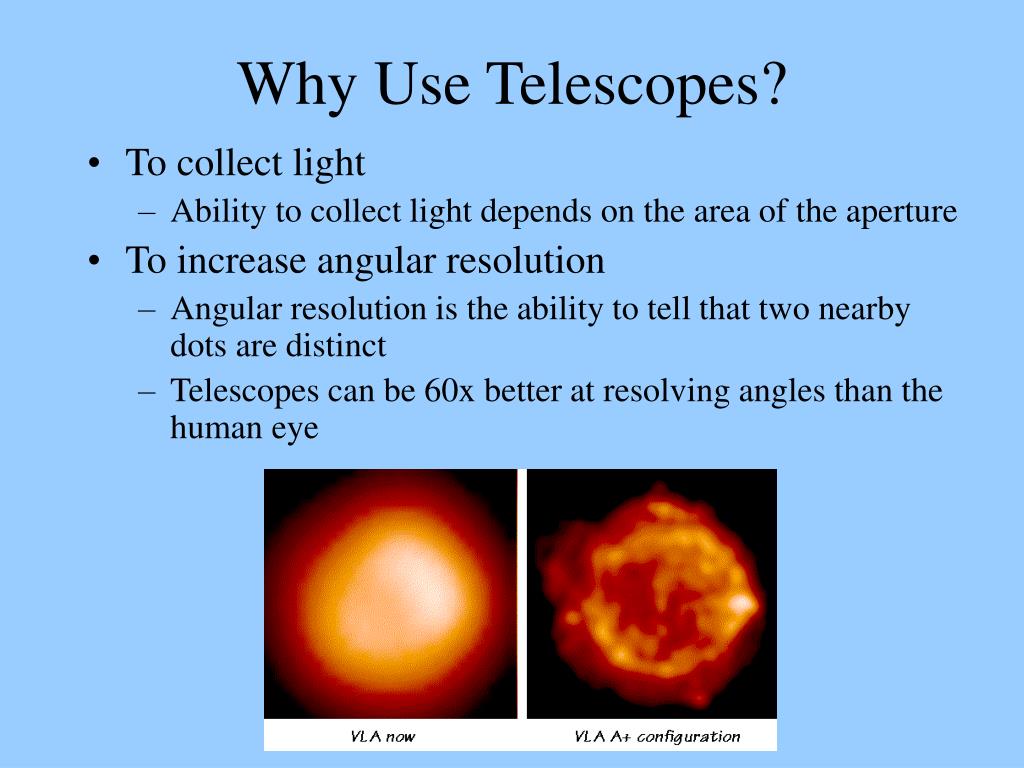

  13. Why Use Telescopes? • To collect light • Ability to collect light depends on the area of the aperture • To increase angular resolution • Angular resolution is the ability to tell that two nearby dots are distinct • Telescopes can be 60x better at resolving angles than the human eye

  14. The Kinds of Telescopes • Refracting Telescopes • Uses lenses • The earliest telescopes were refracting • Largest refractor is 1 meter in size • Reflecting Telescopes • Uses mirrors • Professional telescopes are reflecting • Largest reflectors are 10 meters in size

  15. What Astronomers Do • Imaging • Basically taking pictures • Usually the images are in black and white • Filters are heavily used • Spectroscopy • Use a diffraction grating to split light into parts • Spectral resolution is how much information we can get from the spectral lines

  16. What Astronomers Do cont. • Timing • Many objects vary with time • Measure brightness over time • Getting time to observe is difficult • Most astronomers only observe a couple of times a year • Time on telescopes is very competitive

  17. The Atmosphere • Light pollution • Twinkling (turbulence) • Air in the atmosphere moves, modifies light • Can put telescopes above the atmosphere • Use adaptive optics

  18. Non Visible Light • Radio telescopes • Basically reflecting telescopes • Can be very large • Infrared telescopes • Similar to visible light • Atmospheric problems are greater for IR than visible light

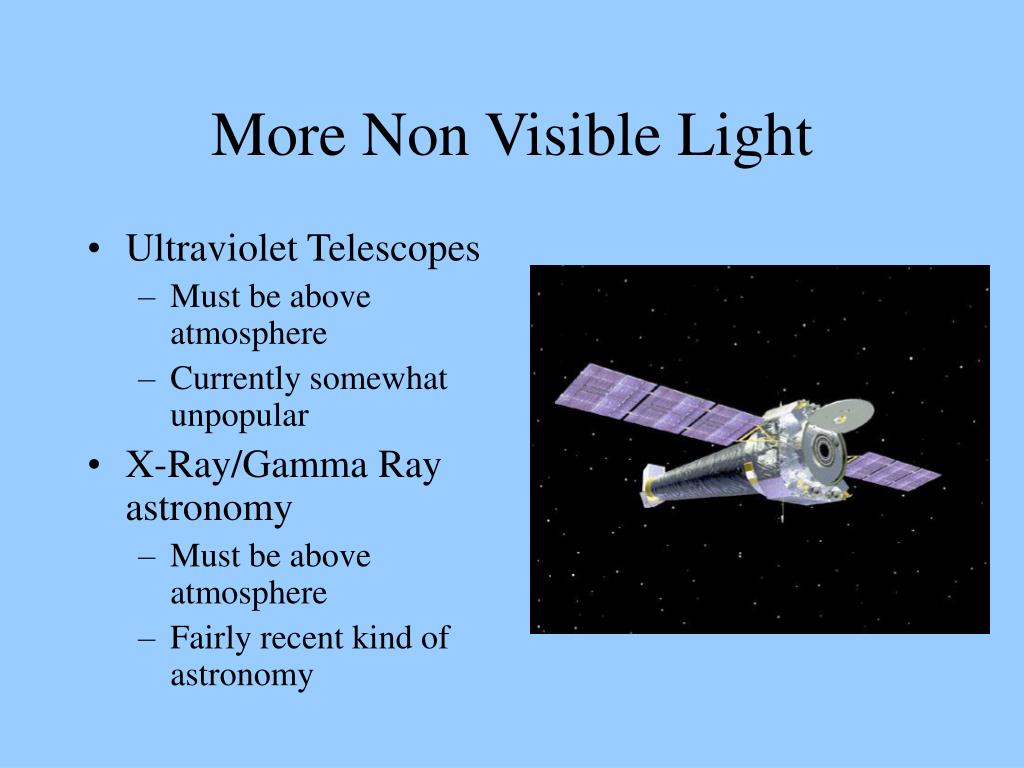

  19. More Non Visible Light • Ultraviolet Telescopes • Must be above atmosphere • Currently somewhat unpopular • X-Ray/Gamma Ray astronomy • Must be above atmosphere • Fairly recent kind of astronomy

  20. Arrays • Interferometry greatly increases angular results • Not nearly as efficient for increasing light collecting ability

  21. Solar System Properties • Patterns of motion already discussed • Planets revolves, orbits Sun • Two kinds of planets • Small, rocky, terrestrial planets • Large, gassy, jovian planets • Lots of little rocky objects • Asteroid belt, Kuiper belt, Oort cloud

  22. Nebular Theory • First proposed by Kant (1755), Laplace (1795) • Involves gravitational collapse of a cloud of gas • Most of the gas formed the Sun, leftover gas formed the planets

  23. Where Did the Gas Come From? • Stars die, spew out their guts • Supernovae, novae • Our Sun is a second generation star • We can see other gas clouds forming • Can also see stars forming within gas clouds • Best example: the Orion Nebula

  24. From Gas to the Solar System • Initially gas was spread out over several light-years • Gas starts to collapse • Temperature rises • Cloud begins to rotate more and more quickly • Flattens

  25. Planet Formation • Problem: solar nebula was 98% hydrogen/helium, planets aren’t • Planets formed via condensation • Early solar system breakdown: • 98% hydrogen/helium • Hydrogen compounds (1.4%) • Rock (.4%) • Metals (.2%) • Frost Line dictates where hydrogen compound things form (jovian planets) and where rocky things form (terrestrial planets)

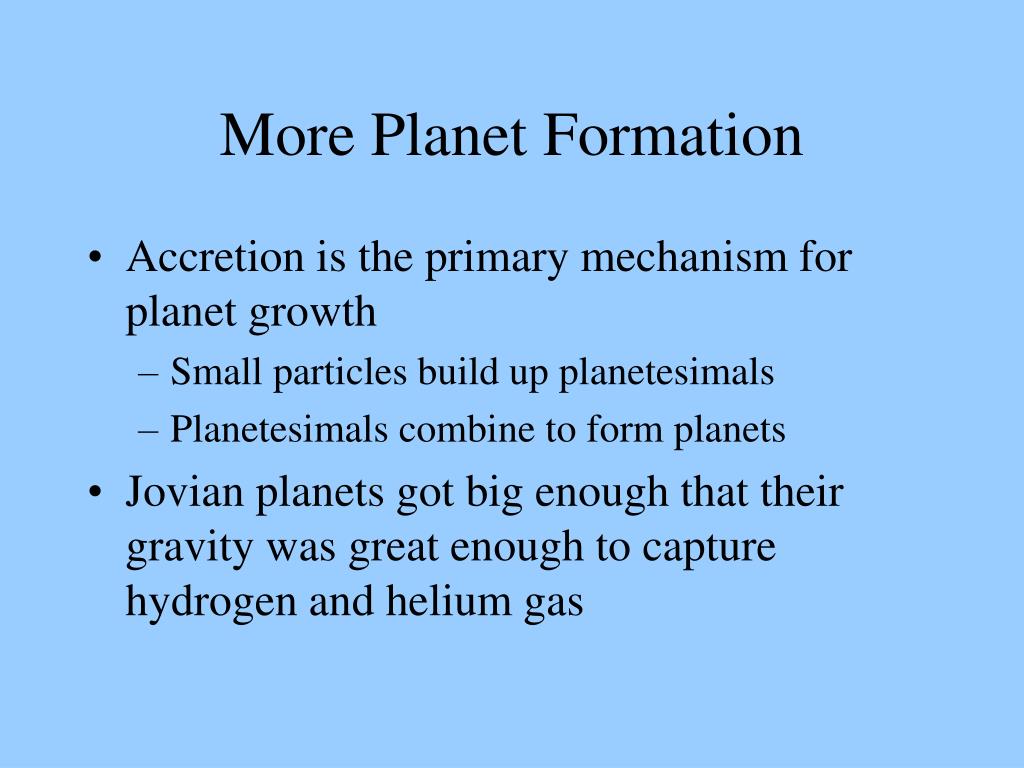

  26. More Planet Formation • Accretion is the primary mechanism for planet growth • Small particles build up planetesimals • Planetesimals combine to form planets • Jovian planets got big enough that their gravity was great enough to capture hydrogen and helium gas

  27. The End of Planet Formation • Eventually the solar wind pushed all of the gas out into interstellar space • Sun was spinning much more quickly • Eventually the Sun’s magnetic field dispersed its angular momentum

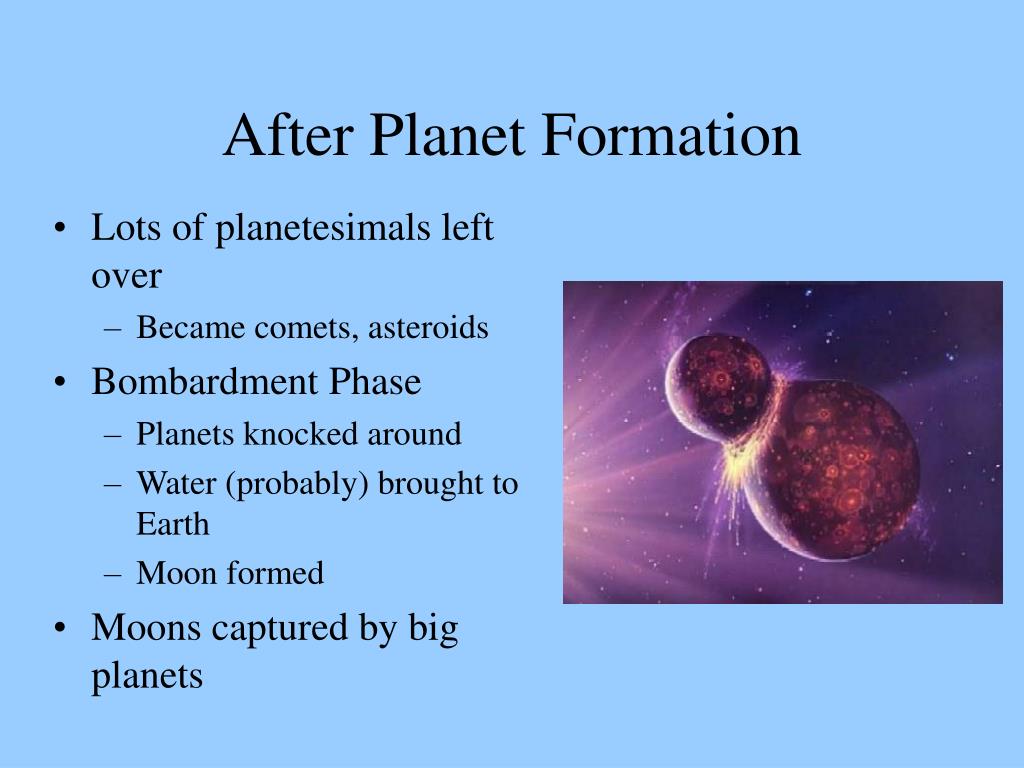

  28. After Planet Formation • Lots of planetesimals left over • Became comets, asteroids • Bombardment Phase • Planets knocked around • Water (probably) brought to Earth • Moon formed • Moons captured by big planets

  29. The Age of the Solar System • The Solar System is about 4.6 billion years old. How do we know this? • Atoms are identical: young atoms are indistinguishable from old atoms • Atoms can undergo spontaneous radioactive decay and turn into other elements or isotopes

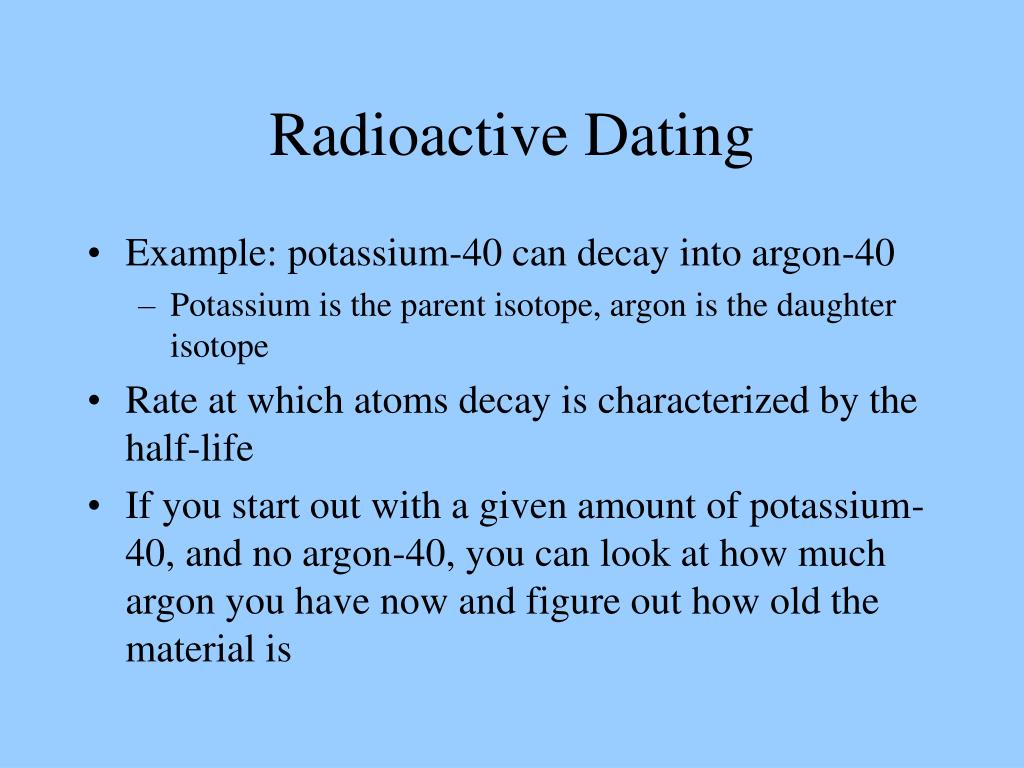

  30. Radioactive Dating • Example: potassium-40 can decay into argon-40 • Potassium is the parent isotope, argon is the daughter isotope • Rate at which atoms decay is characterized by the half-life • If you start out with a given amount of potassium-40, and no argon-40, you can look at how much argon you have now and figure out how old the material is

  31. Group Work • Lets say that you know a rock is 3 billion years old and measure that it currently has .75 units of potassium-40. How much argon-40 would you predict that the rock should have? (Hint: follow the example on the bottom of page 241)
