  1. DØ Track triggerLiang Han and Yu-Hsiang (Louis) Lin

  2. Vertex & Central Tracking 1. SMT: silicon ~ 10 mm 2. CFT: scintillating fiber ~ 100 mm

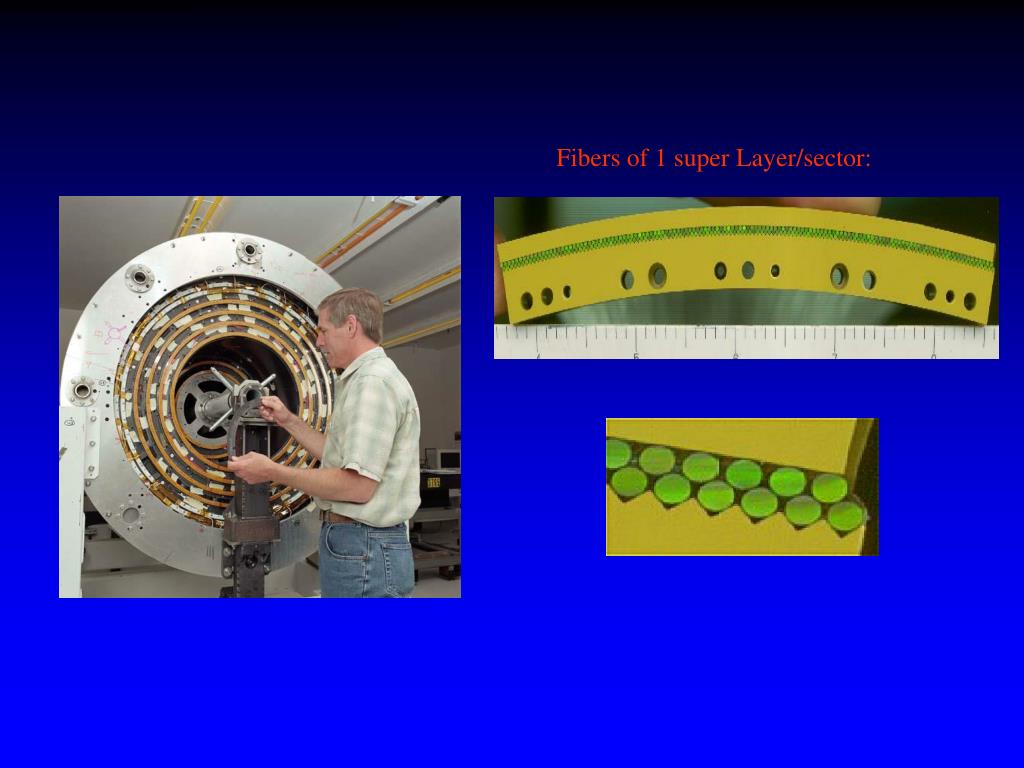

  3. Fibers of 1 super Layer/sector:

  4. Use look up tables of all possible combinations of ‘singlet’ or ‘doublet’ hits to define tracks in Level-1 trigger

  5. PT1 effi PT1 fake FPGA Run2a 96.9% 1.0% ~50% Run2b 97.5% 0.03% ~140% • Trigger efficiency -> high • QCD fake -> low • FPGA resource -> low Good overall performance! L1CTT2b Singlet vs. current Doublet： Low fake @2E32 >10KHz! Pass DOE Review -> upgrade baseline

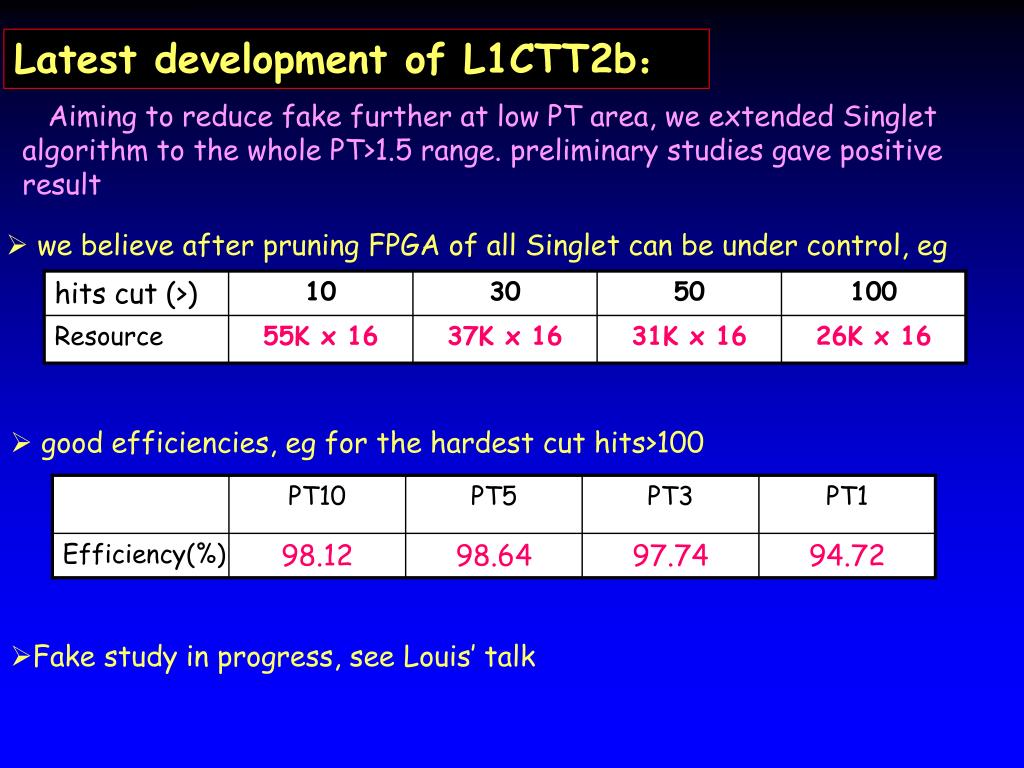

  6. Latest development of L1CTT2b： Aiming to reduce fake further at low PT area, we extended Singlet algorithm to the whole PT>1.5 range. preliminary studies gave positive result • we believe after pruning FPGA of all Singlet can be under control, eg • good efficiencies, eg for the hardest cut hits>100 • Fake study in progress, see Louis’ talk
