Mu2e Solenoid System Status

Mu2e Solenoid System Status. Mu2e Experiment. Production Solenoid. Detector Solenoid. Transport Solenoid. e -. m - , p -. 2.5T. ~5T. Production Target. Stopping Target. 2.0T. Tracker. Calorimeter. Collimators.

phila
Télécharger la présentation

Mu2e Solenoid System Status

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Mu2e Solenoid System Status

  2. Mu2e Experiment Production Solenoid Detector Solenoid Transport Solenoid e- m-, p- 2.5T ~5T Production Target Stopping Target 2.0T Tracker Calorimeter Collimators (not shown: Cosmic Ray Veto, Proton Dump, Muon Dump, Proton/Neutron absorbers, Extinction Monitor, Stopping Monitor)

  3. Solenoid Organization 4 – Mu2e Solenoids • 4.01 - Project Management • Michael Lamm - L2 Project Manager • Tom Page – L2 Project Engineer • 4.06- Magnet Power System • Steve Hays • 4.02 - Production Solenoid • Vadim Kashikhin, N. Andreev, N. Dhanaraj • 4.07 - Magnet Quench Protection and Monitoring System • Darryl Orris, J. Nogiec, Warren Shappert • 4.03 - Transport Solenoids • Giorgio Ambrosio, M. Lopes (D), D. Evbota, R. Wands, S. Cheban, T. Nicols • 4.8 - Magnetic Field Mapping System • M. Tartaglia, M. Buehler, D. Kawall, J. Tompkins • 4.04 – Detector Solenoid • S. Feher, M. Buehler (D), A. Andreev, M.Lopes, R,. Ostojic, Z. Tang, R, Wands, NandhiniDhanaraj • 4.09- Ancillary Equipment • (Tom Page) • 4.05 – Cryogenic Distribution • Tom Peterson, J. Brandt, S. Cheban, Nandhini Dhanaraj, A. Martinez • 4.10 - System Integration, Installation and Commissioning • Jeff Brandt (Tom Page) Vito Lombardo: Engineering oversight and coordination of superconductor acquisition and QA/QC M. Lamm - Solenoid Progress

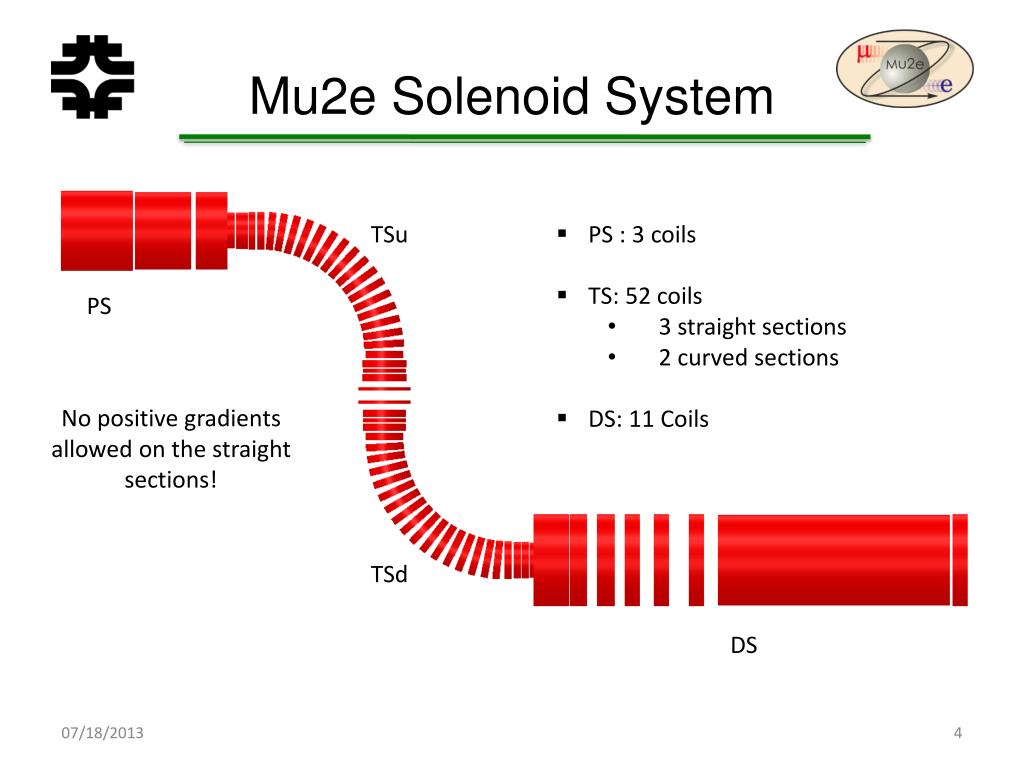

  4. Mu2e Solenoid System TSu • PS : 3 coils • TS: 52 coils • 3 straight sections • 2 curved sections • DS: 11 Coils PS No positive gradients allowed on the straight sections! TSd DS

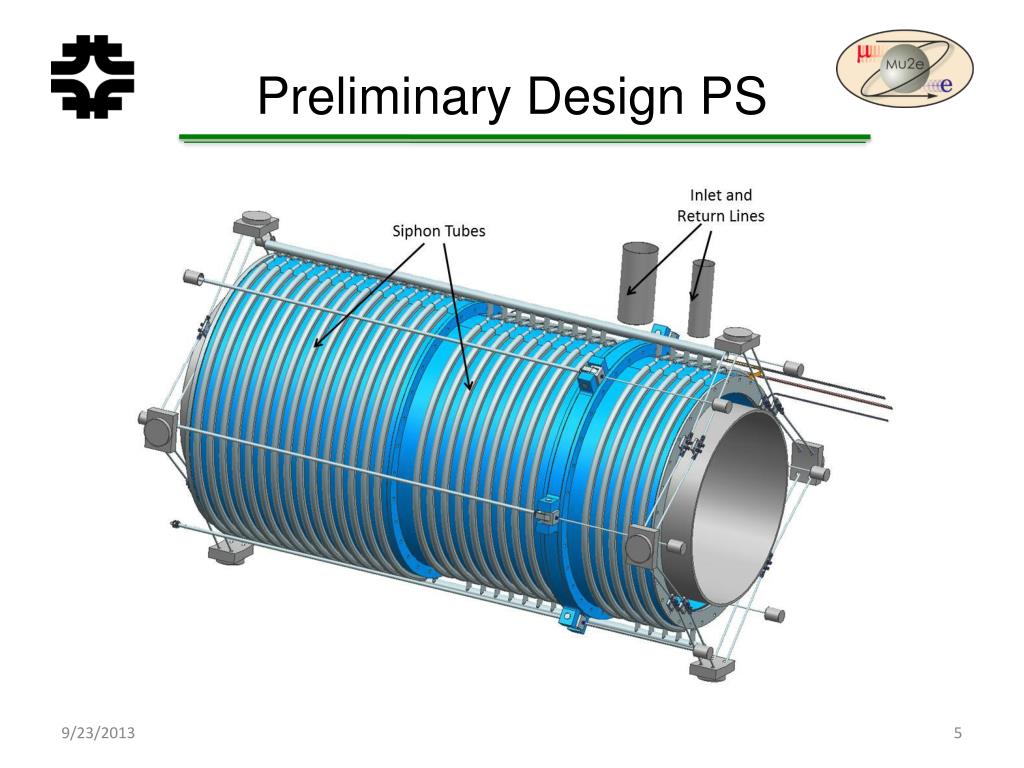

  5. Preliminary Design PS

  6. Preliminary Design DS

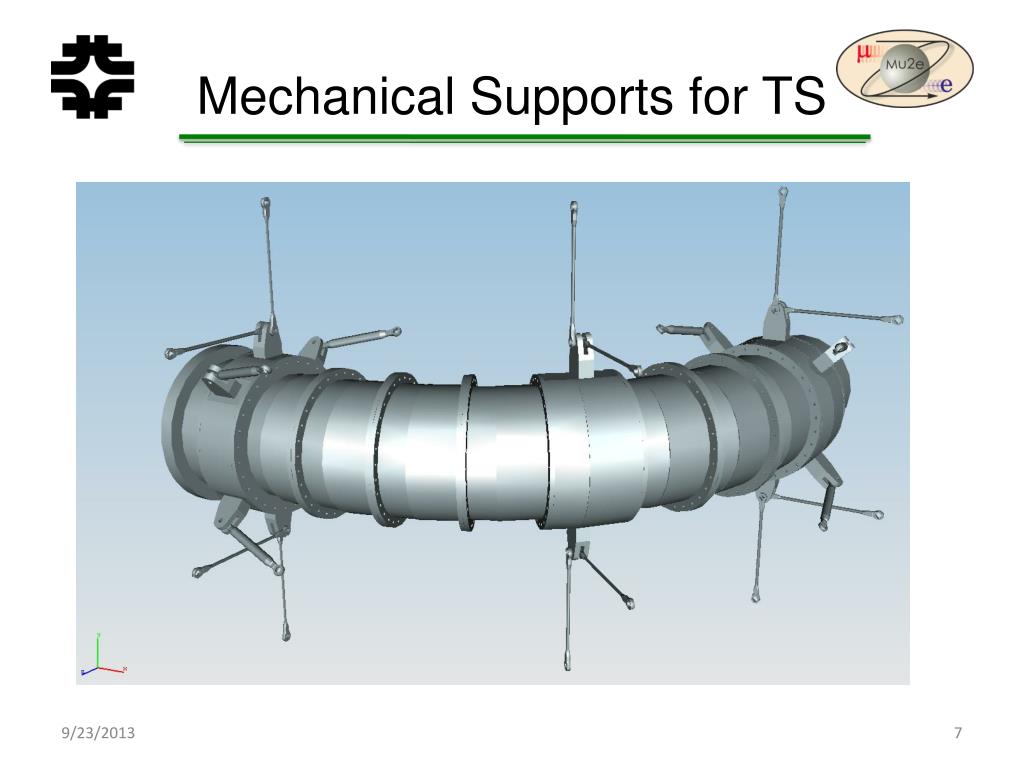

  7. Mechanical Supports for TS

  8. Tolerance studies DR = ± 10 mm

  9. Toshiba demonstration coil Fabricated at Toshiba 2012 Shipped to Fermilab in December Indirect Cooling at Fermilab

  10. TS Prototype Collaboration with INFN/Genoa - ASG

  11. TS Conductor target Ic(4.2K,5T)=494A • All samples exceeded specifications • Very good agreement between measurements collected at Fermilab and Hitachi. • The complete set of cold and warm measurements (not fully reported here, including wire diameter, ovality, cu-SC ratio, twist pitch, critical current, n-Value, RRR, filament diameter and spacing, sharp bend test…) was performed in-house on each length and internally reviewed before accepting the wire.

  12. Schedule • Prototype lengths of the SC delivered by October-December 2013 • TS Prototype finalized by March 2014 • The bid process for the larger solenoids by the end of 2013
