Metro Region Lidar Project

This document details the Minnesota Department of Transportation's Lidar Project survey test data, dated January 13, 2011. The dataset includes a minimum of 100 test points classified into five land cover categories, with 20 points per classification spread throughout the county. The geographical data is based on NAD83 (1996 adjustment) for horizontal datum and NAVD 88 for vertical datum. All data is to be submitted in a comma-delimited (.txt) or CSV format, with specific codes for different land cover types.

phong
Télécharger la présentation

Metro Region Lidar Project

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Metro Region Lidar Project 1/13/2011 Peter Jenkins Minnesota Department of Transportation

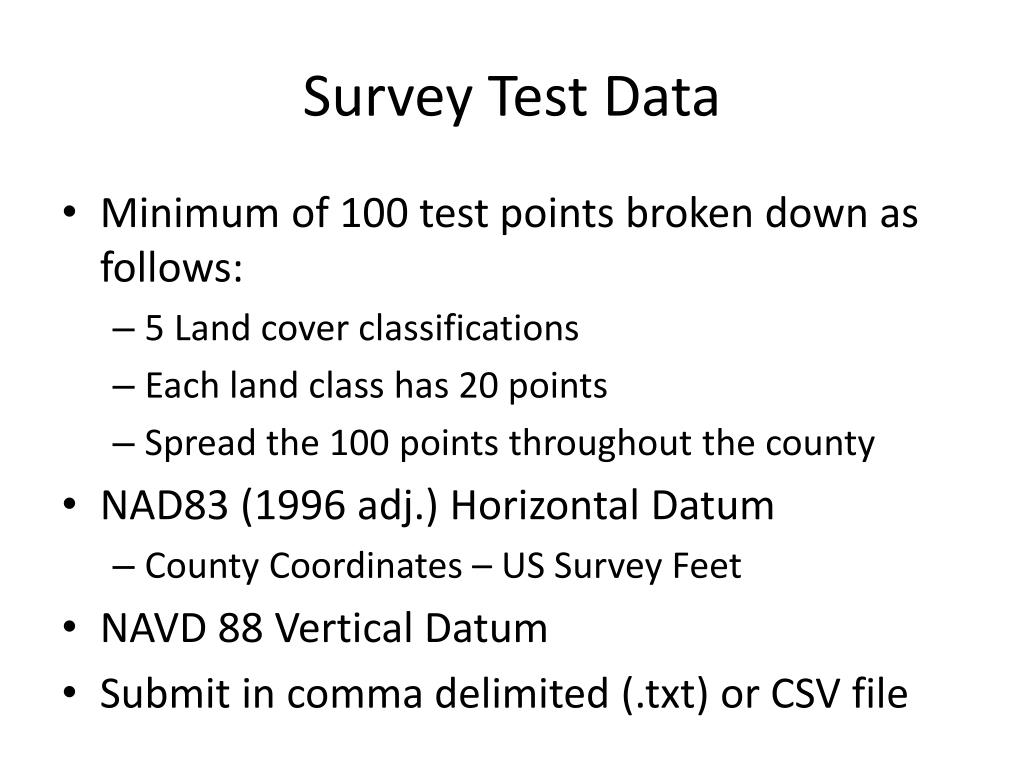

  2. Survey Test Data • Minimum of 100 test points broken down as follows: • 5 Land cover classifications • Each land class has 20 points • Spread the 100 points throughout the county • NAD83 (1996 adj.) Horizontal Datum • County Coordinates – US Survey Feet • NAVD 88 Vertical Datum • Submit in comma delimited (.txt) or CSV file

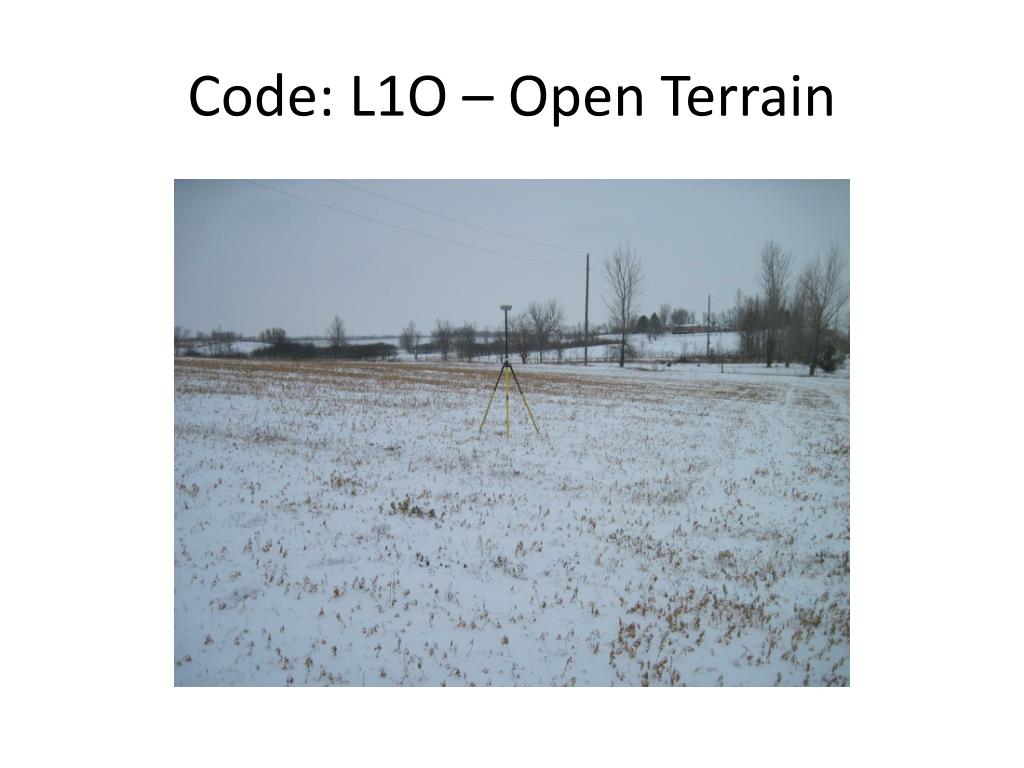

  3. Code: L1O – Open Terrain

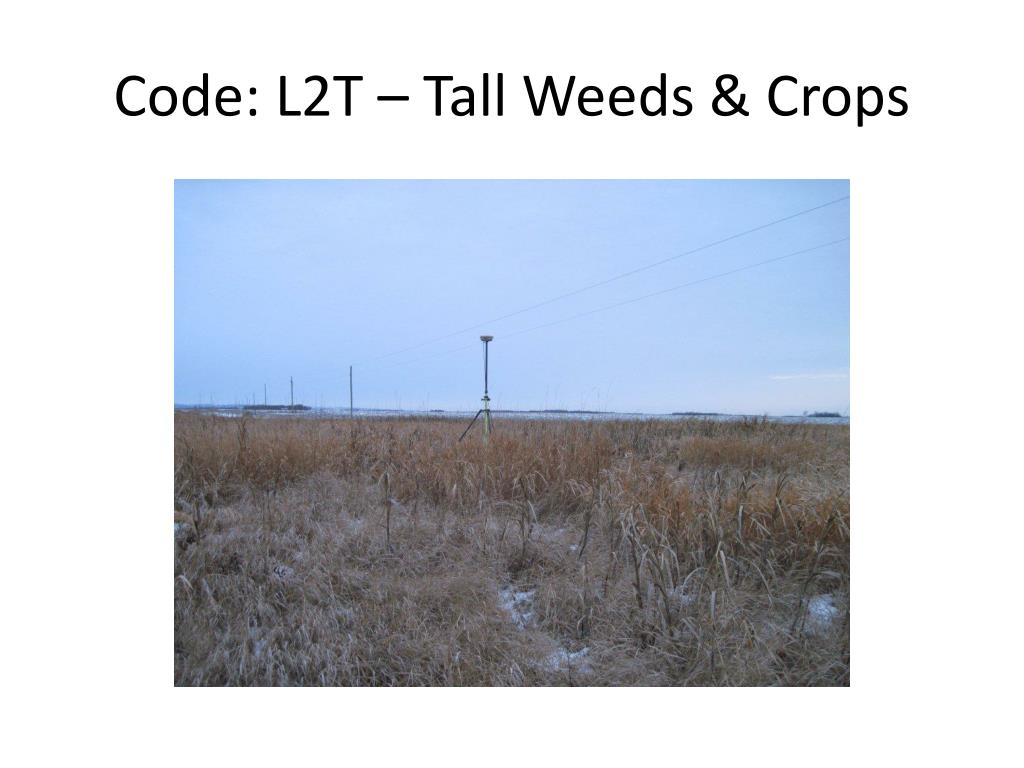

  4. Code: L2T – Tall Weeds & Crops

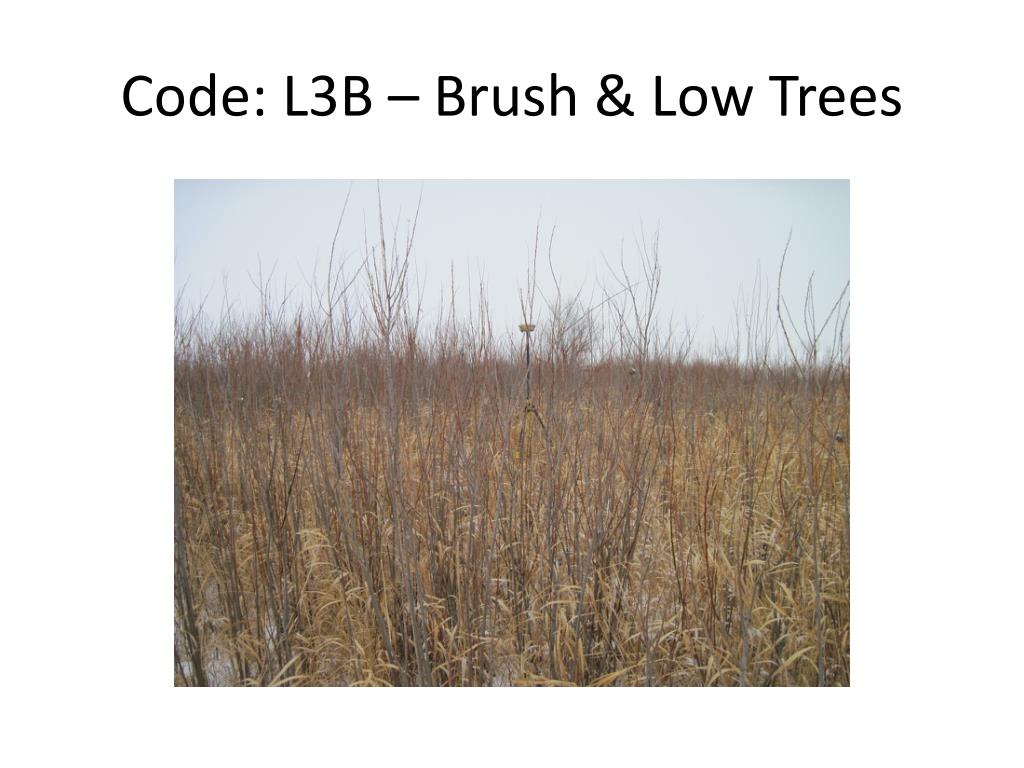

  5. Code: L3B – Brush & Low Trees

  6. Code: L4F – Forest

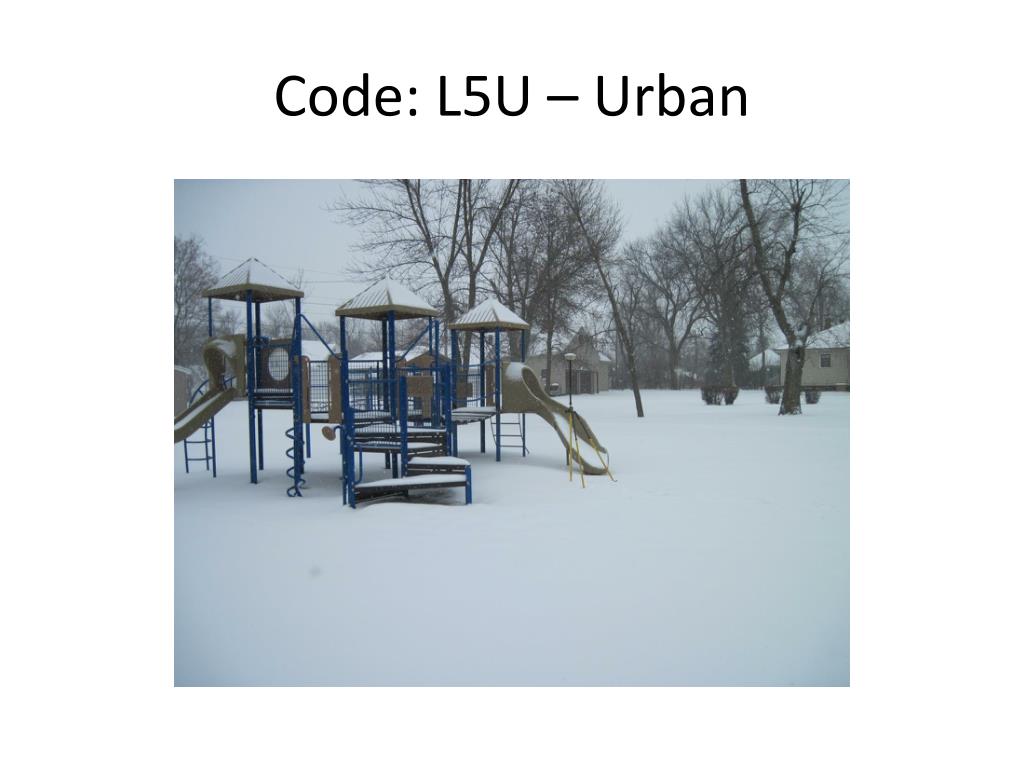

  7. Code: L5U – Urban
