Characterization of neutron fields at Cernavoda NPP

Characterization of neutron fields at Cernavoda NPP. Vanessa Cauwels Filip Vanhavere , Dorin Dumitrescu , Alecsandru Chirosca , Luke Hager , Marc Million , James Bartz. IRPA conference Glasgow, May, 14, 2012. Introduction.

pia
Télécharger la présentation

Characterization of neutron fields at Cernavoda NPP

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Characterization of neutron fieldsat CernavodaNPP Vanessa Cauwels Filip Vanhavere, DorinDumitrescu, AlecsandruChirosca, LukeHager, Marc Million, James Bartz IRPA conference Glasgow, May, 14, 2012

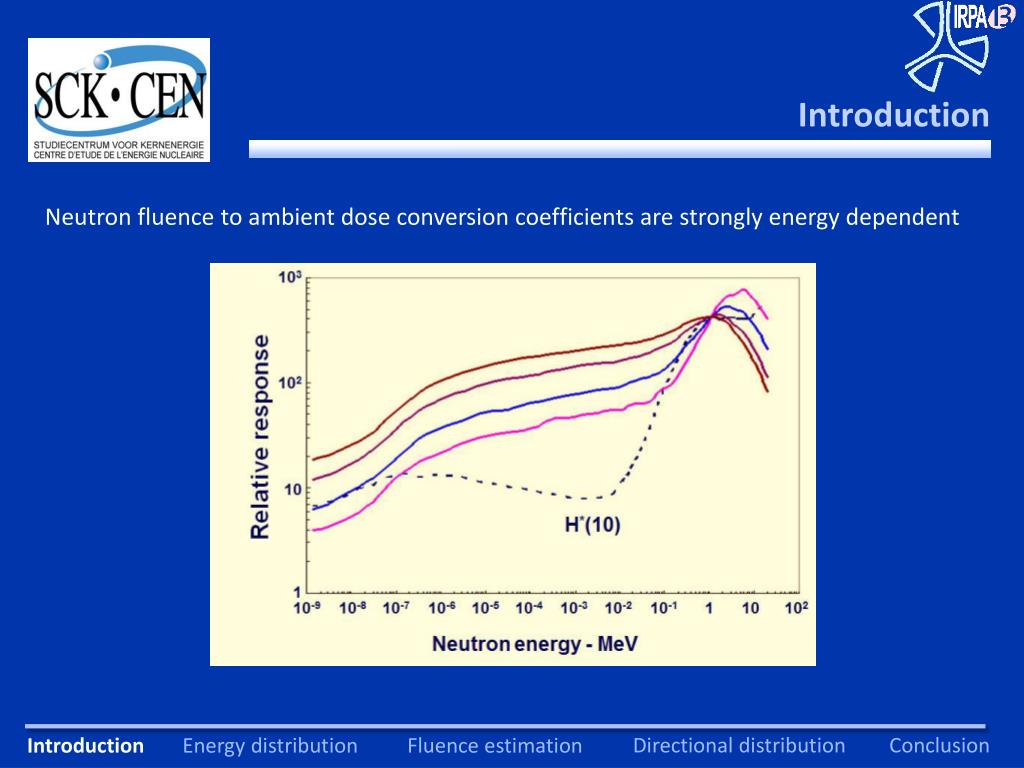

  2. Introduction • Neutron fluence to ambient dose conversion coefficients are strongly energy dependent Directionaldistribution Conclusion Introduction Energy distribution Fluenceestimation

  3. Energy distribution Nprobe (BTI) 40.2 pSvcm² 55.7 pSvcm² 137 pSvcm² Introduction Directionaldistribution Conclusion Energy distribution Fluenceestimation

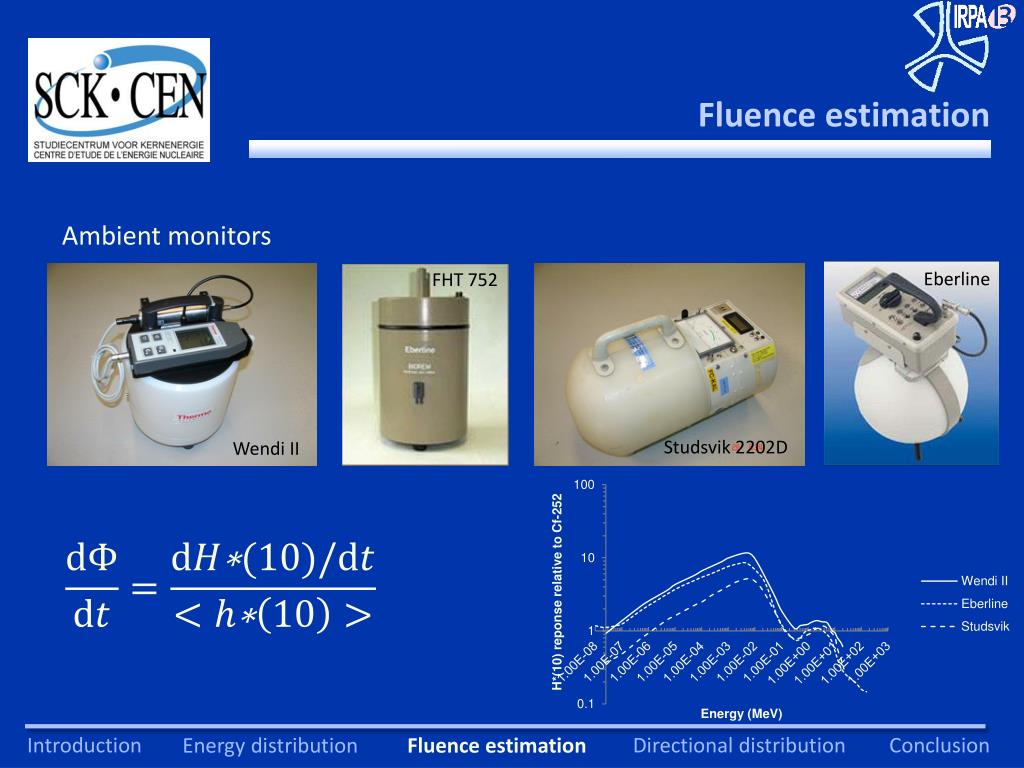

  4. Fluence estimation • Ambient monitors Eberline FHT 752 Studsvik2202D Wendi II Introduction Directionaldistribution Conclusion Energydistribution Fluenceestimation

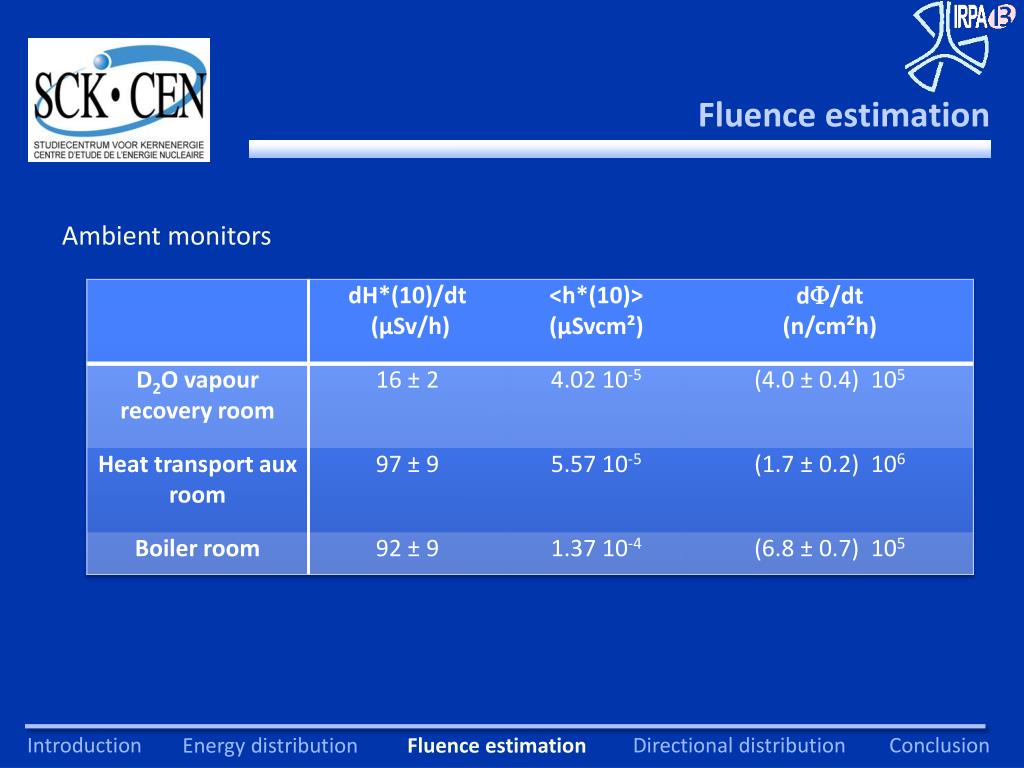

  5. Fluence estimation • Ambient monitors Introduction Directionaldistribution Conclusion Energydistribution Fluenceestimation

  6. Directional distribution • What if we assume the fluence is unidirectional? Introduction Directionaldistribution Conclusion Energydistribution Fluenceestimation

  7. Directional distribution • What if we assume the fluence is isotropic? Introduction Directionaldistribution Conclusion Energydistribution Fluenceestimation

  8. Directional distribution • Directional distribution estimation Introduction Directionaldistribution Conclusion Energydistribution Fluenceestimation

  9. Directional distribution • Directional distribution estimation Introduction Directionaldistribution Conclusion Energydistribution Fluenceestimation

  10. Directional distribution • Directional distribution estimation Introduction Directionaldistribution Conclusion Energydistribution Fluenceestimation

  11. Conclusion • What did the personal dosemeters say? Introduction Directionaldistribution Conclusion Energydistribution Fluenceestimation

  12. Conclusion • Neutron dosimetry is not straightforward due to the strong energy and angular dependency of the neutron personal dose equivalent • Neutron field characterization is therefore indespensable, allowing knowledge of the energy spectrum and directional distribution • The energy spectrum was recorded using an Nprobe • The directional distribution was estimated by placing several personal dosemeters on a slab phantom • Comparison between different approaches shows the big importance of taking this directional distribution into account. • Moreover the measured value of the personal dosemeters must be evaluated with great care and compared with the calculated reference value Introduction Directionaldistribution Conclusion Energydistribution Fluenceestimation
