1. Techy Information Anandha Gopalan September 13, 2006

2. Outline • AFS overview • Departmental software • Departmental machines • The ticket system • Help !!!

3. AFS overview • What is AFS ? • Andrew File System • 1984 - Developed at CMU as part of Project Andrew • 1989 - Transarc Corporation founded to commercialize AFS • 1998 - Transarc acquired by IBM • 2000 - IBM releases OpenAFS under the IBM Public License (IPL)

4. Why AFS ? • Security: authentication via Kerberos 4 • Fine grained control over file permissions • Can give individual users access to files and directories • Accessible via both UNIX and Windows  • More information about clients: • http://www.openafs.org/

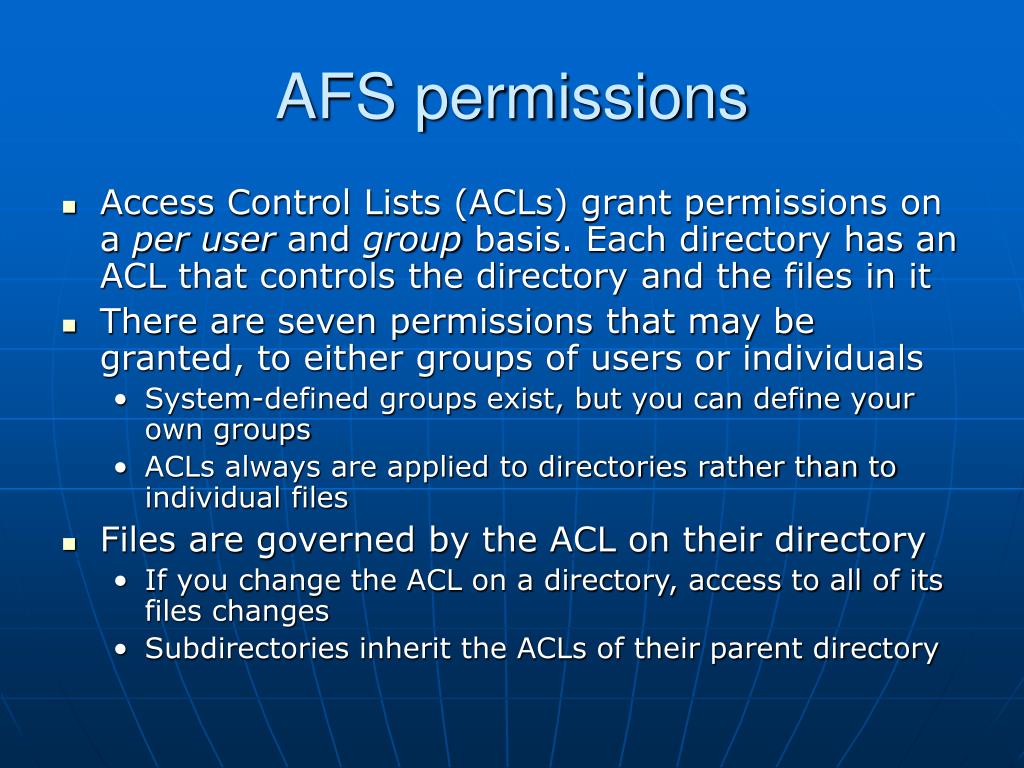

5. AFS permissions • Access Control Lists (ACLs) grant permissions on a per user and group basis. Each directory has an ACL that controls the directory and the files in it • There are seven permissions that may be granted, to either groups of users or individuals • System-defined groups exist, but you can define your own groups • ACLs always are applied to directories rather than to individual files • Files are governed by the ACL on their directory • If you change the ACL on a directory, access to all of its files changes • Subdirectories inherit the ACLs of their parent directory

6. AFS permissions • AFS ACLs work in conjunction with the standard Unix "owner" permissions. Only the owner permissions have an effect on AFS file access • Unix permissions for "group" and "other" do not affect AFS file access. • A user with appropriate AFS permissions can: • read a file only if the UNIX "owner read" mode is set. • write to a file only if the UNIX owner "read" and "write" modes are set. • execute a file only if the UNIX owner "read" and "execute" modes are set.

7. AFS permissions • Lookup: l, allows a user to list the contents of the AFS directory, examine the ACL associated with the directory and access subdirectories. • Insert: i, allows a user to add new files or subdirectories to the directory. • Delete: d, allows a user to remove files and subdirectories from the directory. • Administer: a, allows a user to change the ACL for the directory. Users always have this right on their home directory, even if they accidentally remove themselves from the ACL. • Read: r, allows a user to look at the contents of files in a directory and list files in subdirectories. • Write: w, allows a user to modify files in a directory. • Lock: k, allows the processor to run programs that need to "flock" files in the directory.

8. AFS permissions • System-groups in AFS • system:anyuser • Any user in the world who can gain access to your cell. This is a very broad group, and caution should always be used when granting any access to this group • system:authuser • Everyone who is currently authenticated in your cell • system:administrators • A few users in the cell who have been designated as AFS system administrators

9. AFS pitfalls • I have –rw------- on my file, but it can still be read by others • Check the directory permissions • AFS works at the directory level, UNIX permissions are ignored • For a file to be executable, it still needs to have the correct UNIX permissions !!!

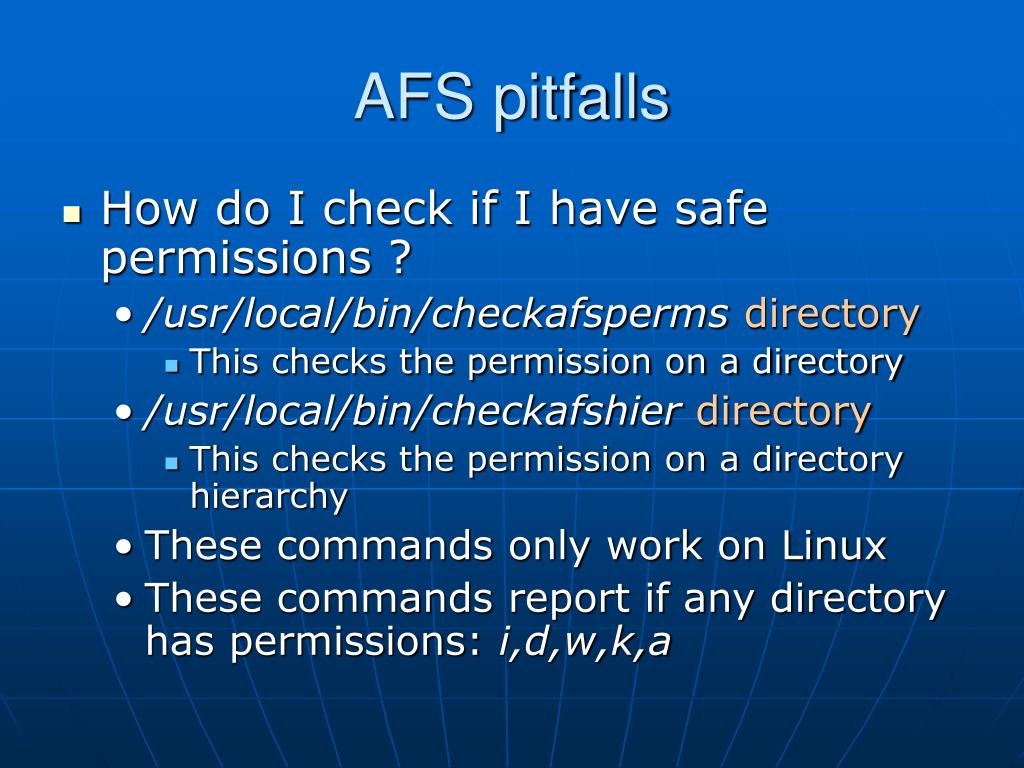

10. AFS pitfalls • How do I check if I have safe permissions ? • /usr/local/bin/checkafsperms directory • This checks the permission on a directory • /usr/local/bin/checkafshierdirectory • This checks the permission on a directory hierarchy • These commands only work on Linux • These commands report if any directory has permissions: i,d,w,k,a

11. AFS pitfalls • 2 GB file size limitation • Though you don’t really need this  • Tokens expire after 24 hours • A klog will get you new tokens • tokens will show available tokens • Use reauth to run programs > 24 hours • Cannot set recursive permissions    Workaround available   To give all permissions to user nemo recursively $ find . -type d -exec fs sa {} nemo all \;

12. AFS directory setup • public • Directory that can be read and listed by all • Contains a directory html under which users can create their web pages etc... • private • Accessible only by the user • Backup • Link in the home directory which contains the backup that is a day old • For older backups, ask tech

13. Special AFS user agents • mailserver • Any process using the mail server has this username • Can be used for spam filtering using spamassasin • webserver • Any process using the http protocol • Can be used for providing correct access to user web pages, cgi programs etc…

14. Department software • Information about new software installed on Linux/Solaris can be found at: http://www.cs.pitt.edu/~tech/software • /usr/local/contrib contains software that is used by a small number of people, its either something new or experimental • You can contribute by installing s/w in this directory (ask tech about it) • /usr/local contains software that is needed and used by the majority of people in the department

15. Departmental machines • The Linux machines • Can be accessed as: linux.cs.pitt.edu or elements.cs.pitt.edu • Some machines are: arsenic, antimony, oxygen, hydrogen, nitrogen, selenium • Solaris 9 machines • Can be accessed as: blitz.cs.pitt.edu and javalab.cs.pitt.edu, (need to use your pitt account for javalab.cs.pitt.edu)

16. The ticket system • Any email sent to tech@cs.pitt.edu is logged into the ticket system • Issues a ticket number that is used to keep track of this ticket • Rather than sending an email, visit: http://ticket.cs.pitt.edu and login with your AFS username and password • Helps in keeping track of your tickets • Be clear when you ask for something • If necessary, mention your machine name, OS, room number  Trust me, it helps 

17. HELP !!! • In case you are wondering: • How on this blue-green planet do I do this ????? • Some answers are provided at: http://www.cs.pitt.edu/~tech • Has a link to an FAQ with a lot of answers • Has a link to the tech newsletter • Has a link to the upgrades and software installation by the software TA

18. ? ? ? ? ?
