Glue Programme

1. Glue Programme Material for Berkeley (Tim)

2. Contents • Why do we need to have a glue programme? • Polling the Collaboration • First thoughts on a Programme Outline Glue Programme Discussion

3. Origins • Came out of ‘decision’ to migrate from SE4445 to ‘something else’ for module mounting during stave production. • Keep SE4445 during prototyping as there is ‘a chance’ damaged/failed modules can be removed • General consensus is that ‘something more sticky’ should be used for production • General realisation that glue choices across project are not ‘well defined’. • Likes and dislikes • Reasons for choice lost in history • What’s Been Done ? • Attempt to elicit information by polling whole community Glue Programme Discussion

4. Polling the Collaboration • Request sent by e-mail to several ATLAS mailing lists… asking for input for any gluing step • ASIC to Hybrid • Hybrid to Silicon • Silicon to bus tape • Silicon to HV bias pad (if different from #1) • Honeycomb to Carbon-fibre face sheet • Cooling tube to thermally conducting foam and foam to face-sheet • 6 responses! • Nigel, Ingrid, Dave Lynn, Richard French, Steve McMahon & Eric Anderssen • Most expressed ‘interest’ and/or listed recent expertise – Eric’s was the most thought provoking! • “The assembly process dominates adhesive selection.” Glue Programme Discussion

5. What Surfaces are Glued? • In general, adhesives are required to join two of the following surfaces • Silicon (ASIC & sensor) • Kapton (Hybrid (solder resist?) & bus tape) • FR4 (Solder resist?) (DCDC converters/SP boards, EoS cards…) • CFRP (facesheet, honeycomb, ‘C’-channels) • Kevlar (Nomex, N636, honeycomb) • Carbon (Allcomp foam) • Titanium (cooling tube) • PEEK (closeouts) • Occasionally, the two surfaces are the same material • CFRP facesheet to CFRP ‘C’-channel • What about sub-components? • Face-sheet pre-preg, honeycombs, hybrids & bus-tapes are composites of several materials all laminated together with some adhesive or other. • My view is that these should be treated in the same was as say a sensor or ASIC in that the teams involved in their procurement/development should be ensuring that they are radiation-hard. Glue Programme Discussion

6. How are Surfaces Prepared? • Good surface preparation procedures are essential for reliable glue joints • But, they are notoriously difficult to define and ensure compliance to… • Eg. “abrade surface and clean up with alcohol” • What grit? How much pressure? How often should the paper be changed? How deep should the surface scratches be? Which alcohol? What sort of wipe? How should the part be dried & stored? For how long is the procedure effective? Is it ‘safe’ to repeat & if so how many times, etc, etc..? • Online surface preparation guides • Hysol: http://www.henkelna.com/us/content_data/14258_LT4536_TT_Aerospace_Surface_Preparation_Guide.pdf • Distinguishes between ‘cleaning’ and ‘surface preparation’ • Extensive use of chemical processes • Our parts… • Are quite delicate… • Thin sections of CFRP (<0.2mm), cooling tubes (~ 0.1mm) • Sensitive areas: silicon sensor, bond-pads, etc… • Are small / fragile making handling difficult • End close-outs, stave mounting components, etc… • Have minimal ‘surface’ • Thermally conducting foam • The tops & bottoms of honeycomb walls Glue Programme Discussion

7. Cleaning Processes • Web-search reveals many different techniques – see graphic…. • All come with dis-claimers. • Need to be satisfied any technique fulfils ALL requirements (including collateral damage) • Some techniques may require access to specialist equipment • Try to make progress by … • Deciding which techniques are suitable for which substrates • Initiating a programme of work to identify which glues offer best chance of working with the cleaning desired cleaning regime • Talk to industry • Preparation of samples? CO2 Snow?? Glue Programme Discussion

8. How Much Preparation can we Tolerate? • Suggest starting with a web-search • Details of ATLAS construction (Can we find out what was actually done?) • similar projects (CMS, AMS), • Aerospace (NASA,ESA, …) • Electronics packaging & general industry (egHysol guide) • Begins to open up assembly issues….eg…. • If the bus tape is aggressively cleaned before lamination, how do we keep the top surface clean during stave assembly OR if the top surface is cleaned after stave assembly we need an effective procedure which is physically and chemically compatible with the stave? Glue Programme Discussion

9. Surface Characterisation Techniques • Need to … • Compile complete list of useful surface analysis tools and understand which are applicable to each substrate • Understand what facilities are accessible to the collaboration to characterise surfaces • Equipment in labs • Contacts with partner institutes / industry • Initiate a programme to evaluate the surface properties of different substrates cleaned & treated using the allowable procedures Glue Programme Discussion

10. Measurements of Adhesive Properties • Here I’m not considering ‘Application Testing’ • Hybrid-silicon peel test • Bus-tape CFRP peel test • ASIC-hybrid push-off test • Silicon-bus tape peel test • Information should be available from suppliers! • Many tests use ‘industry standard’ equipment • DSC, DMA, Universal Materials Testers • Identify institutes with suitable equipment & effort to collate manufacturer’s data Glue Programme Discussion

11. Application Testing • Verification of ‘real life’ performance eg… • What is the (change in) force required to pull off a 1cm2 baby silicon detector from a section of bus tape after 100 thermal cycles and 1.5xLHC dose? • What is the (change in) peel strength for the bus-tape from the CFRP face-sheet after 100 thermal cycles & 1.5xLHC dose? • What is the(change in) thermal impedance through a 1cm2 x 0.5cm thick bus tape/CFRP/foam/CFRP/bus-tape sandwich after 100 thermal cycles and 1.5x LHC dose? • Such tests are ‘expensive’ • How many tests? • Ideally would like 5-10 tests of identical samples • Need to minimise (=1) process variations • Tests will involve many parts from different sources moving between different locations • Full life-cycle tracking of ALL components needs to be in place for every step at every location • Probably need to identify a few ‘simple’ tests • NB ‘Simple’ = well understood geometry, components, assembly processes, environmental conditioning & test protocols Glue Programme Discussion

12. Programme Outline • I (Tim!) would be willing to coordinate the programme • Before Upgrade Week:- • Document & circulate requirements • Poll community for info on surface preparation & analysis • Hold a ½ day meeting during upgrade week • Review requirements • See who’s interested and what they can contribute • Begin to define a ‘plan’ • Goal might be to have an informed choice for the SE4445 replacement by end of 2014? Glue Programme Discussion

13. Backup • The e-mail I sent to the groups (1 slide) • The responses I got (3 slides) • Incomplete Glue Matrix (1 slide) • A RAL “designer epoxy”. Glue Programme Discussion

14. E-mail Request to the Groups I'm trying to compile a survey of the different adhesives which are being considered for use at various stages of strip stave and petal assembly. The following list is a compilation of different gluing steps from hybrid assembly all the way through to stave core assembly. 1) ASIC to Hybrid 2) Hybrid to Silicon 3) Silicon to bus tape 4) Silicon to HV bias pad (if different from #1). 5) Honeycomb to Carbon-fibre face sheet 6) Cooling tube to thermally conducting foam and foam to face-sheet I'd be grateful if you could e-mail me any information on any gluing experience (both good and bad!) for any of the above steps. Also, I'd be especially interested to learn if the subject of adhesives is either one which interests you or in which you have expertise! Many thanks, Tim Glue Programme Discussion

15. Responses • Ingrid • I think that would be very interesting to join forces. I actually asked Luise to do a survey of what studies have been done earlier on when the current detectors were prepared. Especially to understand what kind of radiation hardness and aging tests were done. For me it was not really clear if it is reasonable to do standard aging tests were a humidity step is included (one cycle with higher humidity, percentage not really defined). Did you do something like this before ? • Nigel • I am interested. For petals, we glue silicon to face sheet (or more correctly, silicon to parylene-C coating on face sheet). And we glue bus tape to face sheet. You could also add adhesives used inside the bus tape. • Our experience so far: • Dow Corning 4445 for silicon to facesheet: • Spec has break-down field on the edge for endcap use. • We have bought some and will try it. It is very expensive in the Netherlands. • Richard F • I spent from 1997 to 2003 studying polymer behavior including some glues so my expertise is more the glue structure and how to measure this such as contact angle measurements, surface measurements such as wetting effect etc etc. • Bottom line is this was something I could do, have the test kit in house to access and am interested in. However I'm not sure how much to bite off here but would like to help. • Dave Lynn • BNL/Yale uses for (5) Hysolwith 30% BN. There appears to work well although we have yet to do detailed testing. For (6) cooling tube to foam we seal the foam with hysol+30 % BN and then use CGL. We plan to move to an Hysol+ 30% BN only solution as the UK has had good results with this (but I have not yet seen any thermal contraction measurements). But so far we seem to have good results with the CGL (based upon camera thermal imaging) but cannot yet quantify. For (6) foam to facing, we again use Hysol+30% BN with good results (again only based upon thermal imaging). Glue Programme Discussion

16. … and more… • Steve McM • During our discussion on Friday I said that I would pass on the headline topics that came up in the discussion with Martin on the Thursday Pixel in Manchester. Items to be added to the list of things to look at in the glue group. • In no particular order they were • 1.  Thermal conductivity • 2.  Loading the glues to improve TC  (Boron nitride etc) • 3. Glass transition temperature • 4. Radiation tolerance • 5. Pot-life • 6. minimum order quantity • 7. Time to delivery • 8. Cost • 9. Preparation details • 10. Disposal at end of use • 11. MSDS (datasheet safety) • 12. Viscosity • 13. Rework issues • 14. Expansion or contraction of the glue on curing • 15. Is the glue hygroscopic • 16. Cure temperature • 17. The temperature (value and stability) of the cure environment • 18. Hardness • 19……. Glue Programme Discussion

17. … and the big one! • Eric Anderssen • I've seen this request before, and wish the best, but what are you trying to get at? • An old trope in the adhesives business is that all adhesives are the same - it's all about how they get into the joint; their properties during application/assembly are as, or more, important than their cured properties, because they all perform similarly after cure. • When I say 'old trope' I mean old--I heard this at industry conferences back in '89, and it was common knowledge before I started attending--admittedly from companies in the business of dispensing said adhesives, but they had (have) a point. • An adhesive joint isn't reliably predictable if you can't control how much adhesive gets there, how thick it is, or how well filleted the joints are. • The properties of mixed 2-part systems or defrosted 1-part systems (pre-cure/dispensing) trump 'ideal' cured properties because control of application properties yields controlled cured properties. • The 10-50% variation in 'measured cured properties' reported by various institutes are likely completely obscured by their assembly processes. That is a problem. If a syringe applied (low viscosity) thermal adhesive performs better than a screed-mask applied (thixotropic) adhesive, post-cure, is it because one adhesive is better than the other, or is it because the folk that report have better control over their process? • In my experience, assembly process dominates adhesive selection. Not to confuse the issue, but at LBNL we either select, or modify, adhesives specifically for their characteristics during assembly. • For example, if we want or need to use 9396, but need it to be more viscous to stay where it belongs in a joint, either we wait during it's pot-life until it becomes more viscous (partially cured), but if the process needs more time, we add Cab-o-sil (microspheres and talc) to change it's viscosity in-pot-life allowing time to introduce the adhesive to the joint. In terms of performance, there is a lot of overlap. • How do you plan to normalize the data you request across the numerous and variable processes (and internal modification of adhesives)? Glue Programme Discussion

18. …. And one from 2 day’s ago • Tony Affolder • ASIC to Hybrid The Tra-duct 2902 (silver loaded epoxy) works well. It is thick enough to screen print and has a good working life. There are a few issues with it: • It is fairly expensive and has a 3-4 month delivery time • The cure time is too long.  Ideally we would want something that hardens to the point that we can remove the vacuum in under 1/2 a working shift.   • So workable for 1/2-1 hour, hardened by 2-4 hours, cured in 12 hours • Hybrid to Silicon The Fuller Epolite 5313 is more problematic.  It is too thin to screen on well.  And pre-curing to thicken isn't great. So we need an electronics-grade epoxy with the following characteristics • Thick enough the screen on • workable for 1/2 hr-1 hr • cures in 2-4 hour without shrinking or expanding • which doesn't damage the silicon • radiation hard Glue Programme Discussion

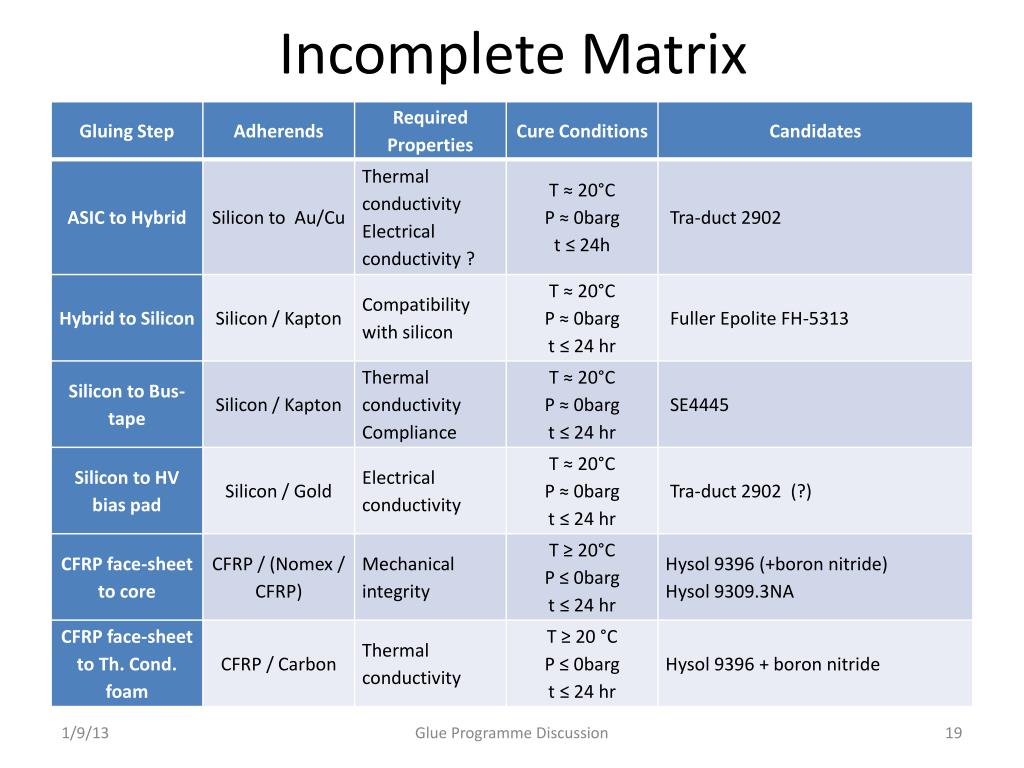

19. Incomplete Matrix Glue Programme Discussion

20. Status Detector epoxy - S Canfer, RAL 12/9/13 • A low modulus adhesive is required to bond detectors • An epoxy has been formulated at RAL • Low viscosity • Very low Tg (approx -40°C) • Very low stiffness at ambient temperature • Low tear strength above Tg (potential for reworking) • Cure currently 50°C for 24 hrs, should be possible to reduce this temperature

21. Compared to SE4445… • This is an adhesive • Lower viscosity so a thinner joint should be achievable so less material and potentially the lack of any filler is an advantage

22. Properties in compression by DMA STORAGE MODULUS MPa
