Structure & Function

piper avatar
piper
14 diapositives · 488 Views · Sep 13, 2012

Structure & Function. http://webspace.ship.edu/cgboer/actionpot.html. http://training.seer.cancer.gov/module_anatomy/unit5_2_nerve_tissue.html. http://people.eku.edu/ritchisong/301notes2.htm. RESTING POTENTIAL is established by Na + - K + pumps. Na+ pumped outside K + pumped inside.

Structure & Function - slide 1
01 / 14Structure & Function
1 / 17

Télécharger la présentation

Structure & Function
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Structure & Function http://webspace.ship.edu/cgboer/actionpot.html

  2. http://training.seer.cancer.gov/module_anatomy/unit5_2_nerve_tissue.htmlhttp://training.seer.cancer.gov/module_anatomy/unit5_2_nerve_tissue.html

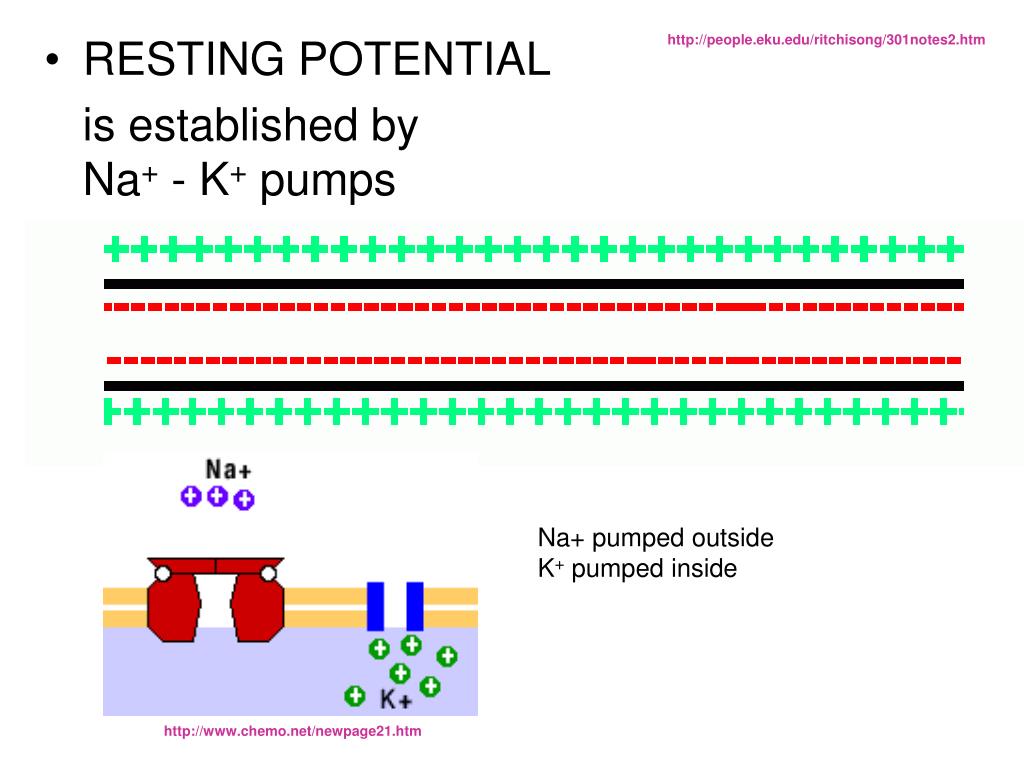

  3. http://people.eku.edu/ritchisong/301notes2.htm • RESTING POTENTIAL is established byNa+ - K+ pumps Na+ pumped outsideK+ pumped inside http://www.chemo.net/newpage21.htm

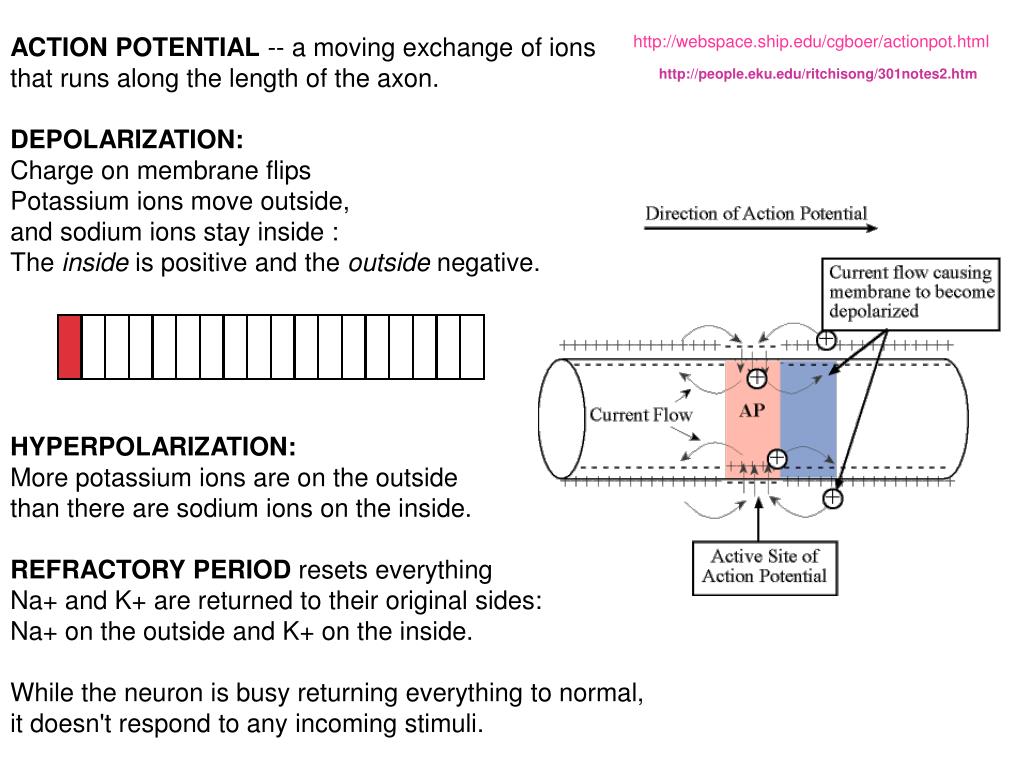

  4. ACTION POTENTIAL -- a moving exchange of ions that runs along the length of the axon.  DEPOLARIZATION:Charge on membrane flipsPotassium ions move outside, and sodium ions stay inside :  The inside is positive and the outside negative. HYPERPOLARIZATION:More potassium ions are on the outside than there are sodium ions on the inside. REFRACTORY PERIOD resets everything Na+ and K+ are returned to their original sides:Na+ on the outside and K+ on the inside. While the neuron is busy returning everything to normal, it doesn't respond to any incoming stimuli. http://webspace.ship.edu/cgboer/actionpot.html http://people.eku.edu/ritchisong/301notes2.htm

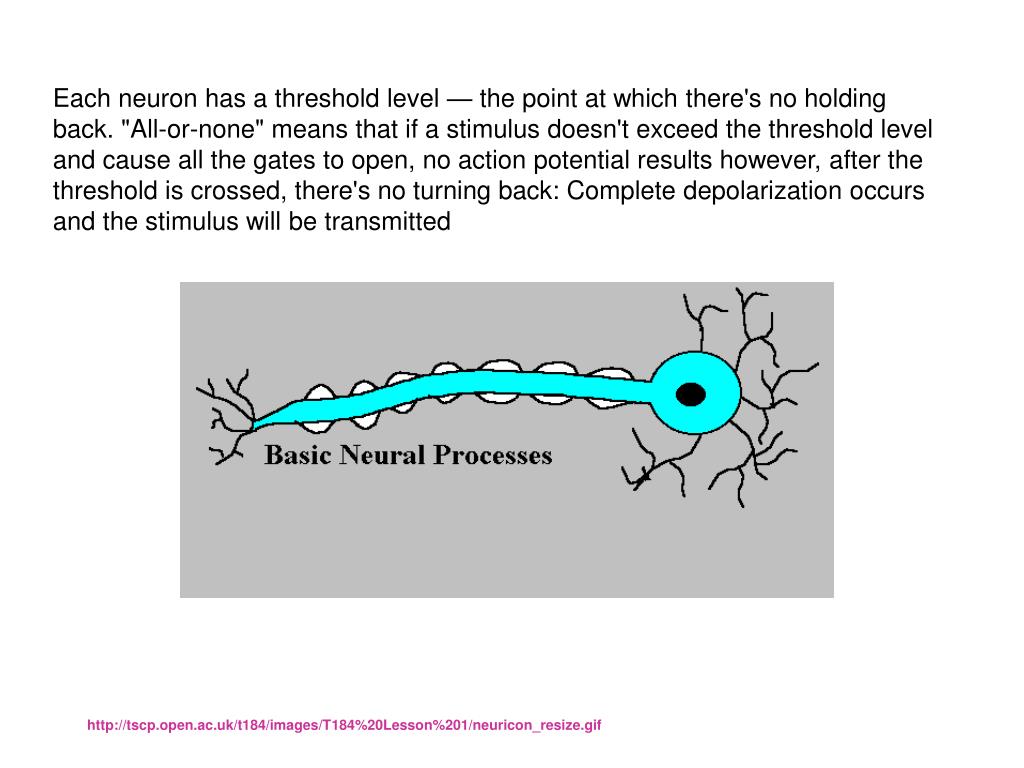

  5. Each neuron has a threshold level — the point at which there's no holding back. "All-or-none" means that if a stimulus doesn't exceed the threshold level and cause all the gates to open, no action potential results however, after the threshold is crossed, there's no turning back: Complete depolarization occurs and the stimulus will be transmitted http://tscp.open.ac.uk/t184/images/T184%20Lesson%201/neuricon_resize.gif

  6. Synapse or synaptic cleft separates the axon of one neuron and the dendrites of the next neuron. Neurons don't touch. The signal must traverse the synapse to continue on its path through the nervous system. Synapse video

  7. DEPOLARIZATON OPENS GATED ION CHANNELS and CALCIUM IONS (Ca ++) are allowed to ENTER the cell. Calcium ions cause VESICLES TO FUSE with cell membrane and release vesicles containing ACETYLCHOLINE (neurotransmitter) into the SYNAPTIC CLEFT. ACETYLCHOLINE DIFFUSES across space and binds to specific RECEPTOR PROTEINS on POSTSYNAPTIC MEMBRANE causing depolarization of next cell membrane. Receptor releases acetylcholine into synapse and ACETYLCHOLINESTERASE enzyme breaks it down and it is RECYCLED. The chemicals go back into the membrane so that during the next impulse, when the synaptic vesicles bind to the membrane, the complete neurotransmitter can again be released.

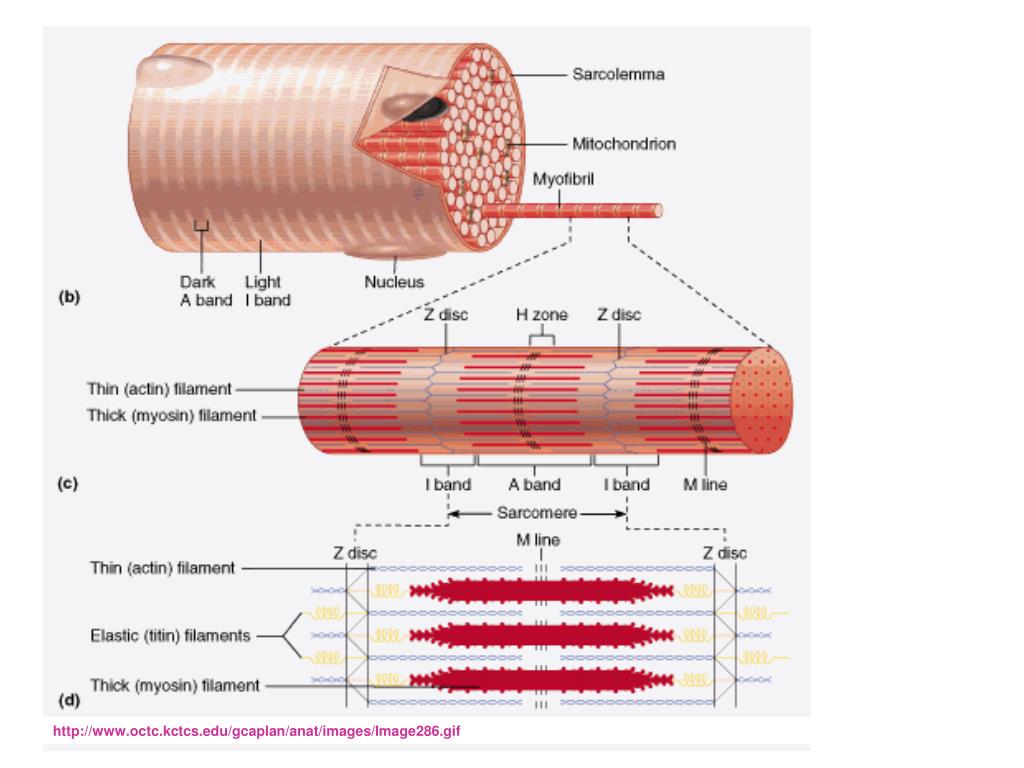

  8. http://www.octc.kctcs.edu/gcaplan/anat/images/Image286.gif

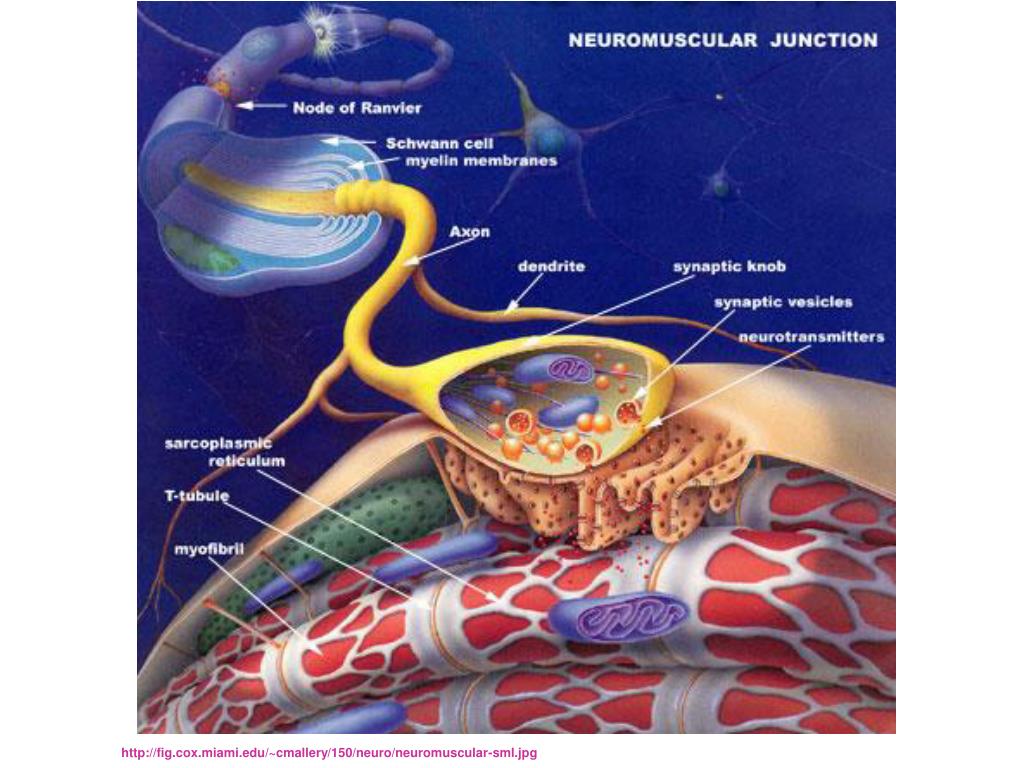

  9. http://fig.cox.miami.edu/~cmallery/150/neuro/neuromuscular-sml.jpghttp://fig.cox.miami.edu/~cmallery/150/neuro/neuromuscular-sml.jpg

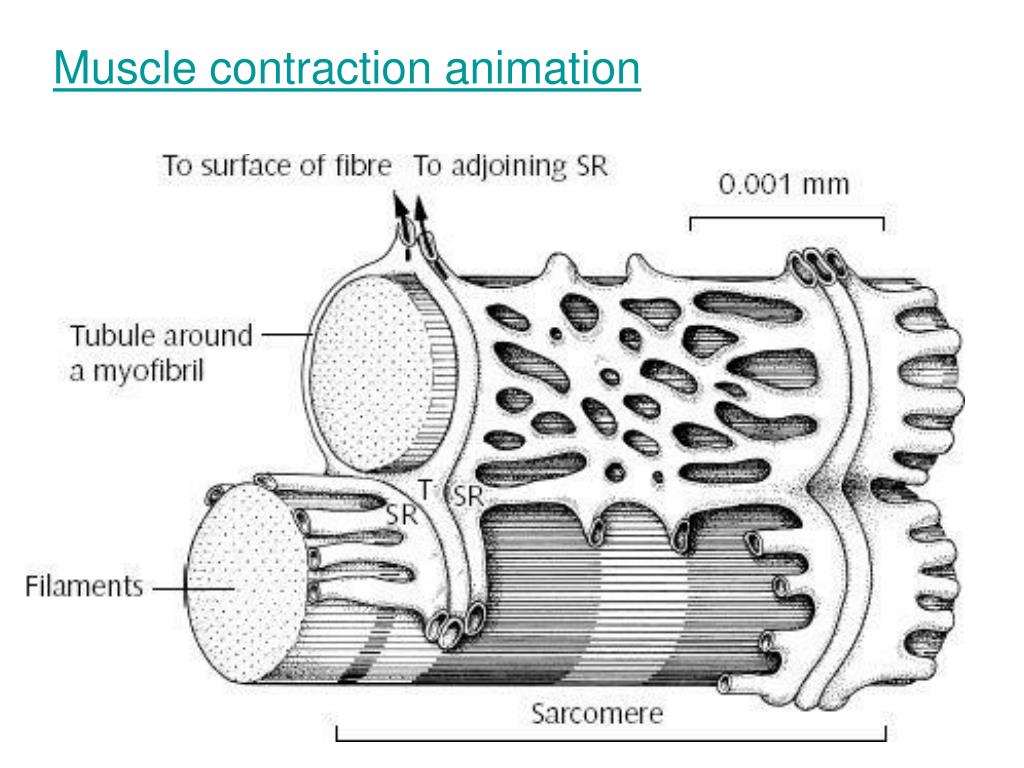

  10. Muscle contraction animation

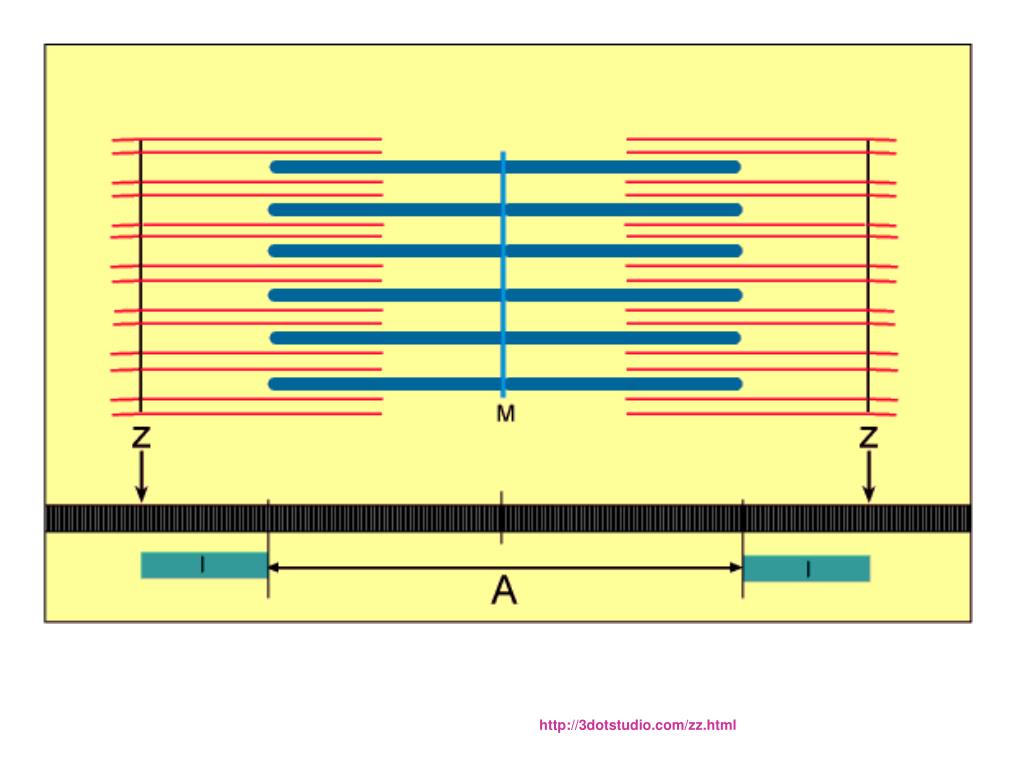

  11. http://3dotstudio.com/zz.html

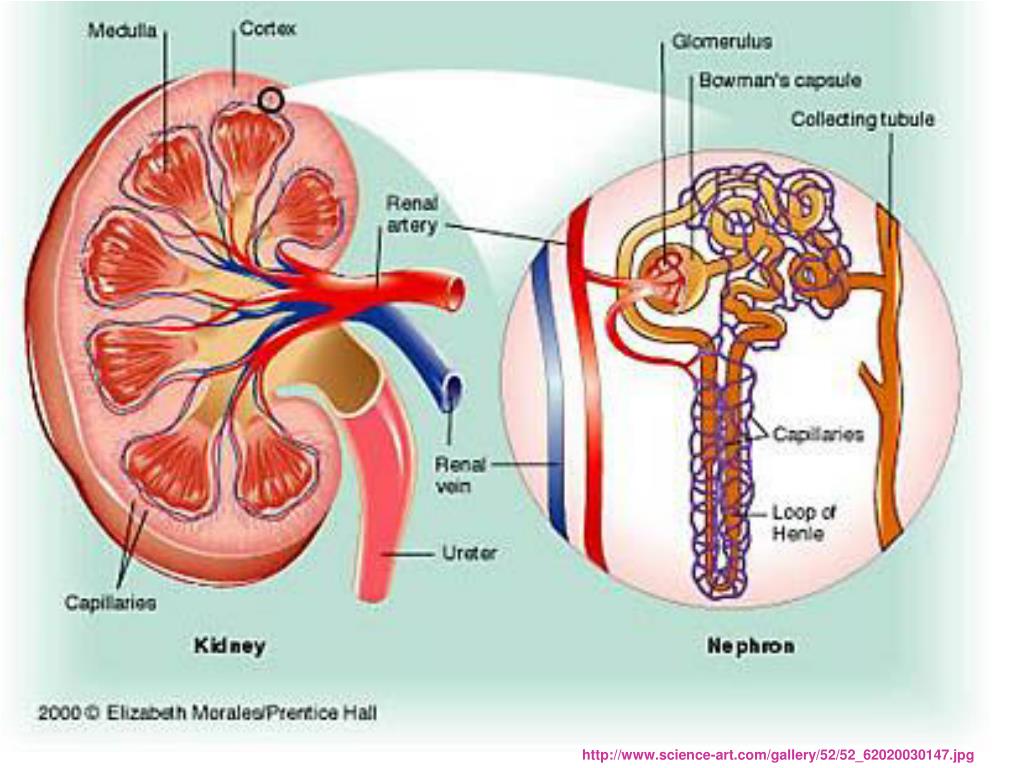

  12. http://www.science-art.com/gallery/52/52_62020030147.jpg

  13. Blood enters the GLOMERULUS (blood vessel tuft) under pressure causing water, small molecules, and ions (but not macromolecules like proteins) to filter throughthe capillary walls into the BOWMAN'S CAPSULE. http://en.wikipedia.org/wiki/Glomerulus

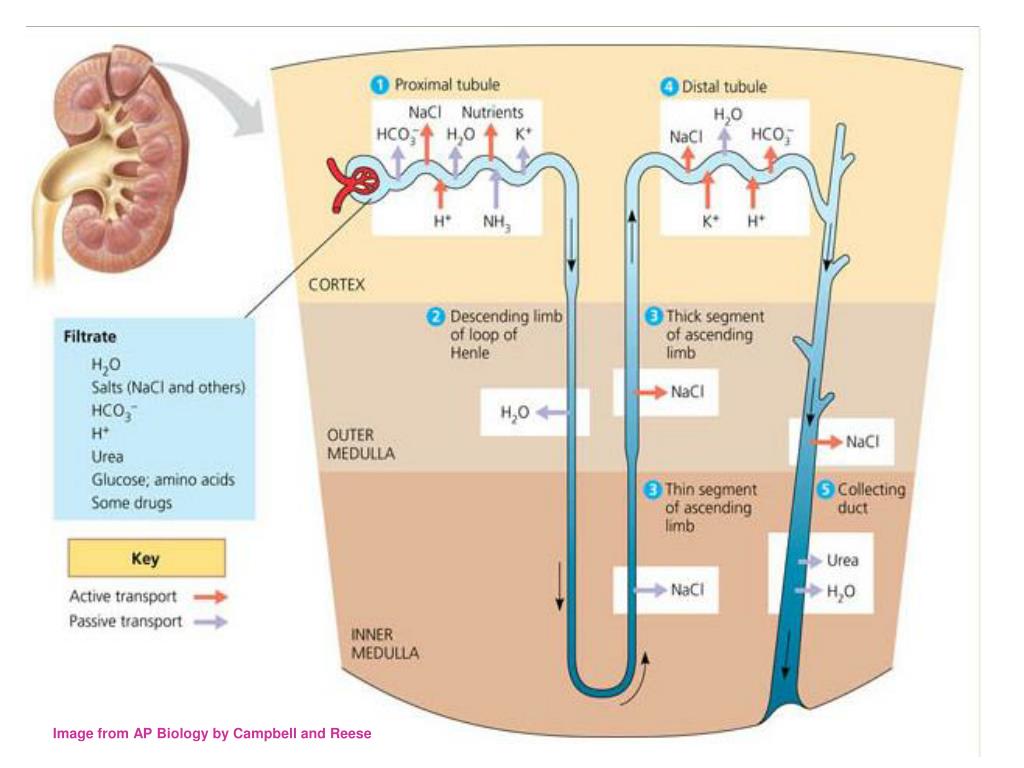

  14. Image from AP Biology by Campbell and Reese
