Locality Aware Dynamic Load Management for Massively Multiplayer Games

This paper addresses the challenge of scheduling game regions across multiple servers in a massively parallel multiplayer game environment. It discusses the locality and load balancing issues, evaluates existing techniques, and proposes a new solution: Locality Aware Dynamic Load Management. This approach aims to balance server load while preserving region locality, thereby reducing inter-server communication and enhancing user satisfaction. Experimental results indicate that dynamic scheduling is superior to static methods in maintaining performance and user experience.

pisces
Télécharger la présentation

Locality Aware Dynamic Load Management for Massively Multiplayer Games

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Locality Aware Dynamic Load Management for Massively Multiplayer Games Jin Chen, Baohua Wu, Margaret Delap, Bjorn Knutson, Honghui Lu and Cristina Amza presented by Sagnik Nandy

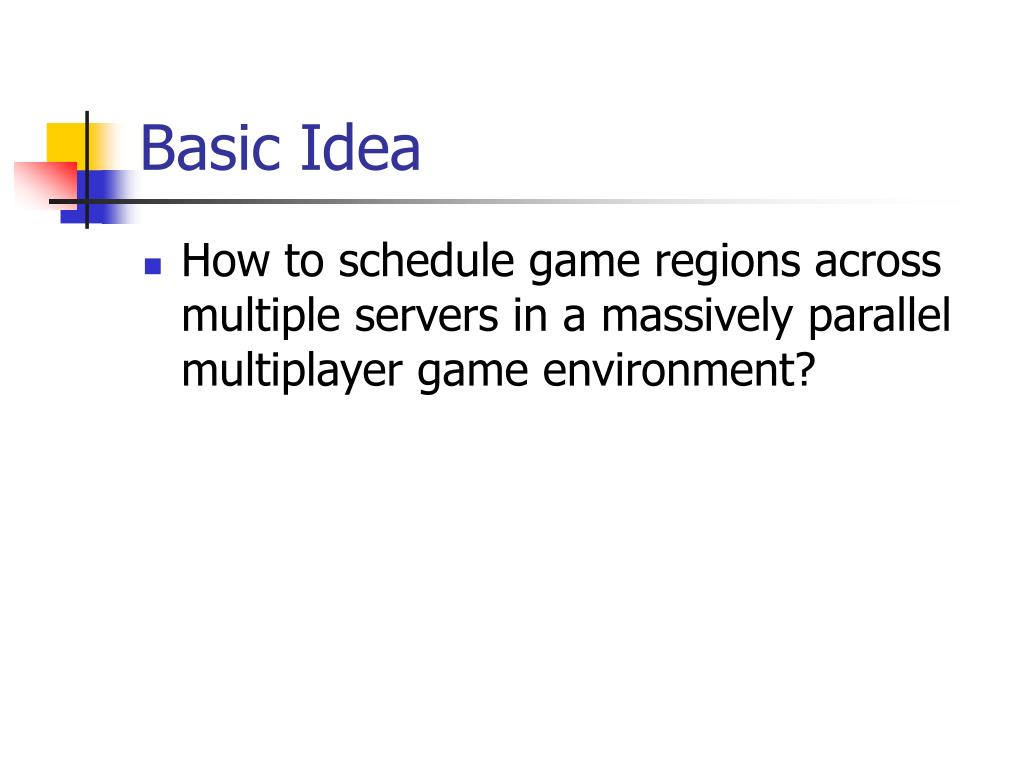

  2. Basic Idea • How to schedule game regions across multiple servers in a massively parallel multiplayer game environment?

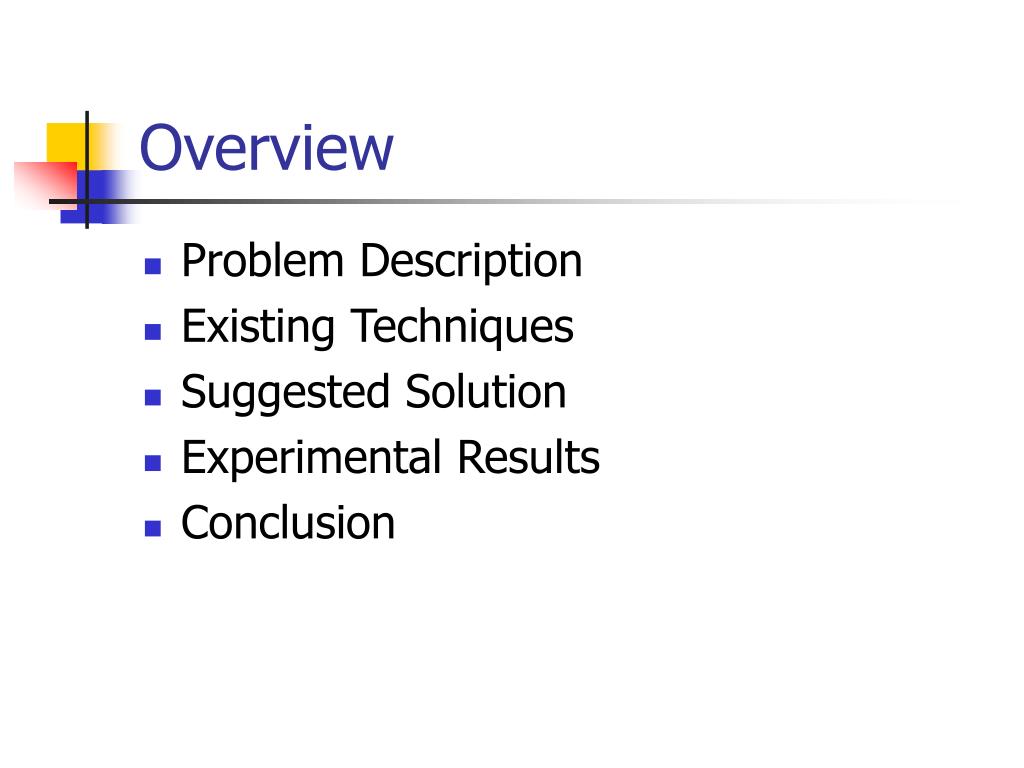

  3. Overview • Problem Description • Existing Techniques • Suggested Solution • Experimental Results • Conclusion

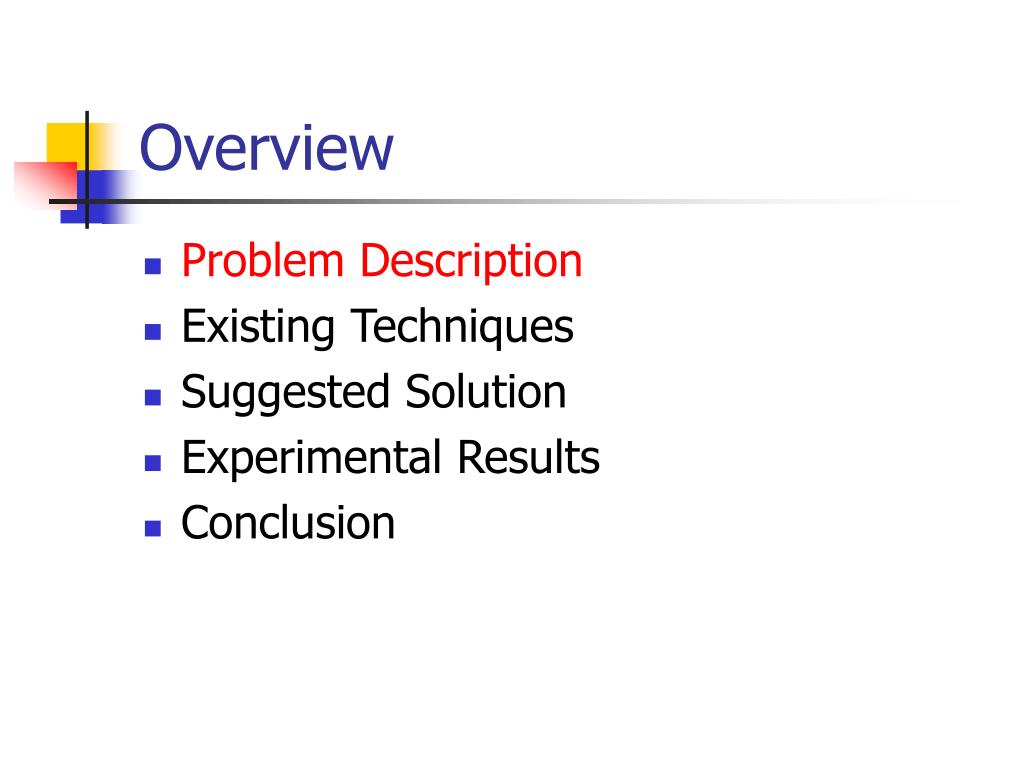

  4. Overview • Problem Description • Existing Techniques • Suggested Solution • Experimental Results • Conclusion

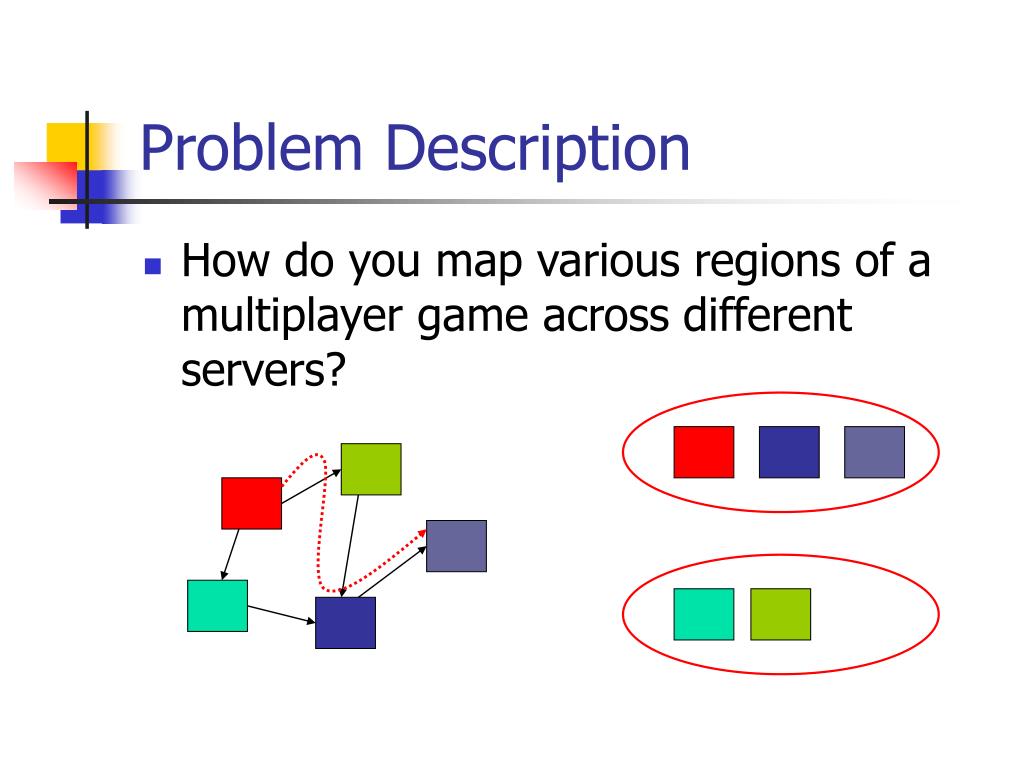

  5. Problem Description • How do you map various regions of a multiplayer game across different servers?

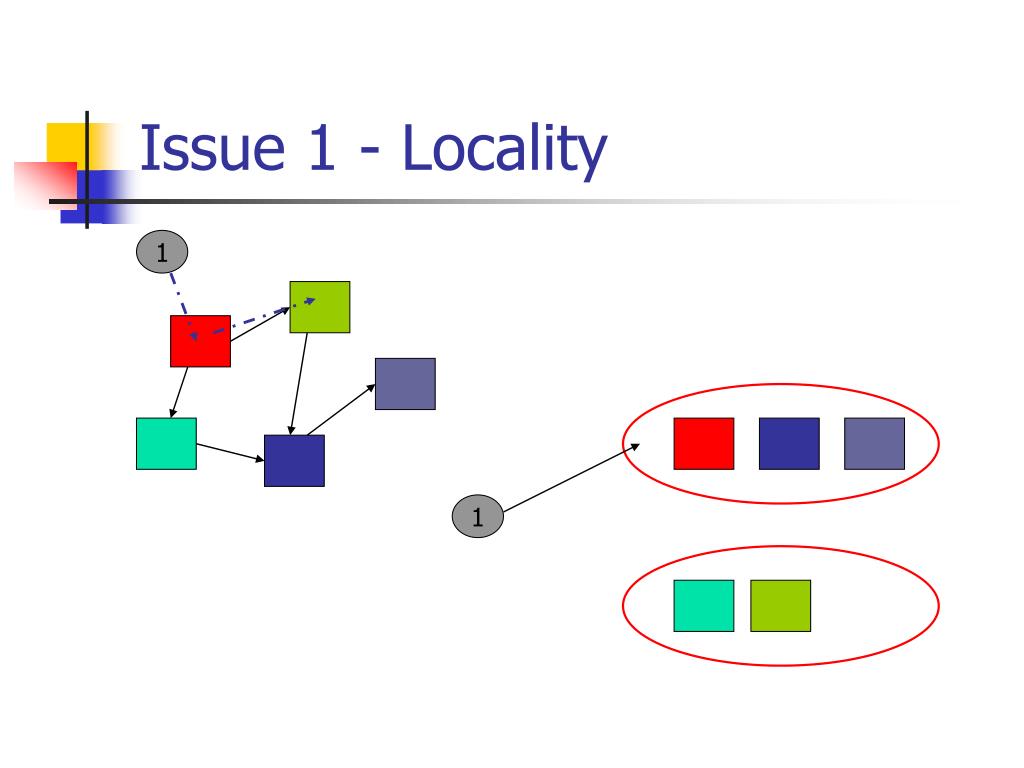

  6. Issue 1 - Locality 1 1

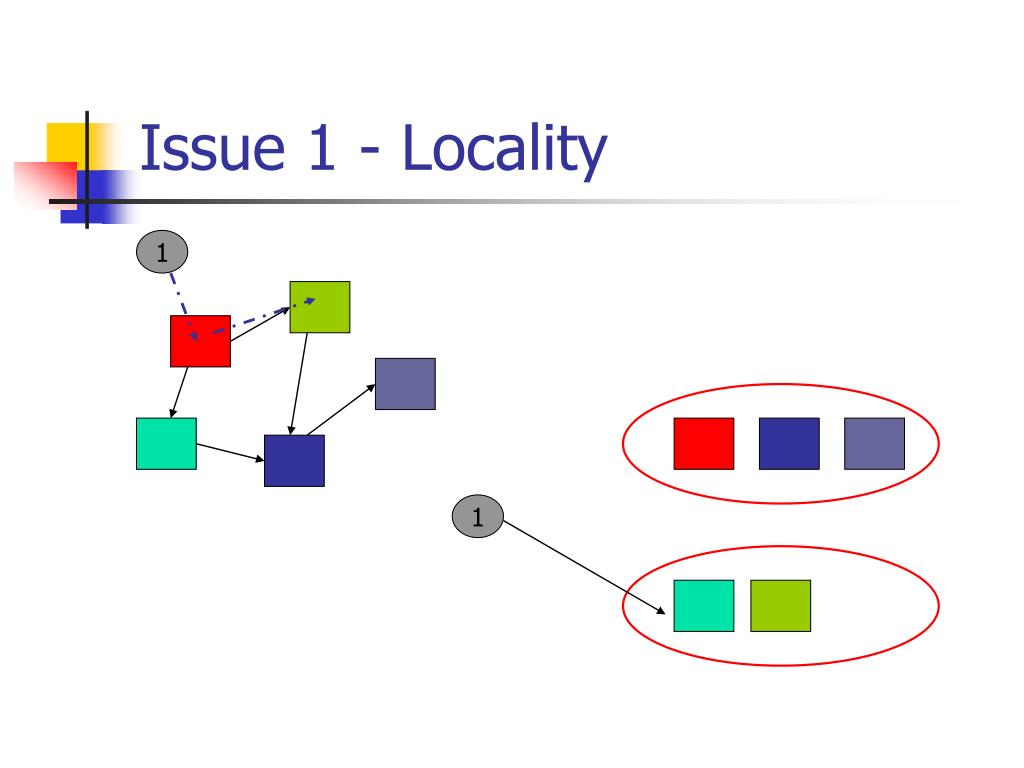

  7. Issue 1 - Locality 1 1

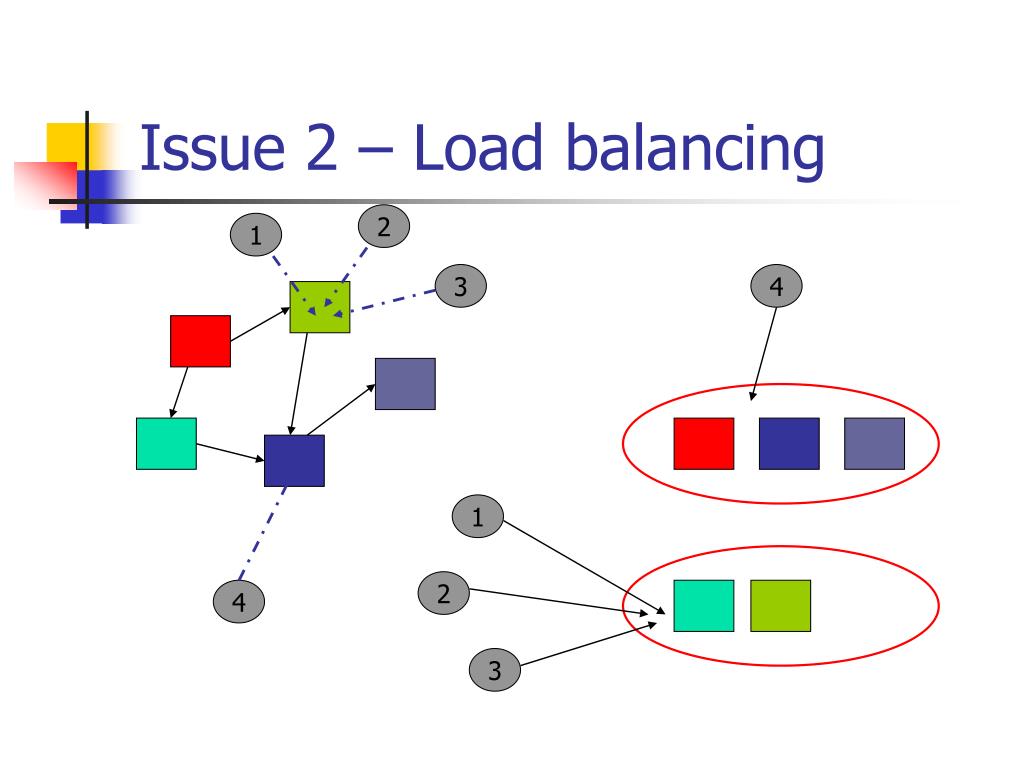

  8. Issue 2 – Load balancing 2 1 3 4 1 2 4 3

  9. Problem Statement • Balance server load by replicating existing game world partitions across several servers • Decrease inter-server communication by maintaining locality of adjacent regions

  10. Overview • Problem Description • Existing Techniques • Suggested Solution • Experimental Results • Conclusion

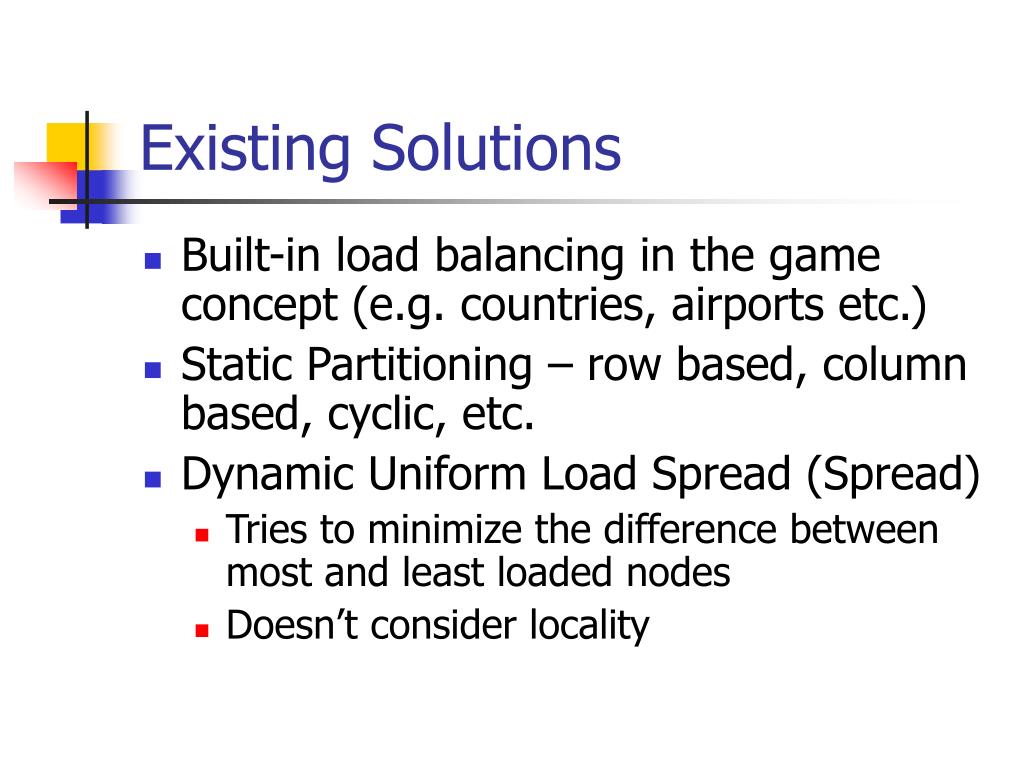

  11. Existing Solutions • Built-in load balancing in the game concept (e.g. countries, airports etc.) • Static Partitioning – row based, column based, cyclic, etc. • Dynamic Uniform Load Spread (Spread) • Tries to minimize the difference between most and least loaded nodes • Doesn’t consider locality

  12. Existing Solutions (contd.) • Dynamic Load Shedding to Lightest Loaded Node (Lightest) • Choose loaded server and shed load to system-wide lightest loaded node • Locality is not an objective (but can get maintained)

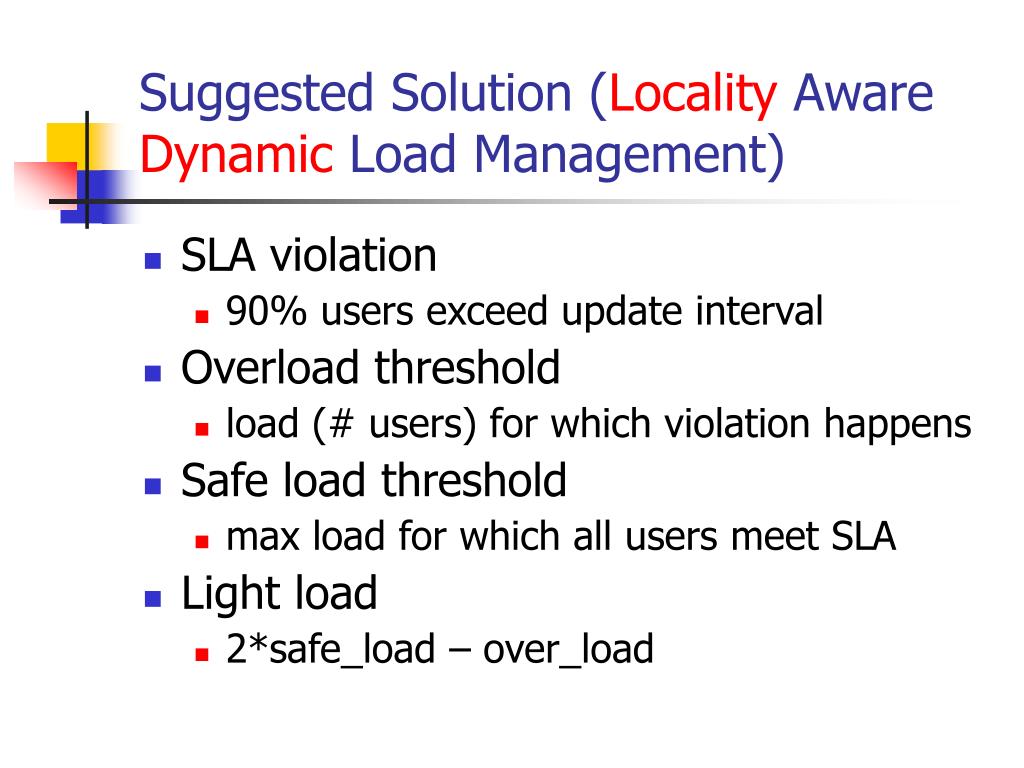

  13. Suggested Solution (Locality Aware Dynamic Load Management) • SLA violation • 90% users exceed update interval • Overload threshold • load (# users) for which violation happens • Safe load threshold • max load for which all users meet SLA • Light load • 2*safe_load – over_load

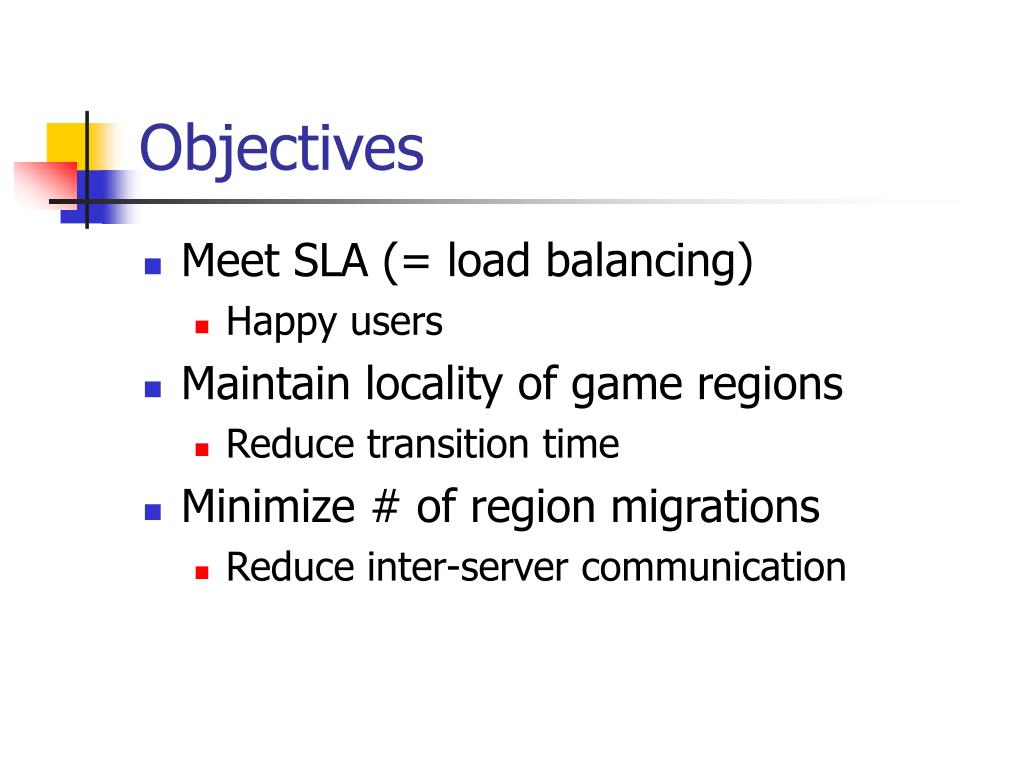

  14. Objectives • Meet SLA (= load balancing) • Happy users • Maintain locality of game regions • Reduce transition time • Minimize # of region migrations • Reduce inter-server communication

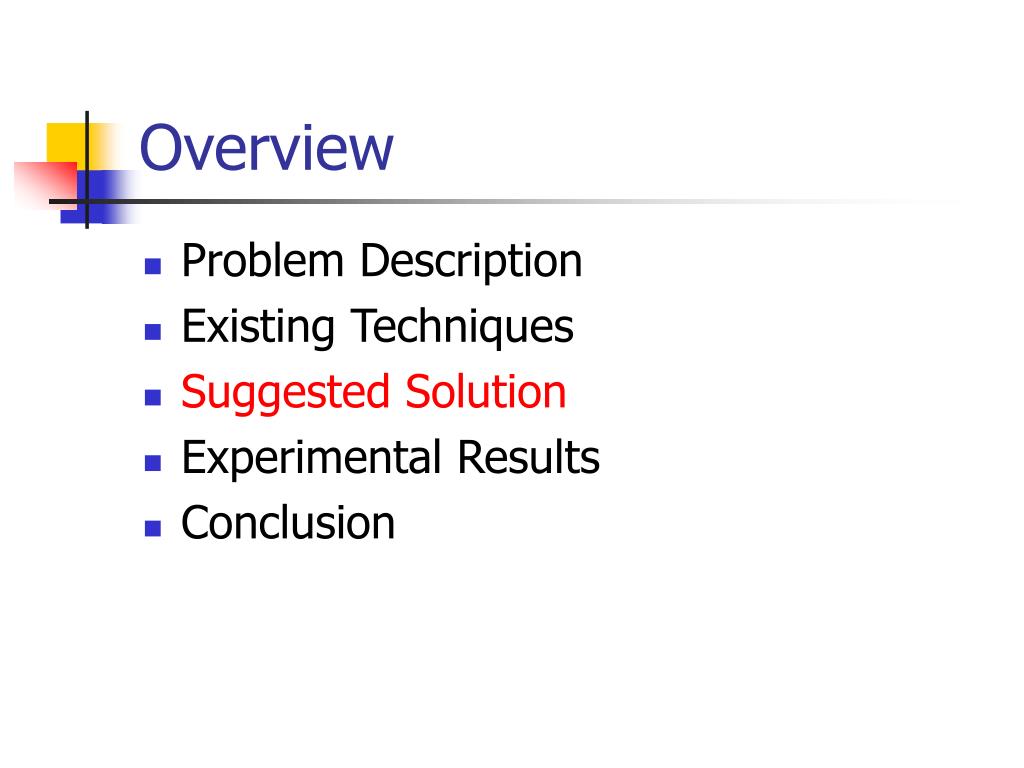

  15. Overview • Problem Description • Existing Techniques • Suggested Solution • Experimental Results • Conclusion

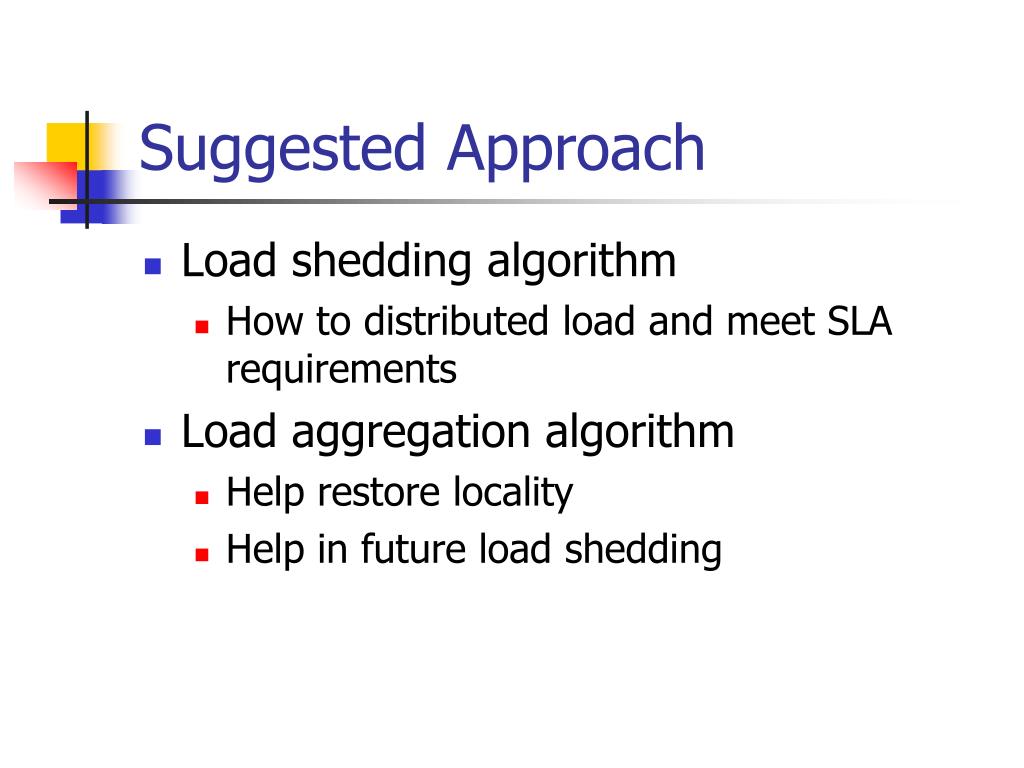

  16. Suggested Approach • Load shedding algorithm • How to distributed load and meet SLA requirements • Load aggregation algorithm • Help restore locality • Help in future load shedding

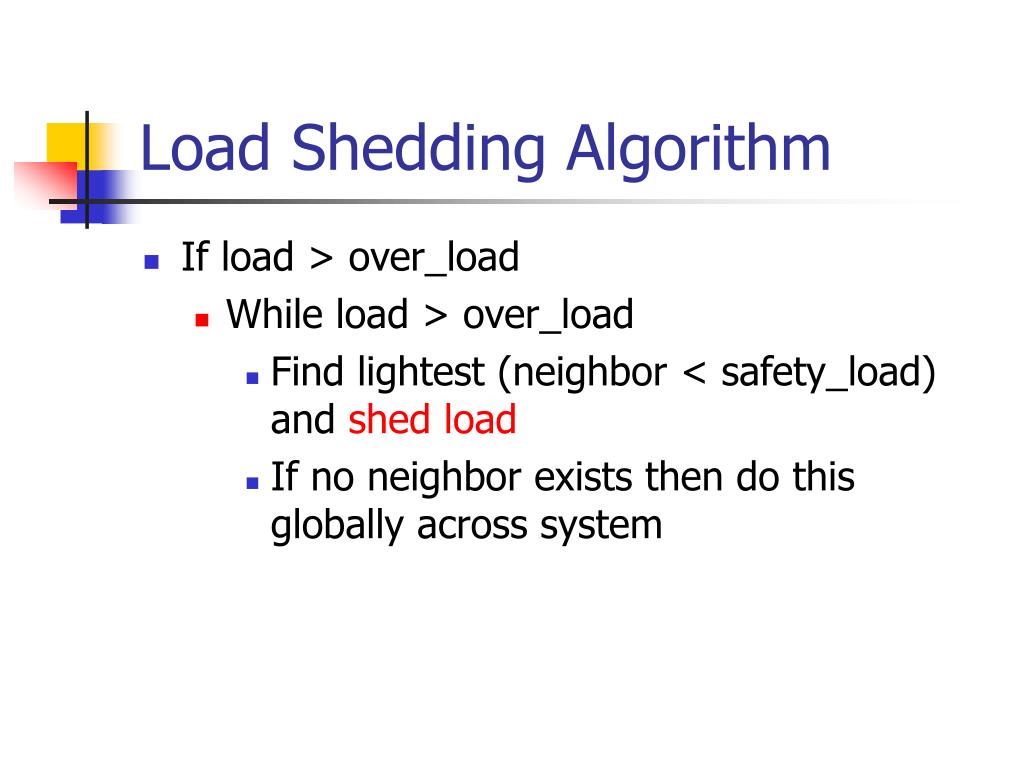

  17. Load Shedding Algorithm • If load > over_load • While load > over_load • Find lightest (neighbor < safety_load) and shed load • If no neighbor exists then do this globally across system

  18. Shed Load • How to choose a component to shed? • Given a neighbor Sj • Choose a boundary node for Sj • With node as root • Find strongly connected cluster using BFS as long cluster weight within bounds

  19. Load Aggregation • Reasons • Load can be shed to remote server • Load can be shed across multiple neighbors • Tries to reduce number of boundaries • For each neighbor of Si • Find partition such that new_load < safe_load • Transfer cluster if boundaries reduce

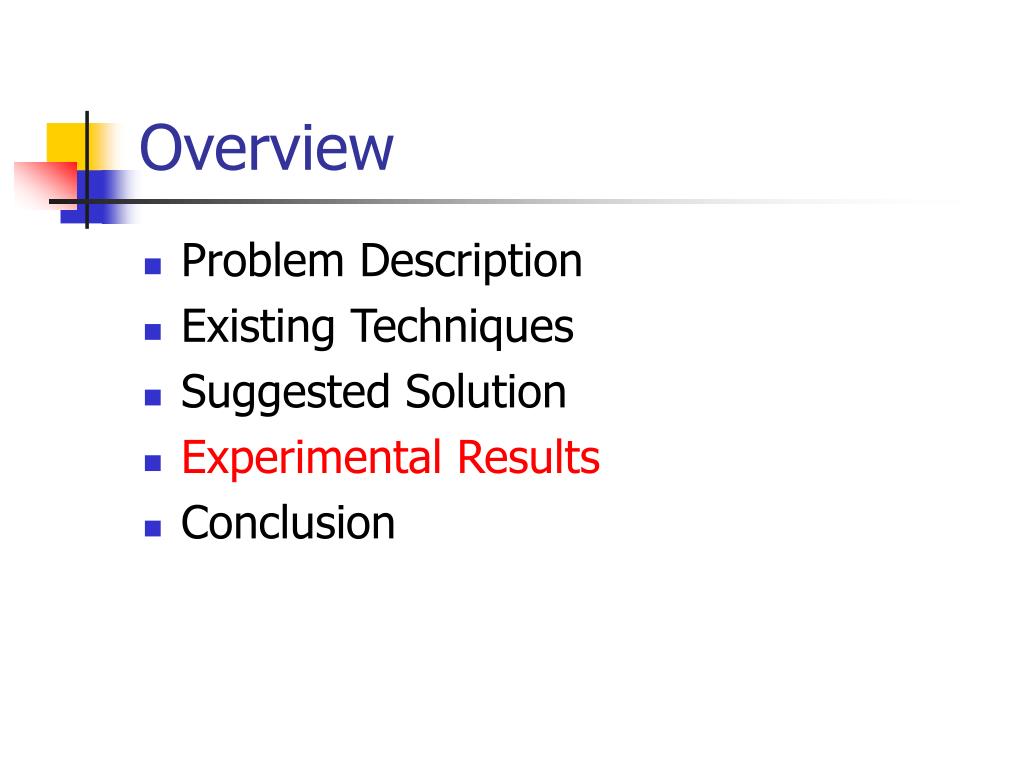

  20. Overview • Problem Description • Existing Techniques • Suggested Solution • Experimental Results • Conclusion

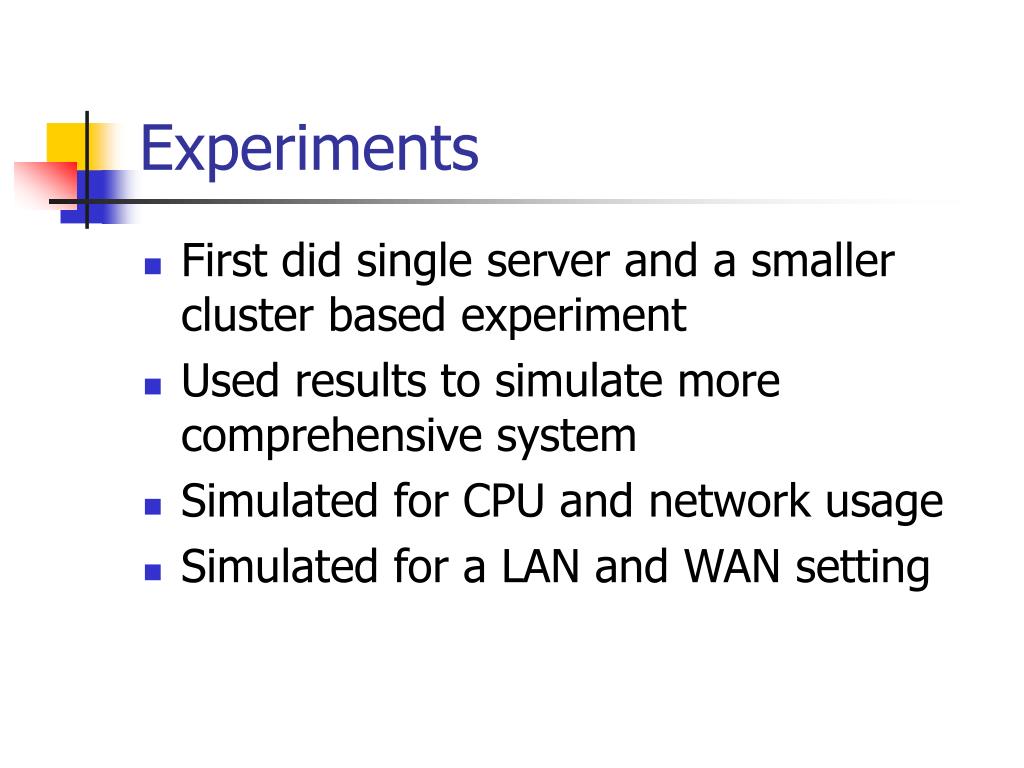

  21. Experiments • First did single server and a smaller cluster based experiment • Used results to simulate more comprehensive system • Simulated for CPU and network usage • Simulated for a LAN and WAN setting

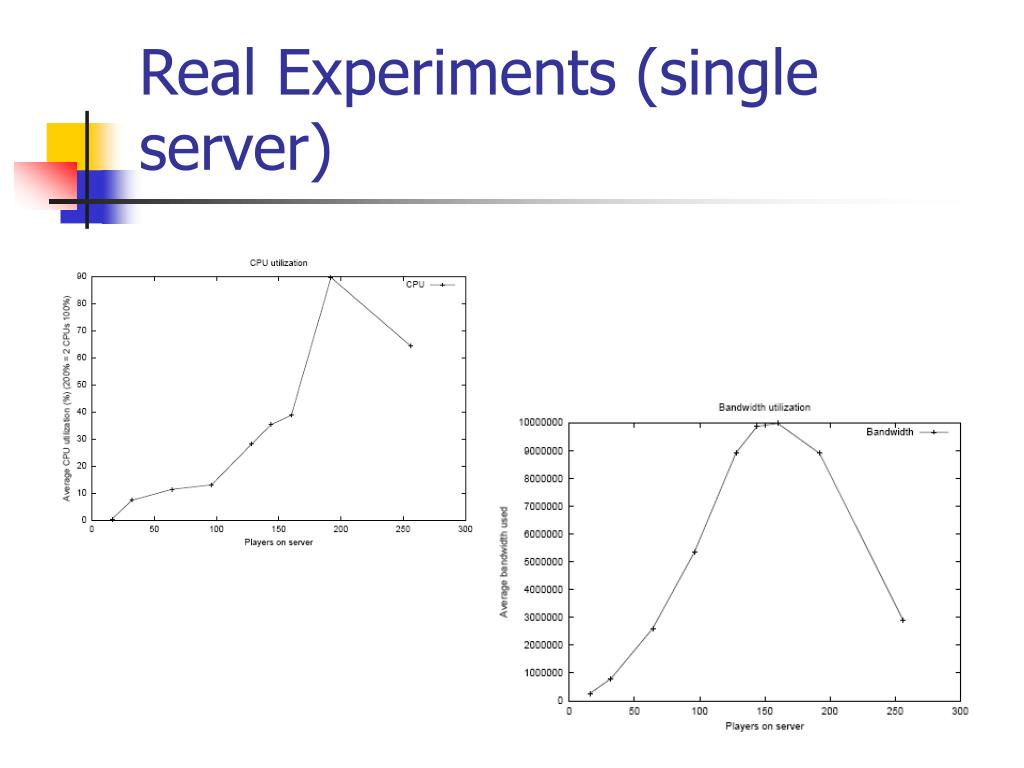

  22. Real Experiments (single server)

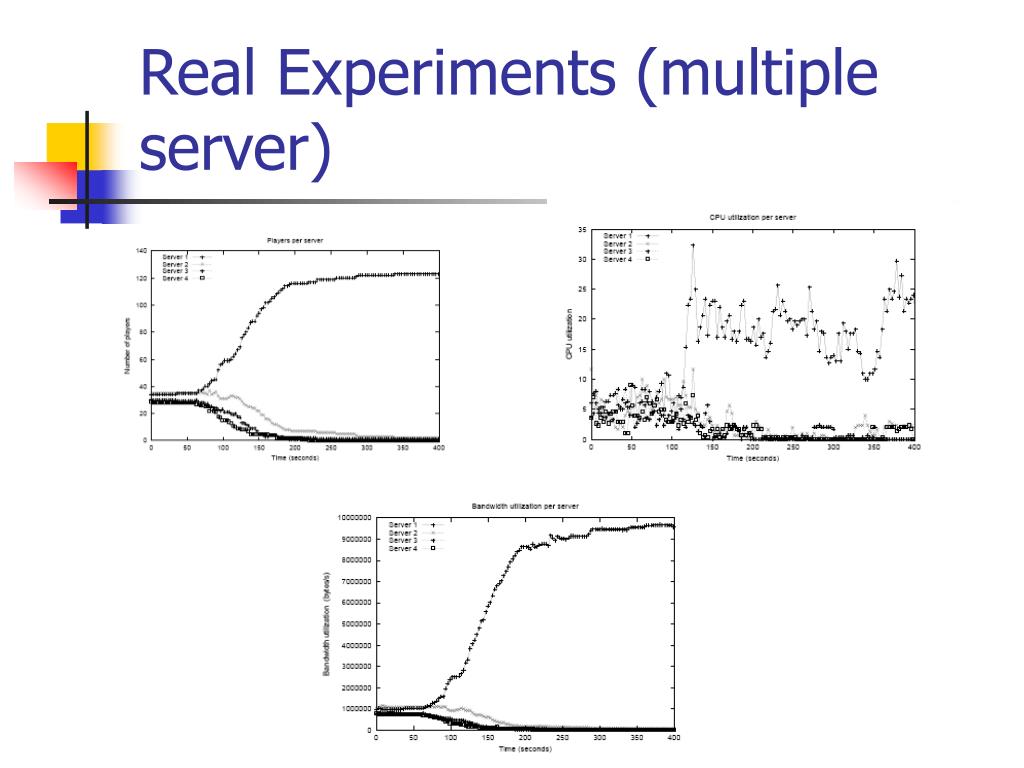

  23. Real Experiments (multiple server)

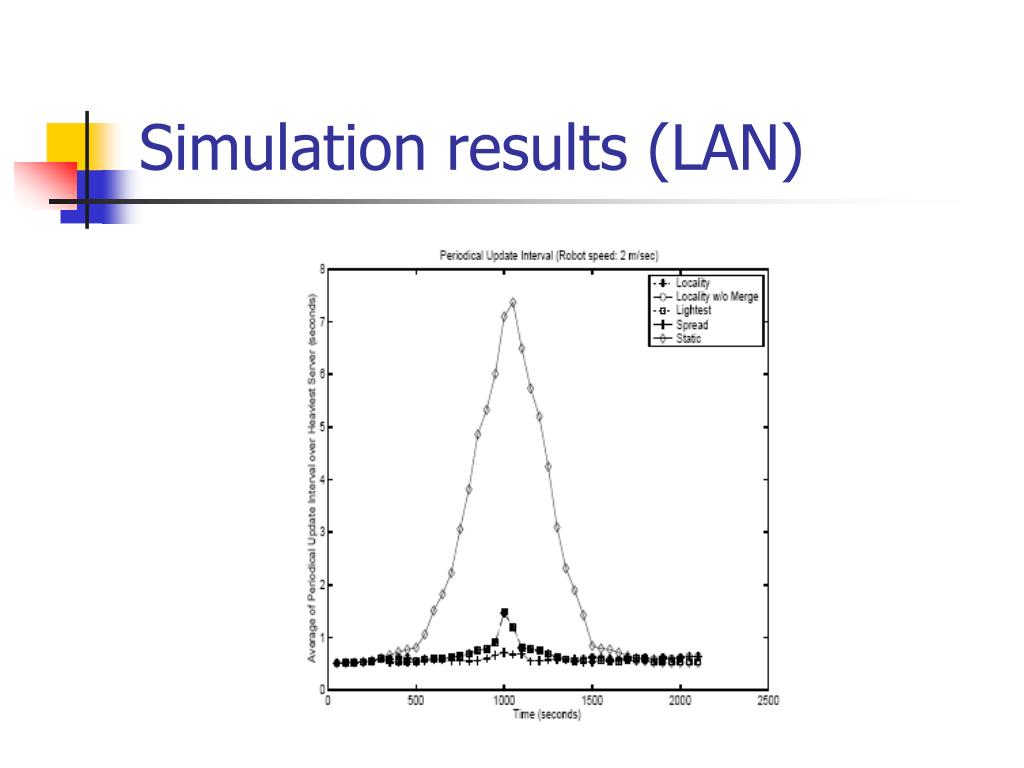

  24. Simulation results (LAN)

  25. Simulation results (WAN)

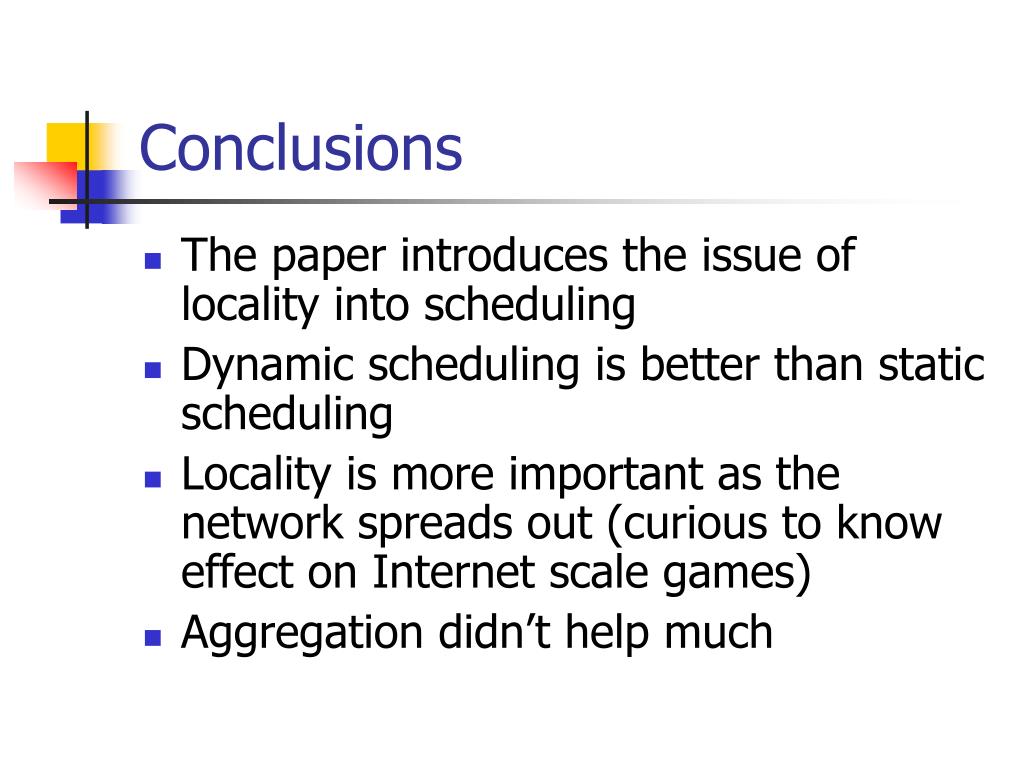

  26. Conclusions • The paper introduces the issue of locality into scheduling • Dynamic scheduling is better than static scheduling • Locality is more important as the network spreads out (curious to know effect on Internet scale games) • Aggregation didn’t help much
