HQM02 Test Status: Preliminary Check-Out, Quench Training, and Ramp Rate Study

This report provides an overview of the HQM02 test, including the coil-to-pole piece short found, quench training at 4.6 K and 2.2 K, ramp rate study at 4.6 K, and splice measurements. The test status and quench history are also included.

pmacias
Télécharger la présentation

HQM02 Test Status: Preliminary Check-Out, Quench Training, and Ramp Rate Study

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

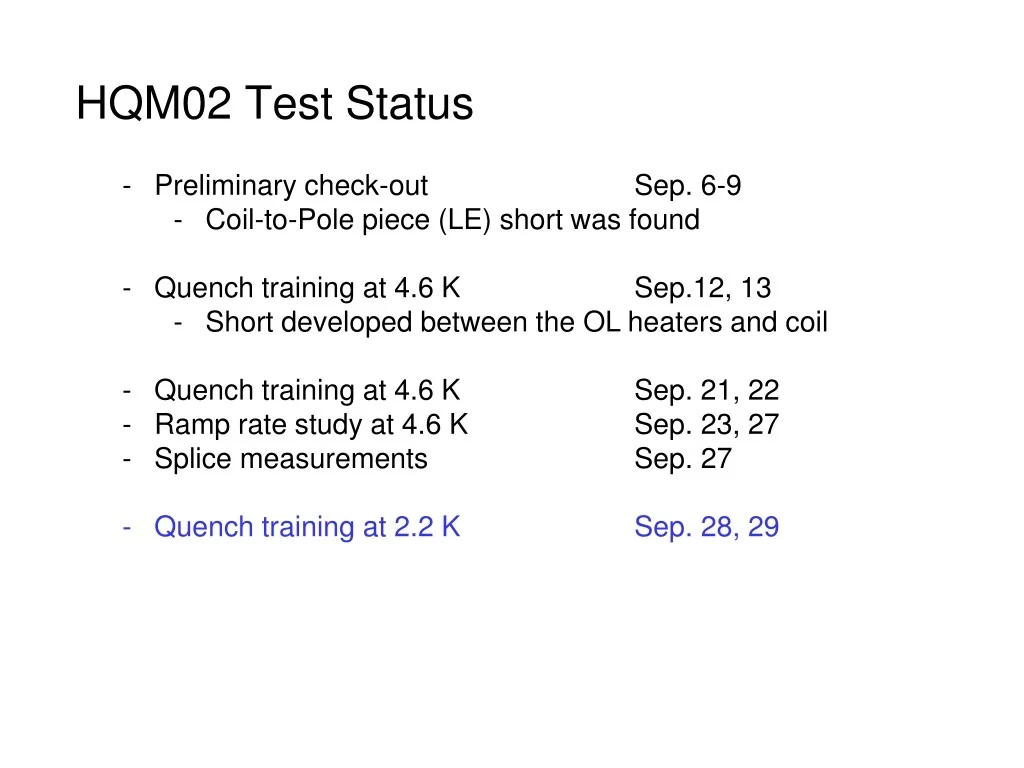

  1. Preliminary check-out Sep. 6-9 • Coil-to-Pole piece (LE) short was found • Quench training at 4.6 K Sep.12, 13 • Short developed between the OL heaters and coil • Quench training at 4.6 K Sep. 21, 22 • Ramp rate study at 4.6 K Sep. 23, 27 • Splice measurements Sep. 27 • Quench training at 2.2 K Sep. 28, 29 HQM02 Test Status

  2. HQ coil #13 in a mirror structure • Same preload was applied as in HQM01 (~ -130 MPa after assembly) • 0.8-mm Nb3Sn strand of RRP 54/61 sub-element design • More room provided for expansion during the heat treatment (1-turn short cable) • Larger longitudinal gap between pole pieces Shim system in HQM02

  3. Short Sample Estimate

  4. HQ coil in a mirror structure Pos. Lead Outer Neg. Lead Vadim Kashikhin

  5. HQM02 Quench History 91% of SSL 88% of SSL 4.6 K 2.2 K

  6. HQM02 Quench History

  7. Ramp rate dependence

  8. HQM02 SG data: cool-down Temp vs. Date/Time Temp vs. Data point

  9. HQM02 SG data: cool-down Coil Azimuthal SG Coil Axial SG

  10. HQM02 SG data: cool-down Axial SG on Bullets: LE Axial SG on Bullets: RE

  11. HQM02 SG data: cool-down Shell az. SG at 60 deg. Shell az. SG at 90 deg. 60 60

  12. HQM02 SG data: Excitation Coil Azimuthal SG Coil Axial SG

  13. HQM02 SG data: Excitation Axial SG on Bullets: LE Axial SG on Bullets: RE

  14. HQM02 SG data: Excitation Shell az. SG at 60 deg. Shell az. SG at 90 deg.

  15. Coil azimuthal SG in HQM02 and HQM01: Excitation

  16. TQ/TQM peak fields TQM TQC
