Physics 121. 8. Rotational Motion. 8.1 Angular Quantities 8.2 Kinematic Equations 8.3 Rolling Motion 8.4 Torque 8.5 Rotational Inertia 8.6 Problem Solving Techniques 8.7 Rotational Kinetic Energy 8.8 Conservation of Angular Momentum.

Télécharger la présentation
## Physics 121

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

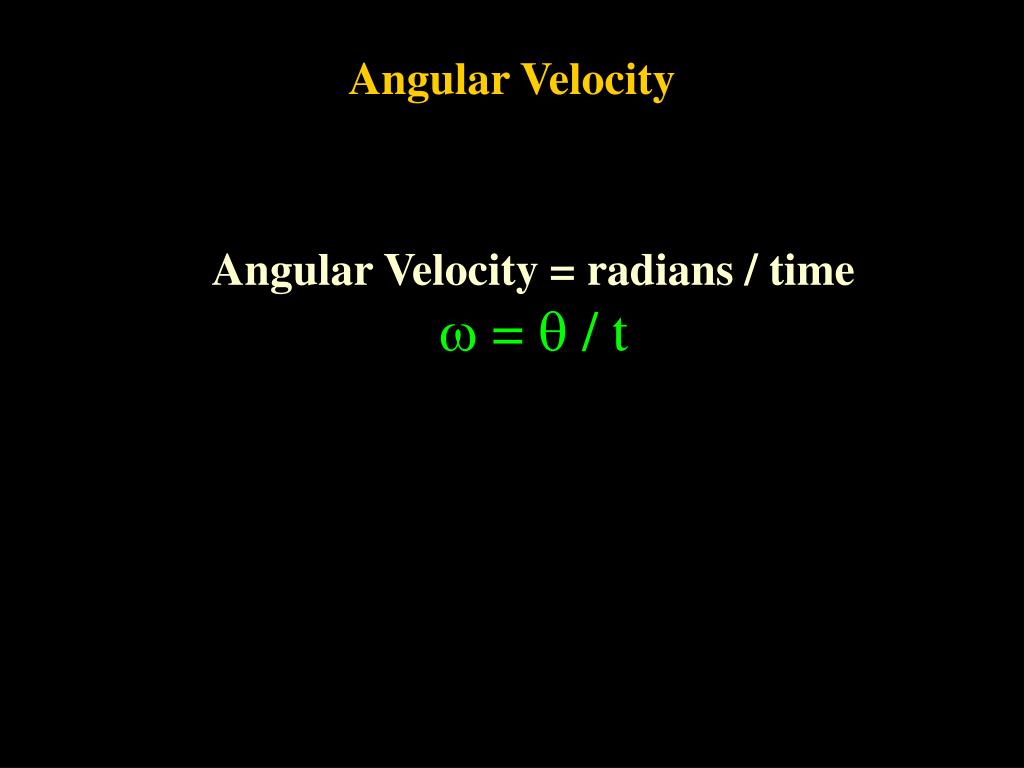

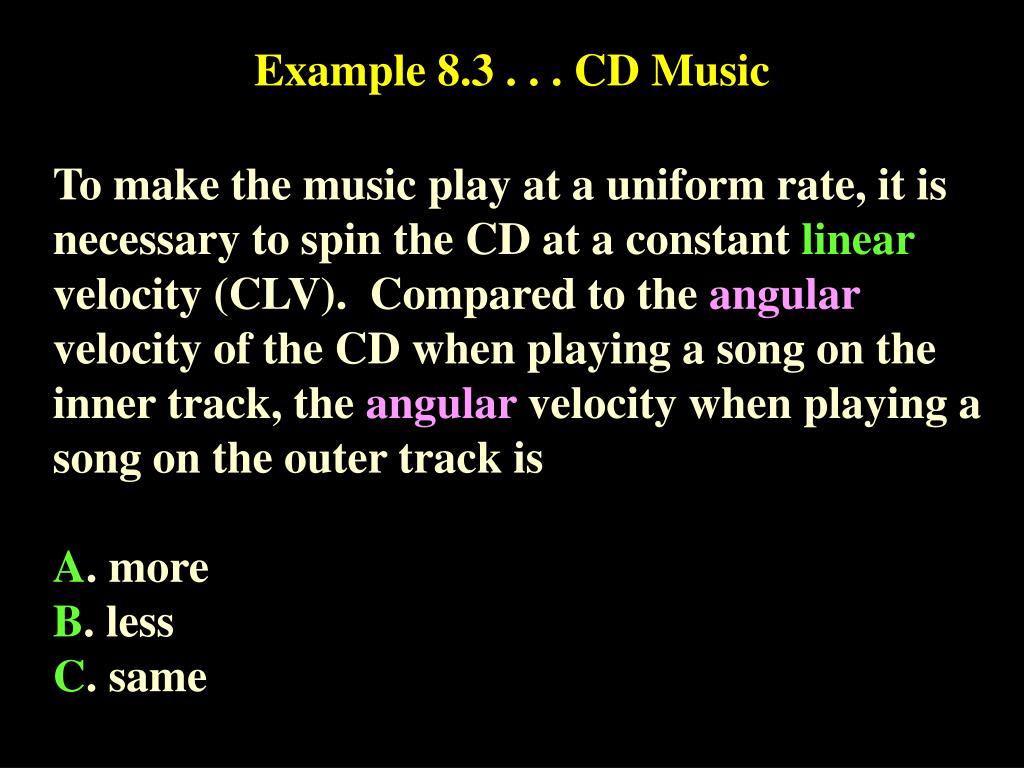

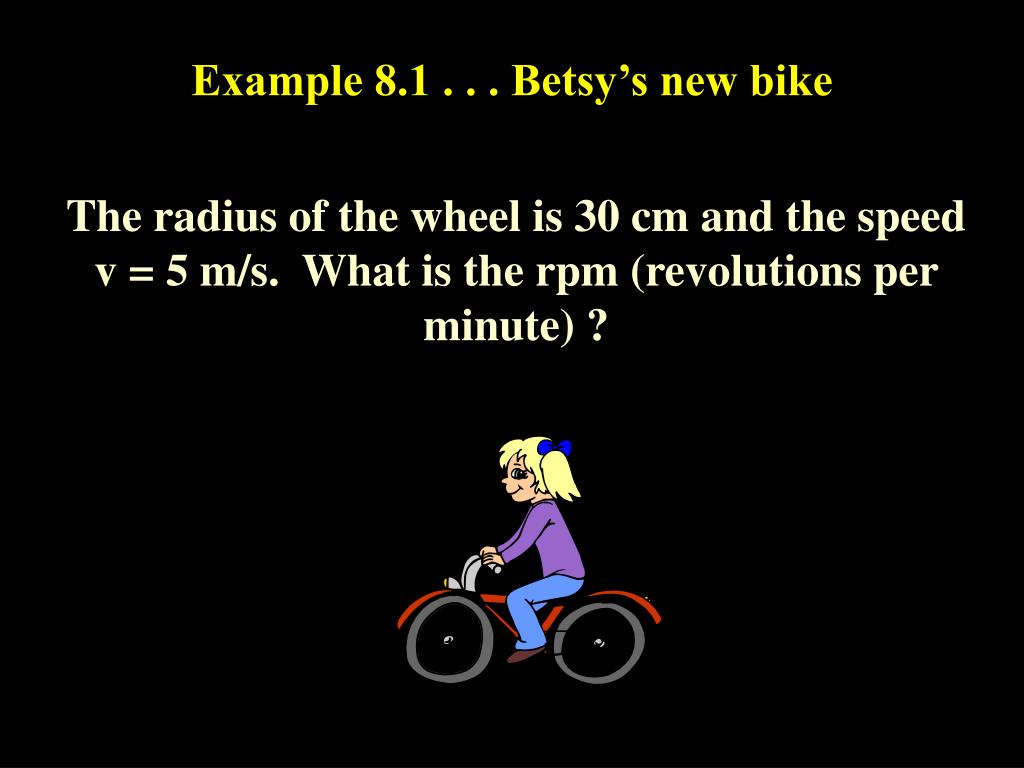

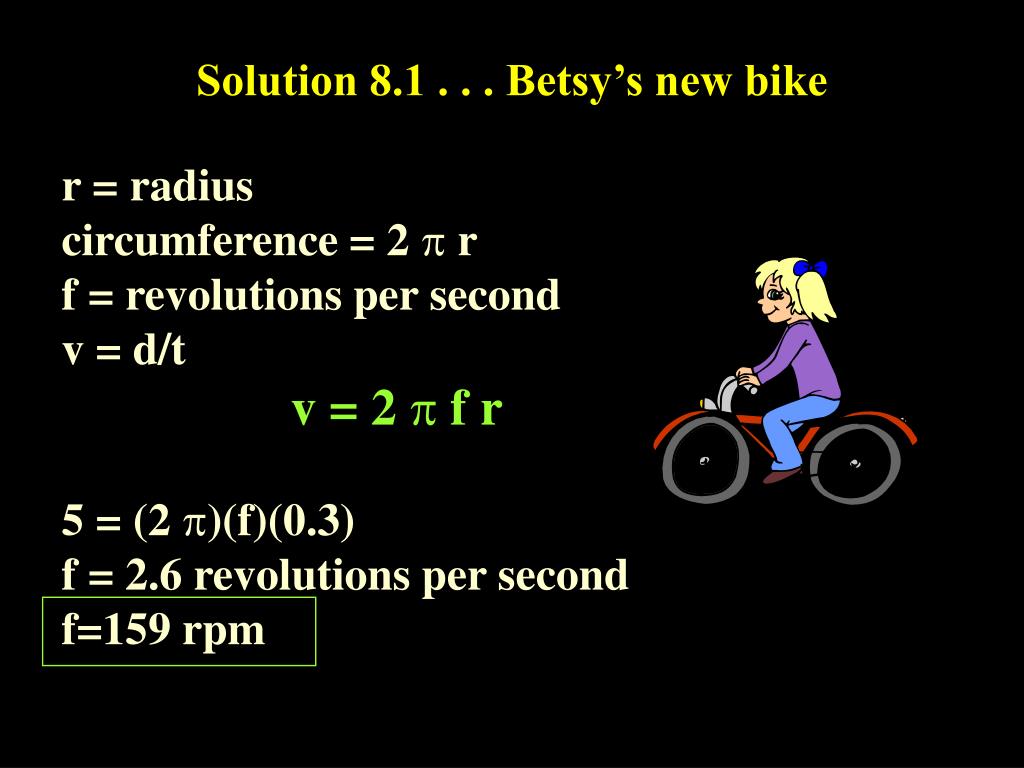

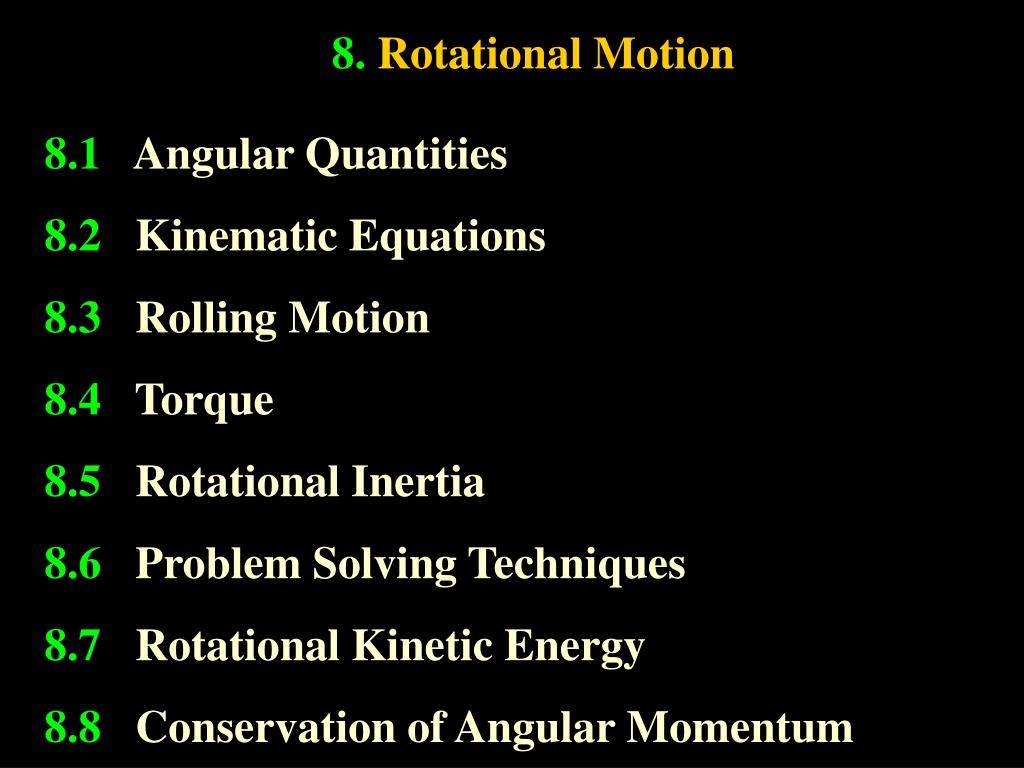

**8.Rotational Motion**8.1 Angular Quantities 8.2 Kinematic Equations 8.3 Rolling Motion 8.4 Torque 8.5 Rotational Inertia 8.6 Problem Solving Techniques 8.7 Rotational Kinetic Energy 8.8 Conservation of Angular Momentum**Example 8.1 . . . Betsy’s new bike**The radius of the wheel is 30 cm and the speed v = 5 m/s. What is the rpm (revolutions per minute) ?**Solution 8.1 . . . Betsy’s new bike**r = radius circumference = 2 r f = revolutions per second v = d/t v = 2 f r 5 = (2 )(f)(0.3) f = 2.6 revolutions per second f=159 rpm**What is a Radian?**The “radian pie” has an arc equal to the radius 2 radians = 3600 2 radians = 1 revolution**Angular Velocity**Angular Velocity = radians / time = / t** and f**rad / s = (2) rev/s = 2f** and v**v = 2 f r and = 2f so … v = r **Example 8.2 . . . Betsy’s **The radius of the wheel is 30 cm. and the (linear) velocity, v, is 5 m/s. What is Betsy’s angular velocity?**Solution 8.2 . . . Betsy’s **v = r 5 = (0.3)() = 16.3 rad/s**v and **Linear (m/s) Angular (rad/s) v d / t / t 2 r f 2 f v = r **a and **Linear (m/s2) Angular (rad/s2) a ( vf - vi ) / t ( f - i ) / t a = r **Example 8.3 . . . CD Music**To make the music play at a uniform rate, it is necessary to spin the CD at a constant linear velocity (CLV). Compared to the angular velocity of the CD when playing a song on the inner track, the angular velocity when playing a song on the outer track is A. more B. less C. same**Solution 8.3 . . . CD Music**v = r When r increases, must decrease in order for v to stay constant. Correct choice is B Note: Think of track races. Runners on the outside track travel a greater distance for the same number of revolutions!**Angular Analogs**d v a **Example 8.4 . . . Awesome Angular Analogies**d = vit + 1/2 a t2 ?**Solution 8.4 . . . Awesome Angular Analogies**d = vi t + 1/2 a t2 =i t + 1/2 t2**Torque**Torque means the “turning effect” of a force SAME force applied to both. Which one will turn easier?**Easy!**Torque Torque = distance x force = r x F**Torque**Which one is easier to turn now?**Torque . . . The Rest of the Story!** = r F sin Easy! **Example 8.5 . . . Inertia Experiment**The same force is applied to m and M. Which one accelerates more?**Solution 8.5 . . . Inertia Experiment**Since F = ma, the smaller mass (m) will accelerate more.**Example 8.6 . . . Moment of Inertia Experiment**The same force is applied to all. Which one will undergo the greatest angular acceleration?**Solution 8.6 . . . Moment of Inertia Experiment**This one will undergo the greatest angular acceleration.**What is Moment of Inertia?**F = m a Force = mass x ( linear ) acceleration = I Torque = moment of inertia x angular acceleration**I = mr2**• The moment of inertia of a particle of mass m spinning at a distance r is I = mr2 • For the same torque, the smaller the moment of inertia, the greater the angular acceleration = I **All about Sarah Hughes . . .**Click me!**Example 8.7 . . . Sarah Hughes**• Will her mass change when she pulls her arms in? • Will her moment of inertia change?**Solution 8.7 . . . Sarah Hughes**Mass does not change when she pulls her arms in but her moment of inertia decreases.**Example 8.8 . . . Guessing Game**A ball, hoop, and disc have the same mass. Arrange in order of decreasing I A. hoop, disc, ball B. hoop, ball, disc C. ball, disc, hoop D. disc, hoop, ball**Solution 8.8 . . . Guessing Game**A. hoop, disc, ball I (moment of inertia) depends on the distribution of mass. The farther the mass is from the axis of rotation, the greater is the moment of inertia. I = MR2 I = 1/2 MR2 I = 2 /5 MR2 hoopdiscball**Example 8.9 . . . K.E. of Rotation**What is the formula for the kinetic energy of rotation? A. 1/2 mv2 B. 1/2 m2 C. 1/2 I2 D. I **Solution 8.9 . . . K.E. of Rotation**• The analog of v is • The analog of m is I • The K.E. of rotation is 1/2 I 2**Example 8.10 . . . Angular Momentum**Guesstimate the formula for angular momentum? A. mv B. m C. I D. 1/2I **Solution 8.10 . . . Angular Momentum**• Guesstimate the formula for the angular momentum? • Linear Momentum is mv • Angular Momentum is I **Conservation of Angular Momentum**• In the absence of any external torques, the angular momentum is conserved. • If = 0 then I11 = I2 2**More about Sarah Hughes . . .**Click me!**Example 8.11 . . . Sarah Hughes**• A. When her arms stretch out her moment of inertia decreases and her angular velocity increases • B. When her arms stretch out her moment of inertia increases and her angular velocity decreases • C. When her arms stretch out her moment of inertia decreases and her angular velocity decreases • D. When her arms stretch out her moment of inertia increases and her angular velocity increases**Solution 8.11 . . . Sarah Hughes**• B. When her arms stretch out her moment of inertia increases and her angular velocity decreases • I11 = I2 2 • So when I increases, decreases!
