  1. Antonio Conde, PH-CMX • CAD MODELS FOR MPGD CHAMBERS II MPGD WORKSHOP

  2. POINTS 1 DIMENSIONAL & GEOMETRICAL CHANGES 2 SINGLE CHAMBERS INSTALLED 3 DOUBLE CHAMBERS 4 INSTALATION PROCEDURE 5 PATCH PANEL SCKETCH II MPGD WORKSHOP

  3. 1 DIMENSIONAL & GEOMETRICAL CHANGES II MPGD WORKSHOP

  4. THICKNES REDUCED 1 mm IN THESE TWO SPACERS II MPGD WORKSHOP

  5. CHIMNEY WILL BE CONICAL IN STEAD OF PARALELL AS HERE 8 mm. (enough for services) THE HEIGHT WILL BE REDUCED 13mm. (15 before) II MPGD WORKSHOP

  6. 24 CONNECTORS NOW (8 BEFORE)  NEEDS CONICAL CHIMNEY II MPGD WORKSHOP

  7. NEW CONICAL CHIMNEY (24 connectors) OLD PARALELL CHIMNEY II MPGD WORKSHOP

  8. GOOD GAP BETWEEN TWO CHIMNEYS (NO CLASHES) II MPGD WORKSHOP

  9. 2 SINGLE CHAMBERS INSTALLED II MPGD WORKSHOP

  10. SET OF CHAMBERS MOUNTED ON THE BACK FLANGE 9° RADIAL RAILS 9° ROTATED RAILS II MPGD WORKSHOP

  11. INSERTION WINDOWS IN THE BRACKETS OF THE BACK FLANGE II MPGD WORKSHOP

  12. 3 DOUBLE CHAMBERS (S.C.) II MPGD WORKSHOP

  13. VERY COMPACT CHAMBERS NOW II MPGD WORKSHOP

  14. GAP BETWEEN CHAMBERS: 1mm • STACKED CHAMBERS TOTAL HEIGHT: 98mm II MPGD WORKSHOP

  15. GAP BETWEEN BACK FLANGE & MUON CHAMBERS: 100mm II MPGD WORKSHOP

  16. TWO TYPES OF PIVOTS & ANGLES BUT ONLY 1 ONE TYPE OF CHAMBER FOR ALL SC both SC match well (2 or 3 emptyprotosshouldbe made then insered in all the positions, the nextopening of the detector put in the schedule??) II MPGD WORKSHOP

  17. 4 INSTALATION PROCEDURE (same for single chamber or SC) II MPGD WORKSHOP

  18. 4 INSTALATION PROCEDURE 4.a FIRST SC II MPGD WORKSHOP

  19. FIRST SC TO ENTER II MPGD WORKSHOP

  20. FIRST SC ENTERING II MPGD WORKSHOP

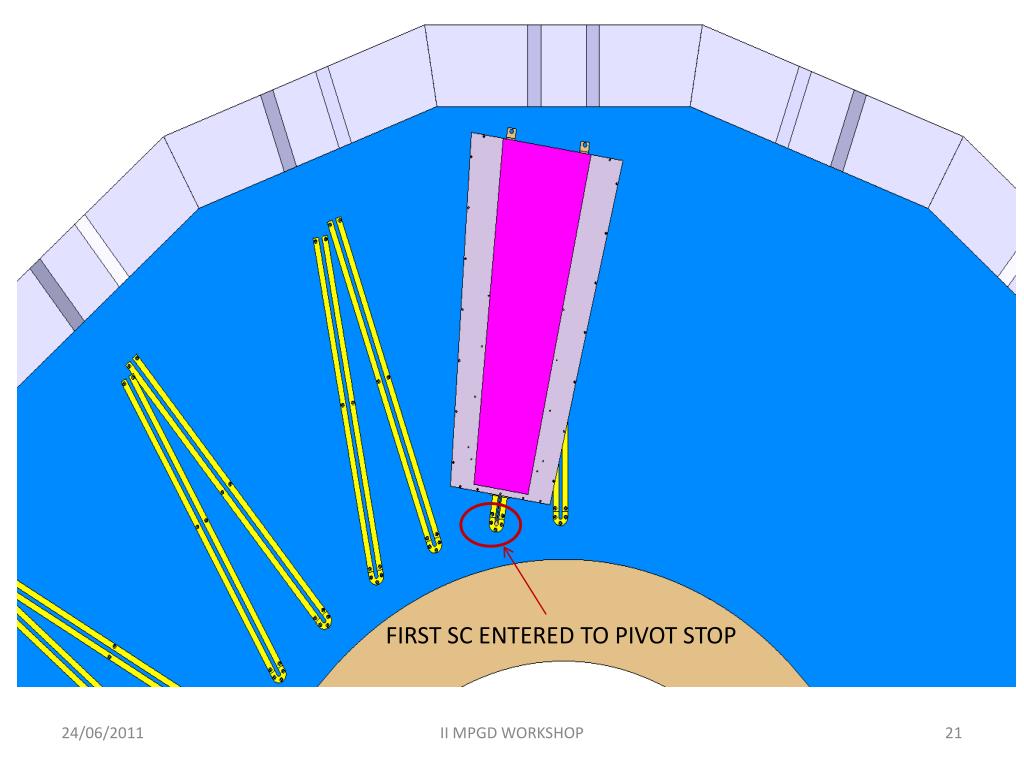

  21. FIRST SC ENTERED TO PIVOT STOP II MPGD WORKSHOP

  22. FIRST SC ROTATED TO ITS FINAL POSITION II MPGD WORKSHOP

  23. 4 INSTALATION PROCEDURE 4.b SECOND SC II MPGD WORKSHOP

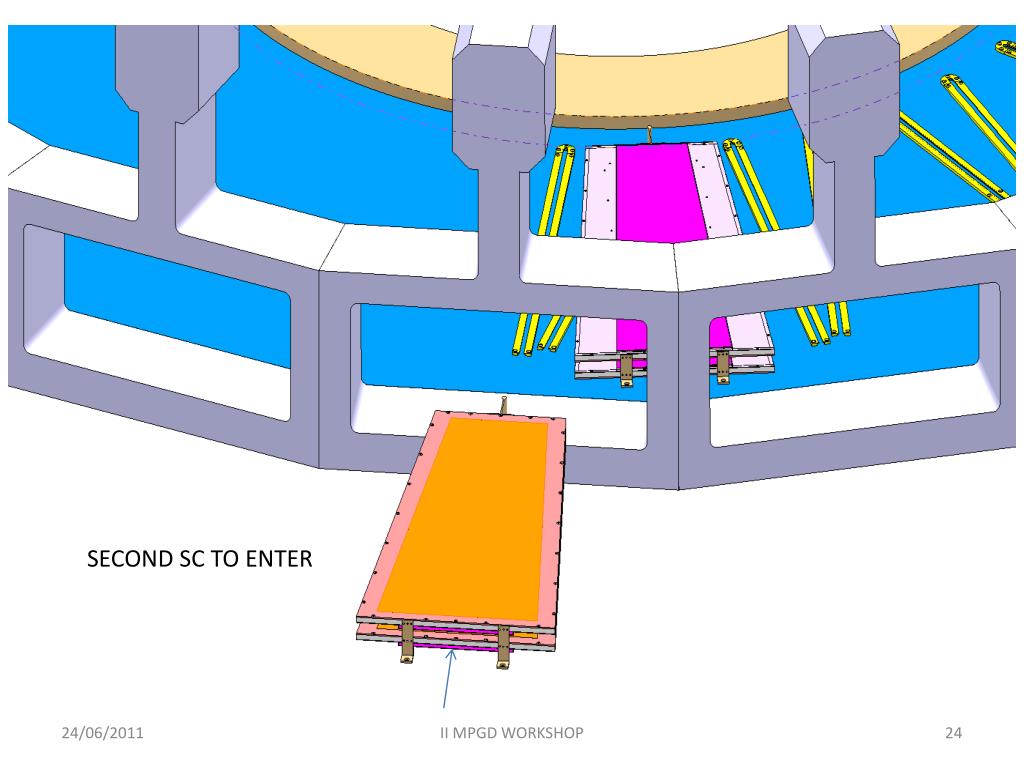

  24. SECOND SC TO ENTER II MPGD WORKSHOP

  25. SECOND SC ENTERING II MPGD WORKSHOP

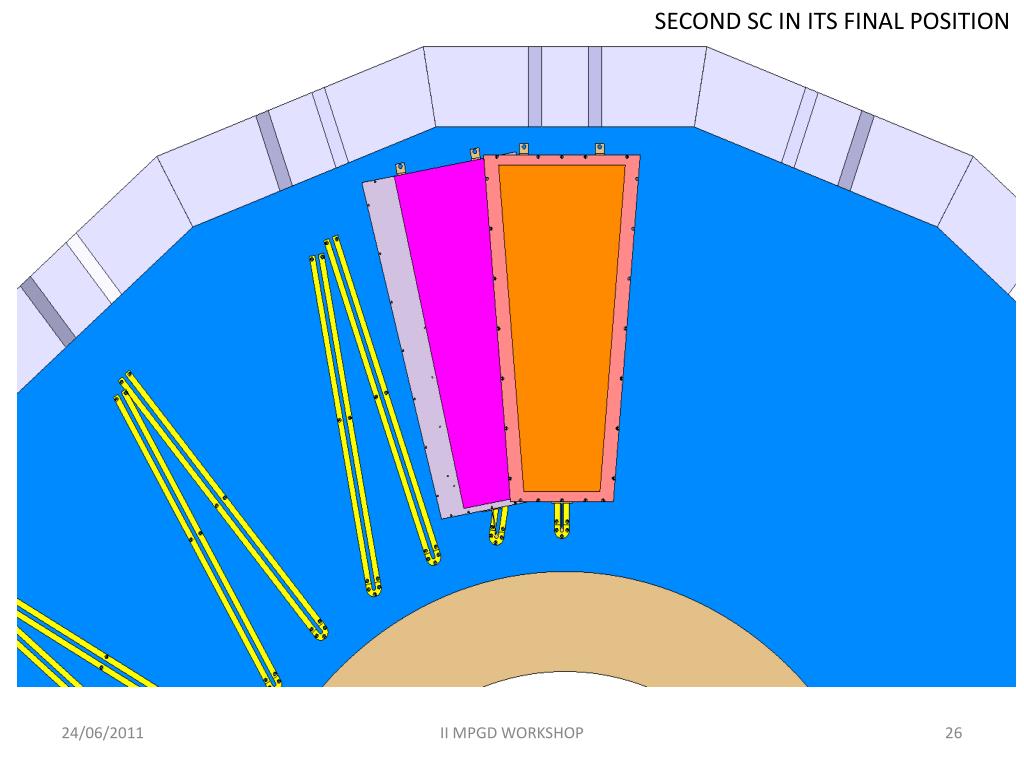

  26. SECOND SC IN ITS FINAL POSITION II MPGD WORKSHOP

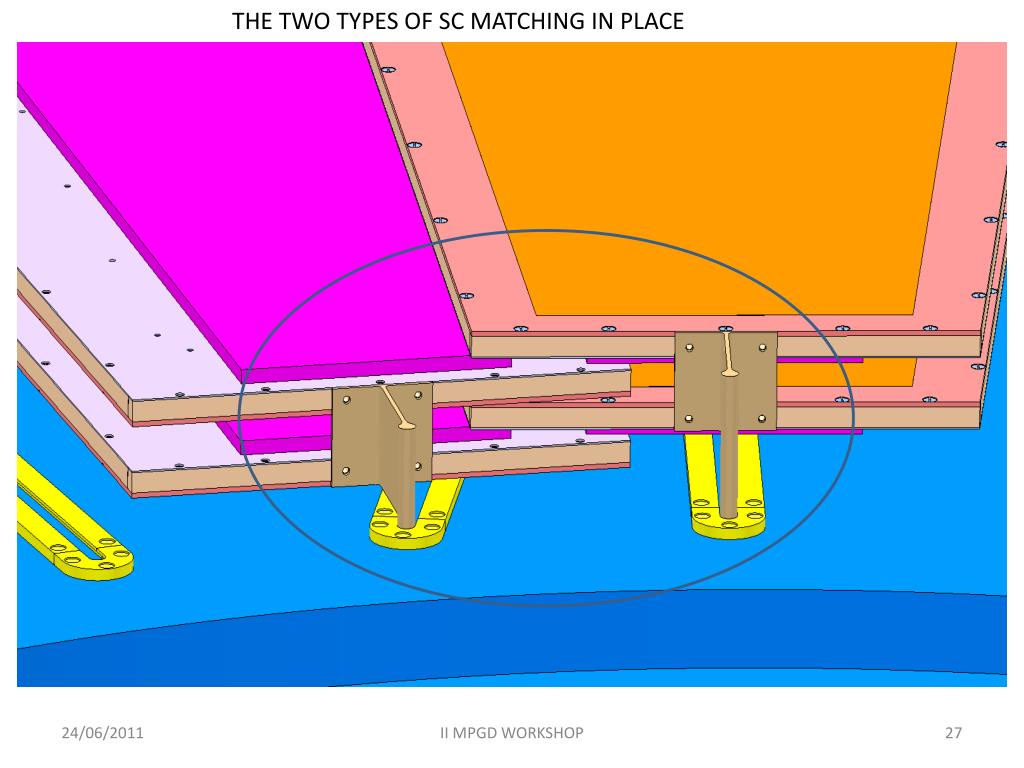

  27. THE TWO TYPES OF SC MATCHING IN PLACE II MPGD WORKSHOP

  28. 4 INSTALATION PROCEDURE 4.c THIRD SC II MPGD WORKSHOP

  29. THIRD SC ENTERING II MPGD WORKSHOP

  30. NEEDS TO BE ROTATED 4° TO AVOID CLASH 4° II MPGD WORKSHOP

  31. WHEN ROTATED 4°, THE SC ENTERS WELL (same as RPC’s) II MPGD WORKSHOP

  32. THIRD SC IN ITS FINAL POSITION II MPGD WORKSHOP

  33. 4 INSTALATION PROCEDURE 4.d FOURTH SC II MPGD WORKSHOP

  34. FOURTH SC TO ENTER II MPGD WORKSHOP

  35. FOURTH SC ENTERING II MPGD WORKSHOP

  36. FOURTH SC IN ITS FINAL POSITION II MPGD WORKSHOP

  37. 5 PATCH PANEL SCKETCH II MPGD WORKSHOP

  38. PATCH PANELS (their surface coverthe twoopenings of the chimneys for each SC) II MPGD WORKSHOP

  39. 25 mm. length, SPACERS II MPGD WORKSHOP

  40. Antonio Conde, PH-CMX • ENTRETIENS AVEC JOSÉ SALICIO, CHEFS DE GROUPE, PERSONNEL DEPT. IT II MPGD WORKSHOP
