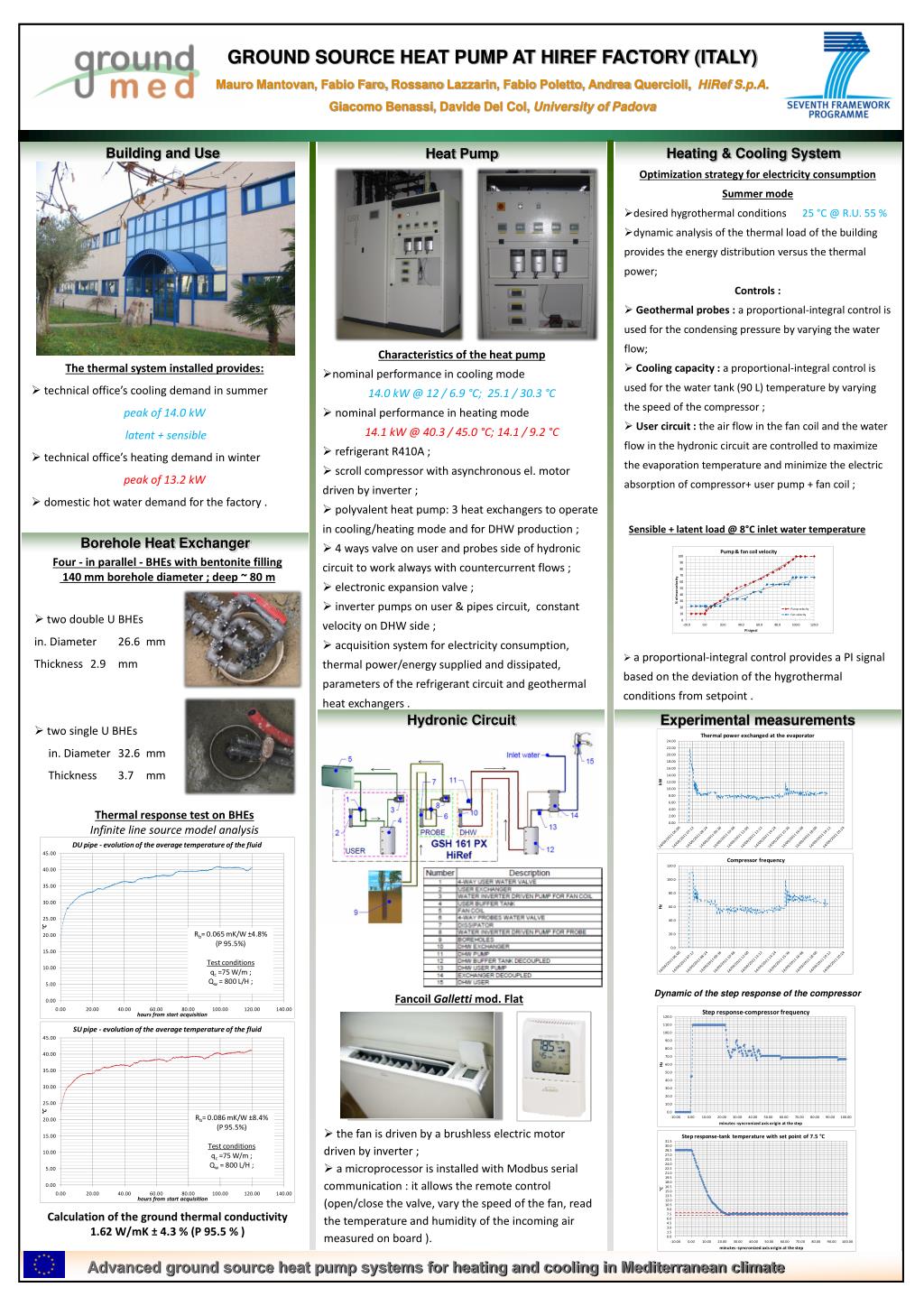

GROUND SOURCE HEAT PUMP AT HIREF FACTORY (ITALY) Mauro Mantovan , Fabio Faro, Rossano Lazzarin , Fabio Poletto , Andrea Quercioli , HiRef S.p.A . Giacomo Benassi , Davide Del Col, University of Padova. Building and Use. Heating & Cooling System. Heat Pump.

pooky
Télécharger la présentation

Building and Use

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. GROUND SOURCE HEAT PUMP AT HIREF FACTORY (ITALY) Mauro Mantovan, Fabio Faro, RossanoLazzarin, Fabio Poletto, Andrea Quercioli, HiRefS.p.A. GiacomoBenassi, Davide Del Col, University of Padova Building and Use Heating & Cooling System Heat Pump • Optimization strategy for electricity consumption Summer mode • desired hygrothermal conditions 25 °C @ R.U. 55 % • dynamic analysis of the thermal load of the building provides the energy distribution versus the thermal power; • Controls : • Geothermal probes : a proportional-integral control is used for the condensing pressure by varying the water flow; • Cooling capacity : a proportional-integral control is used for the water tank (90 L) temperature by varying the speed of the compressor ; • User circuit : the air flow in the fan coil and the water flow in the hydronic circuit are controlled to maximize the evaporation temperature and minimize the electric absorption of compressor+ user pump + fan coil ; • Characteristics of the heat pump • nominal performance in cooling mode • 14.0 kW @ 12 / 6.9 °C; 25.1 / 30.3 °C • nominal performance in heating mode • 14.1 kW @ 40.3 / 45.0 °C; 14.1 / 9.2 °C • refrigerant R410A ; • scroll compressor with asynchronous el. motor driven by inverter ; • polyvalent heat pump: 3 heat exchangers to operate in cooling/heating mode and for DHW production ; • 4 ways valve on user and probes side of hydronic circuit to work always with countercurrent flows ; • electronic expansion valve ; • inverter pumps on user & pipes circuit, constant velocity on DHW side ; • acquisition system for electricity consumption, thermal power/energy supplied and dissipated, parameters of the refrigerant circuit and geothermal heat exchangers . • The thermal system installed provides: • technical office’s cooling demand in summer • peak of 14.0 kW • latent + sensible • technical office’s heating demand in winter • peak of 13.2 kW • domestic hot water demand for the factory . Sensible + latent load @ 8°C inlet water temperature Borehole Heat Exchanger • Four - in parallel - BHEs with bentonite filling • 140 mm borehole diameter ; deep ~ 80 m • two double U BHEs • in. Diameter 26.6 mm • Thickness 2.9 mm • two single U BHEs • in. Diameter 32.6 mm • Thickness 3.7 mm • Thermal response test on BHEs • Infinite line source model analysis • Calculation of the ground thermal conductivity • 1.62 W/mK ± 4.3 % (P 95.5 % ) • a proportional-integral control provides a PI signal based on the deviation of the hygrothermal conditions from setpoint . Experimental measurements Hydronic Circuit Dynamic of the step response of the compressor Fancoil Galletti mod. Flat • the fan is driven by a brushless electric motor driven by inverter ; • a microprocessor is installed with Modbus serial communication : it allows the remote control (open/close the valve, vary the speed of the fan, read the temperature and humidity of the incoming air measured on board ).
