Chapter 4 Product and Service Design

Chapter 4 Product and Service Design. Spice Giant McCormick Demand for traditional spices going down. Translate customer wants and needs into product and service requirements Refine existing products and services Develop new products and services Formulate quality goals

porter
Télécharger la présentation

Chapter 4 Product and Service Design

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Chapter 4Product and Service Design Spice Giant McCormick Demand for traditional spices going down

  2. Translate customer wants and needs into product and service requirements Refine existing products and services Develop new products and services Formulate quality goals Formulate cost targets Construct and test prototypes Document specifications Product or Service Design Activities

  3. Product and Service Design Organization’s strategy

  4. Objectives of P/S Design

  5. Product Liability - A manufacturer is liable for any injuries or damages caused by a faulty product. Uniform Commercial Code - Products carry an implication of merchantability and fitness. Legal, Ethical, and Environmental Issues

  6. Sample Guidelines of an OrganizationDesigners to Adhere • Produce designs that are consistent with the goals of the company • Give customers the value they expect • Make health and safety a primary concern • Consider potential harm to the environment • …

  7. Other Issues in P/S Design

  8. Saturation Maturity Decline Demand Growth Introduction Time Figure 4.1 Life Cycles of Products or Services

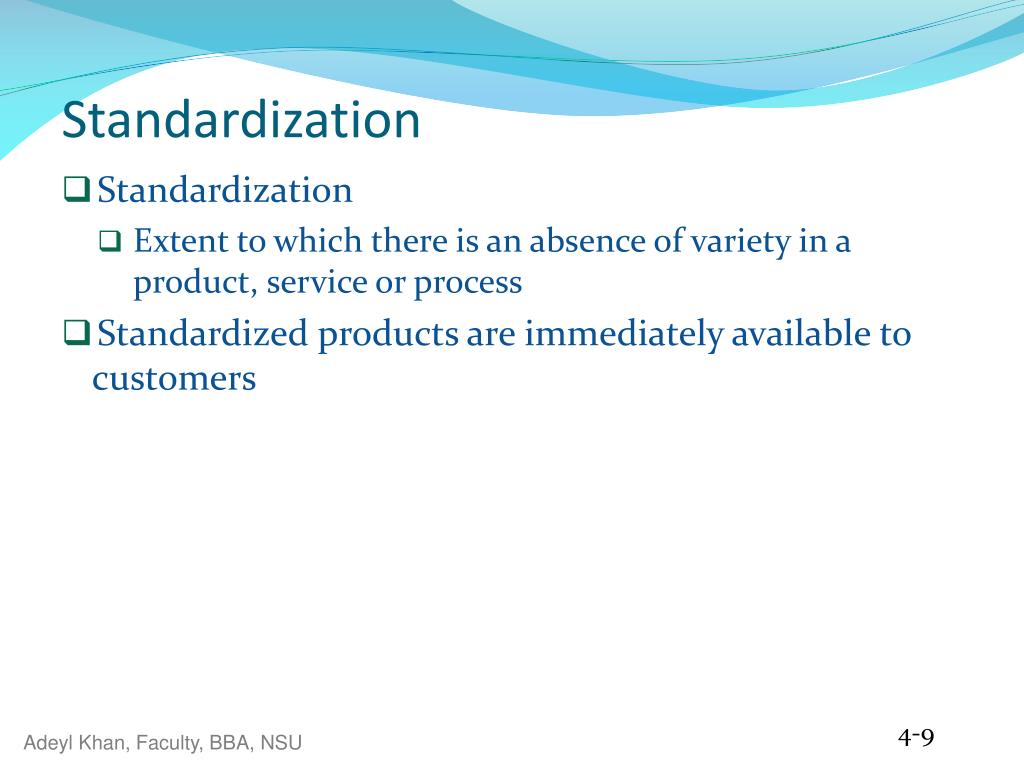

  9. Standardization Extent to which there is an absence of variety in a product, service or process Standardized products are immediately available to customers Standardization

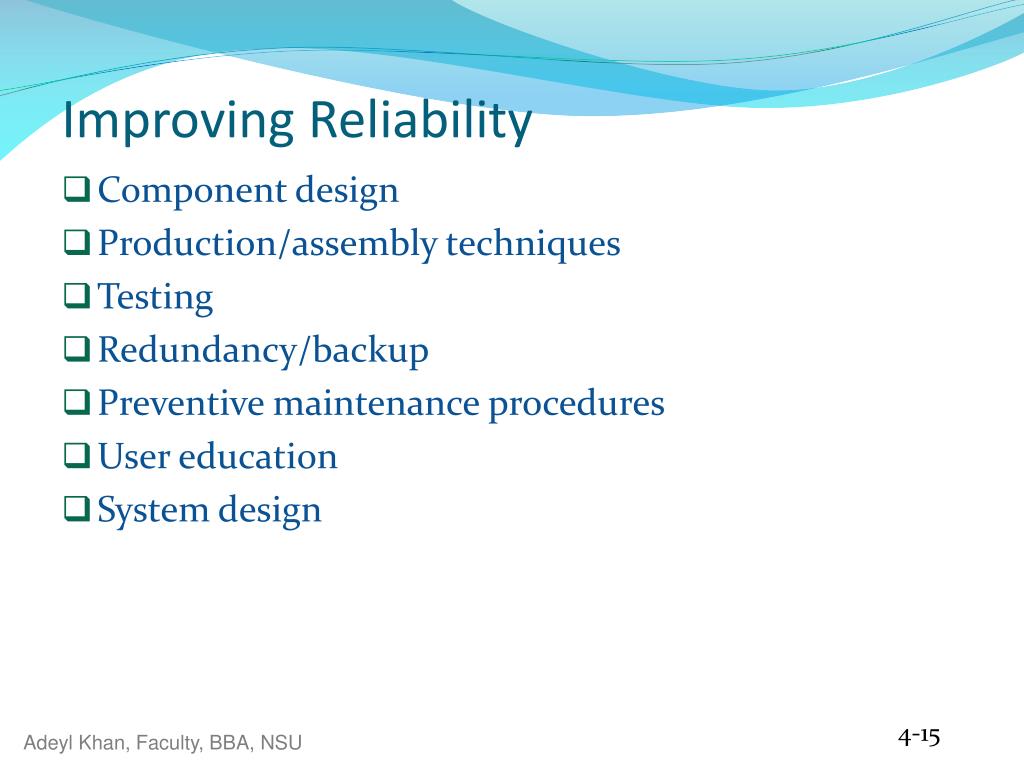

  10. Improving Reliability • Component design • Production/assembly techniques • Testing • Redundancy/backup • Preventive maintenance procedures • User education • System design

  11. Product Design

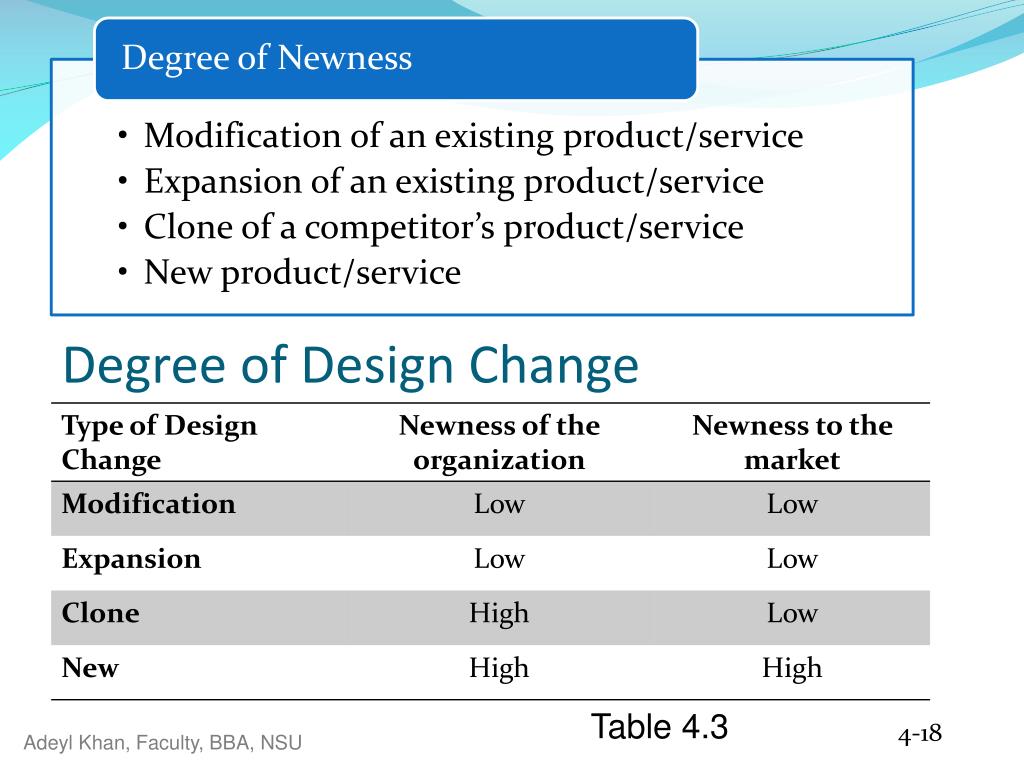

  12. Degree of Design Change Table 4.3

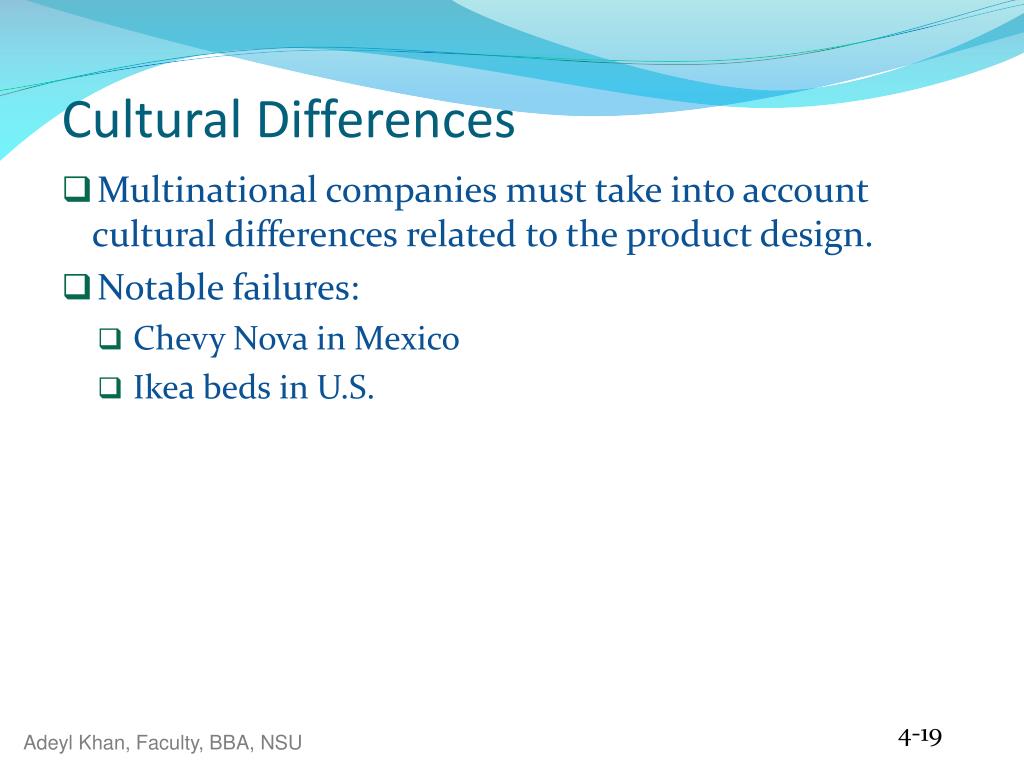

  13. Multinational companies must take into account cultural differences related to the product design. Notable failures: Chevy Nova in Mexico Ikea beds in U.S. Cultural Differences

  14. Virtual teams Uses combined efforts of a team of designers working in different countries Provides a range of comparative advantages over traditional teams such as: Engaging the best human resources around the world Possibly operating on a 24-hr basis Global customer needs assessment Global design can increase marketability Global Product Design

  15. Idea generation Feasibility analysis Product specifications Process specifications Prototype development Design review Market test Product introduction Follow-up evaluation Phases in Product Development Process

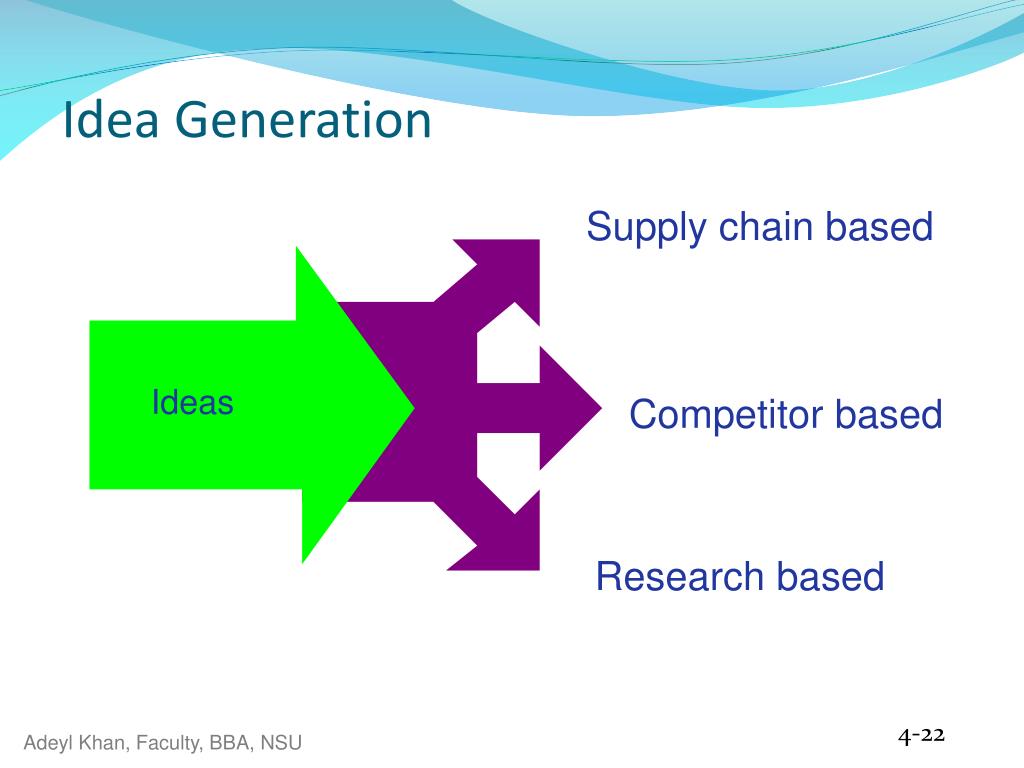

  16. Ideas Idea Generation Supply chain based Competitor based Research based

  17. Manufacturability is the ease of fabrication and/or assembly which is important for: Cost Productivity Quality Manufacturability

  18. Concurrent engineering is the bringing together of engineering design and manufacturing personnel early in the design phase. Concurrent Engineering

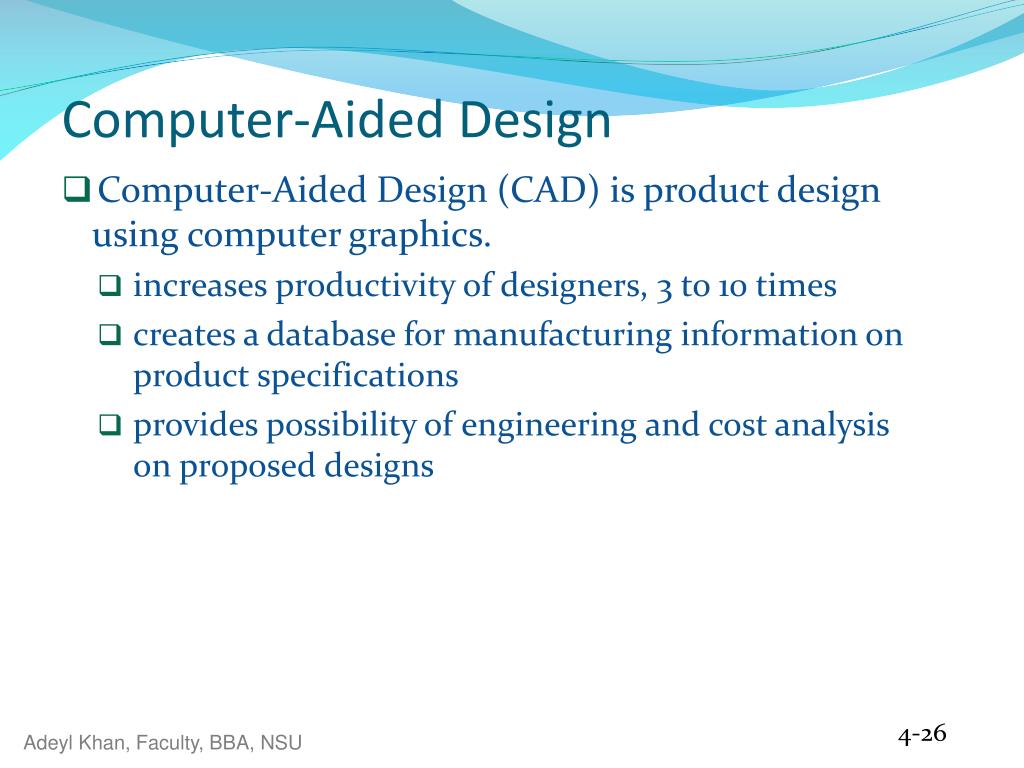

  19. Computer-Aided Design (CAD) is product design using computer graphics. increases productivity of designers, 3 to 10 times creates a database for manufacturing information on product specifications provides possibility of engineering and cost analysis on proposed designs Computer-Aided Design

  20. Design for manufacturing (DFM) Design for assembly (DFA) Design for recycling (DFR) Remanufacturing Design for disassembly (DFD Product design

  21. Recycling: recovering materials for future use Recycling reasons Cost savings Environment concerns Environment regulations Recycling

  22. Remanufacturing: Refurbishing used products by replacing worn-out or defective components. Remanufactured products can be sold for 50% of the cost of a new producer Remanufacturing can use unskilled labor Some governments require manufacturers to take back used products Design for Disassembly (DFD): Designing products so that they can be easily taken apart. Remanufacturing

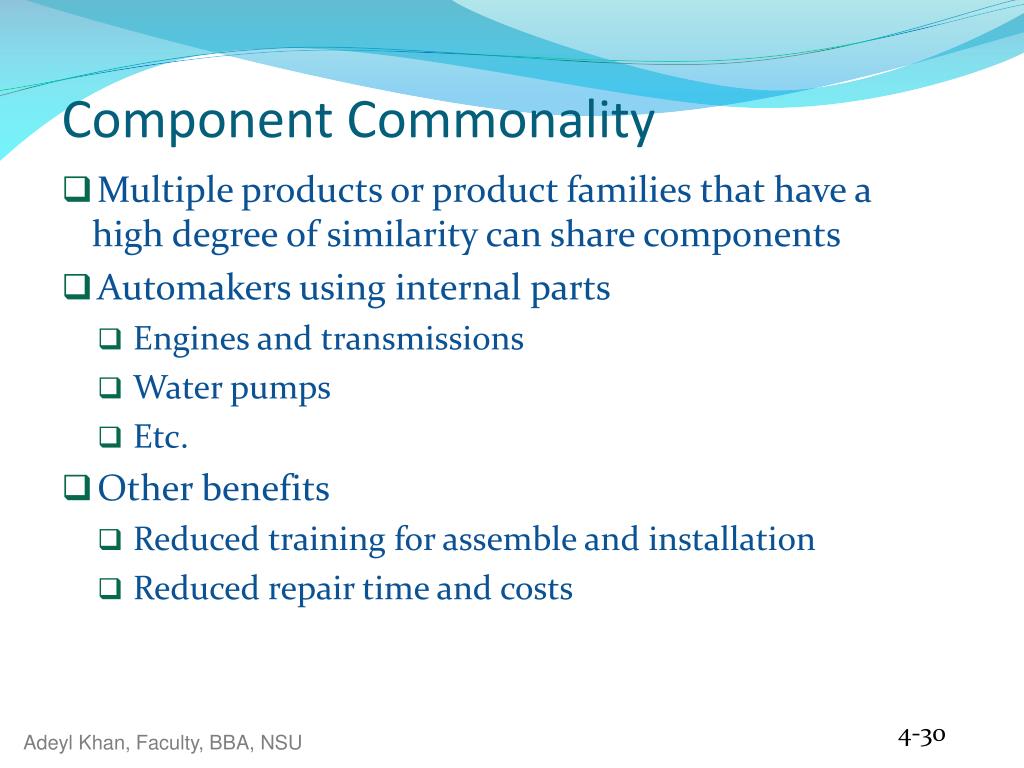

  23. Multiple products or product families that have a high degree of similarity can share components Automakers using internal parts Engines and transmissions Water pumps Etc. Other benefits Reduced training for assemble and installation Reduced repair time and costs Component Commonality

  24. Quality Function Deployment Voice of the customer House of quality Quality Function Deployment QFD: An approach that integrates the “voice of the customer” into the product and service development process.

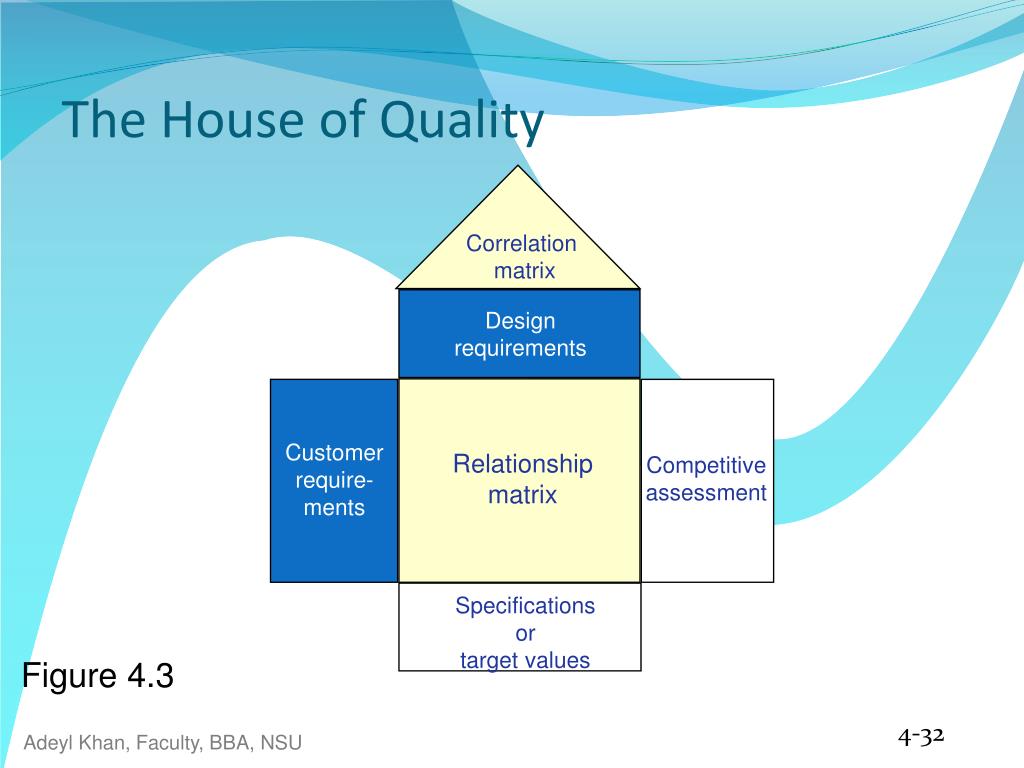

  25. Correlation matrix Design requirements Customer require- ments Relationship matrix Competitive assessment Specifications or target values The House of Quality Figure 4.3

  26. Correlation: Strong positive X Positive X X Negative X X X Strong negative * Engineering Characteristics Competitive evaluation Energy needed to close door Check force on level ground Energy needed to open door Accoust. Trans. Window Door seal resistance Water resistance X = Us A = Comp. A Importance to Cust. B = Comp. B Customer Requirements (5 is best) 1 2 3 4 5 AB X Easy to close 7 X AB Stays open on a hill 5 Easy to open 3 XAB A X B Doesn’t leak in rain 3 10 6 6 9 2 3 No road noise 2 X A B Importance weighting Relationships: Strong = 9 Medium = 3 Reduce energy level to 7.5 ft/lb Reduce energy to 7.5 ft/lb. Target values Reduce force to 9 lb. Maintain current level Maintain current level Maintain current level Small = 1 5 BA BA B B BXA X Technical evaluation (5 is best) B 4 X A X A 3 A X 2 X 1 Figure 4.4

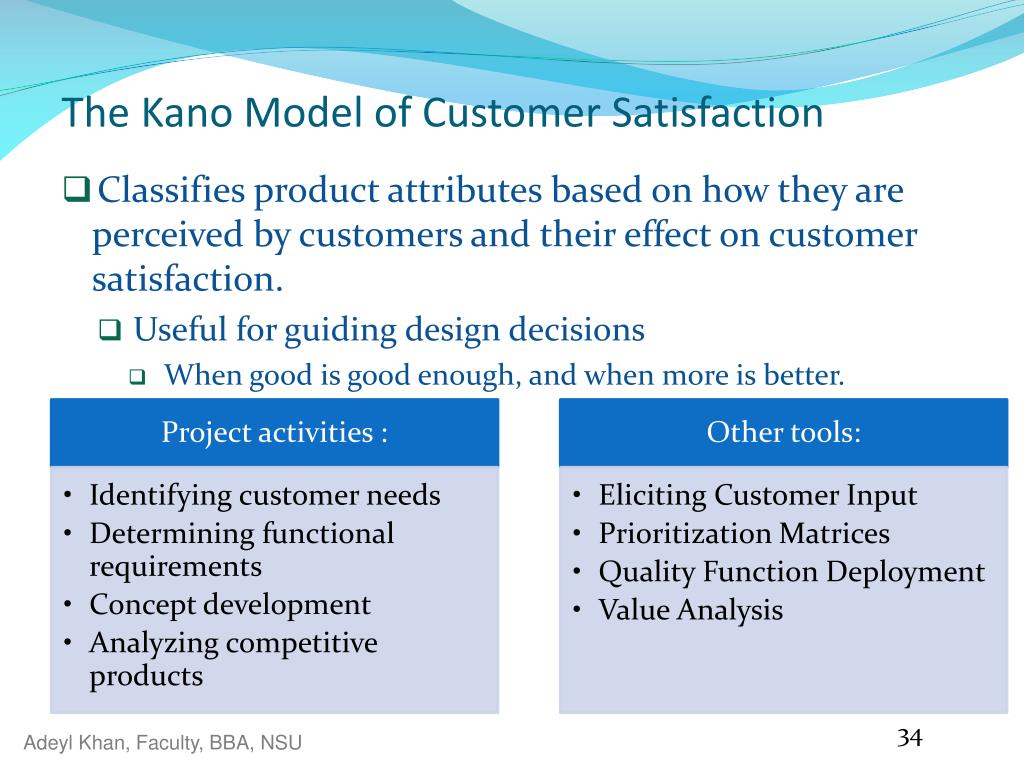

  27. The Kano Model of Customer Satisfaction • Classifies product attributes based on how they are perceived by customers and their effect on customer satisfaction. • Useful for guiding design decisions • When good is good enough, and when more is better.

  28. The Kano Model A competitive product meets basic attributes, maximizes performances attributes, and includes as many “excitement” attributes as possible at a cost the market can bear. high customer satisfaction no dissatisfaction * Cup Holders customer satisfaction * fuel economy Must haves- no product differentiation

  29. Service Something that is done to or for a customer Service delivery system The facilities, processes, and skills needed to provide a service Product bundle The combination of goods and services provided to a customer Service package The physical resources needed to perform the service Service Design

  30. Service design involves The physical resources needed The goods that are purchased or consumed by the customer Explicit services Implicit services Service Design

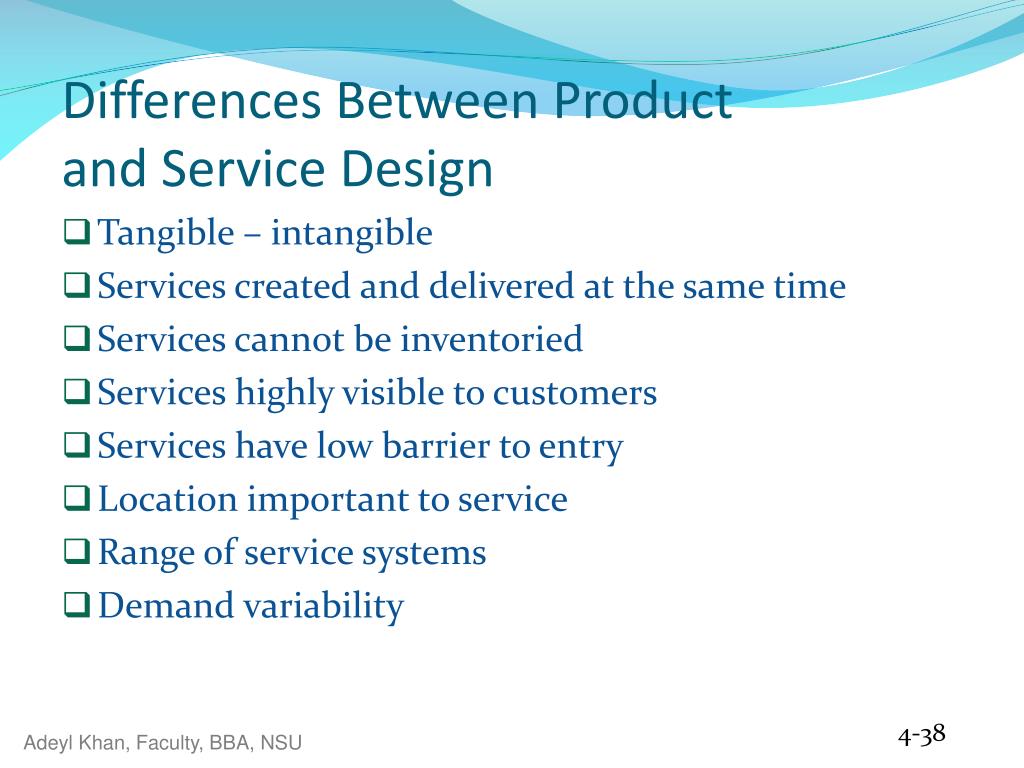

  31. Differences Between Product and Service Design • Tangible – intangible • Services created and delivered at the same time • Services cannot be inventoried • Services highly visible to customers • Services have low barrier to entry • Location important to service • Range of service systems • Demand variability

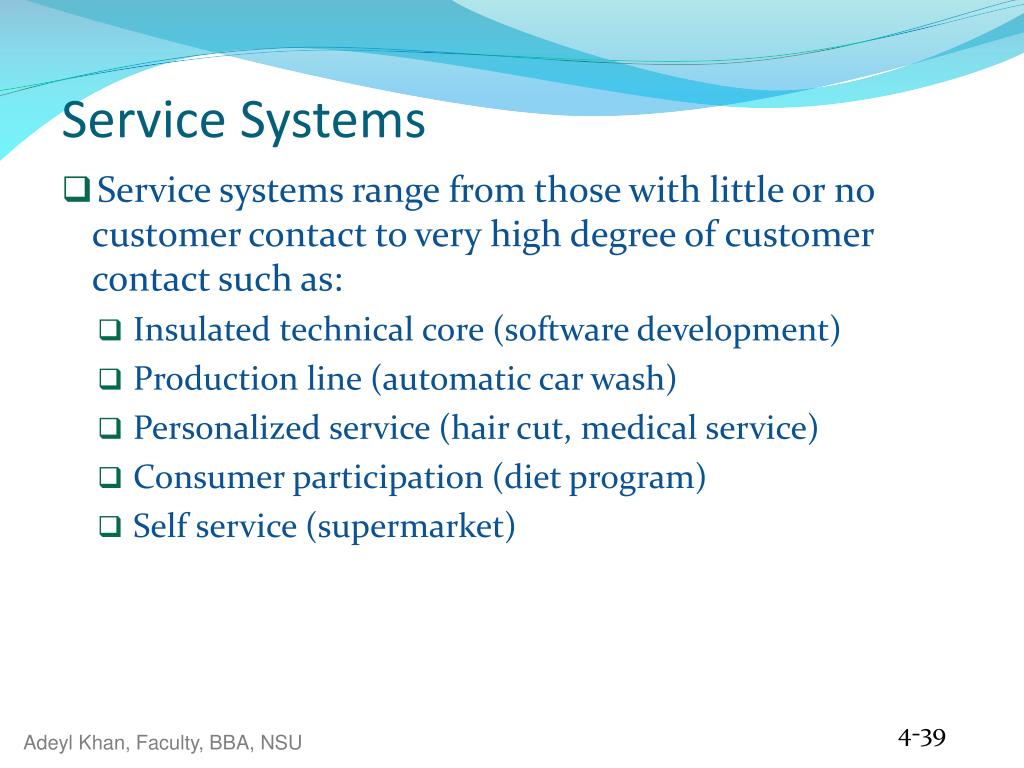

  32. Service systems range from those with little or no customer contact to very high degree of customer contact such as: Insulated technical core (software development) Production line (automatic car wash) Personalized service (hair cut, medical service) Consumer participation (diet program) Self service (supermarket) Service Systems

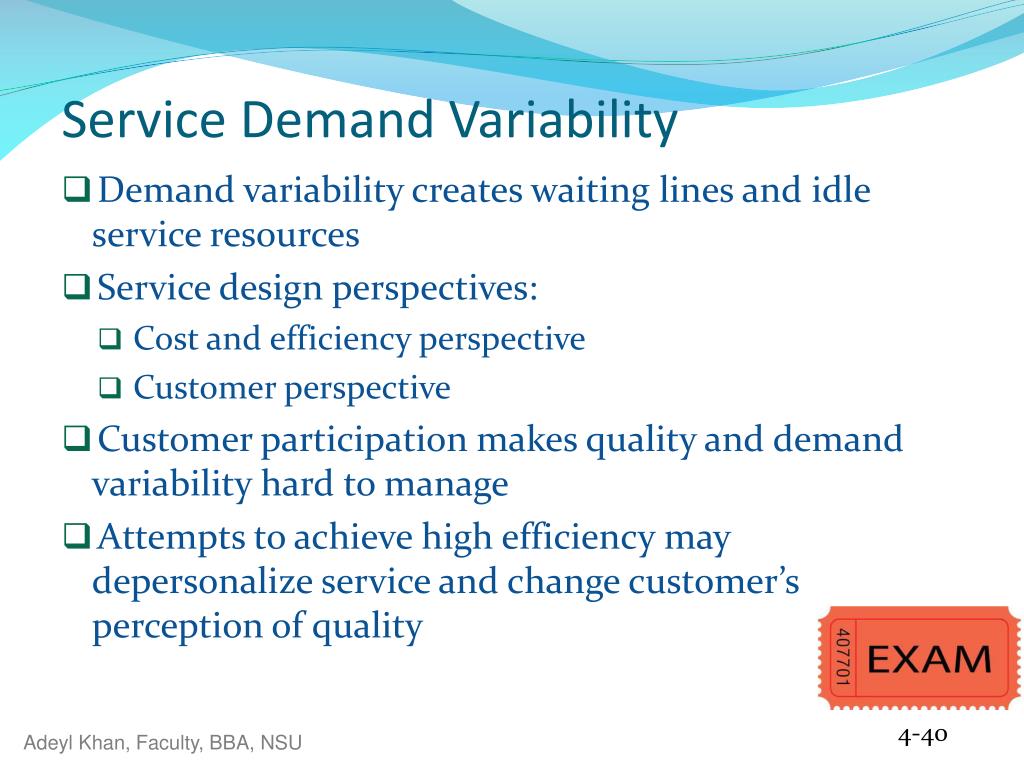

  33. Demand variability creates waiting lines and idle service resources Service design perspectives: Cost and efficiency perspective Customer perspective Customer participation makes quality and demand variability hard to manage Attempts to achieve high efficiency may depersonalize service and change customer’s perception of quality Service Demand Variability

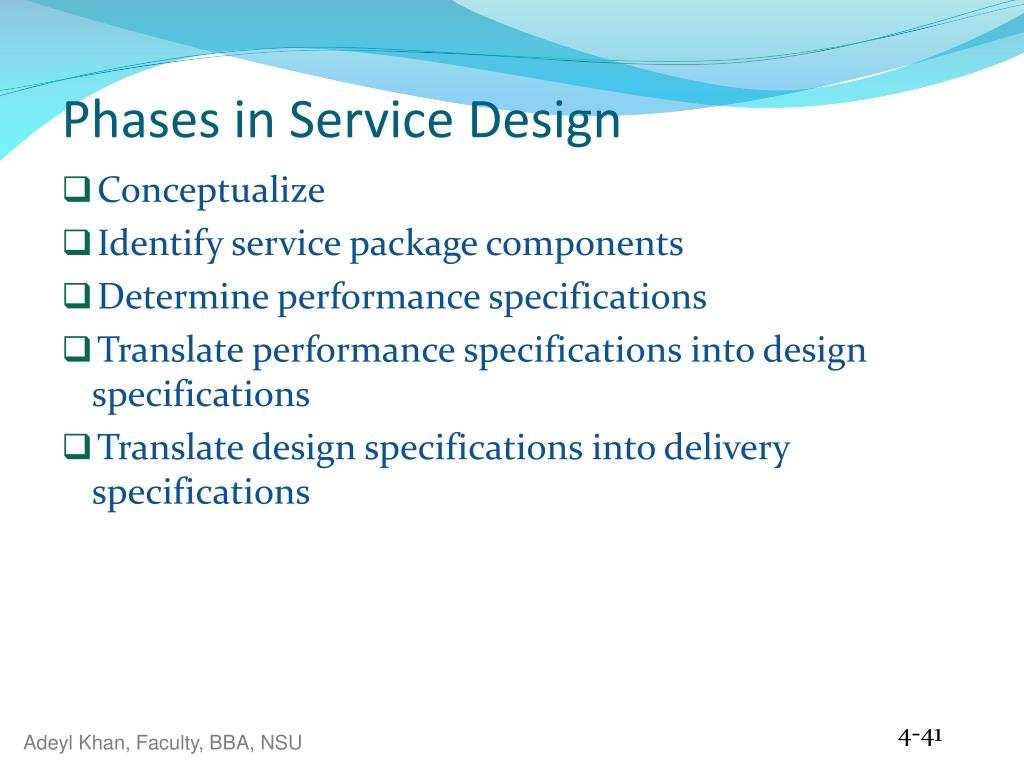

  34. Conceptualize Identify service package components Determine performance specifications Translate performance specifications into design specifications Translate design specifications into delivery specifications Phases in Service Design

  35. Service blueprinting A method used in service design to describe and analyze a proposed service A useful tool for conceptualizing a service delivery system Service Blueprinting

  36. Overnight Hotel Stay Bill Desk Lobby Hotel Exterior Parking Hotel Exterior Parking Cart for Bags Desk Registration Papers Lobby Key Elevators Hallways Room Cart for Bags Room Amenities Bath Menu Delivery Tray Food Appearance Food PHYSICAL EVIDENCE Arrive at Hotel Give Bags to Bellperson Call Room Service Check out and Leave CUSTOMER Receive Bags Sleep Shower Go to Room Receive Food Eat Check in Greet and Take Bags Deliver Bags Deliver Food Process Registration Process Check Out (On Stage) CONTACT PERSON Take Food Order (Back Stage) Take Bags to Room Registration System Registration System Prepare Food SUPPORT PROCESS

  37. Designing Service Blueprints Step 6 Add evidence of service at each customer action step. Step 4 Map contact employee actions, onstage and back-stage. Step 3 Map the process from the customer’s point of view. Step 1 Identify the process to be blue-printed. Step 2 Identify the customer or customer segment. Step 5 Link customer and contact person activities to needed support functions.

  38. Evidence Client Steps On Stage Journey Energy Provider Steps Energy Provider Steps • How will my energy meter help me use energy more efficiently? • Receiving a home metering device to measure personal energy consumption • Basic customer steps and backstage activities are mapped out Back Stage Processes Backend Applications

  39. Evidence New Energy meter arrives Energy consumption visualized Reduced usage Conduct normal appliance usage Gee – how would consumption differ if I selected “light” load for my dishwasher? On Stage Journey Read meter Run appliance again Client Steps Follow meter instructions Read meter Energy Provider Steps Install Meter, give client instruction package Energy Provider Steps Back Stage Processes Push feedback of use to meter in home Push feedback of use to meter in home Backend Applications Add readout to data base for future analytics

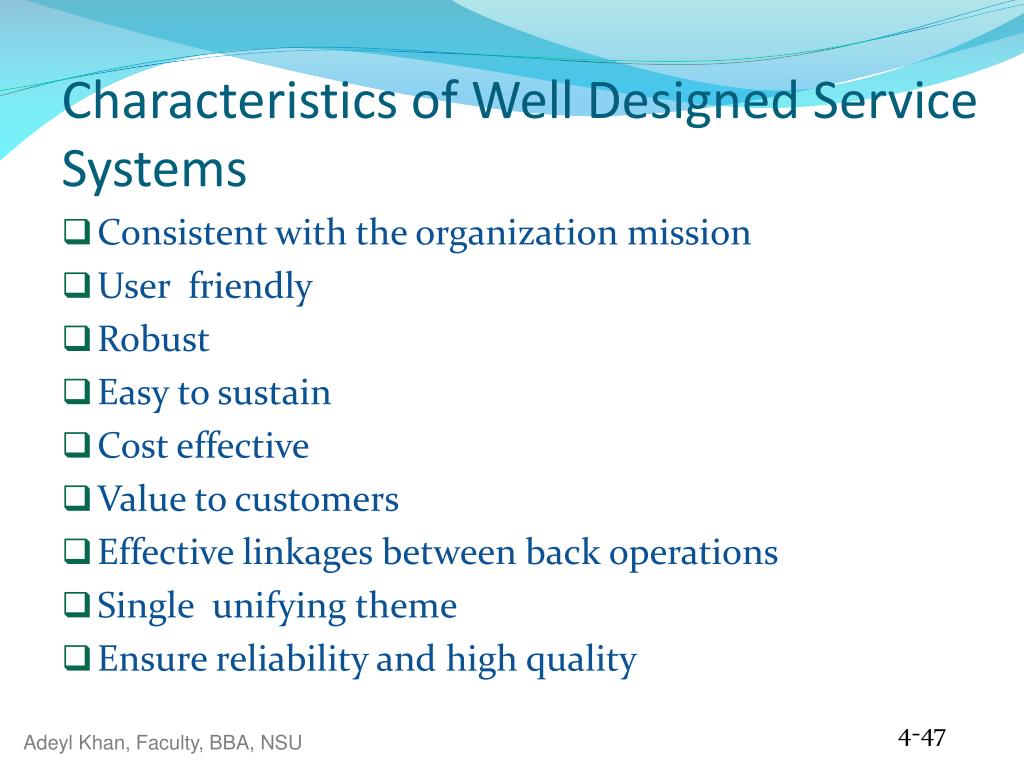

  40. Characteristics of Well Designed Service Systems • Consistent with the organization mission • User friendly • Robust • Easy to sustain • Cost effective • Value to customers • Effective linkages between back operations • Single unifying theme • Ensure reliability and high quality

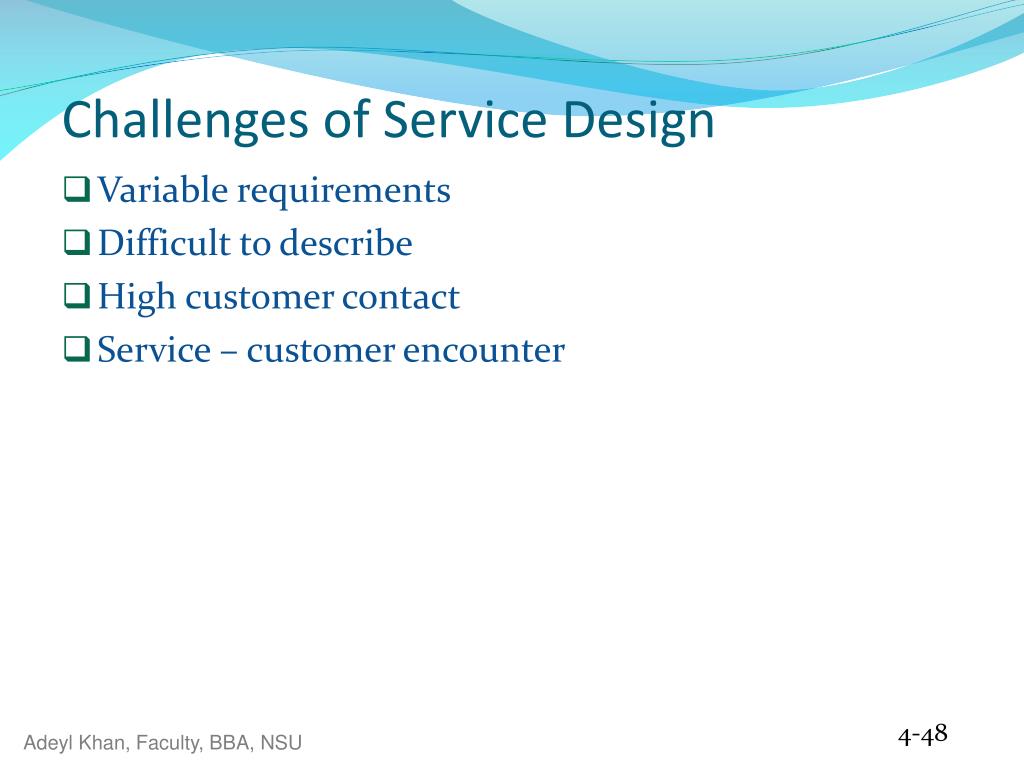

  41. Variable requirements Difficult to describe High customer contact Service – customer encounter Challenges of Service Design

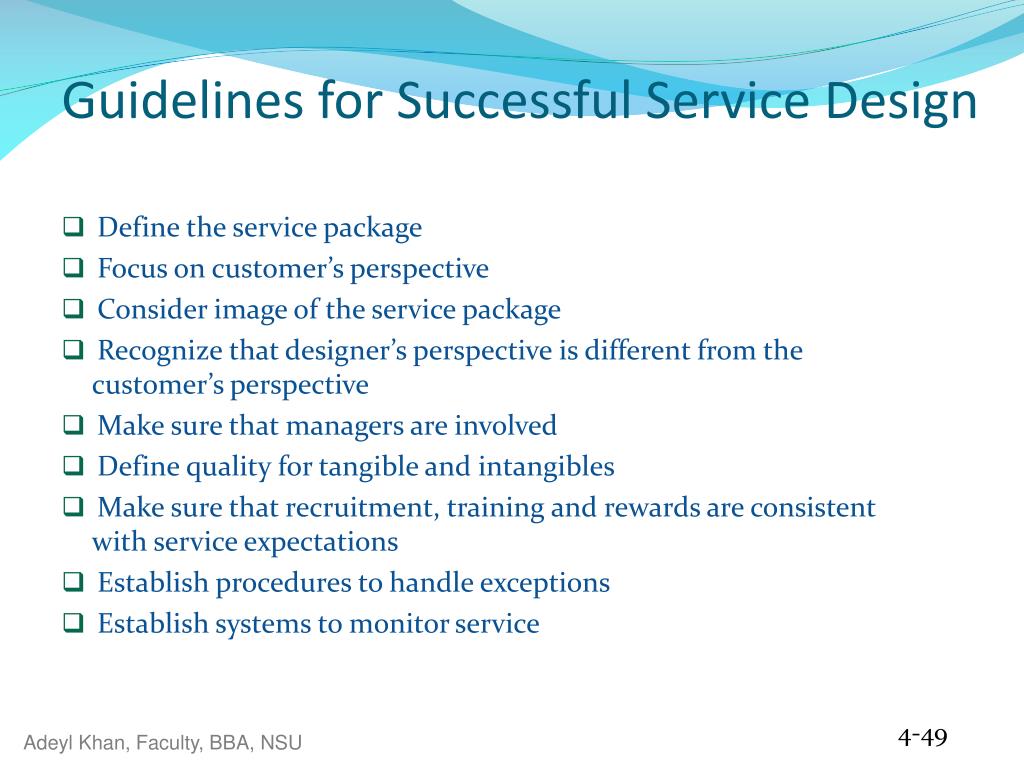

  42. Guidelines for Successful Service Design • Define the service package • Focus on customer’s perspective • Consider image of the service package • Recognize that designer’s perspective is different from the customer’s perspective • Make sure that managers are involved • Define quality for tangible and intangibles • Make sure that recruitment, training and rewards are consistent with service expectations • Establish procedures to handle exceptions • Establish systems to monitor service

  43. Increase emphasis on component commonality Package products and services Use multiple-use platforms Consider tactics for mass customization Look for continual improvement Shorten time to market Operations Strategy
