Articulation and the Vocal Tract Chapter 8

1. Articulation and the Vocal TractChapter 8 Perry C. Hanavan, Au.D. Audiologist

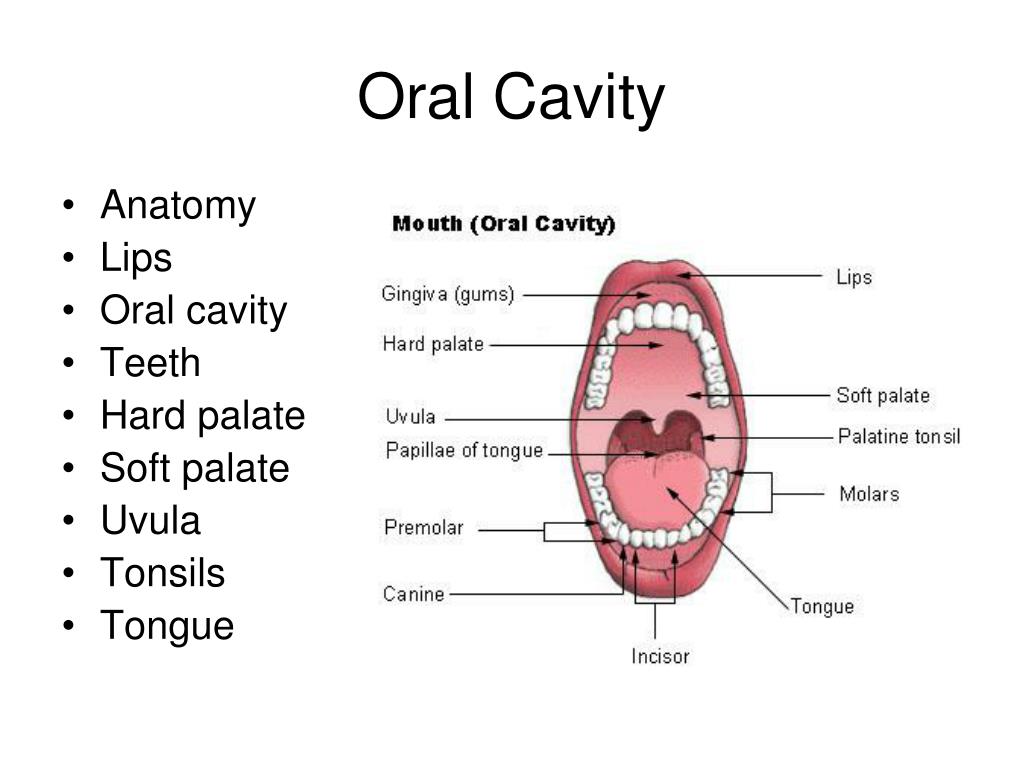

2. Oral Cavity • Anatomy • Lips • Oral cavity • Teeth • Hard palate • Soft palate • Uvula • Tonsils • Tongue

3. Question Which is not a part of the oral cavity? • Uvula • Soft palate • Pharynx • Lips • Hard palate

4. Lips • Anatomy • FAS

5. Question Cupid bow is: • Upper lip • Lower lip • Chin • Nose • A novel

6. Facial Muscles • Anatomy • Facial muscles

7. Question Which muscle helps round the lips? • Obicularisoculi • Obicularisoris • Obicularis oracle • Obicularis occipital

8. Teeth • Anatomy

9. Dental Occlusion • Types

10. Hard Palate • Anatomy • Oral cavity • Hard palate

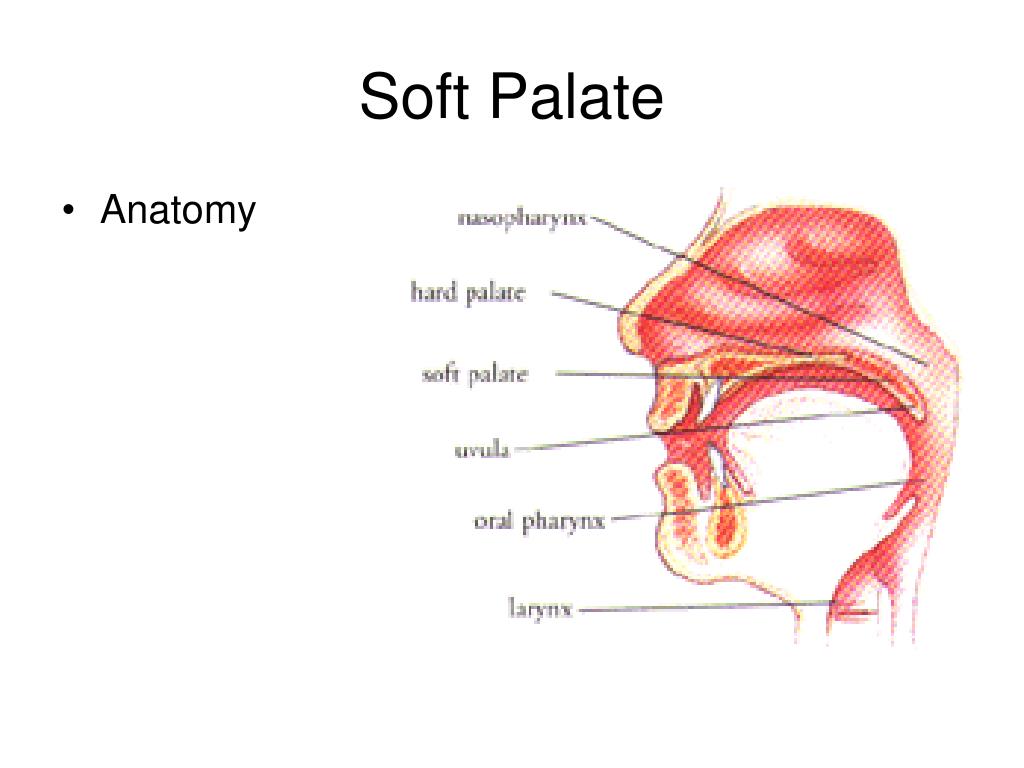

11. Soft Palate • Anatomy

12. Tongue • Anatomy

13. Function of Soft Palate • Velopharyngeal port • nasality

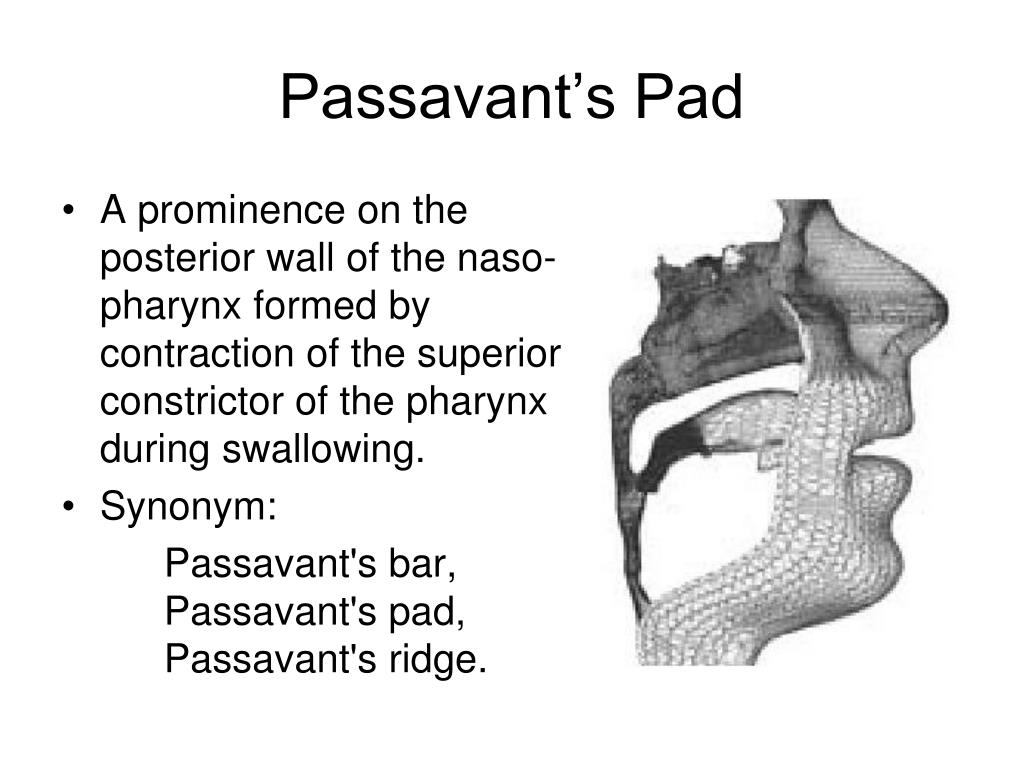

14. Passavant’s Pad • A prominence on the posterior wall of the naso-pharynx formed by contraction of the superior constrictor of the pharynx during swallowing. • Synonym: Passavant'sbar, Passavant'spad, Passavant'sridge.

15. Speech Production • Phonemes (sound units of language) • Consonants (s, z) • Voiced (z) • Unvoiced (s) • Vowels (i) • Diphthongs (oy)

16. Production of Consonants • Place of production • Where major constriction occurs in vocal tract • Manner of production • How consonant is produced • Voicing (phonation) • Voiced or unvoiced

17. Place of Production • Bilabial • Labiodental • Dental • Alveolar • Palatal • Velar • Glottal

18. Manner of Production • Stops • Fricatives • Africates • Nasals • Semivowels

19. Alphabet Soup • 26 letters of alphabet • Only list consonants • Digraph consonants • Other consonants

21. Male Vocal Tract 17.2 cm 17.2 cm Tube open at one end, closed at the other ¼ Wave Resonator

22. Vocal Tract Resonators (Filter) • Tube open at both ends • ½ resonator • Tube closed at one end and open at the other • ¼ resonator

23. Vocal Tract (Filter) • Approximately 17.2 cm for males • 5/6 the length for females • Children roughly half the length of adult male Assignment

24. Source-Filter Theory Fo (source produced at vocal folds) Formants (F1, F2, F3, …) created by vocal tract resonance Source which is emphasized and not modulated by vocal tract resonance (F1, F2, F3, shown at left)

25. Formants with Tongue Position More pictorials

26. Vowel Formants

27. Formants Created by Vowel Shapes

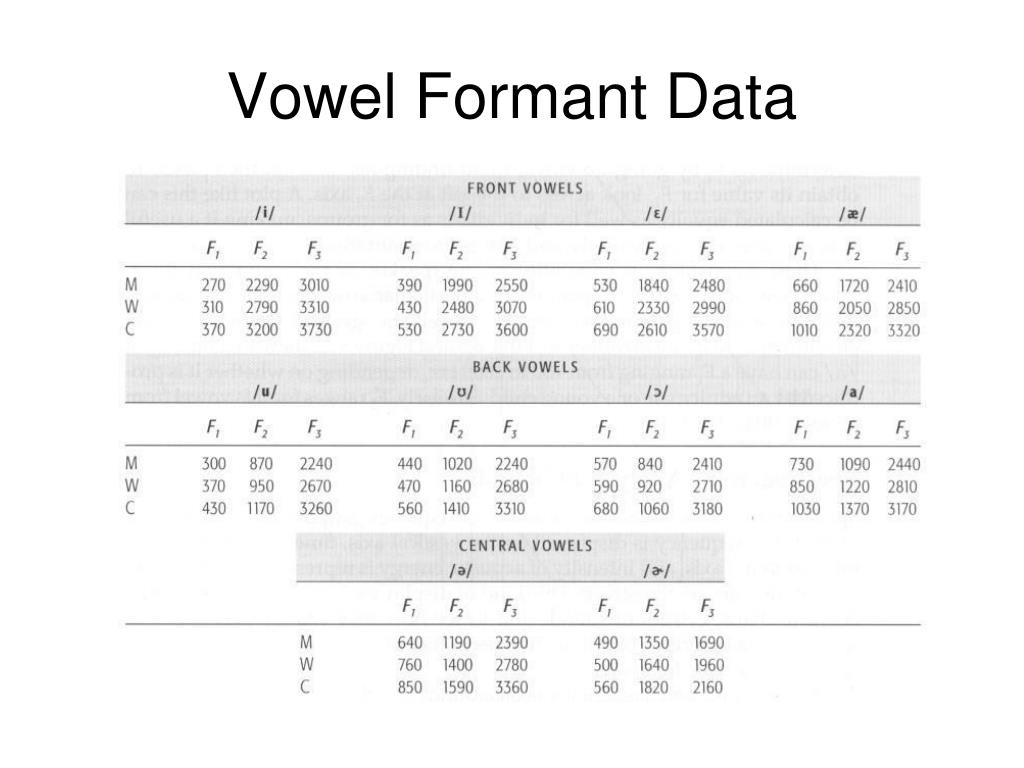

28. Vowel Formant Data

29. Adult Male Talker Data

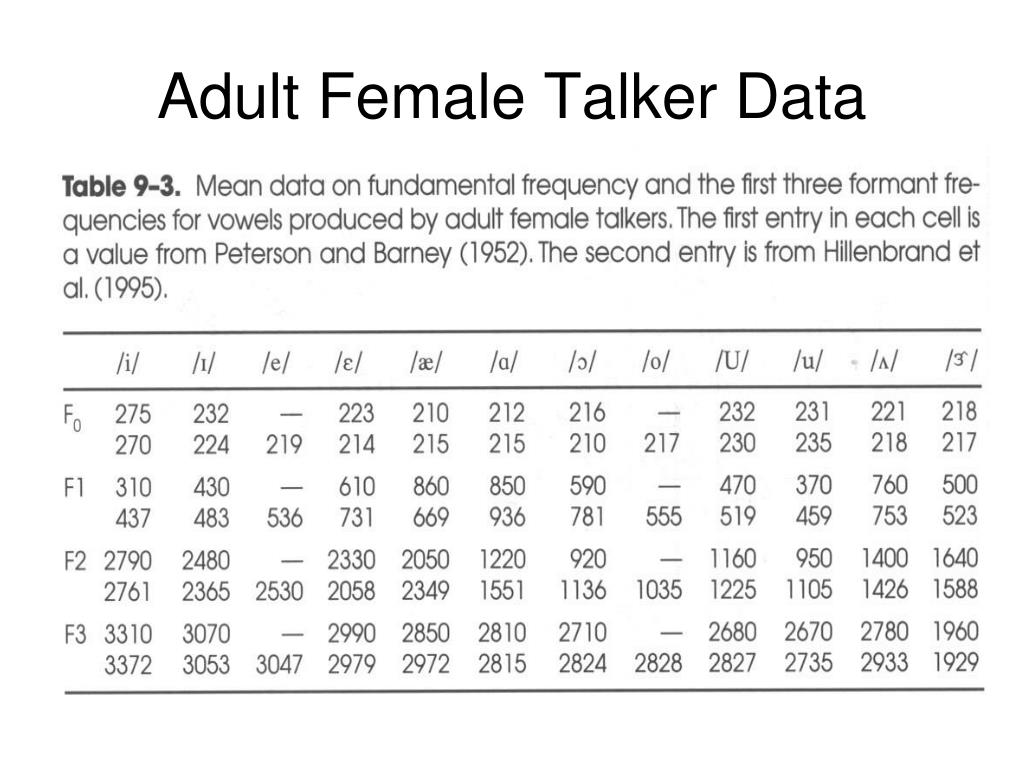

30. Adult Female Talker Data

31. Chart Vowel Formants • Acoustics and Tongue Position • Video Clip

32. Lip Rounding

33. Vowels Formants

34. Source-Filter Theory

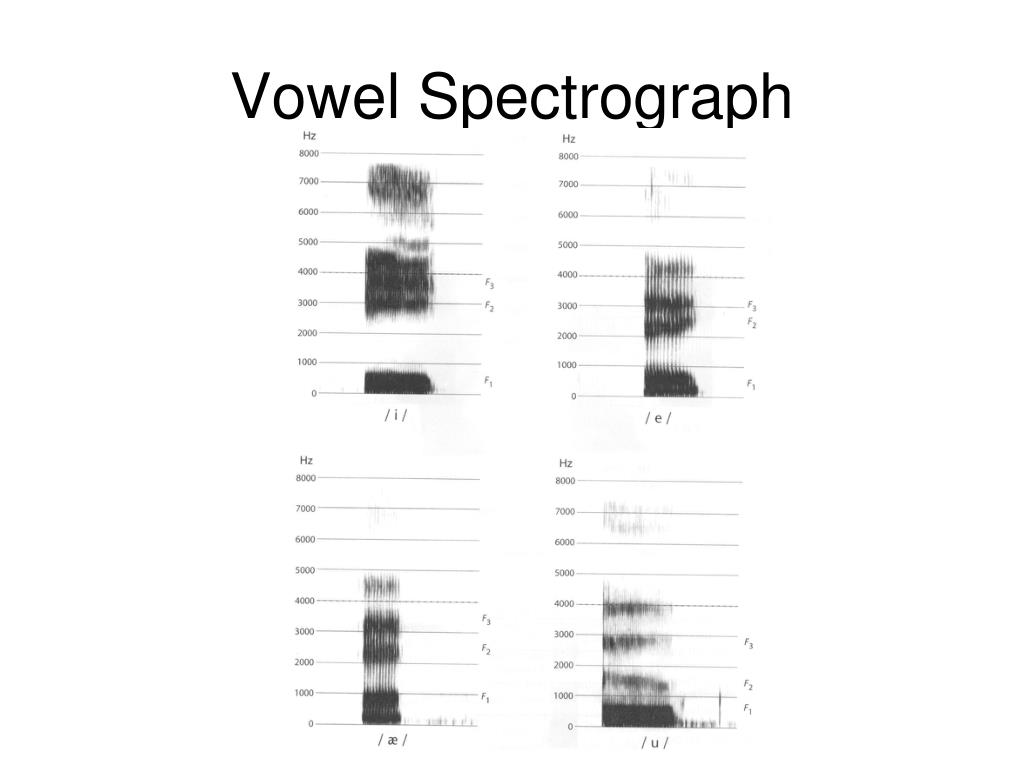

35. Vowel Spectrograph

36. Diphthongs

37. Consonants • Intensity (loudness cues) • Frequency (pitch cues) • Duration (length of sound cues)

38. Audiogram

39. Plotting Acoustic Data on Audiogram

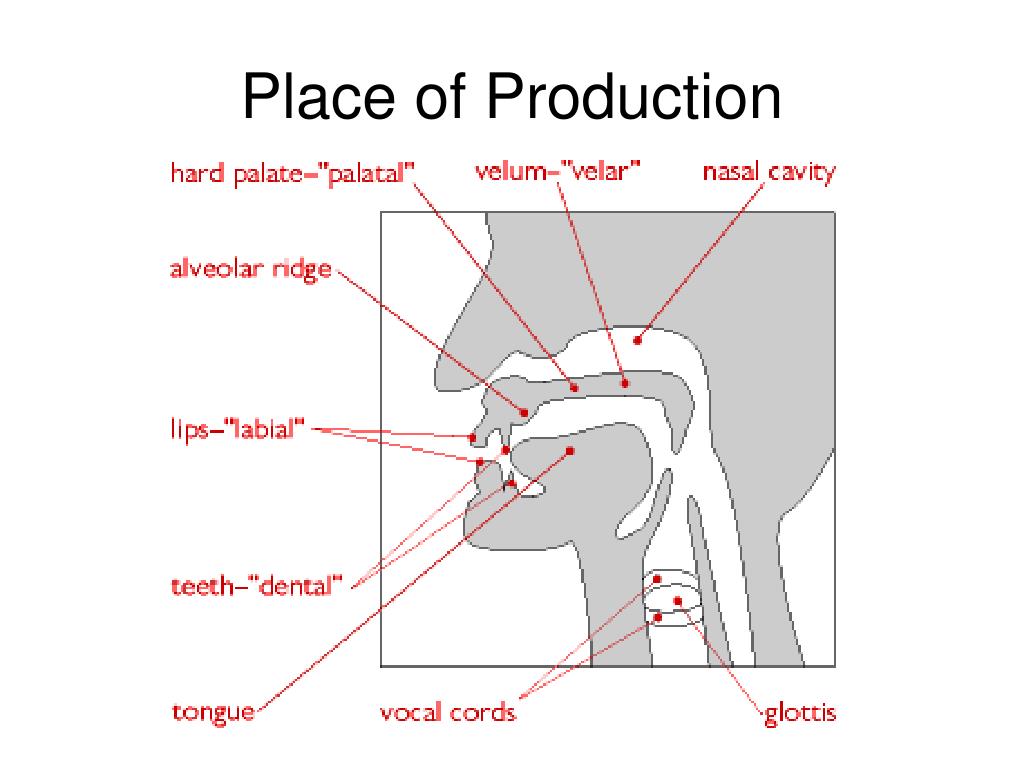

40. Place of Production

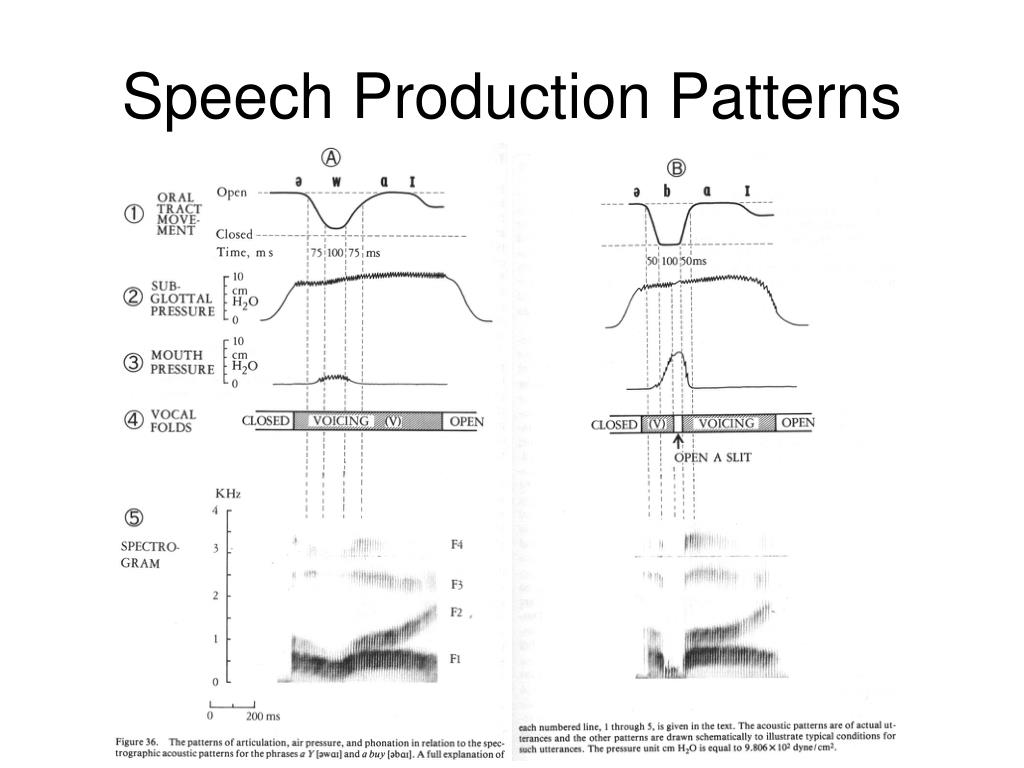

41. Speech Production Patterns

42. Speech Production Patterns

43. Vowel Shapes

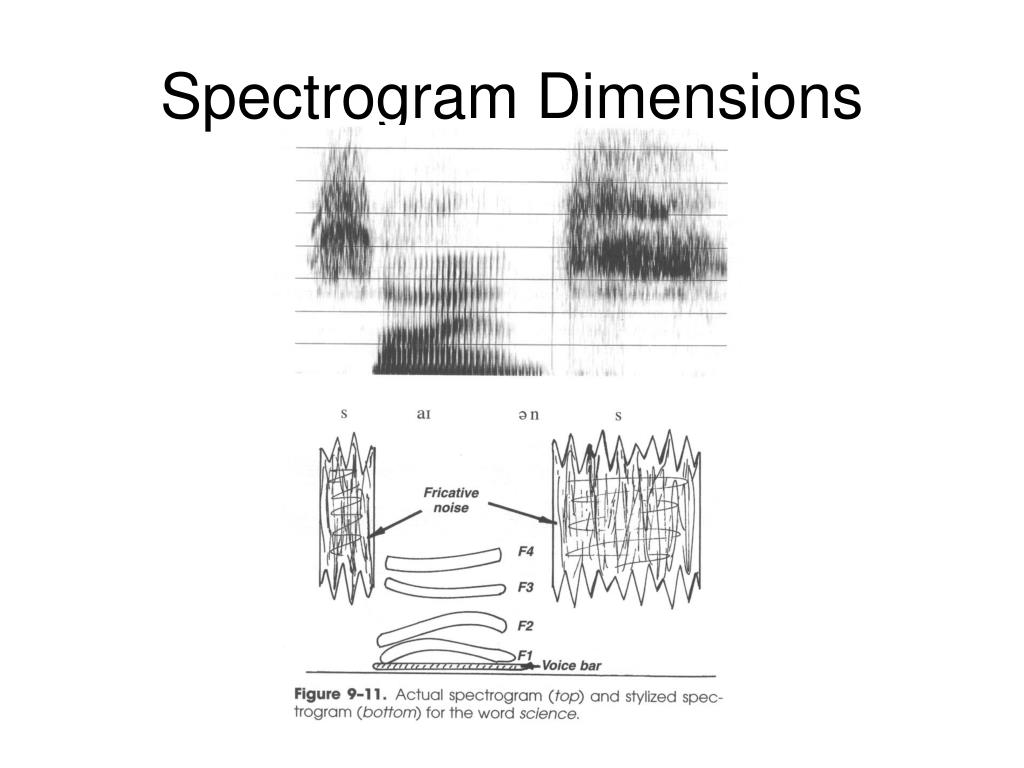

44. Spectrogram Dimensions

45. Spectrogram Dimensions

46. Transitions

47. Spectrogram Dimensions

48. Question What is the phoneme in the English language with the weakest energy? A. /l/ B. /r/ C. /s/ • /f/ E. /ɵ/

49. Consonant Data

50. Intensity Data
