  1. VR-AD System 2011.01.25

  2. VR-AD Environment in office Real object on field PTZF Soccer Field SONY HD CAMERA

  3. VR-AD Applications • 1. VR Advertisement • Logo & License • Advertisement Add/Delete/Modify • Show / Hide advertisement control in real time • PTZF sensor initializing /setting

  4. VR-AD Applications • 2. VRAD Calibration • Soccer file size and position calculation • Chroma-keyer

  5. Sc01.jpg VR-AD menu Darim Logo and version Short Instruction

  6. VR-AD render output Sc01.jpg

  7. Layout Editor menu Sc02.jpg Render output option Input video selection Camera – VT800 ch1 Slowmo– VT800 ch2 Soccer filed top down view Image layout field Properties Images Image group save/load/switching layer order

  8. Layout Editor menu Sc03.jpg Only checked to Soccer field view Output

  9. Layout Editor menu Sc04.jpg Checked soccer field with background video * Background video = Camera Live input Output

  10. Layout Editor menu Sc05.jpg Soccer field image + Background live image + Alpha layer (Chroma-key) Output

  11. Output compare Only Advertisement image Mixing Live background + image + Chroma-key layer Mixing Live background + image

  12. Layout Editor menu Sc06.jpg Soccer field image + Background live image + Alpha layer (Chroma-key) Output Up to 20 images Rename/Position/Size/ Rotate/Transparency

  13. Live Control menu Sc07.jpg Show/Hide Images Output Show/Hide 3D objects

  14. Live Control menu Sc08.jpg Output (Fixing now) Re-sizing problem

  15. PTZF menu Sc09.jpg Comport select – check “Connected” Shotoku compatible Initialization Sensor value Put Delay 12F (but will optimize) Camera center offset control Zoom Lense offset control

  16. PTZF menu Sc010.jpg Zoom Calibration menu

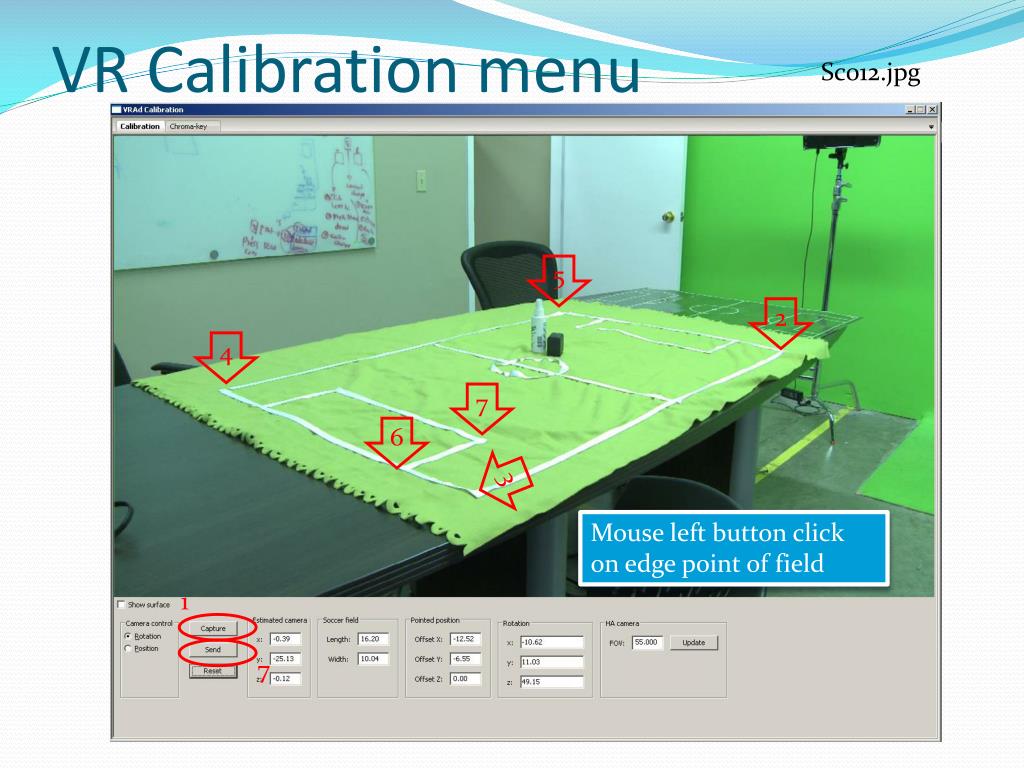

  17. Sc012.jpg VR Calibration menu 5 2 4 7 6 3 Mouse left button click on edge point of field 1 7

  18. Sc011.jpg VR Calibration menu Set correctly

  19. Sc013.jpg VR Calibration menu Chroma-key setting

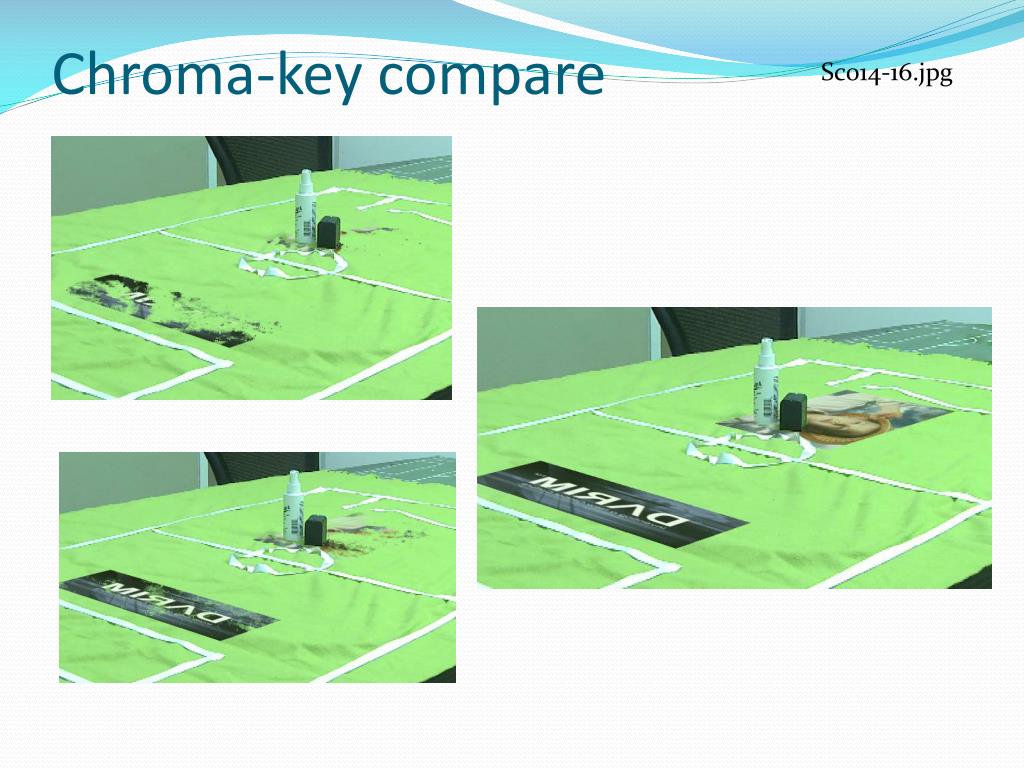

  20. Sc014-16.jpg Chroma-key compare

  21. PTZ Compare (Fixing now)

  22. PTZ Compare (Fixing now)

  23. PTZ Compare (Fixing now)

  24. Thanks.
