  1. CN1276 Server Kemtis Kunanuraksapong MSIS with Distinction MCTS, MCDST, MCP, A+

  2. Agenda • Chapter 12: Configuring Name Resolutionand Additional Services • Quiz • Exercise

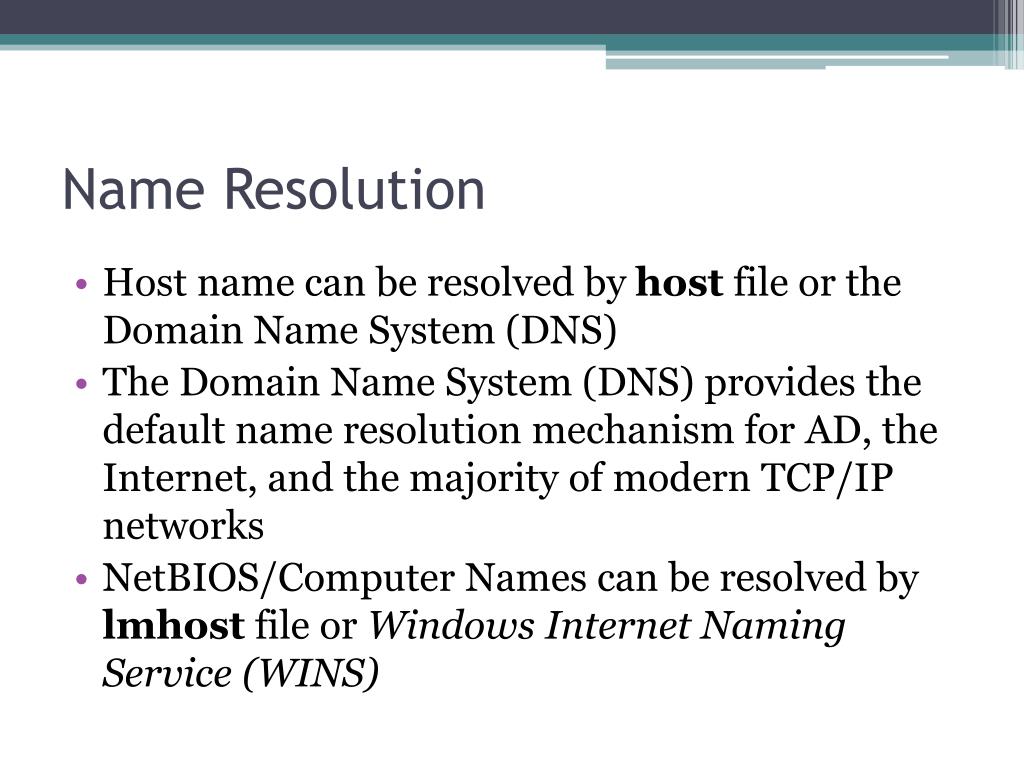

  3. Name Resolution • Host name can be resolved by host file or the Domain Name System (DNS) • The Domain Name System (DNS) provides the default name resolution mechanism for AD, the Internet, and the majority of modern TCP/IP networks • NetBIOS/Computer Names can be resolved by lmhost file or Windows Internet Naming Service (WINS)

  4. Domain Name System (DNS) • Main components of DNS: • DNS namespace • Microsoft.com, lucernepublishing.com, etc • Name Server • Contains all the info in their authoritative domain • Maintain information about the domain tree structure • It has pointers to other name servers that enable it to access information about any other area of the tree • Resolver • Translate the request into IP/Host name as needed with information from Name server

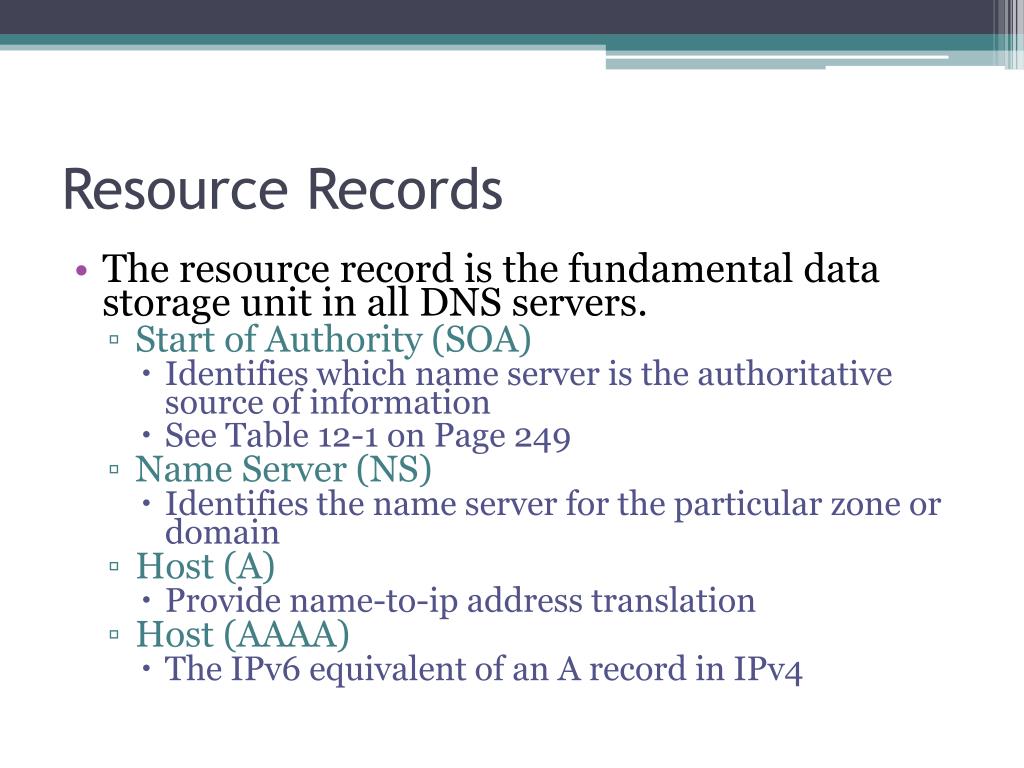

  5. Resource Records • The resource record is the fundamental data storage unit in all DNS servers. • Start of Authority (SOA) • Identifies which name server is the authoritative source of information • See Table 12-1 on Page 249 • Name Server (NS) • Identifies the name server for the particular zone or domain • Host (A) • Provide name-to-ip address translation • Host (AAAA) • The IPv6 equivalent of an A record in IPv4

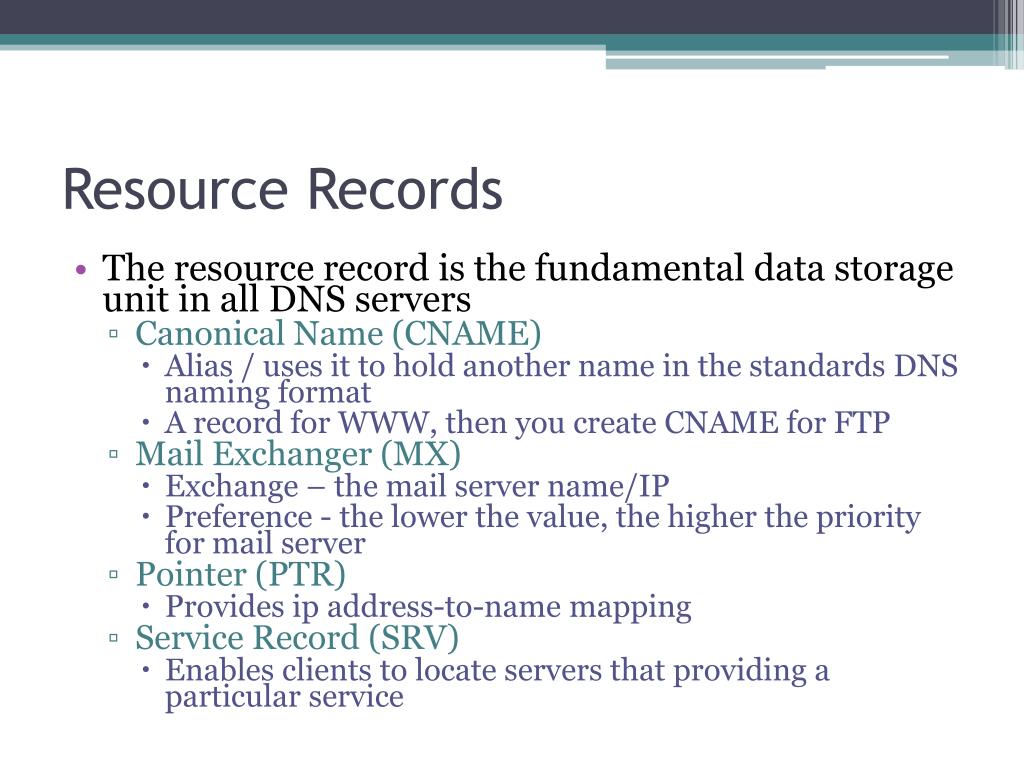

  6. Resource Records • The resource record is the fundamental data storage unit in all DNS servers • Canonical Name (CNAME) • Alias / uses it to hold another name in the standards DNS naming format • A record for WWW, then you create CNAME for FTP • Mail Exchanger (MX) • Exchange – the mail server name/IP • Preference - the lower the value, the higher the priority for mail server • Pointer (PTR) • Provides ip address-to-name mapping • Service Record (SRV) • Enables clients to locate servers that providing a particular service

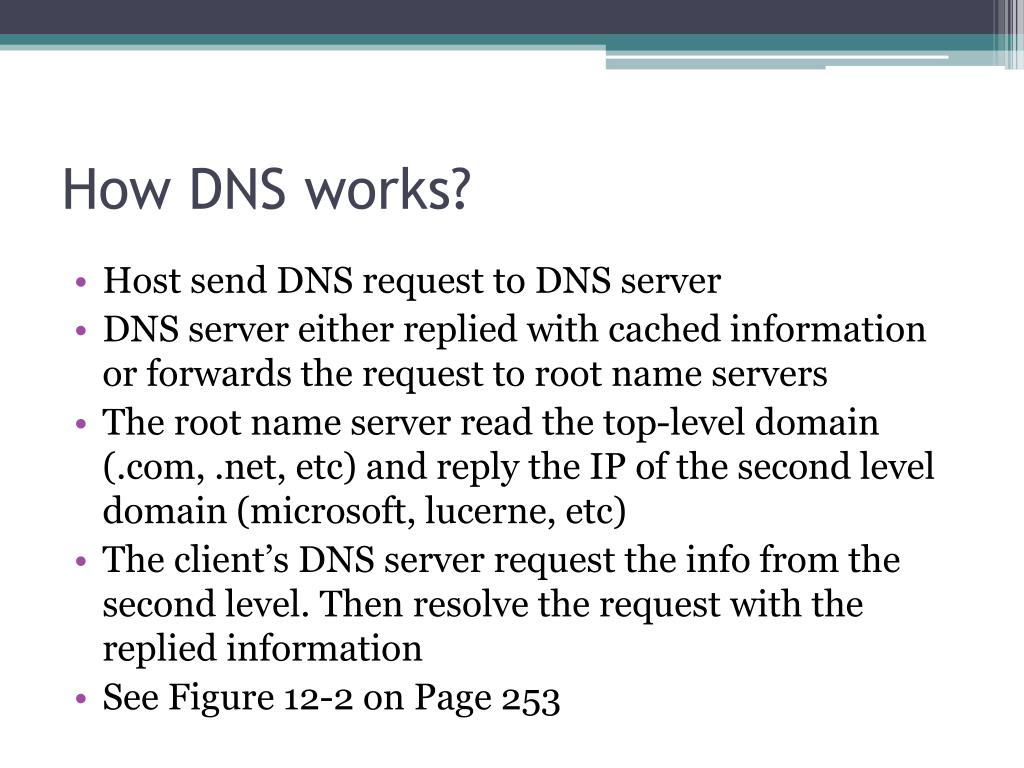

  7. How DNS works? • Host send DNS request to DNS server • DNS server either replied with cached information or forwards the request to root name servers • The root name server read the top-level domain (.com, .net, etc) and reply the IP of the second level domain (microsoft, lucerne, etc) • The client’s DNS server request the info from the second level. Then resolve the request with the replied information • See Figure 12-2 on Page 253

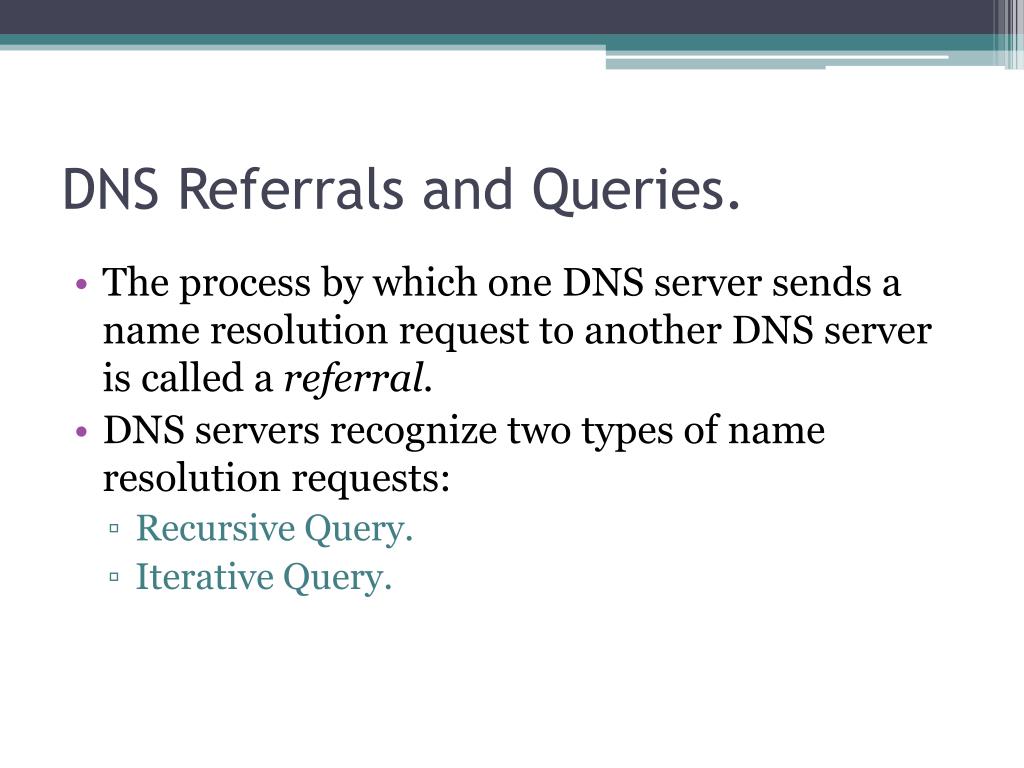

  8. DNS Referrals and Queries. • The process by which one DNS server sends a name resolution request to another DNS server is called a referral. • DNS servers recognize two types of name resolution requests: • Recursive Query. • Iterative Query.

  9. Recursive Query • The DNS server receiving the name resolution request takes full responsibility for resolving the name • If the server possesses information about the requested name, it replies immediately to the requester • If the server has no information about the name, it sends referrals to other DNS servers until it obtains the information it needs • TCP/IP client resolvers always send recursive queries to their designated DNS servers

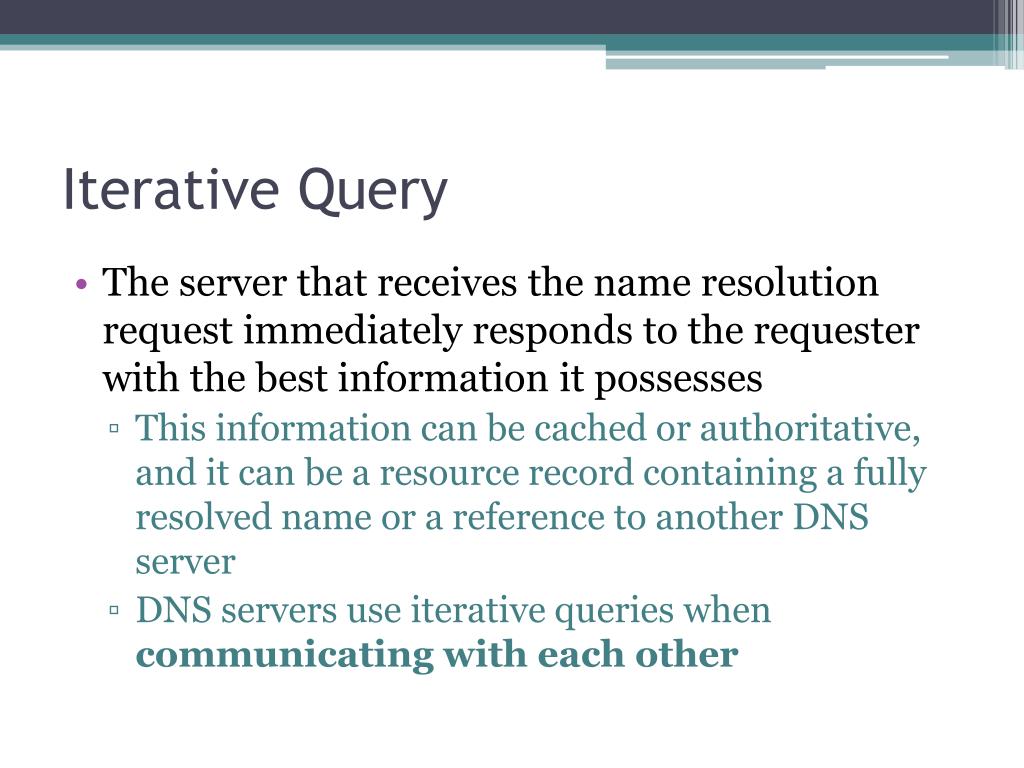

  10. Iterative Query • The server that receives the name resolution request immediately responds to the requester with the best information it possesses • This information can be cached or authoritative, and it can be a resource record containing a fully resolved name or a reference to another DNS server • DNS servers use iterative queries when communicating with each other

  11. Reverse Name Resolution • Used to convert an IP address into a DNS name. • Uses reverse lookup zones and Pointer (PTR) resource records • The DNS developers created a special domain called in-addr.arpathat is specifically designed for reverse name resolution • To resolve 10.2.4.50, DNS server locates a domain named 4.2.10.in-addr.arpa

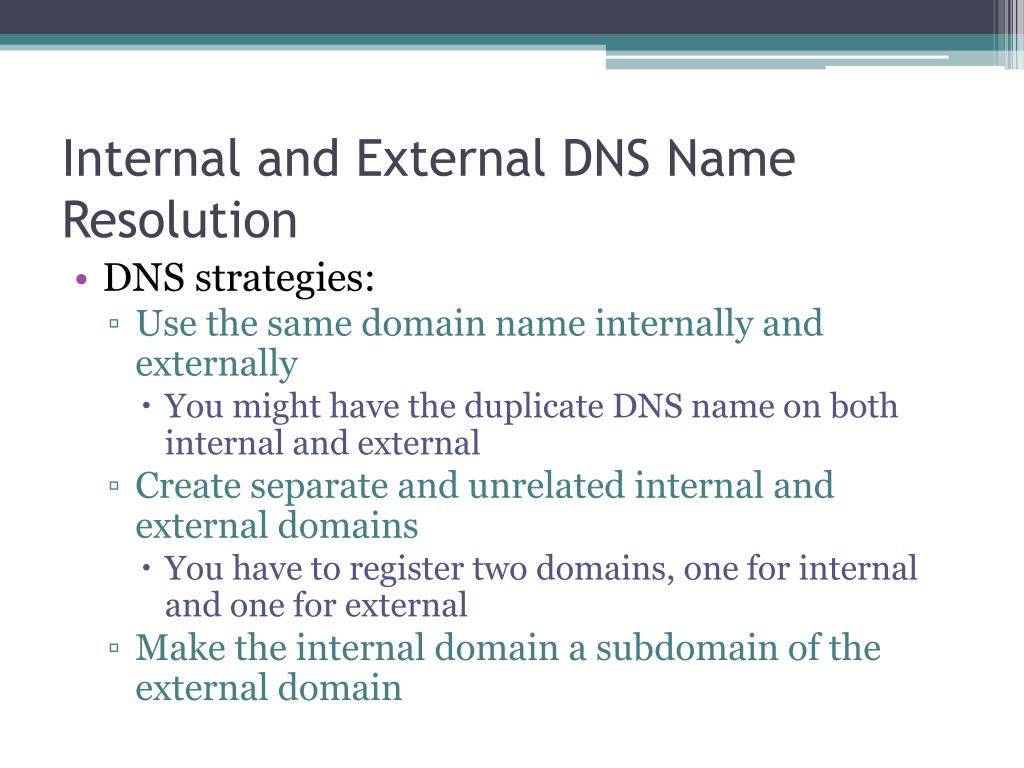

  12. Internal and External DNS Name Resolution • DNS strategies: • Use the same domain name internally and externally • You might have the duplicate DNS name on both internal and external • Create separate and unrelated internal and external domains • You have to register two domains, one for internal and one for external • Make the internal domain a subdomain of the external domain

  13. DNS Server Types • Caching-Only Server • Contains no zones and host • Provide name resolution for your clients by caching values as it forwards the requests to other DNS servers • You can install on remote server to perform names resolution by direct all request to your main office

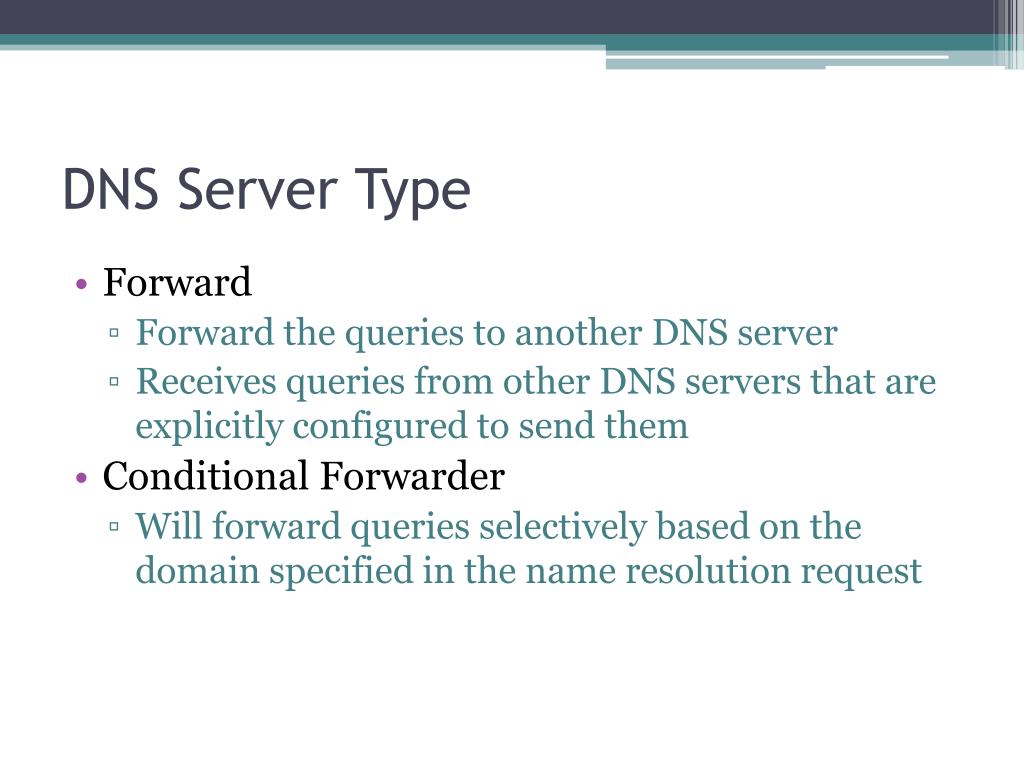

  14. DNS Server Type • Forward • Forward the queries to another DNS server • Receives queries from other DNS servers that are explicitly configured to send them • Conditional Forwarder • Will forward queries selectively based on the domain specified in the name resolution request

  15. DNS Zones • Every zone consists of a zone database that contains the resource records for the domains in that zone. • The DNS server in Windows Server 2003 supports three zone types that specify where the server stores the zone database and the kind of information it contains: • Primary zone. • Secondary zone. • Stub zone.

  16. Primary Zone • A primary zone contains the master copy of the zone database, in which administrators make all changes to the zone’s resource records • If the Store The Zone In Active Directory (Available Only If DNS Server is a DC) checkbox is not selected, the server creates a primary master zone database file on the local drive, also called a standard zone (simple text file) • If the checkbox is selected, it is an AD–integrated zone, which the DNS data is stored within the AD database itself

  17. Secondary Zone • A secondary zone is a read-only copy of the data that is stored within a primary zone on another server • A text file is stored on the server’s local drive • You can only update them by replicating the primary master zone database file using the zone transfer process

  18. Stub Zone • A stub zone is a copy of a primary zone that contains SOA, NS records, and the Host (A) records that identify the authoritative servers for the zone • The stub zone forwards or refers requests to the appropriate server • When you create a stub zone, you configure it with the IP address of the server that hosts the primary zone from which the stub zone was created

  19. Zone Transfers • When you add a new DNS server and configure it as a new secondary master name server • Full zone transfer (AXFR) • Incremental zone transfer (IXFR) • Secondary name server will pull only the zone changes (Based on the Serial field in the SOA)

  20. DNS and DHCP/WINS • You can use DHCP to streamline the process of assigning DNS servers to your clients to use for name resolution • Each client must be configured to use a DNS server for name resolution • Hosts a primary or secondary zone containing the SRV records for your AD domain • Is configured with a stub zone or forwarders to a DNS server that hosts these SRV records

  21. Additional Services • Active Directory Rights Management Service (AD RMS) • A Windows Server 2008 service that you can use to protect sensitive data on a Windows network • To control who can open, modify, print, or forward email messages • Required: • Windows Server 2008 with AD RMS role and IIS • Database server such as SQL Server 2005 • A computer running the AD RMS client software, such as Vista • Wins Server 2003 domain functional level or better • AD RMS client (Can download and installed for Win 2k SP4 and later)

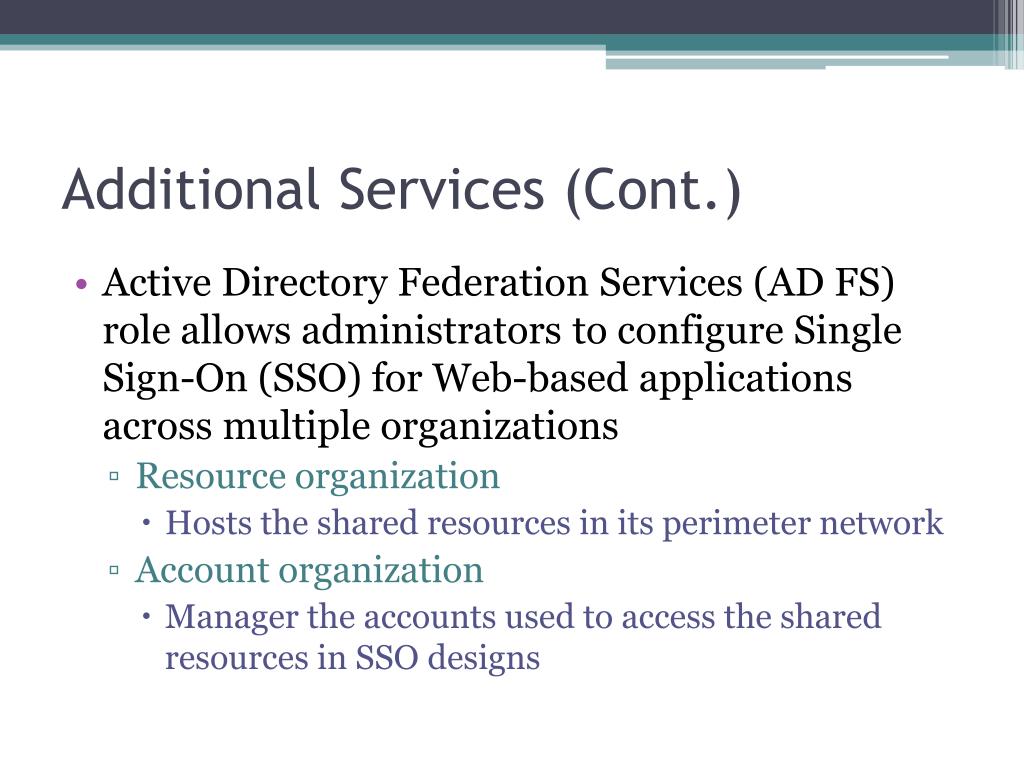

  22. Additional Services (Cont.) • Active Directory Federation Services (AD FS) role allows administrators to configure Single Sign-On (SSO) for Web-based applications across multiple organizations • Resource organization • Hosts the shared resources in its perimeter network • Account organization • Manager the accounts used to access the shared resources in SSO designs

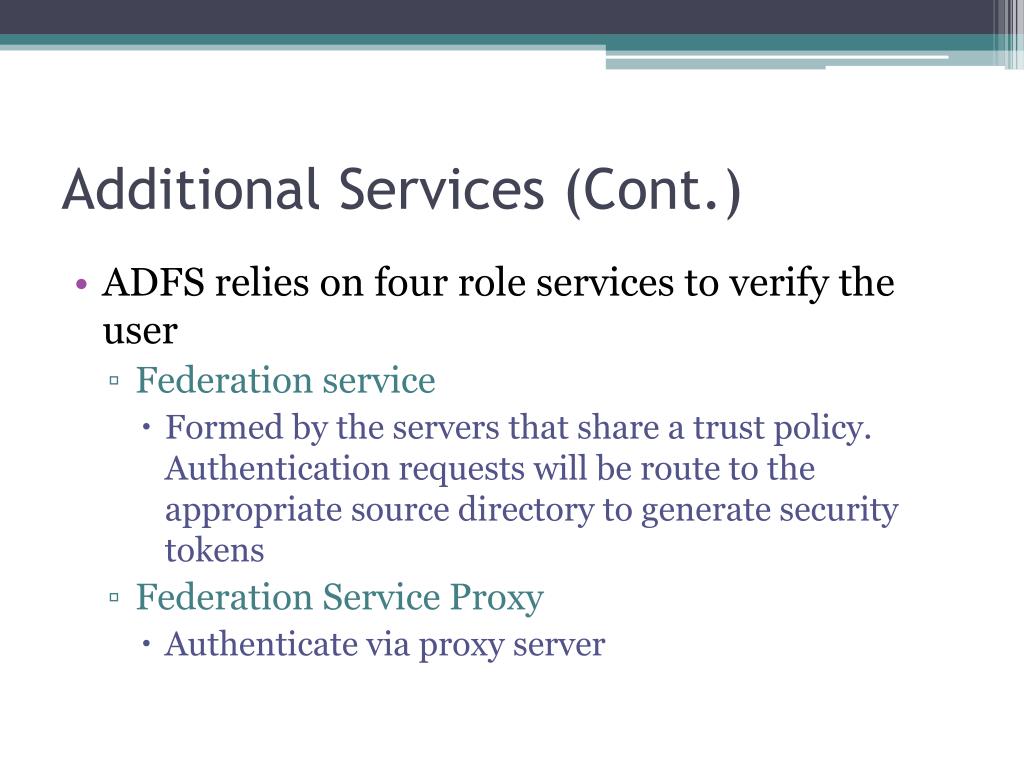

  23. Additional Services (Cont.) • ADFS relies on four role services to verify the user • Federation service • Formed by the servers that share a trust policy. Authentication requests will be route to the appropriate source directory to generate security tokens • Federation Service Proxy • Authenticate via proxy server

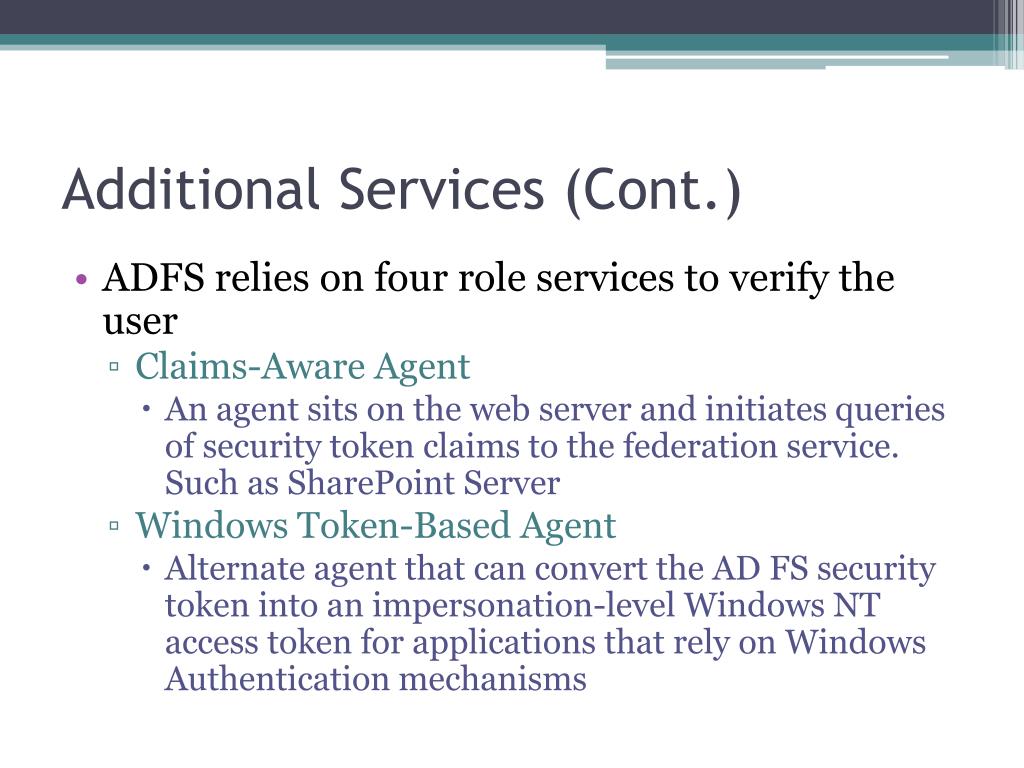

  24. Additional Services (Cont.) • ADFS relies on four role services to verify the user • Claims-Aware Agent • An agent sits on the web server and initiates queries of security token claims to the federation service. Such as SharePoint Server • Windows Token-Based Agent • Alternate agent that can convert the AD FS security token into an impersonation-level Windows NT access token for applications that rely on Windows Authentication mechanisms

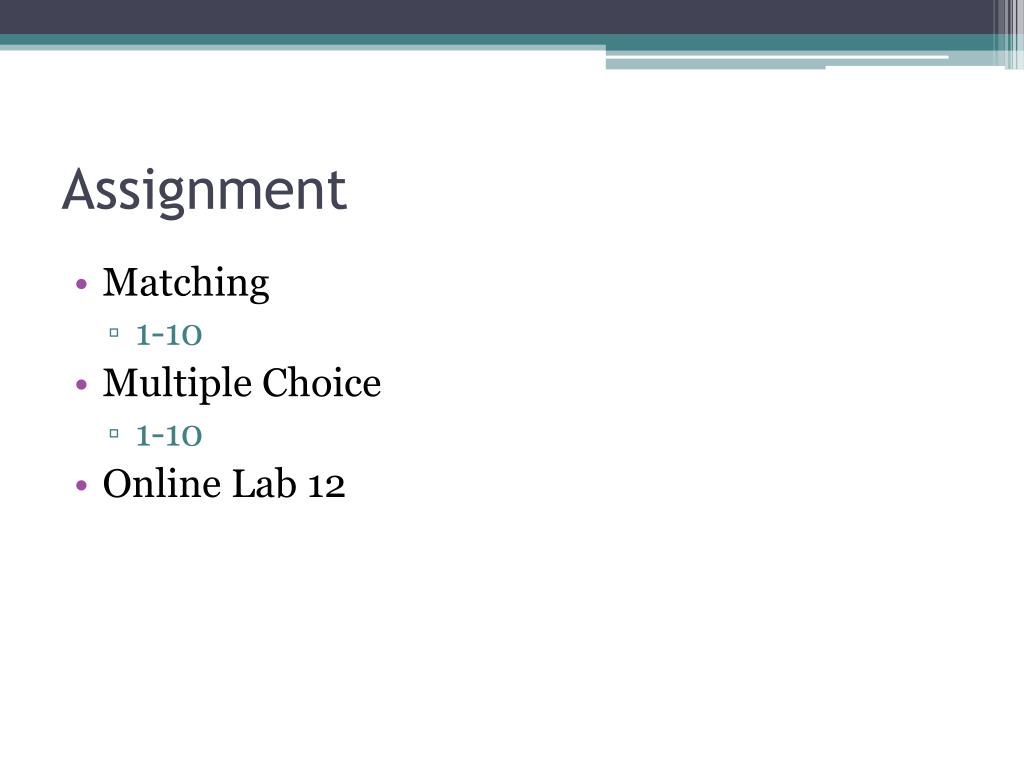

  25. Assignment • Matching • 1-10 • Multiple Choice • 1-10 • Online Lab 12
