  1. Flow Control and Error Control

  2. Note: Flow control refers to a set of procedures used to restrict the amount of data that the sender can send before waiting for acknowledgment.

  3. Note: Error control in the data link layer is based on automatic repeat request, which is the retransmission of data.

  4. Stop-and-wait ARQ

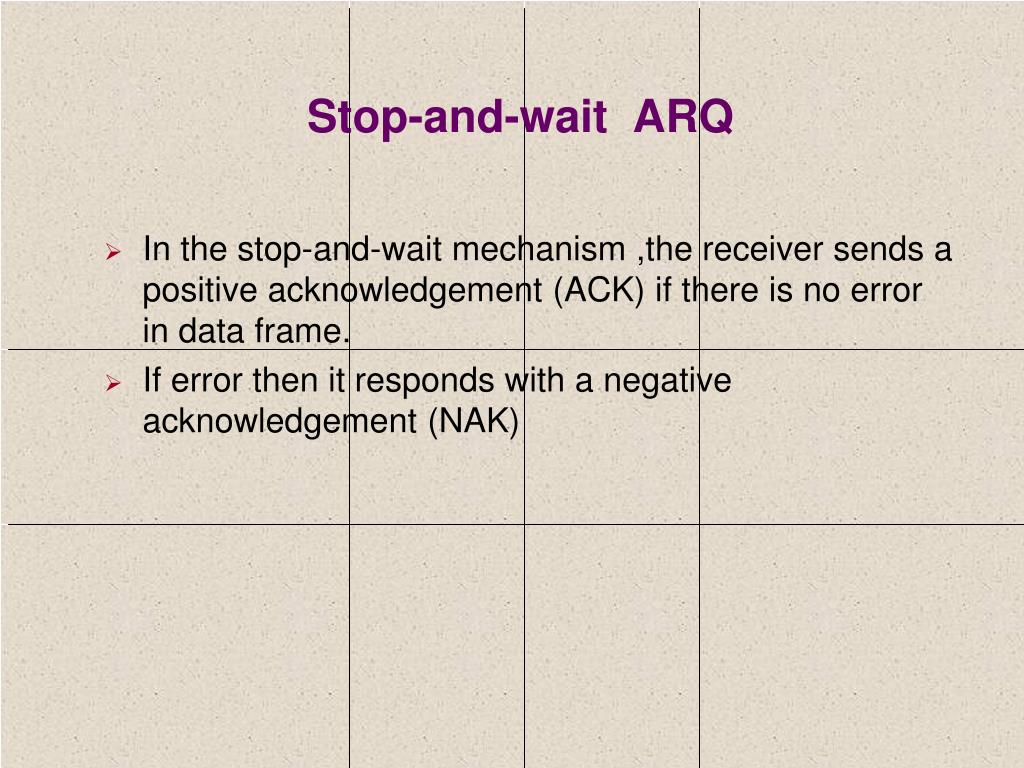

  5. Stop-and-wait ARQ • In the stop-and-wait mechanism ,the receiver sends a positive acknowledgement (ACK) if there is no error in data frame. • If error then it responds with a negative acknowledgement (NAK)

  6. The sending device keeps a copy of the last frame transmitted until it receives an acknowledgement for that frame. • For Identification purposes, both data frames and acknowledgement frames are numbered alternatively 0 and 1. • A Damaged or Lost frame is treated in the same manner by the receiver i.e. Dropped

  7. The Sender has a control variable ‘ S’ that holds the number (0 or 1) of recently sent frame. The Receiver has also a control variable ‘ R’ that holds the number (0 or 1) of the next frame expected. • The sender starts a Timer when it sends a frame. If the ack is not received with in the allotted time period ,the sender assumes that the frame (sent earlier) was lost or damaged

  8. The receiver send s only positive ack for frames received safe and sound. • Note it that the ack number always define the number of next expected frame.

  9. Normal operation

  10. Stop-and-Wait ARQ, lost frame

  11. Stop-and-Wait ARQ, lost ACK frame

  12. Note: In Stop-and-Wait ARQ, numbering frames prevents the retaining of duplicate frames.

  13. Stop-and-Wait ARQ, delayed ACK

  14. Note: Numbered acknowledgments are needed if an acknowledgment is delayed and the next frame is lost.

  15. Piggybacking

  16. Go-Back-N ARQ Sequence Number Sender and Receiver Sliding Window Control Variables and Timers Acknowledgment Resending Frames Operation

  17. Go-Back-N ARQ • Each data frame carries a sequence number for its identification.if there are “n ” bits then the length of the window size will be 2n -1 • The sending end maintains a window containing a fixed number of data frames ready for transmission.these frames can be sent without waiting for any acknowledgement . • Copy of each transmitted frame is retained in the window till it is acknowledged. • The number of frames in a window is called its size.

  18. Go-Back-N ARQ • The receiver acknowledges receipt of one or more data frames by sending back a numbered acknowledgement(Receive ready,RR-N),where N is the sequence number of the next frame it expects to receive. • All previous data frames are assumed acknowledged on receipt of an acknowledgement. • When an acknowledgement is received by the sending end,it slides the window deleting the copies of acknowledged data frames and inserting the same number of new frames from the queue. • A timer is provided at the sending side.

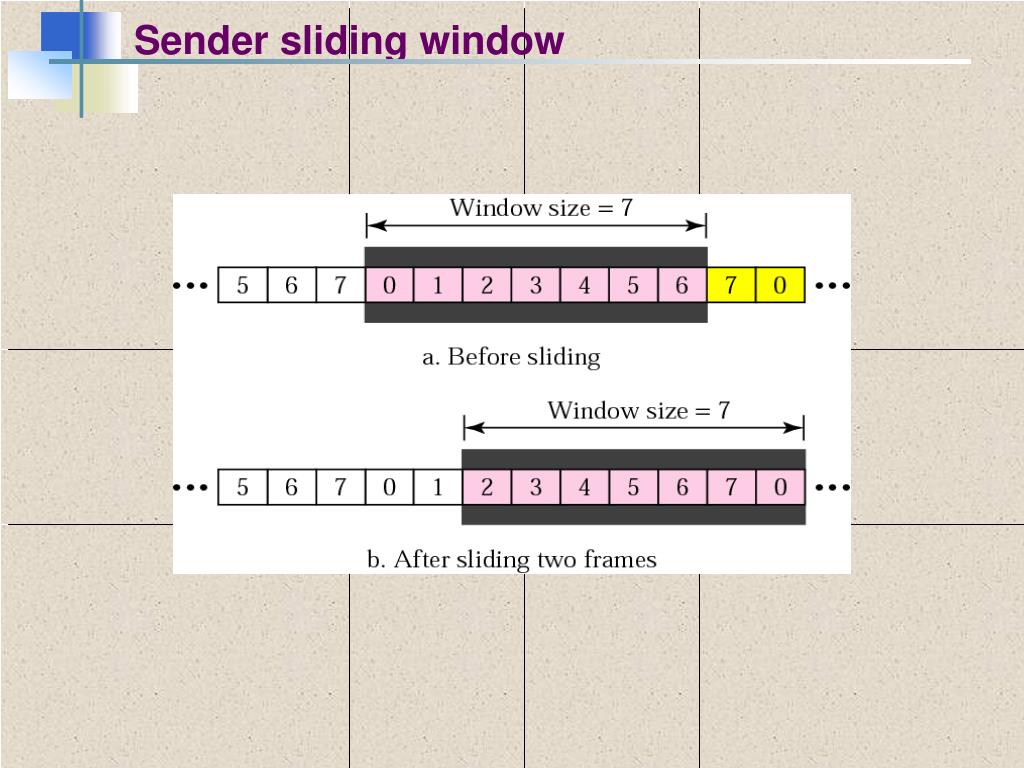

  19. Sender sliding window

  20. Receiver sliding window

  21. Control variables

  22. Go-Back-N ARQ, normal operation

  23. Go-Back-N ARQ, lost frame

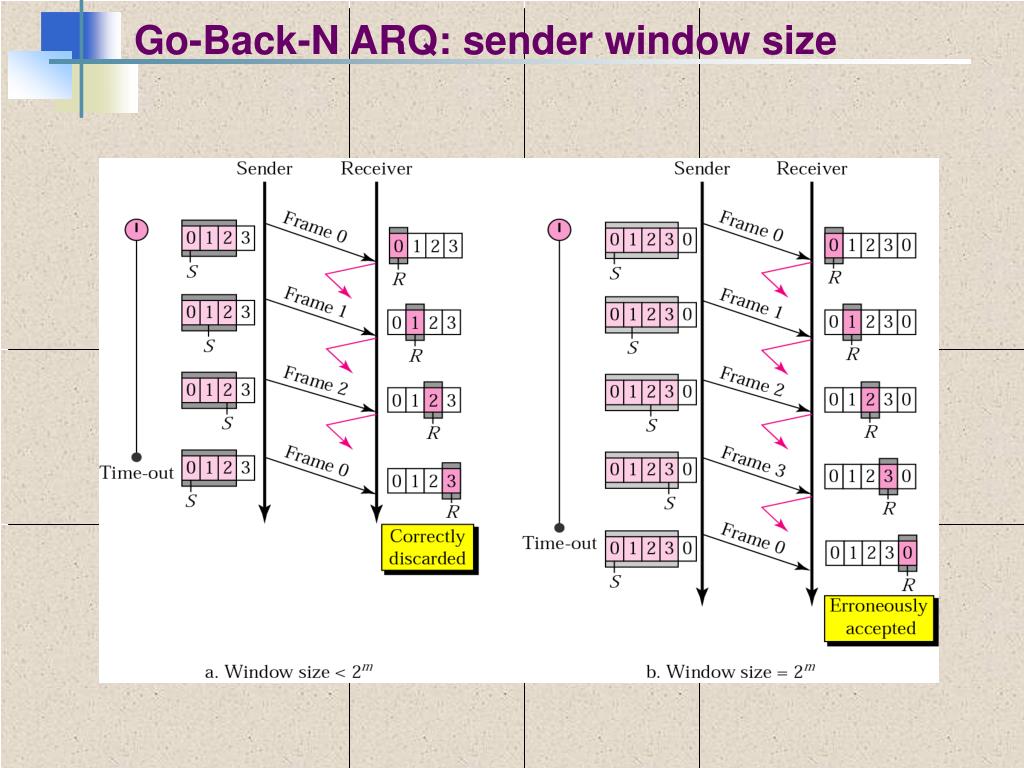

  24. Go-Back-N ARQ: sender window size

  25. Note: In Go-Back-N ARQ, the size of the sender window must be less than 2m; the size of the receiver window is always 1.

  26. Selective-Repeat ARQ Sender and Receiver Windows Operation Sender Window Size Bidirectional Transmission Pipelining

  27. Selective-Repeat ARQ • In this technique the receiver requests retransmission of the missing data frame only by sending a Selective Reject(SREJ-N),N is the sequence number of missing data frame.

  28. Selective Repeat ARQ, sender and receiver windows

  29. Selective Repeat ARQ, lost frame

  30. Note: In Selective Repeat ARQ, the size of the sender and receiver window must be at most one-half of 2m.

  31. Selective Repeat ARQ, sender window size

  32. Note: Bit stuffing is the process of adding one extra 0 whenever there are five consecutive 1s in the data so that the receiver does not mistake the data for a flag.

  33. 11.24Bit stuffing and removal

  34. End of Lecture
