Enhancing Reliable Communication in Wireless Networks with Non-Binary Joint Network Coding

This study presents Non-Binary Joint Network Coding (NB-JNCC) as a solution for achieving reliable communication in large wireless networks plagued by fading. By integrating network and channel coding in a high-order Galois field, NB-JNCC effectively combats signal degradation. Through simulations, we demonstrate improved diversity and capacity gains, showcasing the benefits of direct transmissions with and without relays. The performance of NB-JNCC is compared against traditional methods, confirming its capability for larger, multi-hop network applications.

pules
Télécharger la présentation

Enhancing Reliable Communication in Wireless Networks with Non-Binary Joint Network Coding

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Non-Binary Joint Network Channel Coding for Reliable Communication in Large Wireless Networks Zheng Guo, Jie Huang, Bing Wang, Jun-Hong Cui and Shengli Zhou UWSN@UCONN

  2. Outline • Motivation • Related Work • System Description • Benefits of NB-JNCC • Performance Study • Conclusions & Discussions UWSN@UCONN

  3. Motivation • Reliable communication in wireless networks • Fading • Add redundancy to combat fading • Inside packet: error-correction coding, channel coding, physical layer. • Cross packets: erasure-correction coding, FEC, network coding, network layer. UbiNet@UCONN

  4. Motivation (cont.) • Large, multiple hop wireless networks • Basic idea: • Joint network and channel coding • Direct combination in high order Galois Field (Non-Binary) • An integrated factor graph UbiNet@UCONN

  5. Related Work • Separate network channel coding • Distributed channel coding • Joint network channel coding • Most related one: X. Bao, and J. Li, " A Unified Channel-Network Coding Treatment for Wireless Ad-Hoc Networks," Proceeding of IEEE International Symposium on Information Theory (ISIT), Seattle, WA, July 2006. UbiNet@UCONN

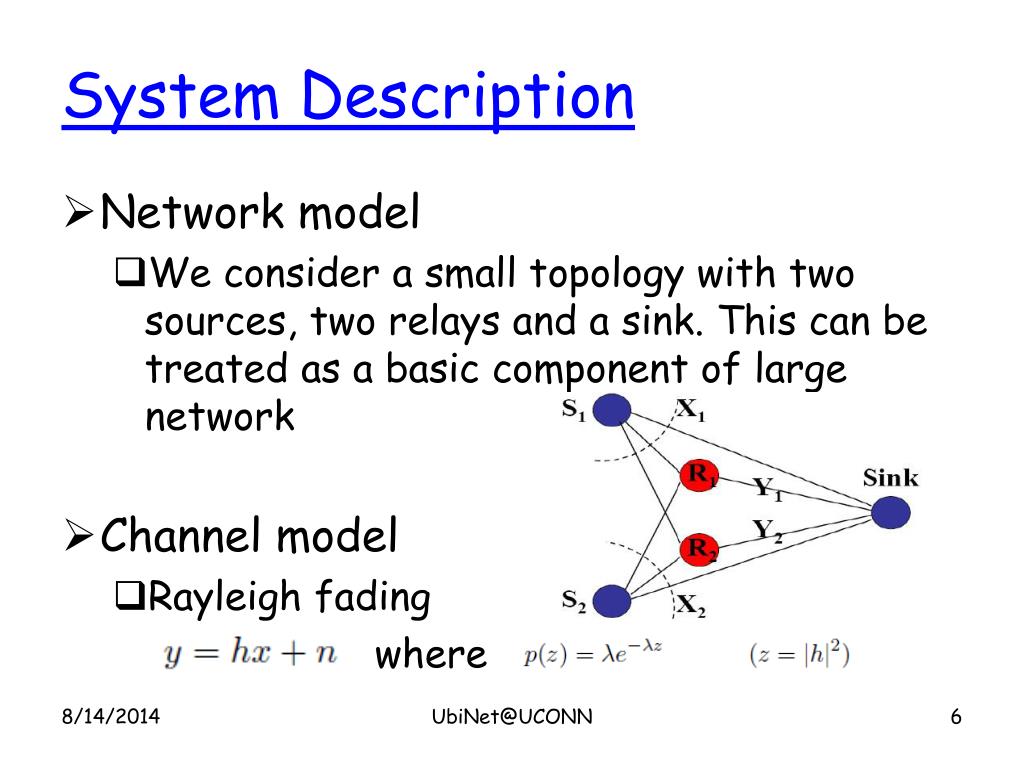

  6. System Description • Network model • We consider a small topology with two sources, two relays and a sink. This can be treated as a basic component of large network • Channel model • Rayleigh fading where UbiNet@UCONN

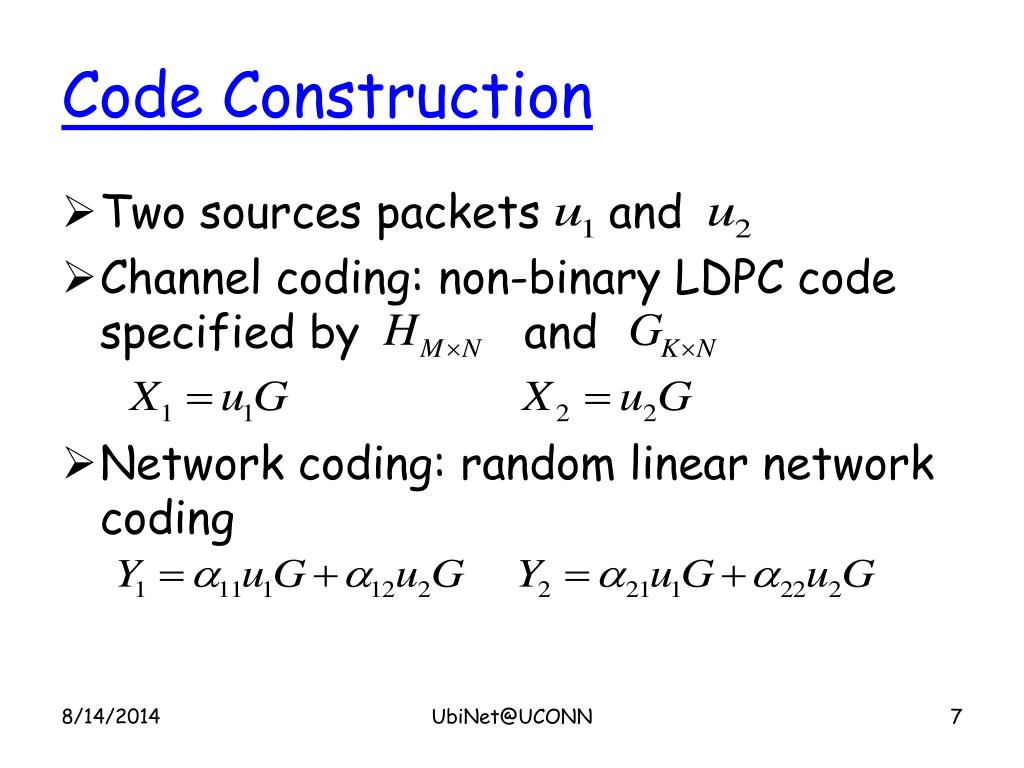

  7. Code Construction • Two sources packets and • Channel coding: non-binary LDPC code specified by and • Network coding: random linear network coding UbiNet@UCONN

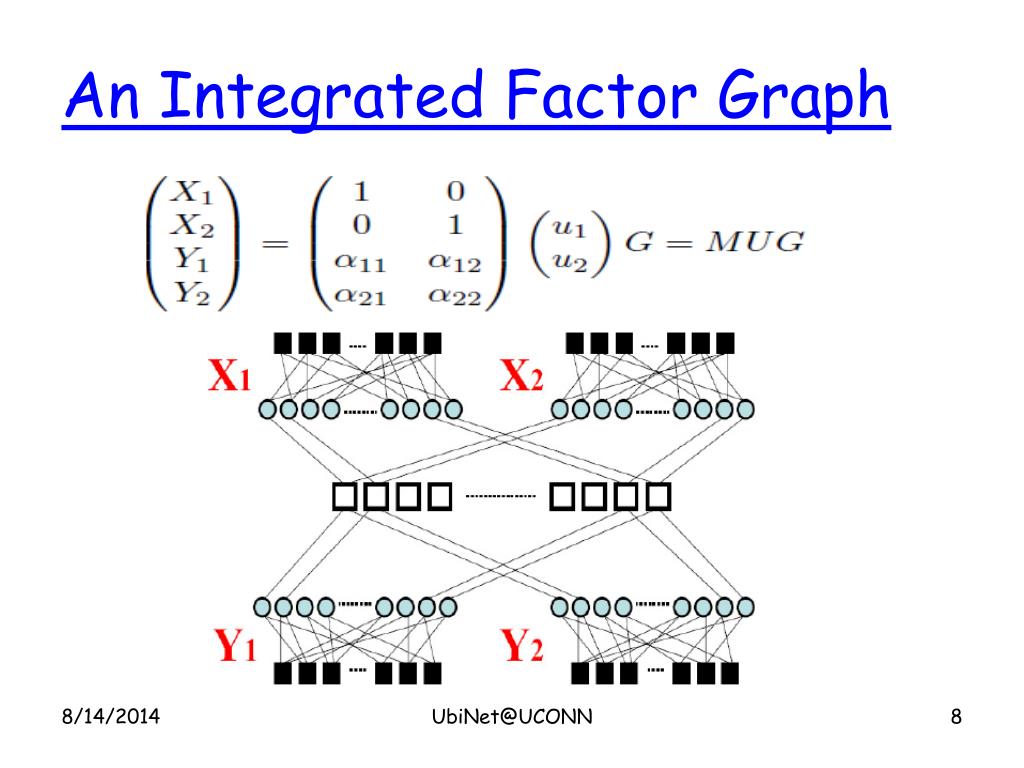

  8. An Integrated Factor Graph UbiNet@UCONN

  9. Joint Decoding • Iterative decoding through a larger parity check matrix • Layered iterative decoding • Channel decoding • Update soft information through network decoding • Channel decoding • …… UbiNet@UCONN

  10. Benefits of NB-JNCC • We compare four schemes • Direct transmissions w/o relays • Direct transmissions w/ relays • Binary JNCC • Non-Binary JNCC UbiNet@UCONN

  11. Diversity Gain • Direct transmissions w/o relays • Direct transmissions w/ relays • Binary JNCC • Non-Binary JNCC UbiNet@UCONN

  12. Capacity Gain • Direct transmissions w/o relays • Direct transmissions w/ relays • Binary JNCC • Non-Binary JNCC UbiNet@UCONN

  13. Performance Study • Simulation setup • GF(16) • K=800 symbols • Channel code rate 0.8 • Network code rate 0.5 • BPSK UbiNet@UCONN

  14. Overall comparison UbiNet@UCONN

  15. Error Pattern UbiNet@UCONN

  16. Joint Decoding Gain UbiNet@UCONN

  17. Decoding Complexity UbiNet@UCONN

  18. Conclusions • NB-JNCC can be easily extended to large, multiple hop network • We focus on direct combination of channel code and network code on high order Galois Field UbiNet@UCONN

  19. Discussions and Suggestions Thanks UbiNet@UCONN
