1 st and 2 nd stage gain with Cc=0

1 st and 2 nd stage gain with Cc=0. C C. v o1. = v i2. v o2. v id. A v1,0 =g m1 R 1. 1. w P1,0. w u1,0. 1/R 1 C 1. g m1 /C 1. g m1 v gs1. g m1 v id. R 2. R 1. C 2. C 1. g m2 v i2. g m1 v id. R 1. R 2. C 2. C 1. A v2,0 =g m2 R 2. 1. w P2,0. w u2,0. 1/R 2 C 2.

quang
Télécharger la présentation

1 st and 2 nd stage gain with Cc=0

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 1st and 2nd stage gain with Cc=0 CC vo1 = vi2 vo2 vid Av1,0=gm1R1 1 wP1,0 wu1,0 1/R1C1 gm1/C1 gm1vgs1 gm1vid R2 R1 C2 C1 gm2vi2 gm1vid R1 R2 C2 C1 Av2,0=gm2R2 1 wP2,0 wu2,0 1/R2C2 gm2/C2

  2. Overall gain with Cc=0 1/w Av0 = Av1,0Av2,0=gm1R1gm2R2 Av1,0 1/w2 Av2,0 1 wP1,0 wP2,0 wu1,0 wu2,0 • Things to think about: • What is the equation for gain between the first two poles? • What is the equation for gain after the second pole? • What is the gain at the first-stage unity gain frequency? • What is the gain at the second-stage unity gain frequency? • What is the unity gain frequency?

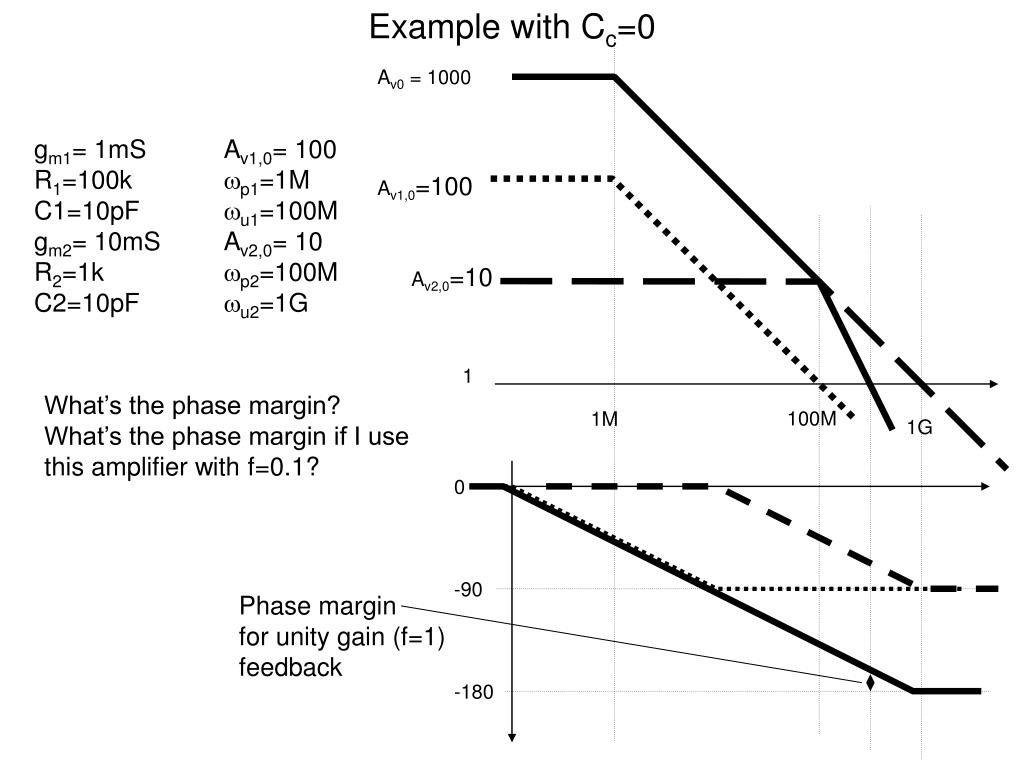

  3. Example with Cc=0 Av0 = 1000 gm1= 1mS R1=100k C1=10pF gm2= 10mS R2=1k C2=10pF Av1,0= 100 wp1=1M wu1=100M Av2,0= 10 wp2=100M wu2=1G Av1,0=100 Av2,0=10 1 What’s the phase margin? What’s the phase margin if I use this amplifier with f=0.1? 100M 1M 1G 0 -90 Phase margin for unity gain (f=1) feedback -180

  4. Zo1 with Av2,0Cc > C1 > Cc CC vo1 = vi2 vo2 vid 1/(w Av2,0CC) wu2 R1 gm1vid gm1vgs1 R1 R2 C2 C1 1/wCC wp1 wp2,0 wp2 1/wC1 wp1,0

  5. Av1 = gm1Zo1 with Av2,0Cc > C1 > Cc gm1/(w Av2,0CC) wu2 gm1R1 gm1/wCC wp2,0 wp1,0 gm1/wC1 wp1 wp2 • Things to think about: • What’s the equation for the gain in the various sections? • What does the curve look like if Cc > C1? • What does the curve look like if wp2,0 > wp1,0 • What is the frequency ratio of the old and new first pole? • What is the frequency ratio of the old and new second pole? • Answer questions 4 & 5 assuming 2 and/or 3.

  6. Overall gain with wp2 > wu Original gain w/ Cc=0 1/w Compensated gain w/ Cc>0 Av1,0 1/w2 Av2,0 1 wP1,0 wP2,0 wu1,0 wu2,0 wP1 wP2 Overall gain with C1 > Cc > 0 Av1,0 Av2,0 wu2,0 1 wP1,0 wP2,0 wu1,0 wP1 wP2
