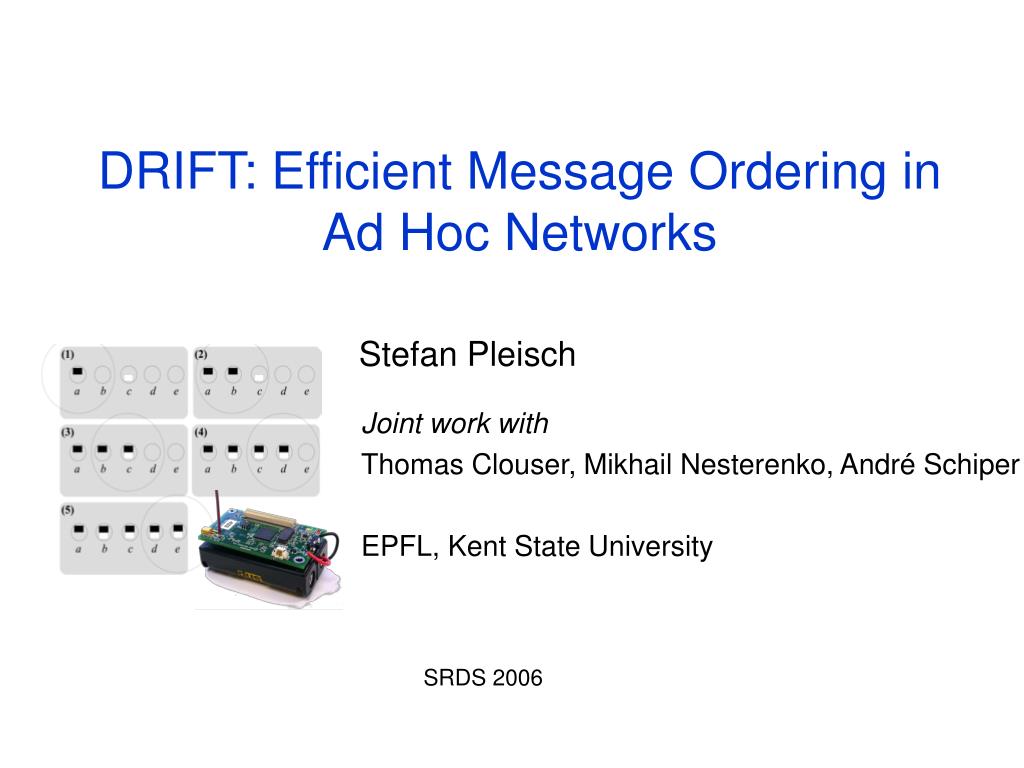

  1. DRIFT: Efficient Message Ordering in Ad Hoc Networks Stefan Pleisch Joint work with Thomas Clouser, Mikhail Nesterenko, André Schiper EPFL, Kent State University SRDS 2006

  2. Background: Ad Hoc Networks • Communication is ad hoc, i.e., no fixed communication infrastructure • Two nodes can communicate if • they are within transmission range, or • there is a sequence of intermediate nodes that can forward the message from the source to the destination (set up by a routing protocol) • Communication is by broadcast (to all neighbors), or by point-to-point (to one neighbor, but still a broadcast) • Shared transmission media and low bandwidth leads to interference and message collisions, and thus to message losses • Hidden terminal problem (Allan 1993) • Maintaining routing information may not be feasible if nodes are mobile or have limited resources • flooding is an effective mechanism of reaching all nodes in the network without routing information • a source broadcasts a message to its neighbors • every node rebroadcasts the message once

  3. The Need for Total Ordering in Ad Hoc Networks • Consider a temporary military sensor network deployed to protect an extended asset • communication is multihop and ad hoc • directives are periodically issued by mobile operators • commands must be delivered in the same order at each sensor node to prevent conflicting behavior of different network regions • requires Total Order Multicast • More applications from traditional fixed networks find their way to wireless networks • Properties of ad hoc networks make total ordering of messages challenging

  4. Outline • Total Order Multicast • Lamport’s Total Order Multicast Algorithm • Virtual Flooding • DRIFT Description • Example • Simulation and Experimentation • Conclusion and Future Work

  5. Total Order Multicast • Communication primitives • TO-multicast is invoked to send a message to all the nodes of the multicast group; executed by a source node • TO-deliver is executed to convey the message to the application; executed by a destination node • Problem: Ensure all messages TO-multicast by any source are TO-delivered in the same order at all destinations

  6. Related Work • Many total order multicasts in fixed networks, see ACM Survey by Defago et al. 2003 • sequencer-based: single sequencer decides ordering • asymmetric load on the network • privilege-based: token-holder establishes order • asymmetric load on the network • expensive route maintenance among the token users • destination: ordering by agreement among destinations • expensive when man destinations • communication history ordering: based on message timestamps • Few algorithm in ad hoc networks • sequencer-based in single hop networks • Bartoli 1998 (Mobile Networks and Applications) • Anastati et al 1999 (SRDS’99) • privilege-based • Malpani et al. (IEEE ToMC) • communication history • Prakash et al. (ICDCS’97), dependency on fixed infrastructure • Lou et al. (IEEE ToMC) use probabilistic guarantees

  7. Lamport’s Total Order Multicast Algorithm • CACM 1978, belongs to the class of communication history ordering • Delivers messages based on the causal order of multicasts • causal relation establishes a partial ordering • total order achieved by deterministically ordering concurrent messages (e.g. by source id) • Assumes FIFO communication channels and reliable messaging, no failures • Uses logical clocks (Lamport’s clocks) for capturing causal relationship between multicast messages • Source nodes update their logical clock • prior to sending a multicast • when the source receives a multicast message it has not received before • Delivery rule: Node n can TO-deliver a particular message m only after it receives a message with a higher or equal timestamp from every source • Disadvantage: the delivery rate of all destinations depends on the sending rate of the source that multicasts least frequently

  8. Virtual Flooding • Node attaches data to an unrelated message it has to broadcast • Example Node a has message to physically flood Node c has a message to virtually flood • Node a sends m • Node b forwards m • Node c attaches virtually flooded message and forwards m • Node d forwards combined message • Node e forwards combined message

  9. DRIFT: Key Concepts • Combines virtual flooding with Lamport’s algorithm to achieve lower delivery latencies • Virtual flooding propagates the latest logical clock of each source • For node nto TO-deliver message m it is sufficient that n learns that it will not receive a message from any source with a timestamp less than or equal to m’s timestamp • DRIFT assumes reliable flooding, as e.g. in DELUGE (Hui and Culler, Sensys’04)

  10. Example Initial condition – a and c are sources, b is a destination lc = 0 sn = 0 lc = 0 sn = 0 a b c RcvdSN = [0,0] Seen = { } RcvdSN = [0,0] Seen = { } RCVD = { } DRIFT DLVD = { } TOF DLVD = { } RcvdSN = [0,0] Seen = { } Note: TOF is Lamport’s algorithm

  11. Example Sequence number (sn) a TO-multicasts <am1, a, 1, 1, {<a, 1, 1>}> Logical clock (lc) Source lc = 1 sn = 1 lc = 0 sn = 0 a b c RcvdSN = [1,0] Seen = {} RcvdSN = [0,0] Seen = { } RCVD = { } DRIFT DLVD = { } TOF DLVD = { } RcvdSN = [0,0] Seen = {}

  12. Example b has received <am1, a, 1, 1, {<a, 1, 1>}> lc = 1 sn = 1 lc = 0 sn = 0 a b c RcvdSN = [1,0] Seen = {} RcvdSN = [1,0] Seen = {<a,1,1>} RCVD = {am1} DRIFT DLVD = {} TOF DLVD = {} RcvdSN = [0,0] Seen = {} b updates RcvdSN and Seen

  13. Example b rebroadcasts <am1, a, 1, 1, {<a, 1, 1>}> lc = 1 sn = 1 lc = 0 sn = 0 a b c RcvdSN = [1,0] Seen = {} RcvdSN = [1,0] Seen = {<a,1,1>} RCVD = {am1} DRIFT DLVD = {} TOF DLVD = {} RcvdSN = [0,0] Seen = {}

  14. Example c has received <am1, a, 1, 1, {<a, 1, 1>}> lc = 1 sn = 1 lc = 2 sn = 0 a b c RcvdSN = [1,0] Seen = {} RcvdSN = [1,0] Seen = {<a,1,1>} RCVD = {am1} DRIFT DLVD = {} TOF DLVD = {} RcvdSN = [1,0] Seen = {<a,1,1>}

  15. Example c rebroadcasts <am1, a, 1, 1, {<a, 1, 1>, <c, 2, 0>}> lc = 1 sn = 1 lc = 2 sn = 0 a b c RcvdSN = [0,0] Seen = {} RcvdSN = [1,0] Seen = {<a,1,1>} RCVD = {am1} DRIFT DLVD = {} TOF DLVD = {} RcvdSN = [1,0] Seen = {<a,1,1>}

  16. Example b receives <am1, a, 1, 1, {<a, 1, 1>, <c, 2, 0>}> lc = 1 sn = 1 lc = 2 sn = 0 a b c RcvdSN = [0,0] Seen = {} RcvdSN = [1,0] Seen = {<a,1,1>, <c,2,0>} RCVD = {am1} DRIFT DLVD = {am1} TOF DLVD = {} RcvdSN = [1,0] Seen = {<a,1,1>} b TO-delivers am1 with DRIFT, but not with TOF

  17. Example c TO-multicasts <cm1, c, 3, 1, {<a, 1, 1>, <c, 3, 1>}> lc = 1 sn = 1 lc = 3 sn = 1 a b c RcvdSN = [1,0] Seen = {} RcvdSN = [1,0] Seen = {<a,1,1>, <c,2,0>} RCVD = {am1} DRIFT DLVD = {am1} TOF DLVD = {} RcvdSN = [1,0] Seen = {<a,1,1>}

  18. Example lc = 4 sn = 1 lc = 3 sn = 1 a b c RcvdSN = [1,1] Seen = {<c,3,1>} RcvdSN = [1,1] Seen = {<a,1,1>,<c,2,0>,<c,3,1>,<a,4,1>} RCVD = {am1,cm1} DRIFT DLVD = {am1,cm1} TOF DLVD = {am1,cm1} RcvdSN = [1,1] Seen = {<a,1,1>}

  19. Simulation -- Setup • Using Java-based JiST/SWANS network simulator (v1.0.4) • Developed by Rimon Barr, 2004 (http://jist.ece.cornell.edu) • Applications written for real deployment can be ported to the simulation environment and be placed under variety of simulated scenarios • Communication is by broadcast as defined by IEEE 802.11b, transmission range is set to 88m • Setup • 100 nodes in a field of 400x400m • Nodes are stationary • Nodes start up at random times and positions. Each node floods 20 messages (128Bytes) at regular interval (= base rate) through the entire field

  20. Simulation – Results and Metric • Message loss due to hidden terminal problem minimized due to low base rates • Results: Average of 20 runs with 95% confidence interval • Delivery latency – the time needed to TO-deliver a message after it was received at a destination • We compare the performance of • Total Order multicast with Flooding only (TOF) , Lamport’s Algorithm • Total Order multicast with Virtual Flooding (TOVF), DRIFT using physically flooded multicast messages as virtual flooding carriers => Speedup =latencyTOF / latencyTOVF • Unless otherwise noted – the measurement for TOF and TOVF are taken in the same experimental trial

  21. Rate Delay • Speedup with different base rates • Varying rate delay • The delivery latency is impacted by • base rate – the rate at which the source TO-multicast messages • rate delay – the relative difference in the base rate between the sources • To evaluate the effect of relative rate differences, for each source iwe set the TO-multicast rate as follows TO-multicastRatei = baseRate + (i rateDelay)

  22. Average Max Single source [0,0] Position of Flooding Source (1/2) order of network diameter • One to four sources physically flood messages at aggregated frequency 1s-1 • Other nodes use only virtual flooding • Varying positions of (physical) flooding source • All nodes are destinations

  23. Average Max 4 sources in 4 corners Position of Flooding Source (2/2) Average Average Max Max Single source [350,350] 2 sources [0,0], [600,600]

  24. Gossiping • Number of virtual flooding entries per message • Base rate 10s • Overhead increases linearly • Speedup decreases with increasing number of transmitted tuples • Applications need to chose a trade-off point between overhead and speedup

  25. Experimental Setup • We evaluate the performance of DRIFT using BenchNet, our wireless sensor testbed • Setup: 16 MICA2 motes, arranged in a 4x4 grid, running the TinyOS operating system and programmed using the nesC programming language • Each mote is connected via its communication port to an Ethernet programming board – which allows monitoring applications and the motes to communicate • 4 interior nodes are sources, all nodes are destinations • Each source multicasts 10 messages • Base rate of 30 seconds • Reliable 1-hop communication emulated • TOF and TOVF implemented separately

  26. Conclusion and Future Work • DRIFT uses virtual flooding to propagate logical clock information • We demonstrated through simulation and experimentation the effectiveness of DRIFT as a total order multicast delivery mechanism for ad hoc networks • Although based on flooding, DRIFT can be modified to work with structured routing mechanisms • Virtual flooding can be used to propagate data of any type • Future work • measure different failure scenarios, especially failures of sources • scale the experimental evaluation up to many nodes

  27. Questions
