  1. Data Systems Environment at SM4

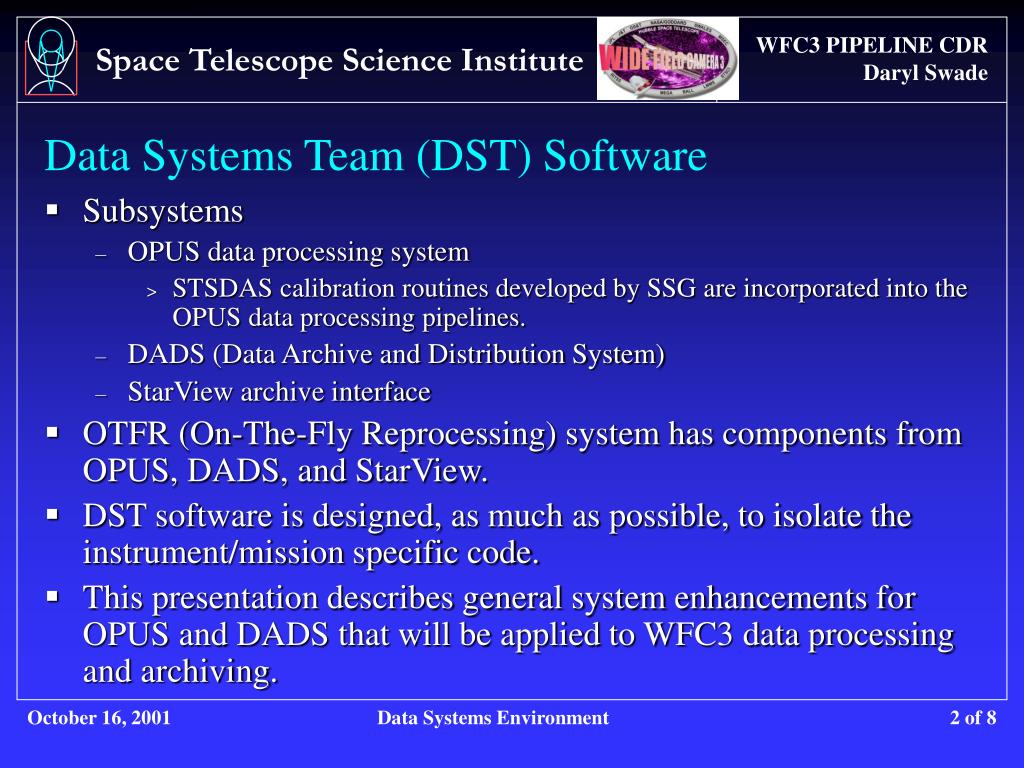

  2. Data Systems Team (DST) Software • Subsystems • OPUS data processing system • STSDAS calibration routines developed by SSG are incorporated into the OPUS data processing pipelines. • DADS (Data Archive and Distribution System) • StarView archive interface • OTFR (On-The-Fly Reprocessing) system has components from OPUS, DADS, and StarView. • DST software is designed, as much as possible, to isolate the instrument/mission specific code. • This presentation describes general system enhancements for OPUS and DADS that will be applied to WFC3 data processing and archiving.

  3. Anticipated changes to operational environment • All OPUS/OTFR, DADS ingest, and DADS distribution processes running on Tru64 UNIX cluster. • TruCluster software distributes processing load • No VMS/UNIX cross mounted disks • DADS interface with jukeboxes (NSA, archive engine) running on Solaris UNIX • Large disk cache to hold pod files for quick retrieval to OTFR

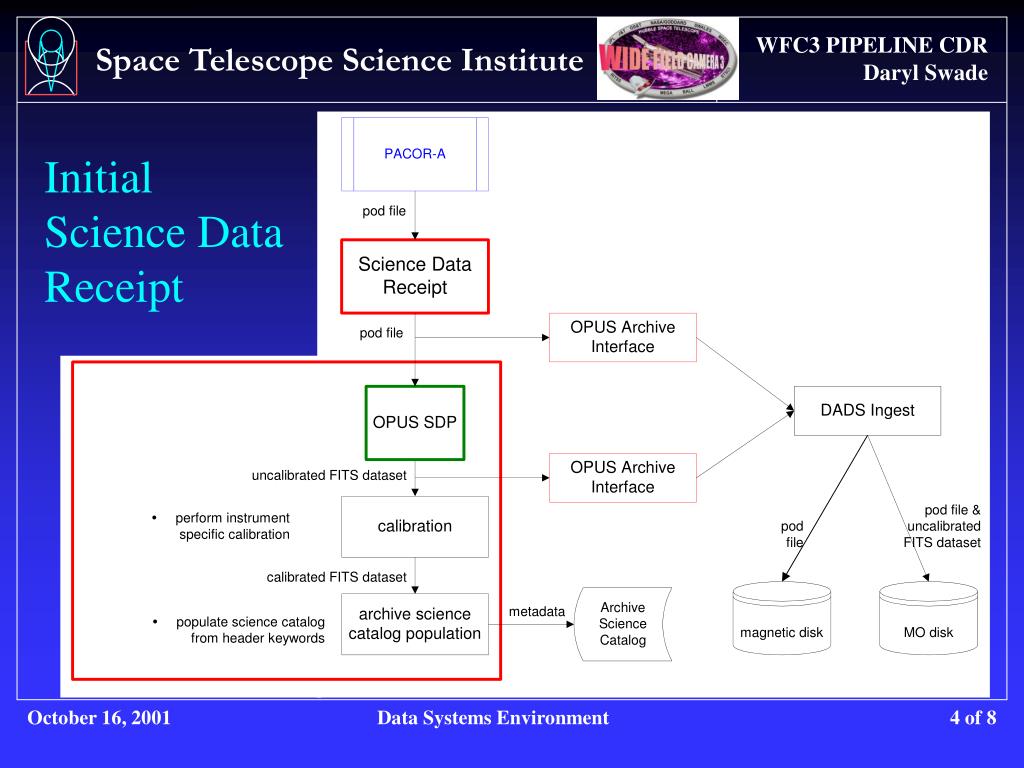

  4. Initial Science Data Receipt

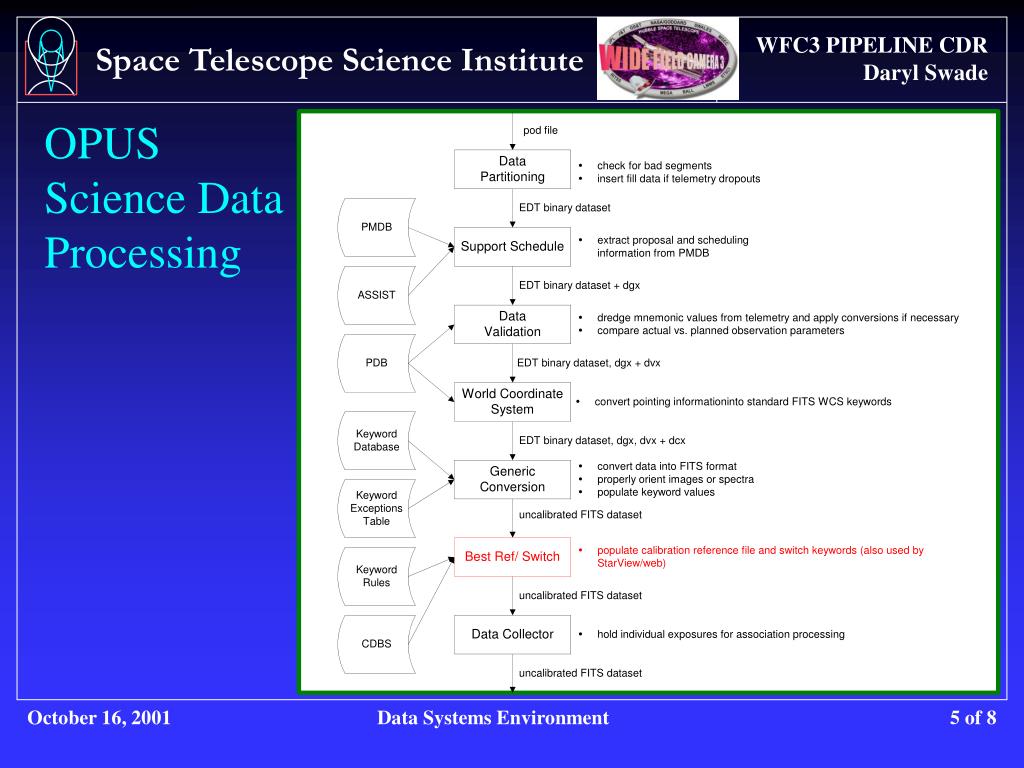

  5. OPUS Science Data Processing

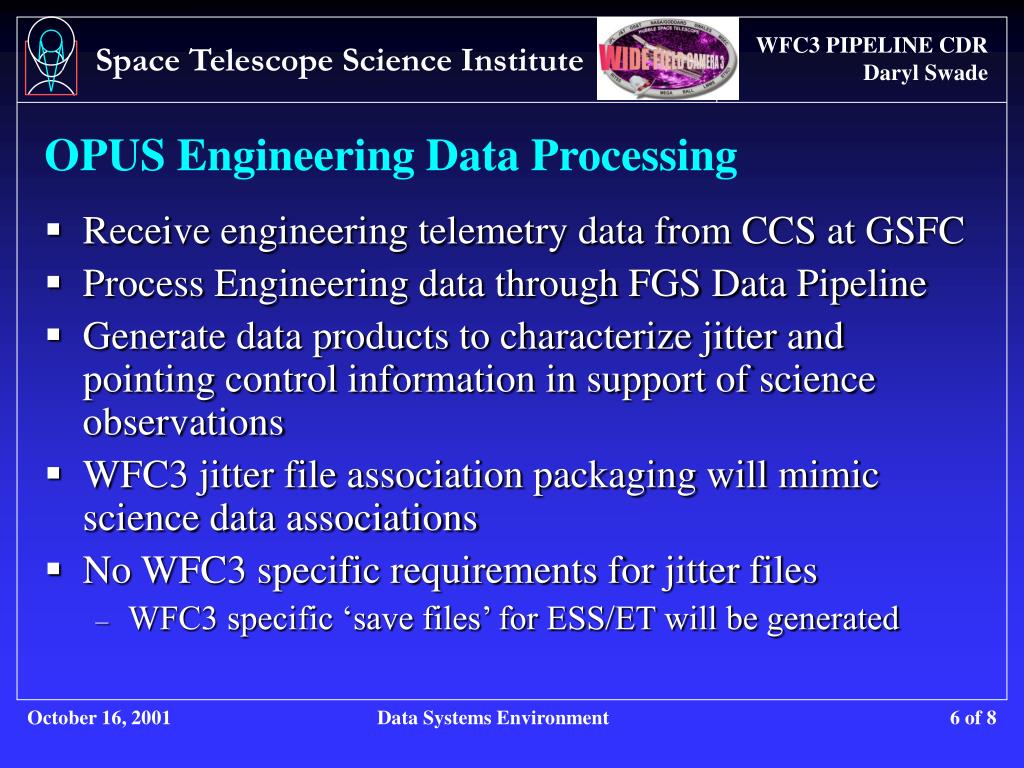

  6. OPUS Engineering Data Processing • Receive engineering telemetry data from CCS at GSFC • Process Engineering data through FGS Data Pipeline • Generate data products to characterize jitter and pointing control information in support of science observations • WFC3 jitter file association packaging will mimic science data associations • No WFC3 specific requirements for jitter files • WFC3 specific ‘save files’ for ESS/ET will be generated

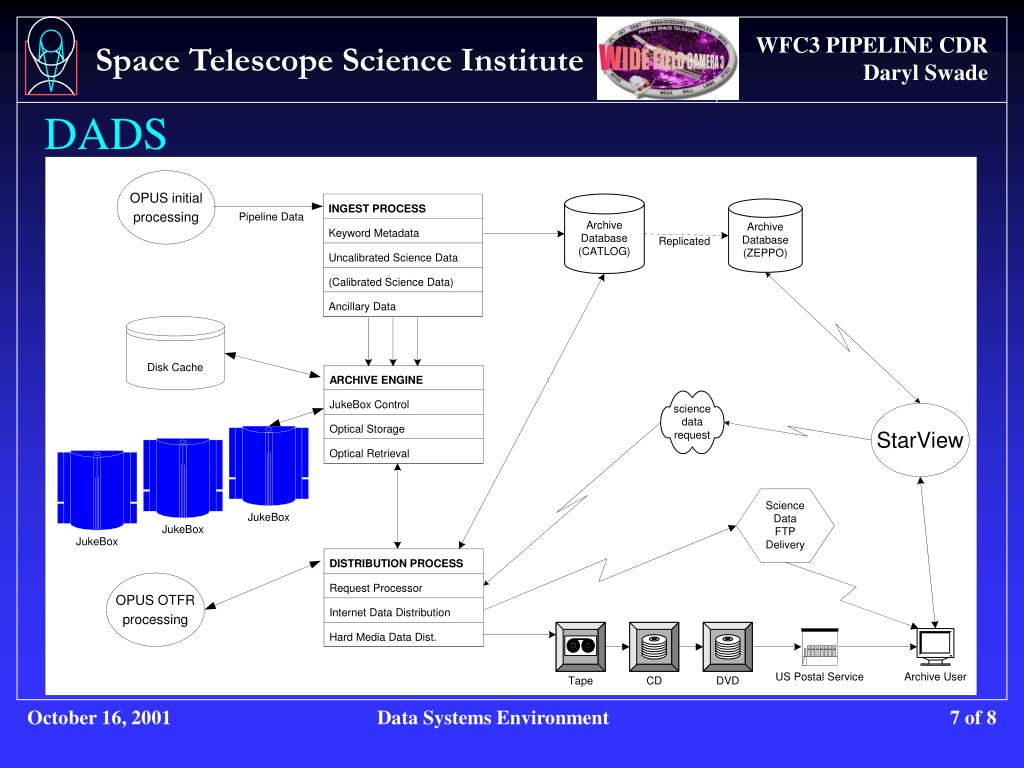

  7. DADS

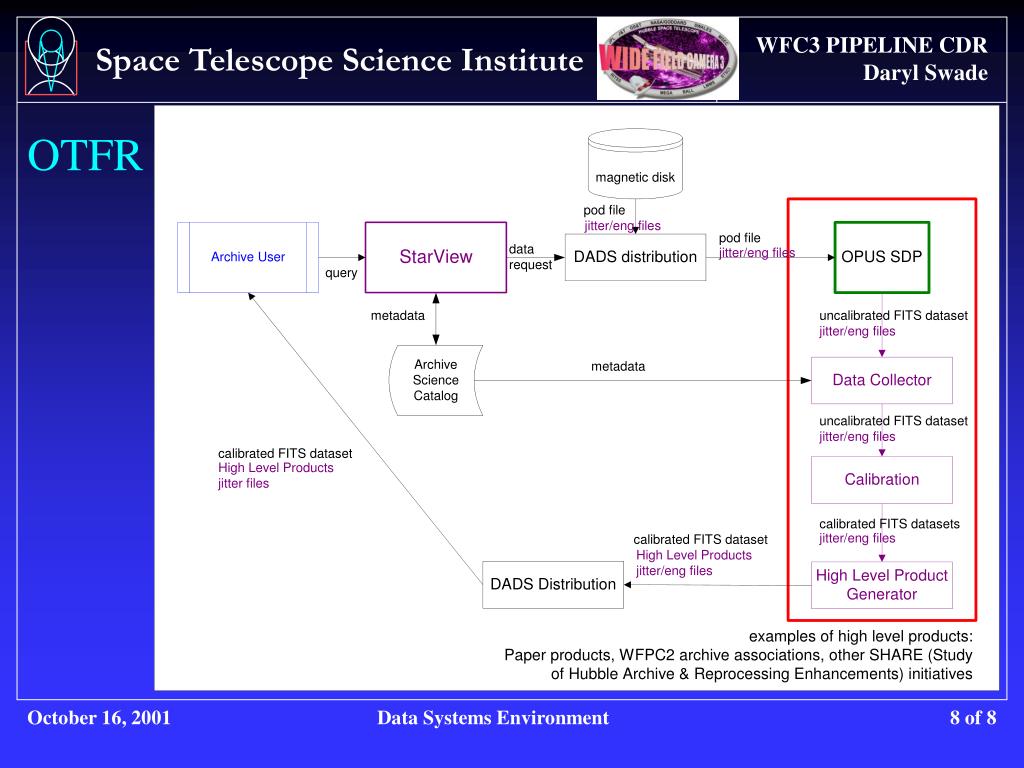

  8. OTFR
