Improving DHCPv6 Relay Agent Handling of Unknown Messages

This draft addresses the limitations of RFC 3315 regarding the handling of unknown DHCPv6 messages by relay agents. It clarifies how relay agents should process these messages, detailing conditions for valid messages and delineating behavior for both clients and servers in response to unknown types. It emphasizes that relay agents need appropriate guidelines to determine forwarding actions accurately and ensures compliance with future DHCPv6 extensions. Key updates focus on distinguishing message types and reinforcing message discarding requirements for better operational efficiency.

quinta
Télécharger la présentation

Improving DHCPv6 Relay Agent Handling of Unknown Messages

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

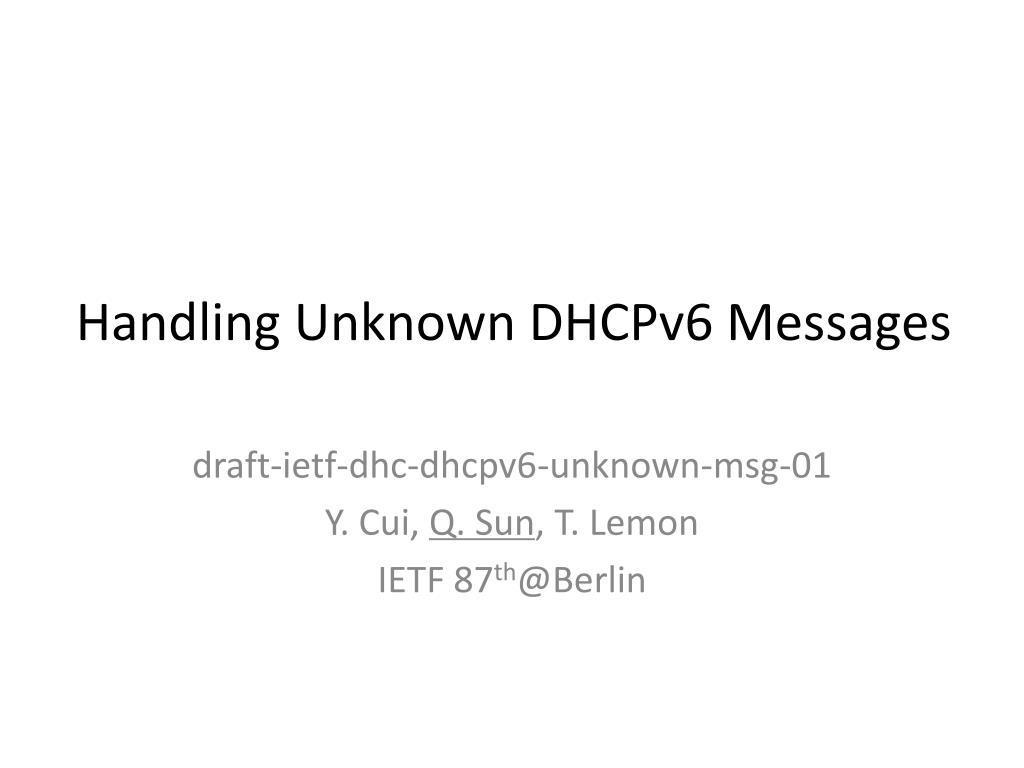

  1. Handling Unknown DHCPv6 Messages draft-ietf-dhc-dhcpv6-unknown-msg-01 Y. Cui, Q. Sun, T. Lemon IETF 87th@Berlin

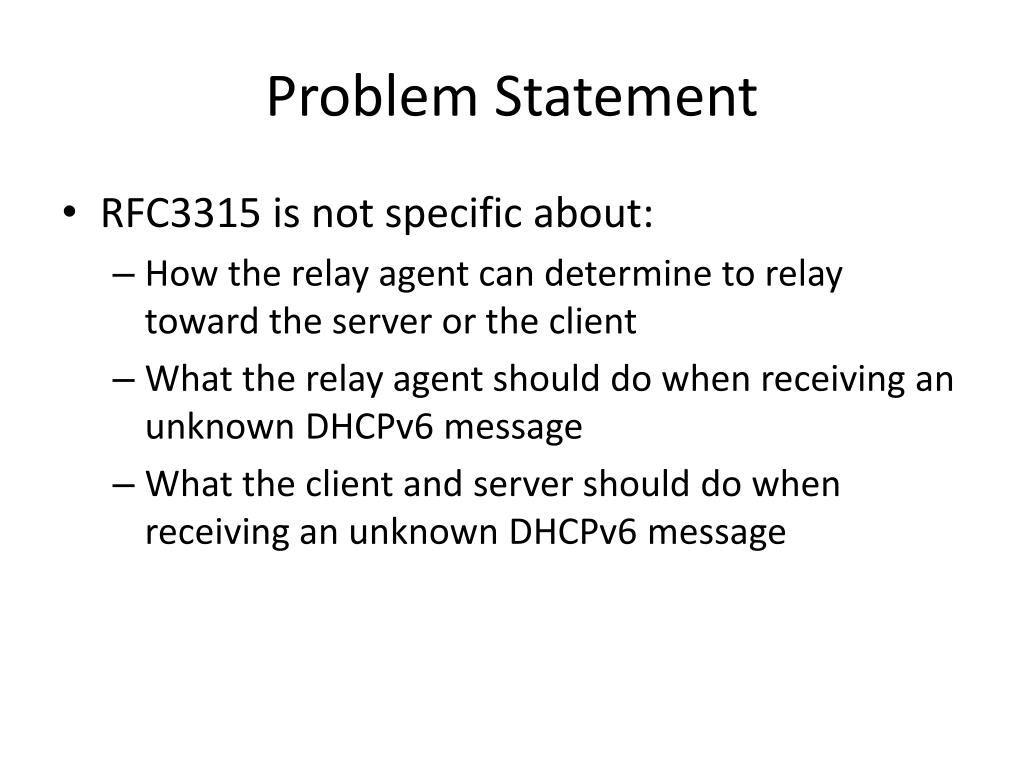

  2. Problem Statement • RFC3315 is not specific about: • How the relay agent can determine to relay toward the server or the client • What the relay agent should do when receiving an unknown DHCPv6 message • What the client and server should do when receiving an unknown DHCPv6 message

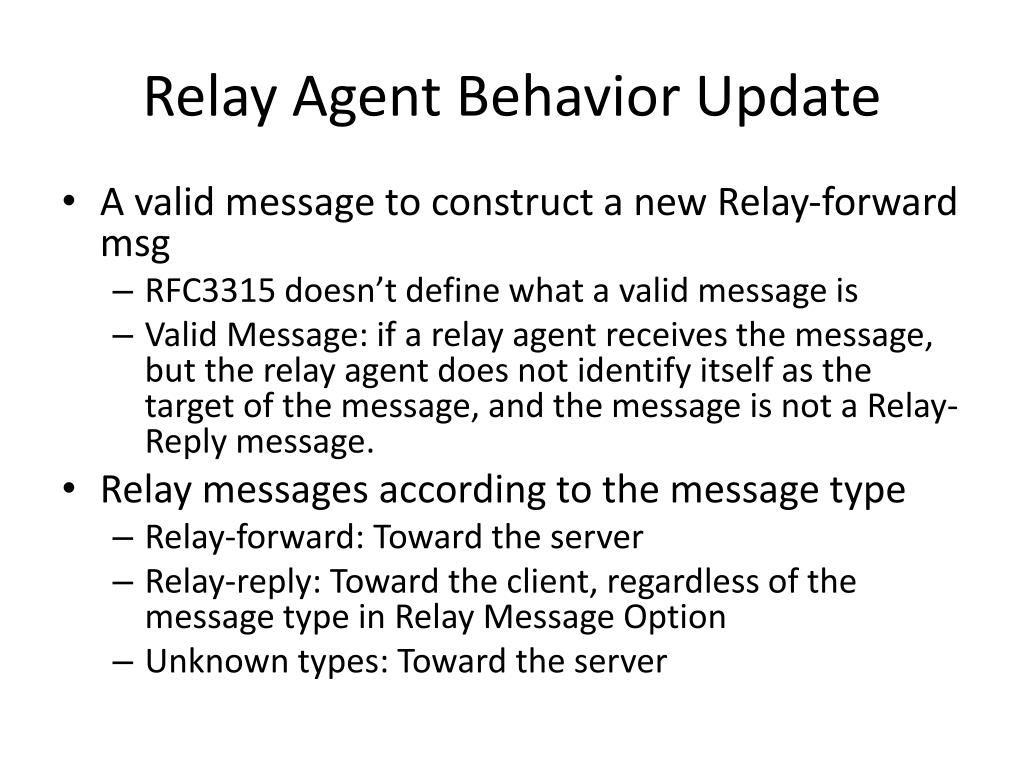

  3. Relay Agent Behavior Update • A valid message to construct a new Relay-forward msg • RFC3315 doesn’t define what a valid message is • Valid Message: if a relay agent receives the message, but the relay agent does not identify itself as the target of the message, and the message is not a Relay-Reply message. • Relay messages according to the message type • Relay-forward: Toward the server • Relay-reply: Toward the client, regardless of the message type in Relay Message Option • Unknown types: Toward the server

  4. Reasons for Definition of a Valid Message • Any message received by a client or server is clearly not a candidate for forwarding. • Any message received by the relay in response to a message it has sent to the server-e.g., a RECONFIGURE-REPLY message-is also not a candidate for forwarding. • A standards-compliant DHCP server will never send a message to a relay other than in response to a message from a relay, so there should never be a case where a relay receives a message for which it is the intended recipient, but is not able to recognize that it is the intended recipient for the message. • A Relay-Reply message is an encapsulation intended for the client or for a relay agent closer to the client. It specifies a destination, and hence is never to be encapsulated and sent back to the server.

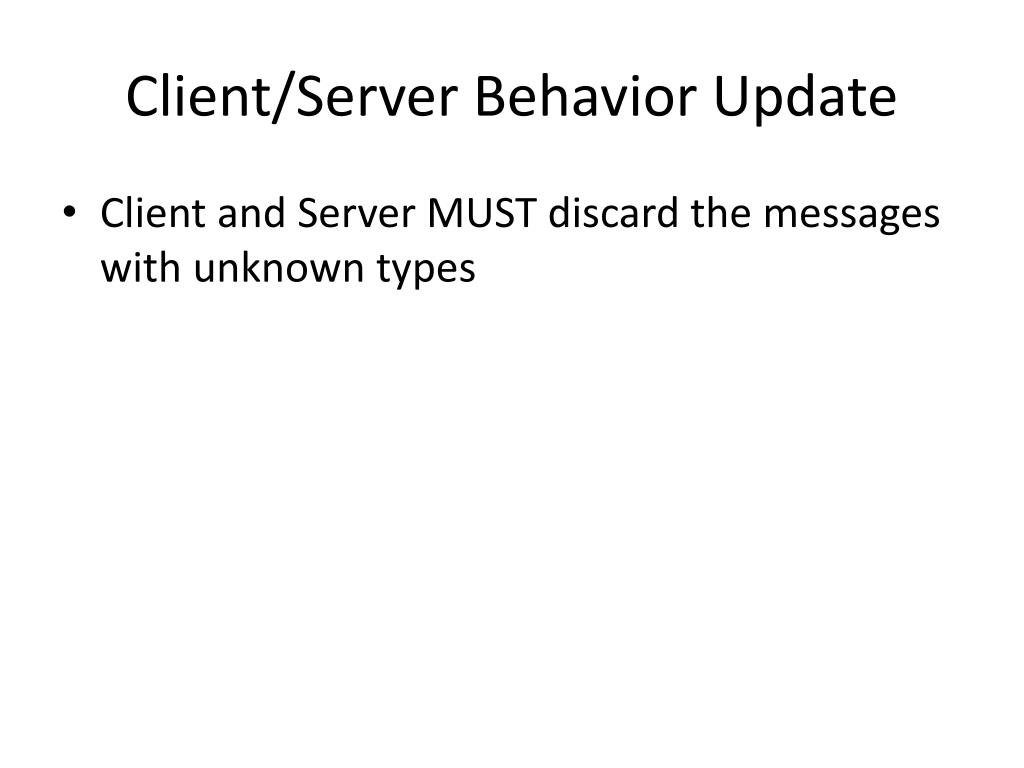

  5. Client/Server Behavior Update • Client and Server MUST discard the messages with unknown types

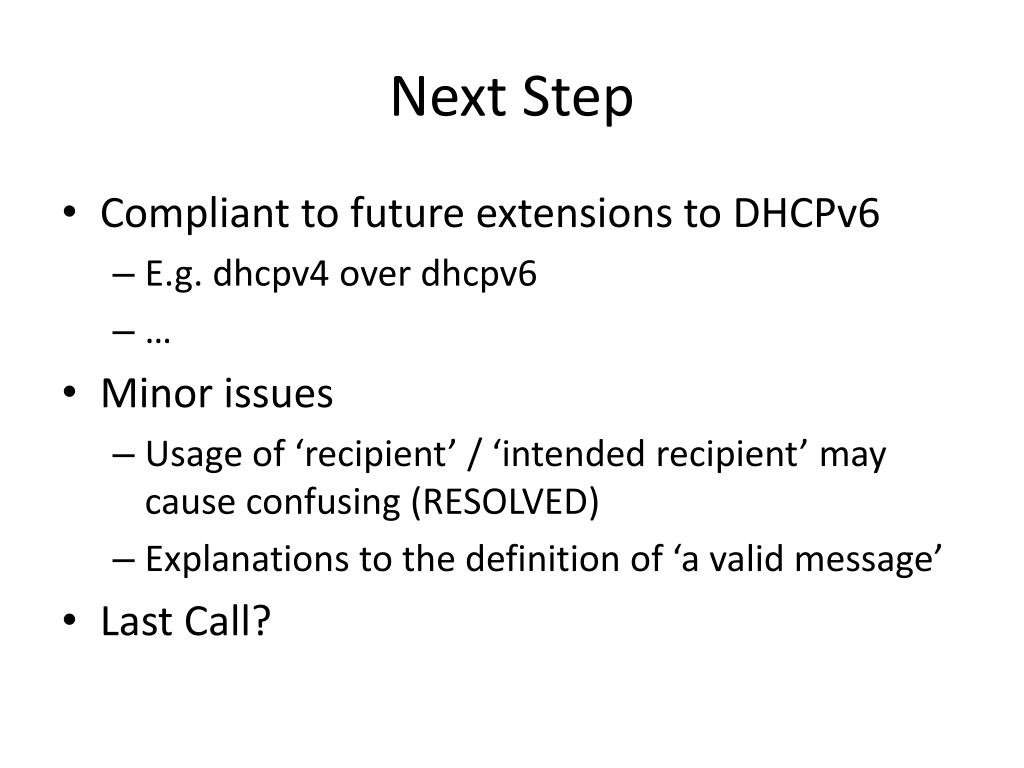

  6. Next Step • Compliant to future extensions to DHCPv6 • E.g. dhcpv4 over dhcpv6 • … • Minor issues • Usage of ‘recipient’ / ‘intended recipient’ may cause confusing (RESOLVED) • Explanations to the definition of ‘a valid message’ • Last Call?
