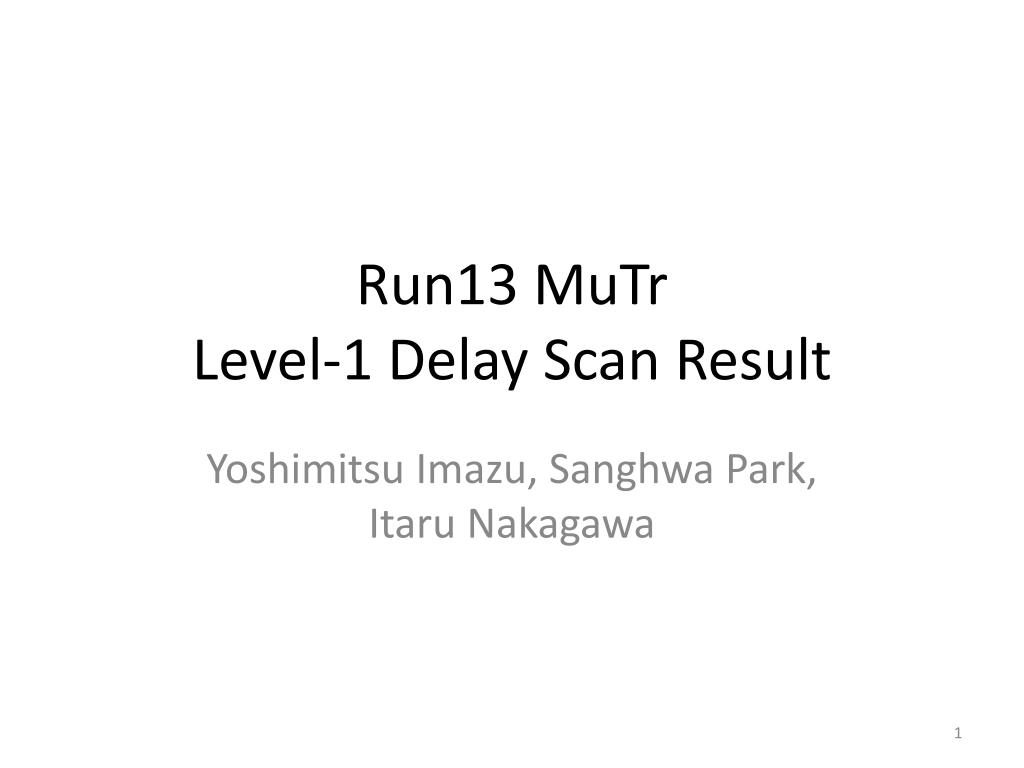

  1. Run13 MuTrLevel-1 Delay Scan Result YoshimitsuImazu, Sanghwa Park, Itaru Nakagawa

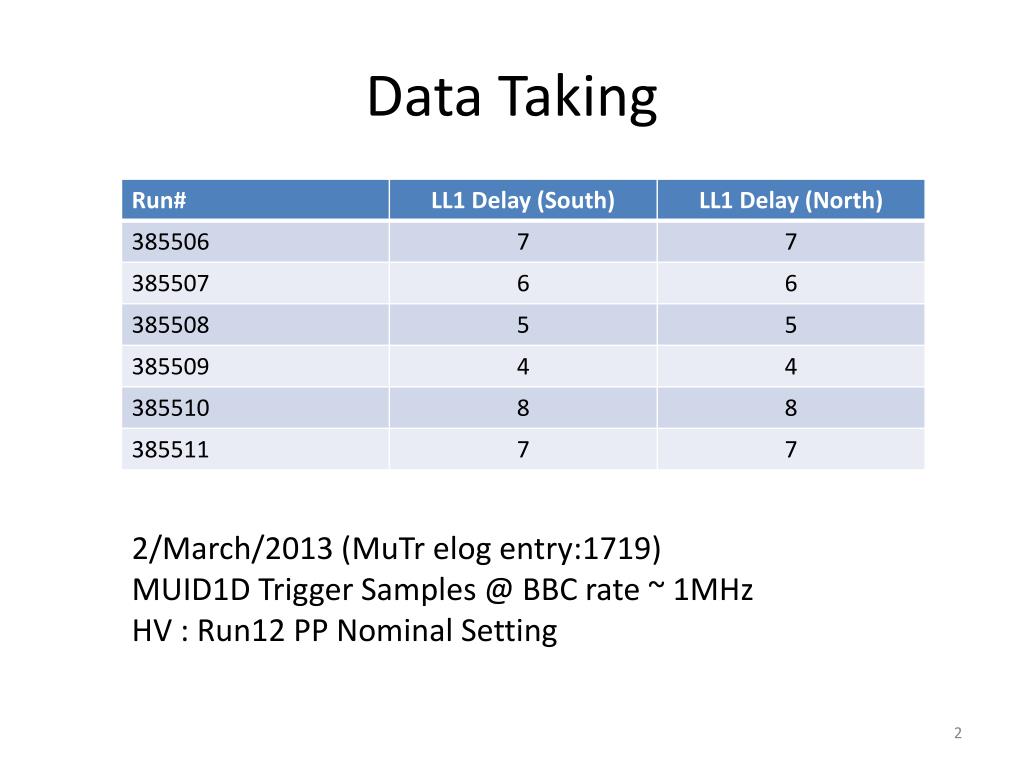

  2. Data Taking 2/March/2013 (MuTrelog entry:1719) MUID1D Trigger Samples @ BBC rate ~ 1MHz HV : Run12 PP Nominal Setting

  3. Contents • Distributions* • (ADC[2]-ADC[0])/ADC[2] • Cluster Size Distribution • PkW Distribution • Hit Samples from • Track Associated • Gap Correlated Hits (Less biased samples) * Plots are summed over all octants. Also MuTrg-FEE installed (non-stereo except for St-2, Gap-2) planes and MuTrg-FEE not installed (stereo + St-2, Gap-2) planes are summed separately. Performance is mostly driven by the timing difference between MuTrg-FEE installed and non-installed planes. See Page 21-27 for individual plane comparison.

  4. MuTrig-FEE Installed Planes MuTR Non-Stereo Gaps St1 St2 St3 No MuTRG-FEE MuTr Planes S: Stereo Plane, NS:Non-Stereo Plane

  5. Reference from Run7 (before MuTrg-FEE Install) Cluster size

  6. Level-1 Delay History

  7. Somewhat Biased Samples Track Associated Samples

  8. South (ADC[2]-ADC[0])/ADC[2] MuTrig-FEE Installed Planes Sum MuTrig-FEE not Installed Planes Sum

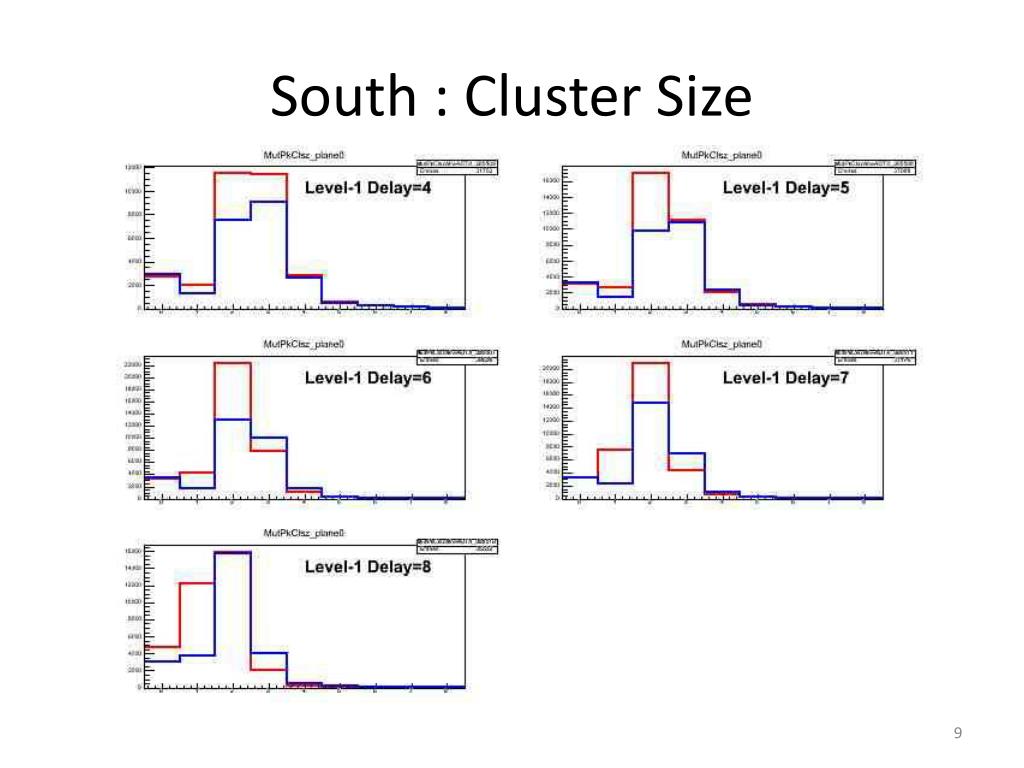

  9. South : Cluster Size

  10. South : PkW (xfit)

  11. North (ADC[2]-ADC[0])/ADC[2]

  12. North : Cluster Size

  13. North: PkW Distribution

  14. Less Biased Samples Gap Correlated Samples

  15. South : (ADC[2]-ADC[0])/ADC[2]

  16. South : Cluster Size

  17. South : PkW (xfit) Distribution

  18. North : (ADC[2]-ADC[0])/ADC[2]

  19. North : Cluster Size

  20. North : PkW (xfit)

  21. Conclusion Best Level-1 Delay • Consistent between 2 (Track Associated & Gap Correlated hits) samples. • The sweet spot differ by 1Bclk between planes with and without MuTrg-FEE planes. • The sweet spot exists between 5 and 6 for MuTrg-FEE installed planes whereas 6 -7 for non-installed planes for South. Level-1 delay=6 seems a good choice to make both planes happy. • There is no common sweet spot for the North case. Given the requirement of better momentum resolution, I prefer Level-1 delay=6 to obtain the best performance in non-stereo planes. • No significant difference in performances between North and South unlike Run11/12. Thanks to Yoshimitsu and Mike Leitch to fix pedestal offset issue.

  22. Level-1 Delay=6 Plane by Plane Perfomance(octants are summed over)

  23. South : (ADC[2]-ADC[0])/ADC[2] St-1 Gap-2 St-1 Gap-3 St-1 Gap-1 Plane-0 Plane-1 St-2 Gap-1 St-2 Gap-2 St-2 Gap-3 (no MuTrg-FEE installed) in this gap St-3 Gap-1 St-3 Gap-2 w/MuTrg-FEE Plane Sum w/o MuTrg-FEE Plane Sum Level-1 Delay=6

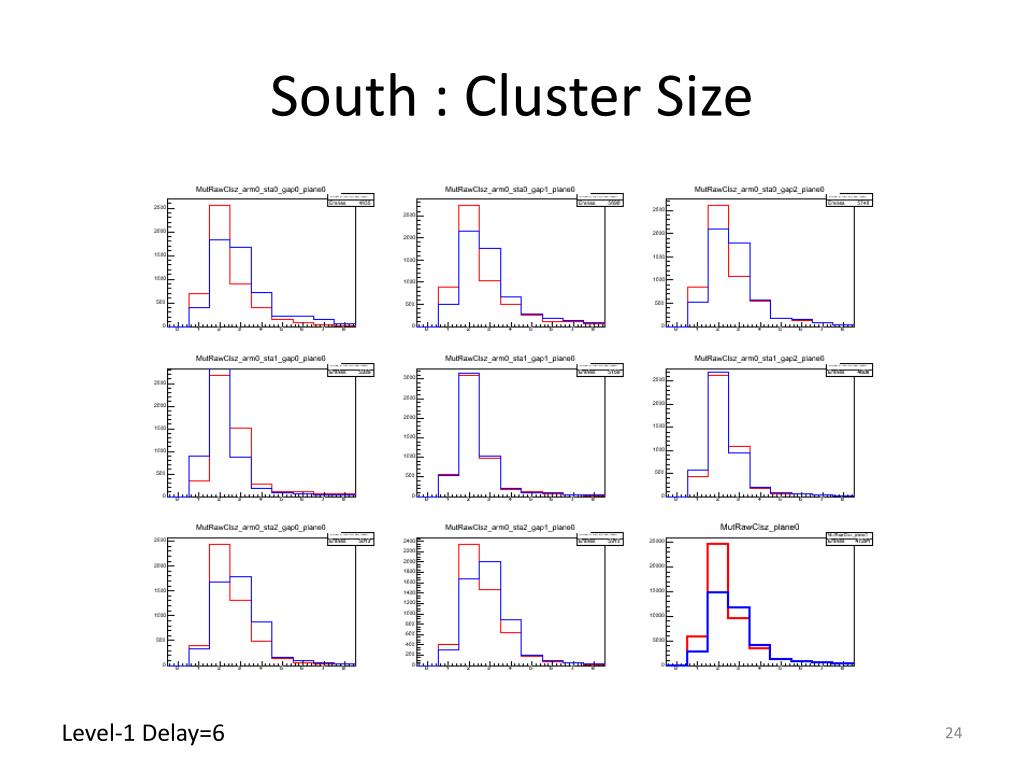

  24. South : Cluster Size Level-1 Delay=6

  25. South : PkW (Xfit) Level-1 delay=6 The performance difference between planes are relatively minor. Primary characteristics are featured by the existence of MuTrg-FEE.

  26. North :(ADC[2]-ADC[0])/ADC[2]

  27. North : Cluster Size Level-1 Delay=6

  28. North : PkW (Xfit) Level-1 delay=6
