Quantum Phenomena II: Revision

Quantum Phenomena II: Revision. Hydrogen atom Quantum numbers Electron intrinsic spin Other atoms More electrons! Pauli Exclusion Principle Periodic Table. Atomic Structure. Fundamental Physics. Particle Physics The fundamental particles The fundamental forces Cosmology The big bang

rafiki
Télécharger la présentation

Quantum Phenomena II: Revision

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Quantum Phenomena II:Revision • Hydrogen atom • Quantum numbers • Electron intrinsic spin • Other atoms • More electrons! • Pauli Exclusion Principle • Periodic Table Atomic Structure Fundamental Physics • Particle Physics • The fundamental particles • The fundamental forces • Cosmology • The big bang • The evolution of the universe http://ppewww.ph.gla.ac.uk/~parkes/teaching/QP/QP.html Chris Parkes April/May 2003

  2. Quantum Numbers • Atom can only be in a discrete set of states n,l,m • Diff. From classical picture with any orbit • Principle n fixes energy - quantized • Integer >=1 • l fixes angular momentum L • Integer in range 0 to n-1 • m (or ml ) fixes z component of angular momentum • Integer in range –l to +l

  3. Total Angular momentum • Orbital angular momentum L, e orbiting nucleus • L2=l(l+1)h • Quantum number l • notation l=spdfg…., l=0,1,2,3,4… • lhas z-component ml, (-l….+l) • Interacts with magnetic field, U=mlBB • Zeeman effect gives splitting of states • Spin s=1/2, intrinsic property of electron • Has ms =-1/2, +1/2 • So splits an l state into two • Total Angular Momentum J • Sum of orbital and spin • Anomalous Zeeman effect / Stern-Gerlach Expt

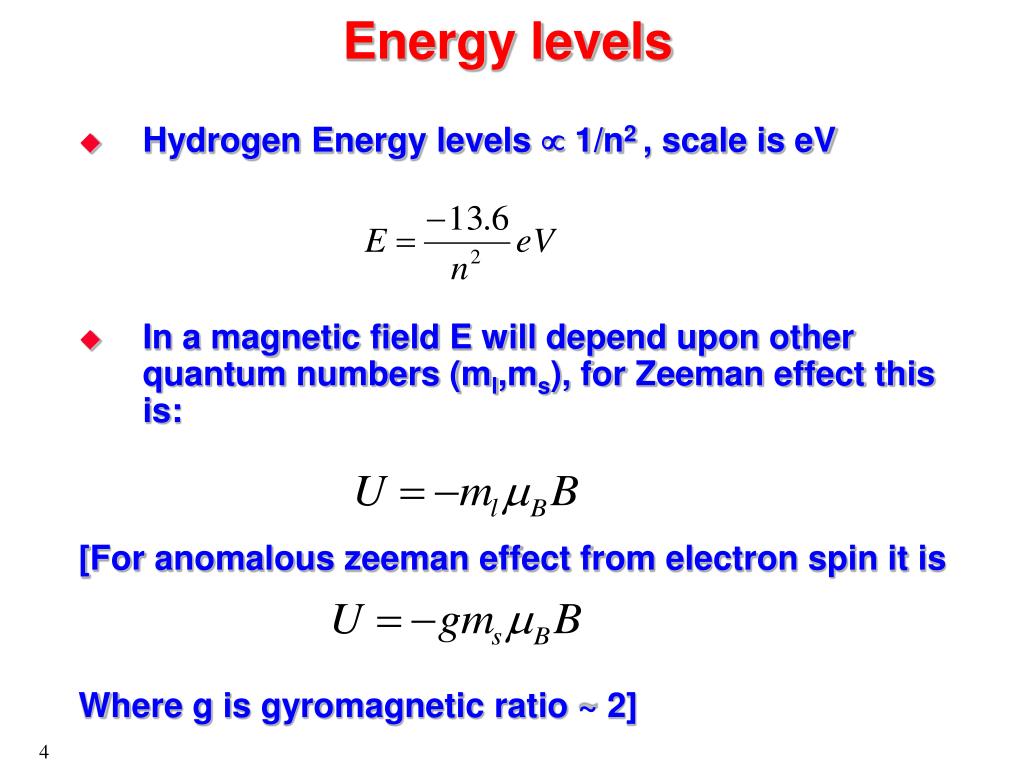

  4. Energy levels • Hydrogen Energy levels  1/n2 , scale is eV • In a magnetic field E will depend upon other quantum numbers (ml,ms), for Zeeman effect this is: [For anomalous zeeman effect from electron spin it is Where g is gyromagnetic ratio ~ 2]

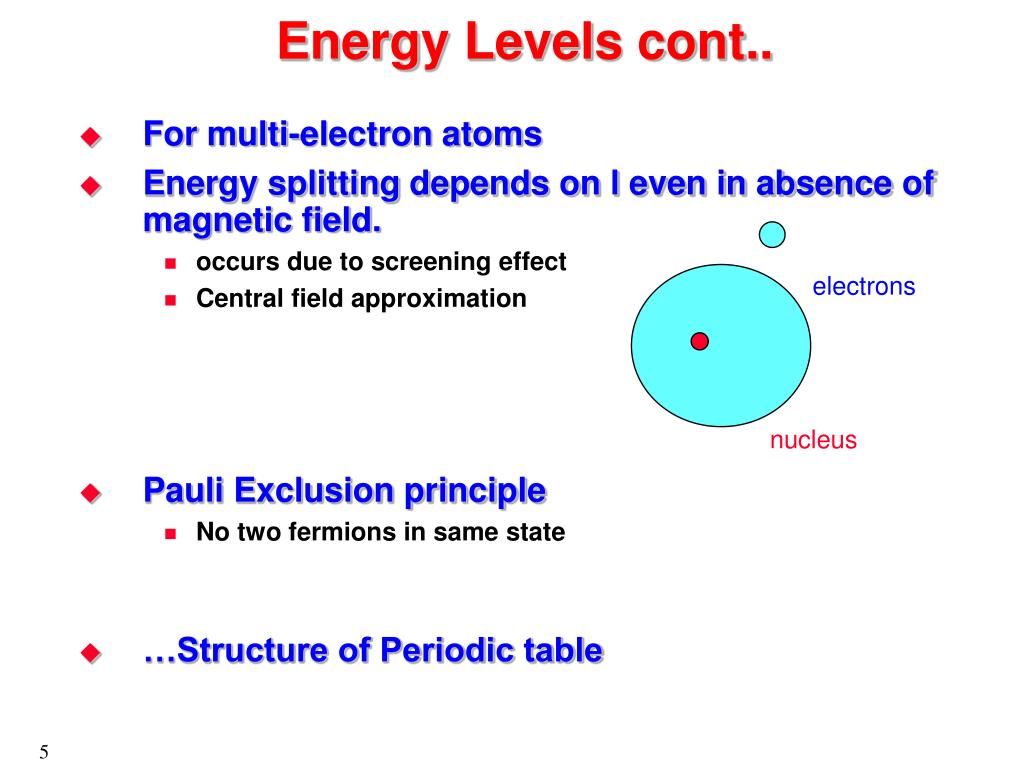

  5. Energy Levels cont.. electrons nucleus • For multi-electron atoms • Energy splitting depends on l even in absence of magnetic field. • occurs due to screening effect • Central field approximation • Pauli Exclusion principle • No two fermions in same state • …Structure of Periodic table

  6. Particle Physics • Forces are due to exchange of the fundamental force carrying bosons • Photon,gluon,W+,W-,Zo (and presumably graviton) • Know the fundamental particles • Three generations of quarks and leptons • Don’t observe free quarks • Confined in colourless hadrons • Added some more conservation laws • Energy, momentum, electric charge • Baryon number, lepton number • Particle interactions can be written as Feynman diagrams • Know the basic vertices, and conservation laws to see whether or not a reaction will occur.

  7. Particle interactions • Some basic standard model vertices:

  8. The Big Bang • Evidence for the Big Bang • It is dark at night! See Olbers Paradox • Universe expanding • Cosmic microwave background • Relative abundance of elements in universe • Universe Expanding – Hubble’s law • Hence universe ~ 15 billion years old v = H x d, Velocity Hubble const. distance

  9. Evolution of the universe • Controlled by Quantum Phenomena • Early stages dominated by basic particle physics • Later stages by gravitational effects • Starts at high temp., high density • Cools down and expands…. • Key stages • Separation of forces into the four basic forces • Formation of nuclei • Formation of atoms • Microwave background radiation, remnant photons from when atoms formed • Then gravitation dominates and stars and galaxies form
